Speedometer reading fast 10+mph

MTB-BRUH

Well-Known Member
First Name
Tyler
Joined
May 16, 2019
Threads
27
Messages
667
Reaction score
1,389
Location
Shingletown CA
Vehicle(s)
2019 Ranger Base
Occupation
Shop Manager
Drove to work today and thought wow I’m flying down the road. Sure enough I came to a stop and my speedometer says I’m going about 11 mph. The digital speedometer is accurate at least. I didn’t know these used a speedometer cable. I’m assuming it jumped a tooth or something

Sponsored


OP
OP
MTB-BRUH

MTB-BRUH

Well-Known Member
First Name
Tyler
Joined
May 16, 2019
Threads
27
Messages
667
Reaction score
1,389
Location
Shingletown CA
Vehicle(s)
2019 Ranger Base
Occupation
Shop Manager
Update.. left work today and now it’s fine. What the heck!?! lol dealer is gonna look at it Friday just in case


P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
141
Messages
7,012
Reaction score
36,169
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
Update.. left work today and now it’s fine. What the heck!?! lol dealer is gonna look at it Friday just in case
Hi Tyler,

We got rid of cables way back in 1985. We at the time a speed sensor that had a driven gear on it in the side of the tranmission that fed a signal to the speedo on the dash. Called a VSS.

Back Story,

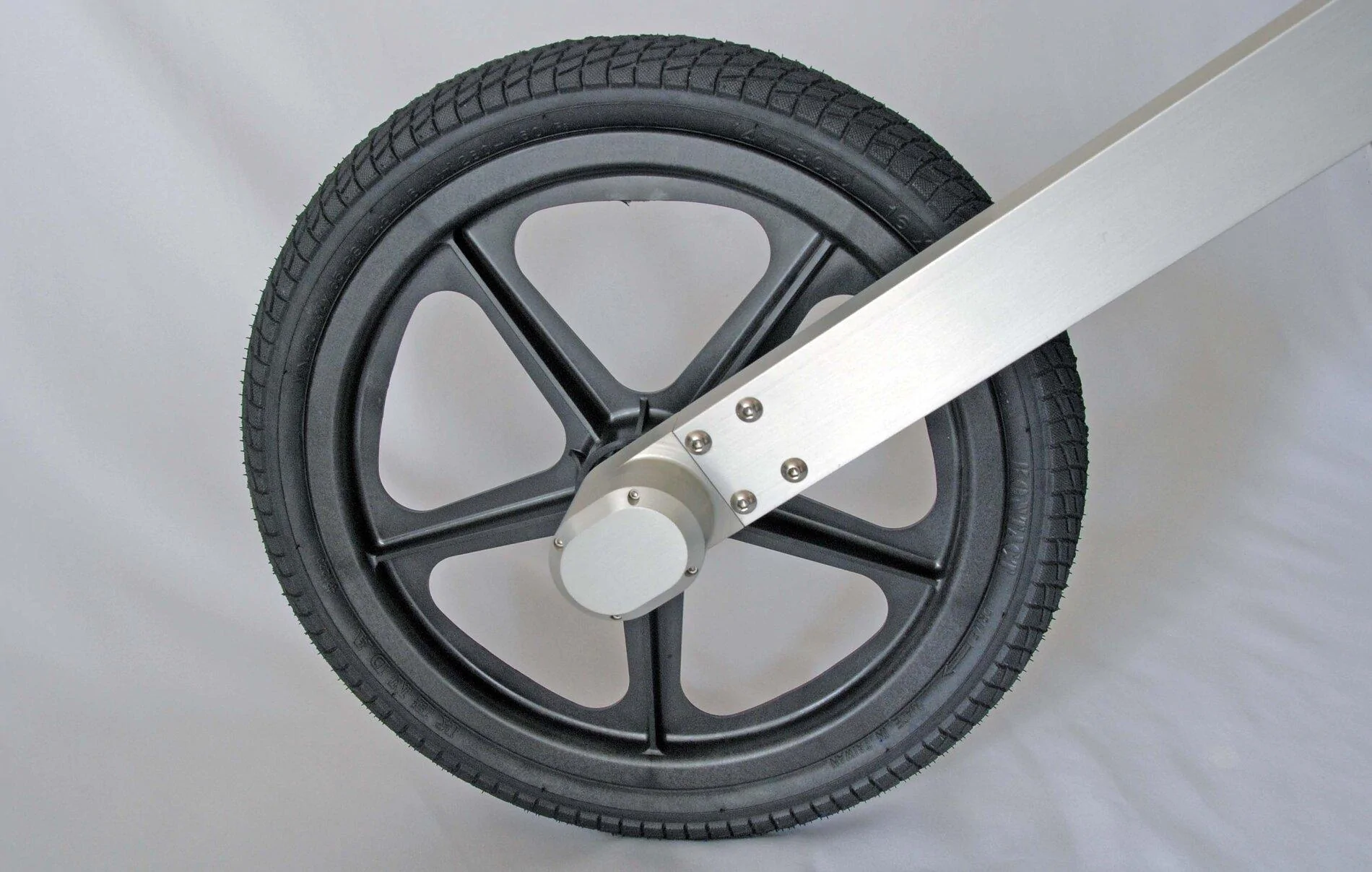

Speedo errors were common on prototypes when the speedo was cable driven. Gears did not match the axle etc...they were so unreliable....Remember when you saw the fifth wheels on picutres of test vehicles....all the 5th wheels did was provide exact speed. We used to get a protortype with a cheater card taped to the dash... a list of indicated speeds relative to the actual speed...except it was unknow if the axle had been changed for example. The solution at the time was a measured mile at the test track. We drove the low speed track at an indicated 60 mph and hacked our stop watch and drove the mile and rehacked....If 1 minute...speedo correct, if not we back calculated what speedo gear we needed and delved in to the box of colored coded speedo gears for the closest one to correct. I recall the lowest gear teeth was 5 and the highest was 21 for the driven gear. Drive gears in the trans were 6, 7, or 8...and we had no clue how to determine what the prototype build transmission folks put in to the transmission. Vehicle speeds in that day were quite a PITA. Things are much better these days. And when is the last time you saw a 5th wheel.

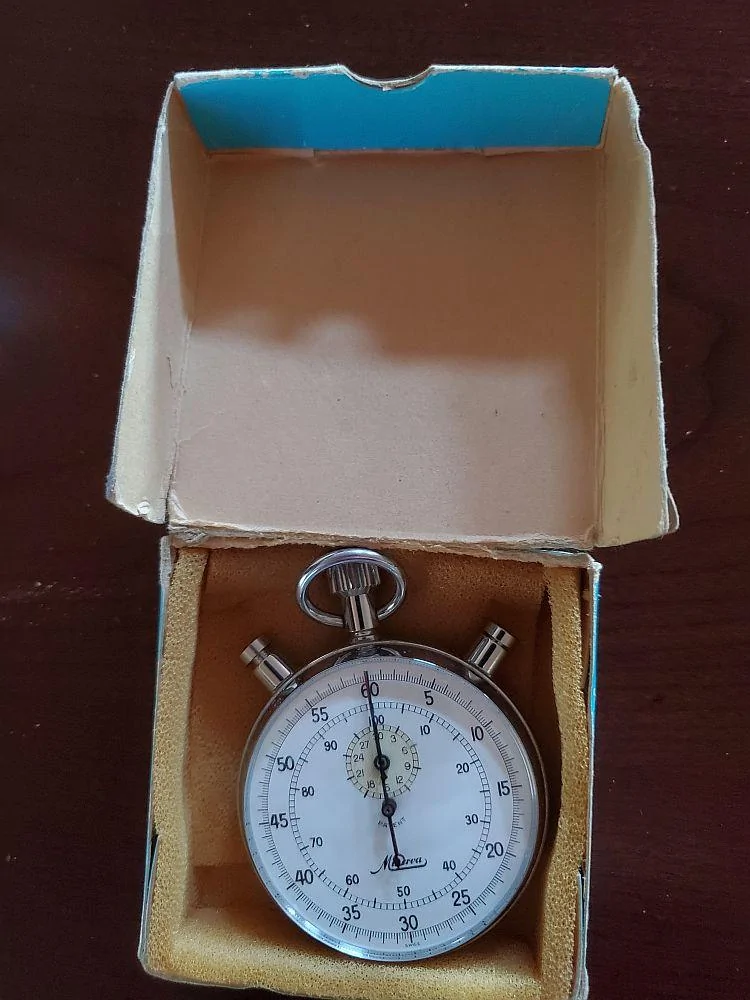

Here is a couple pix of my Ford Issued Swiss stop watch which is now a antique and quite amazingly valuable... It got a lot of use....
