Rough County Install... popped out CV half shaft?

ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Messages
142
Reaction score
197
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1

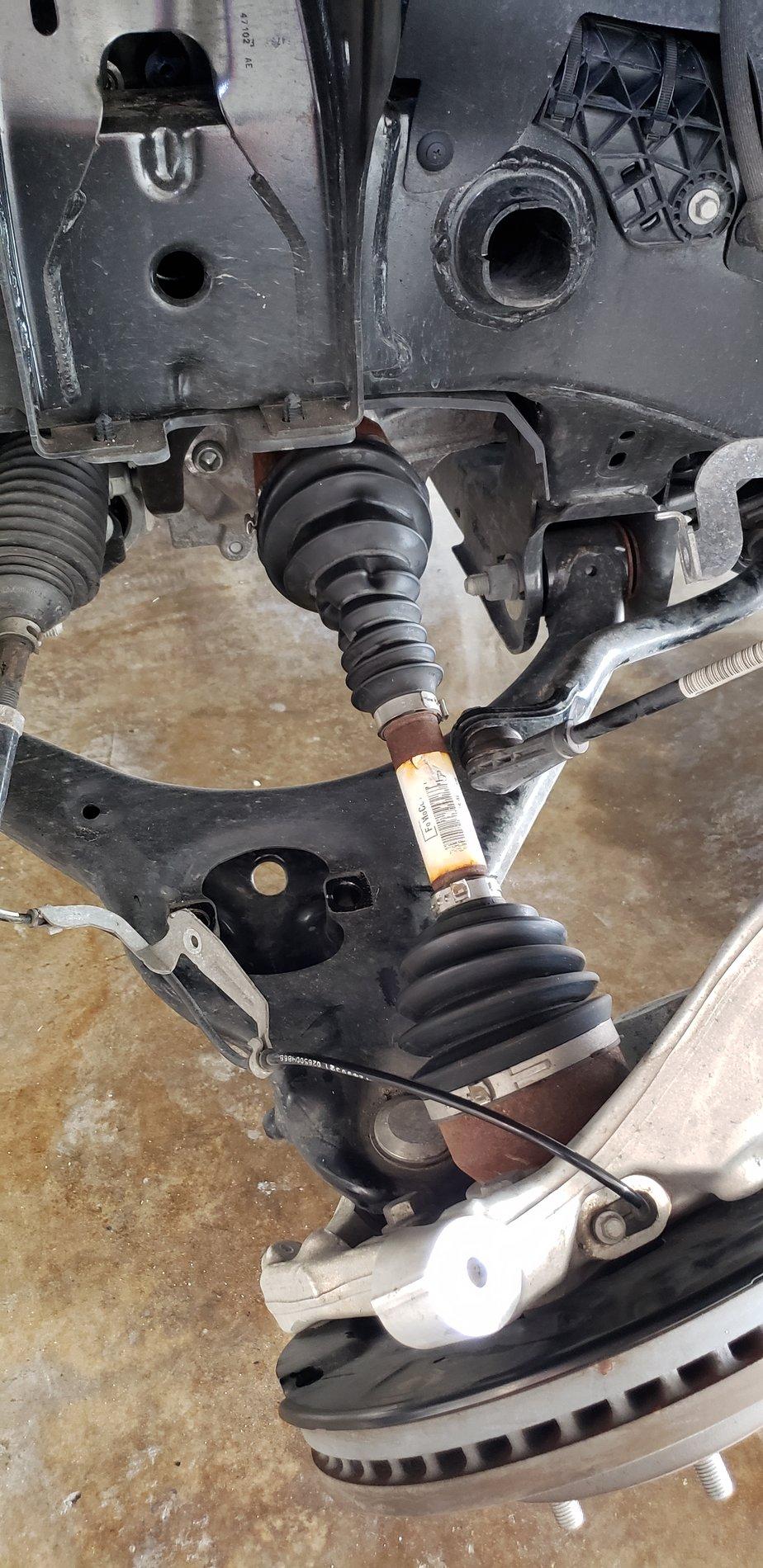

Any help? I think the bearing on the inner half shaft popped out!




Advertisement



OP
ISUACE

ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Messages
142
Reaction score
197
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #2
Is it possible to pop it back in place?

OP
ISUACE

ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Messages
142
Reaction score
197
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #3
Ok so I got it popped back in.. had to rotate it a bit and use my other jack as some support

OP
ISUACE

ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Messages
142
Reaction score
197
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #4

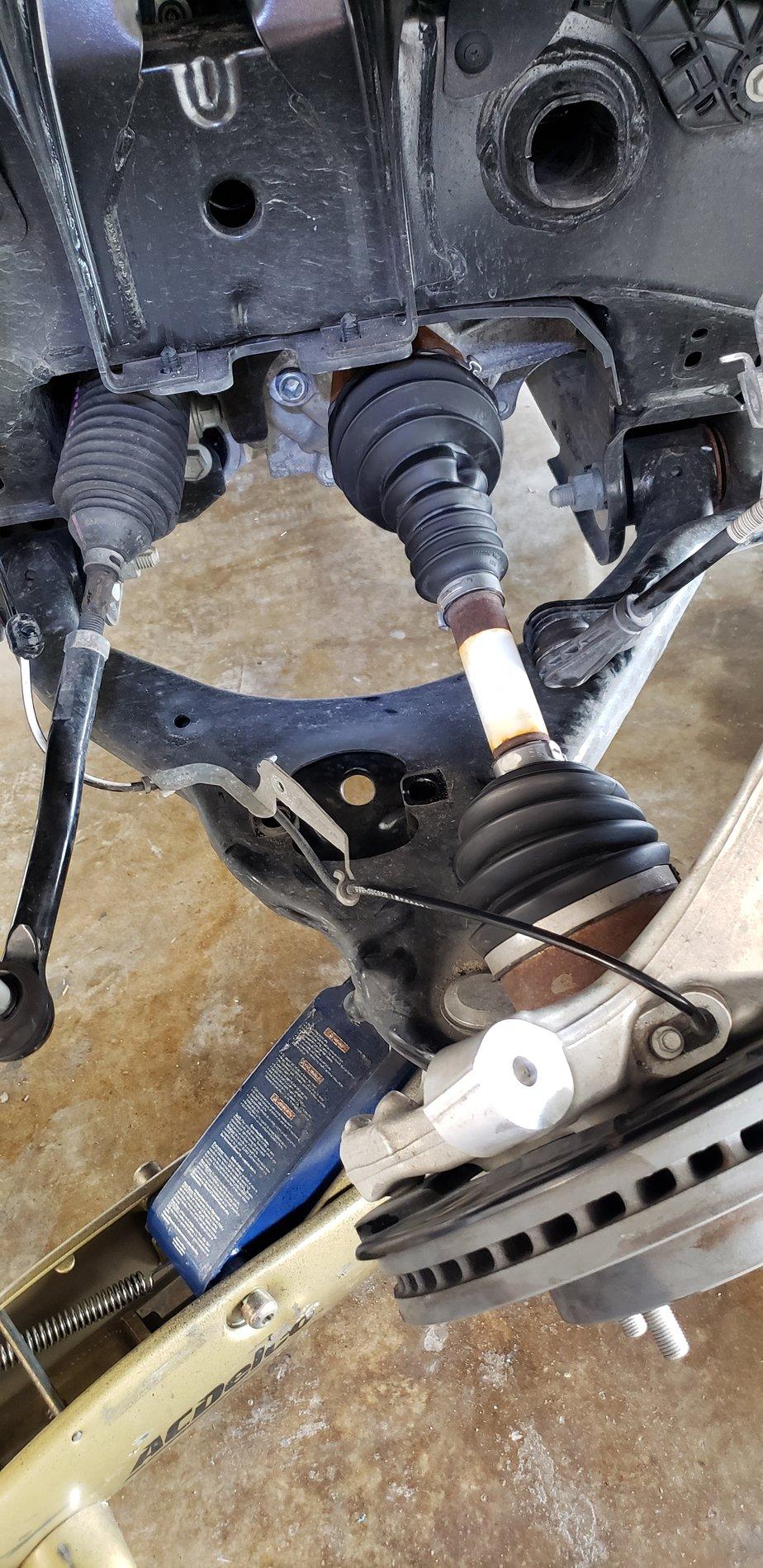

Here is the pic



apotocki

Well-Known Member
First Name
Alan
Joined
Dec 10, 2019
Messages
123
Reaction score
195
Location
Rochester Hills, Michigan
Vehicle(s)
2019 Ranger XLT
Ok so I got it popped back in.. had to rotate it a bit and use my other jack as some support
Glad you got it back in. Seems to be a common issue - even with being careful my drivers side pulled out.
Where’s the after pictures of the truck?


808matt

Well-Known Member
First Name
Matt
Joined
Apr 16, 2019
Messages
179
Reaction score
190
Location
Hawaii
Vehicle(s)
2019 Ranger FX4 Sport Package, 2015 f450 Bucket Truck
Lol, seems you got it back in, in less than 10 min


Duke Silver

New Member
Joined
Jun 21, 2019
Messages
2
Reaction score
2
Location
Maryland
Vehicle(s)
2019 Ranger Lariat
I hope none of the ball bearings fell out of the CV joint and into the boot! That's what mine did. Had to pull it apart and rebuild it.


Dhass68

Member
First Name
Dan
Joined
Apr 26, 2020
Messages
22
Reaction score
40
Location
kelowna
Vehicle(s)
2020 Ranger XLT
Occupation
Automotive Tech
I do several leveling kits and lifts on trucks every month for my job, I know this is hindsight now, but for anybody else reading this thread take the large nut off the end of the axle first and push the axle through the hub so it will slide out when you remove the upper control arm from the steering knuckle


commbubba19

Active Member
Joined
Nov 18, 2019
Messages
37
Reaction score
10
Location
Omaha
Vehicle(s)
2019 Edge ST / 2020 Ranger XLT FX4
Occupation
Network Engineer
I do several leveling kits and lifts on trucks every month for my job, I know this is hindsight now, but for anybody else reading this thread take the large nut off the end of the axle first and push the axle through the hub so it will slide out when you remove the upper control arm from the steering knuckle
Does it slide out or does it need to be pushed out of the knuckle? I read somewhere that it's press fit into the knuckle.
