Redarc Dash Install - Plunge Cutting and - Oh the Horror

AZ_Stryd3r

Active Member
First Name
Mik
Joined
Mar 24, 2022
Threads
6
Messages
25
Reaction score
48
Location
Chandler, AZ
Vehicle(s)
2021 Ranger XTL FX4
Not for the feint of heart - but I think it turned out well.

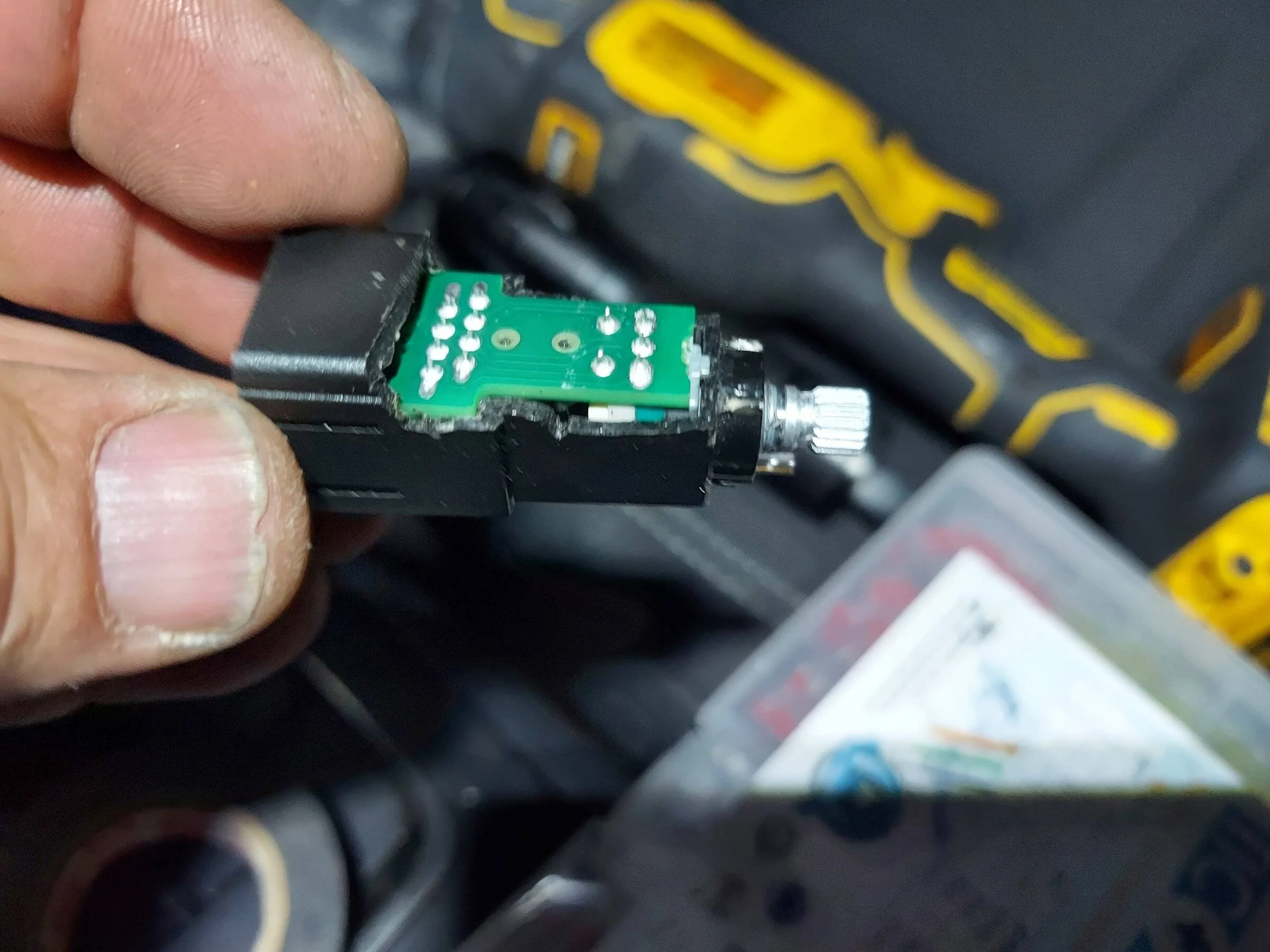

Start with cutting the switch case and trim the round part that holds the rotary dial:

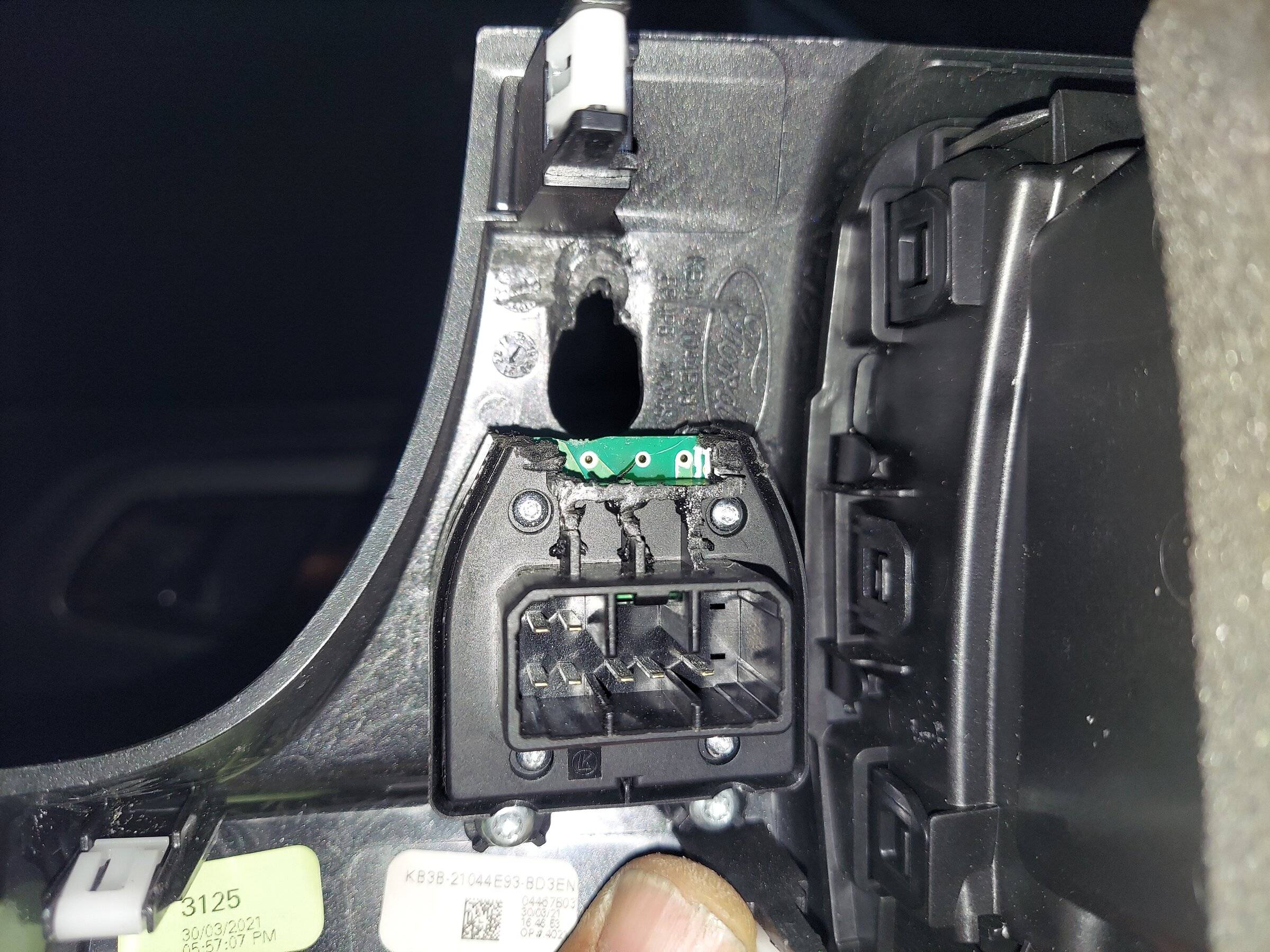

Remove and cut up the mirror switch above the pc board and the screw blank in the facia above - only works if you do NOT have the mirror fold in option:

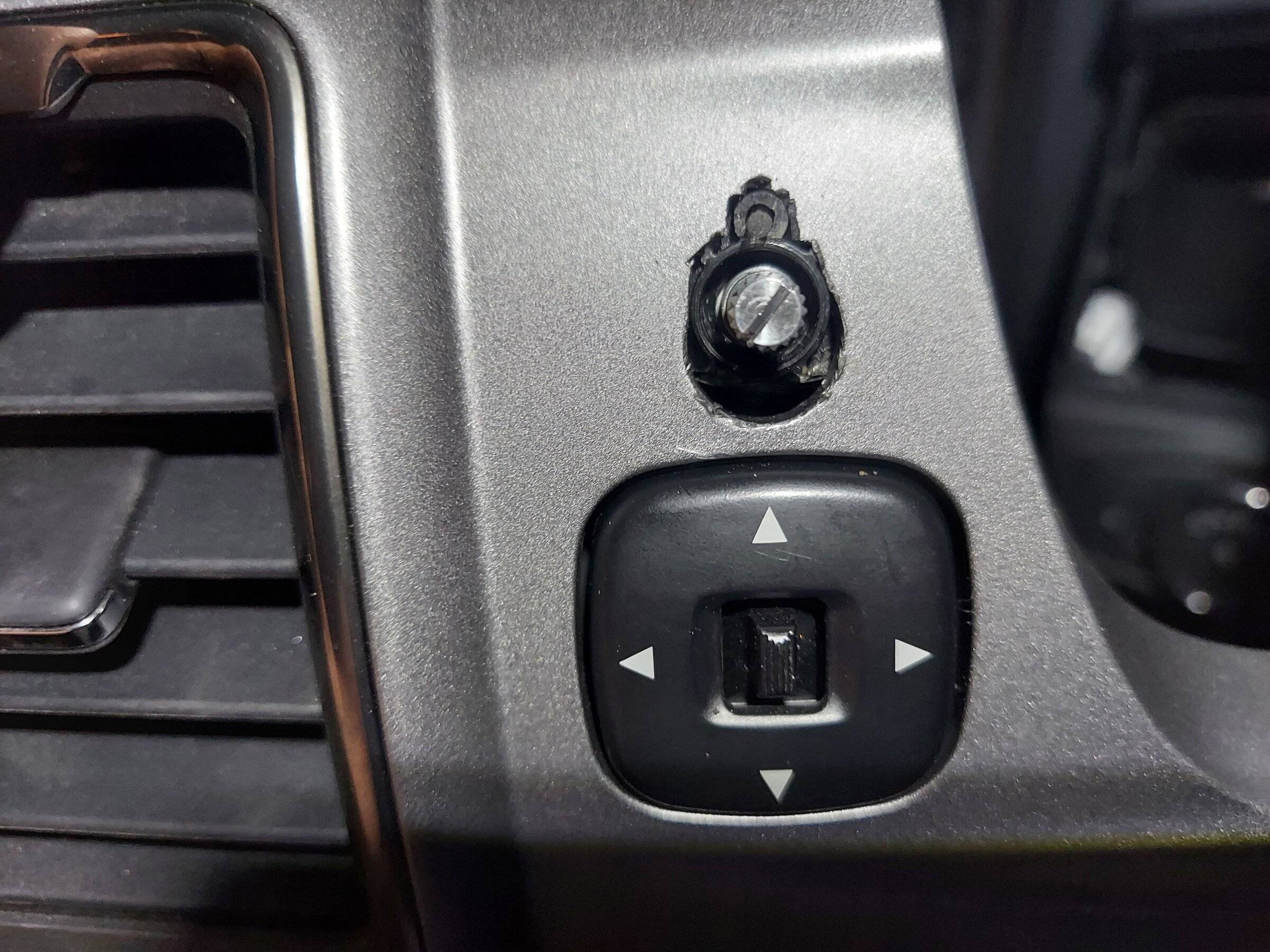

Drill, file, carve out the switch hole- and hack out a bit for the light:

**Removal Note - Start with the facia removal on the Right. There are a couple of those plastic clips ford engineers fell in love with, and 2 tabs on the left that release as you swing the facia towards the door.

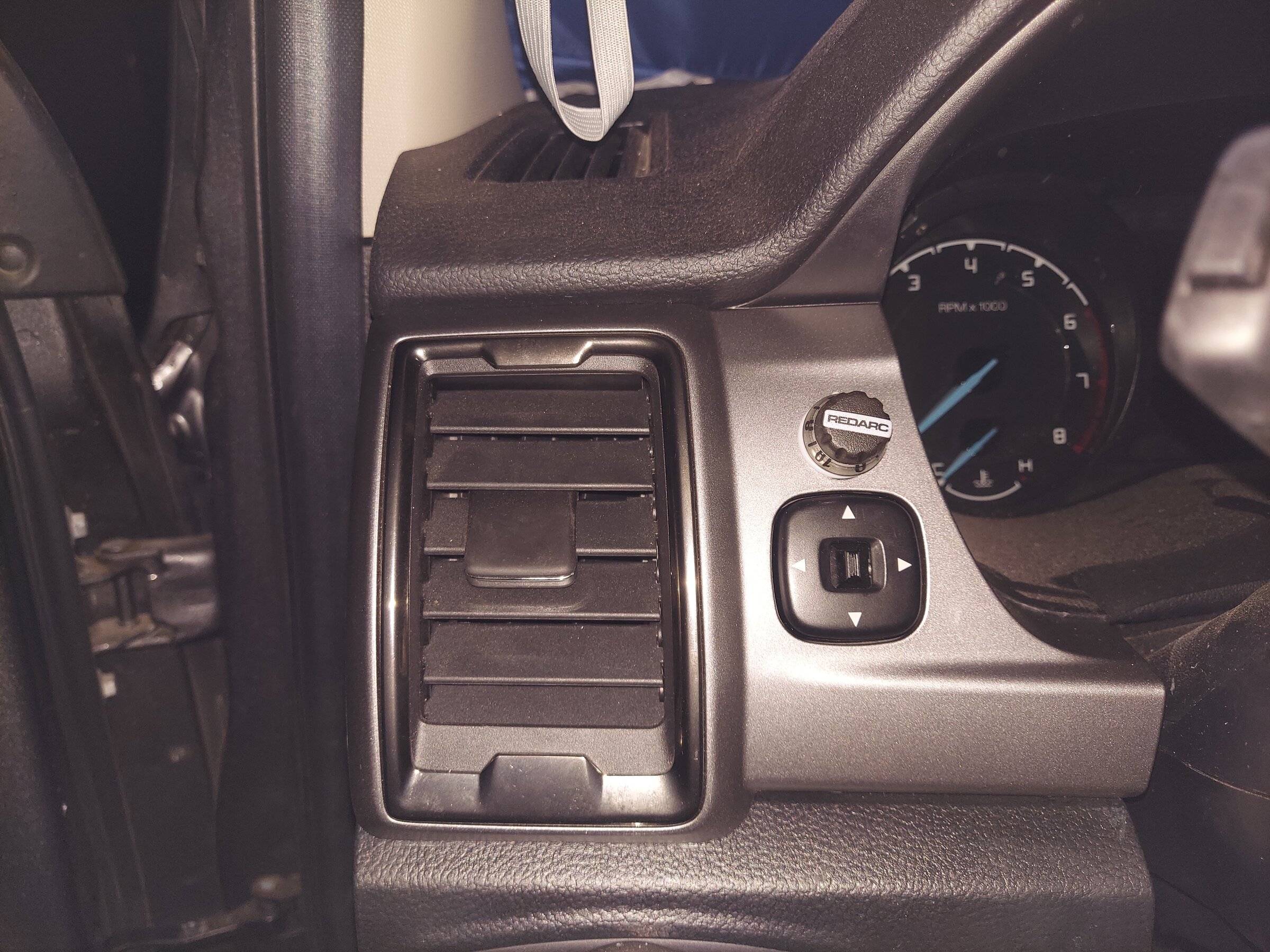

Could have been a bit cleaner. Cut a bit, test fit. Cut a bit more, test fit... etc..
Sponsored


Last edited:
OP
OP
AZ_Stryd3r

AZ_Stryd3r

Active Member
First Name
Mik
Joined
Mar 24, 2022
Threads
6
Messages
25
Reaction score
48
Location
Chandler, AZ
Vehicle(s)
2021 Ranger XTL FX4
Brake controller. I have a 26' sailboat that tips in at 7k so getting it going is fine, but stopping is pretty important. The boat actually slows down the truck with the elec/pneumatic disks on both axles.


Peragrin

Well-Known Member
First Name
David
Joined
Sep 16, 2021
Threads
2
Messages
378
Reaction score
974
Location
Fitzwilliam NH
Vehicle(s)
2021 Ford Ranger
Occupation
Purchasing
The end result looks like a clean install.
Pardon the ignorance, but what is that switch for?
Lariet power fold button. how anyone can see it to press it is beyond me. I have to use the mirror adjusts by feel.



Chris M

Well-Known Member
First Name
Chris
Joined
Jun 11, 2020
Threads
11
Messages
2,629
Reaction score
10,818
Location
Phoenix, AZ
Vehicle(s)
2020 Ranger XLT Sport 4X4
Occupation
Security Supervisor
Lariet power fold button. how anyone can see it to press it is beyond me. I have to use the mirror adjusts by feel.
XLT Sport with 302A have them too. Might be other iterations with the power fold...and you're right. Really poorly placed in my opinion.
But I'm danged glad to have them anyway :)


MikeyB

Well-Known Member
First Name
Mike
Joined
Mar 13, 2022
Threads
5
Messages
189
Reaction score
719
Location
NYC
Vehicle(s)
2021 Ford Ranger
Occupation
Retired
Lariet power fold button. how anyone can see it to press it is beyond me. I have to use the mirror adjusts by feel.
No I was talking about the OP install on his dash. I got the power mirror button on my Lariat. In the beginning it took getting used to. Now I know exactly where to feel for it


Big Blue

Well-Known Member
First Name
Lee
Joined
May 5, 2020
Threads
14
Messages
3,124
Reaction score
6,971
Location
Wisconsin
Vehicle(s)
2019 Ford Ranger XLT FX4 Supercrew lighting blue
Occupation
Retired mechanical designer
Way more cutting and hacking on things than I would do. Personally I like mine down where the left 12 volt socket is/was. Really blocked by the steering wheel up there. Bad enough finding the mirror controls, much less the brake controller. To each his own I guess.

  • Like
Reactions: EJH
OP
OP
AZ_Stryd3r

AZ_Stryd3r

Active Member
First Name
Mik
Joined
Mar 24, 2022
Threads
6
Messages
25
Reaction score
48
Location
Chandler, AZ
Vehicle(s)
2021 Ranger XTL FX4
Mine was just a chunk of plastic formed to fit the hole. I did not have the fold button.


OHTREMOR

Well-Known Member
Joined
Dec 18, 2021
Threads
14
Messages
240
Reaction score
926
Location
Ohio
Vehicle(s)
2021 Ranger Tremor
Vehicle Showcase
1
Not for the feint of heart - but I think it turned out well.



Start with cutting the switch case and trim the round part that holds the rotary dial:



Remove and cut up the mirror switch above the pc board and the screw blank in the facia above - only works if you do NOT have the mirror fold in option:



Drill, file, carve out the switch hole- and hack out a bit for the light:

**Removal Note - Start with the facia removal on the Right. There are a couple of those plastic clips ford engineers fell in love with, and 2 tabs on the left that release as you swing the facia towards the door.



Could have been a bit cleaner. Cut a bit, test fit. Cut a bit more, test fit... etc..
Great job and better location than the one the dealer suggests. Easy to find and see.


DakotaGuy

Well-Known Member
First Name
Tom
Joined
Mar 1, 2019
Threads
13
Messages
657
Reaction score
1,306
Location
Black Hills, SD
Vehicle(s)
2022 Ranger SuperCrew XLT Tremor
XLT Sport with 302A have them too. Might be other iterations with the power fold...and you're right. Really poorly placed in my opinion.
But I'm danged glad to have them anyway :)
302A doesn't have power fold for 2022, but you do get heated mirrors now.


Chris M

Well-Known Member
First Name
Chris
Joined
Jun 11, 2020
Threads
11
Messages
2,629
Reaction score
10,818
Location
Phoenix, AZ
Vehicle(s)
2020 Ranger XLT Sport 4X4
Occupation
Security Supervisor
302A doesn't have power fold for 2022, but you do get heated mirrors now.
That may be, but the OP has a 2021 like I do, hence my reply.
But I should have been more specific in my answer for sure.
