Rear Slider Latch

djskit

New Member
First Name
David
Joined
Sep 21, 2020
Messages
2
Reaction score
0
Location
Roseville, CA
Vehicle(s)
2020 Ford Ranger Lariat
Hauling some 12 foot lumber through my cab I managed to knock off my rear slider latch. Any advice on repairing or replacing? Looks like a foam double stick tape affair that failed. Will post pics later if needed.
Advertisement



MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
Hauling some 12 foot lumber through my cab I managed to knock off my rear slider latch. Any advice on repairing or replacing? Looks like a foam double stick tape affair that failed. Will post pics later if needed.

I am also curious about this....I have a rear slider on my super cab and I just closed my window and the latch fell completely off ...but in my case the internals have broken in half as the screws are still screwed into what is left of the latch.

I couldn't find a part# for the latch alone so I hope it isn't down to a total window replacement...but thankfully warranty is still intact for a short while yet...what a pain in the rear


MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
Thanks! Will inquire with this member.

Appreciate it!

Shaun

Contacted local Ford dealer...confirmed part in question is a non serviceable part and will require a new back glass panel...lucky for warranty remaining.....

I'd say a poor design where a couple bucks of plastic dictates replacement of entire back window....will need to research backup plans if piece breaks again out of warranty

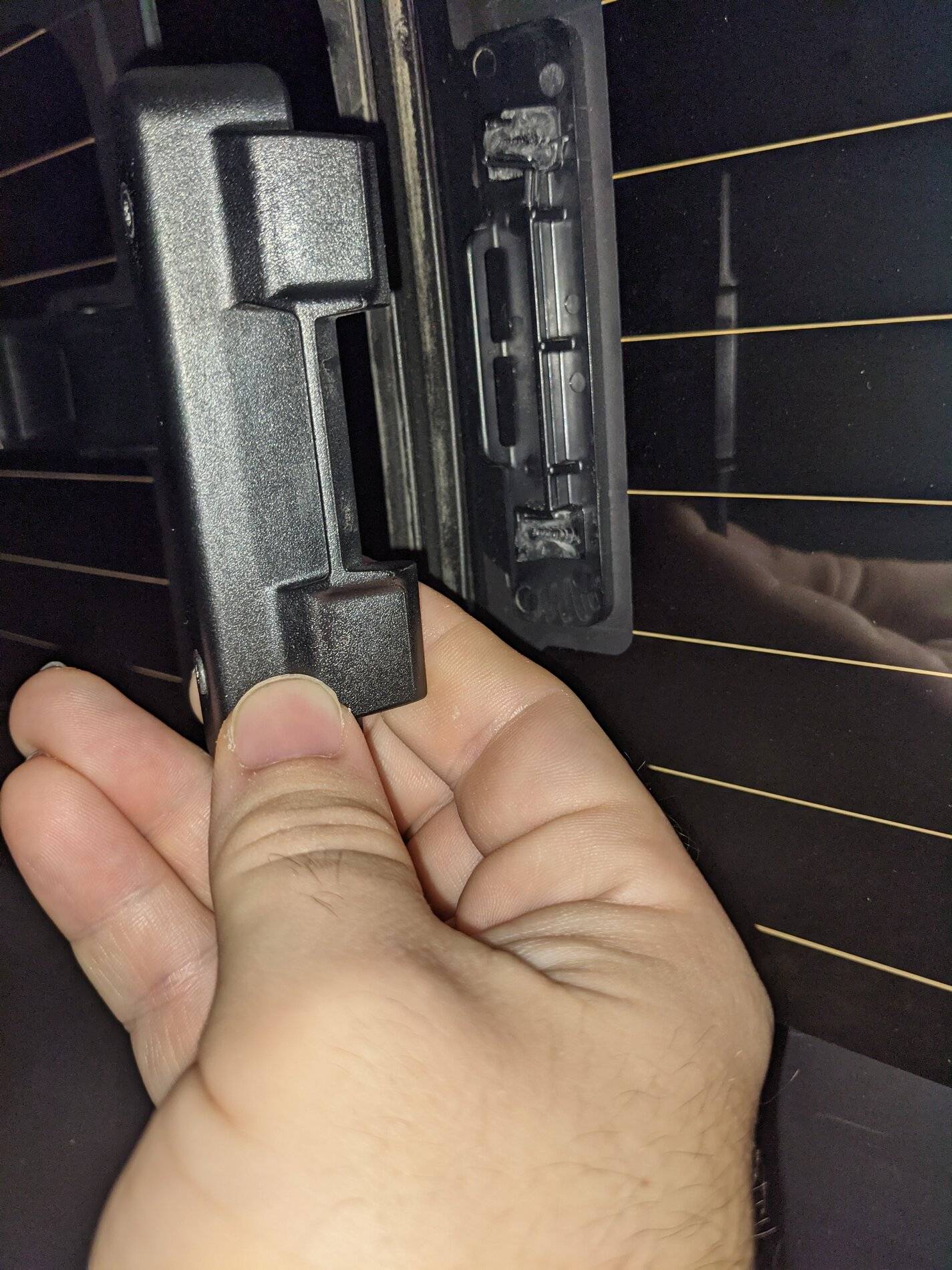

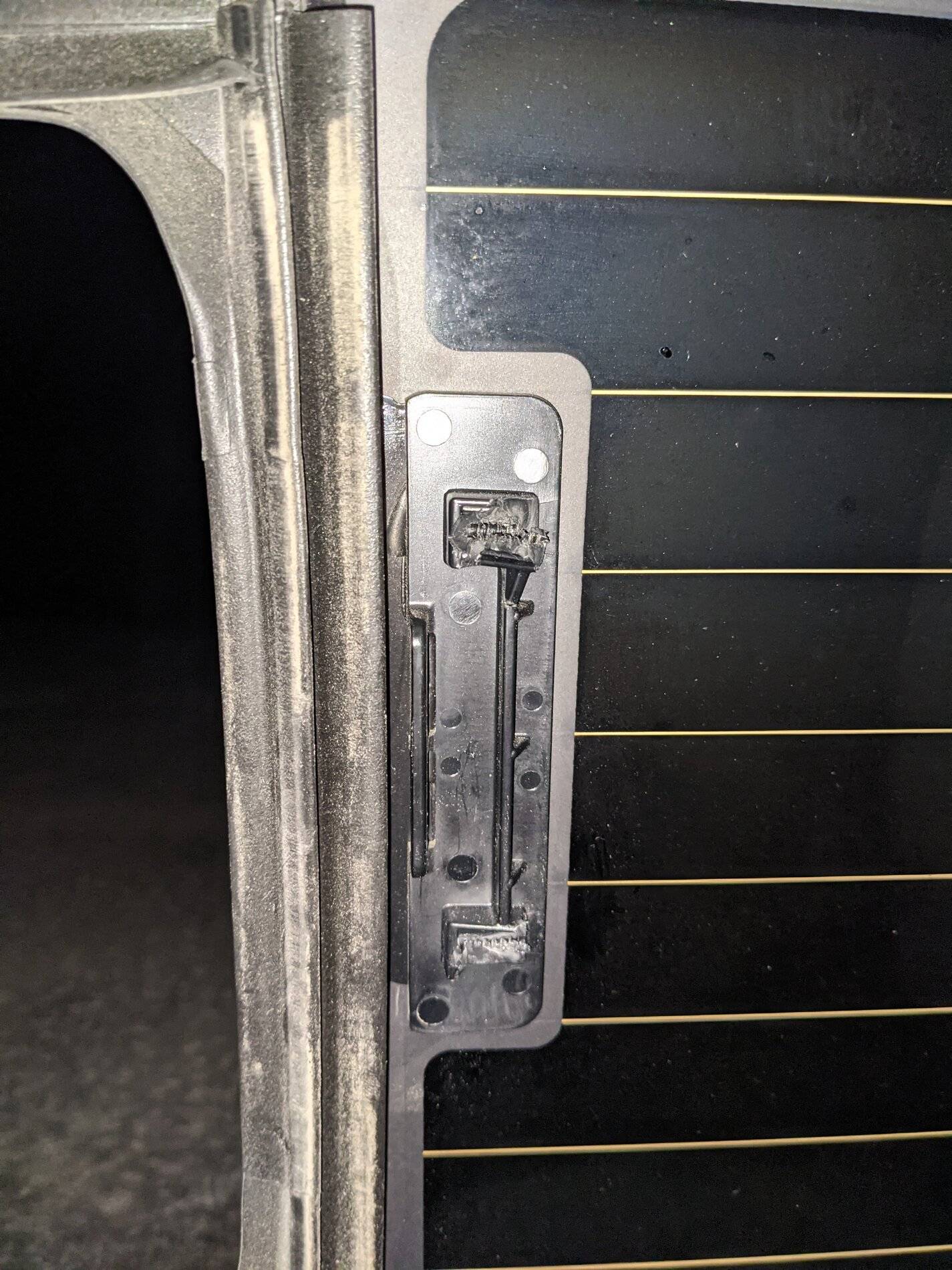

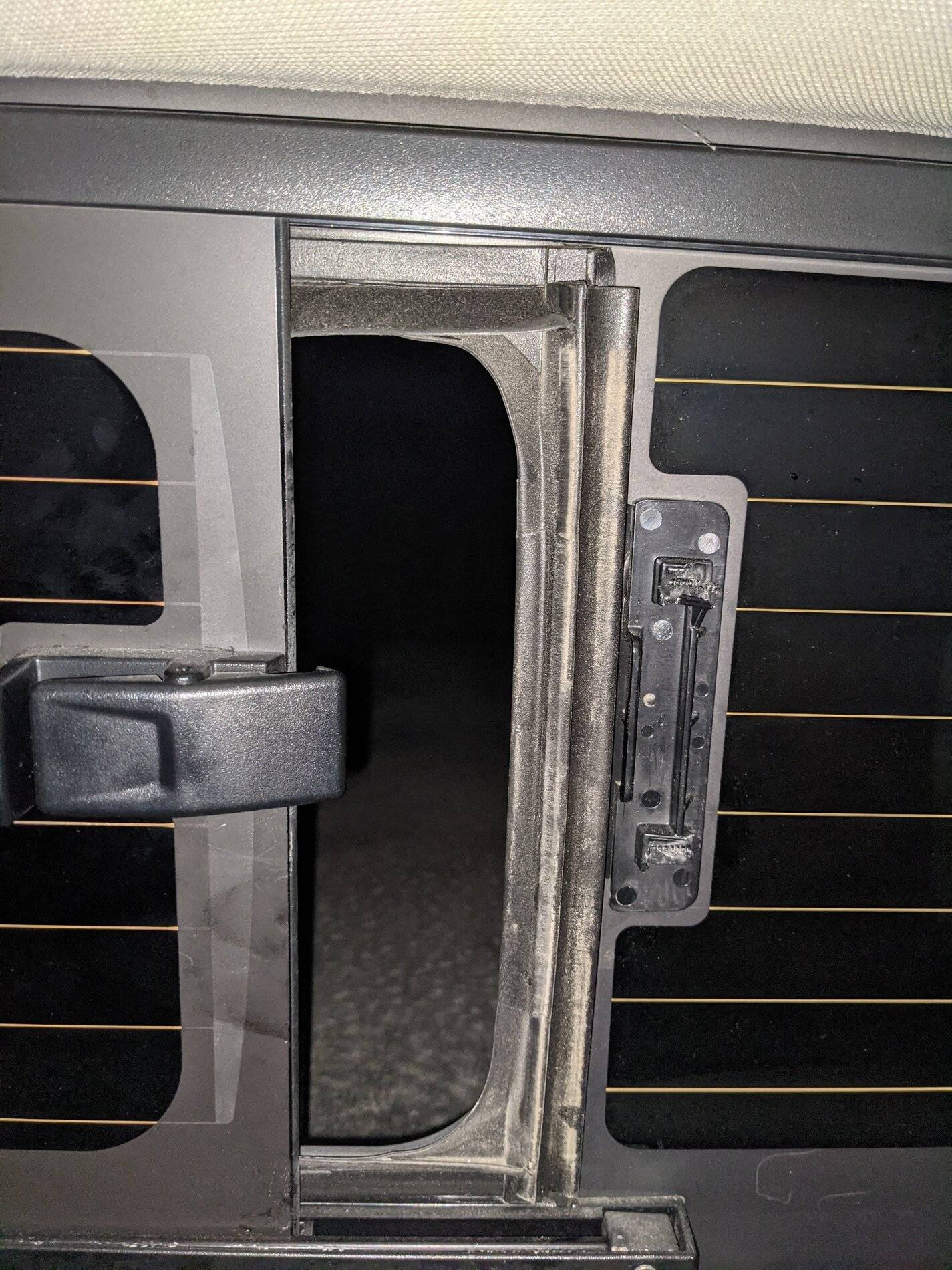

Photos are attached of broken piece







D Fresh

Well-Known Member
First Name
Doug
Joined
Dec 10, 2020
Messages
2,165
Reaction score
3,340
Location
Colorado
Vehicle(s)
'20 Lariat FX4, '17 FiST, '16 CX-5, '95 YJ
Occupation
Milkman
Pretty sure from reading other threads that rear glass is hard to find. Has your dealer located the part yet?


MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
Pretty sure from reading other threads that rear glass is hard to find. Has your dealer located the part yet?

Negative....I have filed my claim to be covered by warranty as I am close to being out of warranty ...but I am still waiting on dealer to reach back out to me with details on ETA and availability.

The dealer works (contracts out) with a 3rd party glass dealer so maybe it's through their network potentially....but yes either way I'm sure there is a supply issue like most everything else in the world these days.

Lucky for me the window(glass) isn't broken and still can be closed shut to not allow elements inside ...however it just cannot now be locked and has to be left unsecured for now.


D Fresh

Well-Known Member
First Name
Doug
Joined
Dec 10, 2020
Messages
2,165
Reaction score
3,340
Location
Colorado
Vehicle(s)
'20 Lariat FX4, '17 FiST, '16 CX-5, '95 YJ
Occupation
Milkman
Negative....I have filed my claim to be covered by warranty as I am close to being out of warranty ...but I am still waiting on dealer to reach back out to me with details on ETA and availability.

The dealer works (contracts out) with a 3rd party glass dealer so maybe it's through their network potentially....but yes either way I'm sure there is a supply issue like most everything else in the world these days.

Lucky for me the window(glass) isn't broken and still can be closed shut to not allow elements inside ...however it just cannot now be locked and has to be left unsecured for now.
Gotcha.


You might want to try a dowel or something on the other side to secure it while waiting. Similar to a sliding glass door w/ a broom handle in it.


Wthoms2000

Well-Known Member
First Name
wil
Joined
Mar 25, 2021
Messages
149
Reaction score
264
Location
Cyber Orange County, CA
Vehicle(s)
2021 Ranger XLT FX4
Occupation
ENGINEER
I would 100% two-part epoxy that part back in its original position. It does not move, only provides a stationary latch point. The screws were for factory installation but a good epoxy would be just as good. At least till the part/window arrives..


MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
Gotcha.


You might want to try a dowel or something on the other side to secure it while waiting. Similar to a sliding glass door w/ a broom handle in it.
Yeah for sure..I've been looking over the parts in my hands to see what if anything I can do in the future to make some sort of fix for this should (probably) it happen again.

It's such a weird design as the catch literally has screws in it to be removed off the mounting base plate....but for whatever reason it's not a part in the dealers catalog to be ordered.

I would have to believe the plastic base (mount) is glued (possibly epoxied) to the glass itself and then this latch is affixed to that mounting plate and screwed secured. There is no other way I see this plastic mount secured to the glass...it's not fused into the glass itself.

If a 3rd party glass guy does the work...I'd be curious on his thoughts


paval3

Well-Known Member
First Name
Val
Joined
Apr 30, 2021
Messages
215
Reaction score
325
Location
Pennsylvania
Vehicle(s)
2021 Ranger XLT Crewcab
Might try contacting a truck cap dealer and ask if they have any cap front slider window replacement latches and see if one might work.
We manufacture truck caps and used to keep some on hand. Haven't tried to order any lately though.

Edited to add: Did a Google search and found some for sale. Possibly could glue on instead of screw in.
Cap Front Slider Window Latch Replacement

Last edited:

Tim H.

Well-Known Member
First Name
TJ
Joined
Feb 17, 2020
Messages
381
Reaction score
669
Location
Clarksville, MD
Vehicle(s)
2020 Ranger Lariat 4X4, 2016 Corvette Stingray
Occupation
REALTOR
You could ask about a non-slider replacement window availability for now.


MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
Might try contacting a truck cap dealer and ask if they have any cap front slider window replacement latches and see if one might work.
We manufacture truck caps and used to keep some on hand. Haven't tried to order any lately though.

Edited to add: Did a Google search and found some for sale. Possibly could glue on instead of screw in.
Cap Front Slider Window Latch Replacement

Yes it's definitely one avenue to look into for sure. Now that I know what I know...I wonder since the piece (mounting plate) is non serviceable anyways what would stop someone from removing the screws from the latch and possibly filling the cavity of the latch with something that would reinforce it so that there would be more material then just the areas where the screws are the items holding it all together.

I'd have to look into some options or someone that has a really good experience with glue/epoxy for abs plastics because I have no doubt this piece could go back on as is...it's literally a clean break.


MagneticRanger

Active Member
Joined
Jun 9, 2019
Messages
34
Reaction score
33
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger SuperCab FX4
You could ask about a non-slider replacement window availability for now.
If the window(glass) was literally broken I'd probably have no option but to go that route...but I can make do for now as it still closes and seals somewhat. Luckily the window isn't like my old '93 Chev K2500 where a human can squeeze inside the open slider....this little one doesn't make much room to access anything anyways.

Being a supercab I love be able to reach back with my hand to open the window....if it was a crew cab...solid rear panel no questions asked for sure!
