Ranger Rumble. Presenting the AWE 0FG Exhaust Suite for the '19+ Ford Ranger. Available now.

Josh/AWE

Gold Sponsor
First Name
Josh
Joined
Feb 24, 2020
Messages
22
Reaction score
33
Location
Philadelphia
Vehicle(s)
Ranger




Presenting the best sounding exhaust on the planet for the ‘19+ Ford Ranger, available now via Stage 3 Motorsports:
  • Proudly engineered, designed, and manufactured in-house, in the USA
  • Features AWE’s proprietary, patented drone-canceling solution, 180 Technology®
  • Featuring the AWE Removable BashGuard for off-road thrashing
  • Handcrafted from 3” U.S.-sourced CNC mandrel-bent .065” wall T304L stainless steel

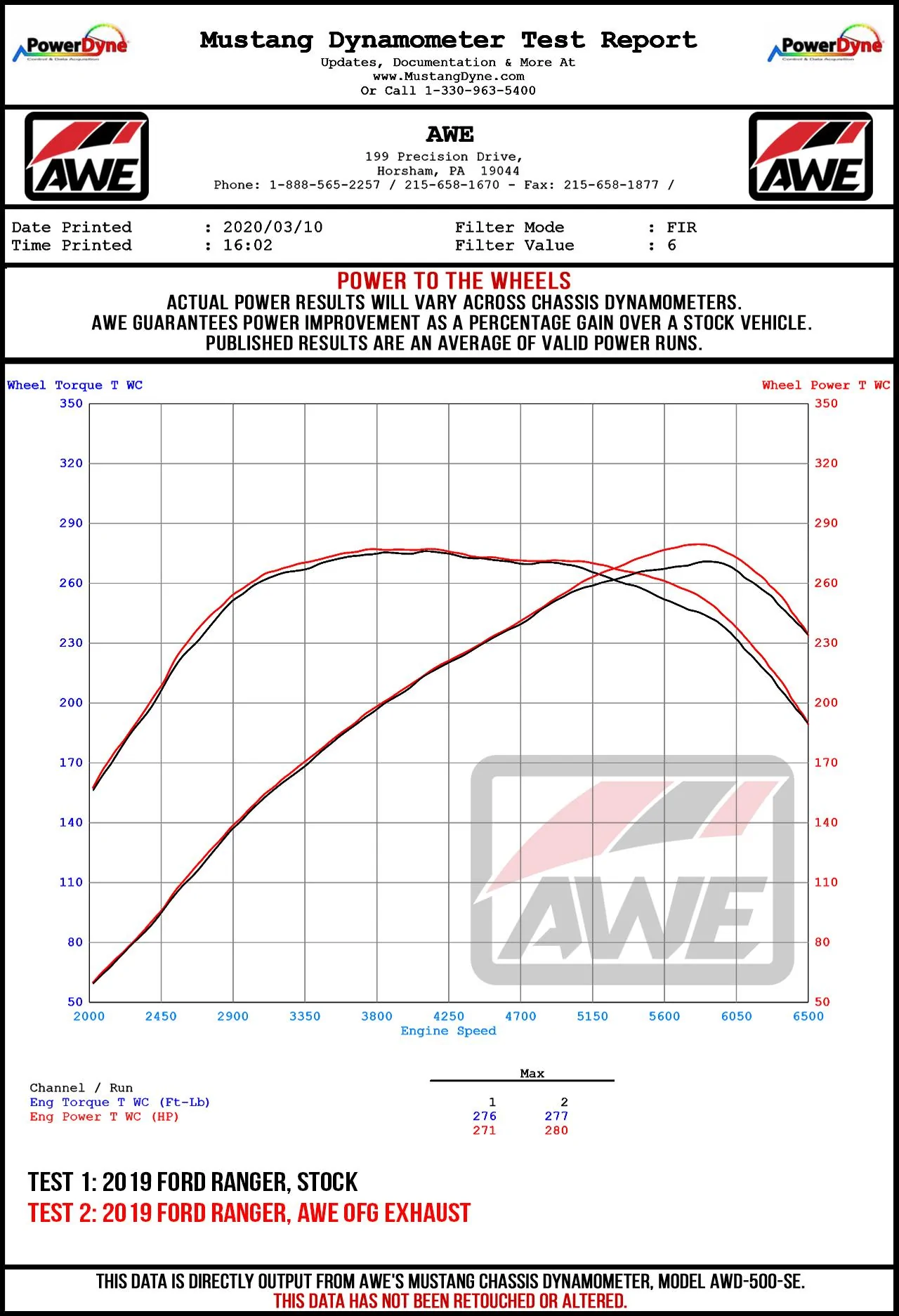

  • Dyno-verified max gains of 9 hp at the wheels
  • Direct bolt-on cat-back system for factory-like simplicity
  • Less is more: clean, straight-through design maximizes performance
  • Dual 4.5” slash-cut, double-walled tips available in chrome silver or diamond black
  • Perfect fitment, guaranteed
  • AWE No CEL Guarantee
  • Lifetime warranty on exhaust

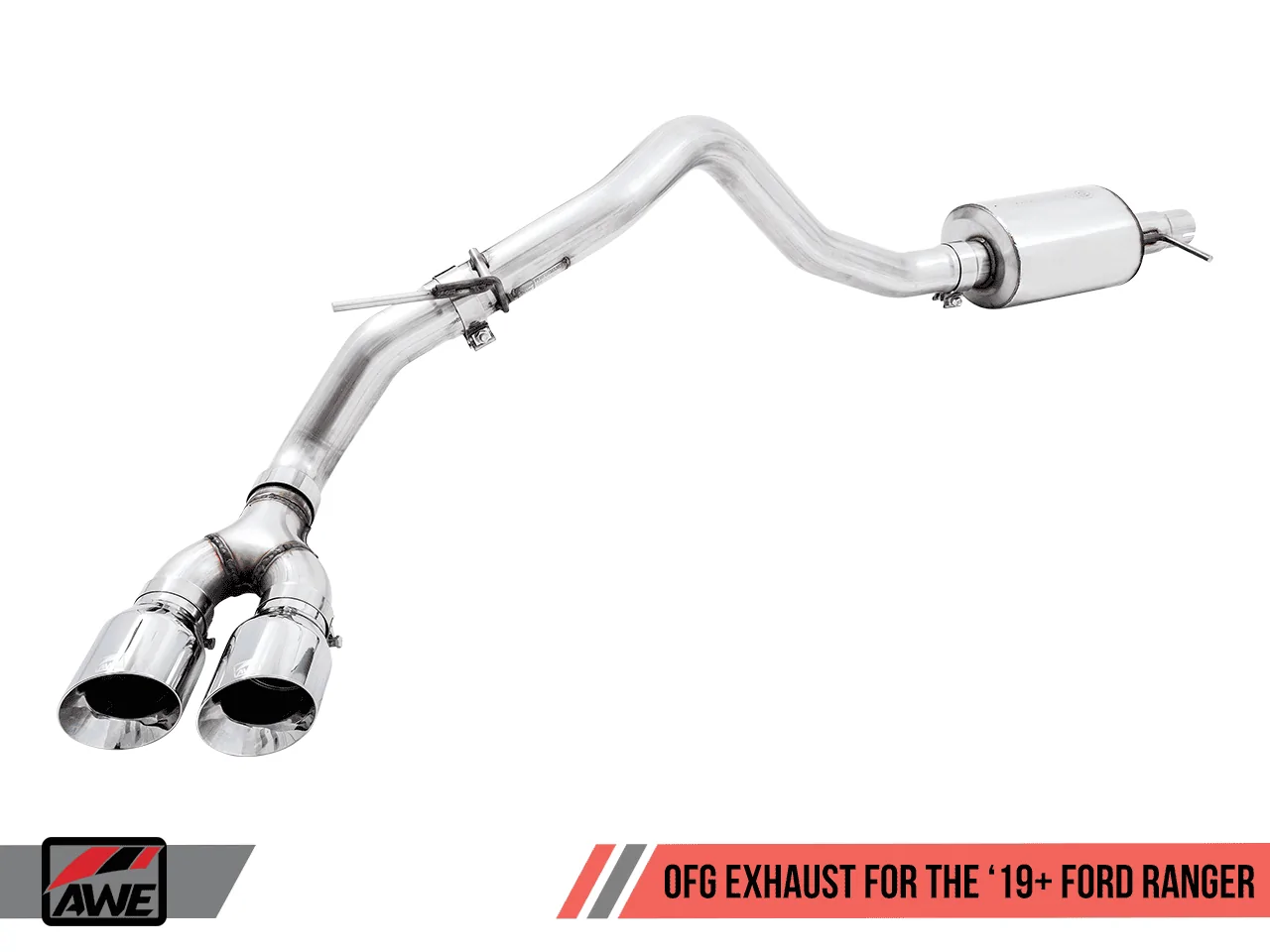

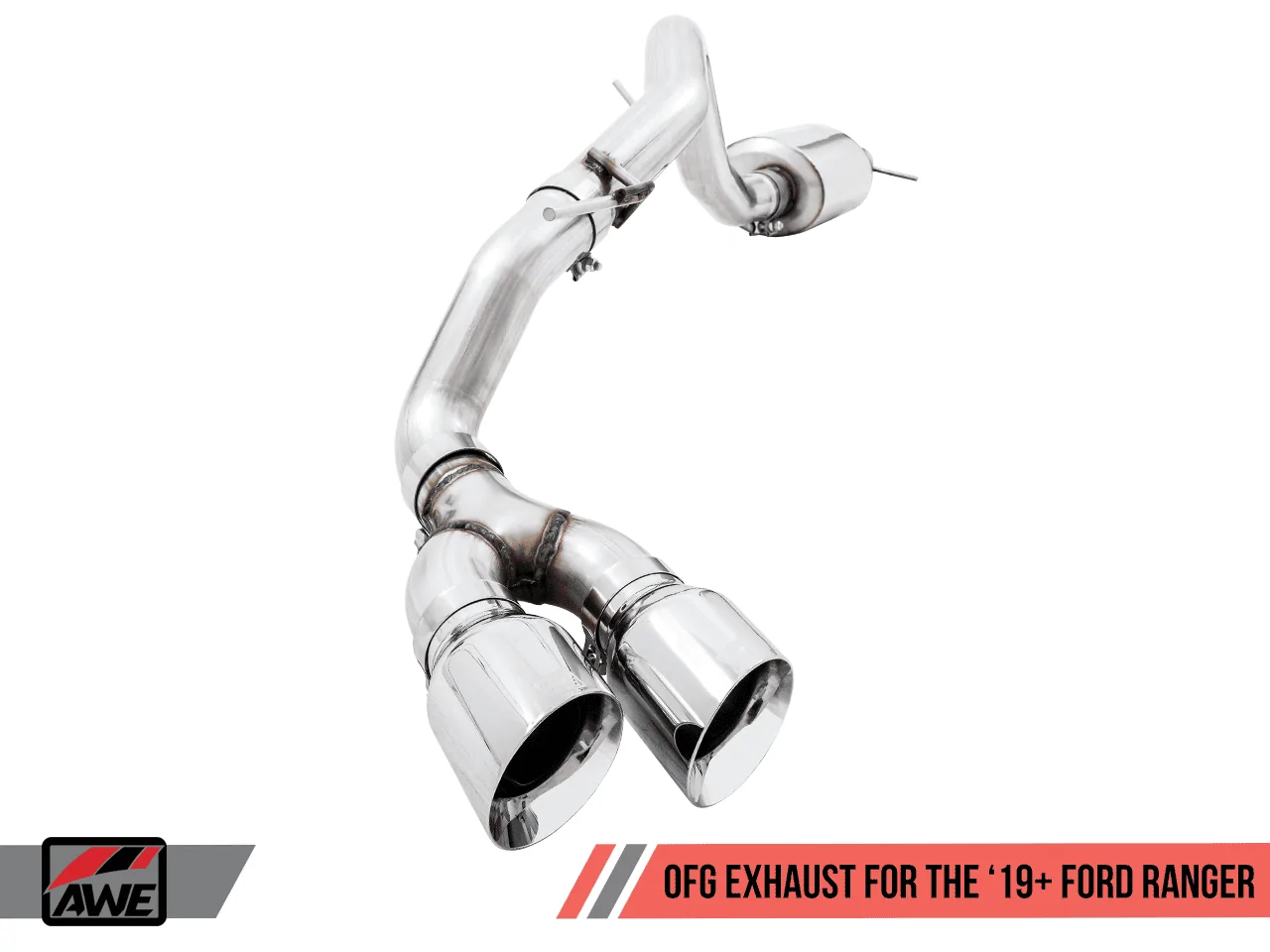

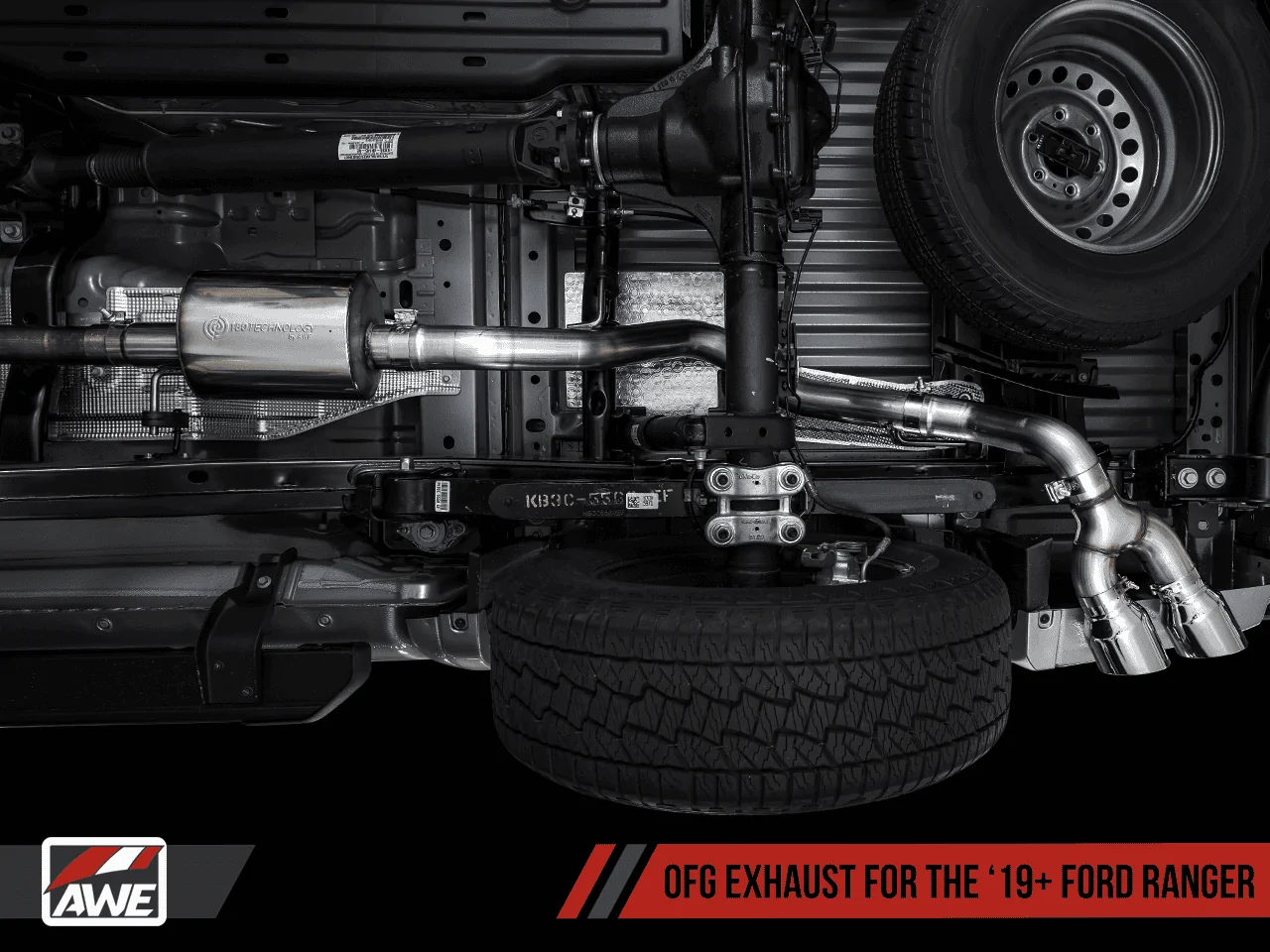

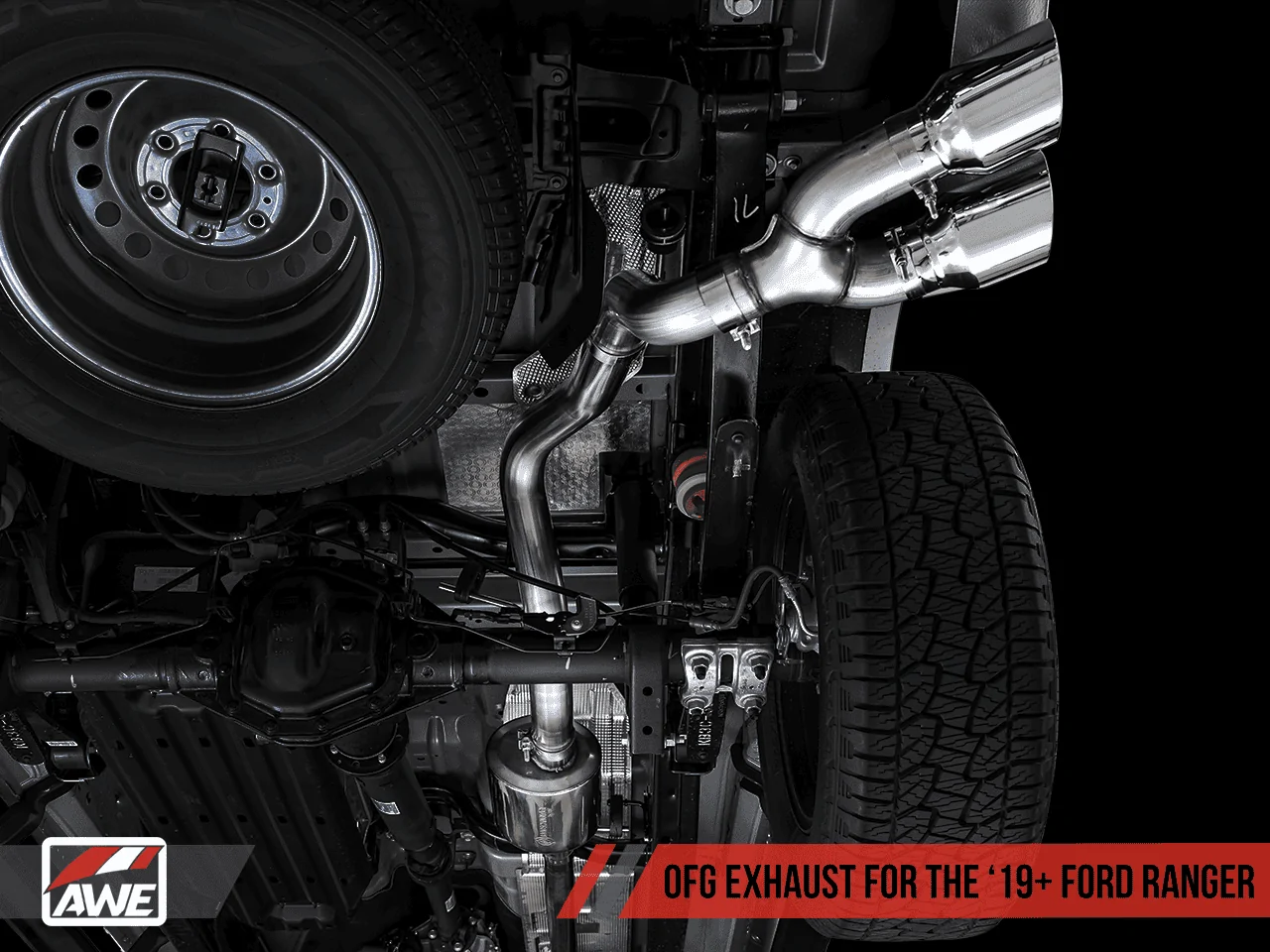

The 0FG Exhaust:



The 0FG Exhaust is a rugged 3” T304L stainless steel cat-back configuration with a 100% straight-through design for optimal flow. Featuring AWE’s proprietary, patented drone-canceling solution, 180 Technology®, the 0FG Exhaust delivers a unique dose of refined aggression out of your Ranger, without any drone at cruising speeds. Regardless of low or high gear, the 0FG Exhaust delivers an optimal soundtrack out of the 2.3T whether you're on the street or on the trails.

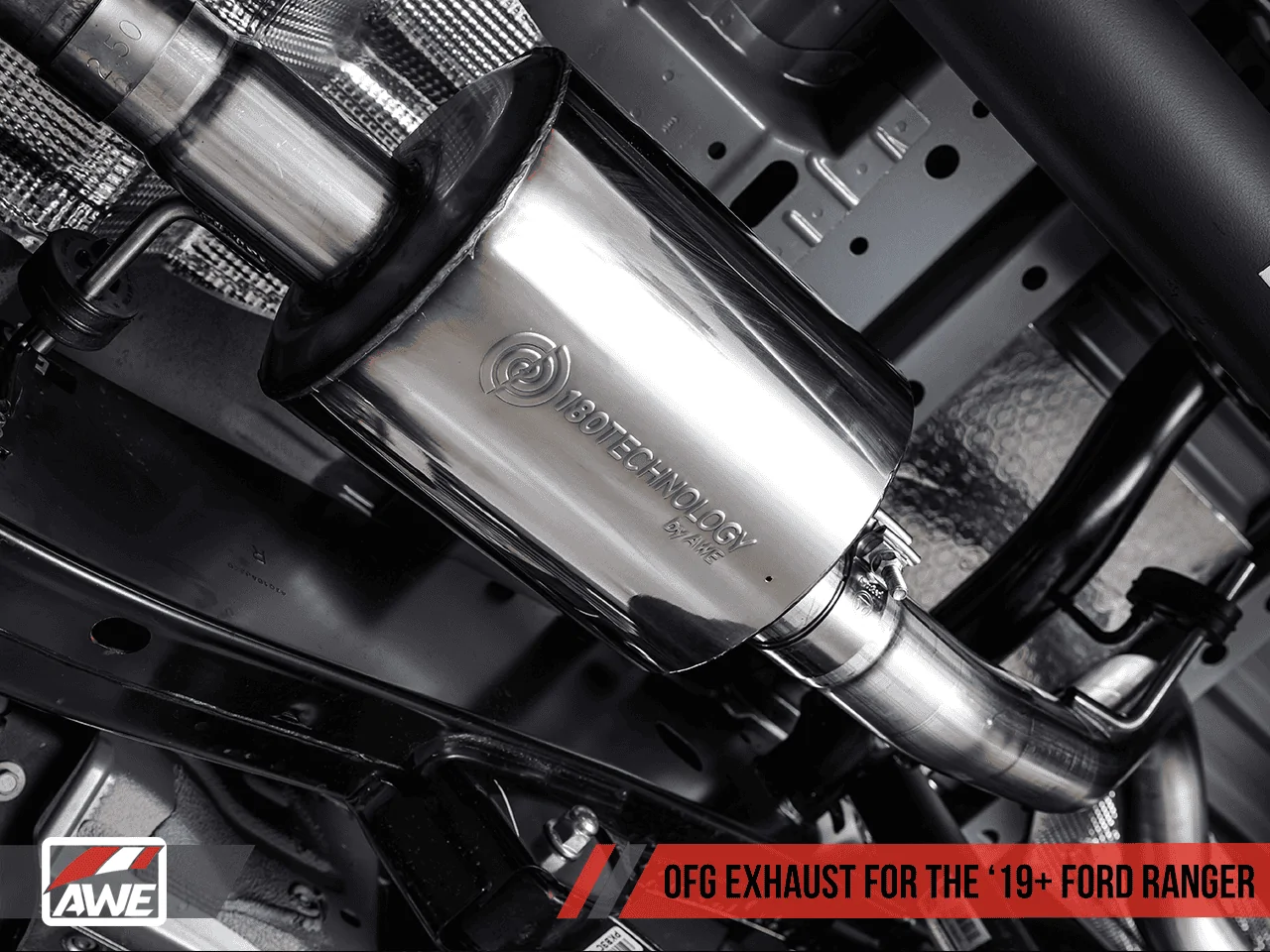

Sound Perfection: 180 Technology® by AWE

As exhaust gases exit the Ranger’s 2.3T engine and flow into an AWE 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. Call it science, call it magic, or call it 180 Technology® by AWE.

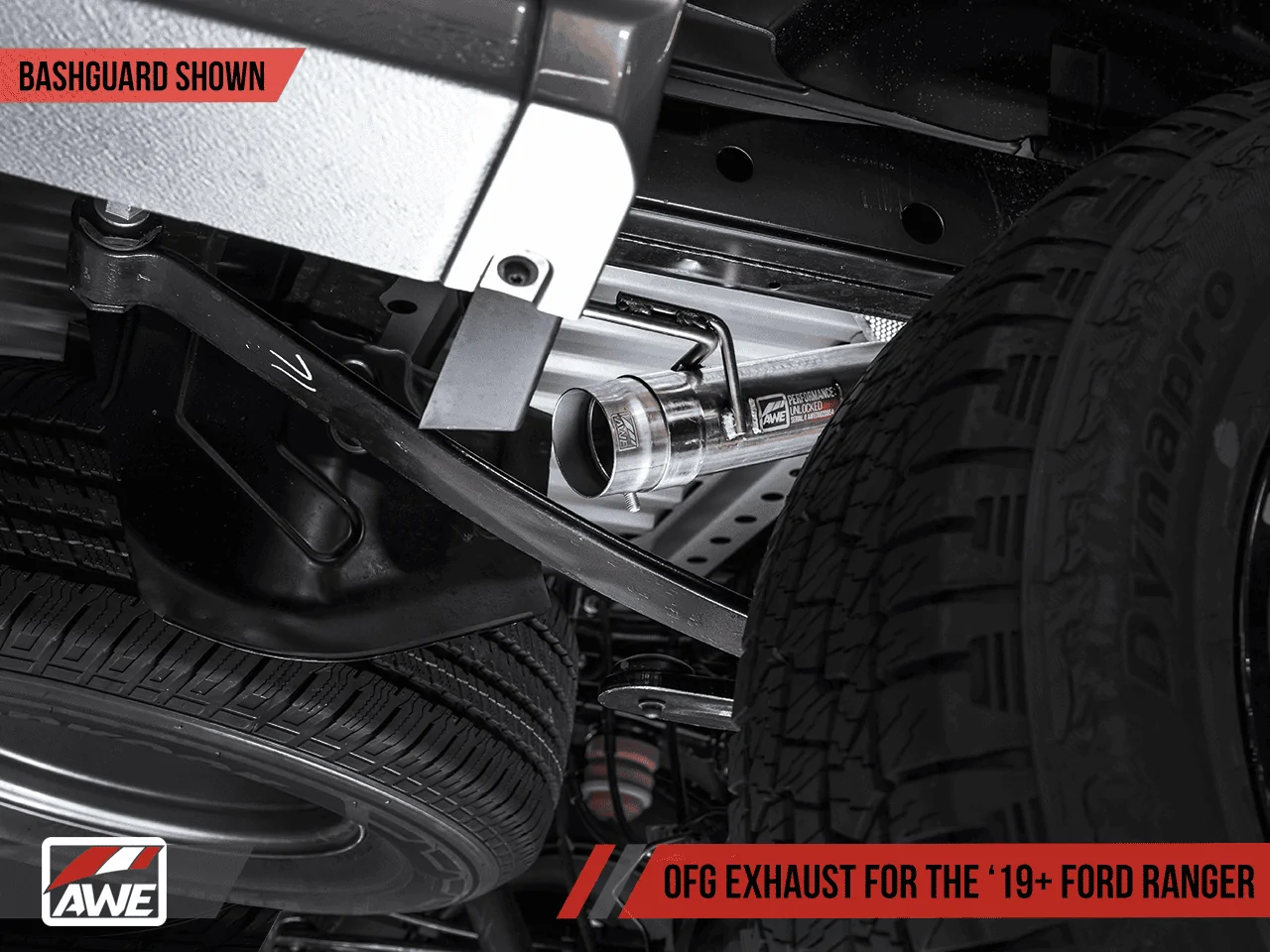

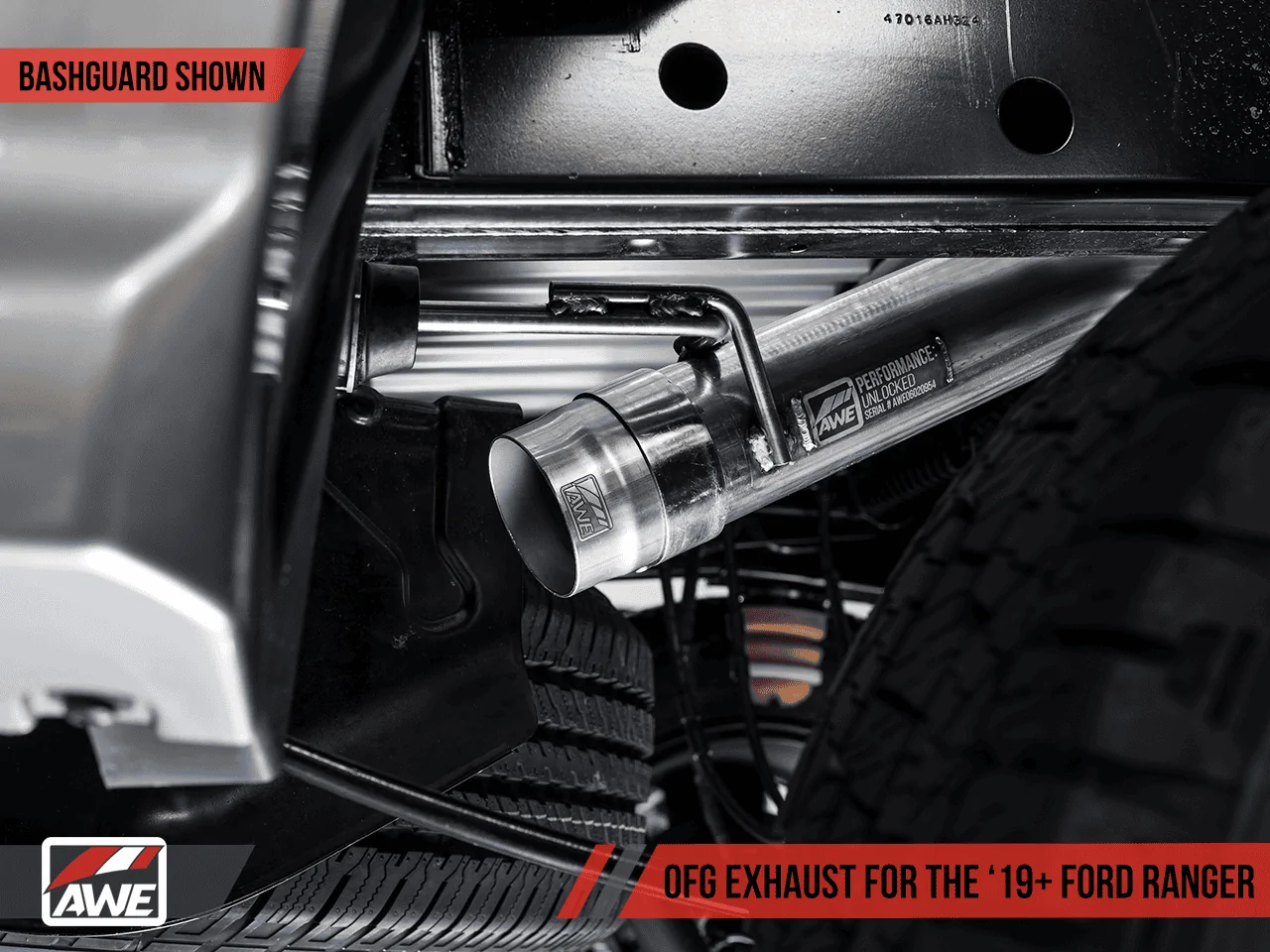

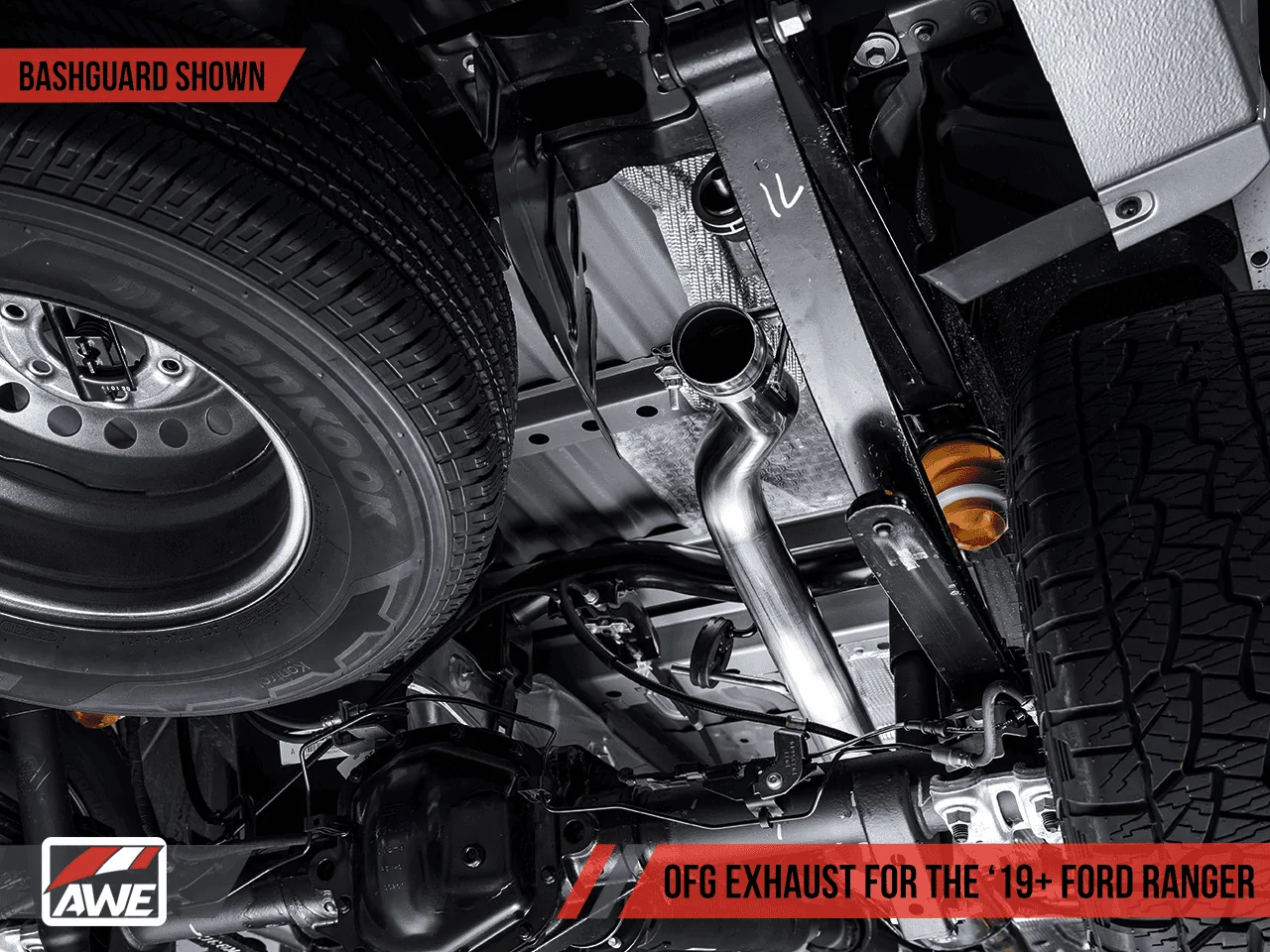

The AWE BashGuard:

The AWE BashGuard is designed to allow drivers, who frequently crawl rough terrain, peace of mind by converting the 0FG Exhaust to end well above the rear axle, tucked up out of the way of danger.

Instead of unbolting the 0FG’s axle-back section (and tips) and leaving the outlet of the over-axle section exposed, the BashGuard takes the axle-back’s place to provide protection against any possible damage from debris. Doing so, the BashGuard ensures the over-axle section’s outlet remains true and round, allowing the axle-back (and tips) to be reinstalled with ease.

Once you’re done crawling, simply bolt the axle-back portion back on and your Ranger is back to looking as good as it sounds.

AWE BashGuards are included with every 0FG Exhaust for the ‘19+ Ford Ranger.



Tip Options:

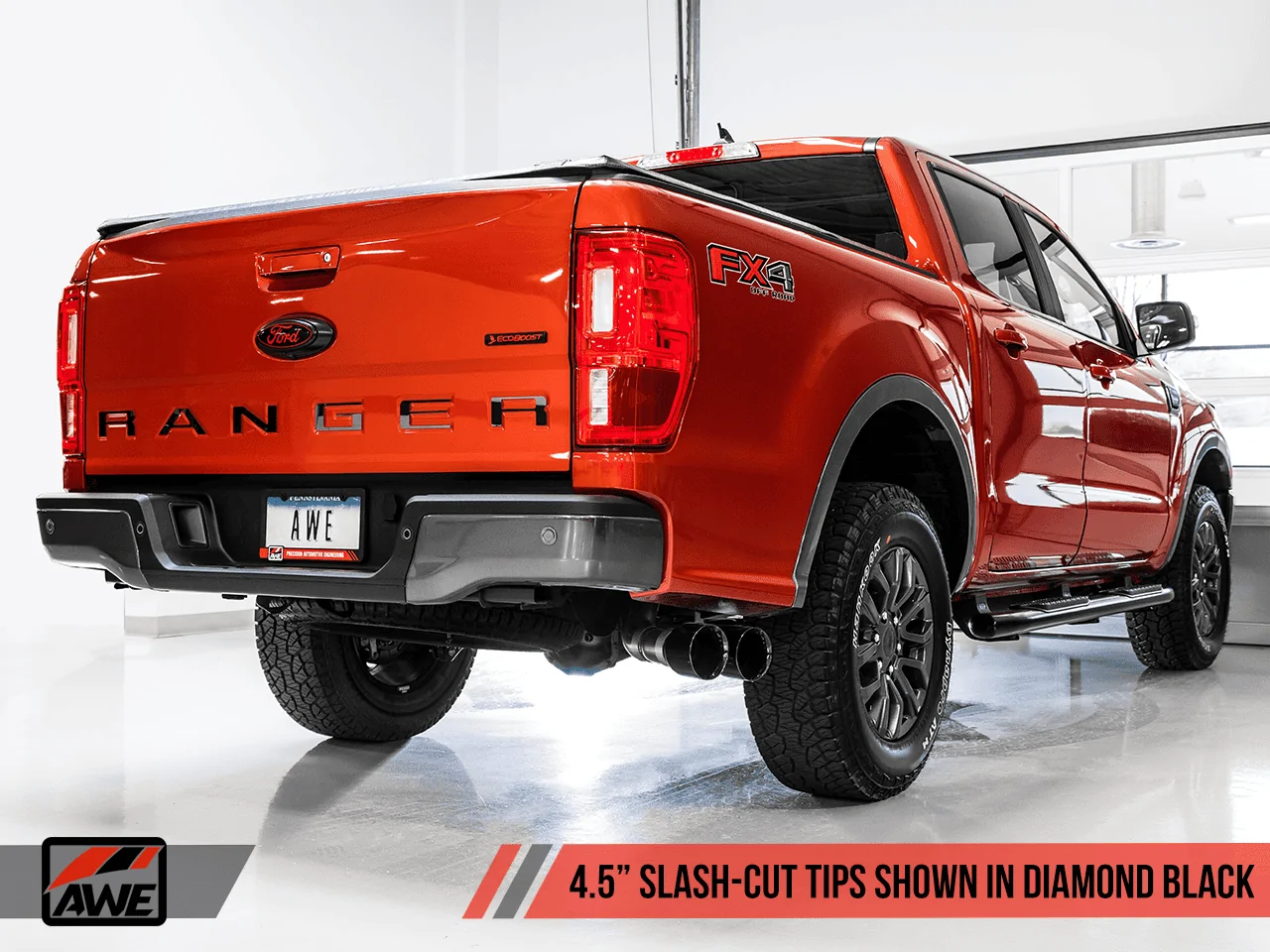

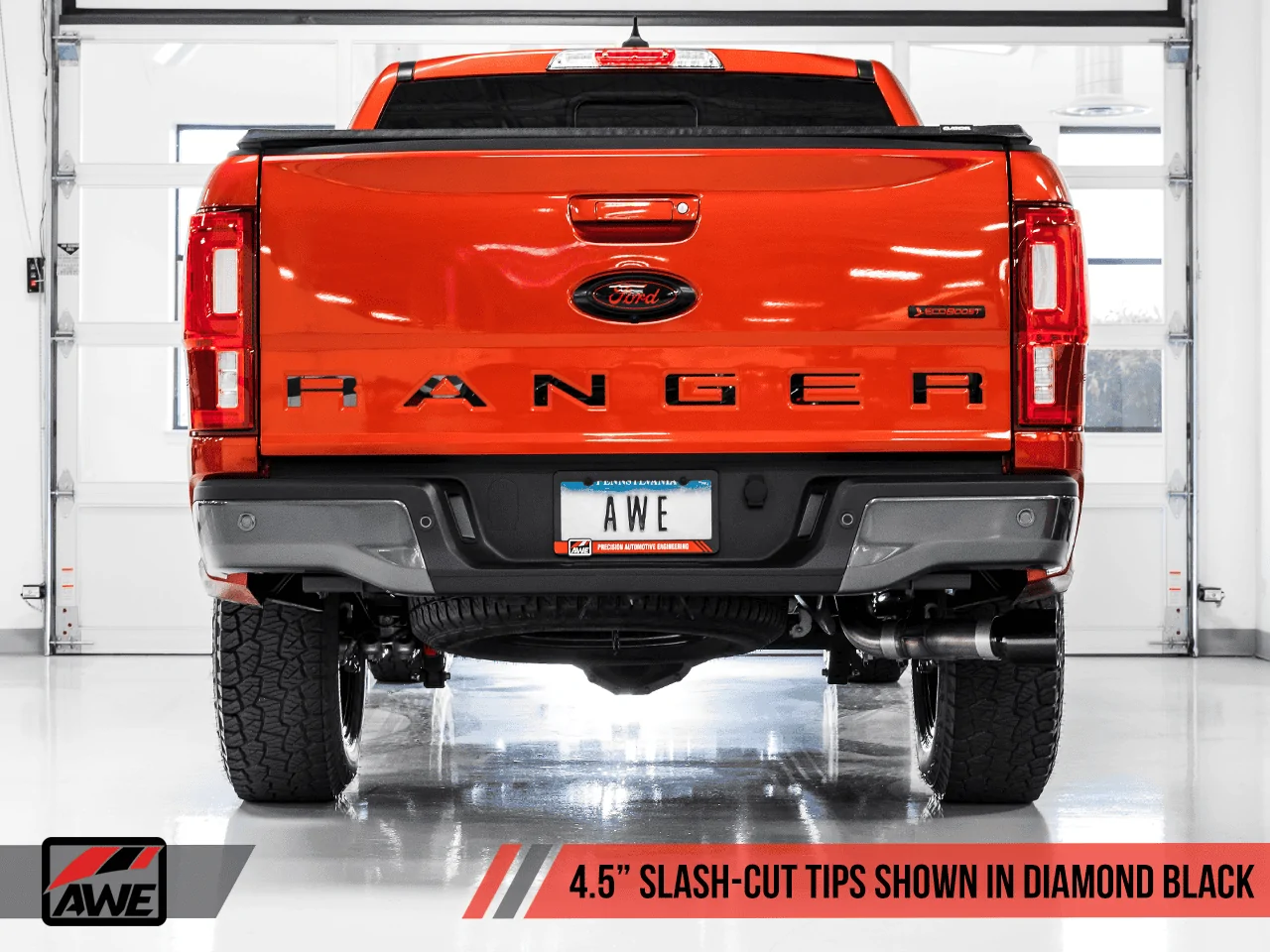

Say goodbye to that single exhaust tube hanging awkwardly out of the rear of your Ranger, and hello to a properly built dual merge exit topped with dual 4.5” double-walled, slash-cut tips in your choice of diamond black or chrome silver.

Each tip comes complete with an AWE logo, positioned along the slash-cut to allow proper alignment with the Ranger’s body lines.

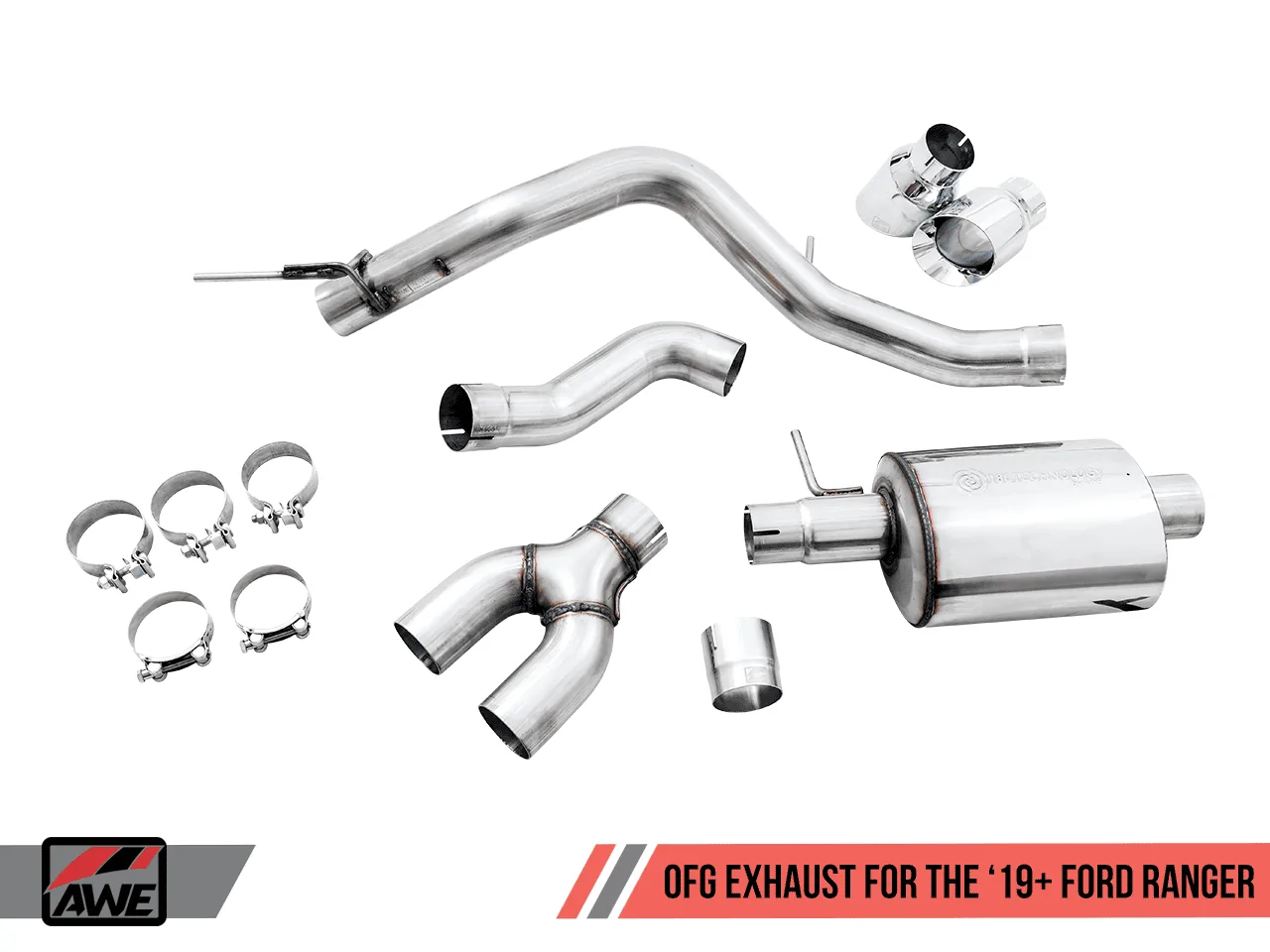

What’s in the box?

Complete 0FG Exhaust, AWE BashGuard, two 4.5” double-walled slash-cut tips in the desired finish, and all necessary hardware for installation.



Data:




Advertisement




Last edited:

Scottopia

Well-Known Member
First Name
Scott
Joined
Nov 8, 2019
Messages
173
Reaction score
427
Location
Annapolis, Maryland
Vehicle(s)
2019 Ford Ranger Lariat FX4, 2003 HD V-Rod, 2011 GMC Acadia
Occupation
Billionaire, Crime Fighter
Vehicle Showcase
1
Nice that I can finally share my experience with the AWE system since the install about a month ago, will do a review and post it over the next few days. In my opinion, it really does exceed all my expectations, but the "drone eliminating" feature is actually eerie as it is so much quieter. I find myself driving much faster than it feels like I am... Wonder if AWE will cover any speeding tickets?? 🤔

Gossamer Showcase w/the before and after AWE Pics


Danger Ranger 09

Well-Known Member
Joined
Jan 4, 2019
Messages
129
Reaction score
208
Location
Ohio
Vehicle(s)
2009 Ford ranger
Nice that I can finally share my experience with the AWE system since the install about a month ago, will do a review and post it over the next few days. In my opinion, it really does exceed all my expectations, but the "drone eliminating" feature is actually eerie as it is so much quieter. I find myself driving much faster than it feels like I am... Wonder if AWE will cover any speeding tickets?? 🤔

Gossamer Showcase w/the before and after AWE Pics
Is it pretty loud in person I want loud but a lot of the other systems seem way to quiet


Scottopia

Well-Known Member
First Name
Scott
Joined
Nov 8, 2019
Messages
173
Reaction score
427
Location
Annapolis, Maryland
Vehicle(s)
2019 Ford Ranger Lariat FX4, 2003 HD V-Rod, 2011 GMC Acadia
Occupation
Billionaire, Crime Fighter
Vehicle Showcase
1
Is it pretty loud in person I want loud but a lot of the other systems seem way to quiet
It is for me. Start up is noticeable, clean and throaty especially for a 4 and it turns heads when you gun it past the Tacos, and 150’s, and Chevys! I will try to get some sound of it over the next few days but the interior audio they have in the video is spot on.


r1ch999999

Well-Known Member
First Name
Rich
Joined
Jan 4, 2020
Messages
459
Reaction score
509
Location
Nashua, NH
Vehicle(s)
2019 Ranger Lariat Crew Cab 4x4
Occupation
Software Engineer
Will there be a dual rear exit option?


Dave/AWE

Gold Sponsor
First Name
Dave
Joined
Feb 18, 2020
Messages
34
Reaction score
42
Location
Horsham, PA
Website
www.awe-tuning.com
Vehicle(s)
BMX X5, tons of development cars
Occupation
Marketing - AWE
As everyone is getting their Ranger's ready for the summer, I'm getting a lot of questions regarding Tip Cleaning. We have an FAQ section on our website that covers this and other important questions you might have.

Check out the care and feeding of your tips here:

Pro-Tip: Mark the tip location on the exhaust pipe with a Sharpie prior to removal for easy and fast alignment when you reinstall.

Check out our other FAQ's here.


Dave/AWE

Gold Sponsor
First Name
Dave
Joined
Feb 18, 2020
Messages
34
Reaction score
42
Location
Horsham, PA
Website
www.awe-tuning.com
Vehicle(s)
BMX X5, tons of development cars
Occupation
Marketing - AWE
FAQ Friday - Anti-Seize

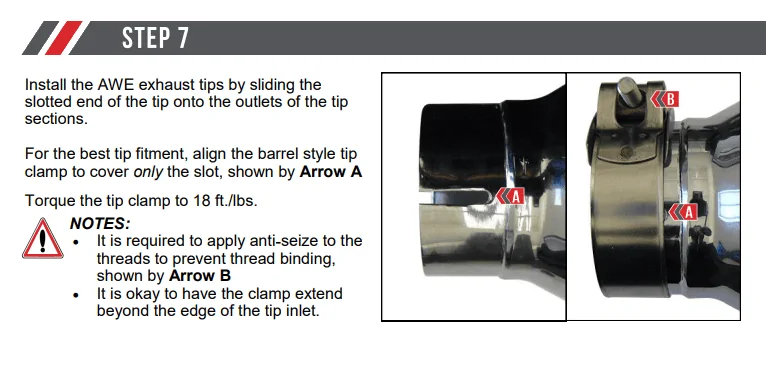

I know this owners group is very likely familiar with this copper or nickel based wonder compound, but for those that are getting ready to install their systems, grab that anti-seize because you'll need it for the threads on the tip clamps! Just a little dab or brush. My Pro Tip: Loosen the clamp and put a dab just below the upper barrel nut, and then work the Anti-seize through to make sure everything is good and ready for install.




Unlike the clamps on the pipes (60lb ft of torque), the tips clamps are going to be 18-20lb ft. We generally go by feel.


Racket

Well-Known Member
First Name
John
Joined
Jan 21, 2020
Messages
262
Reaction score
173
Location
West Palm Beach, FL
Vehicle(s)
2019 Lariat Supercrew 2WD
Seems like the system to go to for off-road folk with the 'bash guard' aspect.
