Decided to do and then expand upon a RAM mount setup for my Tablet, Phone, GPS Receiver, GoPro, etc. Here's some pics of how I set it all up.

The top tray works well. Bought the 5" aluminum T track for that and bolted it through the tray. The tablet holder is two of the adhesive ball mounts together. It all works VERY well (and held up to offroad use in Colorado a couple of months ago.














Advertisement





treimche

Well-Known Member
First Name
Troy
Joined
Apr 8, 2019
Messages
630
Reaction score
689
Location
Fargo, ND
Website
www.facebook.com
Vehicle(s)
2019 Ranger. 2005 S2000. 2009 R1
Occupation
Small Business Owner
If you ever get in an accident and your airbags go off, you and your passenger are going to be eating all those devices. Every one of those could turn into a deadly projectile.


Gizmokid2005

Well-Known Member
Joined
Dec 1, 2019
Messages
681
Reaction score
681
Location
Trabuco Canyon, CA
Website
gizmokid2005.com
Vehicle(s)
2019 Ford Ranger XLT 4X4 SCrew
Occupation
Data Analyst
Vehicle Showcase
1
If you ever get in an accident and your airbags go off, you and your passenger are going to be eating all those devices. Every one of those could turn into a deadly projectile.
I'd really only be worried about the tablet. The other two aren't mounted to an airbag location, and would really only turn into projectiles if the tablet hits them just right.

Even that said, these are pretty solid locations. I just can't bring myself to put holes in the truck yet!


PNW_Ranger87

Well-Known Member
First Name
Erik
Joined
Oct 10, 2019
Messages
554
Reaction score
634
Location
Renton, WA
Vehicle(s)
2019 Ranger XLT 4X4
Occupation
Parts Specialist
I don't have any pictures but I have the RAM XGrip for large phones/phablets and it fits perfectly with my Galaxy S9+ in an OtterBox. It's mounted just off to the right of the center of the windshield above the tray. I love it so far.


Dokkenmire

Well-Known Member
Joined
Nov 23, 2019
Messages
191
Reaction score
420
Location
United States
Vehicle(s)
2019 Ranger Xlt Sport Supercrew 2wd
Thanks for posting the pics, definitely stealing your ideas lol.

OP
WLFPIR8

WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Messages
94
Reaction score
156
Location
Central Ohio
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #6
If you ever get in an accident and your airbags go off, you and your passenger are going to be eating all those devices. Every one of those could turn into a deadly projectile.
I'd really only be worried about the tablet. The other two aren't mounted to an airbag location, and would really only turn into projectiles if the tablet hits them just right.

Even that said, these are pretty solid locations. I just can't bring myself to put holes in the truck yet!
Yes, and No.

Yes, I do realize that anything on the dash area can become a projectile. I also don't have the tablet mounted with passengers (unless I'm offroad and slow).

No, they most likely won't become projectiles as they aren't in a direct path of an airbag. Please see for the airbag deploy pattern. You make assumptions...

As for making holes in things... The tray is a $25 part that can be easily replaced if needed. The tablet mount is stuck on, and can be removed without (I hope) damaging the trim piece.


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,682
Reaction score
4,843
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
Decided to do and then expand upon a RAM mount setup for my Tablet, Phone, GPS Receiver, GoPro, etc. Here's some pics of how I set it all up.

The top tray works well. Bought the 5" aluminum T track for that and bolted it through the tray. The tablet holder is two of the adhesive ball mounts together. It all works VERY well (and held up to offroad use in Colorado a couple of months ago.











Great set up! Where did you get the 5" track? I've been looking at this but they're all silver not black as yours. Do you have a link?

OP
WLFPIR8

WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Messages
94
Reaction score
156
Location
Central Ohio
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #8
Great set up! Where did you get the 5" track? I've been looking at this but they're all silver not black as yours. Do you have a link?
Tablet mounts (I have a iPad pro 11" specfically, but the EZ Roller is what i use) https://www.rammount.com/.../device-mounts/tablet-mounts...

Phone mount: I have both of these and like them: https://www.rammount.com/part/RAM-HOL-PD4-238AU
https://www.rammount.com/part/RAM-HOL-UN10BU

The aluminum track I used: https://www.rammount.com/part/RAM-TRACK-EXA-5BU (This fits PERFECTLY in the width of the tray.)

And the GoPro Mount : https://www.rammount.com/part/RAP-B-202-GOP1-354-TRA1U

Tablet ball mounts to dash and cross piece: https://www.rammount.com/part/RAP-B-378U https://www.rammount.com/part/RAM-B-273U

Otherwise, Misc arms and stuff...


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,682
Reaction score
4,843
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
Tablet mounts (I have a iPad pro 11" specfically, but the EZ Roller is what i use) https://www.rammount.com/.../device-mounts/tablet-mounts...

Phone mount: I have both of these and like them: https://www.rammount.com/part/RAM-HOL-PD4-238AU
https://www.rammount.com/part/RAM-HOL-UN10BU

The aluminum track I used: https://www.rammount.com/part/RAM-TRACK-EXA-5BU (This fits PERFECTLY in the width of the tray.)

And the GoPro Mount : https://www.rammount.com/part/RAP-B-202-GOP1-354-TRA1U

Tablet ball mounts to dash and cross piece: https://www.rammount.com/part/RAP-B-378U https://www.rammount.com/part/RAM-B-273U

Otherwise, Misc arms and stuff...
Thanks much Ethan! I have a Ram set up for the tablet too...though it's a bit more complex based around "Lifestyle Overland's" setup. I take some pics when the sun is up later :)

BTW, which track ball did you use?


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,682
Reaction score
4,843
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,682
Reaction score
4,843
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2

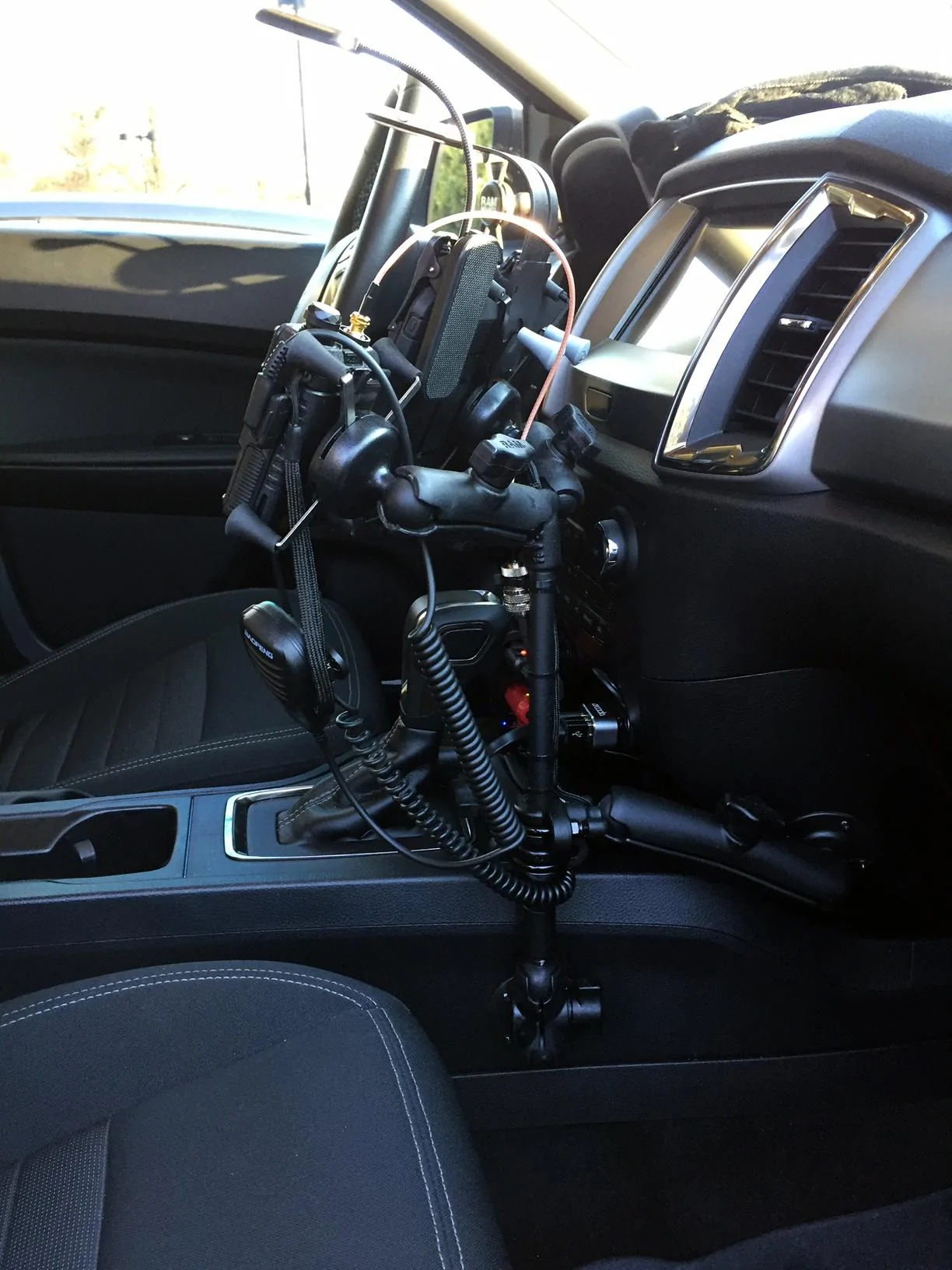

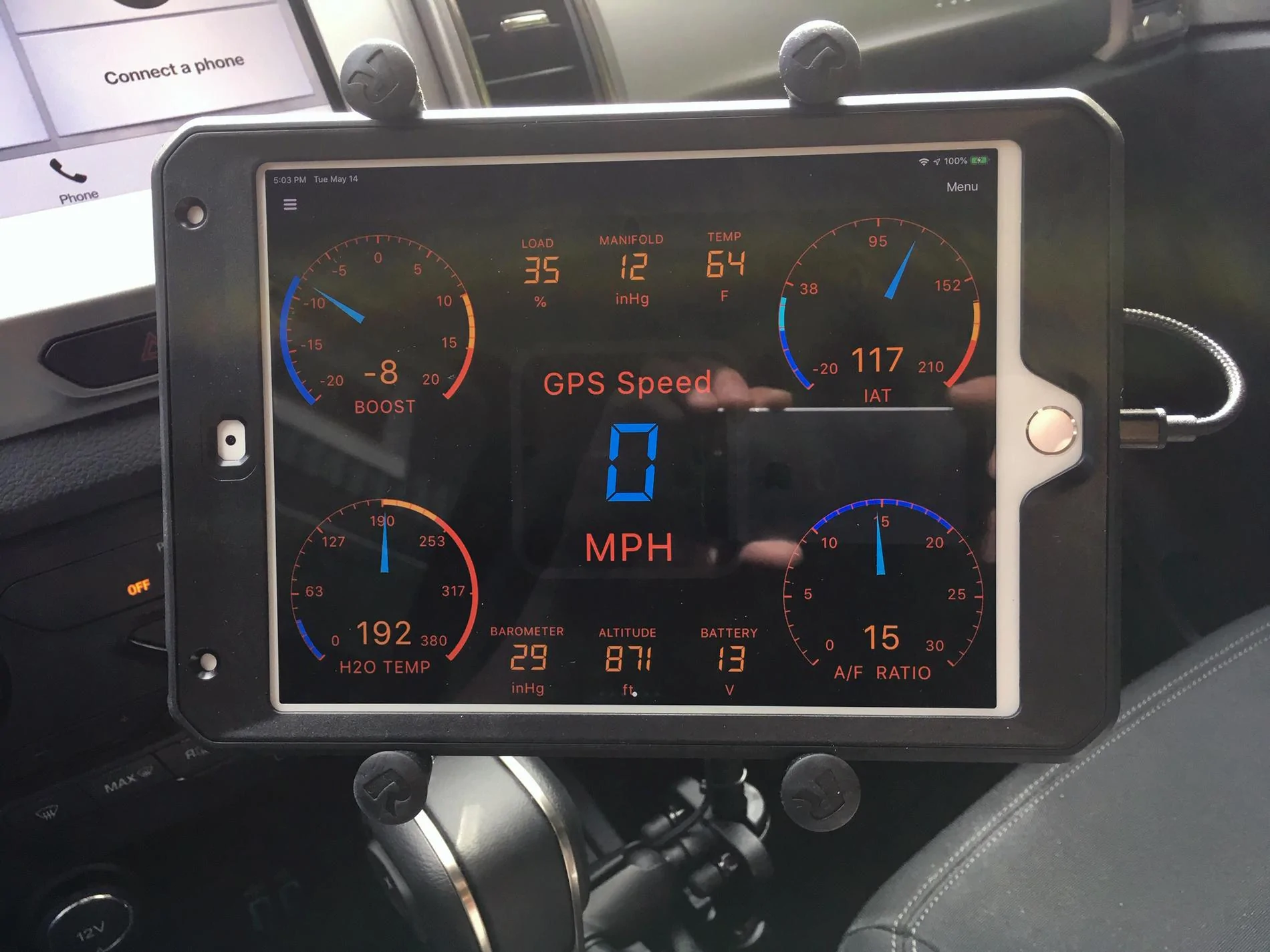

Looks like more of a shot mess than it really is with all the cables :giggle:

It's hard to see but it's a 3 point base system making the tablet perch very stable even in rough conditions...yes, it is a permanent mount in my permanent Ranger:)

OP
WLFPIR8

WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Messages
94
Reaction score
156
Location
Central Ohio
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #14
Looks like more of a shot mess than it really is with all the cables :giggle:

It's hard to see but it's a 3 point base system making the tablet perch very stable even in rough conditions...yes, it is a permanent mount in my permanent Ranger:)
I was considering something like that, they have a seat floor mount for it now too. Looks good though.


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,682
Reaction score
4,843
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
I was considering something like that, they have a seat floor mount for it now too. Looks good though.
Thanks...not as clean as yours but I wanted a robust permanent rig that wasn't in either wife's or airbag's way...I tried to get away with 3M adhesive but that didn't hold so ended up having to add screws...but I'm planning on keeping her for a long long time anyway:)
