Nope not the tasty camping treats!

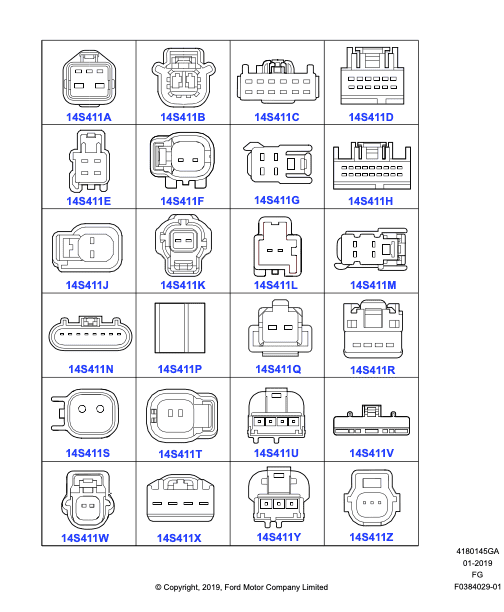

After selecting your Year/Make/Model, you can search for "Electrical Pigtail at parts.ford. Most of the pigtails have multiple uses so read the usages. A common one in here would be for replacing speakers and creating pigtails instead of tapping into the existing wiring, or if you messed something up and need to replace a connector.

Screen Shot 2022-01-01 at 8.43.13 AM.png
Sponsored



Stringburner

Well-Known Member
Joined
Nov 28, 2021
Threads
2
Messages
48
Reaction score
149
Location
West Virginia
Vehicle(s)
2021 Iconic Silver Ford Ranger XLT Tremor
That's handy, thanks for sharing. That bottom right one seems really common.


Allesky00

Active Member
First Name
Zachary
Joined
Aug 1, 2021
Threads
0
Messages
28
Reaction score
79
Location
Louisiana, USA
Vehicle(s)
2021 Ranger XLT
Occupation
I&E Tech
A very useful chart, I'll be saving this for reference. Thanks!

I've been looking everywhere. Does anyone know the part number for the plug (Male & Female ends) for the cigarette lighter socket? I want to piggyback off that circuit but don't want to cut wires on a brand-new truck.
