oil level observations on a new truck

silverflash

Well-Known Member
First Name
Bill
Joined
Jun 4, 2021
Messages
220
Reaction score
196
Location
NC
Vehicle(s)
2021 ranger XL loaded
Occupation
stuff

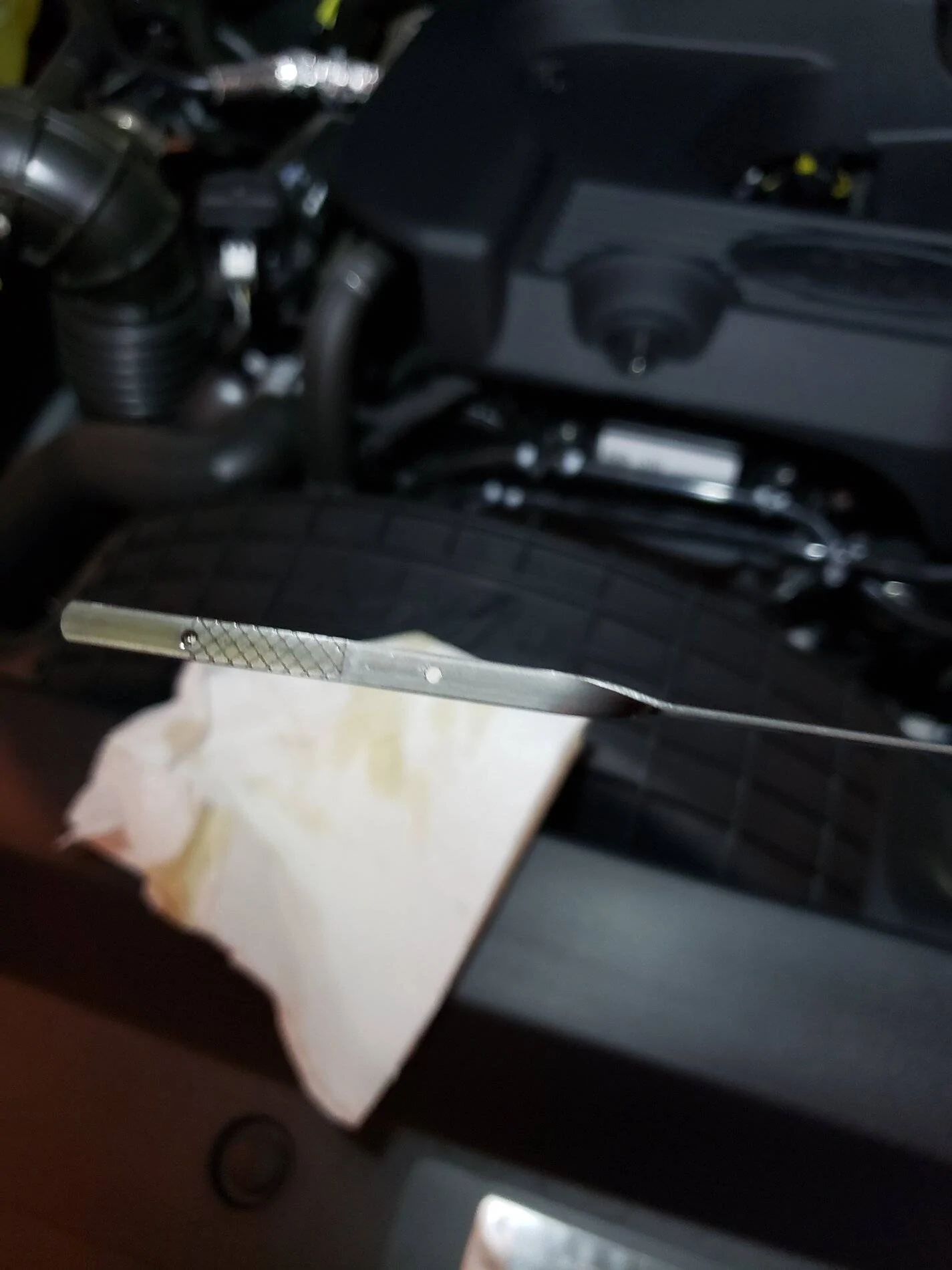

so i got my brand new 2021 fx4 in early june. I am one to check the oil even on a new car. i noticed that the level was in the safe zone from the first time i checked it probably 2 weeks in till yesterday when i changed it- i can't recall if it ever rose. Anyhow, i changed the oil in late june at around 1500 miles. I put in 6 quarts and noted then that 6 quarts put the level right to the full line- my notes said that. And this was after running it for a few minutes to warm up then letting it sit 15 minutes per my notes. I am not sure if i meant the high dot or the hash but i am thinking the hash. Anyhow, fast forward to recently and i see that the level is now a hair past the high dot and seemed to drip off the stick easy and had that gas smell. I have read alot of the fuel dilution threads so i thought ok, normal for a newer engine but to be safe I just changed it again with about 3900 miles on it. I put in 6 quarts exactly. not 6.2. I changed the filter as well as I usually do. I ran the engine till it was at op temp per my scangauge and the dash needle and stopped and let it sit 15 minutes exactly and checked. it was right at or a hair above the top of the hash marks. perfect based on my readings. see 3903 pic.


It took a few removals and inserts to get a good read.

This morning I checked it cold. The level was below the top of the hash marks. i do use synthetic and synthetic supposedly expands more than conventional or semi-synthetics.

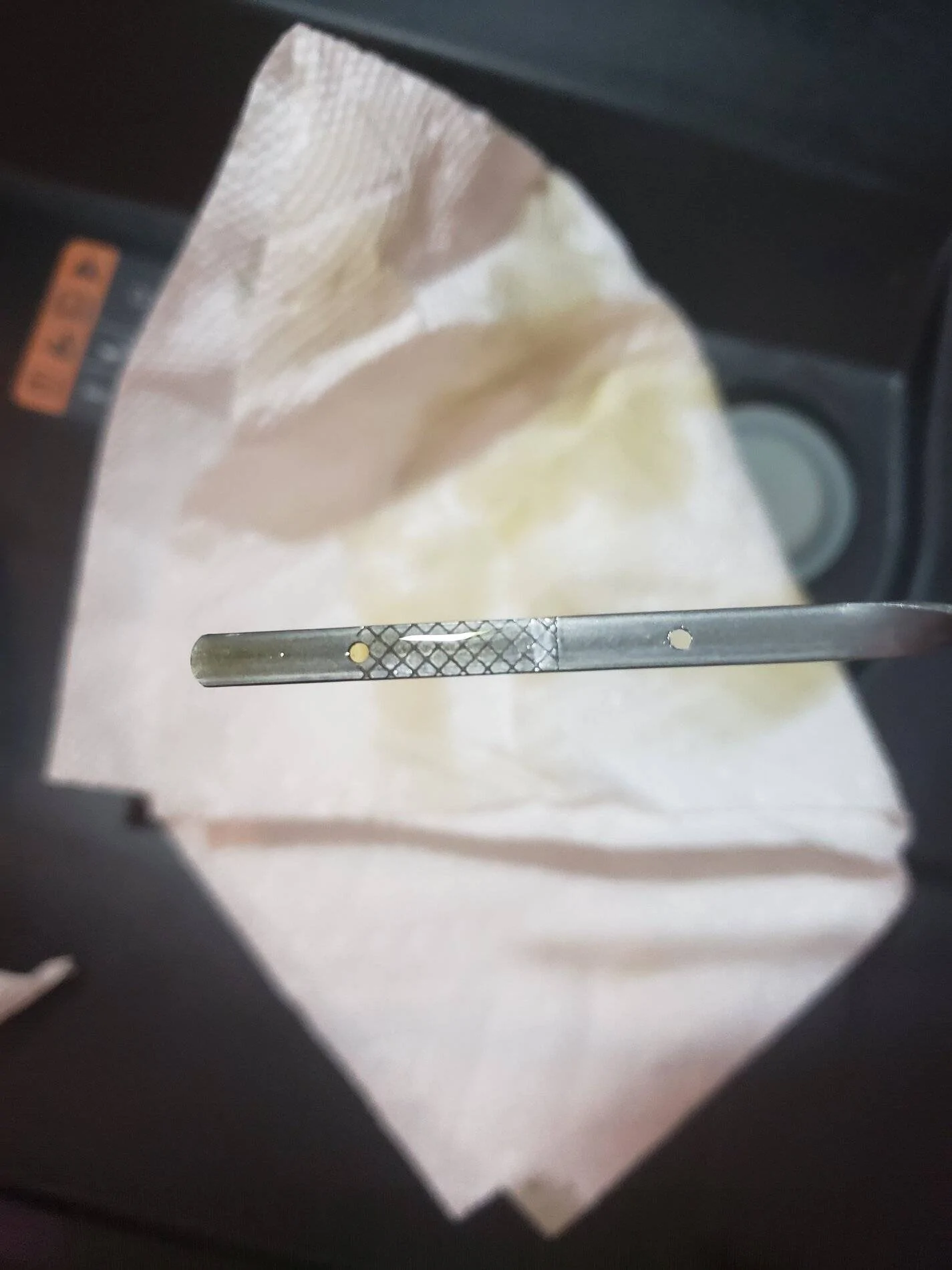

see pic 5430.


I will be watching this level alot closer moving forward. assuming that the level was the same on the 1st oil change, and it got the a hair past the high dot in 2400 miles, do i have a problem? I hope not. i hope it's just breaking in and that it will slow/stop as far as making more oil from gas.

thoughts?



Advertisement


OP
OP

silverflash

Well-Known Member
First Name
Bill
Joined
Jun 4, 2021
Messages
220
Reaction score
196
Location
NC
Vehicle(s)
2021 ranger XL loaded
Occupation
stuff
i have about 3900 miles on the truck now.

OP
OP

silverflash

Well-Known Member
First Name
Bill
Joined
Jun 4, 2021
Messages
220
Reaction score
196
Location
NC
Vehicle(s)
2021 ranger XL loaded
Occupation
stuff
Well if the level rises to the high dot, to me that's a problem and that means fuel dilution. Oil doesn't grow inside to crankcase. At least now I am 100% aware of exact levels right after an oil change and I can see what it does. I am hoping it will slow and stop and the engine is broken in now. We shall see.


RANGER PRIDE

Well-Known Member
Joined
Sep 4, 2019
Messages
5,446
Reaction score
11,795
Location
Canada, somewhere. A nomadic traveller
Vehicle(s)
2019 Ranger FX4 Supercrew
high dot and a hair above are two vastly different outcomes.
daily temps and atmospheric pressures will move your oil line a hair or two on its own

fuel dilution is only a problem on a small amount of trucks. even though it can occur on many more. Your driving style and break in process has more of an effect on the problem, than a imminent catastrophic failure inside of it.
continue to monitor it with your eyeball....but a more accurate way is available through oil sampling.


Mustang2Ranger

Well-Known Member
First Name
Garrett
Joined
Mar 20, 2019
Messages
370
Reaction score
509
Location
Southern California
Vehicle(s)
19 Ranger Lariat-FX4,4X4,White Platinum; 06 Escape
don't go by the rudimentary dot /hash system to confirm fuel dilution. most of the hype on the fuel dilution thread is, well hype

send it to the lab if you are that concerned like RP said. That is what I did


OrangeStreak

Well-Known Member
First Name
Paul
Joined
Aug 18, 2020
Messages
890
Reaction score
2,491
Location
Albuquerque
Vehicle(s)
2020 SCab STX 4X4 Towing Pkg. BFG K02's 265/70/17
Occupation
Retired. MTS degree. ANG veteran. 2nd Amendment supporter.

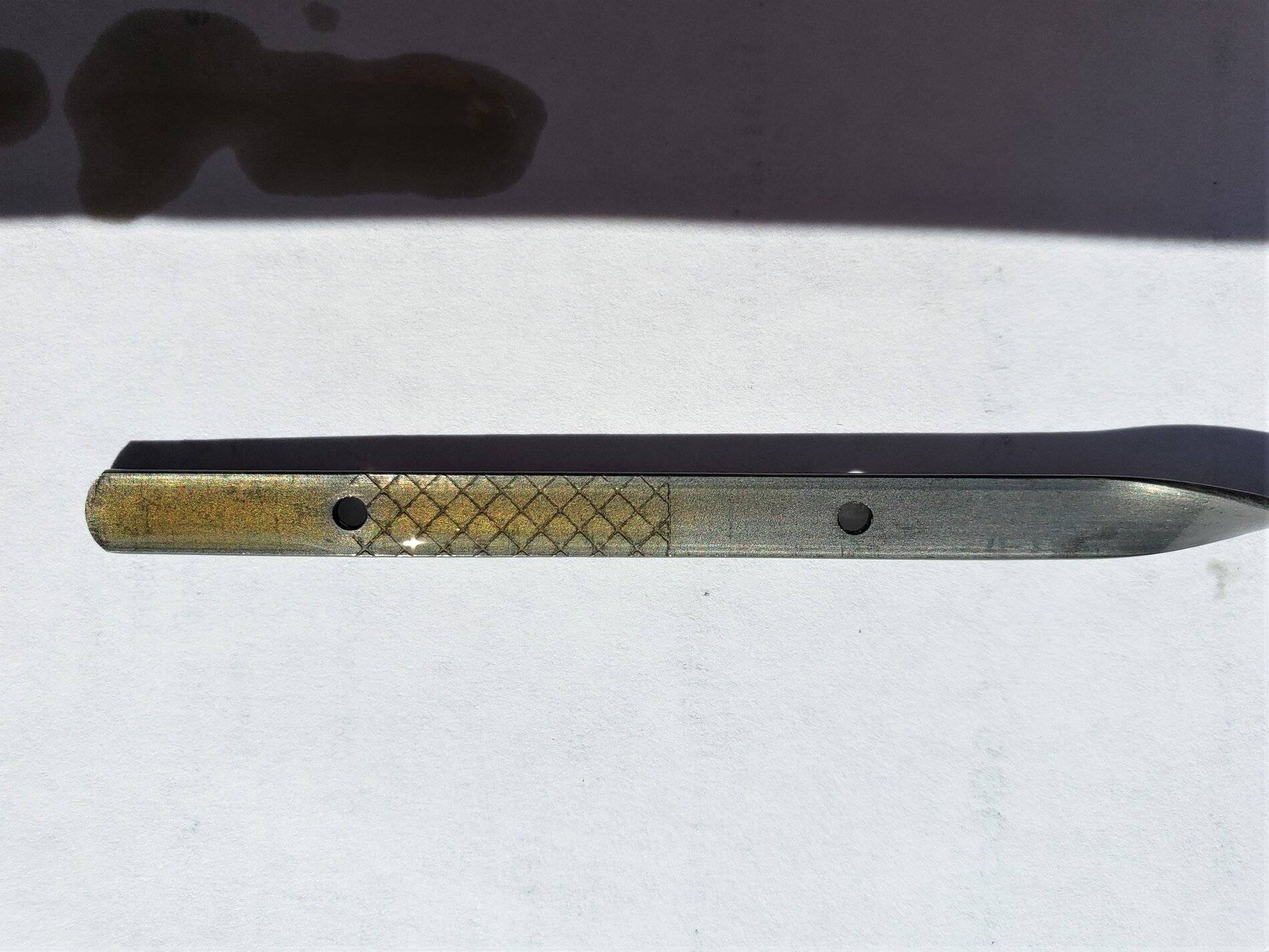

Pic. of where the normal oil level should be. This reading was taken after sitting overnight following the 1st oil change. Any reading above the top hole is overfill...

Overnight 2.jpg

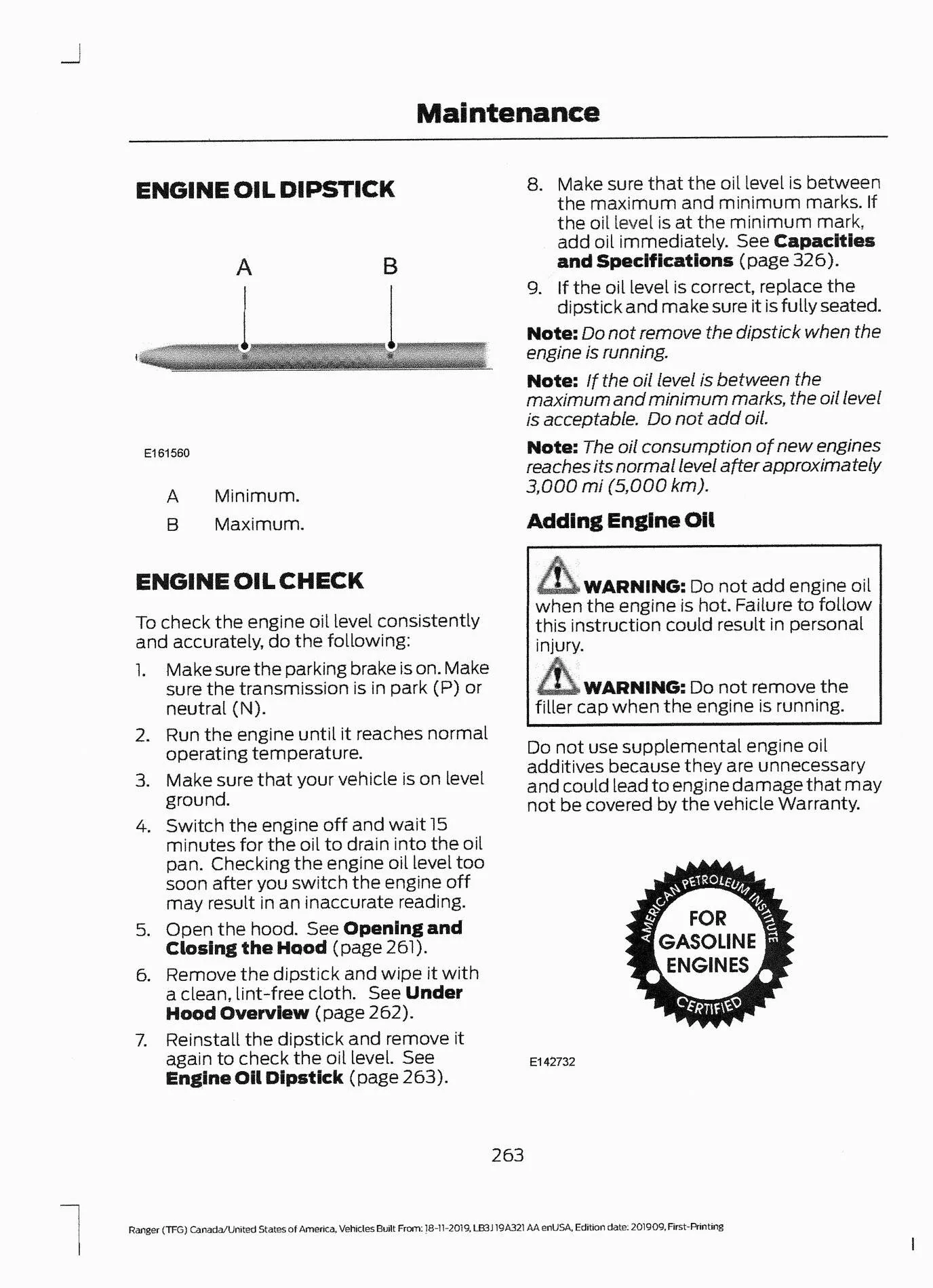

Manual Oil level specs.jpg
.

Last edited:
OP
OP

silverflash

Well-Known Member
First Name
Bill
Joined
Jun 4, 2021
Messages
220
Reaction score
196
Location
NC
Vehicle(s)
2021 ranger XL loaded
Occupation
stuff
yes, i know the max and min marks are the holes. currently as of this morning cold, it's slightly in the middle which is acceptable per the manual. i am assuming you added 6.2 quarts whereas i added just 6. that will give me room and time before it gets to the high dot so that i can get it to the dealer if i need to. If i see it moving in that direction i wil make an appointment so it gets to them right around or before the high dot.


OrangeStreak

Well-Known Member
First Name
Paul
Joined
Aug 18, 2020
Messages
890
Reaction score
2,491
Location
Albuquerque
Vehicle(s)
2020 SCab STX 4X4 Towing Pkg. BFG K02's 265/70/17
Occupation
Retired. MTS degree. ANG veteran. 2nd Amendment supporter.
yes, i know the max and min marks are the holes. currently as of this morning cold, it's slightly in the middle which is acceptable per the manual. i am assuming you added 6.2 quarts whereas i added just 6. that will give me room and time before it gets to the high dot so that i can get it to the dealer if i need to. If i see it moving in that direction i wil make an appointment so it gets to them right around or before the high dot.
Bill,
Right, is was 6.2. I do not get accurate readings when the truck has sat on level ground for 15 minutes after reaching operating temps or even sitting for several hours afterwards. I suspect it is because of oil being splashed inside the filler tube. It reads accurately after overnight but I realize that the level will rise a bit after bringing it up to full operating temp. Hope you get the situation solved :)


JustSteve

Member
First Name
Steve
Joined
Nov 26, 2019
Messages
16
Reaction score
11
Location
Tennessee
Vehicle(s)
2019 Ranger XLT
high dot and a hair above are two vastly different outcomes.
daily temps and atmospheric pressures will move your oil line a hair or two on its own

fuel dilution is only a problem on a small amount of trucks. even though it can occur on many more. Your driving style and break in process has more of an effect on the problem, than a imminent catastrophic failure inside of it.
continue to monitor it with your eyeball....but a more accurate way is available through oil sampling.
You have no way of knowing that oil dilution is a problem on only a small number of trucks. And there is no proof other than a few posters here speculating that driving style is the cause. Driving style is not an acceptable reason for fuel dilution.


RANGER PRIDE

Well-Known Member
Joined
Sep 4, 2019
Messages
5,446
Reaction score
11,795
Location
Canada, somewhere. A nomadic traveller
Vehicle(s)
2019 Ranger FX4 Supercrew
You have no way of knowing that oil dilution is a problem on only a small number of trucks. And there is no proof other than a few posters here speculating that driving style is the cause. Driving style is not an acceptable reason for fuel dilution.
well thanks for clearing that up
you offered some real hard concrete evidence there chummy.
we can close the threads now. its solved. thanks juststeve. where would we be without you?


jsphlynch

Well-Known Member
First Name
Joe
Joined
Oct 16, 2018
Messages
656
Reaction score
1,437
Location
Indiana
Vehicle(s)
2019 Ford Ranger XL
You have no way of knowing that oil dilution is a problem on only a small number of trucks. And there is no proof other than a few posters here speculating that driving style is the cause. Driving style is not an acceptable reason for fuel dilution.
If only there was some sort of data on this topic so we wouldn't have to speculate.


Mitch65

Well-Known Member
First Name
Mitch
Joined
Jul 12, 2021
Messages
56
Reaction score
55
Location
Ohio
Vehicle(s)
2021 Ford Ranger Tremor
Occupation
Finance
Checking the oil level on my truck is the most difficult I have every experienced. Every other vehicle I have ever owned it was not problem. Pull the stick, wipe, back in it goes, easy. Not my ranger.

I think a bit part of this whole oil thing is how difficult it is to get an accurate oil reading on these trucks.


OrangeStreak

Well-Known Member
First Name
Paul
Joined
Aug 18, 2020
Messages
890
Reaction score
2,491
Location
Albuquerque
Vehicle(s)
2020 SCab STX 4X4 Towing Pkg. BFG K02's 265/70/17
Occupation
Retired. MTS degree. ANG veteran. 2nd Amendment supporter.
Checking the oil level on my truck is the most difficult I have every experienced. Every other vehicle I have ever owned it was not problem. Pull the stick, wipe, back in it goes, easy. Not my ranger.

I think a bit part of this whole oil thing is how difficult it is to get an accurate oil reading on these trucks.
MItch,
Me too. The only way I can get a good reading is to let it sit overnight :)

Overnight 2.jpg
