Official: 2019 MY Ranger Order Guide released!

rduvall

Well-Known Member
Joined
Feb 7, 2018
Messages
167
Reaction score
104
Location
Tennessee
Vehicle(s)
Altima
Official 2019 Ranger builder is now live @ https://shop.ford.com/build/ranger/#/select/


Official 2019 Ranger Pricing list:

4x2 SuperCab
  • XL with 6’ Box: $25,395
  • XLT with 6’ Box: $29,035
  • Lariat with 6’ Box: $33,305
4x4 SuperCab
  • XL with 6’ Box: $29,555
  • XLT with 6’ Box: $33,035
  • Lariat with 6’ Box: $37,305
4x2 SuperCrew
  • XL with 5’ Box: $27,615
  • XLT with 5’ Box: $31,210
  • Lariat with 5’ Box: $35,480
4x4 SuperCrew
  • XL with 5’ Box: $31,775
  • XLT with 5’ Box: $35,210
  • Lariat with 5’ Box: $39,480

LATEST ORDER GUIDE: MARCH 25, 2019

Order Guide Link [PDF] attached and pasted below.

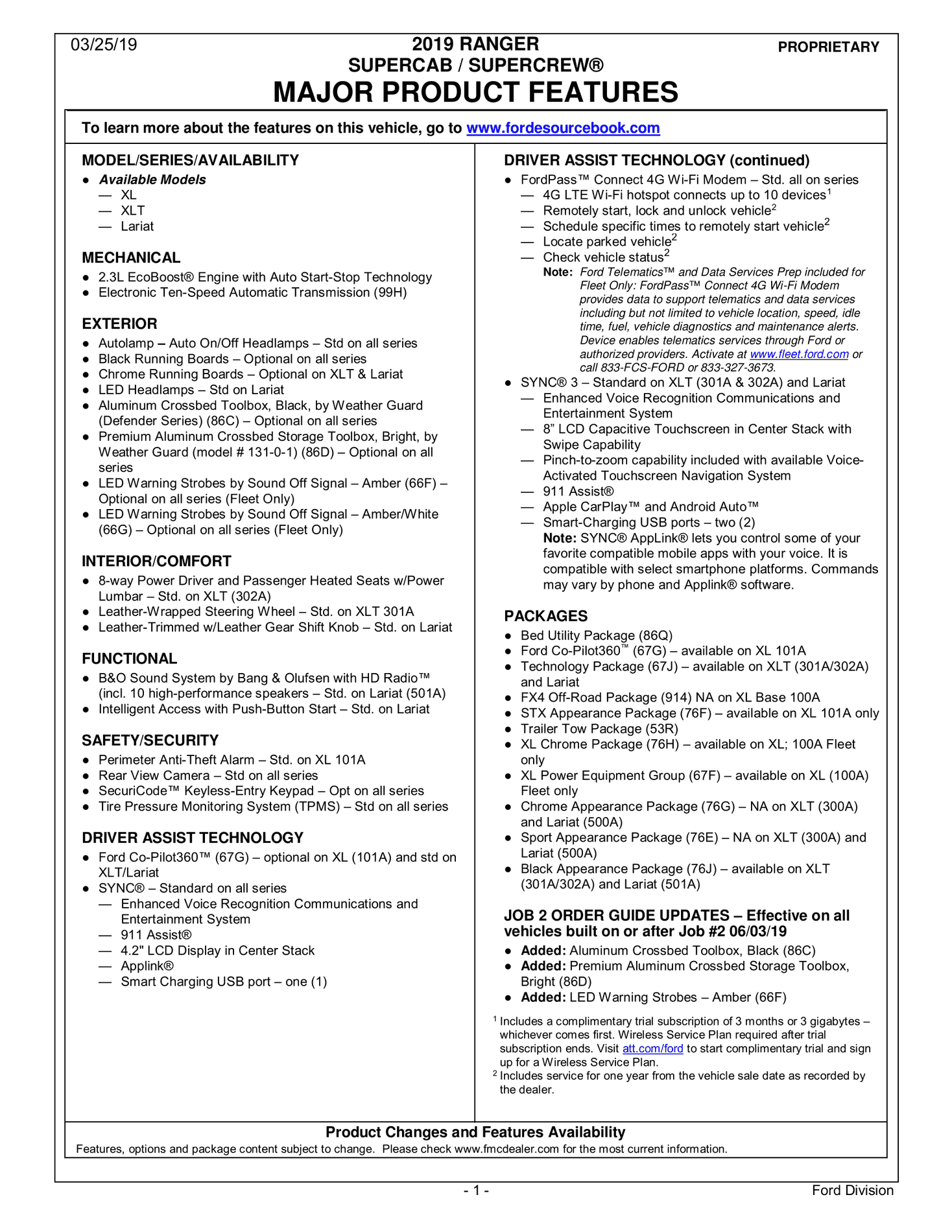

2019 Ranger Order Guide-March-25-2019-01.png

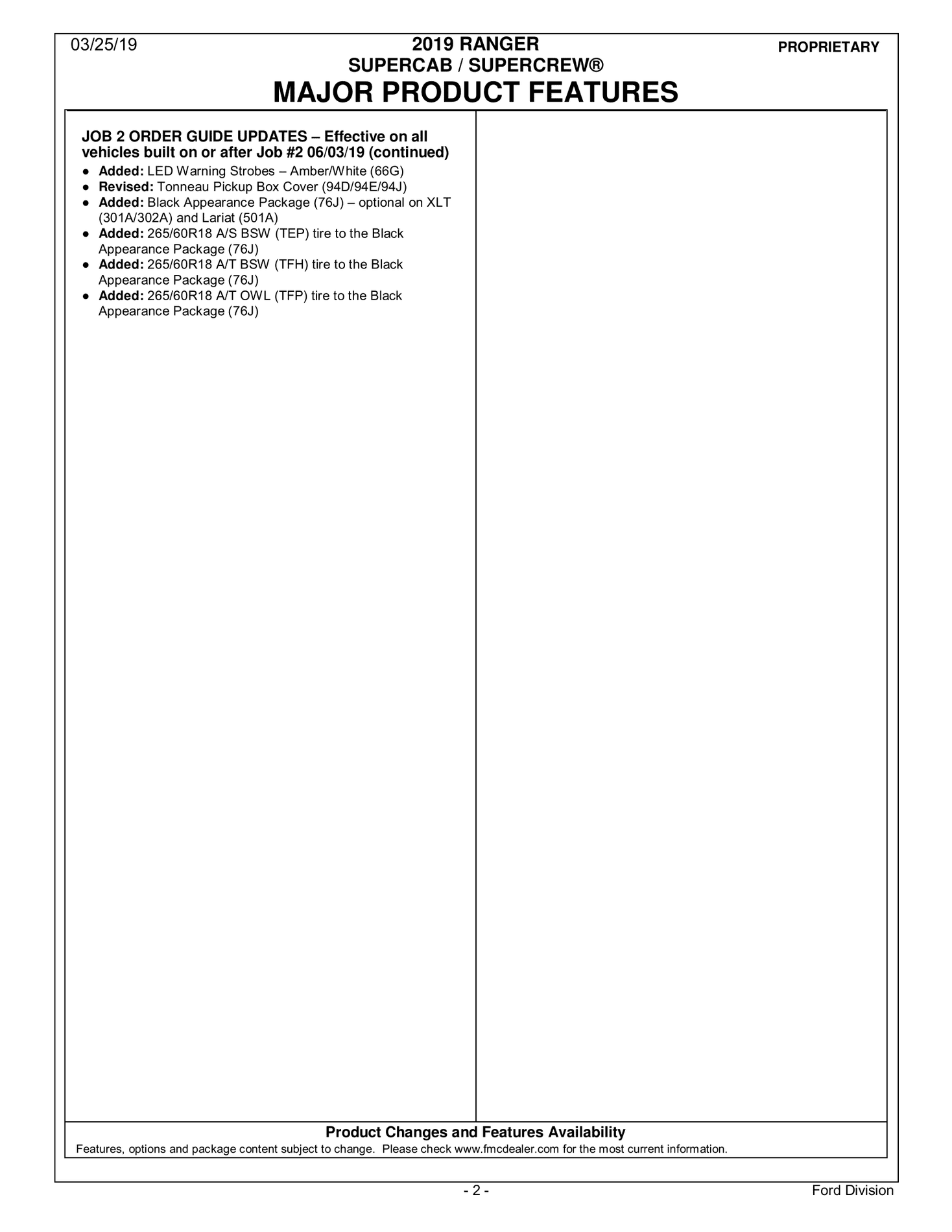

2019 Ranger Order Guide-March-25-2019-02.png

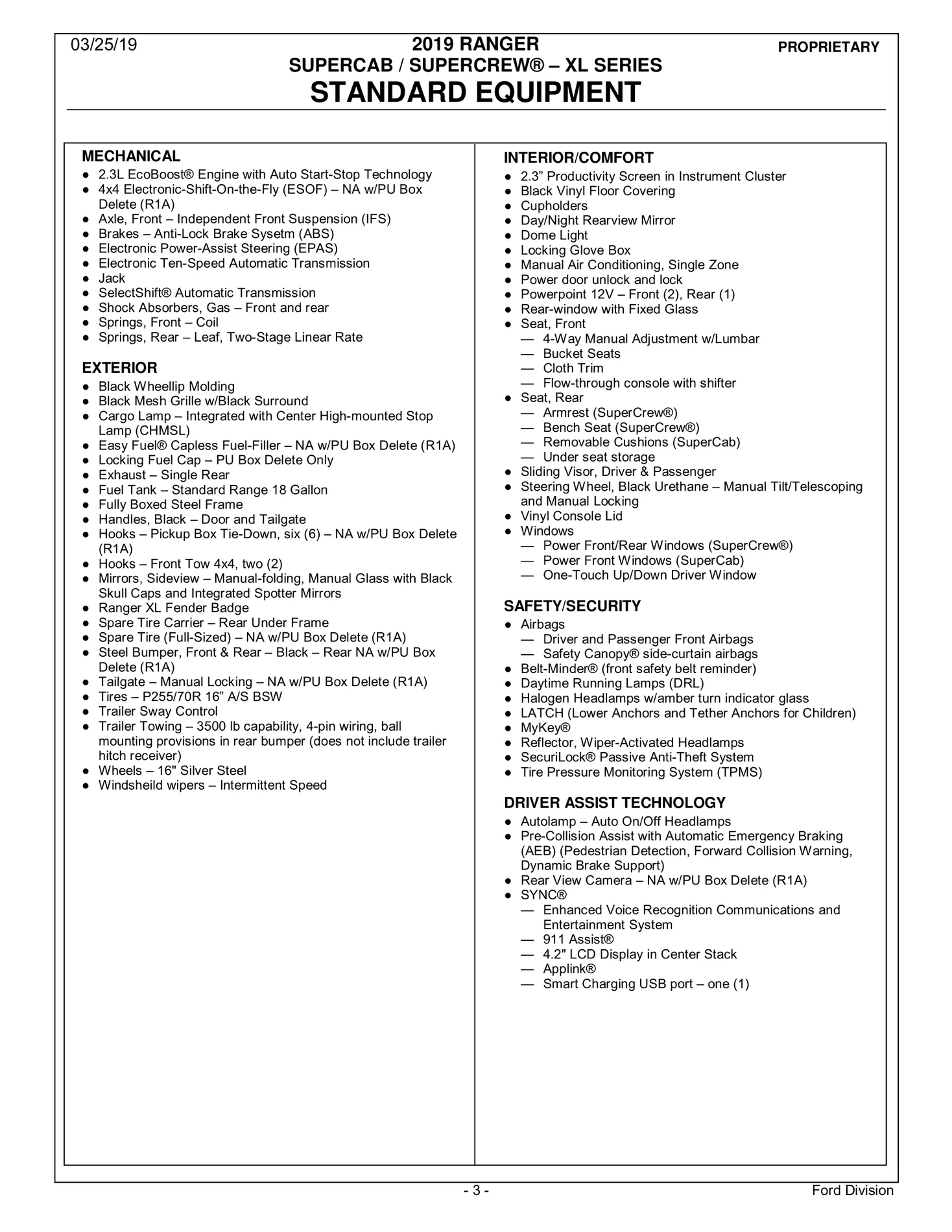

2019 Ranger Order Guide-March-25-2019-03.png

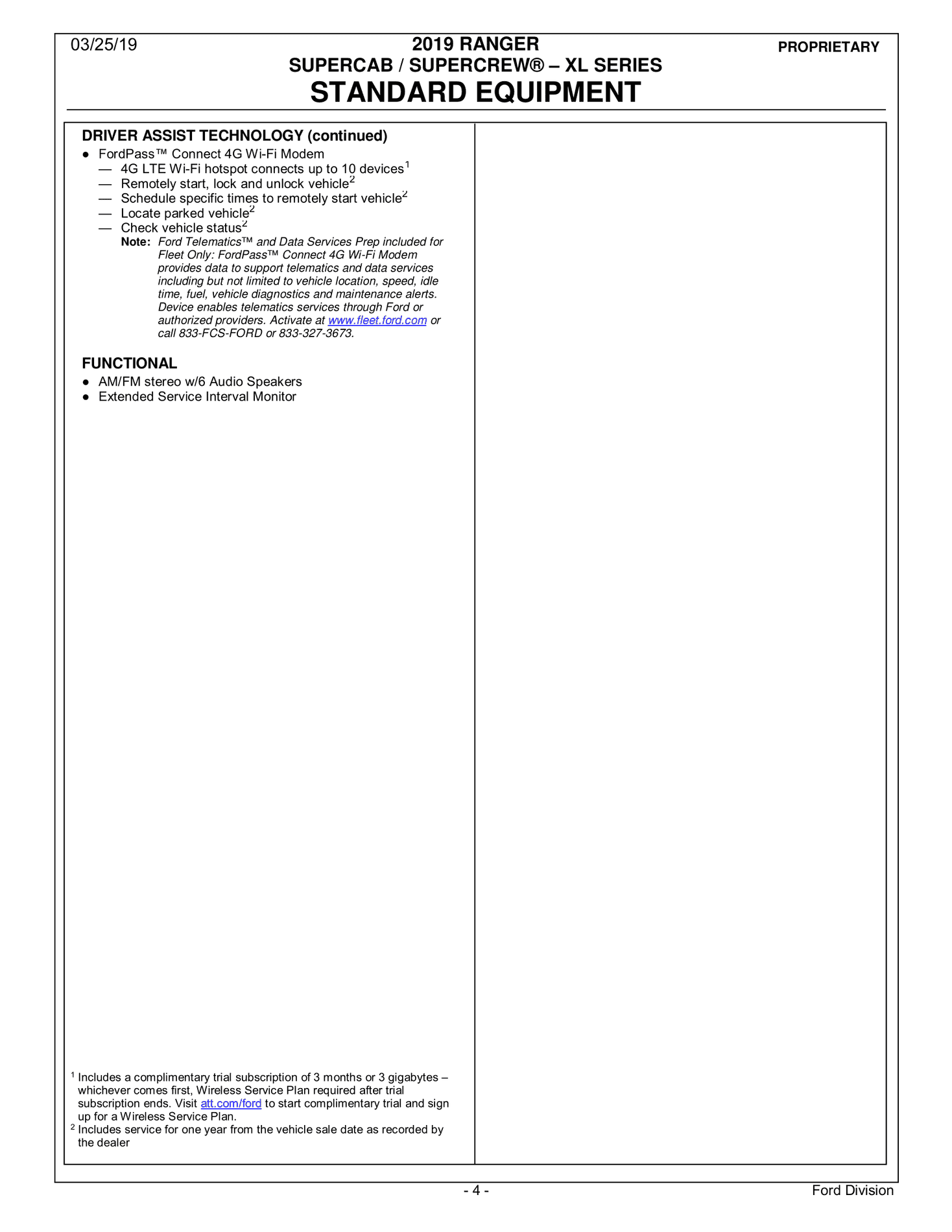

2019 Ranger Order Guide-March-25-2019-04.png
2019 Ranger Order Guide-March-25-2019-05.png

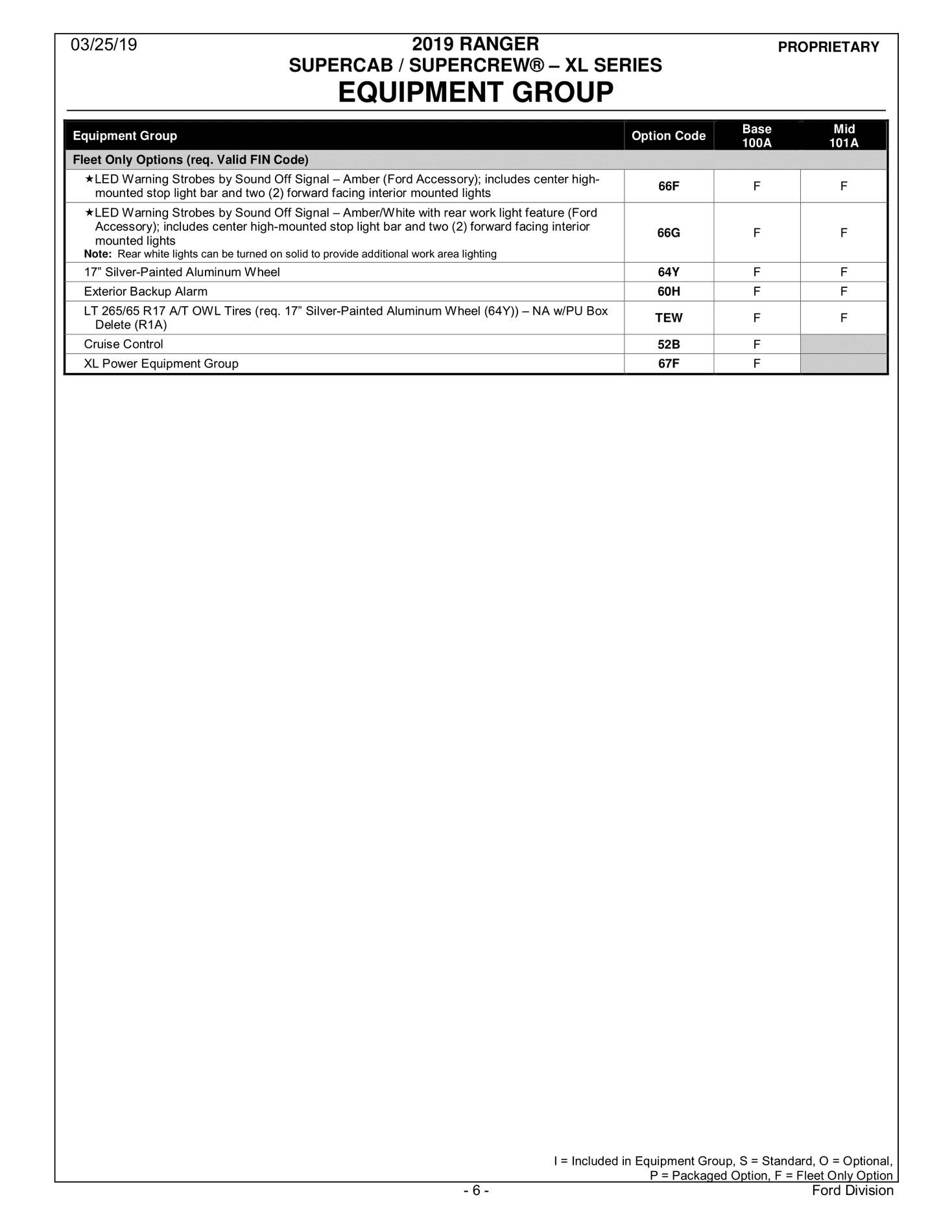

2019 Ranger Order Guide-March-25-2019-06.png
2019 Ranger Order Guide-March-25-2019-07.png

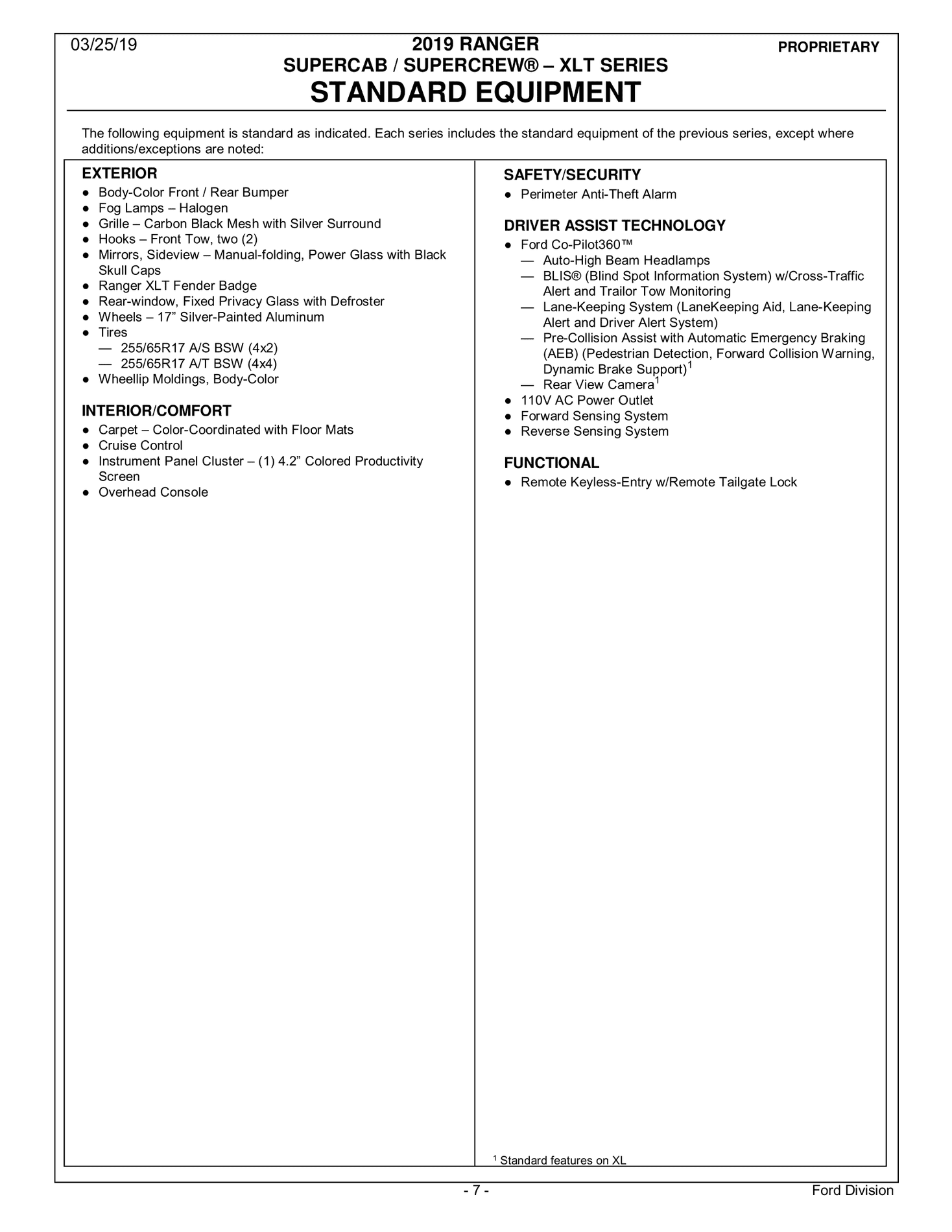

2019 Ranger Order Guide-March-25-2019-08.png

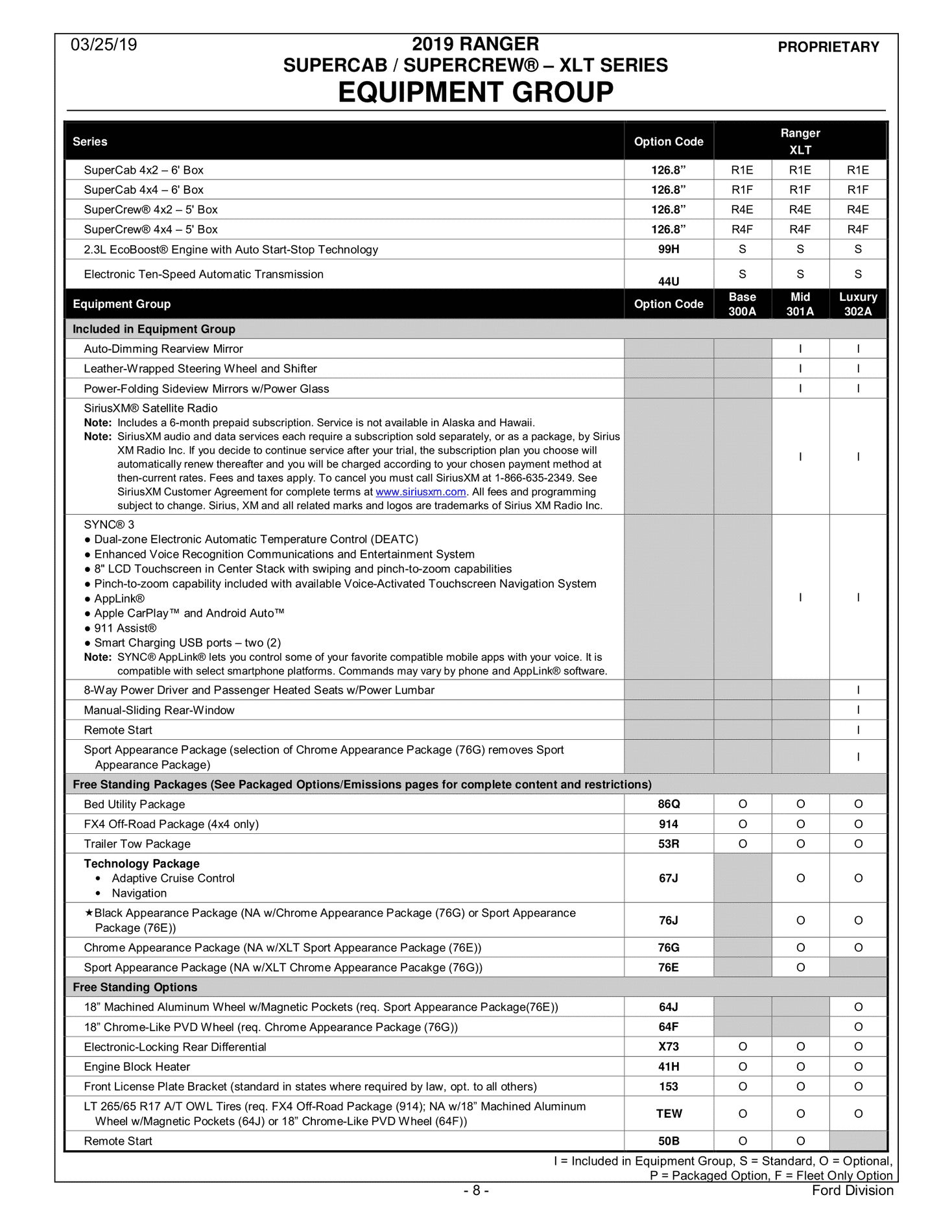

2019 Ranger Order Guide-March-25-2019-09.png

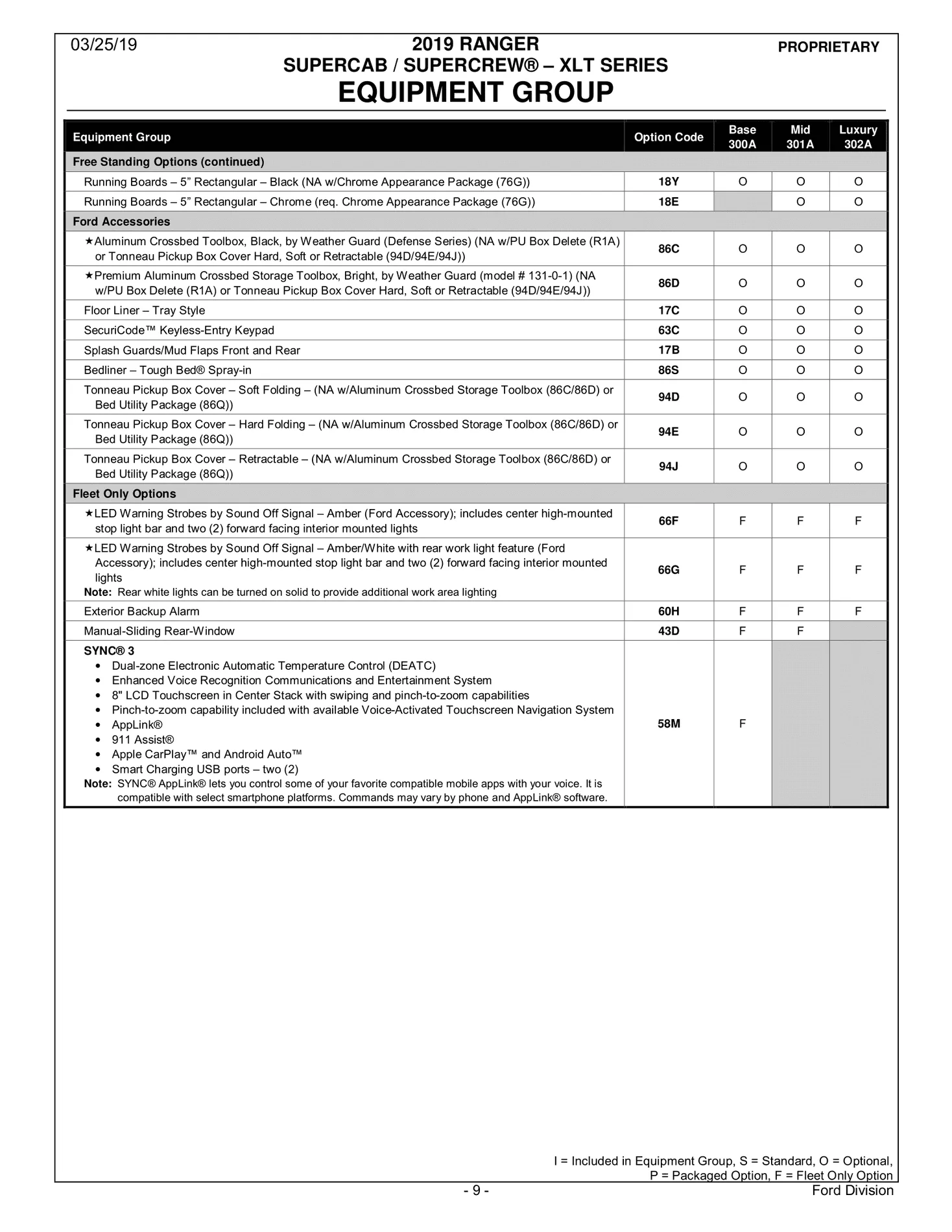

2019 Ranger Order Guide-March-25-2019-10.png

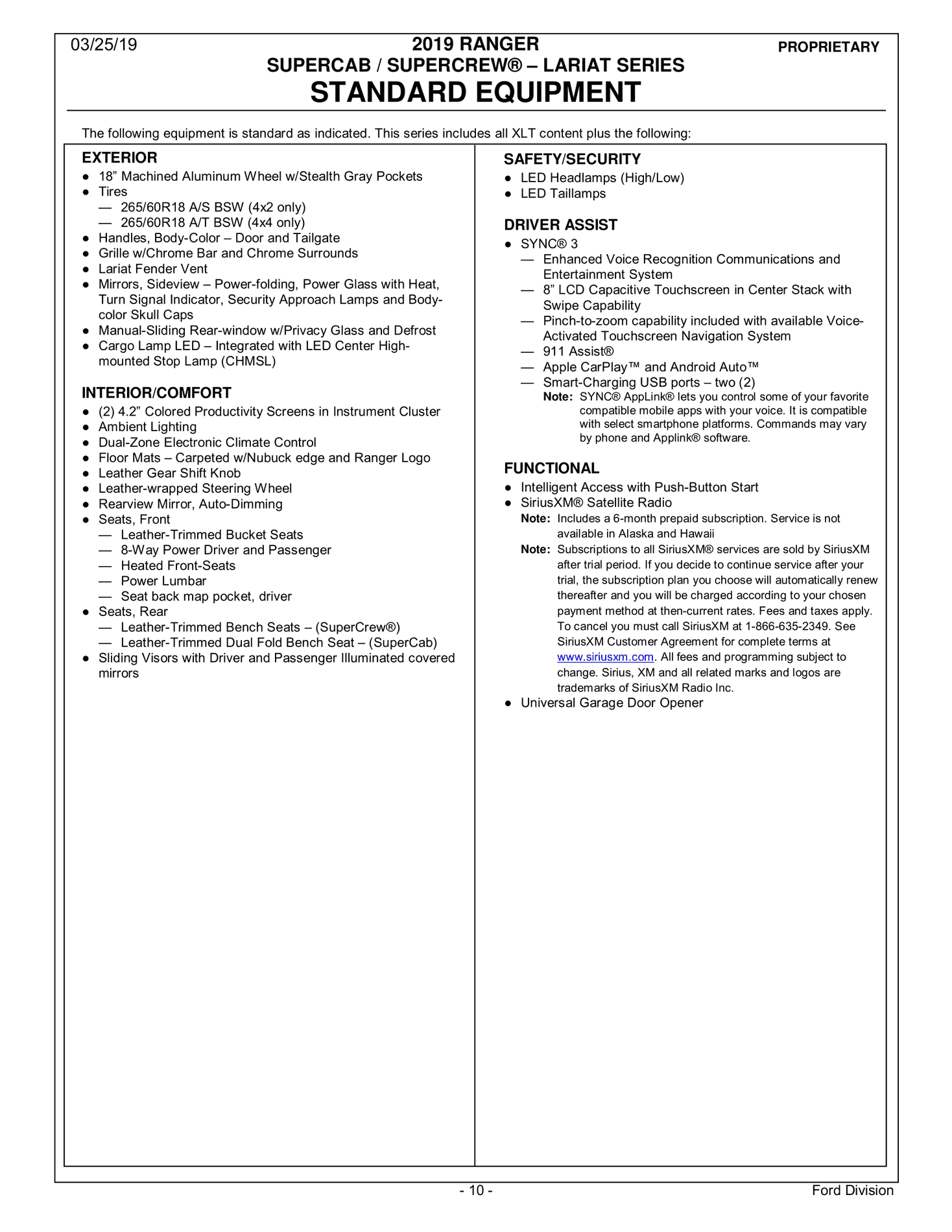

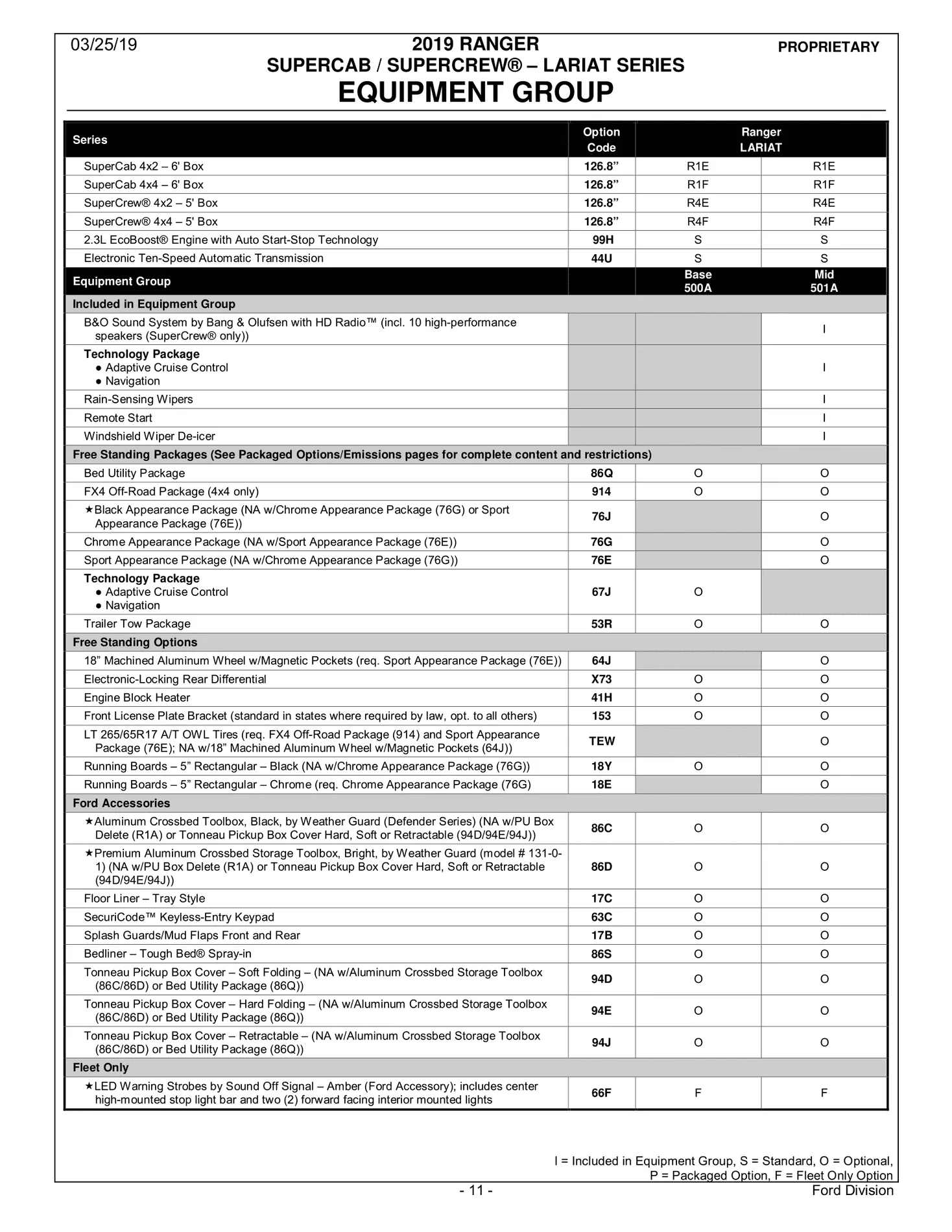

2019 Ranger Order Guide-March-25-2019-11.png

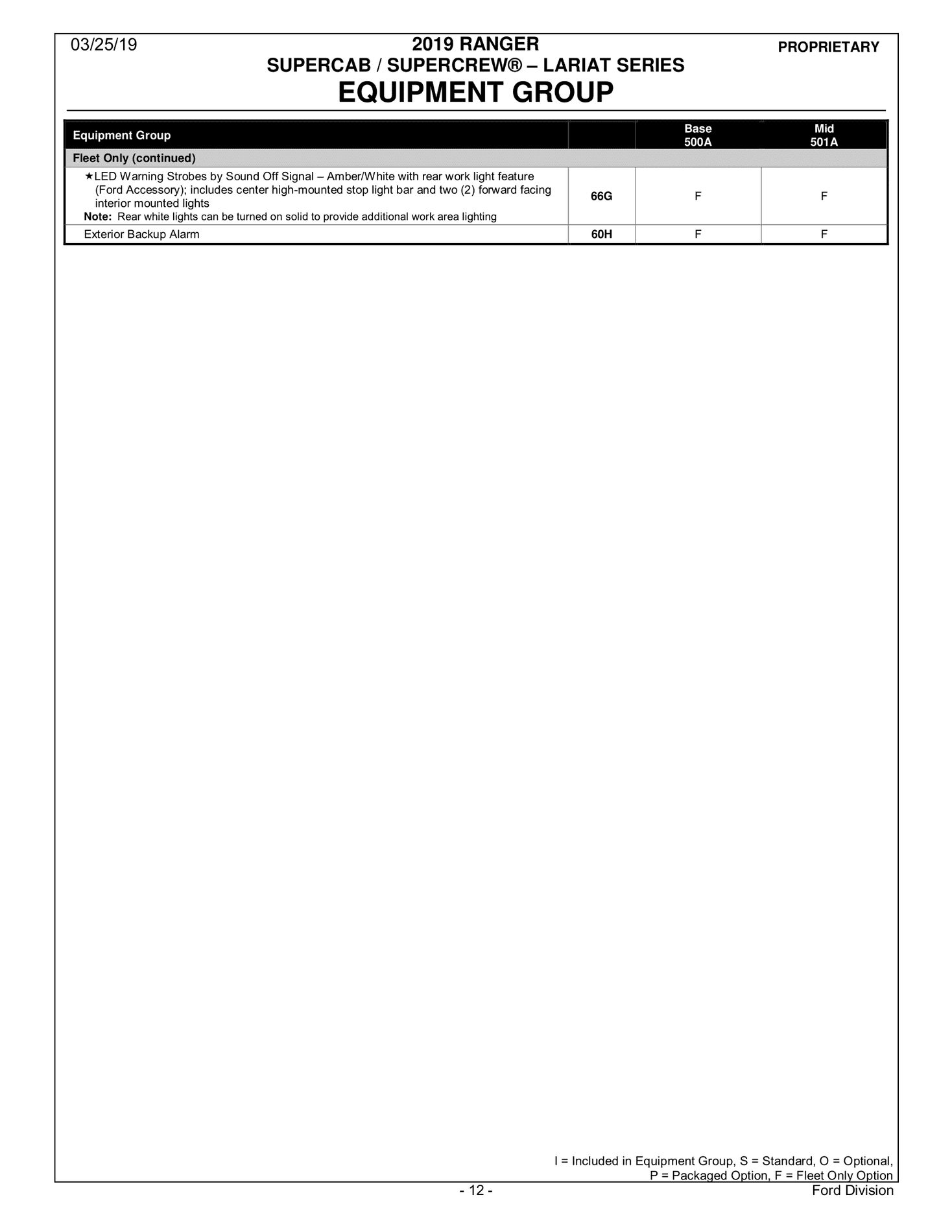

2019 Ranger Order Guide-March-25-2019-12.png

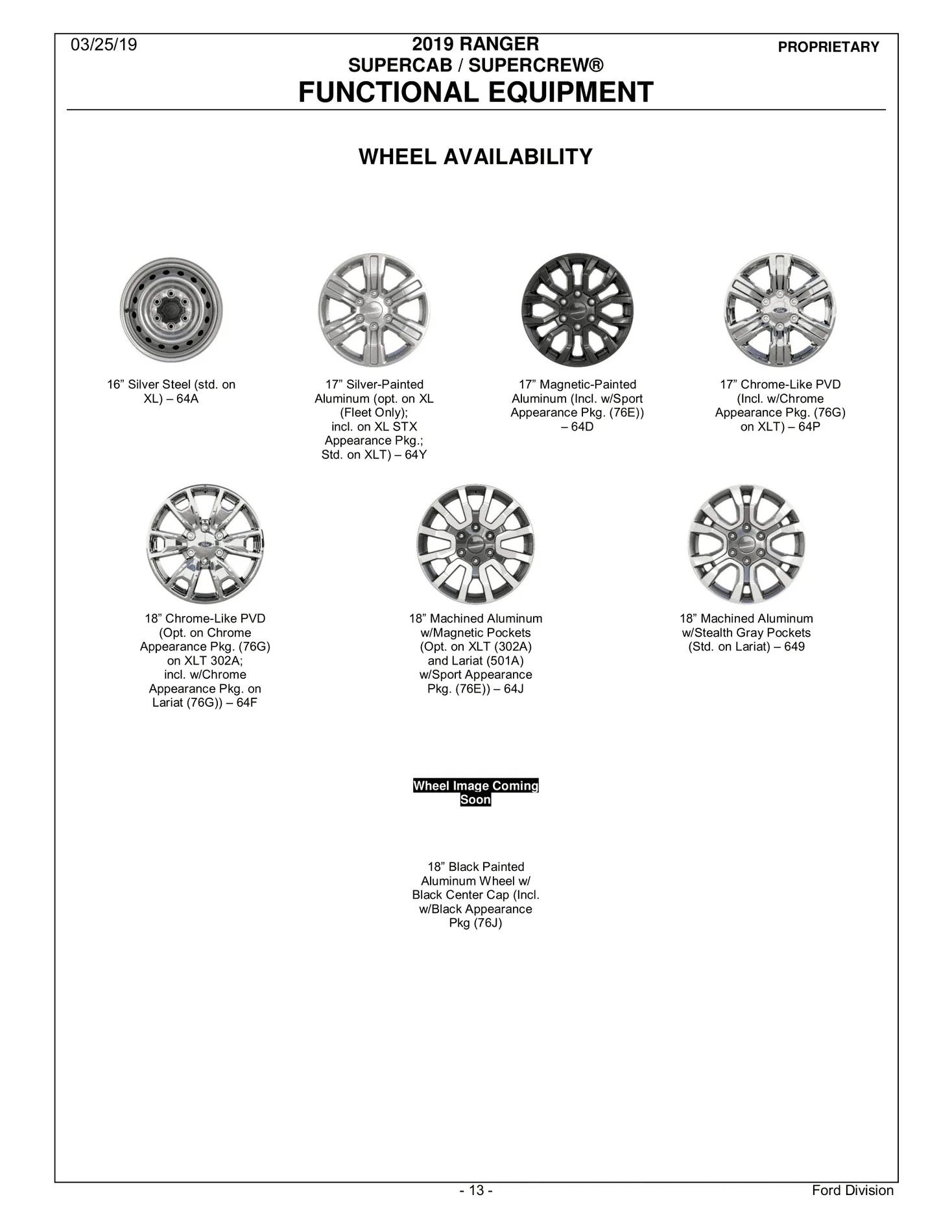

2019 Ranger Order Guide-March-25-2019-13.png

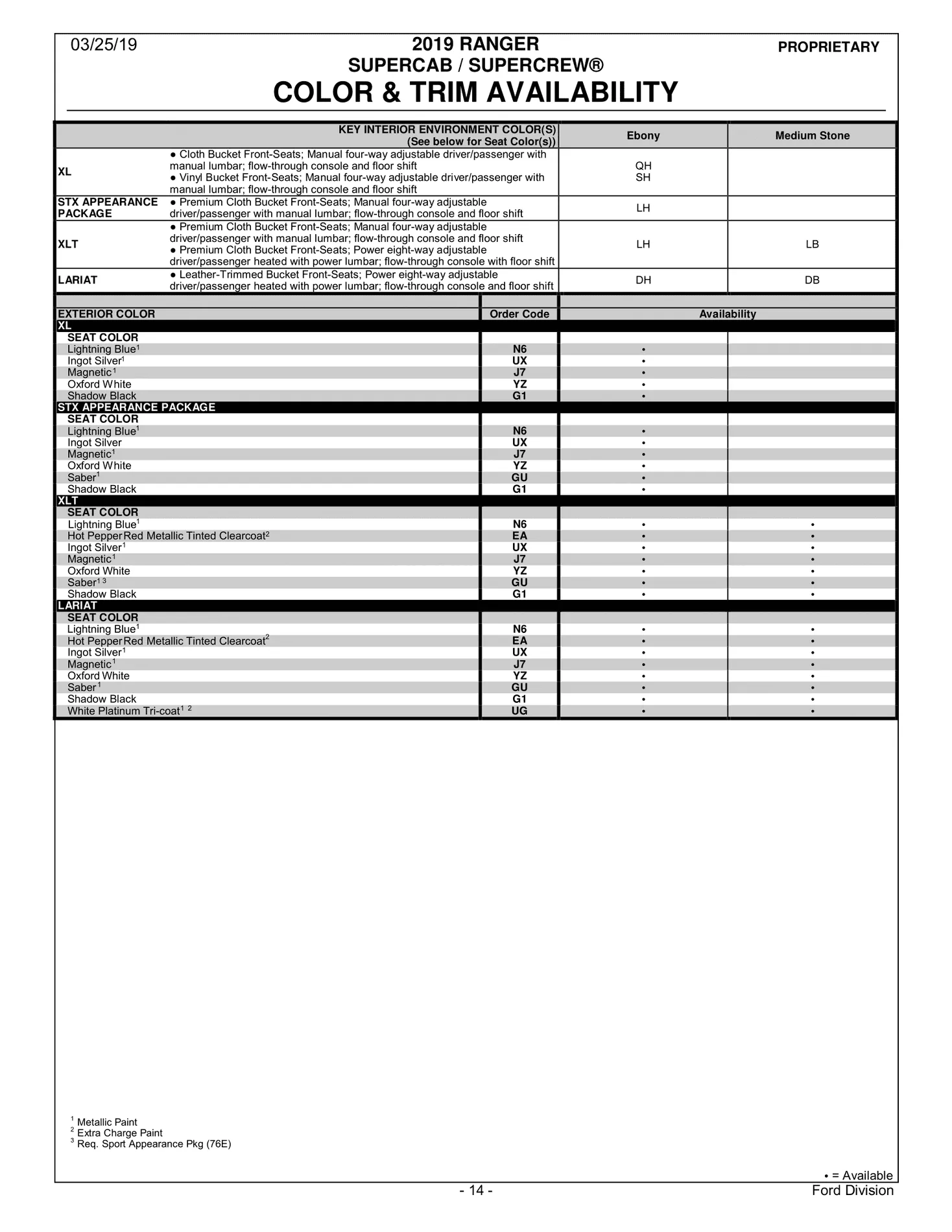

2019 Ranger Order Guide-March-25-2019-14.png

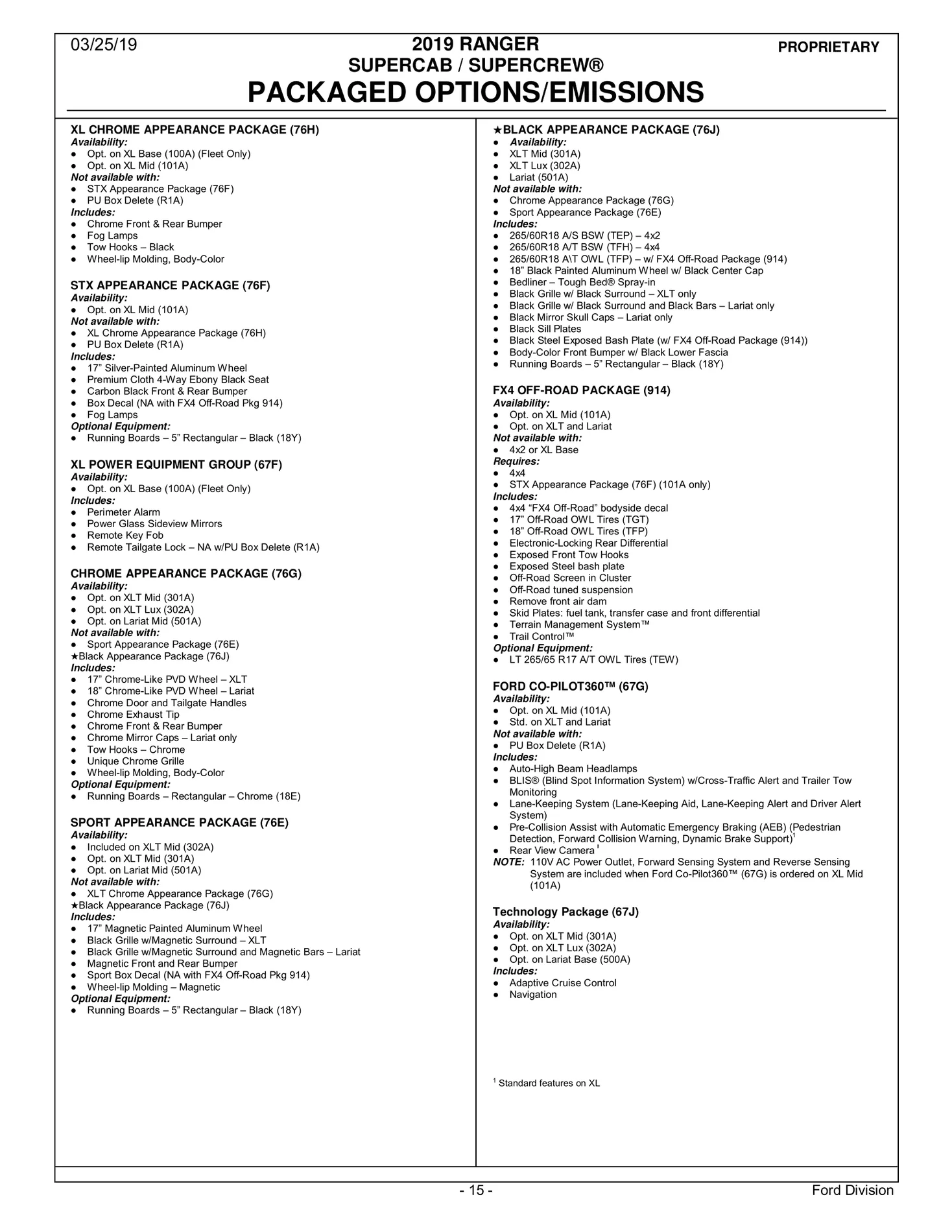

2019 Ranger Order Guide-March-25-2019-15.png

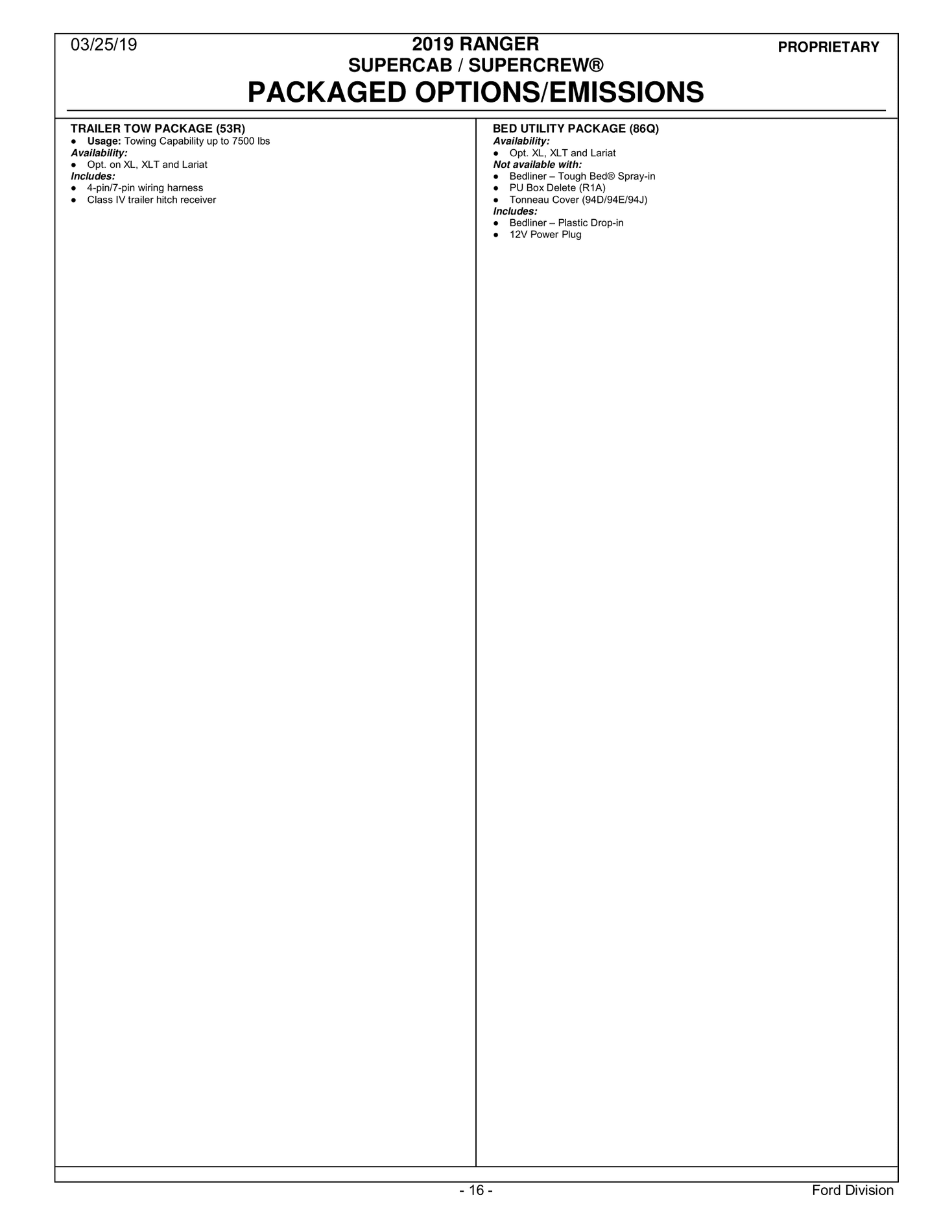

2019 Ranger Order Guide-March-25-2019-16.png

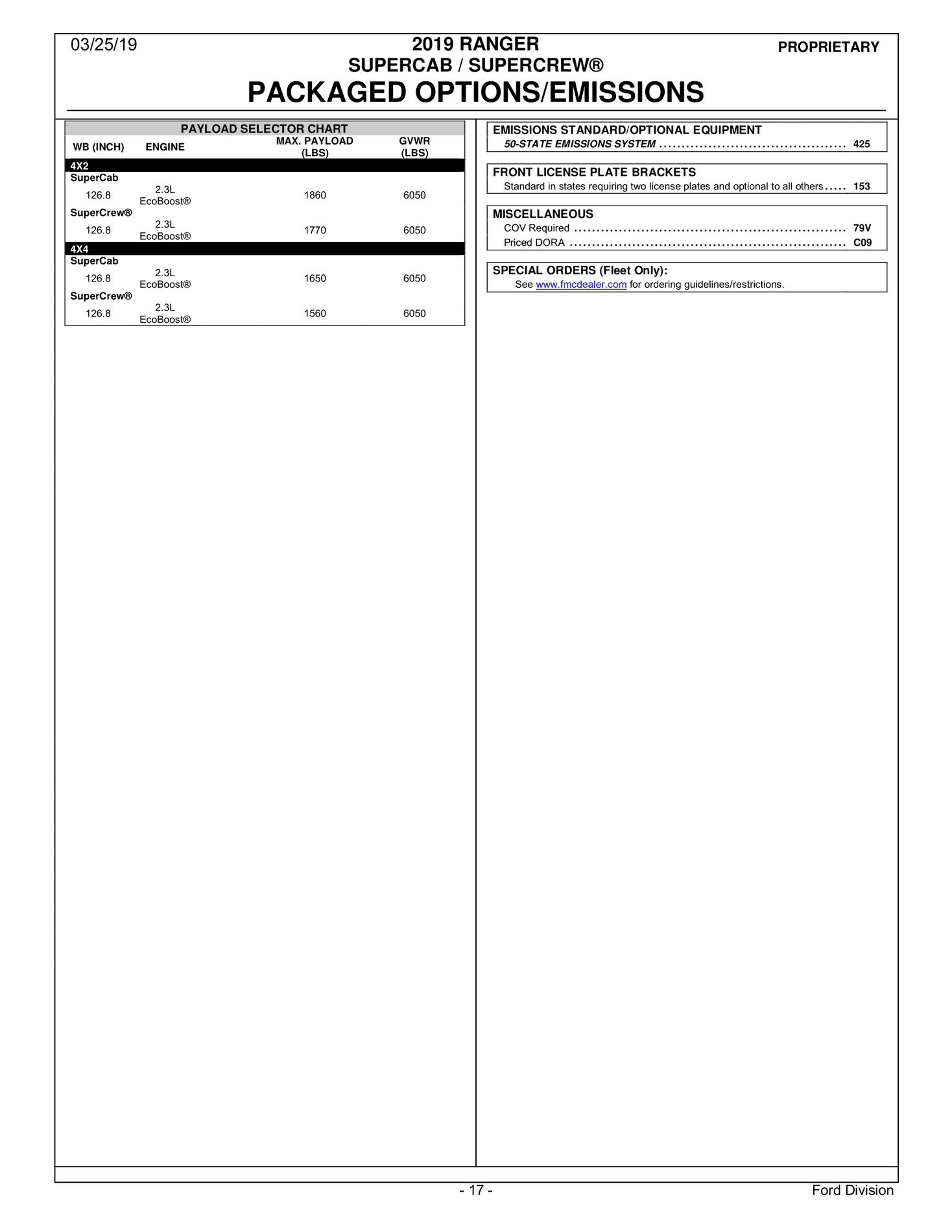

2019 Ranger Order Guide-March-25-2019-17.png

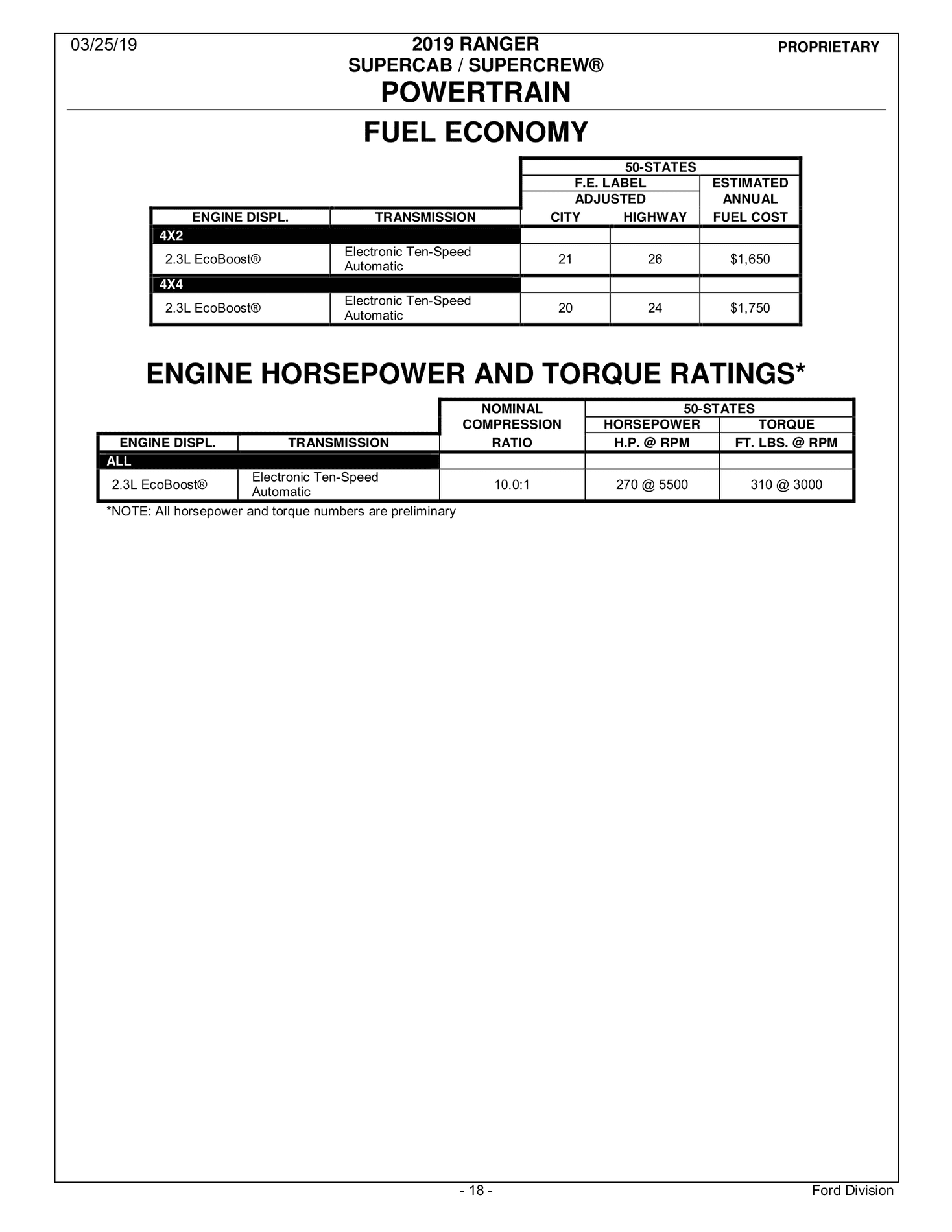

2019 Ranger Order Guide-March-25-2019-18.png



Advertisement





Attachments

Administrator

Administrator
Joined
Feb 14, 2017
Messages
266
Reaction score
610
HERE IS A TEXT VERSION OF THE ORDER GUIDE SO THAT ANY OPTIONS CAN BE SEARCHABLE ON THE FORUMS.


MODEL/SERIES/AVAILABILITY DRIVER ASSIST TECHNOLOGY (continued)
● Available Models ● SYNC® 3 – Standard on XLT (301A & 302A) and Lariat
— XL — Enhanced Voice Recognition Communications and
— XLT Entertainment System
— Lariat — 8” LCD Capacitive Touchscreen in Center Stack with
Swipe Capability
MECHANICAL — Pinch-to-zoom capability included with available Voice-
● 2.3L EcoBoost® Engine with Auto Start-Stop Technology Activated Touchscreen Navigation System
● Electronic Ten-Speed Automatic Transmission (99H) — 911 Assist®
— Apple CarPlay™ and Android Auto™
EXTERIOR — Smart-Charging USB ports – two (2)
Note: SYNC® AppLink® lets you control some of your
● Autolamp – Auto On/Off Headlamps – Std on all series
favorite compatible mobile apps with your voice. It is
● Black Running Boards – Optional on all series
compatible with select smartphone platforms. Commands
● Chrome Running Boards – Optional on XLT & Lariat
may vary by phone and Applink® software.
● LED Headlamps – Std on Lariat
PACKAGES
INTERIOR/COMFORT
● Bed Utility Package (86Q)
● 8-way Power Driver and Passenger Heated Seats w/Power
● Ford Co-Pilot360™ (67G) – available on XL 101A
Lumbar – Std. on XLT (302A)
● Technology Package (67J) – available on XLT (301A/302A)
● Leather-Wrapped Steering Wheel – Std. on XLT 301A
and Lariat
● Leather-Trimmed w/Leather Gear Shift Knob – Std. on Lariat
● FX4 Off-Road Package (914) NA on XL Base 100A
● STX Appearance Package (76F) – available on XL 101A only
FUNCTIONAL ● Trailer Tow Package (53R)
● B&O™ Premium Audio System HD Radio™ (incl. 7 speakers ● XL Chrome Package (76H) – available on XL; 100A Fleet
and subwoofer) – Std. on Lariat (501A) only
● FordPass™ Connect 4G Wi-Fi Modem (req. SYNC®) – Incl. ● XL Power Equipment Group (67F) – available on XL (100A)
on XL (101A); std on XLT and Lariat Fleet only
— Wi-Fi® hotspot connects up to 10 devices1 ● Chrome Appearance Package (76G) – NA on XLT (300A)
— Remotely start, lock and unlock vehicle2 and Lariat (500A)
— Schedule specific times to remotely start vehicle2 ● Sport Appearance Package (76E) – NA on XLT (300A) and
— Locate parked vehicle2 Lariat (500A)
— Check vehicle status2
Note: Ford Telematics™ Prep included for Fleet ONLY:
FordPass™ Connect 4G Wi-Fi Modem enables
telematics services through authorized partners. Activate
at www.fleet.ford.com or call 888-459-0255.
● Intelligent Access with Push-Button Start – Std. on Lariat

SAFETY/SECURITY
● Perimeter Anti-Theft Alarm – Std. on XL 101A
● Rear View Camera – Std on all series
● SecuriCode™ Keyless-Entry Keypad – Opt on all series
● Tire Pressure Monitoring System (TPMS) – Std on all series

DRIVER ASSIST TECHNOLOGY
● Ford Co-Pilot360™ (67G) – optional on XL (101A) and std on
XLT/Lariat
● Pre-Collision Assist with Automatic Emergency Braking
(AEB) (Pedestrian Detection, Forward Collison Warning,
Dynamic Brake Support) – Std. on all series




1
Includes a trial subscription of 3 months or 3 gigabytes – whichever
comes first. Wireless Service Plan required after trial subscription ends.
2
Includes service for one year from the vehicle sale date as recorded by
the dealer.


Product Changes and Features Availability
Features, options and package content subject to change. Please check www.fmcdealer.com for the most current information.


-1- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XL SERIES
STANDARD EQUIPMENT

MECHANICAL INTERIOR/COMFORT
● 2.3L EcoBoost® Engine with Auto Start-Stop Technology ● 2.3” Productivity Screen in Instrument Cluster
● 4x4 Electronic-Shift-On-the-Fly (ESOF) – NA w/PU Box ● 3.5” Center Stack Screen w/Audio Controls
Delete (R1A) ● Auxiliary Audio Input Jack (NA w/SYNC®) w/(1) USB port
● Axle, Front – Independent Front Suspension (IFS) ● Black Vinyl Floor Covering
● Brakes – Anti-Lock Brake Sysetm (ABS) ● Cupholders
● Electronic Power-Assist Steering ● Dome Light
● Electronic Ten-Speed Automatic Transmission ● Locking Glove Box
● Jack ● Manual Air Conditioning, Single Zone
● SelectShift® Automatic Transmission ● Powerpoint 12V – Front (2), Rear (1)
● Shock Absorbers, Gas – Front ● Rear-window with Fixed Glass
● Shock Absorbers, Gas – Outboard Mounted, rear ● Rearview Mirror, Auto-Dimming (NA w/SYNC®)
● Springs, Front – Coil ● Seat, Front
● Springs, Rear – Leaf, Two-Stage Linear Rate — 4-Way Manual Adjustment w/Lumbar
— Bucket Seats
EXTERIOR — Cloth Trim
● Black Wheellip Molding — Flow-through console with shifter
● Black Mesh Grille w/Black Surround ● Seat, Rear
● Cargo Lamp – Integrated with Center High-mounted Stop — Armrest (SuperCrew®)
Lamp (CHMSL) — Bench Seat (SuperCrew®)
● Easy Fuel® Capless Fuel-Filler – NA w/PU Box Delete (R1A) — Removable Cushions (SuperCab)
● Locking Fuel Cap – PU Box Delete Only — Under seat storage
● Exhaust – Single Rear ● Sliding Visor, Driver & Passenger
● Fuel Tank – Standard Range 18 Gallon ● Steering Wheel, Black Urethane – Manual Tilt/Telescoping
● Fully Boxed Steel Frame and Manual Locking
● Handles, Black – Door and Tailgate ● Vinyl Console Lid
● Hooks – Pickup Box Tie-Down, four (4) – NA w/PU Box ● Windows
Delete (R1A) — Power Front/Rear Windows (SuperCrew®)
● Hooks – Front Tow 4x4, two (2) — Power Front Windows (SuperCab)
● Mirrors, Sideview – Manual-folding, Manual Glass with Black — One-Touch Up/Down Driver Window
Skull Caps and Integrated Spotter Mirrors
● Ranger XL Fender Badge SAFETY/SECURITY
● Spare Tire Carrier – Rear Under Frame ● Airbags
● Spare Tire (Full-Sized) – NA w/PU Box Delete (R1A) — Driver and Passenger Front Airbags
● Steel Bumper, Front & Rear – Black – Rear NA w/PU Box — Safety Canopy® side-curtain airbags
Delete (R1A) ● Belt-Minder® (front safety belt reminder)
● Tailgate – Manual Locking – NA w/PU Box Delete (R1A) ● Child Seat Tether Anchors
● Tires – P255/70R 16” A/S BSW ● Daytime Running Lamps (DRL)
● Towing TBD lb – Tow bar only ● Halogen Headlamps w/amber turn indicator glass
● Trailer Sway Control ● Rear View Camera – NA w/PU Box Delete (R1A)
● Trailer Towing – ball mounting provisions in rear bumper ● Reflector, Wiper-Activated Headlamps
● Wheels – 16" Silver Steel ● SecuriLock® Passive Anti-Theft System
● Windsheild wipers – Intermittent Speed ● Tire Pressure Monitoring System (TPMS)

DRIVER ASSIST
● Autolamp – Auto On/Off Headlamps
● Pre-Collision Assist with Automatic Emergency Braking
(AEB) (Pedestrian Detection, Forward Collision Warning,
Dynamic Brake Support)

FUNCTIONAL
● AM/FM stereo w/4 Speakers
● Extended Service Interval Monitor




-2- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XL SERIES
EQUIPMENT GROUP
Series Option Code Ranger XL
SuperCab 4x2 (PickUp Box Delete) 126.8” R1A R1A
SuperCab 4x2 – 6' Box 126.8” R1E R1E
SuperCab 4x4 – 6' Box 126.8” R1F R1F
SuperCrew® 4x2 – 5' Box 126.8” R4E R4E
SuperCrew® 4x4 – 5' Box 126.8” R4F R4F
2.3L EcoBoost® Engine with Auto Start-Stop Technology 99H S S
Electronic Ten-Speed Automatic Transmission 44U S S
Base Mid
Equipment Group Option Code
100A 101A
Included in Equipment Group
6 Audio Speakers
Cruise Control I
Perimeter Anti-Theft Alarm I
Power Glass Sideview Mirrors I
Day/Night Rearview Mirror I
Remote Key Fob w/Tailgate Lock I
SYNC®
● Enhanced Voice Recognition Communications and Entertainment System
● 911 Assist®
● 4.2” LCD Display in Center Stack
● Applink®
● Smart Charging USB Port – one (1)
● FordPass™ Connect 4G Wi-Fi Modem
– Wi-Fi® hotspot connects up to 10 devices1 I
– Remotely start, lock and unlock vehicle2
– Schedule specific times to remotely start vehicle2
– Locate parked vehicle2
– Check vehicle status2
Note: Ford Telematics™ Prep included for Fleet ONLY: FordPass™ Connect 4G Wi-Fi Modem enables
telematics services through authorized partners. Activate at www.fleet.ford.com or call 888-459-0255.
Note: MyKey® is included when SYNC® is ordered
Free Standing Packages (See Packaged Options/Emissions pages for complete content and restrictions)
Bed Utility Package – NA w/PU Box Delete (R1A) 86Q O O
Ford Co-Pilot360™ – NA w/PU Box Delete (R1A)
 Auto-High Beam Headlamps
 BLIS® (Blind Spot Information System) w/Cross-Traffic Alert and Trailer Tow Monitoring 67G O
 Lane-Keeping System (Lane-Keeping Aid, Lane-Keeping Alert and Driver Alert System)
Note: 110V AC Power Outlet, Forward Sensing System and Reverse Sensing System are included when Ford
Co-Pilot360™ (67G) is ordered.
FX4 Off-Road Package (4x4 only; req. STX Appearance Pkg. (76F)) – NA w/PU Box Delete
914 O
(R1A)
STX Appearance Package – NA w/PU Box Delete (R1A)
76F O
Note: STX Appearance Package (76F) is required with FX4 Off-Road Package (914)
Trailer Tow Package 53R O O
XL Chrome Appearance Package – NA w/PU Box Delete (R1A) 76H F O
Free Standing Options
2nd Row Seat Delete (SuperCab only) 87A O O
Carpet Flooring w/Floor Mats 16E O O
Electronic-locking differential X73 O O
Engine Block Heater 41H O O
Front License Plate Bracket (standard in states where required by law, opt. to all others) 153 O O
Manual-Sliding Rear-window w/Privacy Glass and Defrost 43D O O
Running Boards – 5” Rectangular – Black – NA w/PU Box Delete (R1A) 18Y O O
Factory Invoiced Accessories (FIA) – Shipped separately from the vehicle for dealer installation
Tonneau Pickup Box Cover – Soft Folding (NA w/PU Box Delete (R1A)) – Late Availability 94D O O
Tonneau Pickup Box Cover – Hard Folding (NA w/PU Box Delete (R1A)) – Late Availability 94E O O

I = Included in Equipment Group, S = Standard, O = Optional,
P = Packaged Option, F = Fleet Only Option
-3- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XL SERIES
EQUIPMENT GROUP
Base Mid
Equipment Group Option Code
100A 101A
Factory Invoiced Accessories (FIA) – Shipped separately from the vehicle for dealer installation (continued)
Tonneau Pickup Box Cover – Retractable (NA w/PU Box Delete (R1A)) – Late Availability 94J O O
Ford Accessories
Floor Liner – Tray Style – req. Carpet Flooring (16E) 17C O O
Rearview Camera w/Prep Kit – req. PU Box Delete (R1A) 53N O O
SecuriCode™ Keyless-Entry Keypad 63C O O
Splash Guards/Mud Flaps Front and Rear – NA w/PU Box Delete (R1A) 17B O O
Spray-In Bedliner – NA w/PU Box Delete (R1A) 86S O O
Fleet Only Options (req. Valid FIN Code)
17” Silver-Painted Aluminum Wheel 64Y F F
Exterior Backup Alarm 60H F F
LT 265/65 R17 A/T OWL Tires (req. 17” Silver-Painted Aluminum Wheel (64Y)) – NA w/PU Box
TEW F F
Delete (R1A)
Cruise Control 52B F
SYNC®
 Enhanced Voice Recognition Communications and Entertainment System
 911 Assist®
 4.2” LCD Display in Center Stack
 Applink®
 Smart Charging USB Port – one (1)
 FordPass™ Connect 4G Wi-Fi Modem
– Wi-Fi® hotspot connects up to 10 devices1
– Remotely start, lock and unlock vehicle2
58E F
– Schedule specific times to remotely start vehicle2
– Locate parked vehicle2
– Check vehicle status2
 6 Audio Speakers
 Day/Night Rearview Mirror
Note: Ford Telematics™ Prep included for Fleet ONLY: FordPass™ Connect 4G Wi-Fi
Modem enables telematics services through authorized partners. Activate at
www.fleet.ford.com or call 888-459-0255.
Note: MyKey® is included when SYNC® is ordered 58E
XL Power Equipment Group 67F F




1
Includes a trial subscription of 3 months or 3 gigabytes – whichever comes first. Wireless Service Plan required after trial subscription ends.
2
Includes service for one year from the vehicle sale date as recorded by the dealer.


I = Included in Equipment Group, S = Standard, O = Optional,
P = Packaged Option, F = Fleet Only Option
-4- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XLT SERIES
STANDARD EQUIPMENT
The following equipment is standard as indicated. Each series includes the standard equipment of the previous series, except where
additions/exceptions are noted:
EXTERIOR DRIVER ASSIST
● Body-Color Front / Rear Bumper ● Ford Co-Pilot360™
● Fog Lamps – Halogen — Auto-High Beam Headlamps
● Grille – Carbon Black Mesh with Silver Surround — BLIS® (Blind Spot Information System) w/Cross-Traffic
● Hooks – Front Tow, two (2) Alert and Trailor Tow Monitoring
● Mirrors, Sideview – Manual-folding, Power Glass with Black — Lane-Keeping System (LaneKeeping Aid, Lane-Keeping
Skull Caps Alert and Driver Alert System)
● Ranger XLT Fender Badge ● 110V AC Power Outlet
● Rear-window, Fixed Privacy Glass with Defroster ● Forward Sensing System
● Wheels – 17” Silver-Painted Aluminum ● Reverse Sensing System
● Tires ● SYNC®
— 255/65R17 A/S BSW (4x2) — Enhanced Voice Recognition Communications and
— 255/65R17 A/T BSW (4x4) Entertainment System
● Wheellip Moldings, Body-Color — 911 Assist®
— 4.2" LCD Display in Center Stack
INTERIOR/COMFORT — Applink®
● Day/Night Rearview Mirror — Smart Charging USB port – one (1)
● Carpet – Color-Coordinated with Floor Mats ● FordPass™ Connect 4G Wi-Fi Modem
● Instrument Panel Cluster – (1) 4.2” Colored Productivity — Wi-Fi® hotspot connects up to 10 devices1
Screen — Remotely start, lock and unlock vehicle2
● Overhead Console — Schedule specific times to remotely start vehicle2
— Locate parked vehicle2
SAFETY/SECURITY — Check vehicle status2
Note: Ford Telematics™ Prep included for Fleet ONLY:
● MyKey® FordPass™ Connect 4G Wi-Fi Modem enables telematics
● Perimeter Anti-Theft Alarm services through authorized partners. Activate at
www.fleet.ford.com or call 888-459-0255.

FUNCTIONAL
● AM/FM Radio w/6 Speakers
● Remote Keyless-Entry w/Remote Tailgate Lock




1
Includes a trial subscription of 3 months or 3 gigabytes – whichever
comes first. Wireless Service Plan required after trial subscription ends.
2
Includes service for one year from the vehicle sale date as recorded by
the dealer.



-5- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XLT SERIES
EQUIPMENT GROUP
Ranger
Series Option Code
XLT
SuperCab 4x2 – 6' Box 126.8” R1E R1E R1E
SuperCab 4x4 – 6' Box 126.8” R1F R1F R1F
SuperCrew® 4x2 – 5' Box 126.8” R4E R4E R4E
SuperCrew® 4x4 – 5' Box 126.8” R4F R4F R4F
2.3L EcoBoost® Engine with Auto Start-Stop Technology 99H S S S

Electronic Ten-Speed Automatic Transmission S S S
44U
Base Mid Luxury
Equipment Group Option Code
300A 301A 302A
Included in Equipment Group
Auto-Dimming Rearview Mirror I I
Leather-Wrapped Steering Wheel and Shifter I I
Power-Folding Sideview Mirrors w/Power Glass I I
SiriusXM® Satellite Radio1
I I
Note: Includes a 6-month prepaid subscription. Service is not available in Alaska and Hawaii.
SYNC® 3
● Dual-zone Electronic Automatic Temperature Control (DEATC)
● Enhanced Voice Recognition Communications and Entertainment System
● 8" LCD Touchscreen in Center Stack with swiping and pinch-to-zoom capabilities
● Pinch-to-zoom capability included with available Voice-Activated Touchscreen Navigation System
I I
● AppLink®
● 911 Assist®
● Smart Charging USB ports – two (2)
Note: SYNC® AppLink® lets you control some of your favorite compatible mobile apps with your voice. It is
compatible with select smartphone platforms. Commands may vary by phone and AppLink® software.
8-Way Power Driver and Passenger Heated Seats w/Power Lumbar I
Manual-Sliding Rear-Window I
Remote Start I
Sport Appearance Package (selection of Chrome Appearance Package (76G) removes Sport
I
Appearance Package)
Free Standing Packages (See Packaged Options/Emissions pages for complete content and restrictions)
Bed Utility Package 86Q O O O
FX4 Off-Road Package (4x4 only) 914 O O O
Trailer Tow Package 53R O O O
Technology Package
 Adaptive Cruise Control 67J O O
 Navigation
Chrome Appearance Package (NA w/XLT Sport Appearance Package (76E)) 76G O O
Sport Appearance Package (NA w/XLT Chrome Appearance Pacakge (76G)) 76E O
Free Standing Options
18” Machined Aluminum Wheel w/Magnetic Pockets (req. Sport Appearance Package(76E)) 64J O
18” Chrome-Like PVD Wheel (req. Chrome Appearance Package (76G)) 64F O
Electronic-Locking Rear Differential X73 O O O
Engine Block Heater 41H O O O
Front License Plate Bracket (standard in states where required by law, opt. to all others) 153 O O O
LT 265/65 R17 A/T OWL Tires (req. FX4 Off-Road Package (914); NA w/18” Machined Aluminum
TEW O O O
Wheel w/Magnetic Pockets (64J) or 18” Chrome-Like PVD Wheel (64F))
Remote Start 50B O O
Running Boards – 5” Rectangular – Black (NA w/Chrome Appearance Package (76G)) 18Y O O O
Running Boards – 5” Rectangular – Chrome (req. Chrome Appearance Package (76G)) 18E O O

1
Subscriptions to all SiriusXM® services are sold by SiriusXM after trial period. If you decide to continue service after your trial, the subscription plan you choose will
automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call
SiriusXM at 1-866-635-2349. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change. Sirius, XM
and all related marks and logos are trademarks of Sirius XM Radio Inc.


I = Included in Equipment Group, S = Standard, O = Optional,
P = Packaged Option, F = Fleet Only Option
-6- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – XLT SERIES
EQUIPMENT GROUP
Base Mid Luxury
Equipment Group Option Code
300A 301A 302A
Factory Invoiced Accessories (FIA) – Shipped separately from the vehicle for dealer installation
Tonneau Pickup Box Cover – Soft Folding – Late Availability 94D O O O
Tonneau Pickup Box Cover – Hard Folding – Late Availability 94E O O O
Tonneau Pickup Box Cover – Retractable – Late Availability 94J O O O
Ford Accessories
Floor Liner – Tray Style 17C O O O
SecuriCode™ Keyless-Entry Keypad 63C O O O
Splash Guards/Mud Flaps Front and Rear 17B O O O
Spray-In Bedliner 86S O O O
Fleet Only Options
Exterior Backup Alarm 60H F F F
Manual-Sliding Rear-Window 43D F F
SYNC® 3
 Dual-zone Electronic Automatic Temperature Control (DEATC)
 Enhanced Voice Recognition Communications and Entertainment System
 8" LCD Touchscreen in Center Stack with swiping and pinch-to-zoom capabilities
 Pinch-to-zoom capability included with available Voice-Activated Touchscreen Navigation System
58M F
 AppLink®
 911 Assist®
 Smart Charging USB ports – two (2)
Note: SYNC® AppLink® lets you control some of your favorite compatible mobile apps with your voice. It is
compatible with select smartphone platforms. Commands may vary by phone and AppLink® software.




I = Included in Equipment Group, S = Standard, O = Optional,
P = Packaged Option, F = Fleet Only Option
-7- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – LARIAT SERIES
STANDARD EQUIPMENT
The following equipment is standard as indicated. This series includes all XLT content plus the following:
EXTERIOR SAFETY/SECURITY
● 18” Machined Aluminum Wheel w/Stealth Gray Pockets ● LED Headlamps (High/Low)
● Tires ● LED Taillamps
— 265/60R18 A/S BSW (4x2 only)
— 265/60R18 A/T BSW (4x4 only) DRIVER ASSIST
● Handles, Body-Color – Door and Tailgate ● SYNC® 3
● Grille w/Chrome Bar and Chrome Surrounds — Enhanced Voice Recognition Communications and
● Lariat Fender Vent Entertainment System
● Mirrors, Sideview – Power-folding, Power Glass with Heat, — 8” LCD Capacitive Touchscreen in Center Stack with
Turn Signal Indicator, Security Approach Lamps and Body- Swipe Capability
color Skull Caps — Pinch-to-zoom capability included with available Voice-
● Manual-Sliding Rear-window w/Privacy Glass and Defrost Activated Touchscreen Navigation System
● Cargo Lamp LED – Integrated with LED Center High- — 911 Assist®
mounted Stop Lamp (CHMSL) — Apple CarPlay™ and Android Auto™
— Smart-Charging USB ports – two (2)
INTERIOR/COMFORT Note: SYNC® AppLink® lets you control some of your favorite
● (2) 4.2” Colored Productivity Screens in Instrument Cluster compatible mobile apps with your voice. It is compatible
● Ambient Lighting with select smartphone platforms. Commands may vary
● Dual-Zone Electronic Climate Control by phone and Applink® software.
● Floor Mats – Carpeted w/Nubuck edge and Ranger Logo
● Leather Gear Shift Knob FUNCTIONAL
● Leather-wrapped Steering Wheel ● Intelligent Access with Push-Button Start
● Rearview Mirror, Auto-Dimming ● SiriusXM® Satellite Radio
● Seats, Front Note: Includes a 6-month prepaid subscription. Service is not
— Leather-Trimmed Bucket Seats available in Alaska and Hawaii
— 8-Way Power Driver and Passenger Note: Subscriptions to all SiriusXM® services are sold by SiriusXM
— Heated Front-Seats after trial period. If you decide to continue service after your
— Power Lumbar trial, the subscription plan you choose will automatically renew
— Seat back map pocket, driver thereafter and you will be charged according to your chosen
● Seats, Rear payment method at then-current rates. Fees and taxes apply.
— Leather-Trimmed Bench Seats – (SuperCrew®) To cancel you must call SiriusXM at 1-866-635-2349. See
— Leather-Trimmed Dual Fold Bench Seat – (SuperCab) SiriusXM Customer Agreement for complete terms at
● Sliding Visors with Driver and Passenger Illuminated covered www.siriusxm.com. All fees and programming subject to
mirrors change. Sirius, XM and all related marks and logos are
trademarks of SiriusXM Radio Inc.
● Universal Garage Door Opener




-8- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW® – LARIAT SERIES
EQUIPMENT GROUP
Option Ranger
Series
Code LARIAT
SuperCab 4x2 – 6' Box 126.8” R1E R1E
SuperCab 4x4 – 6' Box 126.8” R1F R1F
SuperCrew® 4x2 – 5' Box 126.8” R4E R4E
SuperCrew® 4x4 – 5' Box 126.8” R4F R4F
2.3L EcoBoost® Engine with Auto Start-Stop Technology 99H S S
Electronic Ten-Speed Automatic Transmission 44U S S
Base Mid
Equipment Group
500A 501A
Included in Equipment Group
B&O™ Premium Audio System with HD Radio™ (incl. 7 speakers and subwoofer)
I
(SuperCrew® only)
Technology Package
● Adaptive Cruise Control I
● Navigation
Rain-Sensing Wipers I
Remote Start I
Windshield Wiper De-icer I
Free Standing Packages (See Packaged Options/Emissions pages for complete content and restrictions)
Bed Utility Package 86Q O O
FX4 Off-Road Package (4x4 only) 914 O O
Chrome Appearance Package (NA w/Sport Appearance Package (76E)) 76G O
Sport Appearance Package (NA w/Chrome Appearance Package (76G)) 76E O
Technology Package
● Adaptive Cruise Control 67J O
● Navigation
Trailer Tow Package 53R O O
Free Standing Options
18” Machined Aluminum Wheel w/Magnetic Pockets (req. Sport Appearance Package (76E)) 64J O
Electronic-Locking Rear Differential X73 O O
Engine Block Heater 41H O O
Front License Plate Bracket (standard in states where required by law, opt. to all others) 153 O O
LT 265/65R17 A/T OWL Tires (req. FX4 Off-Road Package (914) and Sport Appearance
TEW O
Package (76E); NA w/18” Machined Aluminum Wheel w/Magnetic Pockets (64J))
Running Boards – 5” Rectangular – Black (NA w/Chrome Appearance Package (76G)) 18Y O O
Running Boards – 5” Rectangular – Chrome (req. Chrome Appearance Package (76G) 18E O
Factory Invoiced Accessories (FIA) – Shipped separately from the vehicle for dealer installation
Tonneau Pickup Box Cover – Soft Folding – Late Availability 94D O O
Tonneau Pickup Box Cover – Hard Folding – Late Availability 94E O O
Tonneau Pickup Box Cover – Retractable – Late Availability 94J O O
Ford Accessories
Floor Liner – Tray Style 17C O O
SecuriCode™ Keyless-Entry Keypad 63C O O
Splash Guards/Mud Flaps Front and Rear 17B O O
Spray-In Bedliner 86S O O
Fleet Only
Exterior Backup Alarm 60H F F




I = Included in Equipment Group, S = Standard, O = Optional,
P = Packaged Option, F = Fleet Only Option
-9- Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW®
FUNCTIONAL EQUIPMENT

WHEEL AVAILABILITY




16” Silver Steel (std. on 17” Silver-Painted 17” Magnetic-Painted 17” Chrome-Like PVD
XL) – 64A Aluminum (opt. on XL Aluminum (Incl. w/Sport (Incl. w/Chrome
(Fleet Only); Appearance Pkg. (76E)) Appearance Pkg. (76G)
incl. on XL STX – 64D on XLT) – 64P
Appearance Pkg.;
Std. on XLT) – 64Y




18” Chrome-Like PVD 18” Machined Aluminum 18” Machined Aluminum
(Opt. on Chrome w/Magnetic Pockets w/Stealth Gray Pockets
Appearance Pkg. (76G) (Opt. on XLT (302A) (Std. on Lariat) – 649
on XLT 302A; and Lariat (501A)
incl. w/Chrome w/Sport Appearance
Appearance Pkg. on Pkg. (76E)) – 64J
Lariat (76G)) – 64F




- 10 - Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW®
COLOR & TRIM AVAILABILITY
KEY INTERIOR ENVIRONMENT COLOR(S)
Ebony Medium Stone
(See below for Seat Color(s))
● Cloth Bucket Front-Seats; Manual four-way adjustable driver/passenger with
manual lumbar; flow-through console and floor shift QH
XL
● Vinyl Bucket Front-Seats; Manual four-way adjustable driver/passenger with SH
manual lumbar; flow-through console and floor shift
STX APPEARANCE ● Premium Cloth Bucket Front-Seats; Manual four-way adjustable
LH
PACKAGE driver/passenger with manual lumbar; flow-through console and floor shift
● Premium Cloth Bucket Front-Seats; Manual four-way adjustable
driver/passenger with manual lumbar; flow-through console and floor shift
XLT LH LB
● Premium Cloth Bucket Front-Seats; Power eight-way adjustable
driver/passenger heated with power lumbar; flow-through console with floor shift
● Leather-Trimmed Bucket Front-Seats; Power eight-way adjustable
LARIAT DH DB
driver/passenger heated with power lumbar; flow-through console and floor shift

EXTERIOR COLOR Order Code Availability
XL
SEAT COLOR
Shadow Black G1 •
Oxford White YZ •
Ingot Silver UX •
Magnetic J7 •
Blue Lightning N6 •
STX APPEARANCE PACKAGE
SEAT COLOR
Shadow Black G1 •
Oxford White YZ •
Ingot Silver UX •
Magnetic J7 •
Blue Lightning N6 •
Saber GU •
XLT
SEAT COLOR
Shadow Black G1 • •
Oxford White YZ • •
Ingot Silver UX • •
Magnetic J7 • •
Blue Lightning N6 • •
Hot Pepper Red1 EA • •
Saber2 GU • •
LARIAT
SEAT COLOR
Shadow Black G1 • •
Oxford White YZ • •
Ingot Silver UX • •
Magnetic J7 • •
Blue Lightning N6 • •
Hot Pepper Red1 EA • •
Saber2 GU • •
White Platinum Tri-coat1 UG • •




1
Extra Charge Paint
2
Req. Sport Appearance Pkg (76E)


• = Available
- 11 - Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW®
PACKAGED OPTIONS/EMISSIONS
XL CHROME APPEARANCE PACKAGE (76H) FX4 OFF-ROAD PACKAGE (914)
Availability: Availability:
● Opt. on XL Base (100A) (Fleet Only) ● Opt. on XL Mid (101A)
● Opt. on XL Mid (101A) ● Opt. on XLT and Lariat
Not available with: Not available with:
● STX Appearance Package (76F) ● 4x2 or XL Base
● PU Box Delete (R1A) Requires:
Includes: ● 4x4
● Chrome Front & Rear Bumper ● STX Appearance Package (76F) (101A only)
● Fog Lamps Includes:
● Tow Hooks – Black ● 4x4 “FX4 Off-Road” bodyside decal
● Wheel-lip Molding, Body-Color ● 17” Off-Road OWL Tires (TGT)
● 18” Off-Road OWL Tires (TFP)
STX APPEARANCE PACKAGE (76F) ● E-Locking Rear-Axle
Availability: ● Exposed Front Tow Hooks
● Opt. on XL Mid (101A) ● Exposed Steel bash plate
Not available with: ● Off-Road Screen in Cluster
● XL Chrome Appearance Package (76H) ● Off-Road tuned suspension
● PU Box Delete (R1A) ● Remove front air dam
Includes: ● Skid Plates: fuel tank, transfer case and front differential
● 17” Silver-Painted Aluminum Wheel ● Terrain Management System™
● Premium Cloth 4-Way Ebony Black Seat ● Trail Control™
● Carbon Black Front & Rear Bumper Optional Equipment:
● Box Decal (NA with FX4 Off-Road Pkg 914) ● LT 265/65 R17 A/T OWL Tires (TEW)
● Fog Lamps
Optional Equipment: FORD CO-PILOT360™ (67G)
● Running Boards – 5” Rectangular – Black (18Y) Availability:
● Opt. on XL Mid (101A)
XL POWER EQUIPMENT GROUP (67F) ● Std. on XLT and Lariat
Availability: Not available with:
● Opt. on XL Base (100A) (Fleet Only) ● PU Box Delete (R1A)
Includes: Includes:
● Perimeter Alarm ● Auto-High Beam Headlamps
● Power Glass Sideview Mirrors ● BLIS® (Blind Spot Information System) w/Cross-Traffic Alert and Trailer Tow
● Remote Key Fob Monitoring
● Remote Tailgate Lock – NA w/PU Box Delete (R1A) ● Lane-Keeping System (Lane-Keeping Aid, Lane-Keeping Alert and Driver Alert
System)
NOTE: 110V AC Power Outlet, Forward Sensing System and Reverse Sensing
CHROME APPEARANCE PACKAGE (76G) System are included when Ford Co-Pilot360™ (67G) is ordered on XL Mid
Availability: (101A)
● Opt. on XLT Mid (301A)
● Opt. on XLT Lux (302A)
● Opt. on Lariat Mid (501A) Technology Package (67J)
Not available with: Availability:
● Sport Appearance Package (76E) ● Opt. on XLT Mid (301A)
Includes: ● Opt. on XLT Lux (302A)
● 17” Chrome-Like PVD Wheel – XLT ● Opt. on Lariat Base (500A)
● 18” Chrome-Like PVD Wheel – Lariat Includes:
● Chrome Door and Tailgate Handles ● Adaptive Cruise Control
● Chrome Exhaust Tip ● Navigation
● Chrome Front & Rear Bumper
● Chrome Mirror Caps – Lariat only TRAILER TOW PACKAGE (53R)
● Tow Hooks – Chrome ● Usage: Towing Capability up to TBD lbs
● Unique Chrome Grille Availability:
● Wheel-lip Molding, Body-Color ● Opt. on XL, XLT and Lariat
Optional Equipment: Includes:
● Running Boards – Rectangular – Chrome (18E) ● 4-pin/7-pin wiring harness
● Class IV trailer hitch receiver
SPORT APPEARANCE PACKAGE (76E)
Availability: BED UTILITY PACKAGE (86Q)
● Included on XLT Mid (302A) Availability:
● Opt. on XLT Mid (301A) ● Opt. XL, XLT and Lariat
● Opt. on Lariat Mid (501A) Not available with:
Not available with: ● Spray-In Bedliner
● XLT Chrome Appearance Package (76G) ● PU Box Delete (R1A)
Includes: Includes:
● 17” Magnetic Painted Aluminum Wheel ● Drop-In Bedliner
● Black Grille w/Magnetic Surround – XLT ● 12V Power Plug
● Black Grille w/Magnetic Surround and Magnetic Bars – Lariat
● Magnetic Front and Rear Bumper PAYLOAD SELECTOR CHART
● Sport Box Decal (NA with FX4 Off-Road Pkg 914) MAX. PAYLOAD GVWR
● Wheel-lip Molding – Magnetic WB (INCH) ENGINE PAYLOAD
(LBS) (LBS)
Optional Equipment: 4X2
● Running Boards – 5” Rectangular – Black (18Y) SuperCab
2.3L
126.8 xxxx xxxx
EcoBoost®
SuperCrew®
2.3L
126.8 xxxx xxxx
EcoBoost®
4X4
SuperCab
2.3L
126.8 xxxx xxxx
EcoBoost®
SuperCrew®
2.3L
126.8 xxxx xxxx
EcoBoost®




- 12 - Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW®
PACKAGED OPTIONS/EMISSIONS
EMISSIONS STANDARD/OPTIONAL EQUIPMENT MISCELLANEOUS
50-STATE EMISSIONS SYSTEM ............................................ 425 COV Required ................................................................. 79V
Priced DORA .................................................................. C09
FRONT LICENSE PLATE BRACKETS
Standard in states requiring two license plates and optional to all others ..... 153 SPECIAL ORDERS (Fleet Only):
See www.fmcdealer.com for ordering guidelines/restrictions.




- 13 - Ford Division
08/13/18 2019 RANGER PROPRIETARY
SUPERCAB / SUPERCREW®
POWERTRAIN
FUEL ECONOMY
50-STATES
F.E. LABEL ESTIMATED
ADJUSTED ANNUAL
ENGINE DISPL. TRANSMISSION CITY HIGHWAY FUEL COST
4X2
Electronic Ten-Speed
2.3L EcoBoost® TBD TBD $TBD
Automatic
4X4
Electronic Ten-Speed
2.3L EcoBoost® TBD TBD $TBD
Automatic



ENGINE HORSEPOWER AND TORQUE RATINGS*
NOMINAL 50-STATES
COMPRESSION HORSEPOWER TORQUE
ENGINE DISPL. TRANSMISSION RATIO H.P. @ RPM FT. LBS. @ RPM
ALL
Electronic Ten-Speed
2.3L EcoBoost® TBD @ TBD TBD @ TBD TBD @ TBD
Automatic
*NOTE: All horsepower and torque numbers are preliminary




- 14 - Ford Division


Ugga Mugga

Well-Known Member
First Name
Jack
Joined
Nov 3, 2017
Messages
45
Reaction score
28
Location
MD
Vehicle(s)
F-150
Reasonable pricing and as I expected. Pricing starts and tops out at similar pricing to the Tacoma.

Anyone see tow rating published anywhere? I don't see it.


NY35

Active Member
Joined
Jan 17, 2017
Messages
32
Reaction score
10
Location
NY
Vehicle(s)
Zamboni
Reasonable pricing and as I expected. Pricing starts and tops out at similar pricing to the Tacoma.

Anyone see tow rating published anywhere? I don't see it.
Also matches up with Colorado pricing. The midsize pickup class just that that much more competitive for sales. If F-150 sales are any indication I think Rangers will sell like hotcakes!

What's everyone thinking in terms of your model/configuration? I'm spec'ing out a 4x4 Supercab XLT


WI LION

Active Member
Joined
Nov 13, 2017
Messages
27
Reaction score
9
Location
Long Island
Vehicle(s)
S197 Mustang GT
Reasonable pricing and as I expected. Pricing starts and tops out at similar pricing to the Tacoma.

Anyone see tow rating published anywhere? I don't see it.
Don't see tow rating but did see a tow package for $495 for a Class IV hitch with 4/7 pin wiring harness.

I like how Ford undercut the Tacoma's base starting price by 5 bucks :p Tacoma is still ugly anyway so wouldn't have picked it even if Ranger was slightly pricier.


Super8

New Member
Joined
Feb 15, 2017
Messages
4
Reaction score
0
Location
FArlington
Vehicle(s)
2016 Mustang/Ram 1500
The price is pretty much what I thought it would be. Does that mean order banks are open now?


JeeperNRM

Member
Joined
Feb 12, 2017
Messages
9
Reaction score
1
Location
Cali
Vehicle(s)
Jeep Grand Cherokee
Nice pricing and thanks for posting! Interested but am I reading the Order Guide right that you can only get sliding rear window on the XLT model with the 302A Luxury Package? I don't see rear opening window on any other model/package :( Rear window that opens should be standard on all pickups!


RangerConvert

Member
Joined
Aug 5, 2018
Messages
17
Reaction score
18
Location
PA
Vehicle(s)
2012 Mustang GT
Yea, looks like you have to get a $2k option package to be able to open your rear window!

I'm happy with most of the options. I do not like getting stuck with the sport appearance package for the 302A on the XLT - since I'm leaning towards magnetic as a color already so I'm basically only changing the wheels out.


dano0726

Well-Known Member
Joined
Oct 6, 2017
Messages
52
Reaction score
19
Location
NW Houston
Vehicle(s)
2011 Jeep Wrangler
I think/believe these will sell extremely well...I do want to sit in one (hated the Tacoma's front seats at 5'10" it felt like I was poppin' a squat since the seats don't move up or down...) and the Ranger looks far exceed that Colorado front end clip and their square wheel wells...


Xfitter

Active Member
First Name
Steven
Joined
Apr 14, 2018
Messages
35
Reaction score
11
Location
Dallas
Vehicle(s)
Focus ST
Also matches up with Colorado pricing. The midsize pickup class just that that much more competitive for sales. If F-150 sales are any indication I think Rangers will sell like hotcakes!
Yea the pricing is basically the same across the board on all 3 models. Mid-20k for the base models and the highest end model (Lariat with Off-Road package) priced low-mid $40k to compete with Colorado ZR2 and Tacoma TRD Pro. The shootout comparisons are gonna be interesting to follow!


BAR

Member
Joined
Aug 14, 2018
Messages
9
Reaction score
1
Location
NC
Vehicle(s)
variousandsundry
No interior dimensions listed yet? Need to know crew cab rear seat legroom specifically.


Nadeshot

Active Member
Joined
Mar 14, 2018
Messages
25
Reaction score
6
Location
Virginia Beach
Vehicle(s)
'12 Tacoma and '17 Mustang Ecoboost
No interior dimensions listed yet? Need to know crew cab rear seat legroom specifically.
No dimensions have been released yet, exterior or interior. I'm anxiously waiting on those too and especially seeing the truck in person to get real life feel for size and how I fit inside.


Advertisement






Advertisement






Advertisement


Top
