My White Platinum Lariat Build

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
This is my first build thread so bear with me. This is not my first Ford or modded ecoboost (#5) but first Ranger. List includes a hybrid turbo FiST, big turbo Fist, 3.5 long travel F150, '18 Raptor. It'll be my weekend hauler and offroader. Nothing extreme but more of a fun toy. I have a Cam Am x3 turbo for the extreme stuff and the Ranger will be towing it. On to the build...

Truck:
2019 Lariat
501a
FX4
Sprayin bed liner
Mud flaps
Rubber mats

On order/waiting install:
5star SCT tune
Fox 2.5 suspension
Icon tubular UCA
Eibach 1" lift blocks
Fuel Shok 17x9 -1 offset
BF Goodrich K02 315/70/17
Venum 1.25“ spacers
Bakflip Mx4
Baja Designs Pro Squadron in fog housings
Baja Designs S2 reverse lights
KC Cyclone rock light
KC hood lights
Nilight bed lights
Trigger 6 shooter
589Fab hidden winch mount
Fab Fours ACC relocation kit
Smittybilt X2O Gen2 10k with synthetic rope
HI-Lift jack and base
Rotopax 2gal water and fuel tanks
Wolf Haus bed outlet
Ford bed mat
Ford bed extender
Ford tailgate shock
Random shovel, axe, Bubba rope, etc from other builds

Planned:
Rock sliders
Plastidip (camo green?)
Fender flares
More forward/side lighting







Advertisement




Last edited:

egilbe

Well-Known Member
First Name
Earl
Joined
Jul 10, 2019
Messages
340
Reaction score
636
Location
Maine
Vehicle(s)
2017 Hyundai Elantra, 2020 Ford Ranger Lariat with BAP, Tow and FX4
Don't skip the rock sliders. They are cheaper than repairing rocker panels.

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #3
That's for sure. Looks like the frame mounted options are pretty limited right now.

I also need to figure out where to fit my oversize spare. Thinking either roof rack or hitchgate.


Ace Holliday

Well-Known Member
First Name
Scott K
Joined
Apr 19, 2020
Messages
351
Reaction score
693
Location
South Kalifornikstan
Vehicle(s)
2019 Ranger XLT Super Crew
Occupation
Aerospace Machinist/CNC Programmer - Retired
Sounds like it will be pretty cool. Be sure to post up pics when you go Camo Green!

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #5
Didn't get a chance to update my thread before I left for the weekend.

Got the truck ceramic tinted. 20% on front windows, 50% on all back windows, 70% on windshield.

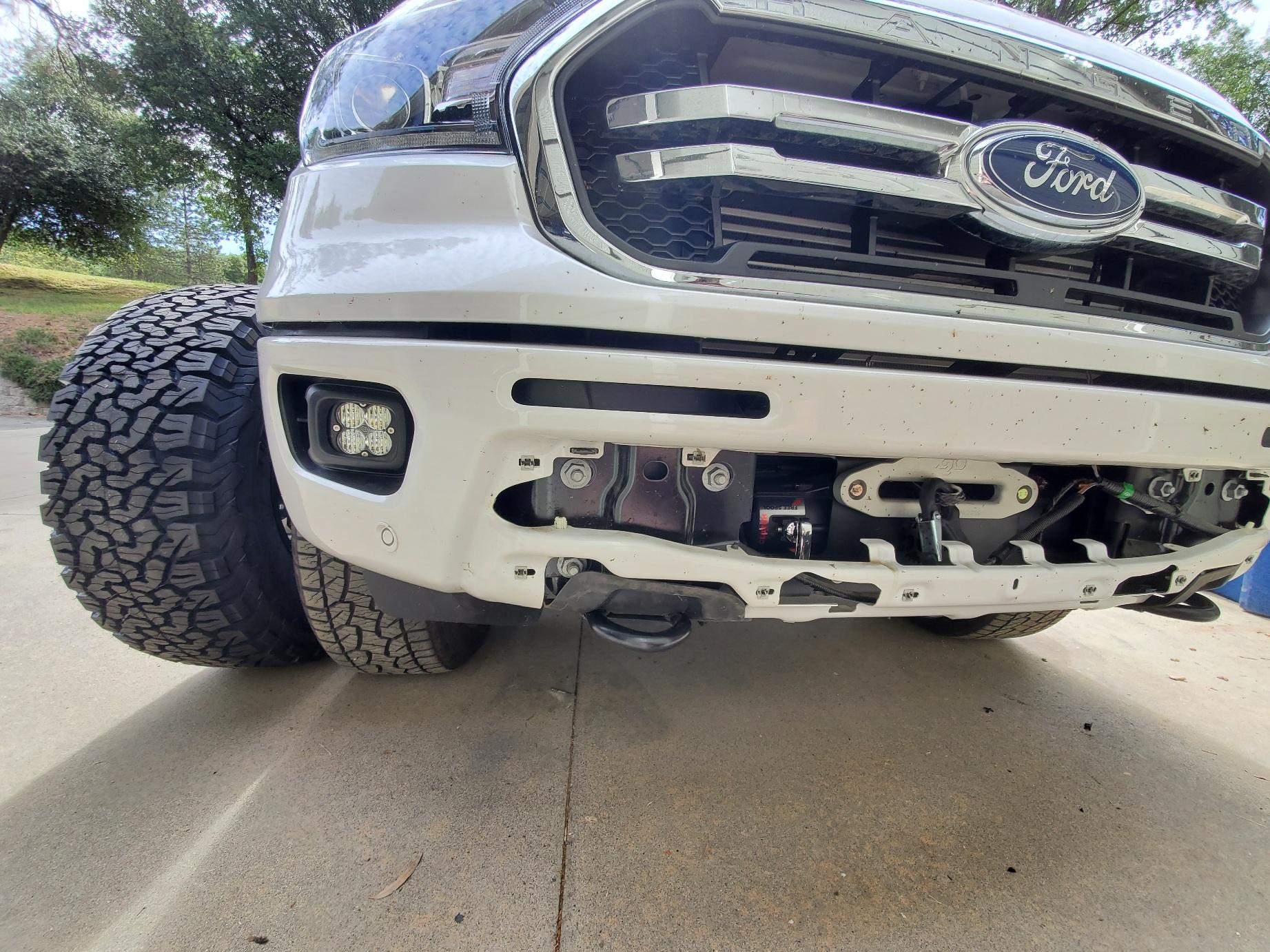

Installed Bakflip, Baja Designs Pro Squadron driving lights in stock location, installed Trigger 6 Shooter, 589 hidden winch, and Smittybilt winch.

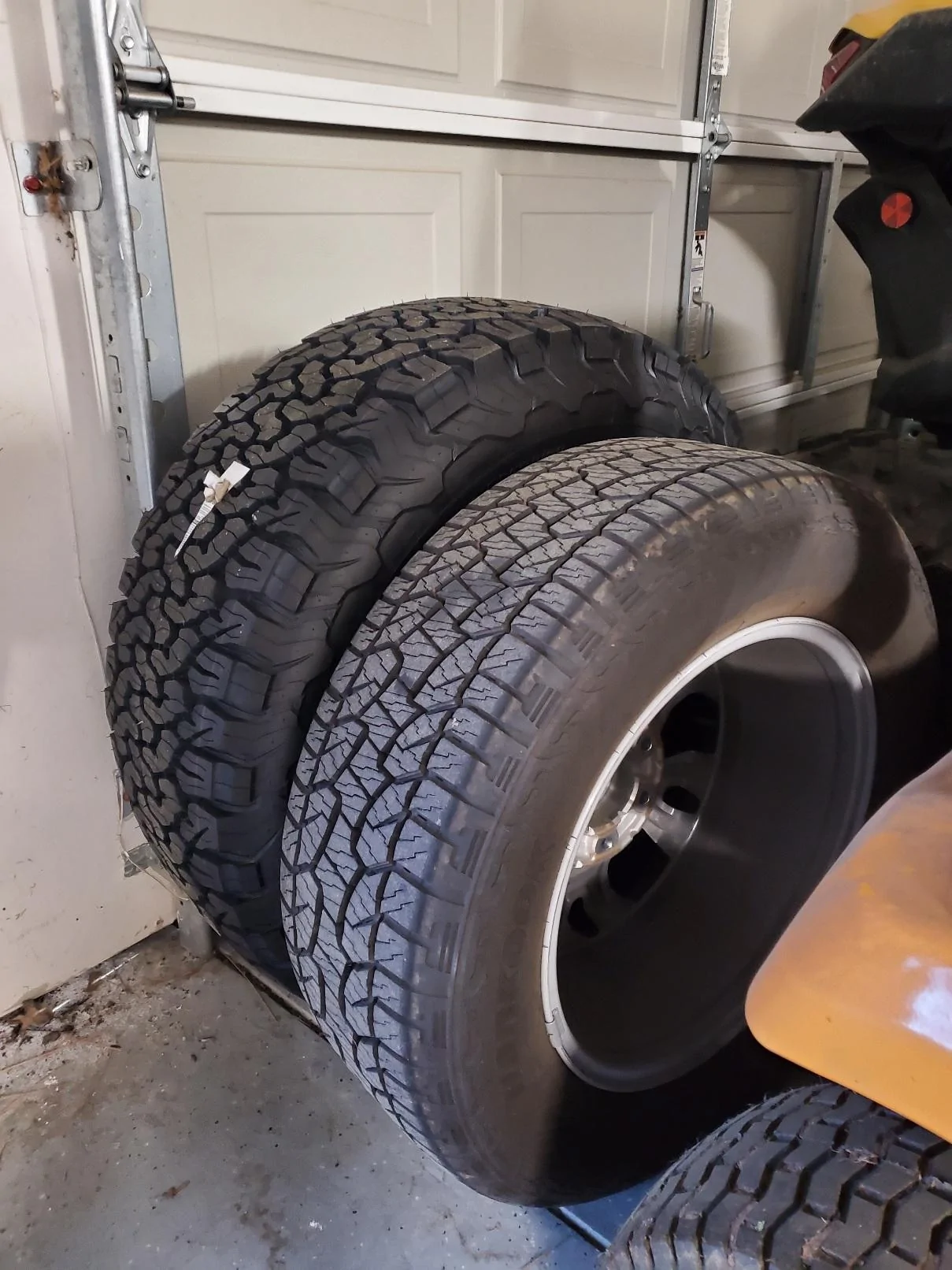

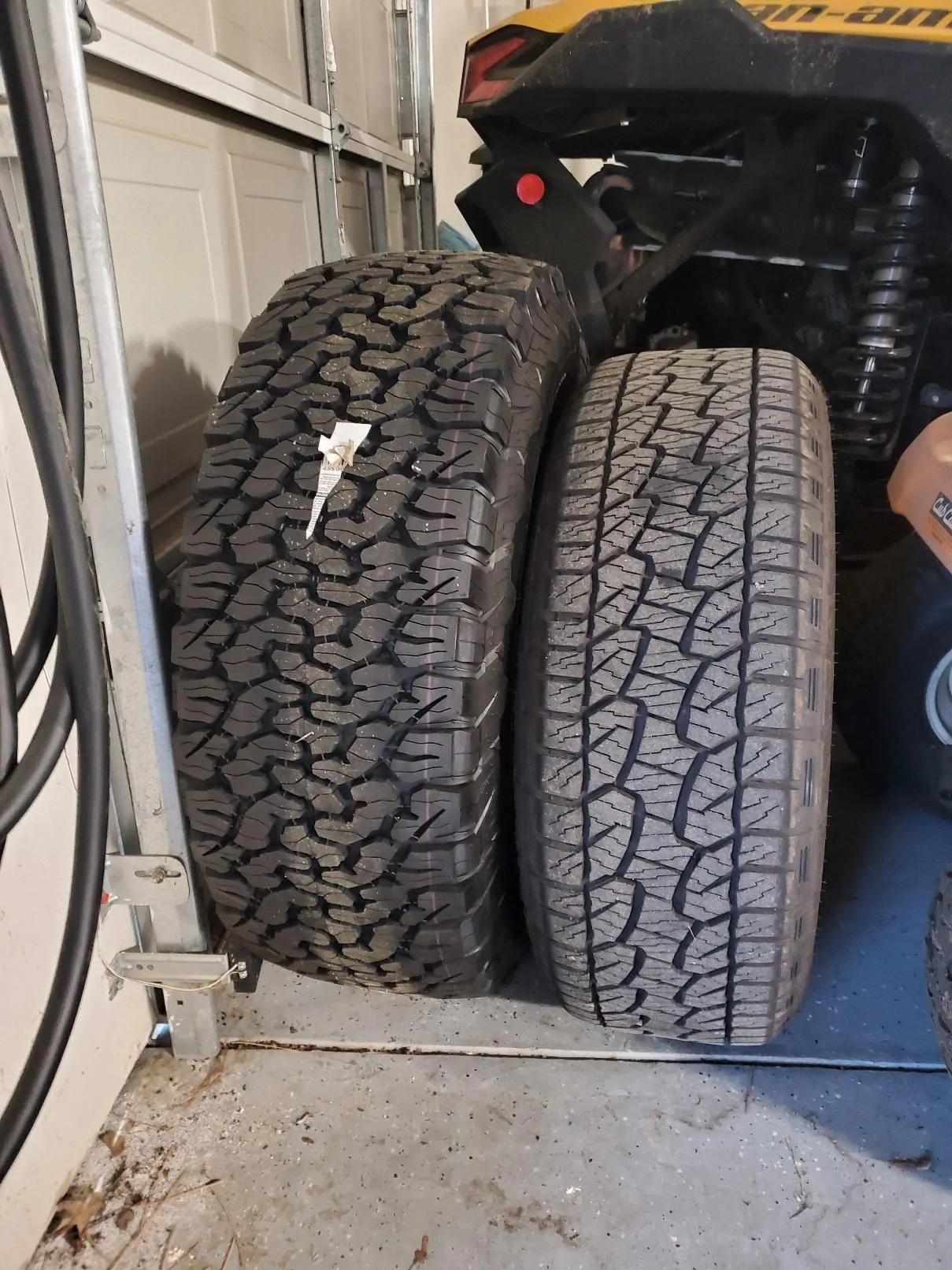

Picture of winch was before wire cleanup and putting fascia and skid plate back on. Also a pic of the wheels and tires I hope I can squeeze in. 😬

Finally getting the rear shocks today and hope to have the Fox 2.5 kit, Icon UCA, and wheels/tires installed by this weekend.

Shout out to @589FAB for their excellent customer service, quality parts, and wick turn around. And to @Discount Tire for all their help and great prices. 👍




egilbe

Well-Known Member
First Name
Earl
Joined
Jul 10, 2019
Messages
340
Reaction score
636
Location
Maine
Vehicle(s)
2017 Hyundai Elantra, 2020 Ford Ranger Lariat with BAP, Tow and FX4
The hidden winch mount worked with ACC? I thought I read somewhere, maybe it wasn't 589FAB, that the ACC wouldn't work with the mount?

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #7
I installed the Fab Fours ACC relocation kit. If you look at the wiring to the right of the winch you can see the wiring stretched and going up to the new location. That was before I opened up the wiring harness a bit to separate the ACC wiring so it wasn't so stretched.


egilbe

Well-Known Member
First Name
Earl
Joined
Jul 10, 2019
Messages
340
Reaction score
636
Location
Maine
Vehicle(s)
2017 Hyundai Elantra, 2020 Ford Ranger Lariat with BAP, Tow and FX4
I installed the Fab Fours ACC relocation kit. If you look at the wiring to the right of the winch you can see the wiring stretched and going up to the new location. That was before I opened up the wiring harness a bit to separate the ACC wiring so it wasn't so stretched.
gotcha.

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #9

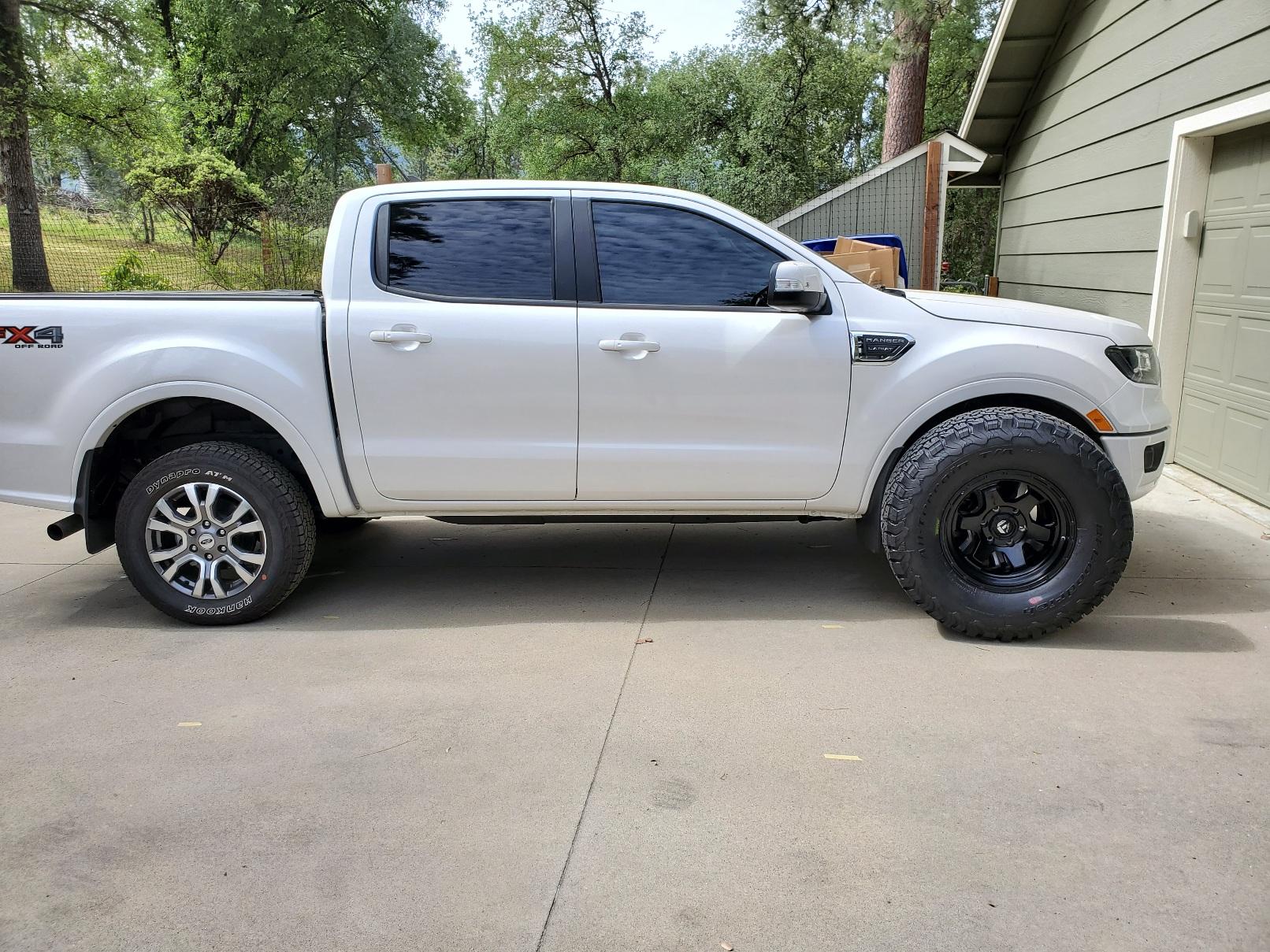

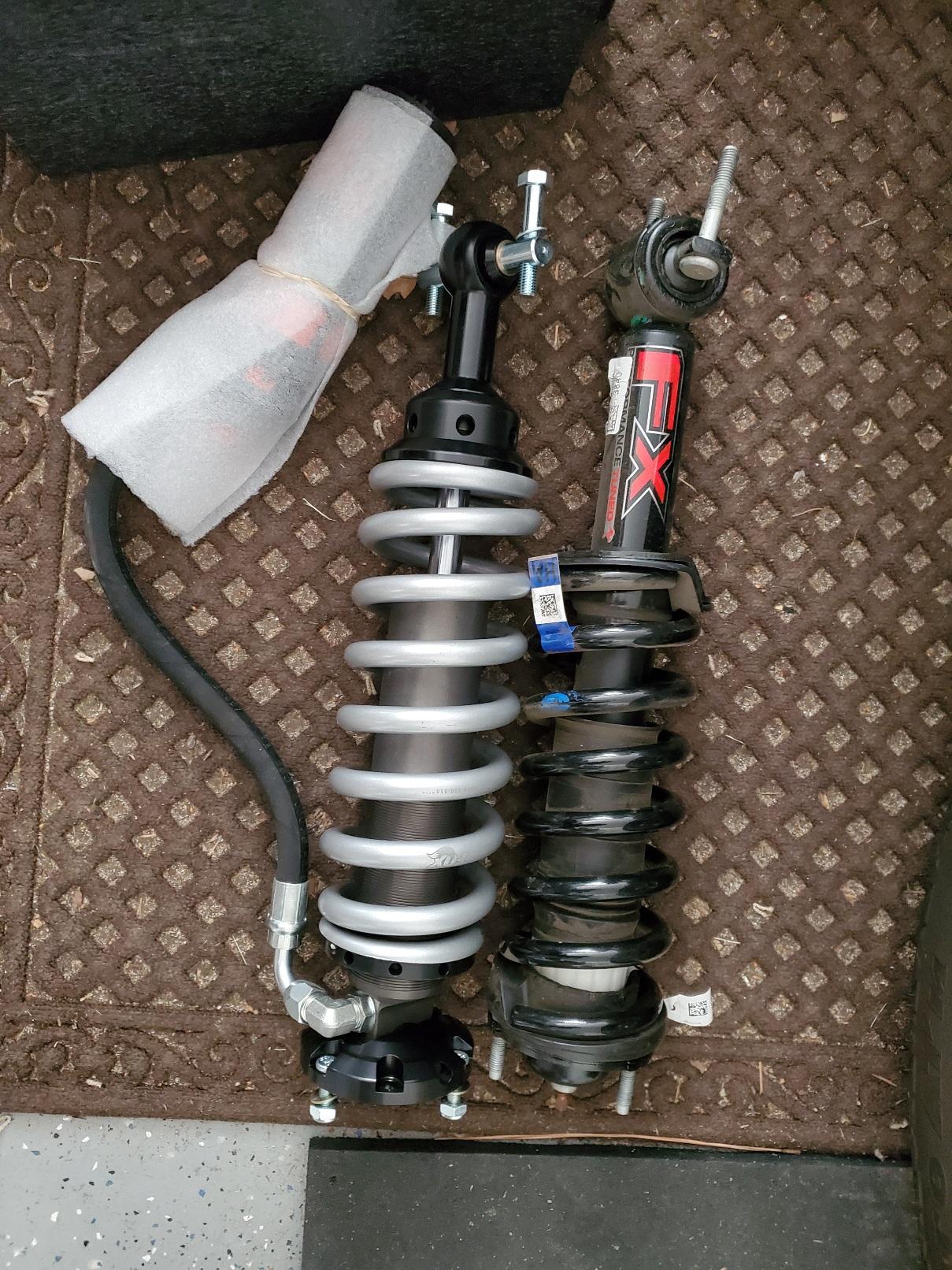

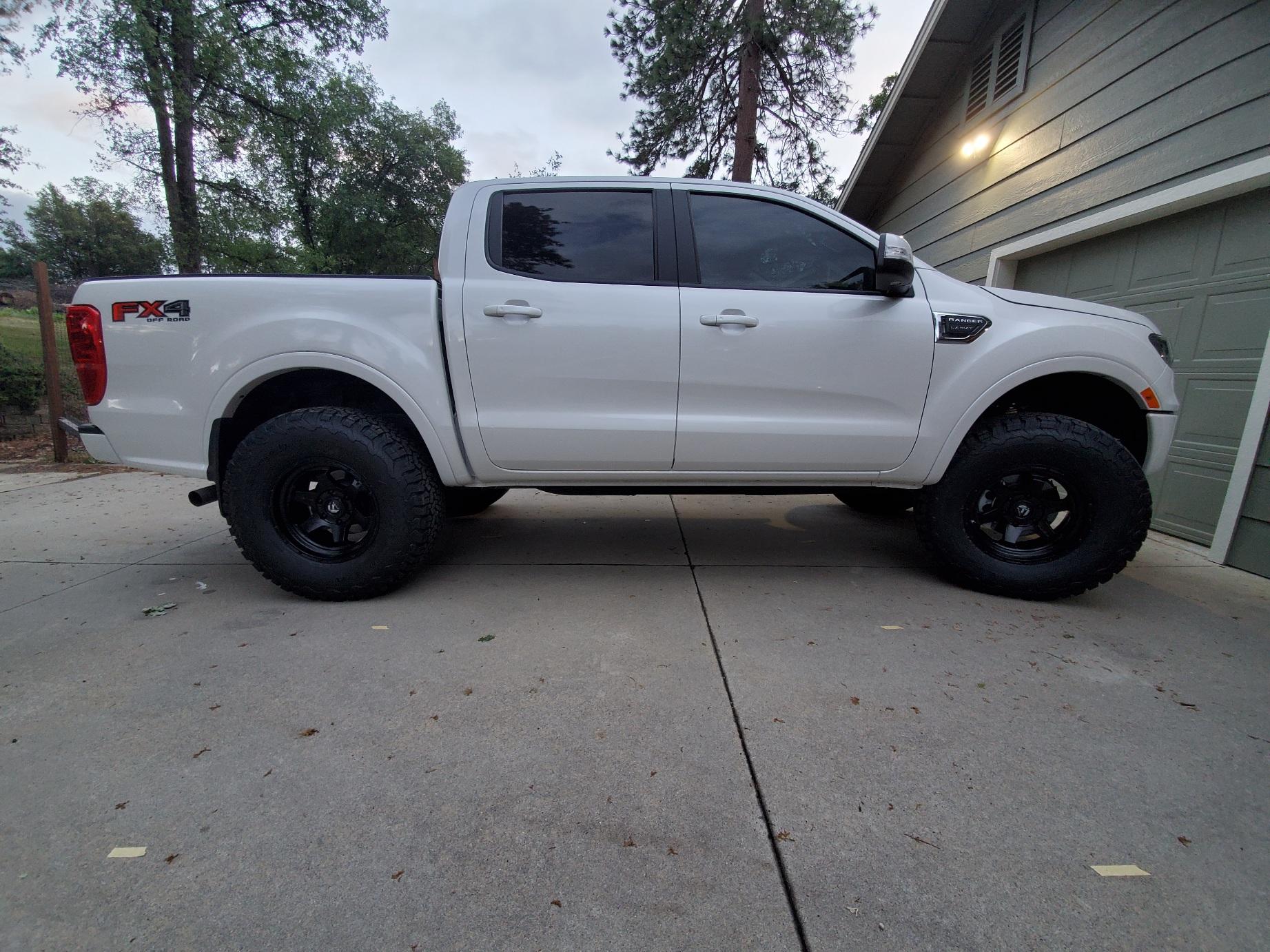

Got the front suspension and wheels on. Had to remove all 4 crash bars, plastic blocks and lots of trimming!

Still need to figure out what to do with the crash bar frame. I had to trim the end back to the first bolt hole. Now it's going to contract the back of that frame under full lock and compressed. I can either trim that or possibly get spacers in the front. Not sure I want to push the tires out any further and that frame is tied into a body mount.

I'll get better pics today.


treimche

Well-Known Member
First Name
Troy
Joined
Apr 8, 2019
Messages
588
Reaction score
620
Location
Fargo, ND
Website
www.facebook.com
Vehicle(s)
2019 Ranger. 2005 S2000. 2009 R1
Occupation
Small Business Owner
BDS intrusion beams are great. I personally wouldn't run without some type of intrusion beam as they are there for safety. Did you already install your Icon tubular UCAs? If not, triple check that all the parts are there. When I got mine they were missing the "buckets" and Icon had to mail them out to me.

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #11
No intrusion bars. There is no space for them in my setup, even the aftermarket ones, unfortunately. I know it's a hot debate but it's unknown what would happen with a lift and meaty tires. Similar to a Raptor that doesn't come with them.

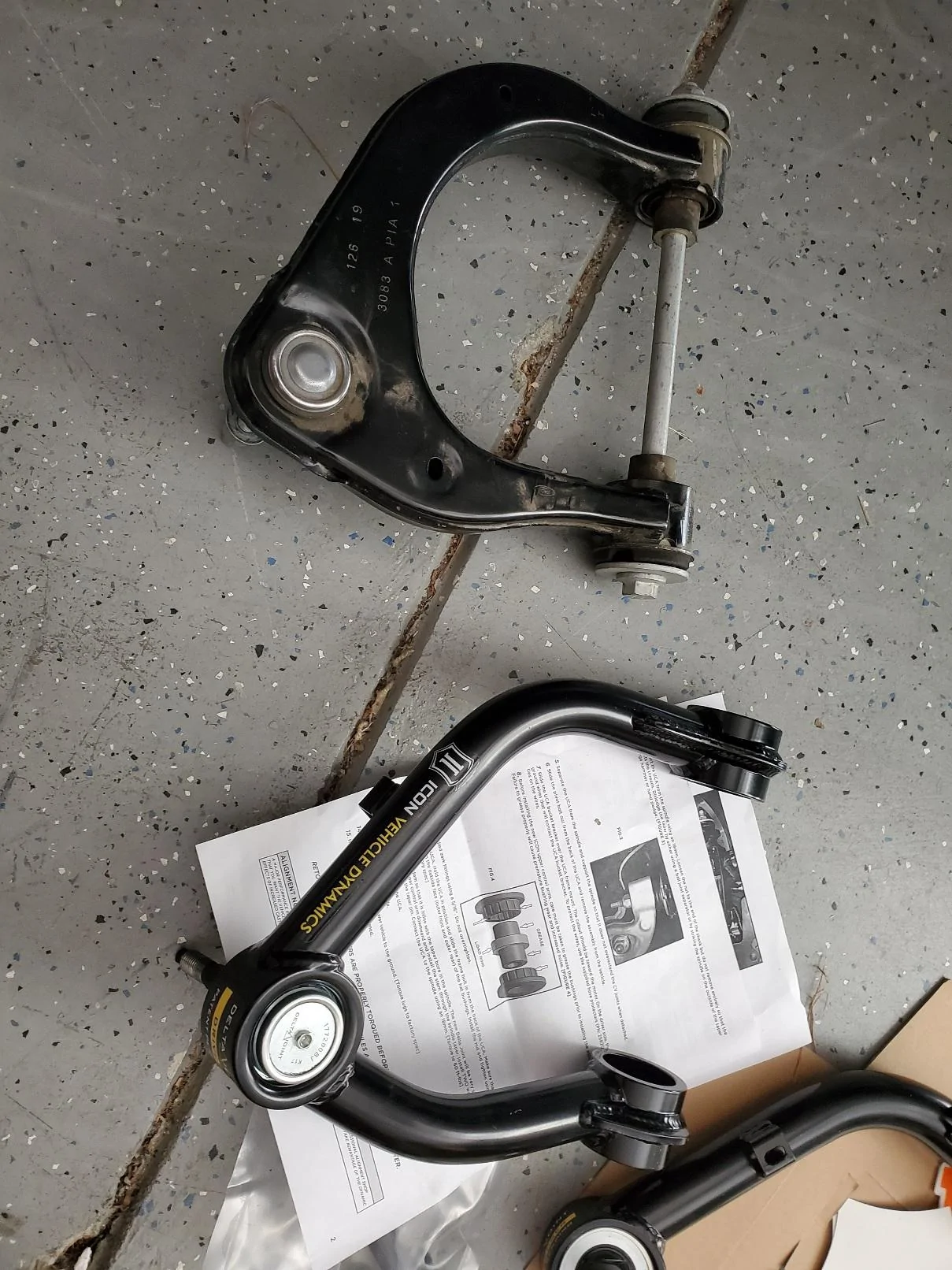

Icon UCA's are in and came with everything, thankfully. I didn't check before pulling everything off the truck. 😬

I ordered a set of wheel spacers. Thinking it over, I don't want to weaken the integrity of those front body mounts. Not my truck below but here's a visual of what's going on. Red line is where I had to cut the frame (after removing crash bars), yellow line is where it rubs under full lock and suspension compressed. You can see the body mount toward the back of this crash bar frame. Wheel spacers should get it far enough away from that yellow line.



Now I will have quite a bit of poke on this setup (probably around 3.5"). And no one offers wide enough flares. ☹

OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #12
Better picture. Also tried my hand at plastidip on the fender vent. First try came out good except I had some gasket sticking out from the factory at the top, behind the vent that I didn't see until I started peeling it and messed up the edge a bit. I'll peel it and retry or wait until I completely spray the entire truck. Good learning experience for sure.


OP
srt42b

srt42b

Member
First Name
Brian
Joined
Apr 26, 2020
Messages
18
Reaction score
48
Location
Fresno, CA
Vehicle(s)
2019 Ranger Lariat
  • Thread starter
  • Thread Starter
  • #13

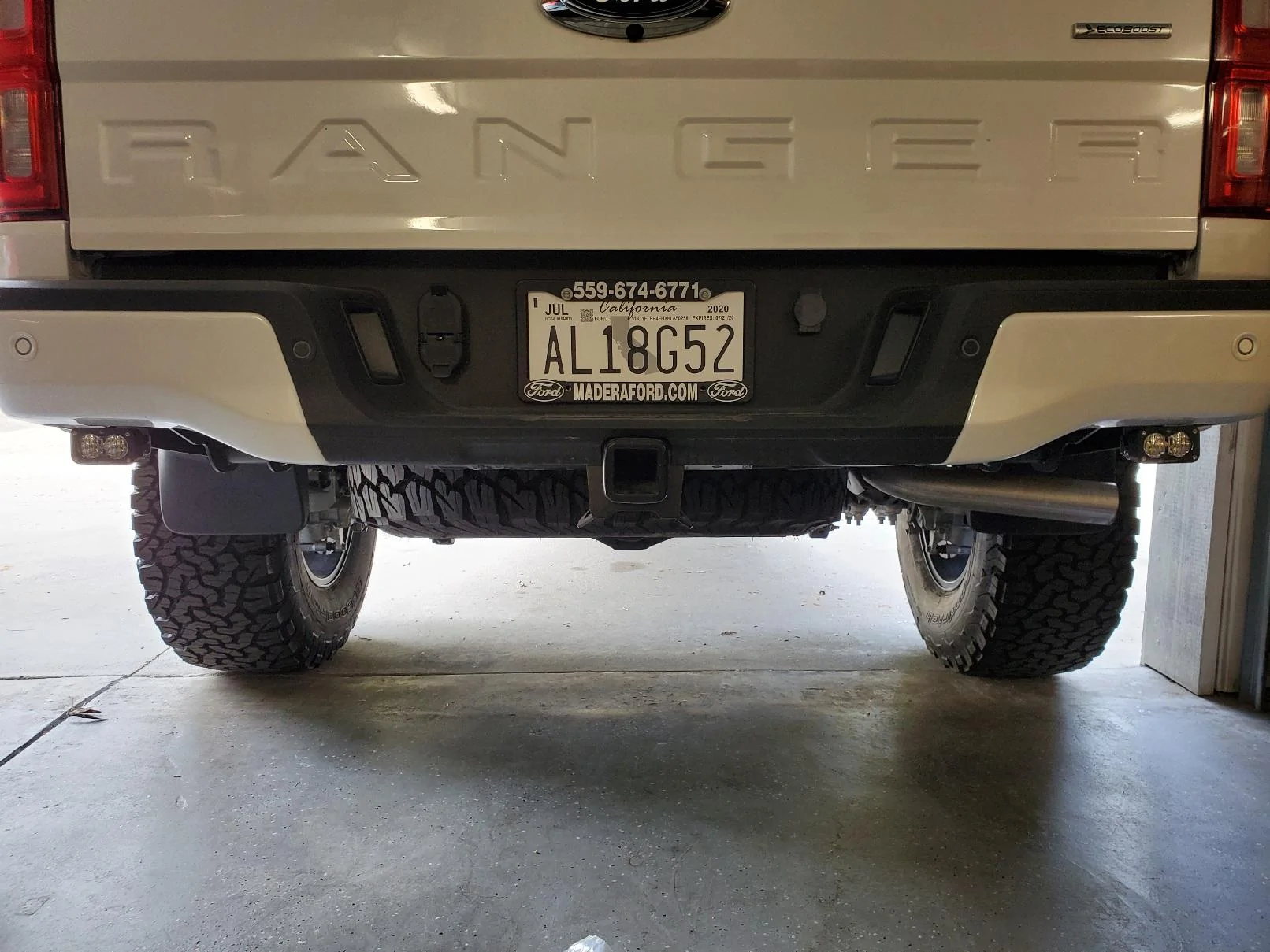

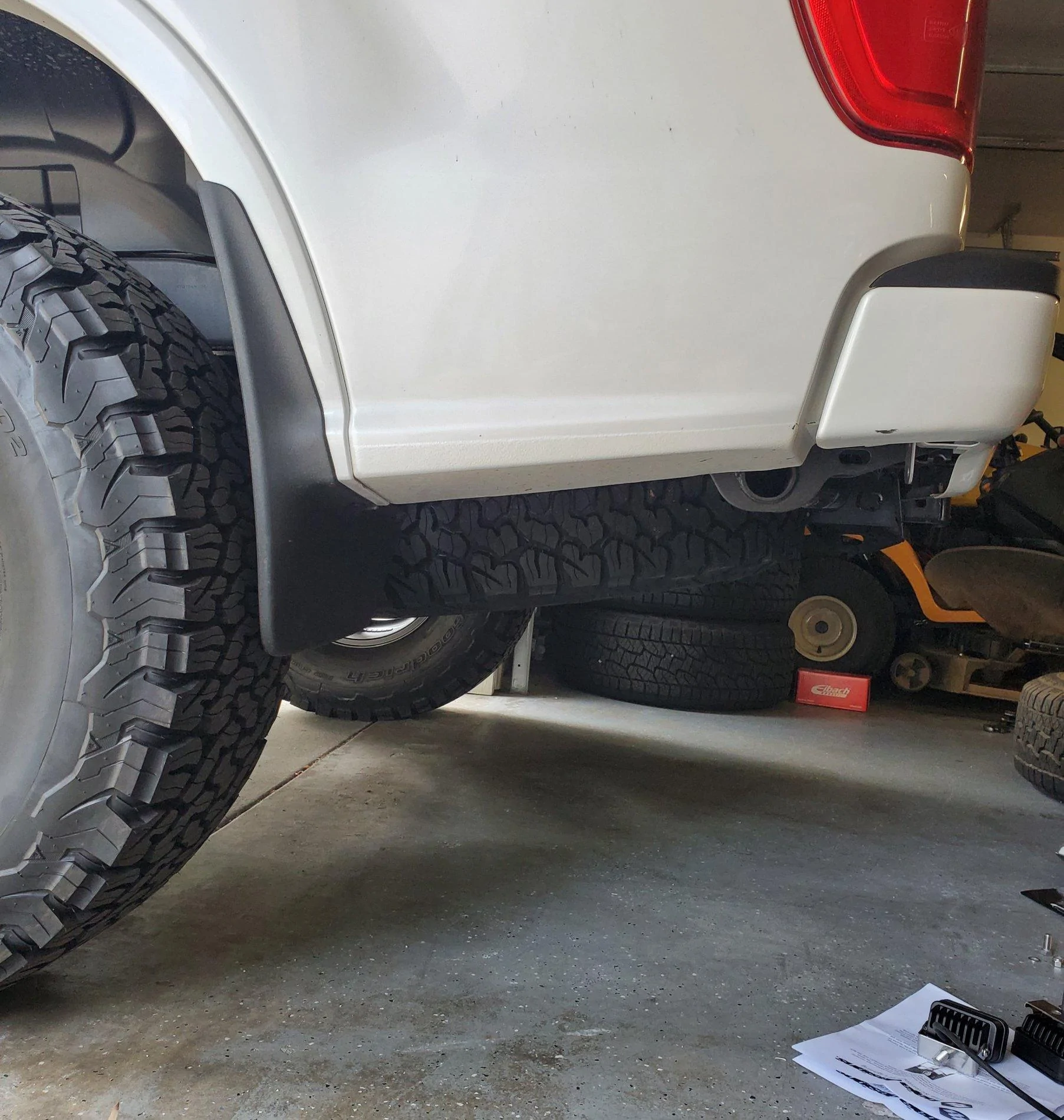

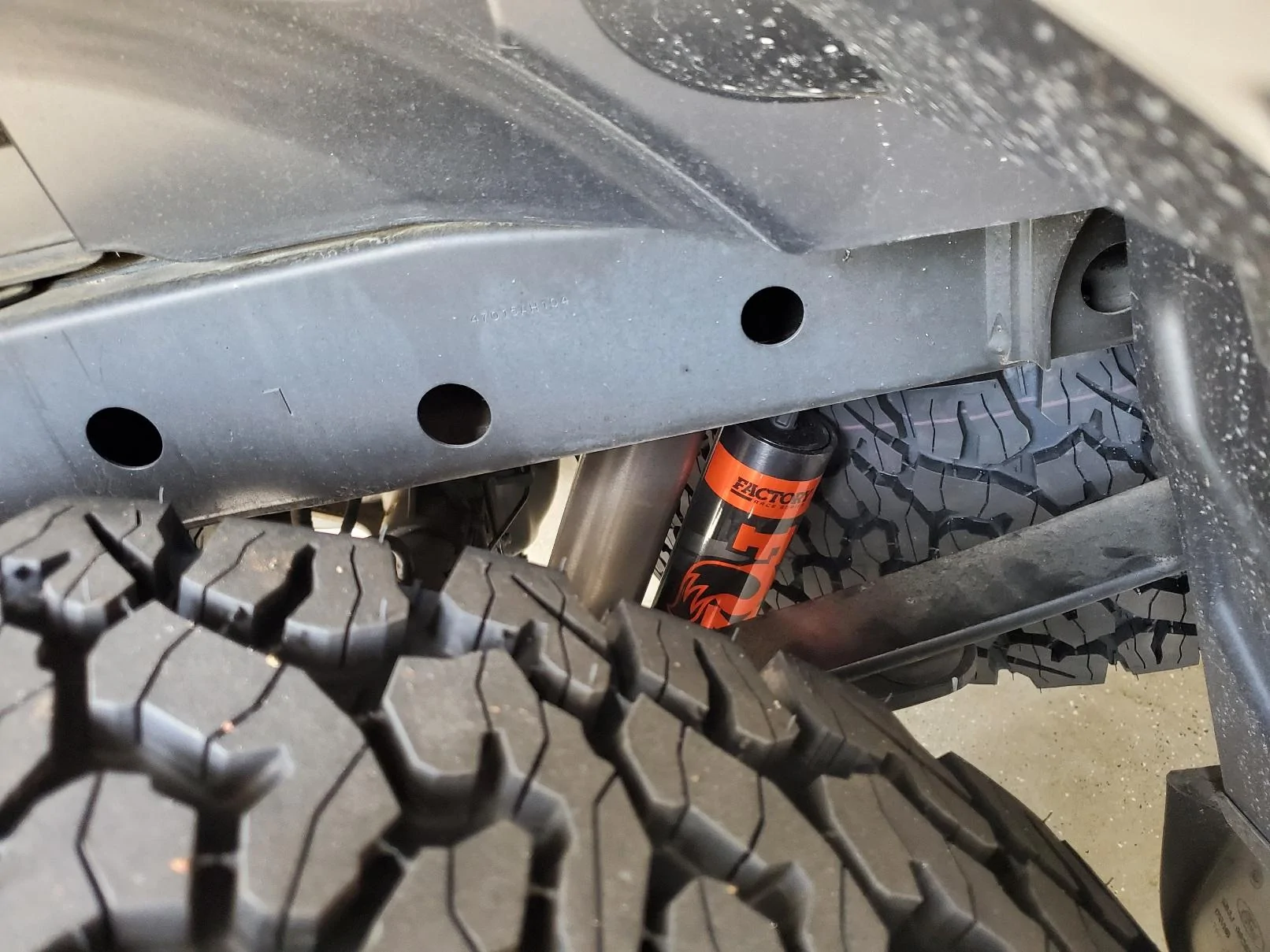

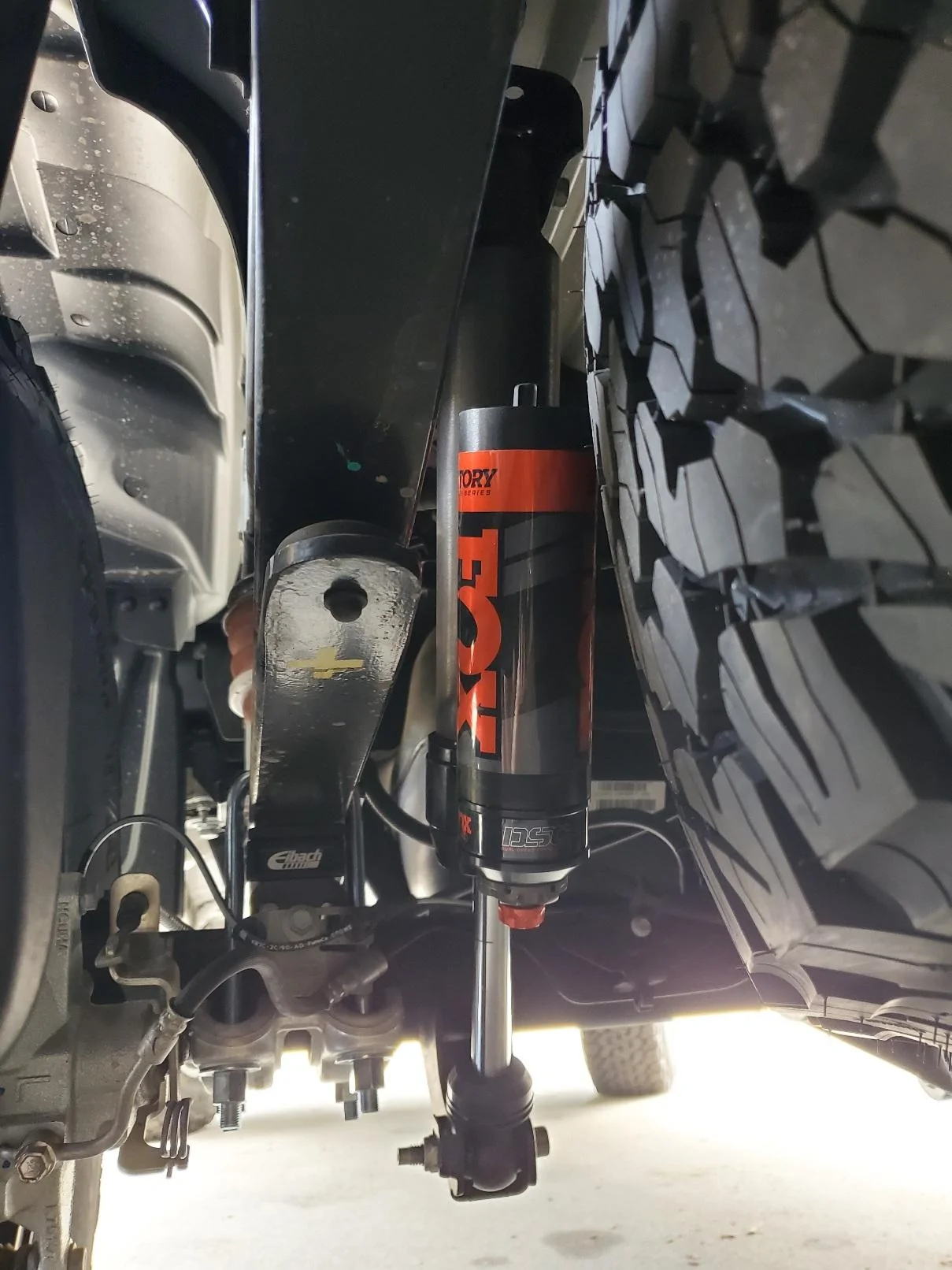

Got some more work done over the weekend. Installed rear shocks, lift blocks, Baja Designs reverse lights, Ford bed extender, tailgate assist, and Wolf Haus bed outlet.

Still need to mount rock lights, hood lights, bed lights, and wiring it all. Also mounting rotopax, hi-lift and shovel/ax in bed.

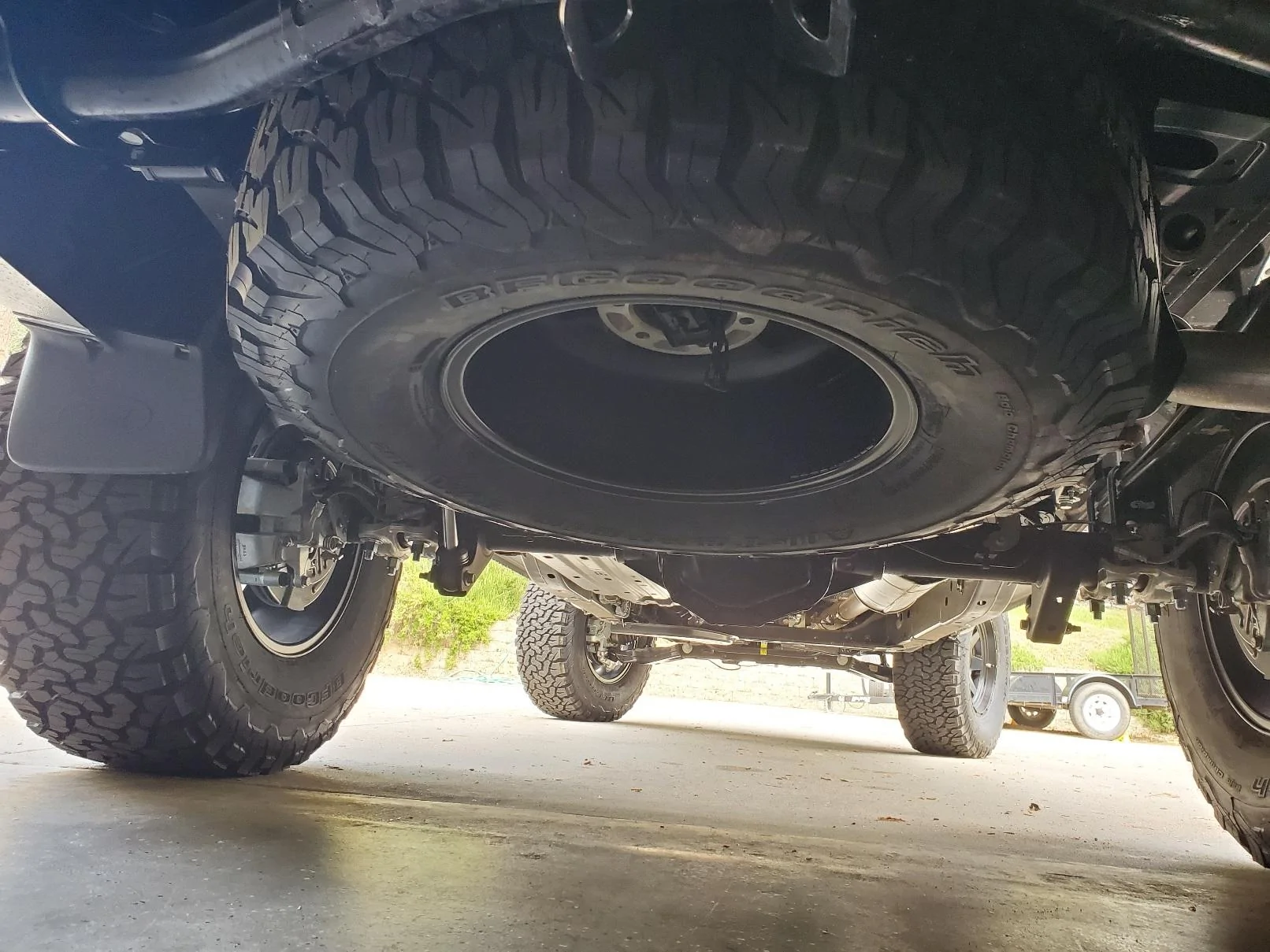

If anyone's wondering, a 35" spare can fit with some massaging. There is a pad and bracket above the spare tire that can be cut out if I ever want to bring the tire up another 0.5-1". I'll have to see how it does on exits before I remove anything else.
