Just wanted to share my installation notes on a hardwired to the interior fuse block powered dash cam and how i ran the wiring.

I used a BlueSkySea B1W dash cam from Amazon. I have this model in both my vehicles and it works great. Just be sure to upgrade to the latest firmware if you have an iphone.

Links to what i used:
https://www.amazon.com/dp/B0773FXVKL/ref=cm_sw_em_r_mt_dp_o98pFb8QVQNZ1

https://www.amazon.com/dp/B07X7MY854/ref=cm_sw_em_r_mt_dp_k98pFbDA57PPZ

For the installation, i wanted to hide the wiring behind the mirror. Didn't for the life of me know how to get that cover off but after a little effort, it just pops off. As you can see in the pictures it's just held in by clips.

The basics of the installation are running the power cord along the driver's a-pillar and along the headliner to the middle of the windshield. Then drop it down and i tucked it under the factory wiring for the camera there. I did file out a relief in the cover at the bottom for the power wire to come out.

I ran the cable along the a-pillar using velcro to hold the wire in place. Drop it down along the frame and under the steering wheel.

A tap a fuse requires a ground and usually there's a nice ground by the fuse block but in the Ranger it's a bit difficult. So instead i used the support brace as you see as my ground. Worked perfectly.

For an ignition source, I used fuse 35. Shout out to @dmeyer302 for letting me know that was an ignition on and open fuse slot to use.

If you haven't used a fuse tap it's pretty simple. You just pull the fuse out, put two fuses in both slots (one if for the original purpose and the other is for your power draw for the camera) and then plug it in. Attach your ground and done.

Lastly I just had to clean up the wiring and tuck everything nicely so it wouldn't rattle.



























Sponsored



Porpoise Hork

Well-Known Member
First Name
Bret
Joined
Apr 28, 2020
Threads
19
Messages
1,317
Reaction score
2,350
Location
Houston
Vehicle(s)
2022 F150 XLT Powerboost FX4 302A Oxford White
Occupation
IT
Very nice. I have always wondered how hard that cover was to remove. I may be re-positioning my dashcam now... ?



LoneRNGR

Well-Known Member
First Name
John
Joined
May 8, 2020
Threads
11
Messages
472
Reaction score
856
Location
Lubbock, Texas
Vehicle(s)
2020 Ford Ranger XLT
Occupation
Systems Engineer

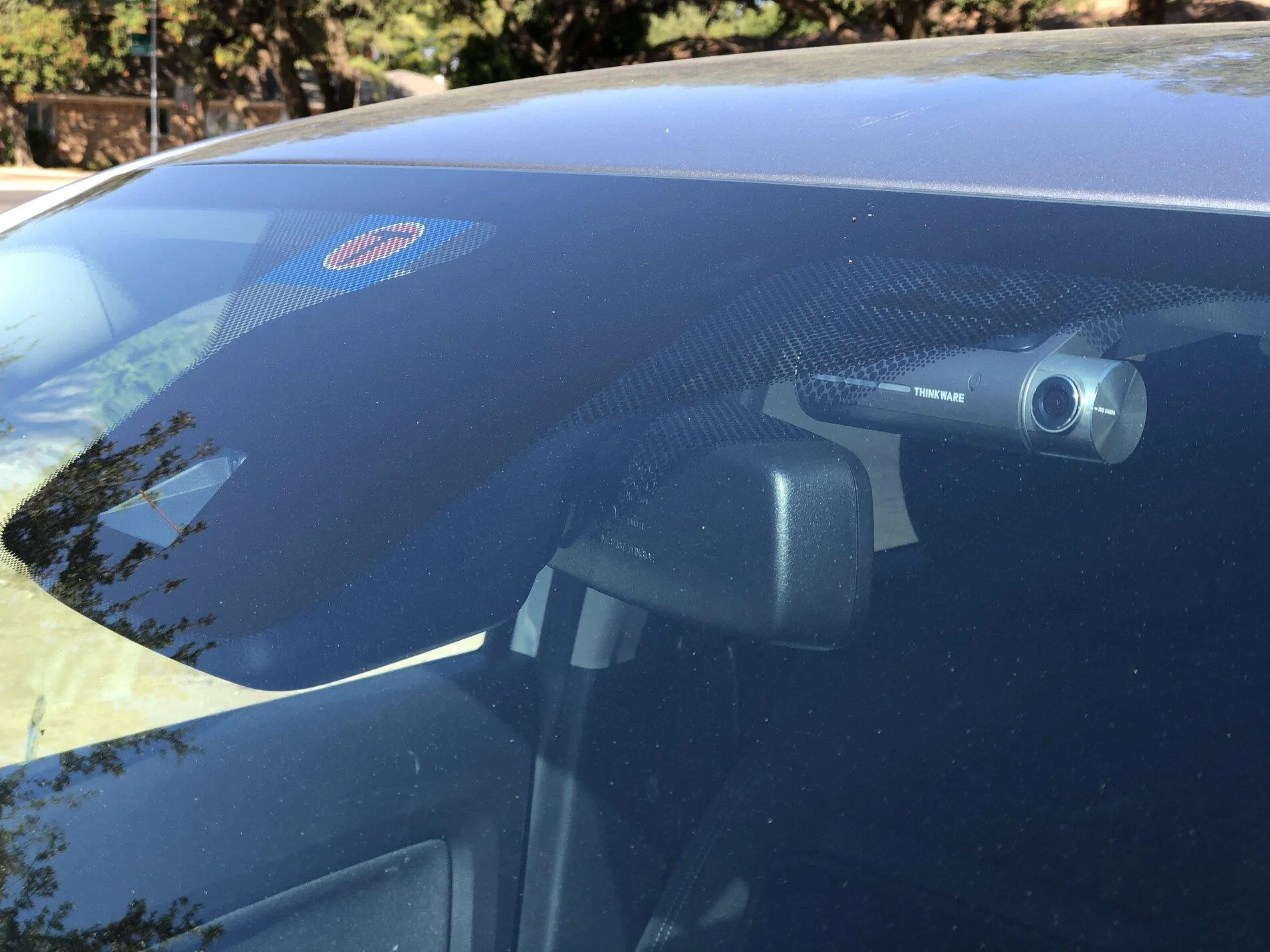

View of my camera from the outside.

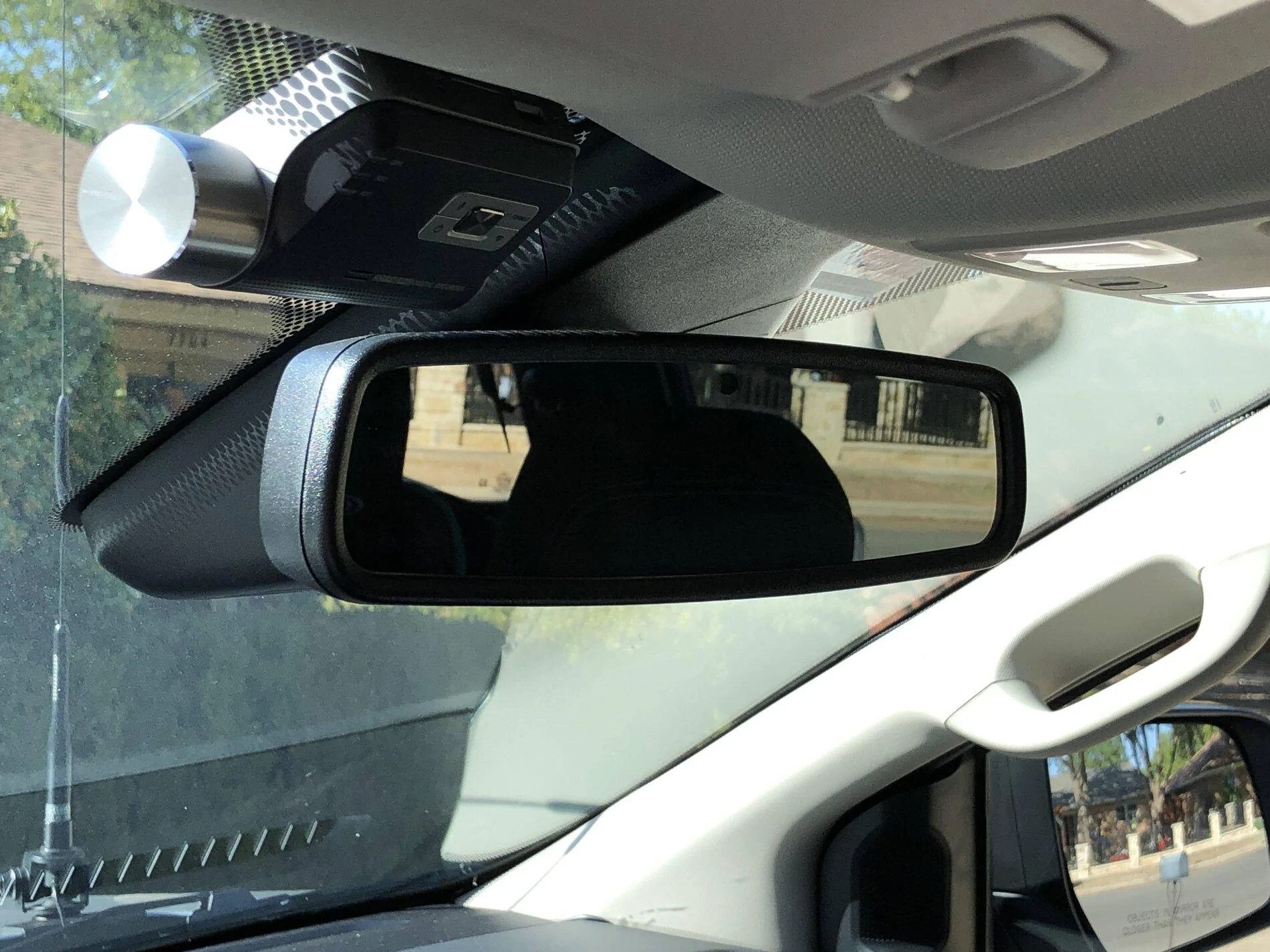

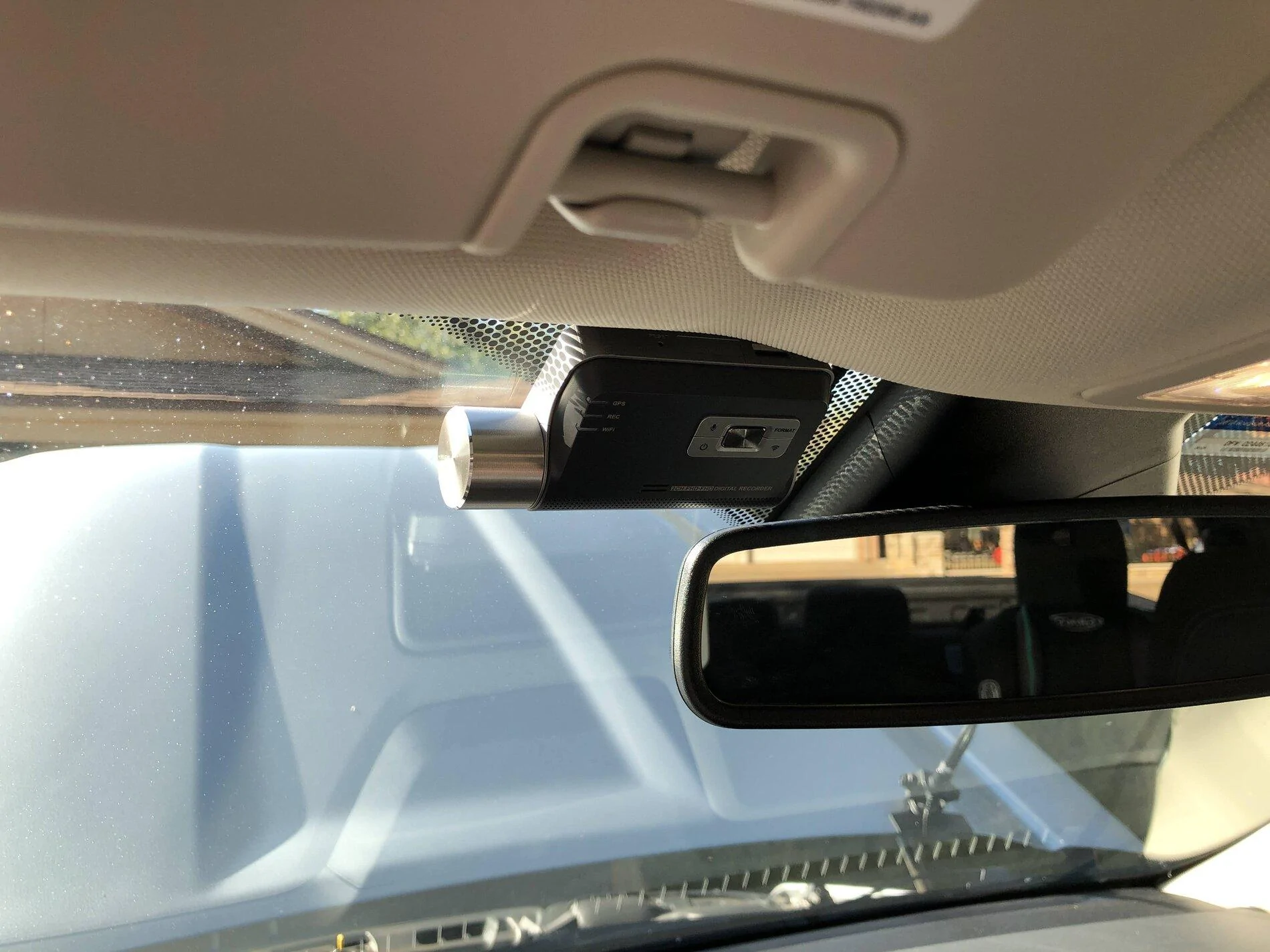

View of my camera from the inside.

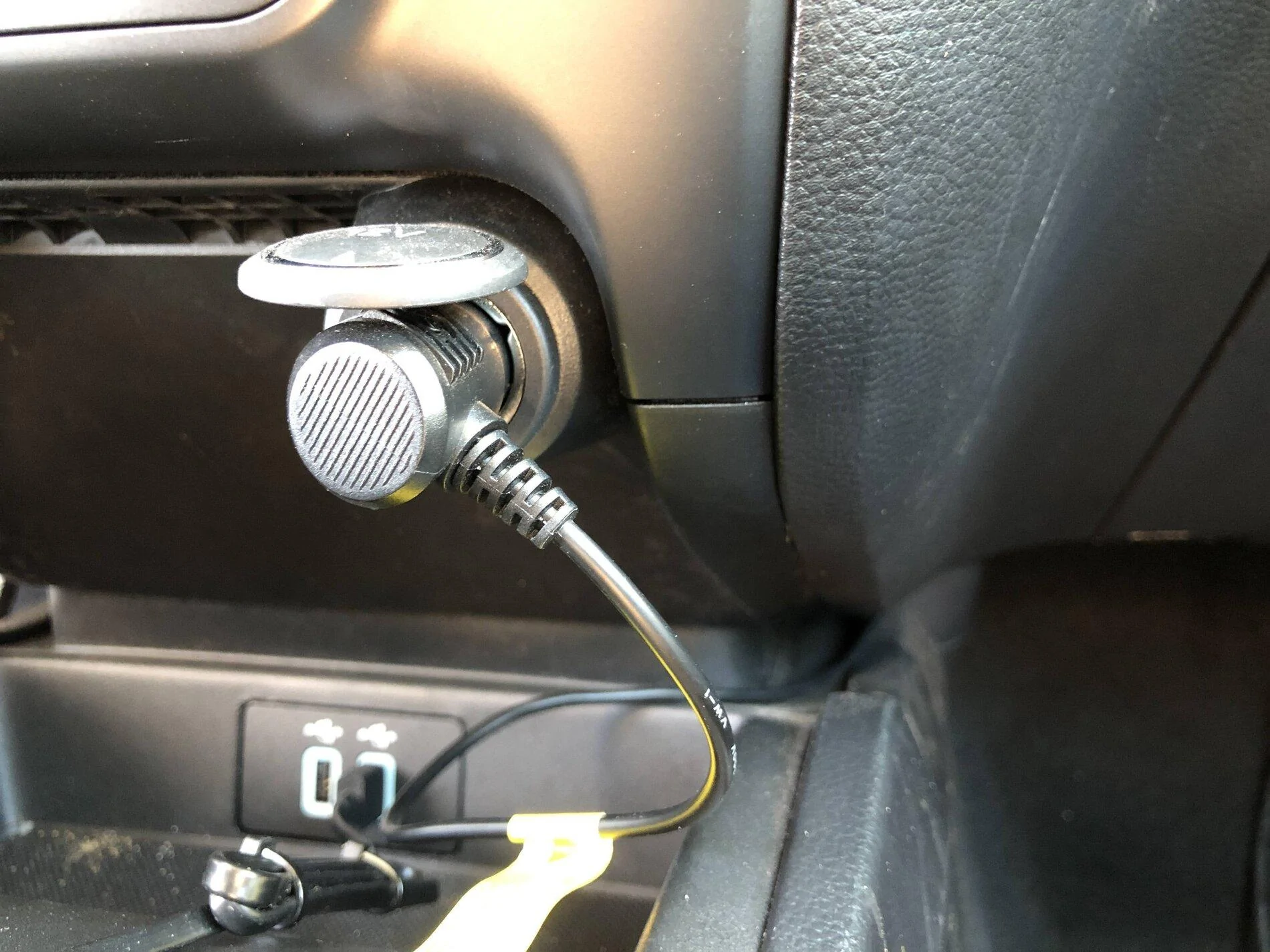

Plugs into the DC accessory power socket.


Cable is routed above roof liner, down the A-pillar, beside the dash, under the back of the glovebox, along the console to the cigarette lighter plug. Cable is mostly hidden. You can see it in a few places if you are looking for it.

The DC accessory plug stays on for a while after the ignition is turned off. I'm not sure how long. Maybe 10-20 minutes. After that it shuts off until the truck is started again. If I don't want the camera to record, I just unplug it and it shuts off after a minute or so.

Last edited:

BHunted

Well-Known Member
First Name
John
Joined
Sep 26, 2019
Threads
13
Messages
615
Reaction score
847
Location
Sumner County, TN
Vehicle(s)
2019 Ford Ranger Lariat, 2019 Ford Mustang
Occupation
Retired
Vehicle Showcase
1
Why not wiretap the mirror power.?
6” or so wire tap available on Amazon... . No running long wires, cutting into them or otherwise. 2 pin taps go into back of molex connector.


Sparky

Well-Known Member
Joined
Apr 22, 2020
Threads
1
Messages
72
Reaction score
105
Location
Oregon
Vehicle(s)
2020 Ranger
Occupation
Retired
The 12v outlet is called a Power Point and stays hot for 75 minutes when the ignition is turned off. I used Forscan and re-programmed mine to stay hot for 18 hours - Perfect for parking mode.


Jdm4292

Active Member
First Name
Joe
Joined
Sep 24, 2020
Threads
0
Messages
38
Reaction score
24
Location
03109
Vehicle(s)
2018 Golf R
Just wanted to share my installation notes on a hardwired to the interior fuse block powered dash cam and how i ran the wiring.

I used a BlueSkySea B1W dash cam from Amazon. I have this model in both my vehicles and it works great. Just be sure to upgrade to the latest firmware if you have an iphone.

Links to what i used:
https://www.amazon.com/dp/B0773FXVKL/ref=cm_sw_em_r_mt_dp_o98pFb8QVQNZ1

https://www.amazon.com/dp/B07X7MY854/ref=cm_sw_em_r_mt_dp_k98pFbDA57PPZ

For the installation, i wanted to hide the wiring behind the mirror. Didn't for the life of me know how to get that cover off but after a little effort, it just pops off. As you can see in the pictures it's just held in by clips.

The basics of the installation are running the power cord along the driver's a-pillar and along the headliner to the middle of the windshield. Then drop it down and i tucked it under the factory wiring for the camera there. I did file out a relief in the cover at the bottom for the power wire to come out.

I ran the cable along the a-pillar using velcro to hold the wire in place. Drop it down along the frame and under the steering wheel.

A tap a fuse requires a ground and usually there's a nice ground by the fuse block but in the Ranger it's a bit difficult. So instead i used the support brace as you see as my ground. Worked perfectly.

For an ignition source, I used fuse 35. Shout out to @dmeyer302 for letting me know that was an ignition on and open fuse slot to use.

If you haven't used a fuse tap it's pretty simple. You just pull the fuse out, put two fuses in both slots (one if for the original purpose and the other is for your power draw for the camera) and then plug it in. Attach your ground and done.

Lastly I just had to clean up the wiring and tuck everything nicely so it wouldn't rattle.



























It's handsome lars, and his fabulous jars...


Byngsboys

Well-Known Member
First Name
Kris
Joined
Dec 23, 2020
Threads
3
Messages
90
Reaction score
237
Location
Ontario Canada
Vehicle(s)
2020 Lightening Blue Ranger XLT, 302A, FX4, Tow and Technology/ 2005 BMW R1200RT
Occupation
Educator
Vehicle Showcase
1
Thanks for the write-up. I'm getting ready to install my Yi into my new Ranger and I wondered where I could tap into on the box!
Take care,
Kris


Jrel209

Well-Known Member
Joined
Sep 30, 2020
Threads
16
Messages
497
Reaction score
815
Location
Wa
Vehicle(s)
2020 Ranger XLT crew cab
Why not wiretap the mirror power.?
6” or so wire tap available on Amazon... . No running long wires, cutting into them or otherwise. 2 pin taps go into back of molex connector.
Hey you have a walkthrough or any website showing how this can be done?


BHunted

Well-Known Member
First Name
John
Joined
Sep 26, 2019
Threads
13
Messages
615
Reaction score
847
Location
Sumner County, TN
Vehicle(s)
2019 Ford Ranger Lariat, 2019 Ford Mustang
Occupation
Retired
Vehicle Showcase
1
Hey you have a walkthrough or any website showing how this can be done?
You can find them cheaper no name brand on Amazon but the orig company has plenty of vids and applications. They are not cheap. Just make sure you get the right one. Some are straight for 12 volts, others are dummed down for USB Voltage. Takes less than 10 mins. You just have to make sure you tap the right wires.
My dash cam uses a 6" adapter... Similar to these : https://www.amazon.com/s?k=mirror+tap+power+cord&ref=nb_sb_noss_2

https://www.mirrortap.com/index.html

Last edited:

dinosplace

Active Member
First Name
Dino
Joined
Oct 31, 2020
Threads
2
Messages
29
Reaction score
5
Location
Toronto
Vehicle(s)
2020 Ranger
Occupation
Engineer
Just wanted to share my installation notes on a hardwired to the interior fuse block powered dash cam and how i ran the wiring.

I used a BlueSkySea B1W dash cam from Amazon. I have this model in both my vehicles and it works great. Just be sure to upgrade to the latest firmware if you have an iphone.

Links to what i used:
https://www.amazon.com/dp/B0773FXVKL/ref=cm_sw_em_r_mt_dp_o98pFb8QVQNZ1

https://www.amazon.com/dp/B07X7MY854/ref=cm_sw_em_r_mt_dp_k98pFbDA57PPZ

For the installation, i wanted to hide the wiring behind the mirror. Didn't for the life of me know how to get that cover off but after a little effort, it just pops off. As you can see in the pictures it's just held in by clips.

The basics of the installation are running the power cord along the driver's a-pillar and along the headliner to the middle of the windshield. Then drop it down and i tucked it under the factory wiring for the camera there. I did file out a relief in the cover at the bottom for the power wire to come out.

I ran the cable along the a-pillar using velcro to hold the wire in place. Drop it down along the frame and under the steering wheel.

A tap a fuse requires a ground and usually there's a nice ground by the fuse block but in the Ranger it's a bit difficult. So instead i used the support brace as you see as my ground. Worked perfectly.

For an ignition source, I used fuse 35. Shout out to @dmeyer302 for letting me know that was an ignition on and open fuse slot to use.

If you haven't used a fuse tap it's pretty simple. You just pull the fuse out, put two fuses in both slots (one if for the original purpose and the other is for your power draw for the camera) and then plug it in. Attach your ground and done.

Lastly I just had to clean up the wiring and tuck everything nicely so it wouldn't rattle.



























Question: I have a 2020 ranger with the same under dash fuse panel. I purchased Micro3 fuse add on similar to yours. I used the spare fuses 11 and 20 which are 3 pole fuses. However the add on fuse holder doesn’t fit. It’s a little too thick. I had to file the plastic a little to make it fit in the slot. Did you have similar issues? Fuse 11 is constant power and fuse 20 is ignition. Both spares from what I found online.

OP
OP
commbubba19

commbubba19

Well-Known Member
Joined
Nov 18, 2019
Threads
14
Messages
112
Reaction score
157
Location
Omaha
Vehicle(s)
2020 Ranger XLT FX4 - Gots mods
Occupation
Network Engineer
I did not. Not sure why yours isn’t clearing. Do you have a pic you can take?


melficeapoll

Well-Known Member
First Name
Matt
Joined
Apr 2, 2021
Threads
5
Messages
87
Reaction score
156
Location
Norfolk,Virginia
Vehicle(s)
2021 Ranger XLT
Occupation
RN
Does fuse 35 turn off with the auto start/stop, or does it stay running?
