Mocked up my Rack

Discussion in 'Racks, Carriers, Toppers, Cargo, Bed Mods' started by SafetyDan, Jan 10, 2020.

  1. SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1

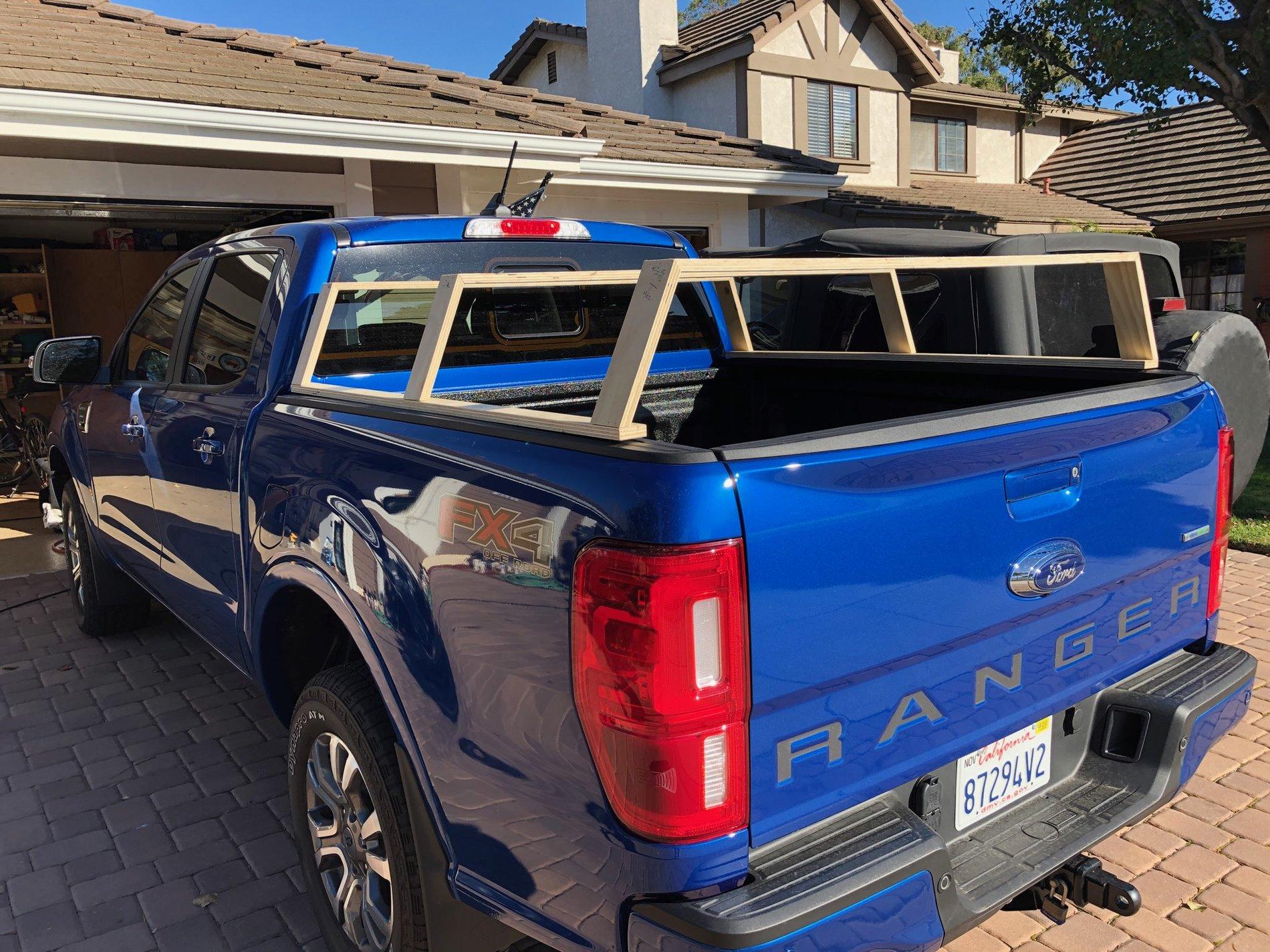

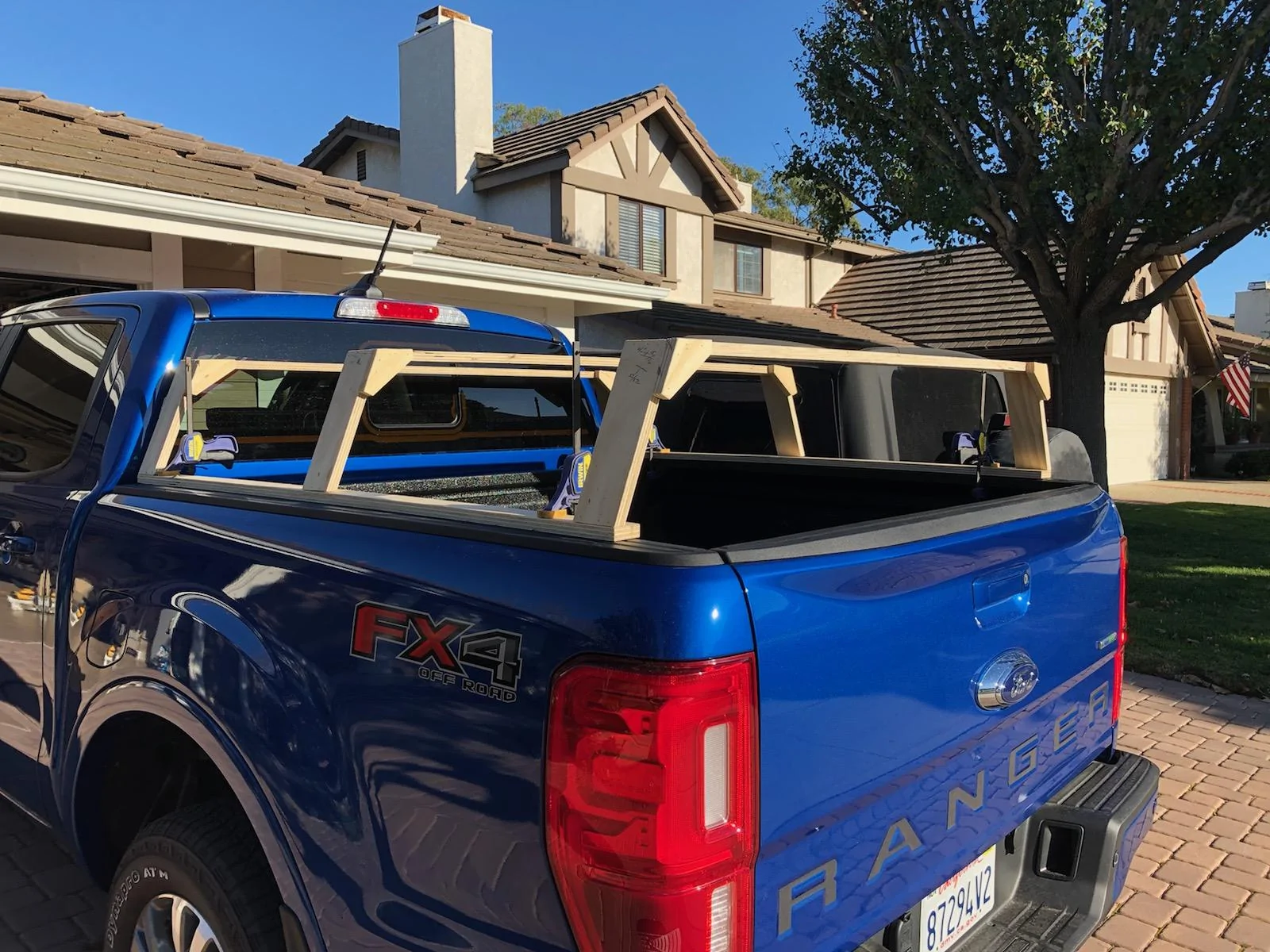

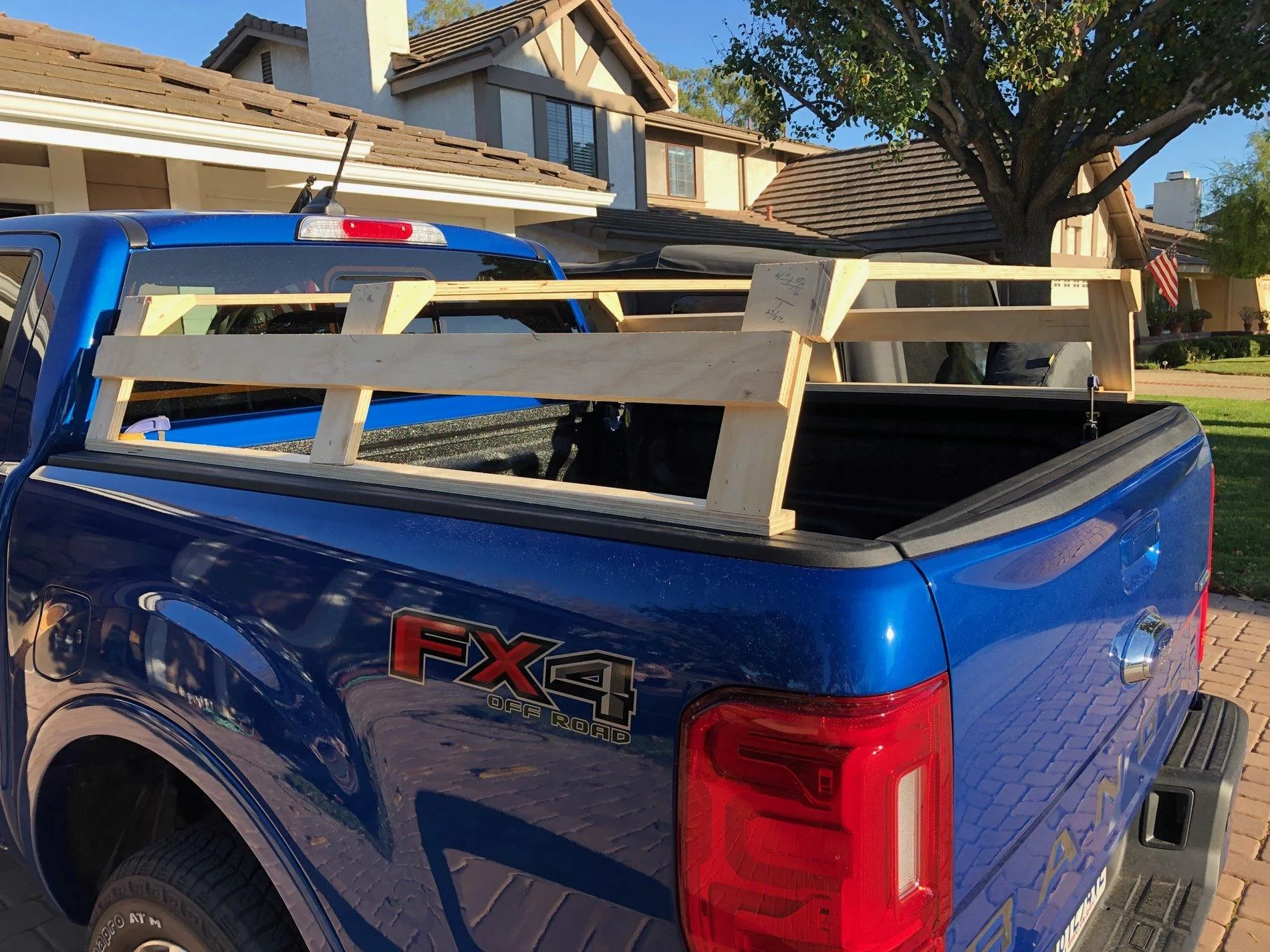

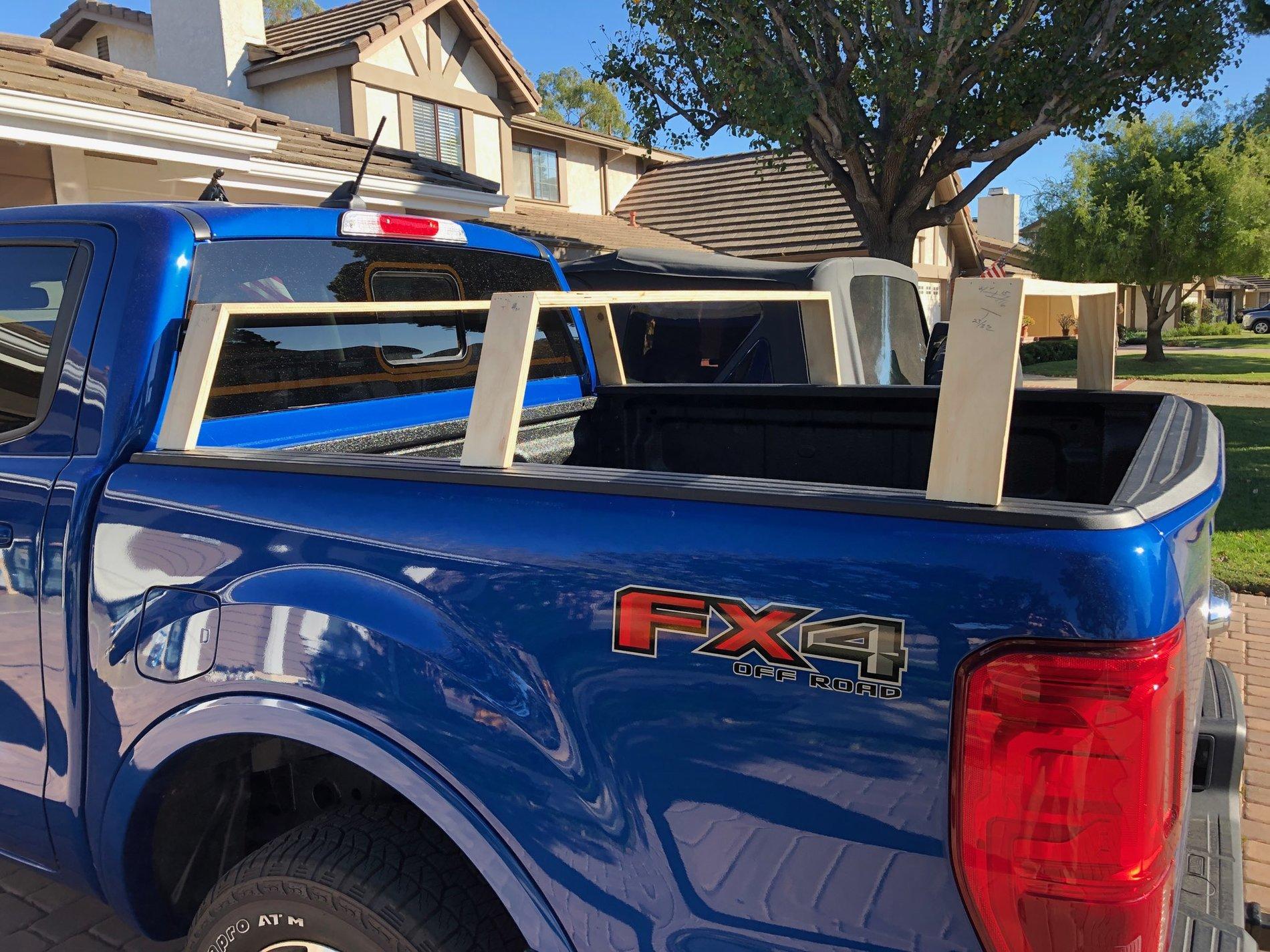

    I have mocked up my Rack so I can start cutting metal. I m Going to make it the height of the Horizontal bars though.






    Ronbo and Tracy Bowman like this.
  2. FULLSCALE

    FULLSCALE Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2019 Ford Ranger Lariat FX4 Supercrew, 2011 Mazda 3 Sport GT-E, 1968 Ford Mustang
    Joined:
    Jan 7, 2019
    Location:
    Ontario, Canada
    Posts:
    1,763
    Likes Received:
    1,329
    That looks like a good setup. Are you building it out of steel or aluminum?

  3. OP
    OP
    SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1
    #3 Jan 10, 2020
    Last edited: Jan 12, 2020
    I got the plans from another Ranger5g Member (HoosierT). It is a nice rack. I want Aluminum, but my fab buddies, welder crapped out so I may have to use steel.

  4. OP
    OP
    SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1

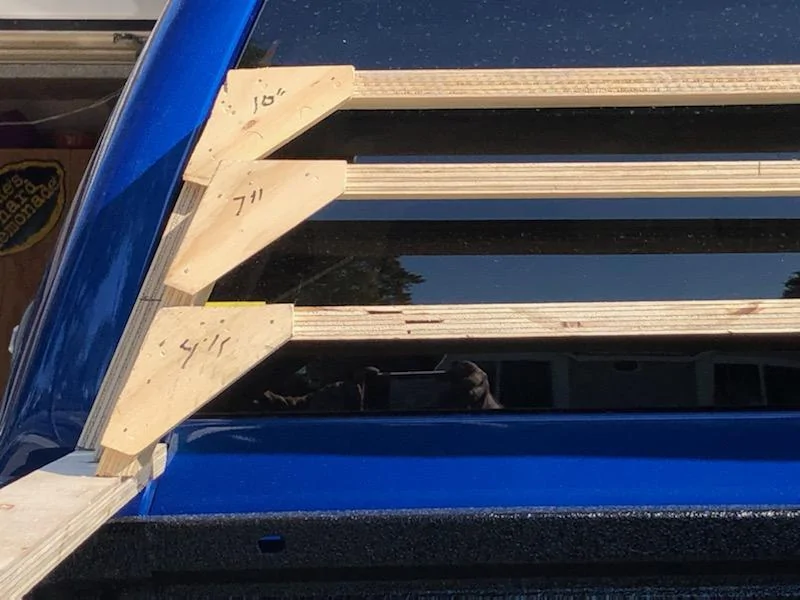

    Now the question is how tall. I would enjoy an adjustable that would be anywhere from 5-8 inches from box edge. Since this will solid I had to mock up each to try and decide.

    The one marked 4" sits right at the height for the rear window opening (Which is a good option for long things.




  5. FULLSCALE

    FULLSCALE Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2019 Ford Ranger Lariat FX4 Supercrew, 2011 Mazda 3 Sport GT-E, 1968 Ford Mustang
    Joined:
    Jan 7, 2019
    Location:
    Ontario, Canada
    Posts:
    1,763
    Likes Received:
    1,329
    I think the lowest one looks best, unless you need more bed space under if there’s anything specific you’ll be hauling?

  6. Wschnitz

    Wschnitz Well-Known Member

    First Name:
    Will
    Vehicle(s):
    2019 Ford Ranger XLT FX4
    Joined:
    Jul 11, 2019
    Location:
    Bellingham, WA
    Posts:
    57
    Likes Received:
    54
    Garage Profiles:
    1
    Wow that looks familiar.

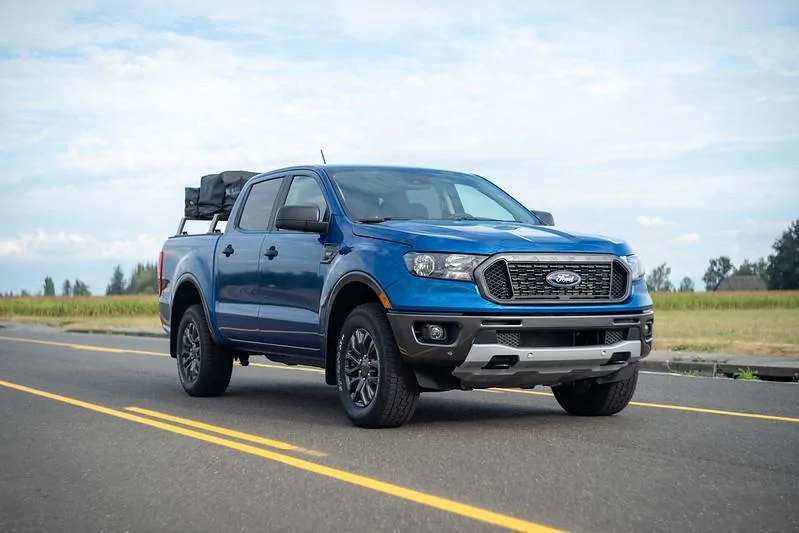

    48609736326_de2e5efe49_c.jpg20190823-_SRC4089 by William Snitselaar, on Flickr

    I went with a similar style.

    Tracy Bowman and P. A. Schilke like this.
  7. HoosierT

    HoosierT Well-Known Member

    First Name:
    Tyler
    Vehicle(s):
    ‘19 Ranger Lariat FX4, '17 Explorer Sport
    Joined:
    Feb 1, 2019
    Location:
    Fishers, IN
    Posts:
    595
    Likes Received:
    669
    If you’re wondering why I went 10” with the design I sent you. It’s about the shortest I could go and still use the side panels for maxtrax and rotopax. If you want to mount either of those, you’ll want no less than 10” tall. If not, go shorter for sure IMO.

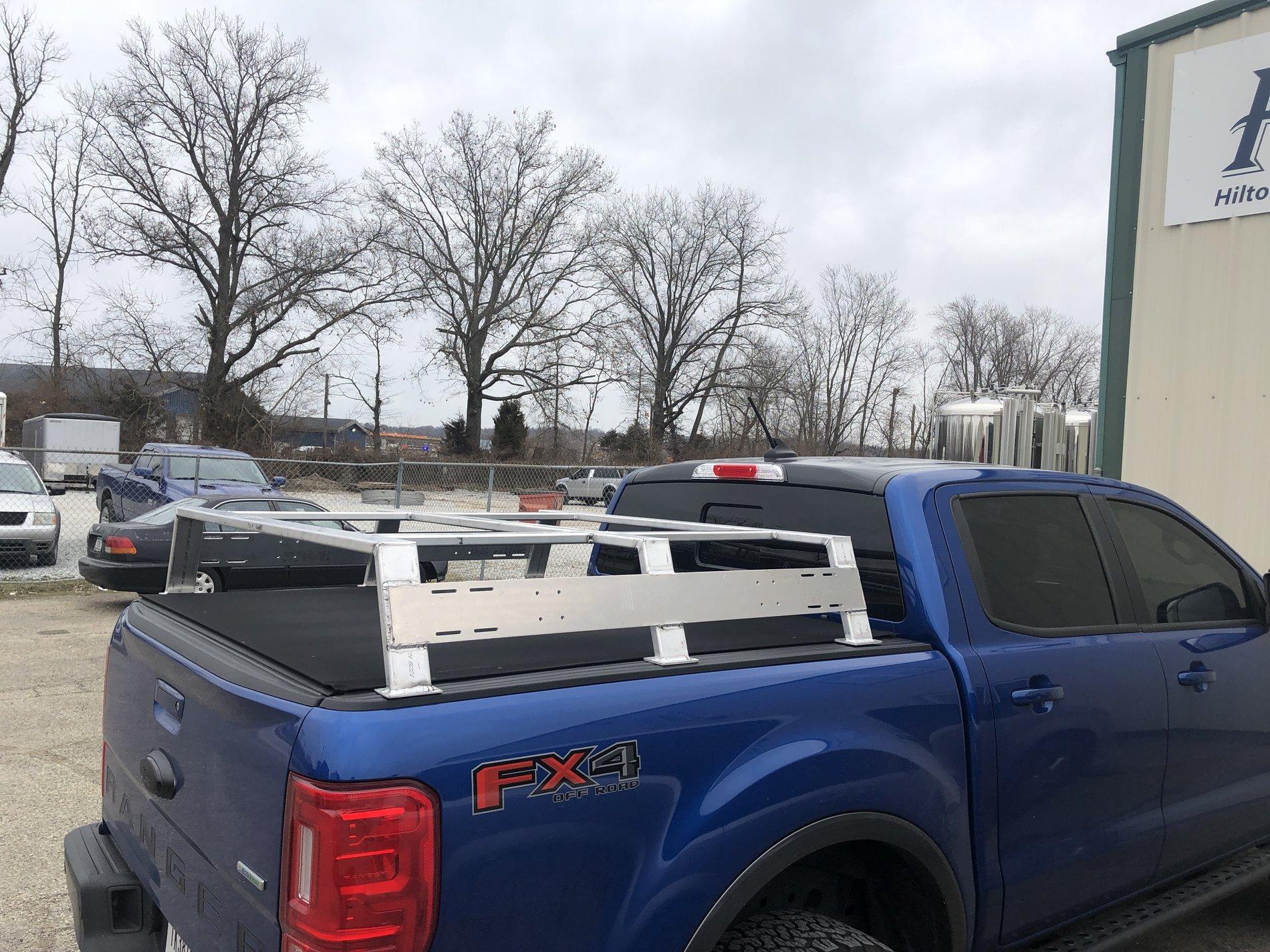

    Here’s how the 10” looks on my truck. I just don’t have completed pics up yet.

    SafetyDan likes this.
  8. OP
    OP
    SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1
    Did you buy this? What brand, Cost?

  9. OP
    OP
    SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1
    #9 Jan 12, 2020
    Last edited: Jan 12, 2020
    HoosierT, I like the rack, but don't anticipate installing Rotopac. Your plans are great.

    I still have not decided what height. If I go shorter, I will have to extend the main cross bars.

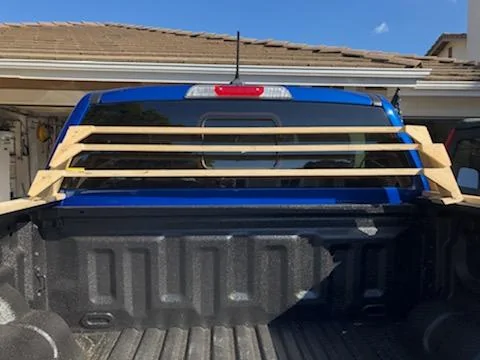

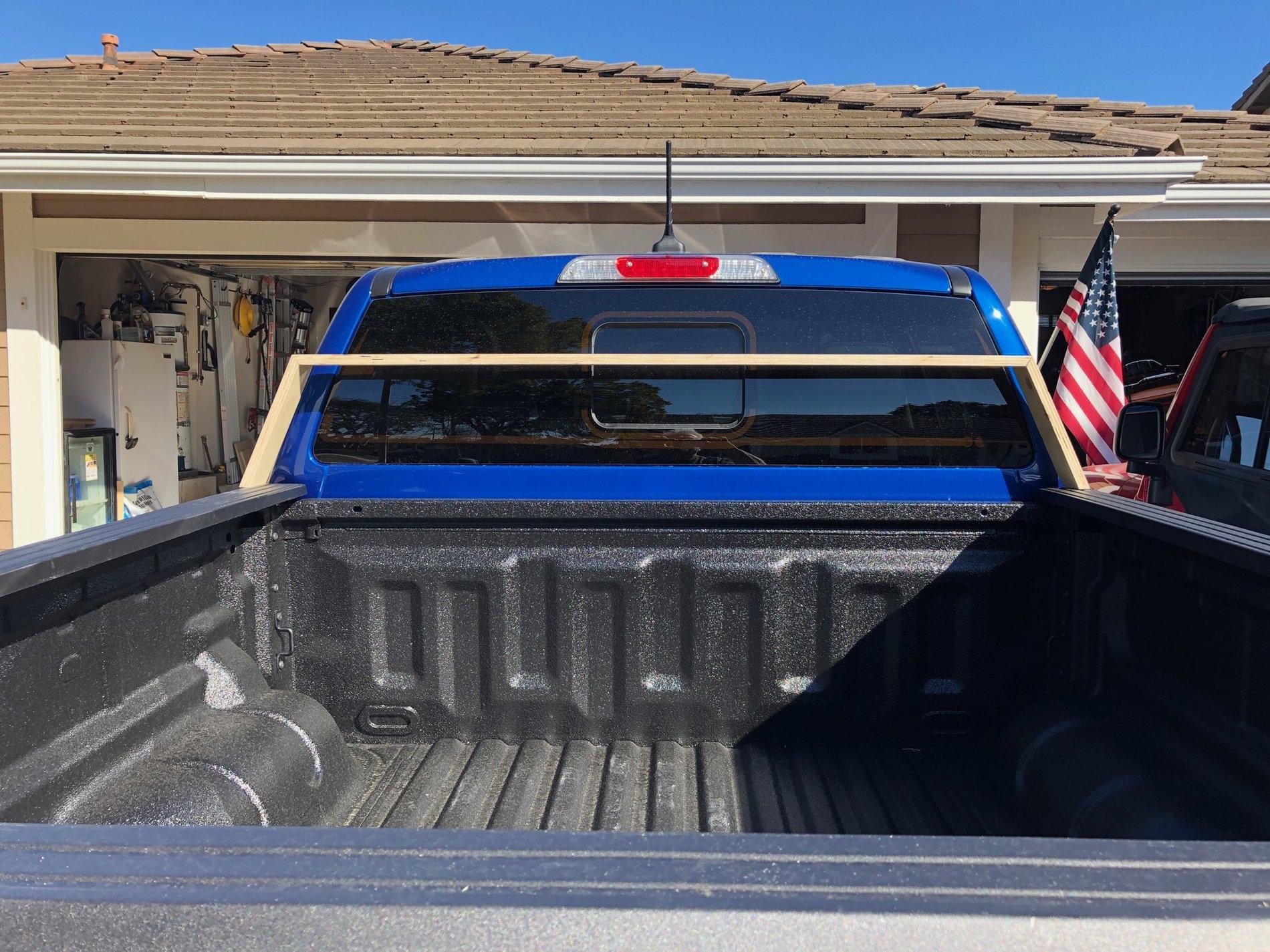

    After I mocked this up, I decided to see what it would be like at different heights.

    Gave me a chance to show my wife that as I lower the rack the cross bars must extent to keep the weight on the box correctly.

  10. RANGER PRIDE

    RANGER PRIDE Well-Known Member

    Vehicle(s):
    2019 Ranger FX4 Supercrew
    Joined:
    Sep 4, 2019
    Location:
    Vancouver
    Posts:
    749
    Likes Received:
    641

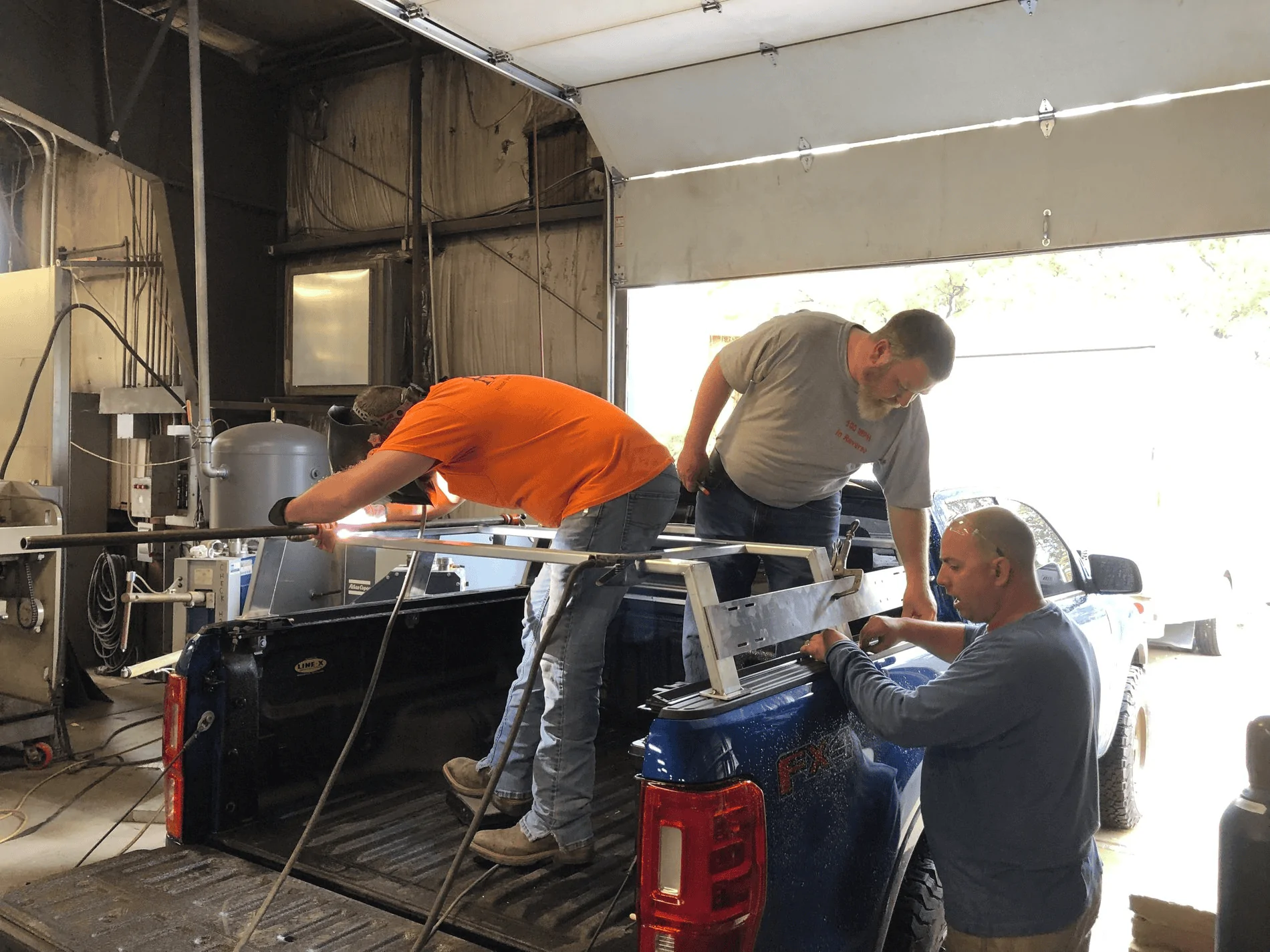

    is he welding in situ?

    that would be balzy AF. I hope he's got stuff there to protect your truck. like a force field of some kind.

  11. HoosierT

    HoosierT Well-Known Member

    First Name:
    Tyler
    Vehicle(s):
    ‘19 Ranger Lariat FX4, '17 Explorer Sport
    Joined:
    Feb 1, 2019
    Location:
    Fishers, IN
    Posts:
    595
    Likes Received:
    669
    Yes he was. He’s very good at what he does, not a drop touched my truck.

    Tracy Bowman likes this.
  12. RANGER PRIDE

    RANGER PRIDE Well-Known Member

    Vehicle(s):
    2019 Ranger FX4 Supercrew
    Joined:
    Sep 4, 2019
    Location:
    Vancouver
    Posts:
    749
    Likes Received:
    641
    glad you trust him....

  13. Wschnitz

    Wschnitz Well-Known Member

    First Name:
    Will
    Vehicle(s):
    2019 Ford Ranger XLT FX4
    Joined:
    Jul 11, 2019
    Location:
    Bellingham, WA
    Posts:
    57
    Likes Received:
    54
    Garage Profiles:
    1
    I built it,

    I should say I overbuilt it. 3/8? thick square tube 4inches by like 3/4inches. 3/16 base plates, and 3/4-10 bolts cause I like em chunky. Had it powdercoated for basically free cause they messed up the color but its close enough the the Metallic trim I was ok with it.

  14. OP
    OP
    SafetyDan

    SafetyDan Well-Known Member

    First Name:
    Dan
    Vehicle(s):
    2019 V2 - Ranger Lariat, FX4, 501A, Trailer Tow (Lightning Blue), V1- Lariat, FX4, 500A, Trailer Tow (Ingot Silver) <Epic Fail - Lemon>
    Joined:
    Apr 28, 2019
    Location:
    Oxnard, CA
    Posts:
    175
    Likes Received:
    200
    Garage Profiles:
    1
    what is the weight?

  15. Wschnitz

    Wschnitz Well-Known Member

    First Name:
    Will
    Vehicle(s):
    2019 Ford Ranger XLT FX4
    Joined:
    Jul 11, 2019
    Location:
    Bellingham, WA
    Posts:
    57
    Likes Received:
    54
    Garage Profiles:
    1
    they are pretty fucking heavy, I think each bar is between 25-30 lbs with hardware. But god did it make it easier to weld using thick metal with my shitty harbor freight welder.

    A Miller TIG is on my list here soon, i can only flux core zap so many things.
