Lariat B&O Full System Upgrade

OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1
Hi Fusseli

Okay, based on our development of the Ranger Tremor, the sub required a specific volume of the cavity with a tinny lattitude of plus or minus. What does your sub require vs the volume you created? I hope your volume is within spec.... Otherwise, as we found out on Tremor, we failed quite a few Subs. To little or too much seemed to be the deathnell of the speakers.

Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired

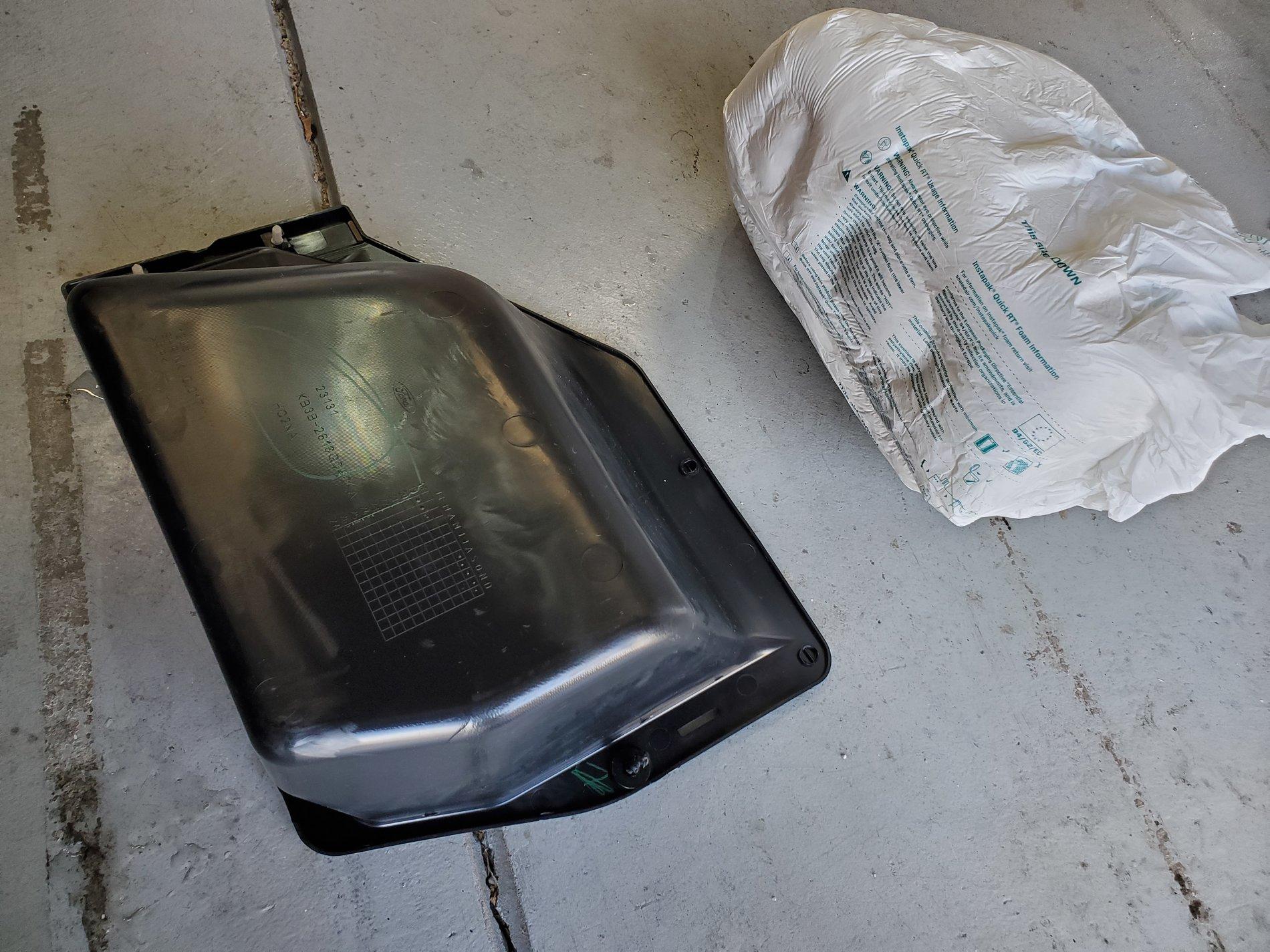

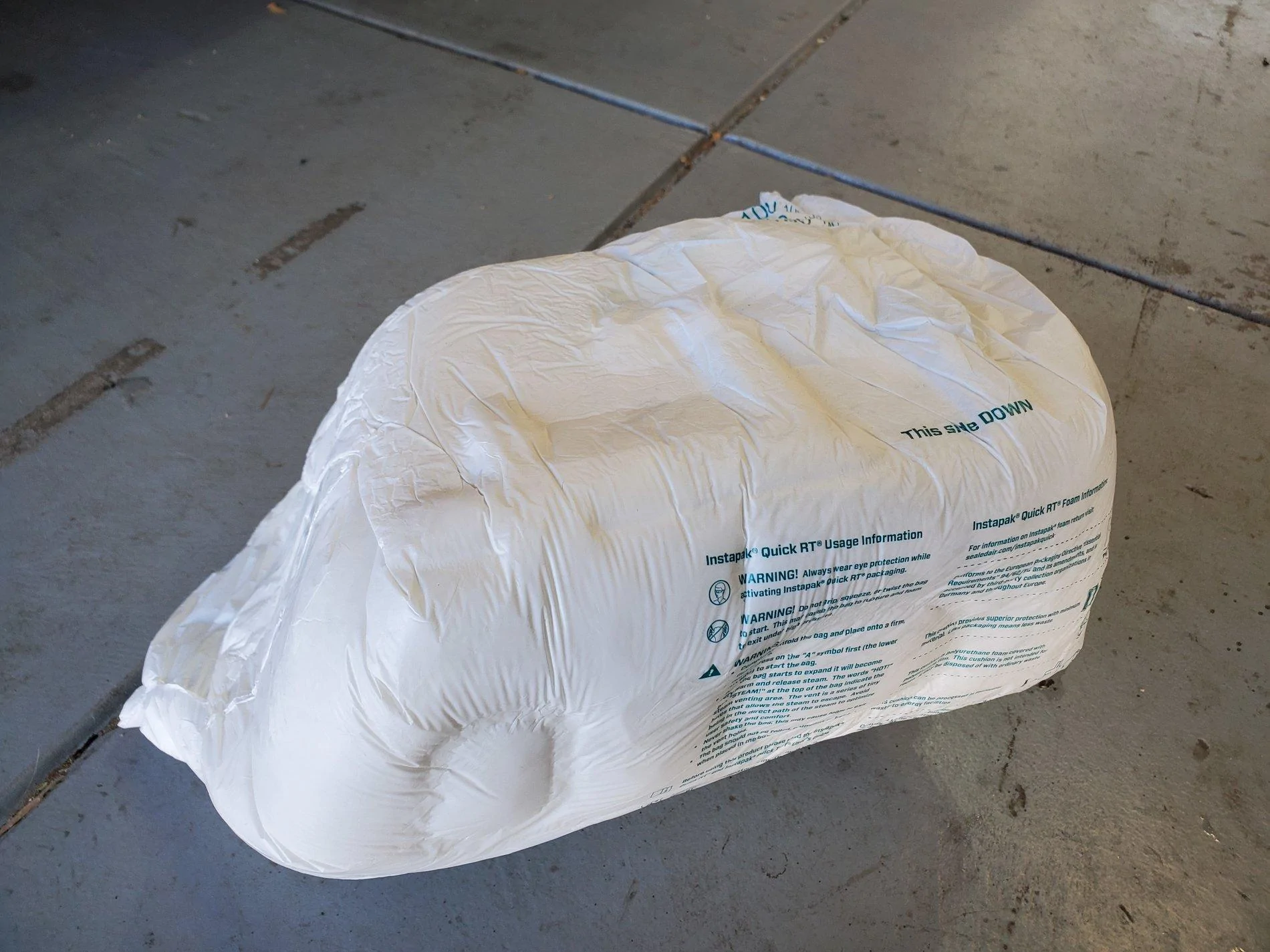

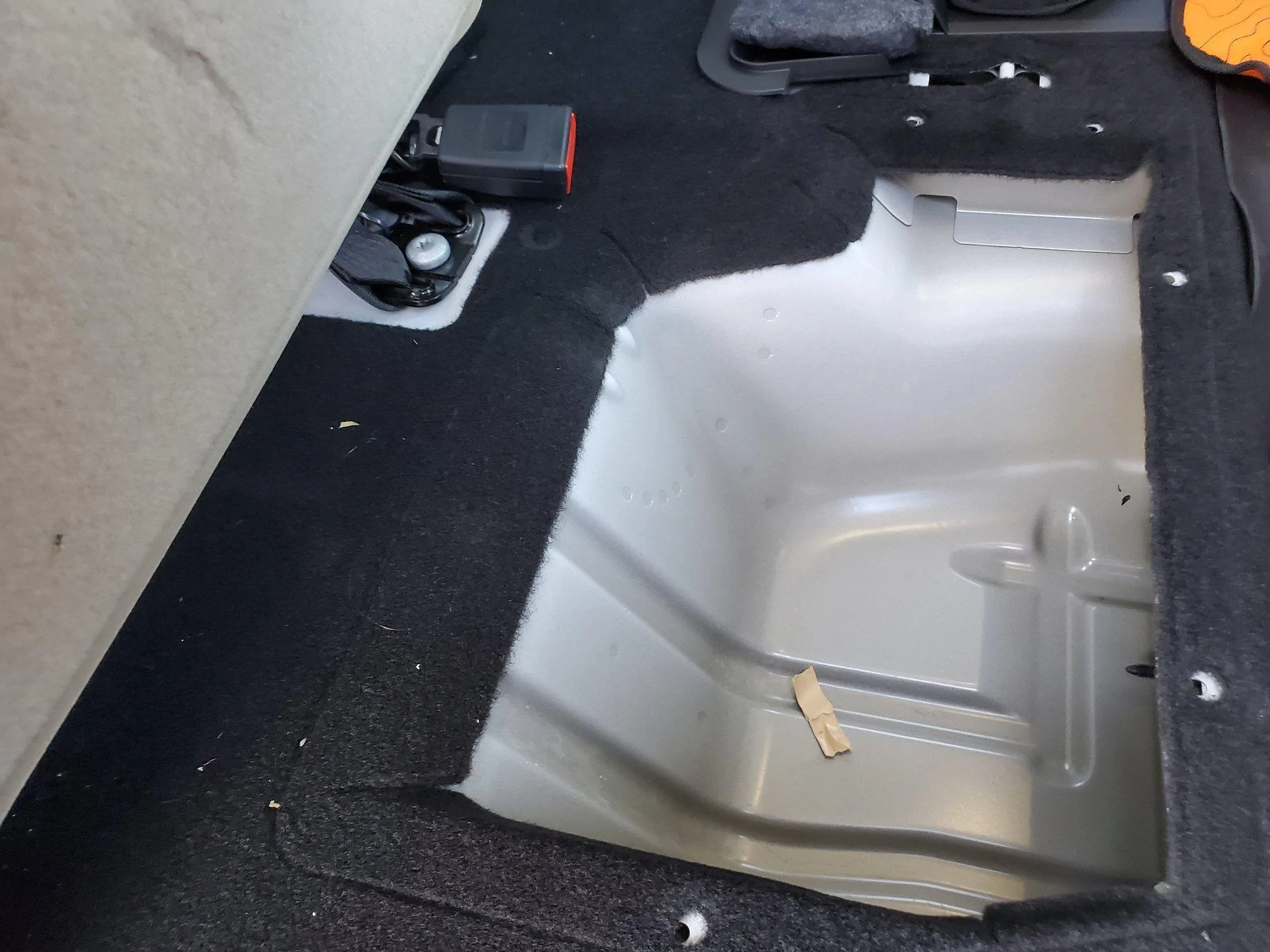

I used your idea with the modeling clay and slaming the seat shut, but instead used they chemically reacting packing foam to measure the cavity of the storage bin, the stuff is called Instapak.

https://www.ebay.com/itm/Sealed-Air-Instapak-Quick-All-Sizes-10-20-30-40-60-80-100-Instapack/133141570169?ssPageName=STRK:MEBIDX:IT&var=432583520445&_trksid=p2057872.m2749.l2649

The space is slightly larger than the storage bin itself but around 0.3-0.4 cuft. I need to go submerge this thing in a 5gal bucket to determine the exact volume. This sub says it's good for 0.15 to 0.5 cuft.

I was going to do this for the space behind the rear seat but haven't yet, since I abandoned the idea of trying to build a subwoofer box to fit the complicated shapes it would need.





Advertisement


OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1

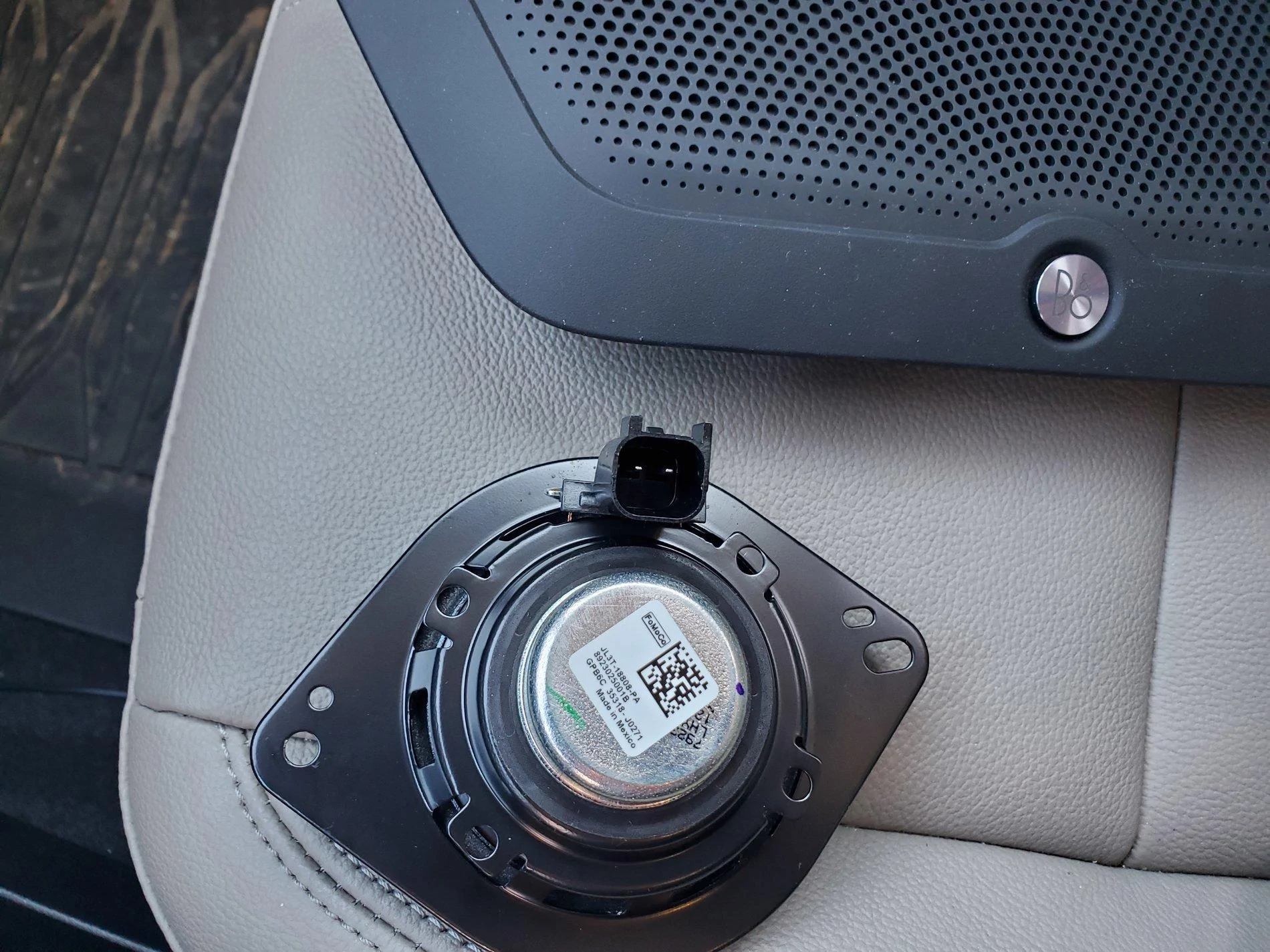

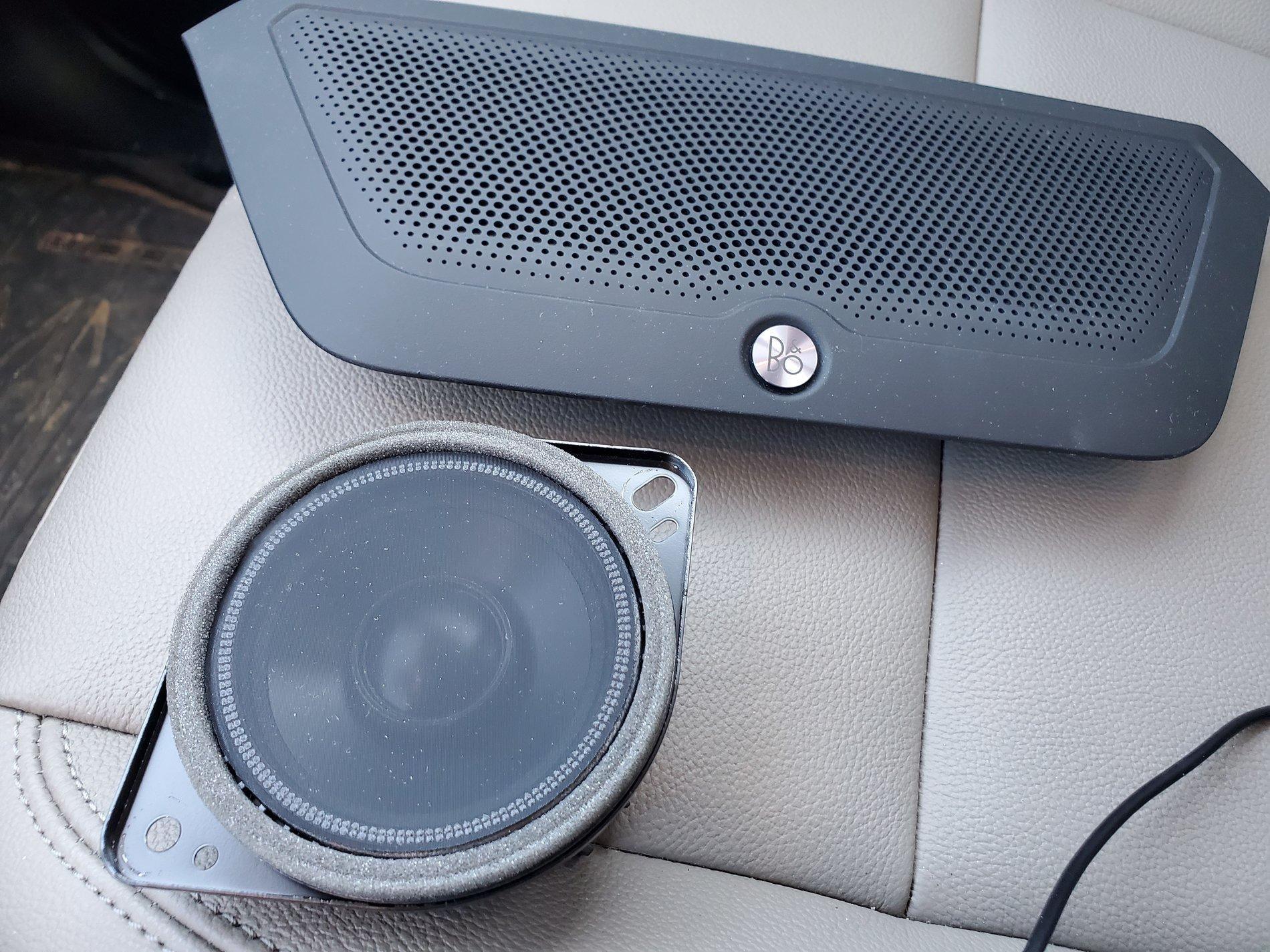

Here was a picture of the center channel speaker for the 2019 Ranger B&O stereo. Speaker measures 3.0" and the bolt circle/spacing is 4.0". I haven't decided if I will add a tiny cheapest amp I can find to restore the center channel.




OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1

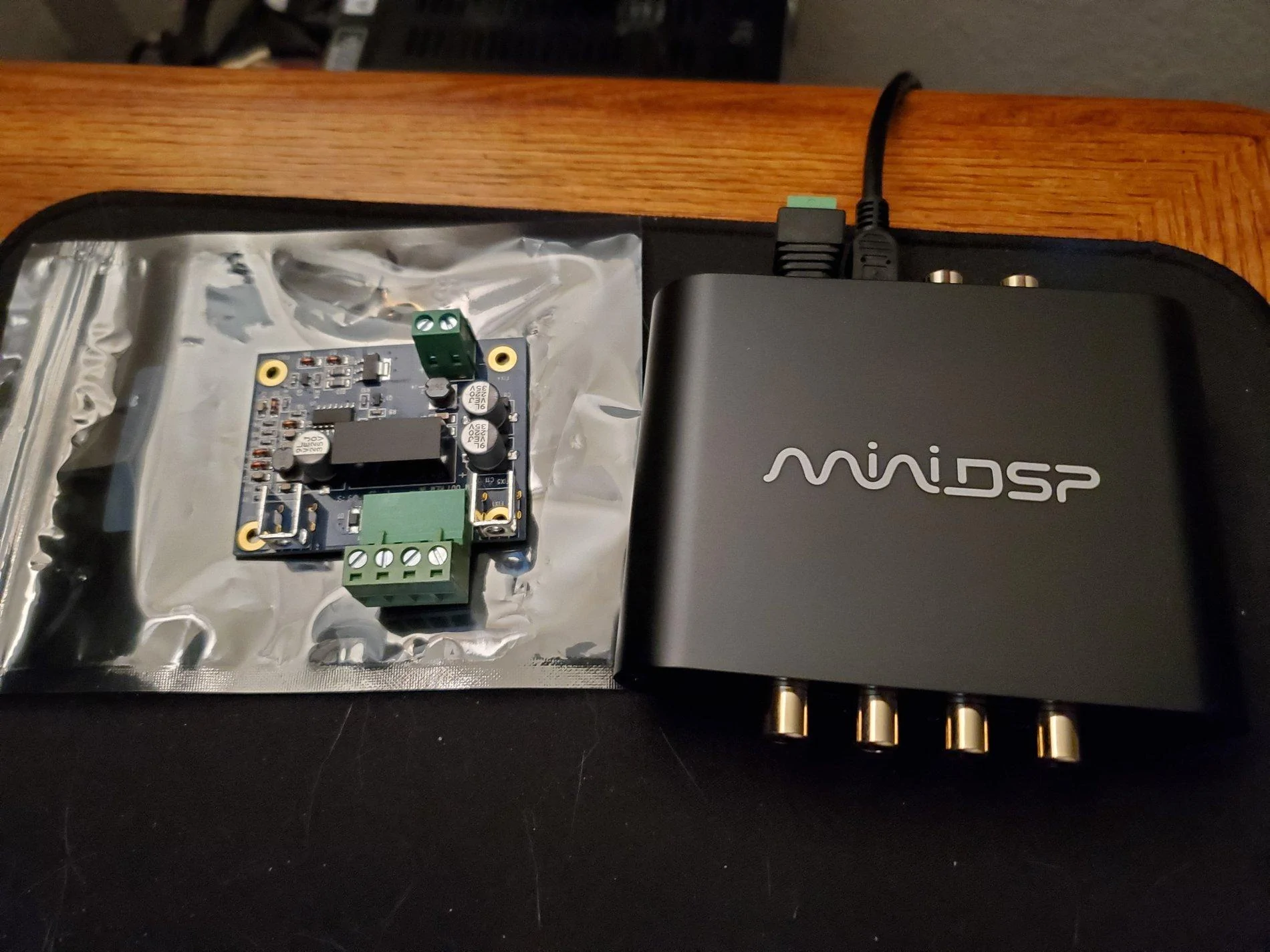

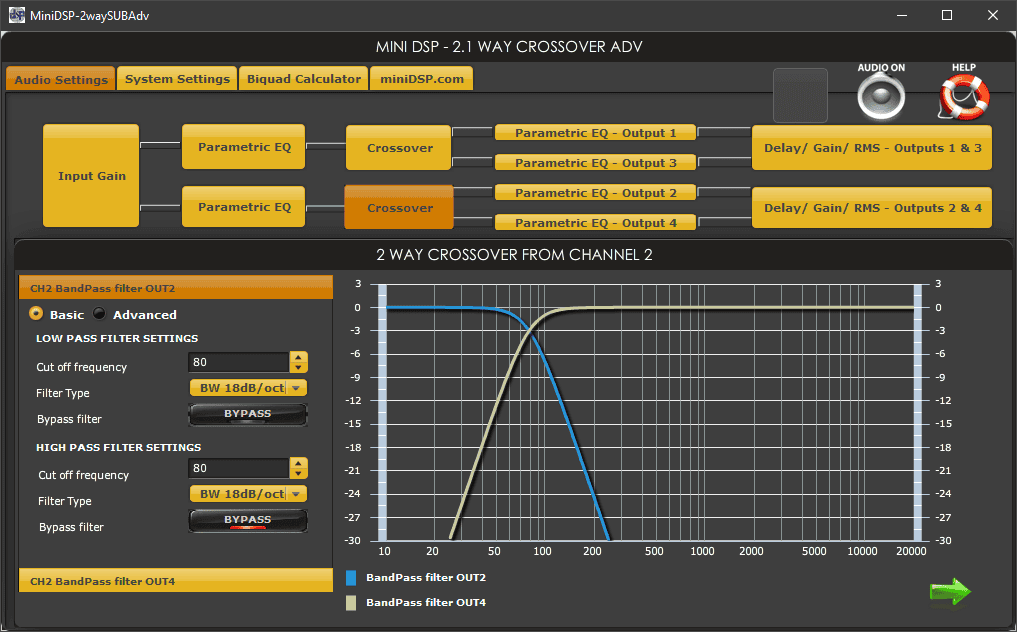

MiniDSP 2x4 DSP showed up. Decided I'm going to use this for a 2.1 crossover and PEQ for the fronts + sub. I wish they provided at least a plastic box for the 12V to 5V converter... WTH? Better yet make it internally swappable..?

Maybe it hadn't caught on in car audio all that much yet, but a minidsp 2x4 blows away about any and all "car audio" marketed gear and has a wayyyyy lower price markup.





theanswer3

Well-Known Member
Joined
Apr 19, 2020
Messages
339
Reaction score
380
Location
Tampa, FL
Vehicle(s)
2020 Ranger XL
Vehicle Showcase
1
Here's the general dimensions of the B&O sub, if it helps anyone determine a shape or a volume. I'm still trying to decide what to build....

what is the size of the sub in the box


Wayne Kubeck

Well-Known Member
First Name
Wayne
Joined
Oct 16, 2019
Messages
74
Reaction score
21
Location
Connecticut
Vehicle(s)
2019 Ranger Lariat
Here was a picture of the center channel speaker for the 2019 Ranger B&O stereo. Speaker measures 3.0" and the bolt circle/spacing is 4.0". I haven't decided if I will add a tiny cheapest amp I can find to restore the center channel.



What did you use to replace the center speaker?

OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1
What did you use to replace the center speaker?
It's disconnected, I would have to add a small amp to use it. Its sound is rerouted by the zen a2b, and the front door speakers are much higher quality, so it's not really necessary anyway

OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1

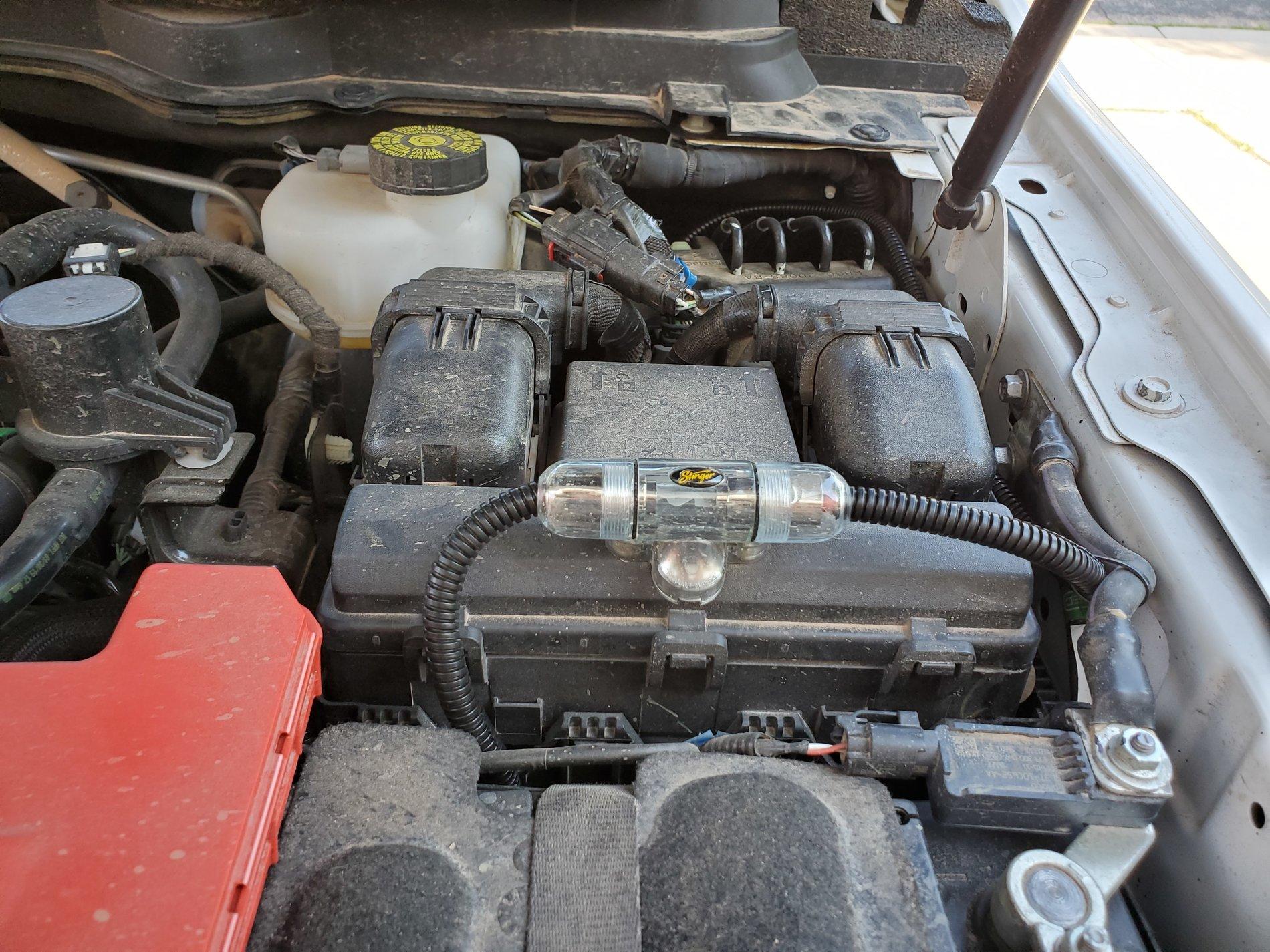

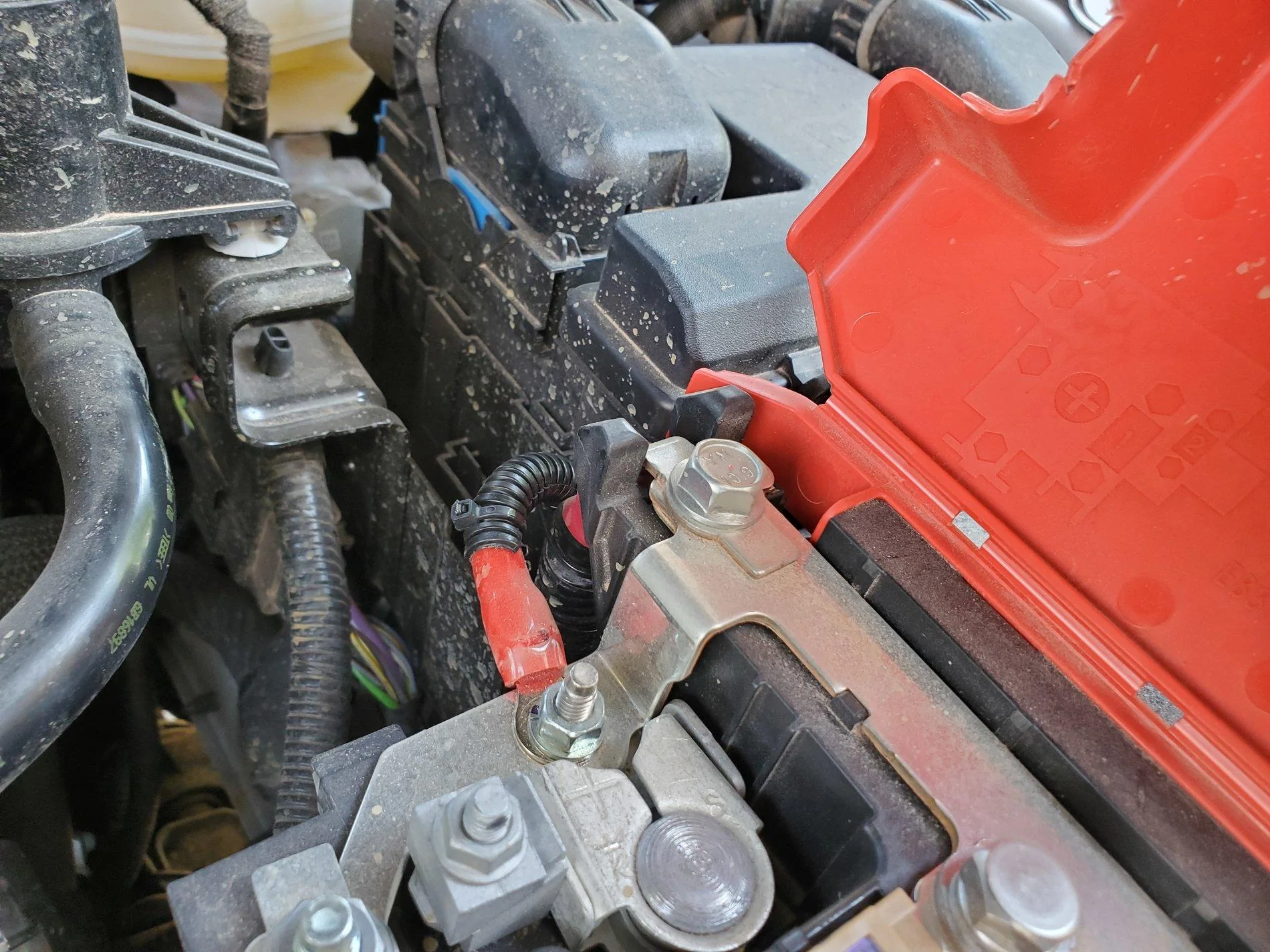

I finished up the wiring finally by adding nylon split loom. Looks much cleaner and provides extra protection. Maybe I'm just grumpier anymore but the flashy looks of car audio gear just annoys me anymore. If I ever do another install I'm going with off the shelf parts and wire by the foot, the kits aren't that great for what they are.




OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1
OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1
I guess I forgot to post an update. I've been running a 10" sub instead of the 8" that I started with, it has been an enjoyable upgrade and gets the most performance out of the setup for sure.

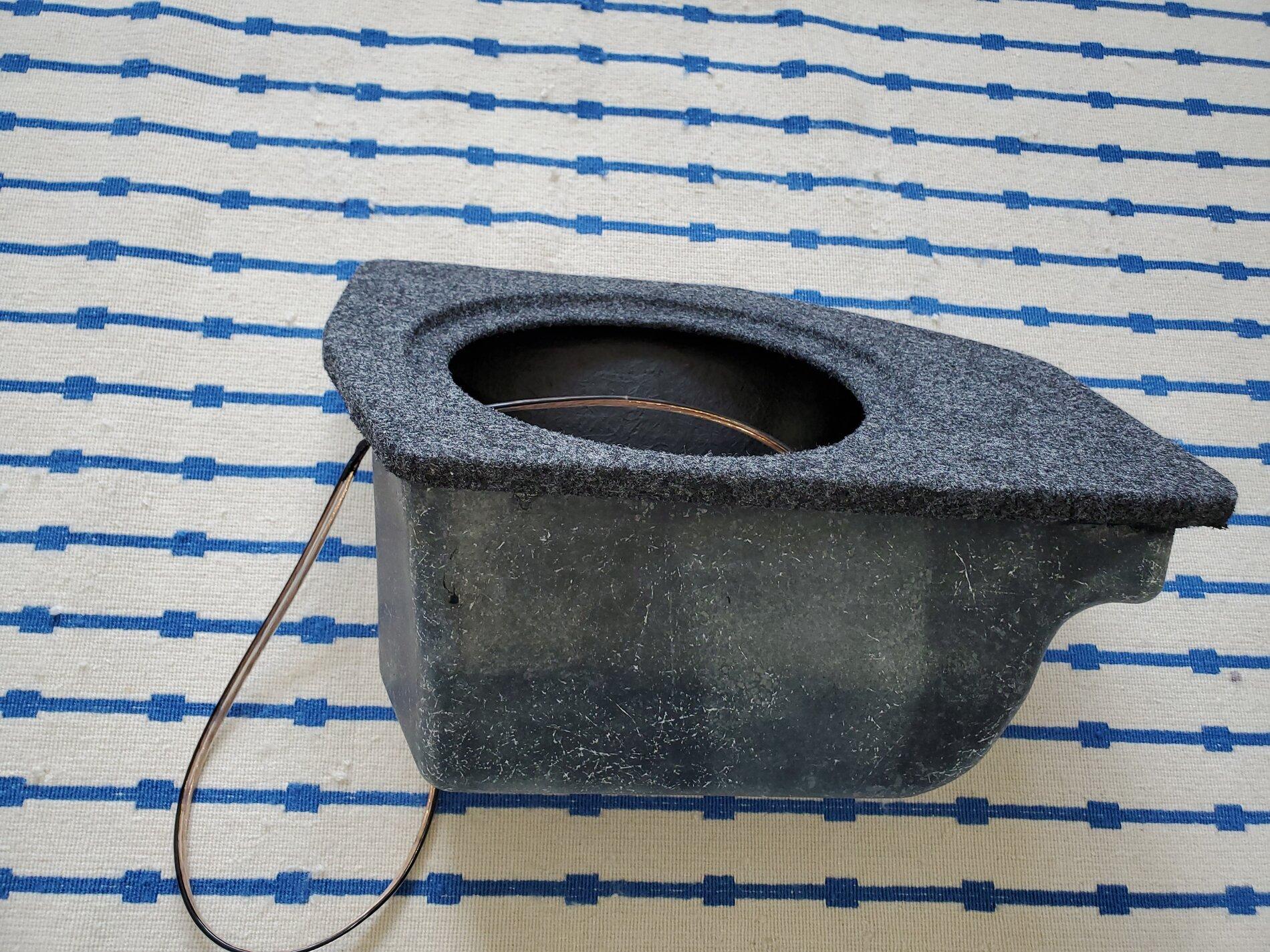

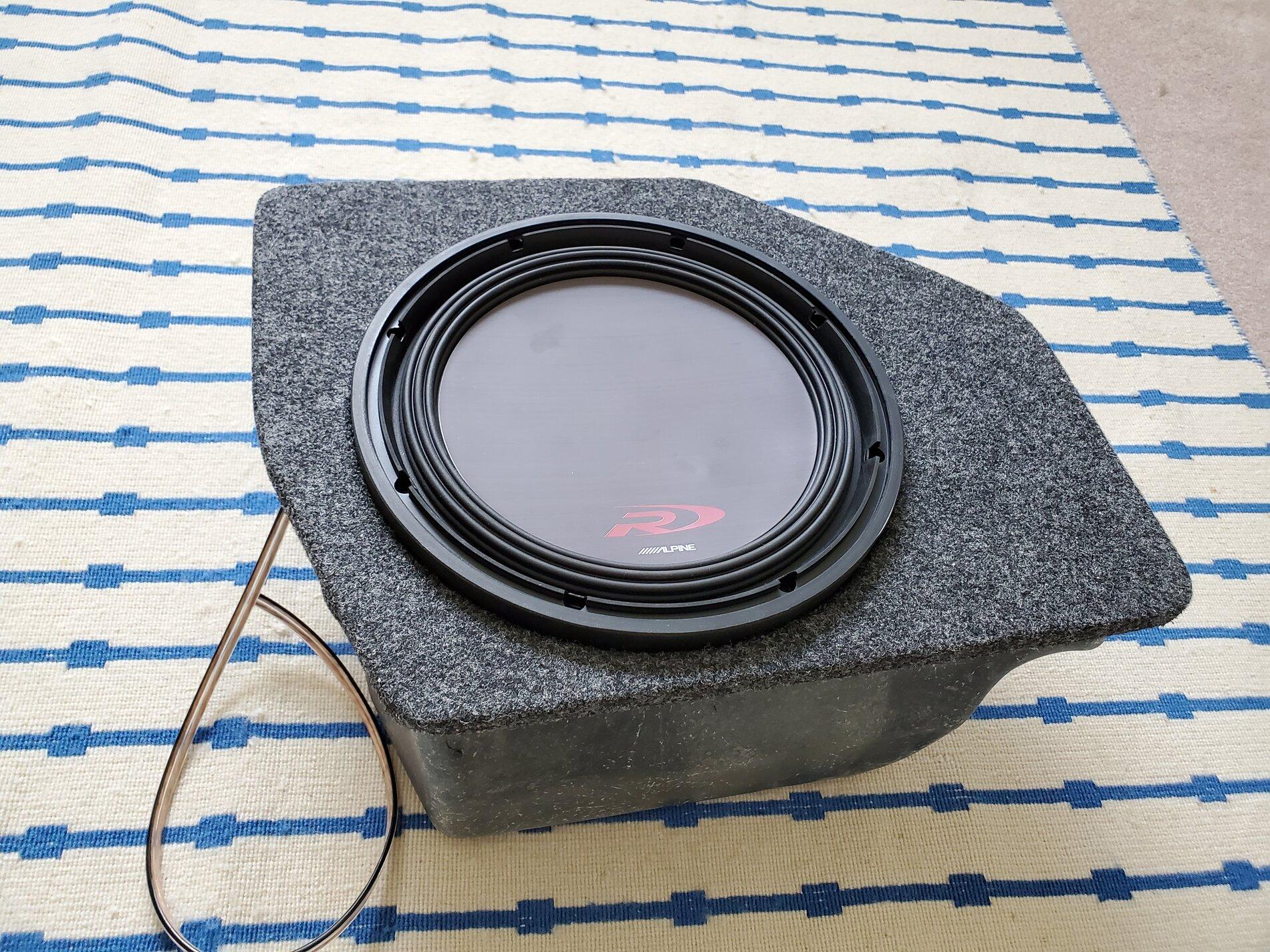

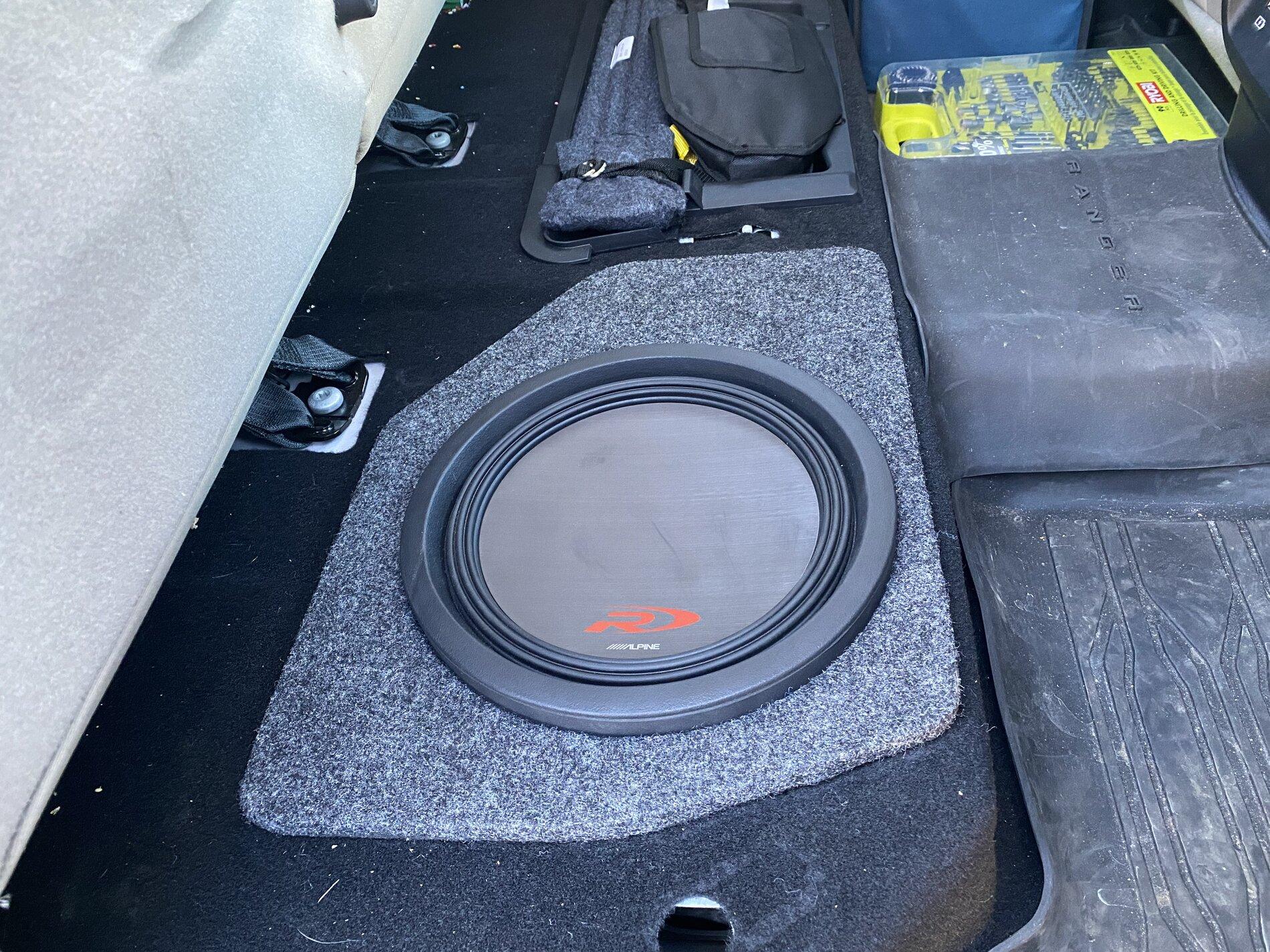

I got the fiberglass aussie sub box from ebay and put an Alpine SWR-T10 in it. Easy and awesome sub with the X801-5 amp.




speedczar

Well-Known Member
First Name
Jose
Joined
Apr 24, 2020
Messages
69
Reaction score
106
Location
So CA
Vehicle(s)
2019 Ford Ranger XLT FX4
Occupation
Trucker
I guess I forgot to post an update. I've been running a 10" sub instead of the 8" that I started with, it has been an enjoyable upgrade and gets the most performance out of the setup for sure.

I got the fiberglass aussie sub box from ebay and put an Alpine SWR-T10 in it. Easy and awesome sub with the X801-5 amp.


I see my list of items to buy and do getting longer! Man don't know if joining this forum was such a good idea.... lol


WarpedAlien

Member
First Name
Stan
Joined
Jul 9, 2021
Messages
12
Reaction score
45
Location
32940
Vehicle(s)
2021 Ford Ranger Lariat Tremor in Velocity Blue
Occupation
Engineer
Well I hate to say it but the JBL system in my 2017 Tacoma had a better sub. I just bought a 2021 Lariat Tremor and that sub has got to go. Is there enough power from the factory signal amplifier to power a different sub and remove this joke from the system? If not, how about just adding a small amp and the new sub using the signals from the factory system? Wonder where they put the jack and anything else behind the seat when they put in a big subwoofer.

OP
OP
fusseli

fusseli

Well-Known Member
Joined
Aug 11, 2019
Messages
353
Reaction score
458
Location
Colorado
Vehicle(s)
'19 Ranger
Occupation
EE
Vehicle Showcase
1
Well I hate to say it but the JBL system in my 2017 Tacoma had a better sub. I just bought a 2021 Lariat Tremor and that sub has got to go. Is there enough power from the factory signal amplifier to power a different sub and remove this joke from the system? If not, how about just adding a small amp and the new sub using the signals from the factory system? Wonder where they put the jack and anything else behind the seat when they put in a big subwoofer.
Minimum to add just a sub would be an amp and a DSP restorer. The factory sub signal is digitally filtered and no good for aftermarket.
