Installing a Bus Bar and need advice please:

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
I wanna install this here:


But it ends up under this vent:


Does anyone think this would be a problem? I don't totally understand the purpose of this vent to begin with.
Thanks...
Sponsored



Synfulz

Well-Known Member
First Name
Richard
Joined
Oct 22, 2021
Threads
111
Messages
1,607
Reaction score
7,827
Location
Philippines
Vehicle(s)
2020 Ranger FX4 Diesel :)
Occupation
Retired Powerplant Operator
Vehicle Showcase
1
I am not 100% sure but I would think that vent lets heat escape from in the front of the radiator area when not moving. Just a guess. But should not be a issue. Just my .02...


P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
142
Messages
7,016
Reaction score
36,214
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
My opinion is it is a poor place to install something that blocks air movement. I suggest you rethink this.

Phil

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
My opinion is it is a poor place to install something that blocks air movement. I suggest you rethink this.

Phil
And this is my general feeling as well, however:
The bus bar in that position doesn't block any air flow coming in from the grill, and that peculiar vent is only on the passenger side. If it was really a thing, wouldn't they put one on both sides? It just seems so odd.



OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
That’s the primary air flow path for your intake shroud to the left of that vent hole. Definitely don’t want to block that
Ah,
Ok. Got it.

Thanks all, I'll keep thinking this through.

Brett.


Synfulz

Well-Known Member
First Name
Richard
Joined
Oct 22, 2021
Threads
111
Messages
1,607
Reaction score
7,827
Location
Philippines
Vehicle(s)
2020 Ranger FX4 Diesel :)
Occupation
Retired Powerplant Operator
Vehicle Showcase
1
My opinion is it is a poor place to install something that blocks air movement. I suggest you rethink this.

Phil
Better assesment Phil. I have to agree, hence my post is.........well you know. :LOL:


P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
142
Messages
7,016
Reaction score
36,214
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
And this is my general feeling as well, however:
The bus bar in that position doesn't block any air flow coming in from the grill, and that peculiar vent is only on the passenger side. If it was really a thing, wouldn't they put one on both sides? It just seems so odd.
Hi Bertt,

During testing it was noted that componets were above their maximum temperatures. The airflow is likely not intuitive to you, but I will tell you that the vent was needed for airflow reasons. We do not put vents in components in symmetry in the horsecollar shroud just to do so.

Best,
Phil

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
Ok,
How do we feel about the same spot on the driver side? No vent, no obstruction, just a slightly tighter spot and a more complicated bracket.

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
Hi Bertt,

During testing it was noted that componets were above their maximum temperatures. The airflow is likely not intuitive to you, but I will tell you that the vent was needed for airflow reasons. We do not put vents in components in symmetry in the horsecollar shroud just to do so.

Best,
Phil
Thanks Phil,
I'm new to the automotive enthusiast world. I didn't catch the bug 'til I got my Ranger, now I have the full on disease!
Still learning. That said, while engines remain a mystery to me, I have many years of electrical behind me. This is the part I don't mind doing.
...I crimp a pretty mean lug if I do say so myself! ?

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic
OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic

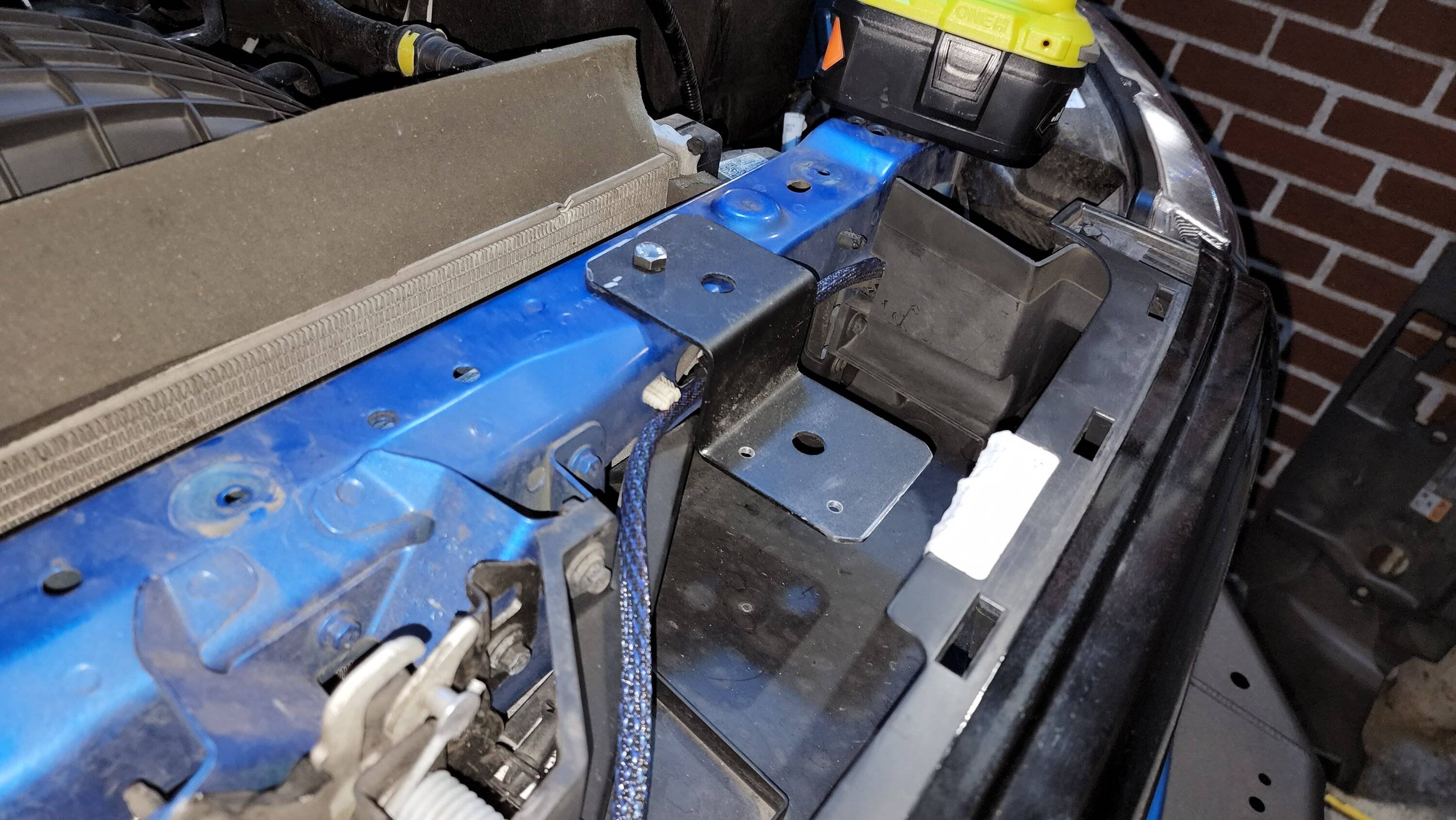

OK, new plan...

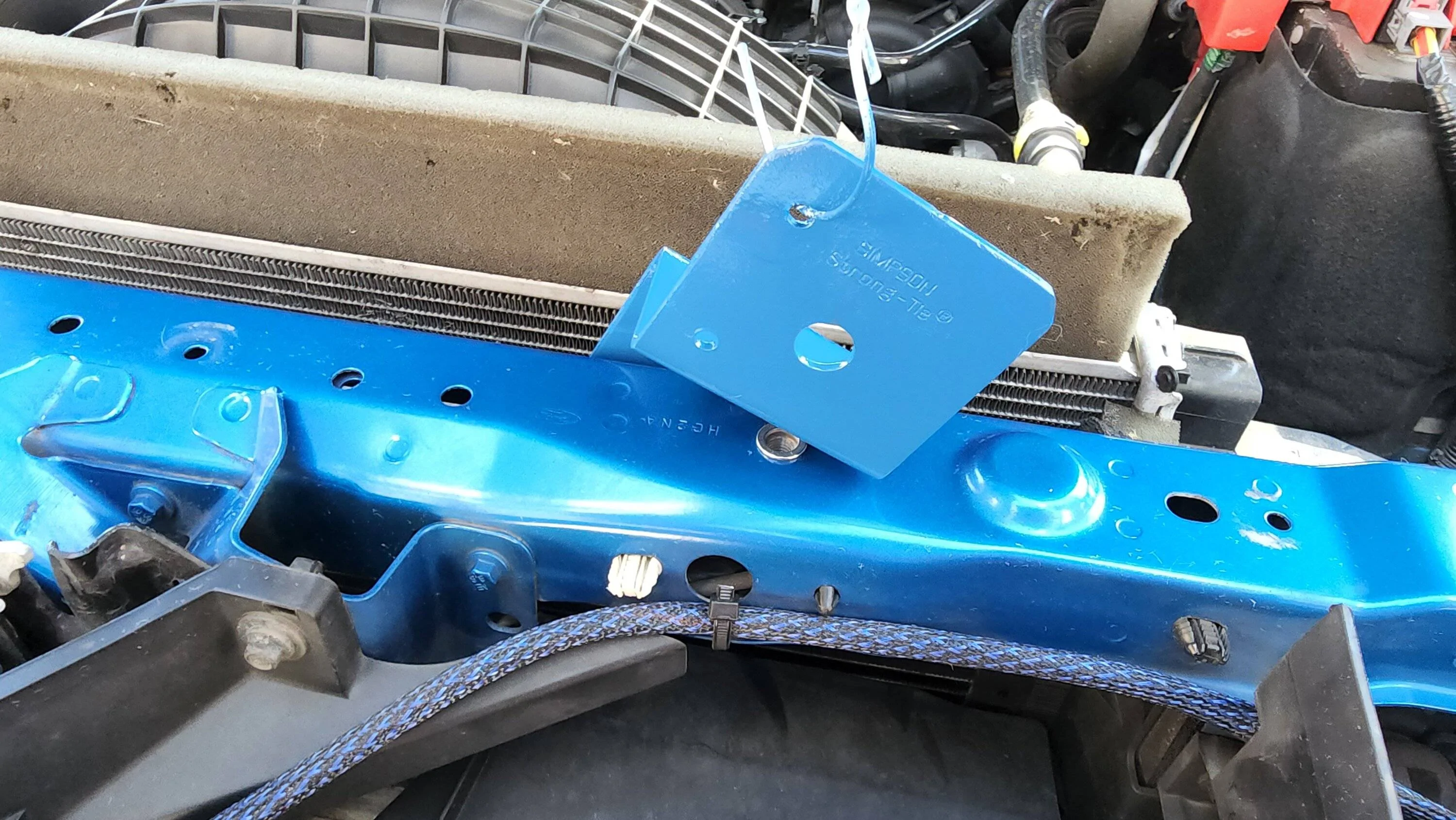

I modded a fence post bracket (Lowes)

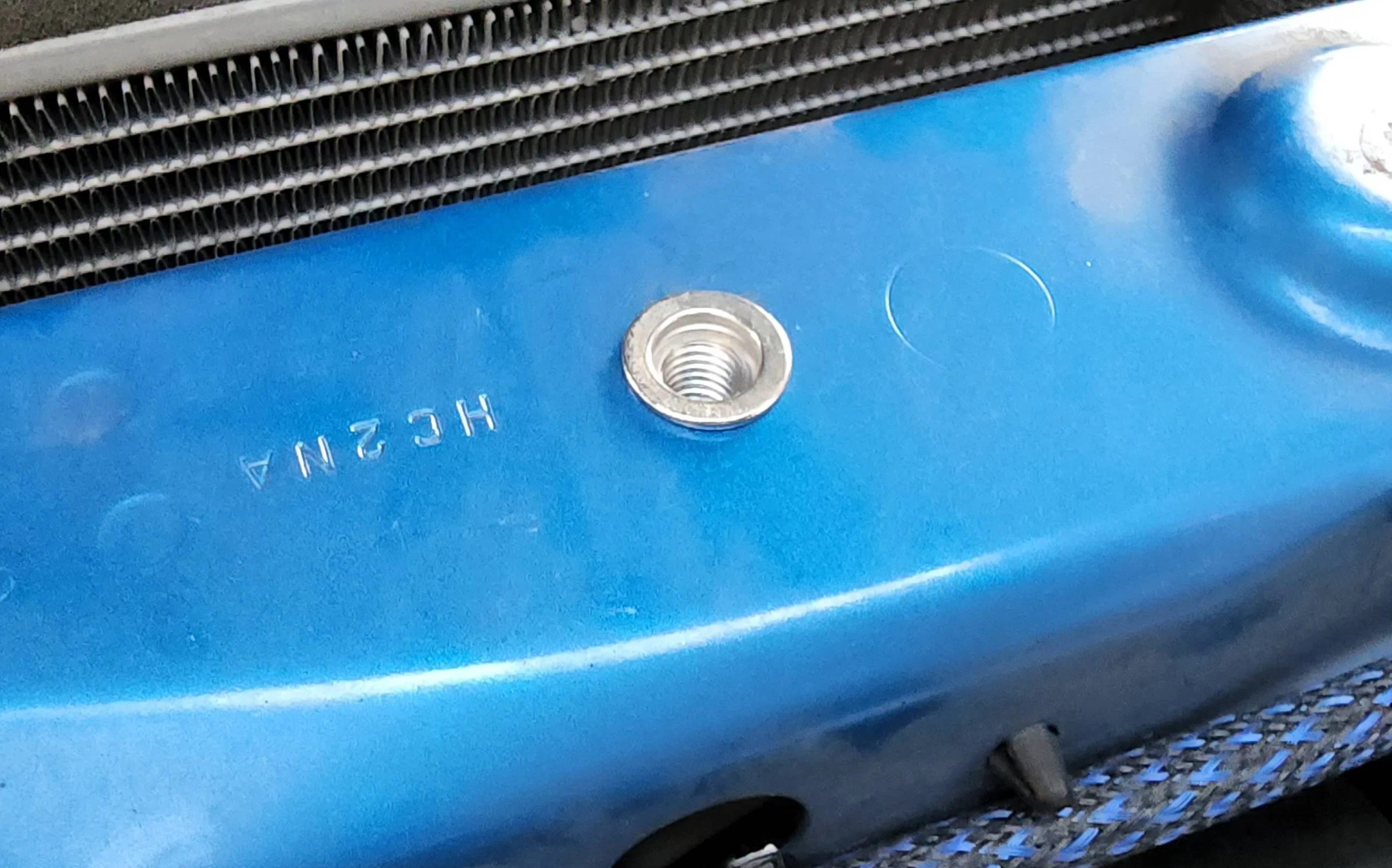

that I'll screw in to a rivnut. No drilling required, there was a factory hole.

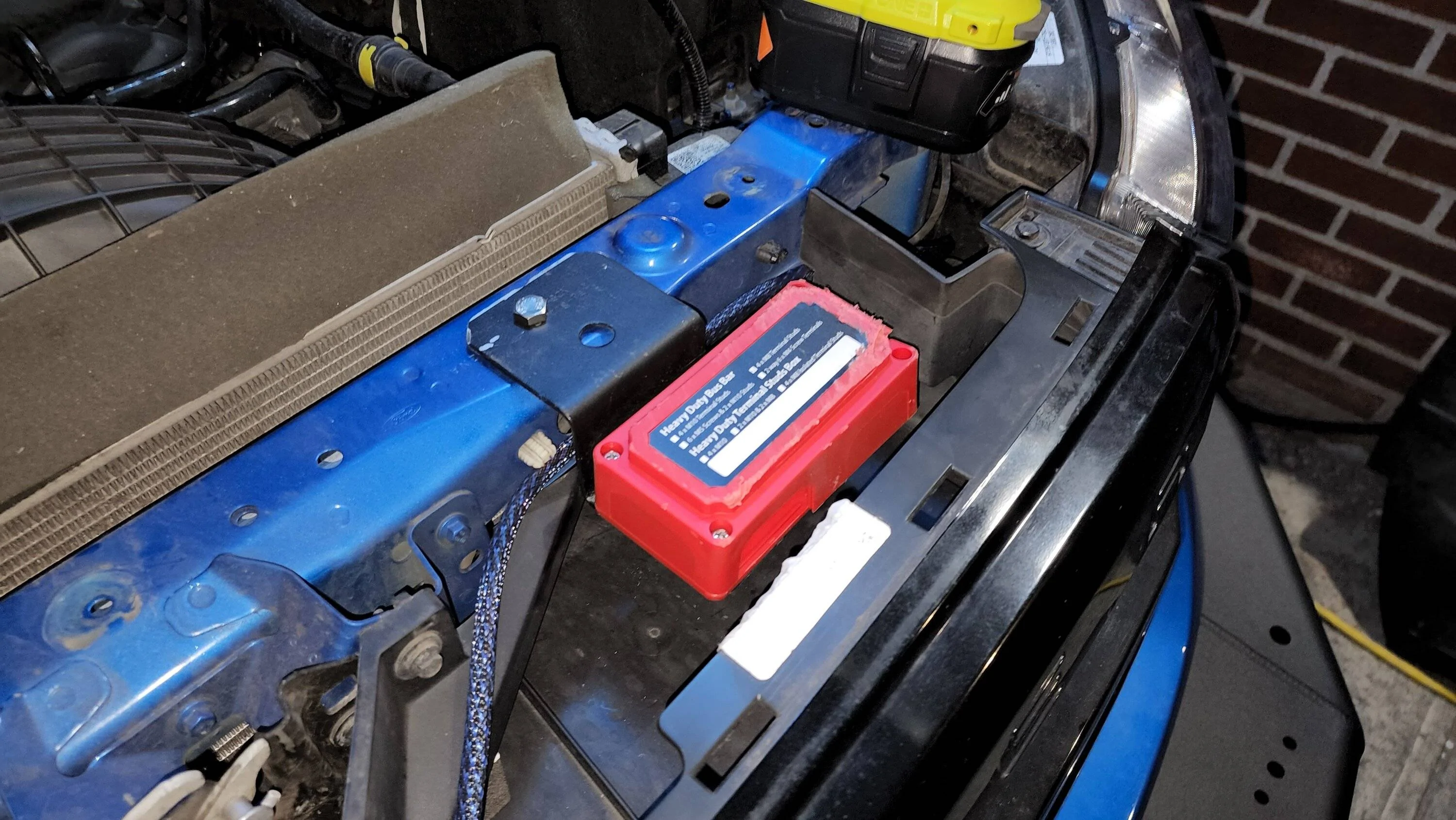

I'll mount the bus bar enclosure to that.



In this location, the box doesn't obstruct air flow



3 last thoughts:
  • Pay no attention to the fact that I ran over the box. A new one is coming. oops...
  • I have nicer, lower cap screws coming to replace the klunky hex bolt.
  • I have a nice blue rustoleum that i'll spray the bracket with

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic

Not a bad match for off the shelf Rustoleum.
I suck at painting though.

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic

Bus bar done.

Now for ground:

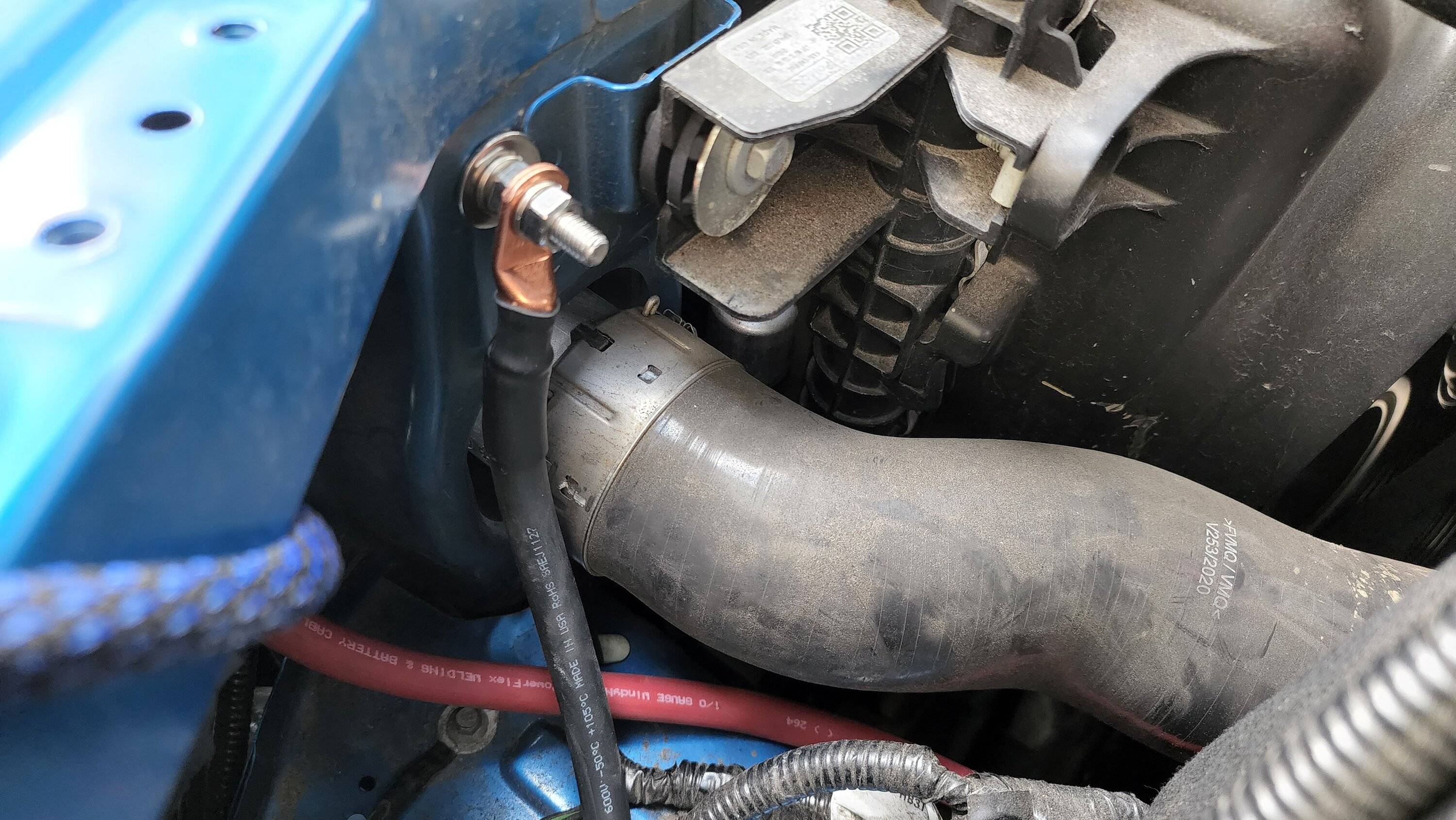

I'm running a 1/0 cable from here...


To here...

I popped that M8x30 bolt through a factory hole. I'll use it as a junction point to connect the winch, a relay box, and a cable to the bed.
I've read so many articles and threads about grounding a winch. The most compelling comment I've seen, was something on our site about not bypassing the truck's BMS. I'm gonna focus on that and make the best connections possible.

Does anyone have power run to the bed? If so, what gauge cable did you use?
I have an ARB Twin Compressor back there now awaiting hook-up, and maybe a fridge in the future.

OP
OP
Brett Fields

Brett Fields

Well-Known Member
First Name
Brett
Joined
Jul 20, 2021
Threads
6
Messages
291
Reaction score
722
Location
Brooklyn
Vehicle(s)
2021 Lariat FX4, Blackout, Tow
Occupation
Paramedic

I had another couple of minutes so completed the last crimp.
