I figured I'd post this up here since I haven't actually seen anyone do this yet. Inspired by the SEMA rendering, I decided I wanted to put LEDs in the small slits in the bumper. I'm still not 100% sure why those are there anyways, my guess would be for some air flow during snow ingestion. In any case, I was prepared to give up that air flow to fill the space, but as it turns out, I still have plenty of air flow remaining.

I started this journey hoping I could slide something in from the front and have it be an easy-peasy add on, so I got the smallest LED bar I could find, measuring in at 1'' tall and 7'' long. Well, it turns out that the clearance is only 7/8'', so I had to go in from the back, and the hole through the insert is about 3/4''... So I had to tear out the insert. That was far from easy, though I don't think I did it the most straight forward way possible. There are 2 bolts and a locking tab that hold it in place. Removing the lower part of the bumper (4 10mm bolts, 5 push pins, and 8 hard-to-disengage clips) easily reveals the locking tab, and provides "access" to the inboard bolt. On my FX4, I had to remove the skid plate (4 15mm bolts) to gain access to the outboard bolt. Take the outboard bolt (10mm) out first. I HIGHLY recommend using an open box wrench for the inboard bolt. For some reason, my 10mm wrenches all seemed to wander off, so I was left using some flat reversible ratcheting gear wrench, you know the kind that if you put it on one way it ratchets tight, and the other way, it ratchets loose... And I managed to get my wrench stuck on the bolt - there's not quite enough clearance between the bumper and the bolt to get the bolt completely off, thus the recommendation for the open wrench (at least then you can maximize the space for the bolt). I spent over an hour messing with the J clip and prying the bolt before I finally got it off. The other side only took like 5 minutes to pry it and get it angled correctly since it didn't have a wrench in the way.

Once the insert was out, there's a ton more space in the cut out. Which is good because I was not satisfied with the performance the 7'' LED provided. It just didn't seem like it provided a ton of additional lighting, and while it looked cool on the truck, I actually wanted a functional light - I do quite a bit of late night driving in sparsely populated areas (unless we're counting wild life), and want to make use of better lighting.

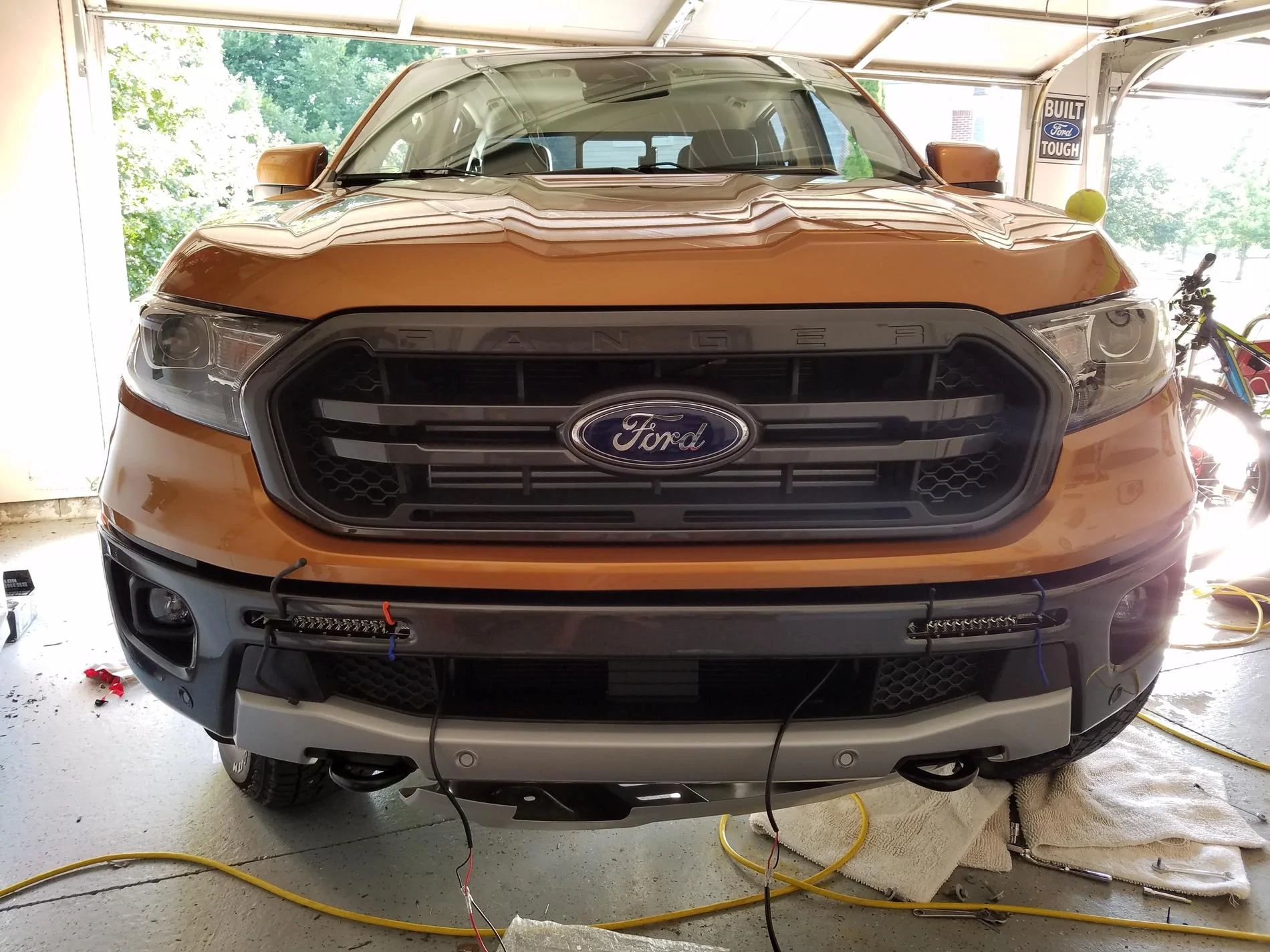

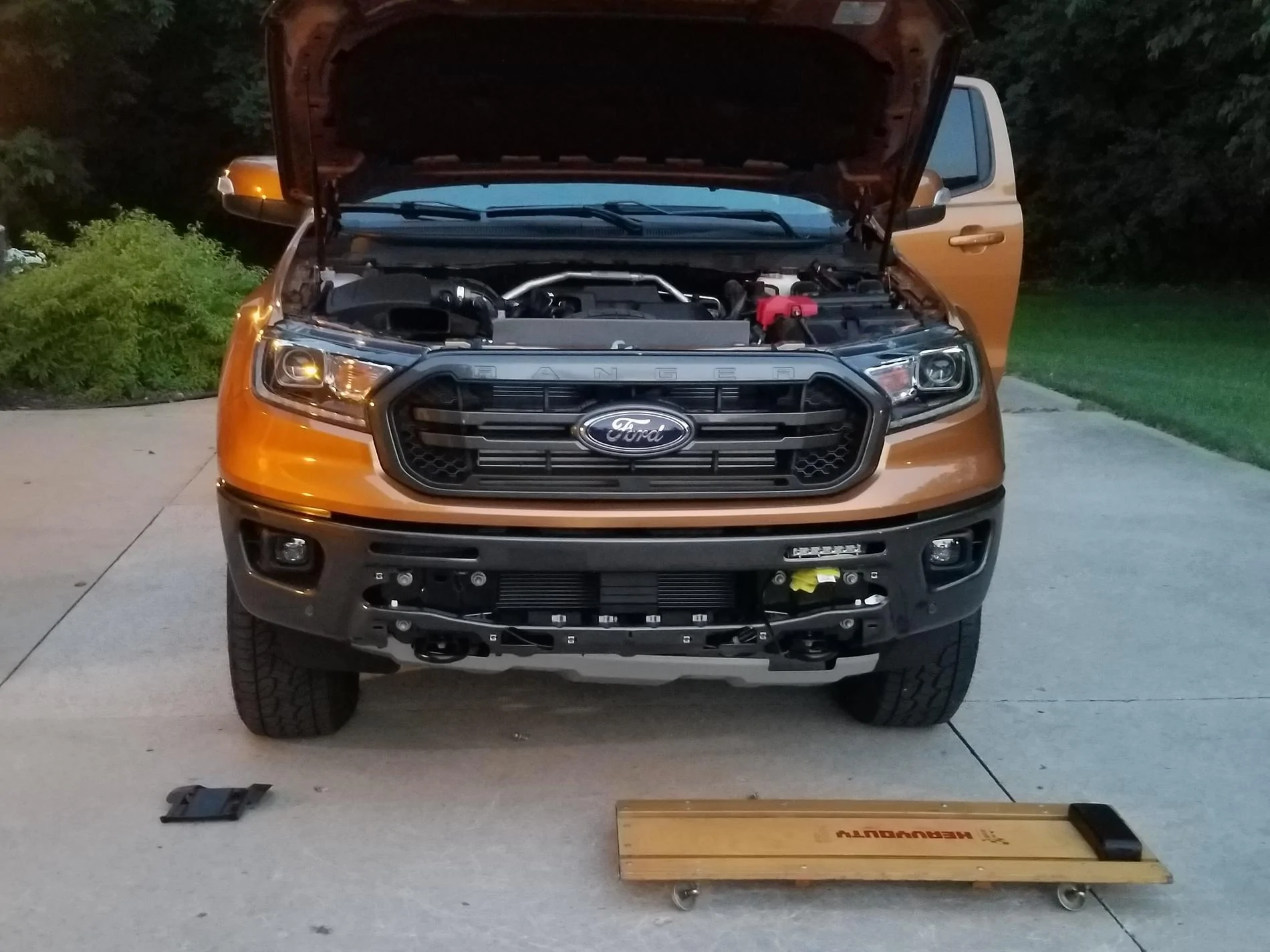

7'' LED placed in the bumper.

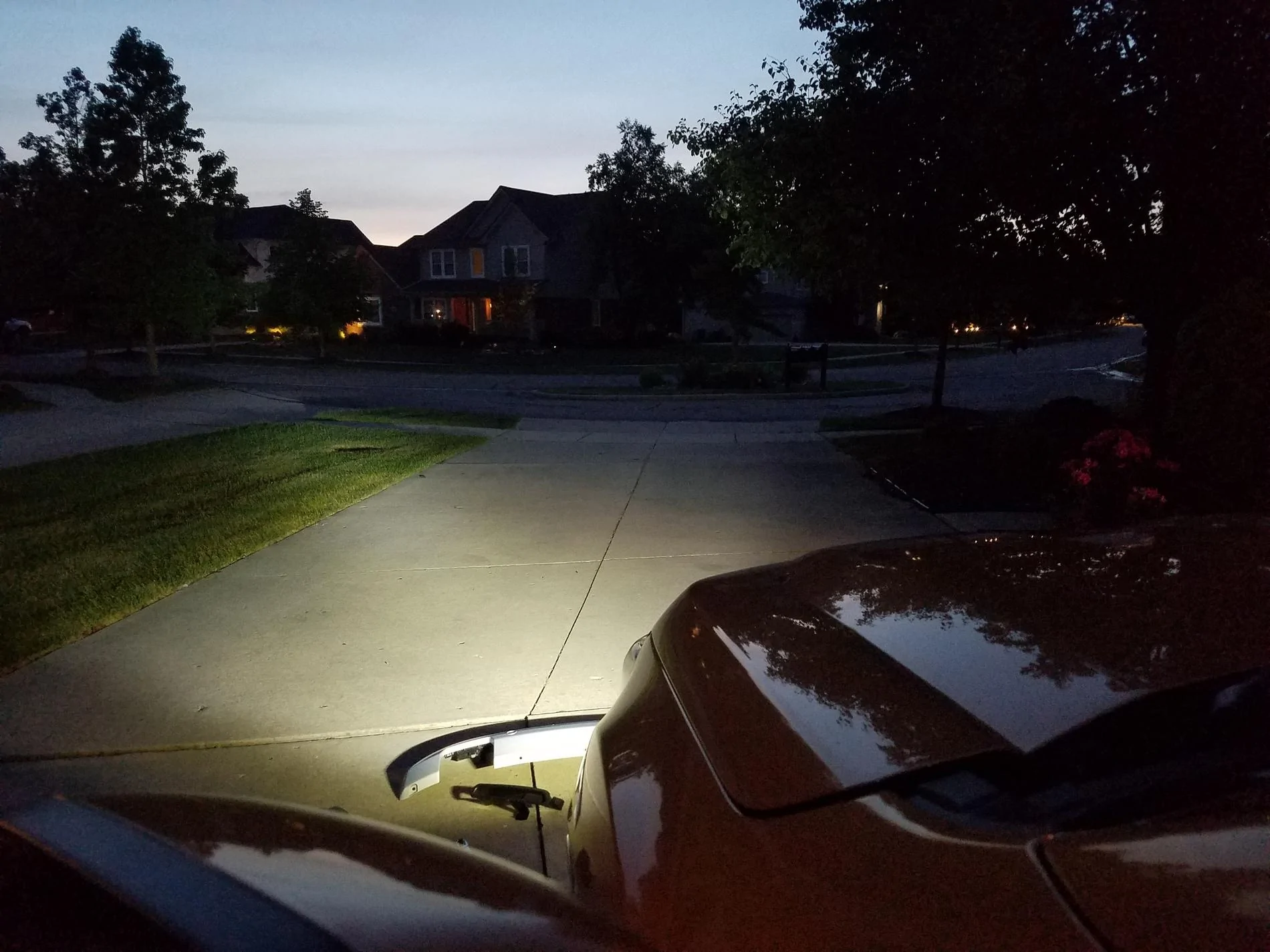

Trial of 7'' LED with the headlights on.

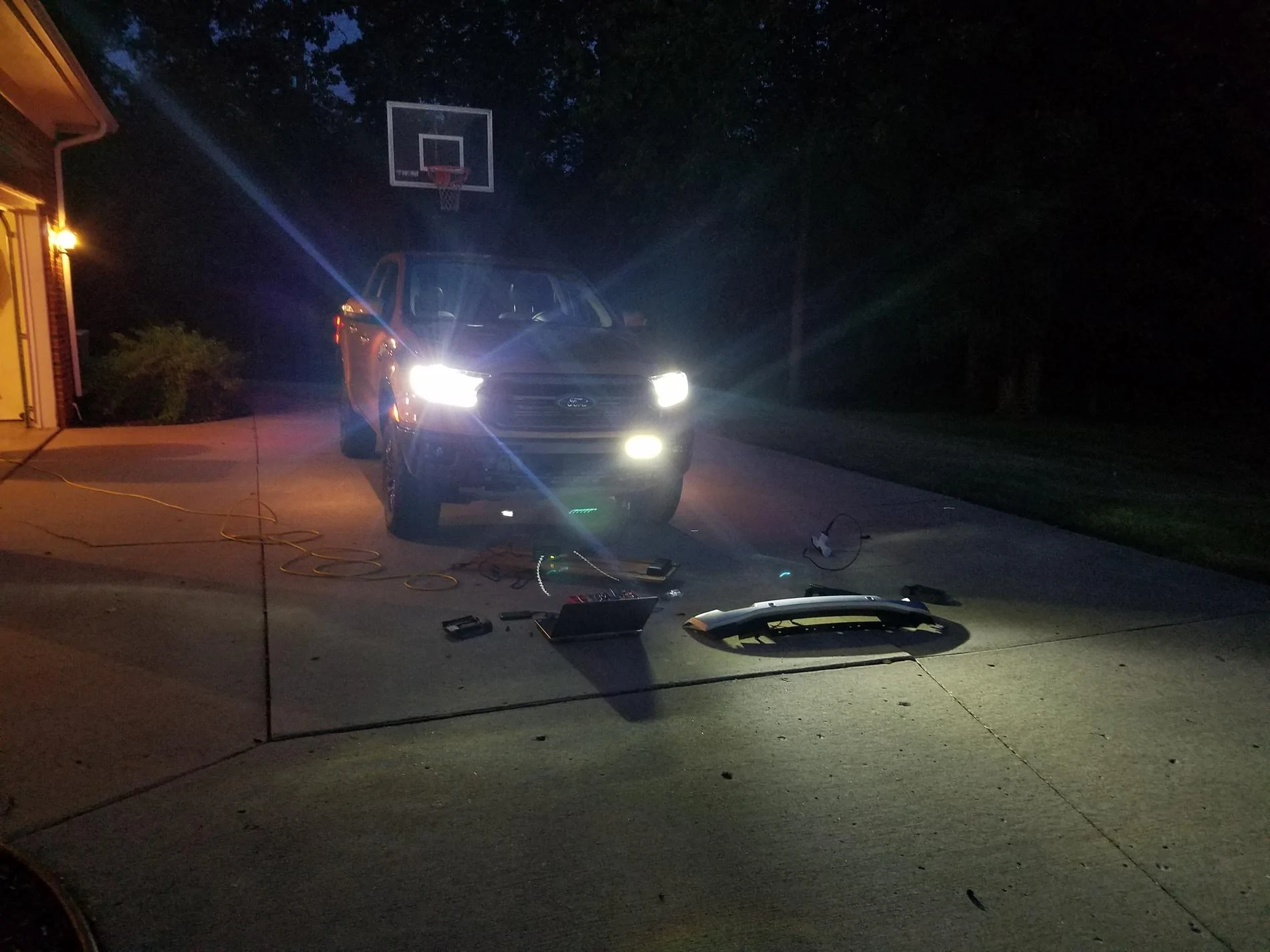

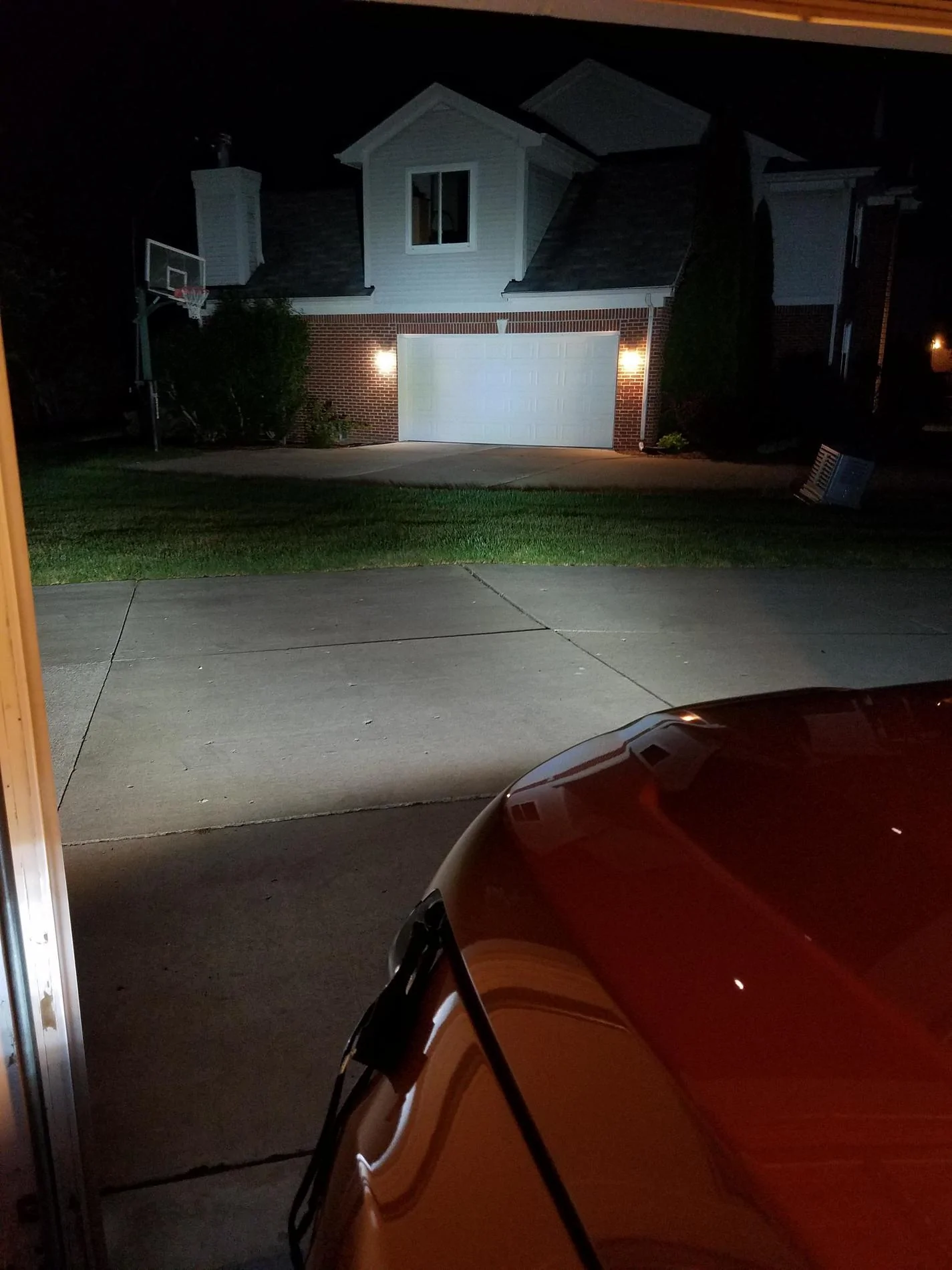

Trial with 7'' LED (just the left one). Just the LED on.


But with the knowledge that I had more space to work with, I turned my attention back to amazon and ended up picking up a pair of these: https://www.amazon.com/gp/product/B07FXCHDFG/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
They are 10'', which is a bit longer than the opening (which is around 9''), and are 1.2'' tall, but that means that the light portion is about 1''. Overall, it is just about perfect for a recessed mounting.

With the skid plate off still, and the inserts removed, I couldn't find anything to use to attach the LED brackets to, so I decided to just try out JB Weld. So after test fitting it, I found the best orientation was to remove the bolt and JB weld the bracket directly to the backside of the bumper. I swapped the orientation of the outboard bracket, such that it was longer but didn't protrude forward as much, sanded the surfaces to rough up for a better JB bond, and then gently placed them and held the first one in place for about twenty minutes of so... before my hand started to numb and there was no indication of the JB hardening. Soo... I scrounged around my garage for something to hold the lights in place, and came across the flexible reusable twist tie type things my mother in law bought me for Christmas a couple years ago (which work great on electrical cords btw). I managed to wrap two around either edge, behind the light and then out through the slit in the bumper to hold the light in position with pressure. Turns out these were the perfect tool for the job, as it also allowed me to adjust both lights and stand back and make sure they're symmetrical. And it held them in place not only while it dried, but overnight while it hardened.

The result:

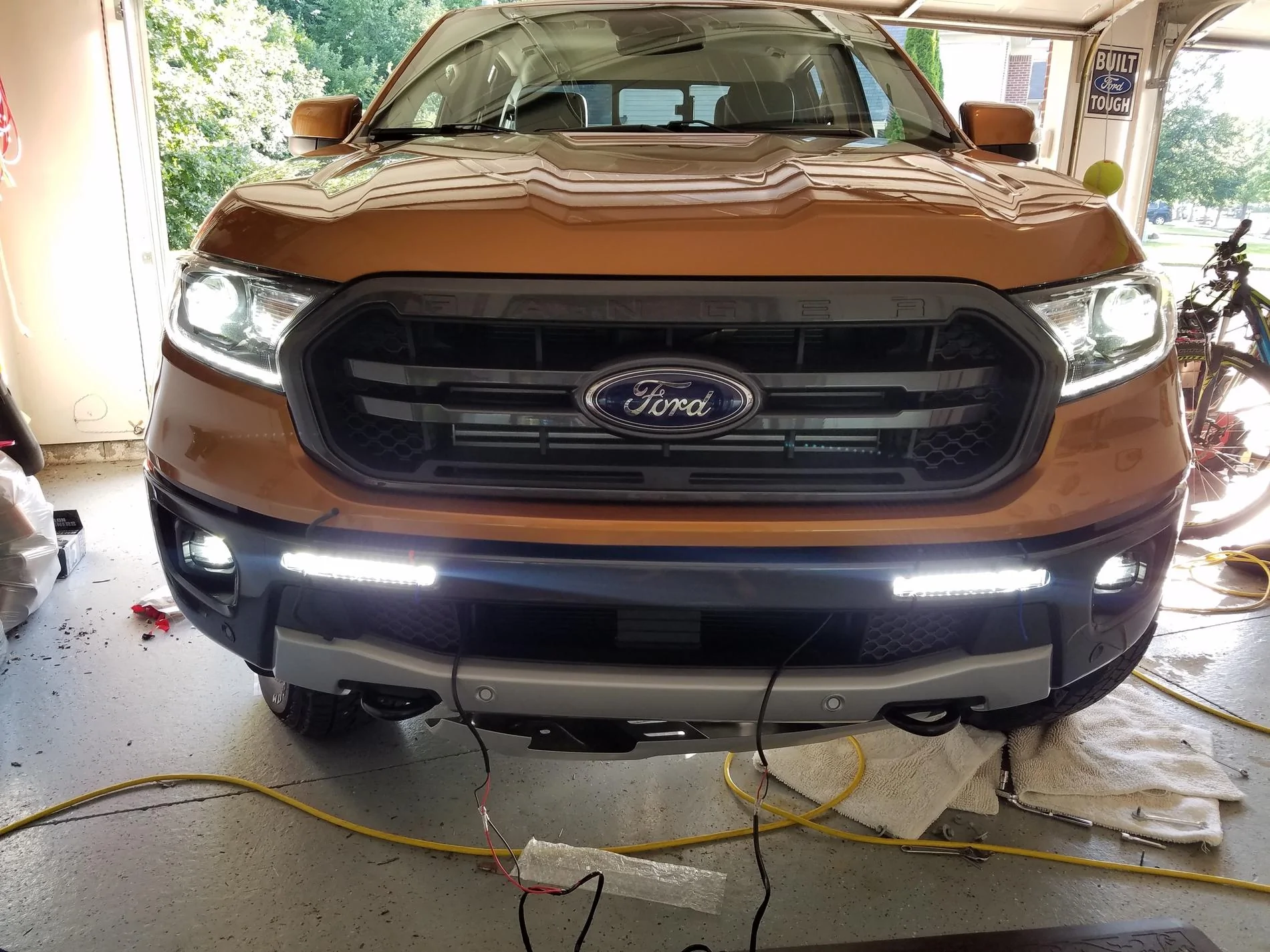

Finished product with 10'' LED bar - the camera struggles with the light, it's not actually that bright/tall looking IRL.


Finished product with 10'' LED - daytime picture, which is much more representative of how it looks at night too, the camera can just handle the light a bit better during the day.

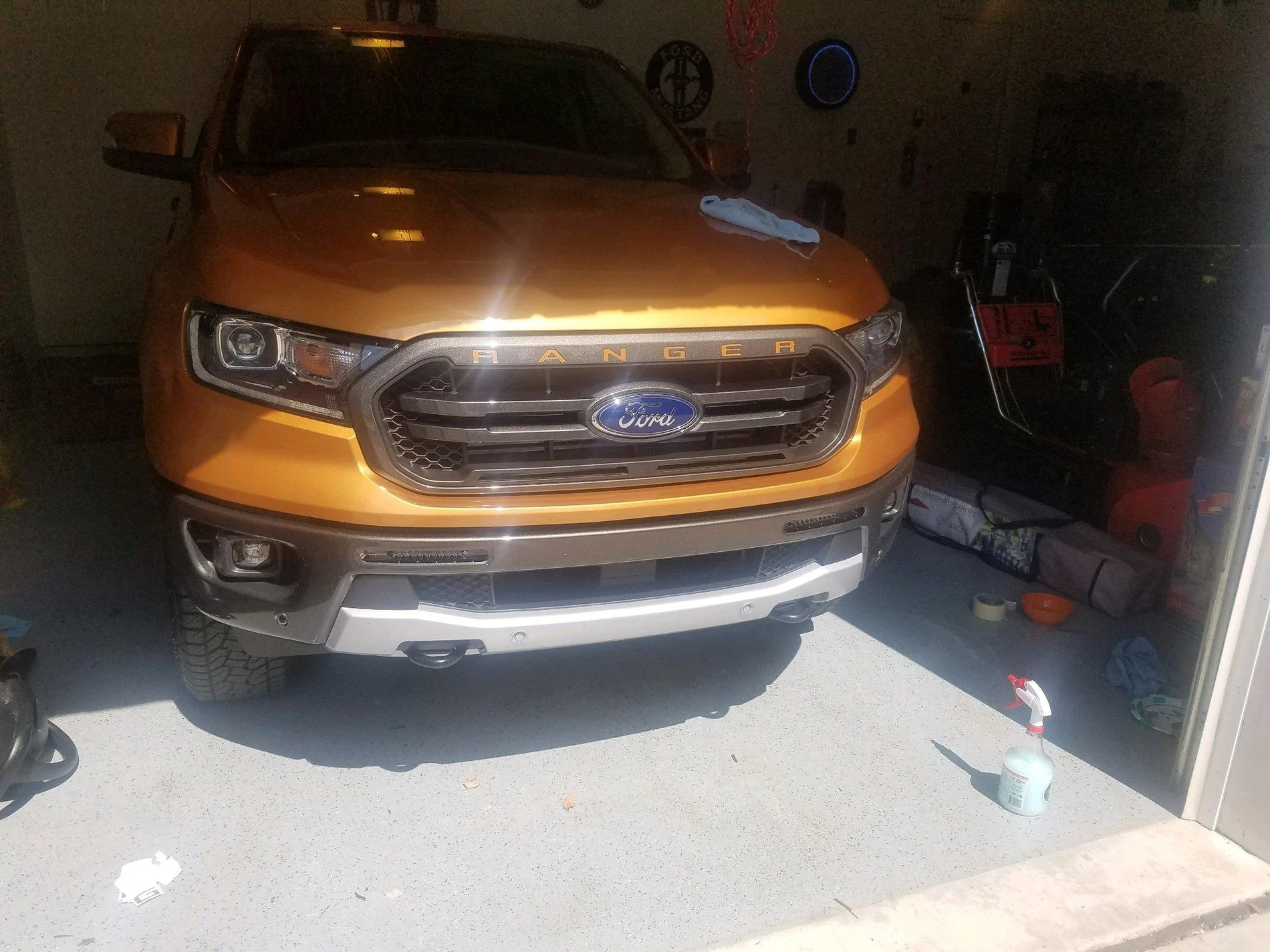

Finished product with 10'' LED turned off. Well, mostly finished, the twist ties are still holding it in place.

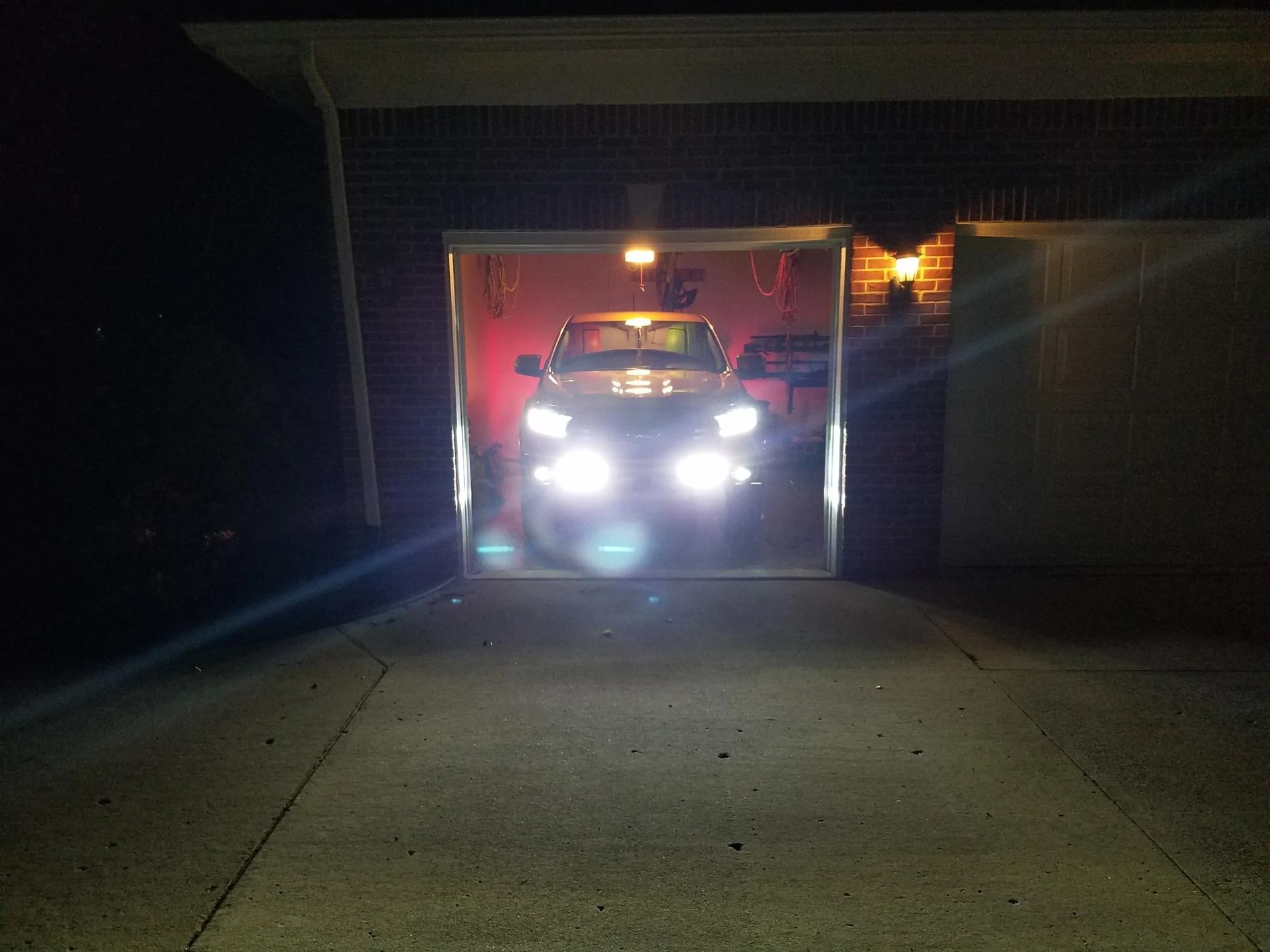

Finished product with 10'' LED - Just the LED turned on.
Sponsored



Snorebaby

Well-Known Member
First Name
Doug
Joined
Mar 25, 2019
Threads
9
Messages
526
Reaction score
1,058
Location
Augusta, GA
Vehicle(s)
2019 Ranger XLT FX4 SuperCrew, 1996 Ranger XLT Supercab, 2013 XLT F150 (Wife's), 1990 Honda Goldwing, 2015 Honda Goldwing
Vehicle Showcase
1
Excellent writeup! :clap: I have been thinking about doing the same thing. Time has not been on my side lately.


ebFX4

Well-Known Member
First Name
Eber
Joined
Jan 30, 2019
Threads
3
Messages
46
Reaction score
34
Location
Bay Area, CA
Vehicle(s)
Ford Ranger FX4 - 5G
Looks awesome @khyros - great writeup.

I was considering filling that slot with a light as well. Appreciate you doing the homework for us on what fits and how. Kudos on the install.


OffroadAlliance

Diamond Sponsor
Joined
May 19, 2019
Threads
52
Messages
244
Reaction score
275
Location
Brockton, MA & Houston, TX
Website
www.offroadalliance.com
Vehicle(s)
2019 Ranger, 2021 Raptor, 2022 F250, 2023 Bronco

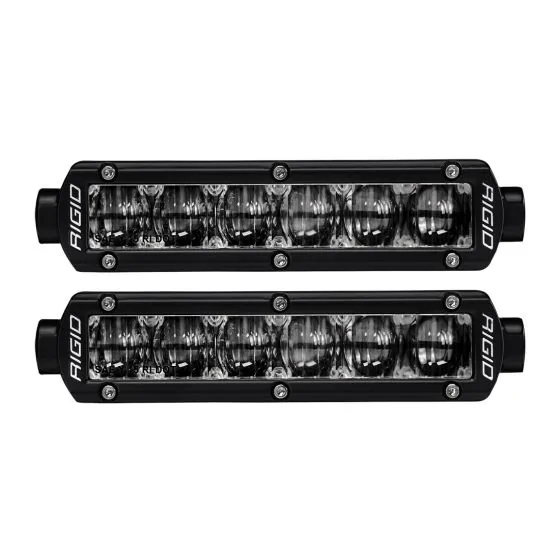

Nice write up! Rigid offers a pair of 6" SAE compliant fog lights. Those would like nice in there and being SAE compliant would ensure you're not blinding oncoming traffic. We sell a ton of the Rigid SAE cubes. Great light output.




Jorge

Member
First Name
Jorge
Joined
Jul 30, 2019
Threads
0
Messages
5
Reaction score
5
Location
00987
Vehicle(s)
Ford Ranger 2019 XLT
Occupation
Puerto Rico
Excellent writeup! :clap: I have been thinking about doing the same thing. Time has not been on my side lately.
where did you get those leds ??



Scott Morris

New Member
First Name
Scott
Joined
Jan 1, 2020
Threads
0
Messages
1
Reaction score
3
Location
KNoxville, TN
Vehicle(s)
2020 Ford Ranger Lariat 4x4

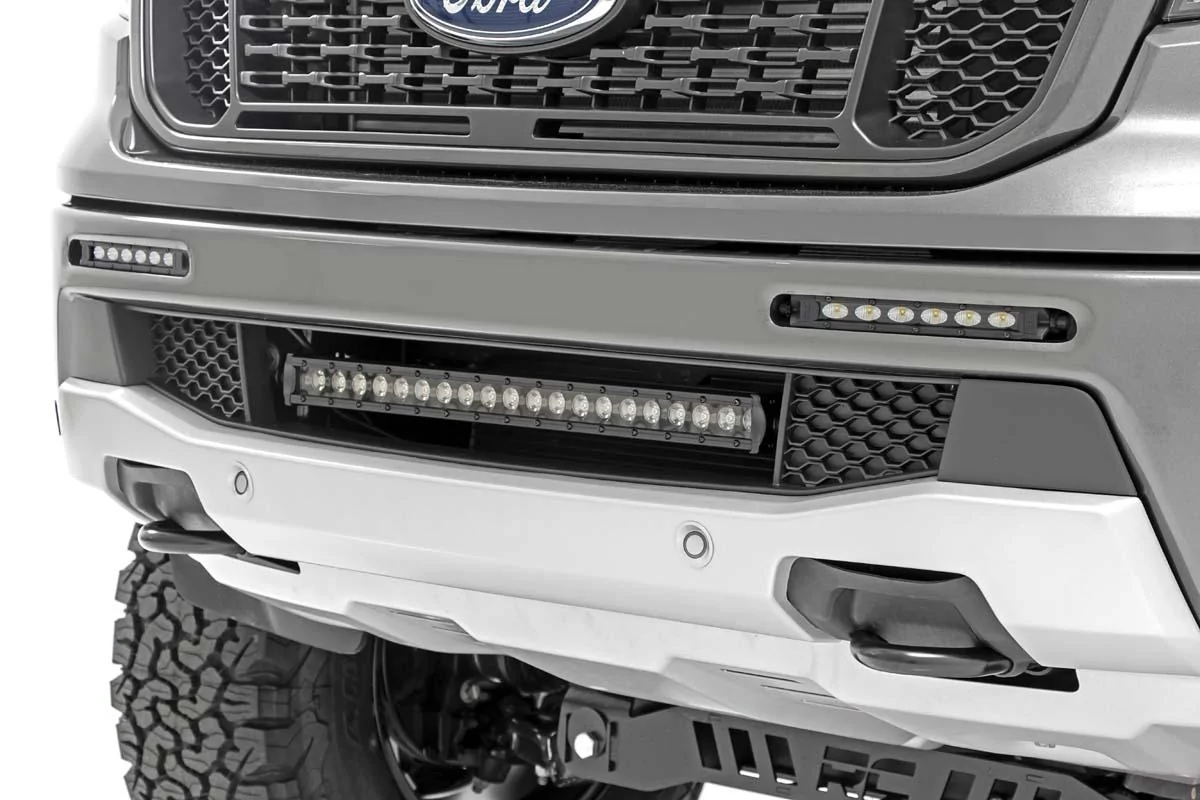

I was on roughcountry.com's web site, looking at the 20" LED Bumper Kit. On the photo, there were LED lights in the bumper slots. I asked about the LEDs in the slits, and they said it was their 10" slimline LED lightbar. I checked back again, and today it shows as a new item they are selling as a kit for the Ranger. Here are the two LED items I found on their web site. And instructions are downloadable before you buy, just scroll down near the bottom of the product page.

20" LED Bumper kit - https://www.roughcountry.com/ford-20in-led-bumper-kit-70814c.html?find=2020-ford-ranger-4wd-503355
Bumper slit LED kit - https://www.roughcountry.com/ford-r...t-70829.html?find=2020-ford-ranger-4wd-503355


OffroadAlliance

Diamond Sponsor
Joined
May 19, 2019
Threads
52
Messages
244
Reaction score
275
Location
Brockton, MA & Houston, TX
Website
www.offroadalliance.com
Vehicle(s)
2019 Ranger, 2021 Raptor, 2022 F250, 2023 Bronco
Yea Rough Country has just recently released their dual 6" LED and single 20" LED light bar kits. The Rough Country LED's are pretty nice for the price point and come backed by a 3 year warranty.

We've been a Rough Country dealer for a number of years now and like their products. We sell quite a few of their LED kits for the Ford Raptors. Not quite as bright nor quite the quality as some other brands, but again for the price they're hard to beat!

Link ---->>>> OFFROADALLIANCE.COM





apotocki

Well-Known Member
First Name
Alan
Joined
Dec 10, 2019
Threads
19
Messages
271
Reaction score
655
Location
Rochester Hills, Michigan
Vehicle(s)
2019 Ranger XLT
Occupation
Network Force Analyst
Vehicle Showcase
1
Yea Rough Country has just recently released their dual 6" LED and single 20" LED light bar kits. The Rough Country LED's are pretty nice for the price point and come backed by a 3 year warranty.

We've been a Rough Country dealer for a number of years now and like their products. We sell quite a few of their LED kits for the Ford Raptors. Not quite as bright nor quite the quality as some other brands, but again for the price they're hard to beat!

Link ---->>>> OFFROADALLIANCE.COM



I’m interested in the 6 inch in bumper kit. I looked through the installation instructions and it appears they were written for a truck with no ACC. Wondering how the ACC affects the installation with removing the bumper.
Any information is appreciated.


OffroadAlliance

Diamond Sponsor
Joined
May 19, 2019
Threads
52
Messages
244
Reaction score
275
Location
Brockton, MA & Houston, TX
Website
www.offroadalliance.com
Vehicle(s)
2019 Ranger, 2021 Raptor, 2022 F250, 2023 Bronco
I’m interested in the 6 inch in bumper kit. I looked through the installation instructions and it appears they were written for a truck with no ACC. Wondering how the ACC affects the installation with removing the bumper.
Any information is appreciated.
The dual 6" kit should not interfere. The Rough Country 20" LED light bar will interefere and does not work with trucks equipped with ACC.

OP
OP

khyros

Well-Known Member
First Name
Jeff
Joined
Dec 7, 2018
Threads
13
Messages
316
Reaction score
341
Location
Michigan
Vehicle(s)
2019 Ford Ranger Lariat Crewcab FX4
Vehicle Showcase
1
You have a picture of what the final install looks like. Thx

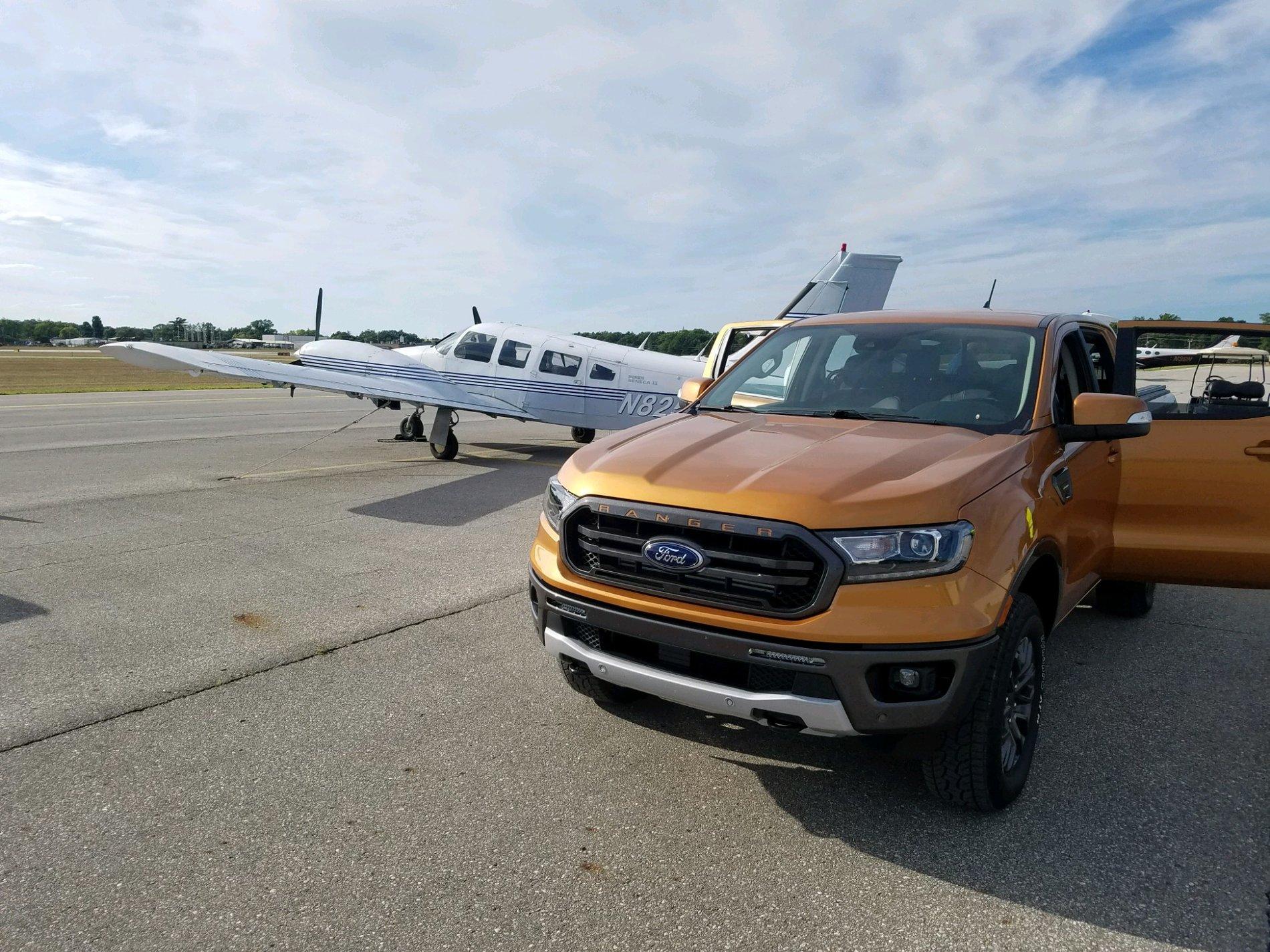

Haha, I just realized, no.. I don't. At least I don't have any specifically for the lights, but here are some that are some for other purposes that show the lights.





Hounddog409

Well-Known Member
First Name
Tod
Joined
Apr 28, 2019
Threads
17
Messages
1,062
Reaction score
1,164
Location
Ohio
Vehicle(s)
F150
Vehicle Showcase
1
I was on roughcountry.com's web site, looking at the 20" LED Bumper Kit. On the photo, there were LED lights in the bumper slots. I asked about the LEDs in the slits, and they said it was their 10" slimline LED lightbar. I checked back again, and today it shows as a new item they are selling as a kit for the Ranger. Here are the two LED items I found on their web site. And instructions are downloadable before you buy, just scroll down near the bottom of the product page.

20" LED Bumper kit - https://www.roughcountry.com/ford-20in-led-bumper-kit-70814c.html?find=2020-ford-ranger-4wd-503355
Bumper slit LED kit - https://www.roughcountry.com/ford-r...t-70829.html?find=2020-ford-ranger-4wd-503355
So instructions do not include any wiring diagram???

That is odd


Fawnbuster

Well-Known Member
First Name
Mike
Joined
Jul 14, 2019
Threads
52
Messages
1,945
Reaction score
6,900
Location
Indiana
Vehicle(s)
2019 Ranger
Occupation
Retired 34 years as LEO
Vehicle Showcase
1
Yea Rough Country has just recently released their dual 6" LED and single 20" LED light bar kits. The Rough Country LED's are pretty nice for the price point and come backed by a 3 year warranty.

We've been a Rough Country dealer for a number of years now and like their products. We sell quite a few of their LED kits for the Ford Raptors. Not quite as bright nor quite the quality as some other brands, but again for the price they're hard to beat!

Link ---->>>> OFFROADALLIANCE.COM



i was looking at this kit, do either the 6" or the light bar come in amber led? tried calling Rough country, too early, no answer. Also I realize they provide wiring and a switch however i already have 2 brand new Light Force switches that I ordered with my Light Force replacement fascia that i would prefer to use, can i snip off the rough country switch and use the ones i have?


OffroadAlliance

Diamond Sponsor
Joined
May 19, 2019
Threads
52
Messages
244
Reaction score
275
Location
Brockton, MA & Houston, TX
Website
www.offroadalliance.com
Vehicle(s)
2019 Ranger, 2021 Raptor, 2022 F250, 2023 Bronco
i was looking at this kit, do either the 6" or the light bar come in amber led? tried calling Rough country, too early, no answer. Also I realize they provide wiring and a switch however i already have 2 brand new Light Force switches that I ordered with my Light Force replacement fascia that i would prefer to use, can i snip off the rough country switch and use the ones i have?
Neither of these Rough Country kits are sold with amber LED's. Both the 6" dual kit and the 20" single kit are both white lights. Concerning your Light Force switches, you can definitely wire them up to power on/off the lights.

Another option is the Baja Designs S8 20" light bar. This kit is available in amber but is more expensive than the Rough Country. It's by far and away a better light with a lifetime warranty, quite a bit brighter, better built, etc but the price tag reflects that.


Link ---->>>> OFFROADALLIANCE.COM
