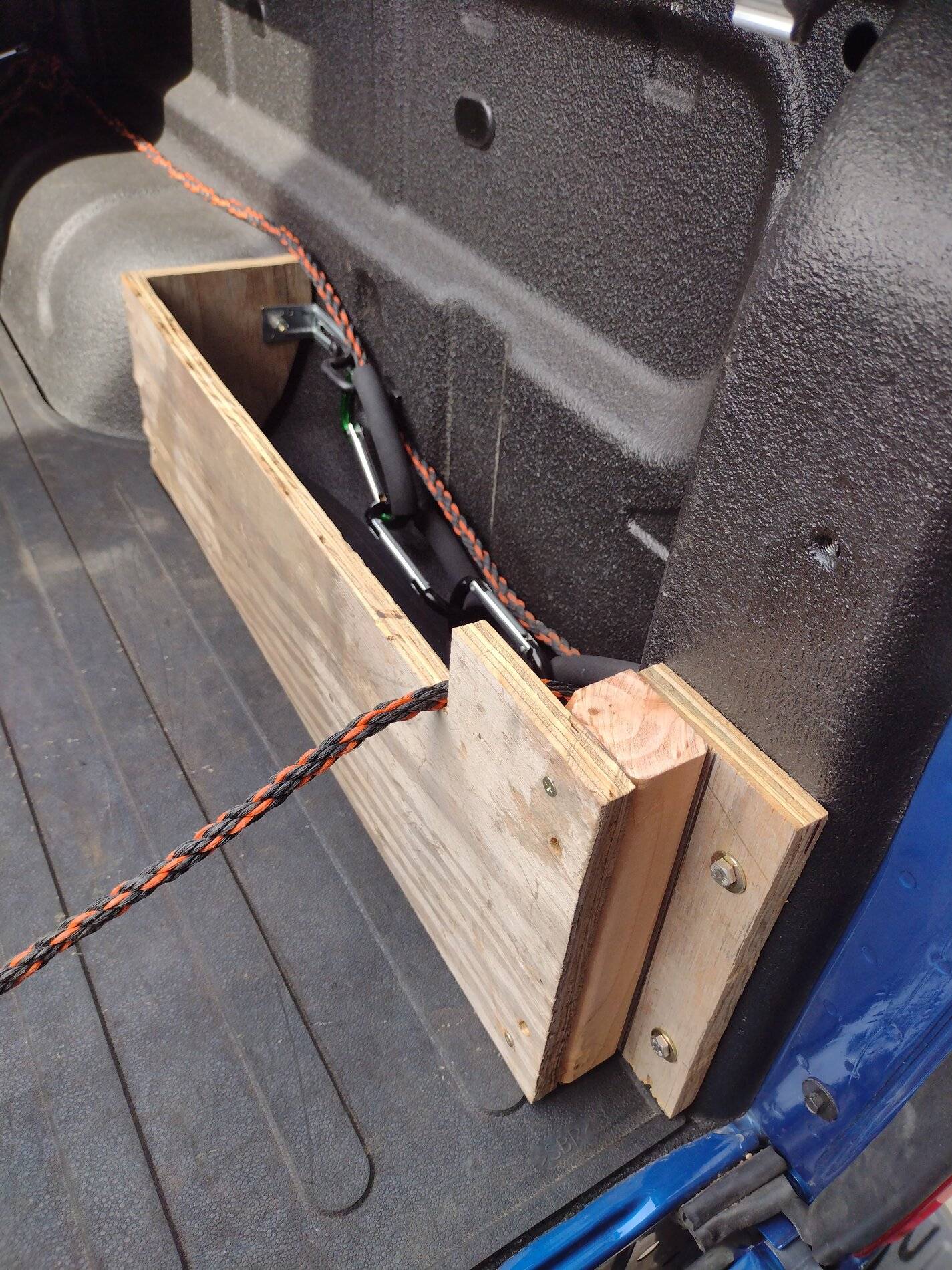

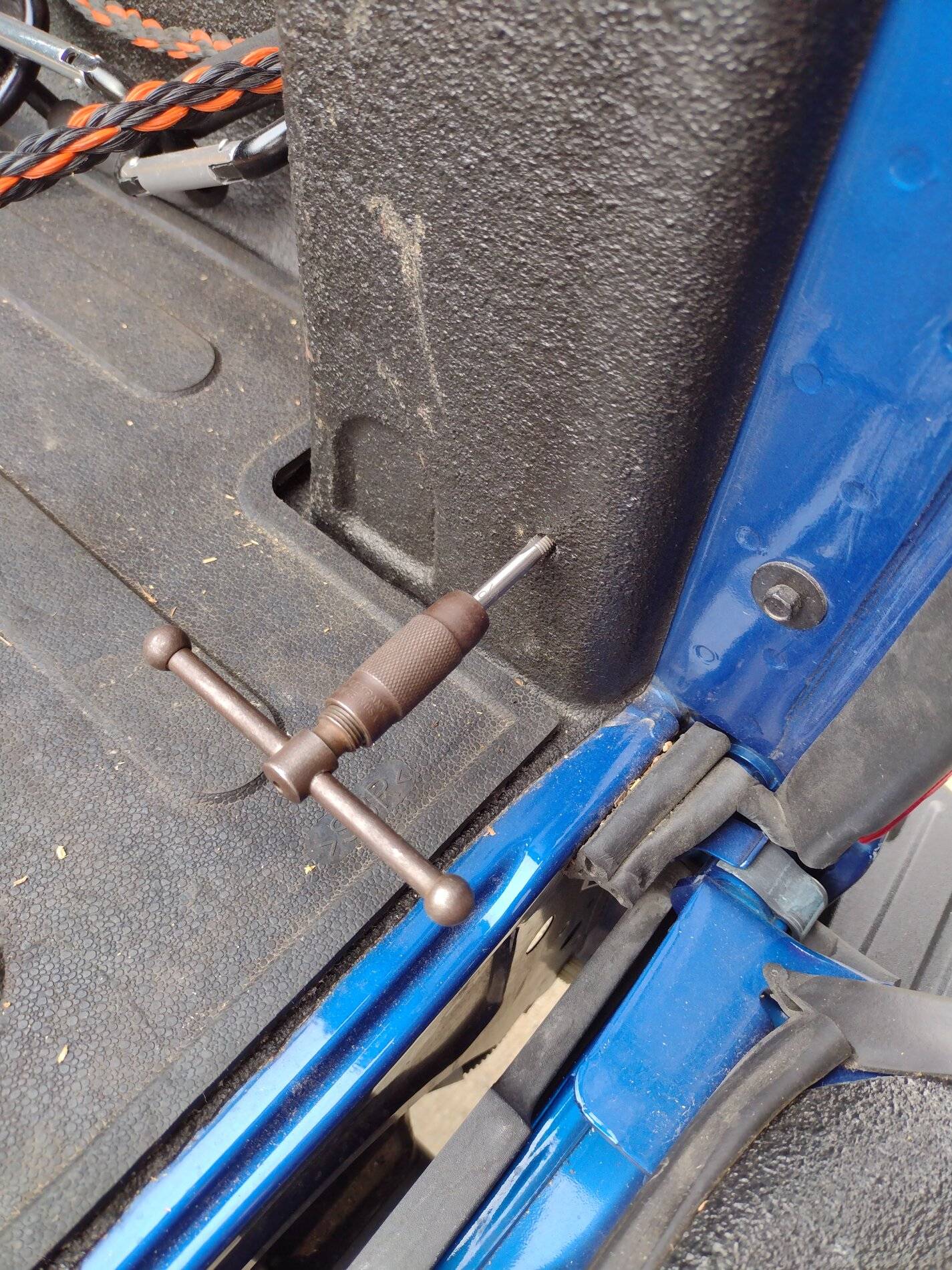

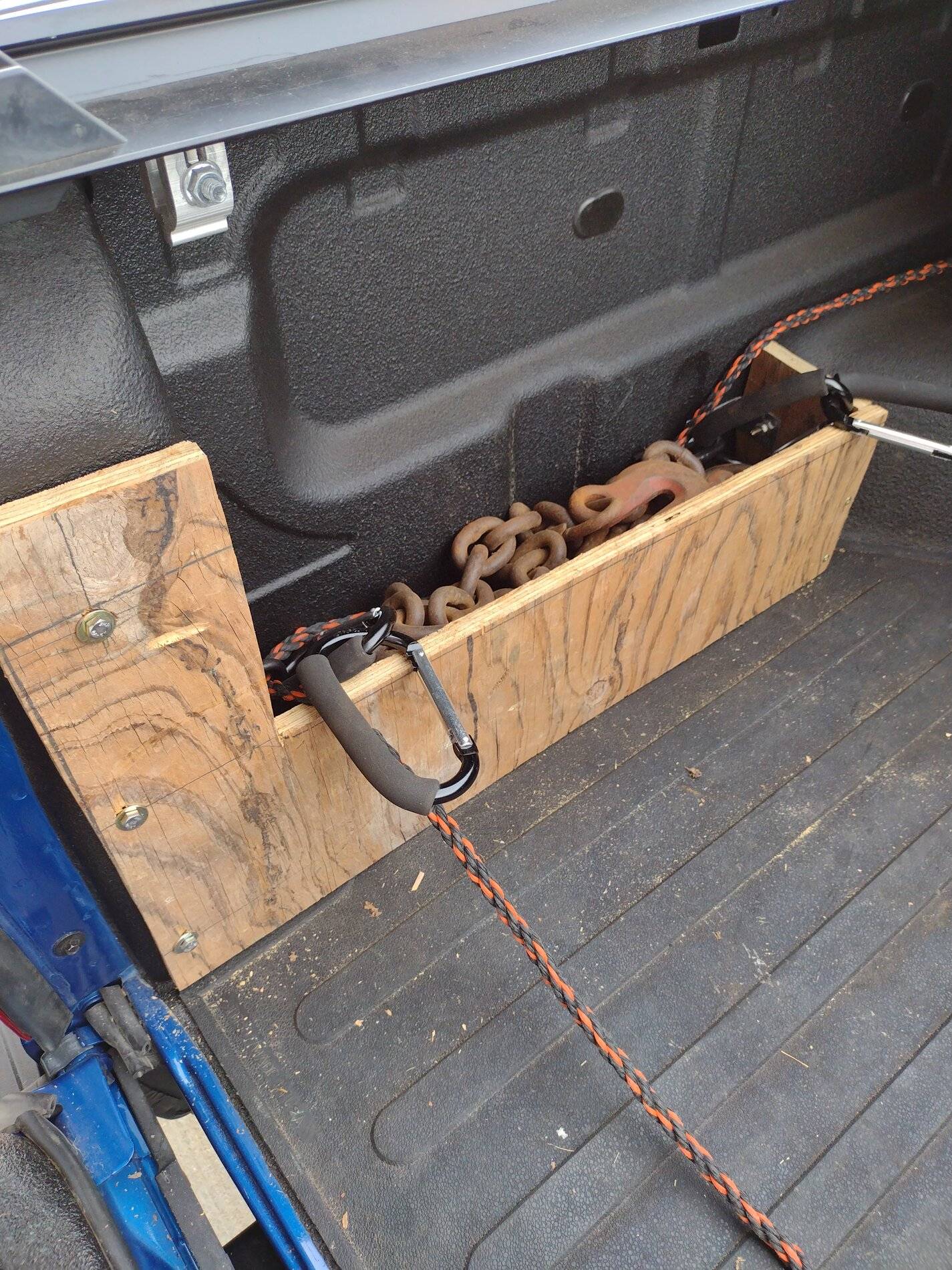

With winter coming up I have some items that don't want to store in the cab or under the rear seat. Some items as tow chain or strap, bottle jack, tie down straps that I would rather have easily accessible when needed. List is probably endless, so I built some prototype boxes, had some scrap crap plywood, just to see how things work. Sizes can vary. I cleaned the spray in bed liner out of the holes for the factory swing boxes & lucky enough that who ever the dealer had do the spray in bed liner removed my factory tie downs before spraying so it was easy to remove the bolts needed to install my L brackets to hold the end of the box to the bed side. I made both sides different sizes. Just experimenting. Any thoughts & suggestions throw em out there.





Advertisement



Trigganometry

Well-Known Member
First Name
Rick
Joined
Dec 4, 2020
Messages
2,613
Reaction score
8,788
Location
Massachusetts
Vehicle(s)
2020 XLT Ranger scab 301A/tow 4X4 magnetic w/sport
Occupation
Engineering
With winter coming up I have some items that don't want to store in the cab or under the rear seat. Some items as tow chain or strap, bottle jack, tie down straps that I would rather have easily accessible when needed. List is probably endless, so I built some prototype boxes, had some scrap crap plywood, just to see how things work. Sizes can vary. I cleaned the spray in bed liner out of the holes for the factory swing boxes & lucky enough that who ever the dealer had do the spray in bed liner removed my factory tie downs before spraying so it was easy to remove the bolts needed to install my L brackets to hold the end of the box to the bed side. I made both sides different sizes. Just experimenting. Any thoughts & suggestions throw em out there.





That’s actually a really nice idea 💡

I was thinking of doing one at cab side of the bed. Hinged folding that can drop down when needed and fold up flat against front of bed using Velcro to hold it closed.


staryoshi

Well-Known Member
Joined
Sep 17, 2021
Messages
52
Reaction score
113
Location
Michigan
Vehicle(s)
2014 Subaru Forester 2.5i Touring
Clever. Light n strong. Makes me yearn for the Mavericks flex bed lol.


KJRR

Well-Known Member
First Name
KJ
Joined
Feb 1, 2020
Messages
346
Reaction score
1,348
Location
Cleveland, OH
Vehicle(s)
2019 Ford Ranger, 2014 Ford Edge, 2010 Ford Fusion
Occupation
IT Infrastructure Manager
I like that idea.! Will have to look at doing that in conjunction with my bed divider.


Rangerguy

Well-Known Member
Joined
Apr 13, 2020
Messages
128
Reaction score
411
Location
Canada
Vehicle(s)
2019 XLT SuperCrew

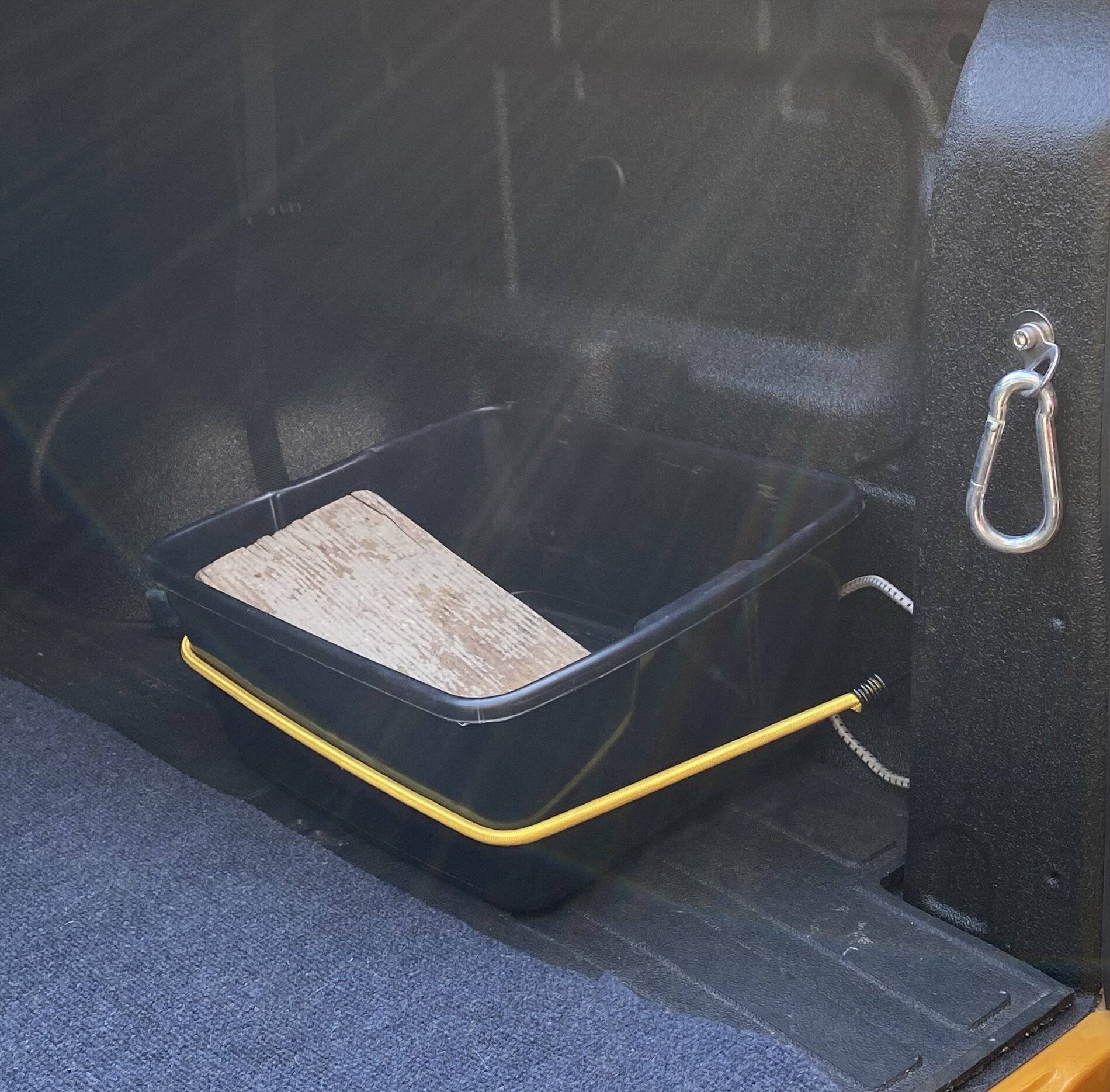

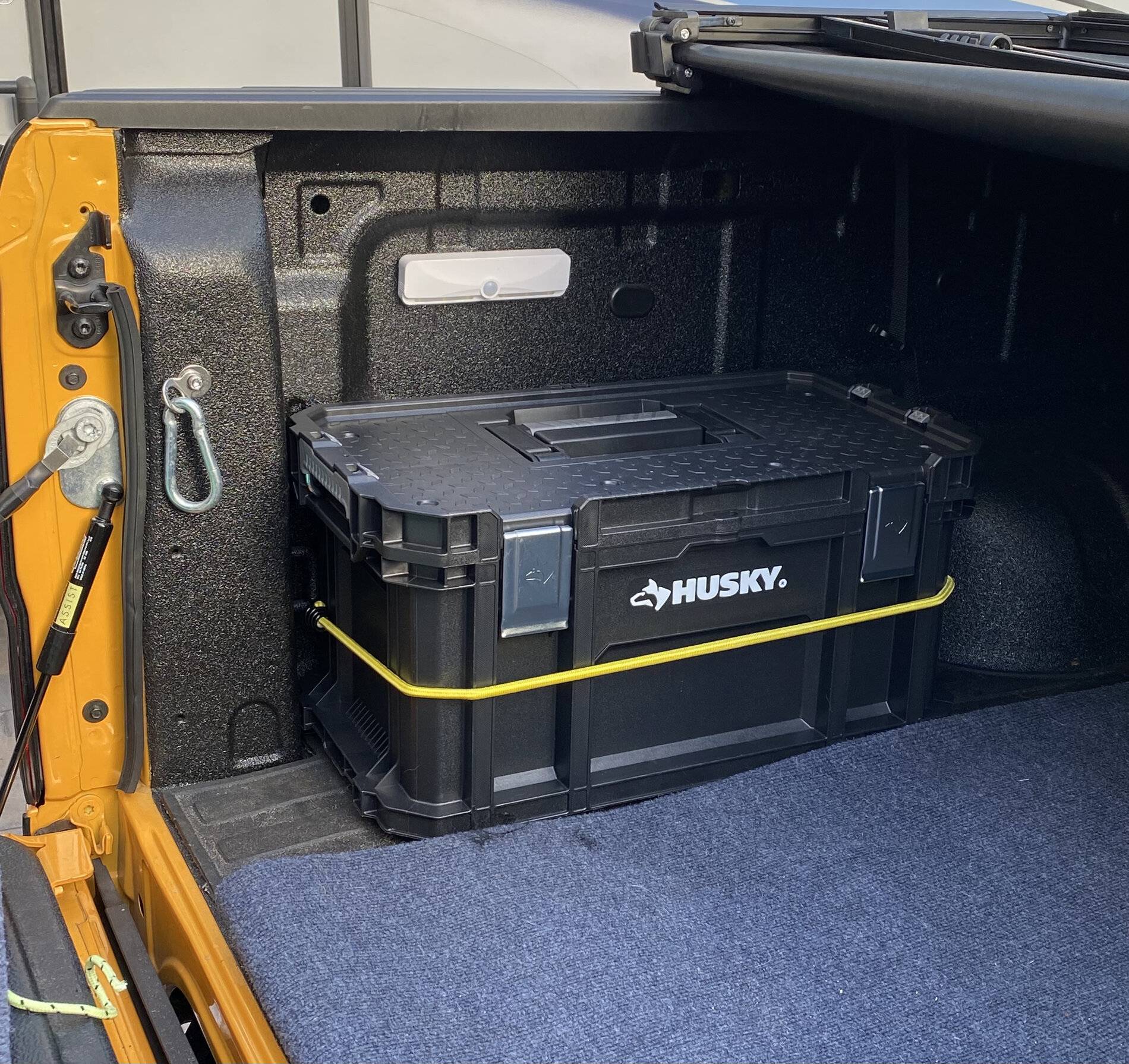

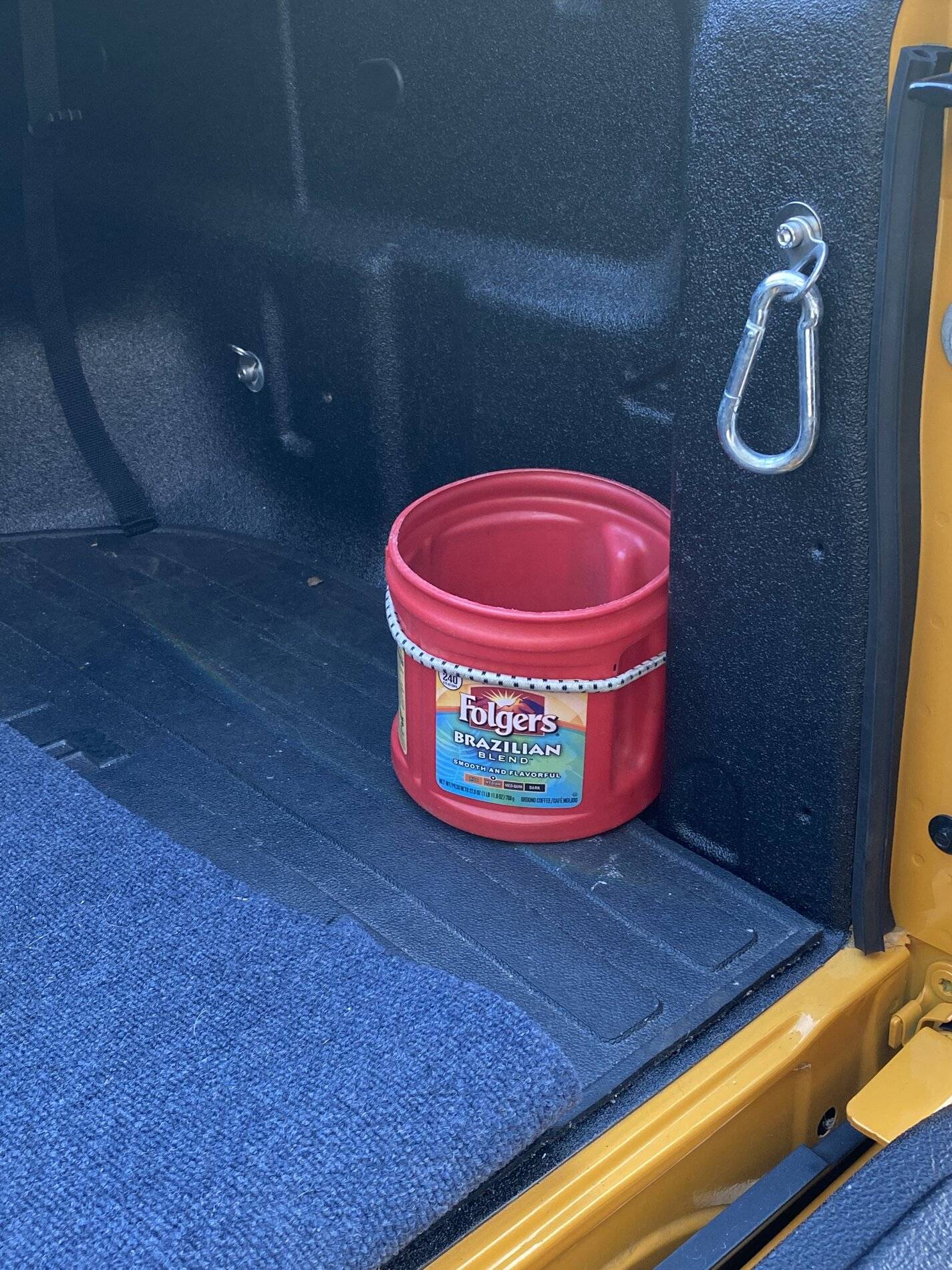

I use two ratcheting cargo bars securing two perfectly sized plastic tubs with latching tops. Working perfectly. Easy to remove if I need the whole bed.
