Icon Stage 5 Tubular kit installed!

Discussion in 'Suspension / Chassis' started by Andy, Dec 13, 2019.

  1. Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464
    #1 Dec 13, 2019
    Last edited: Dec 17, 2019
    Just finished installing the Icon Stage 5 tubular kit last night. Very impressive build quality and fitment. The ride quality is really impressive now compared to the factory setup. I’ll report back once I take it off road and push the system.

    kit included new bump stops and overload spring caps which is a nice touch.

    Shout out to @Stage3Motorsports for getting the kit shipped so quick and offering it at an amazing price!

    Link: https://www.stage3motorsports.com/K93205T-2019-Ranger-ICON-0-3-5-Lift-Kit-Stage-5-Tubular.html

    Here is a video of the suspension in action. Road is a forest service road driven at 20mph with the shocks on the softest setting.

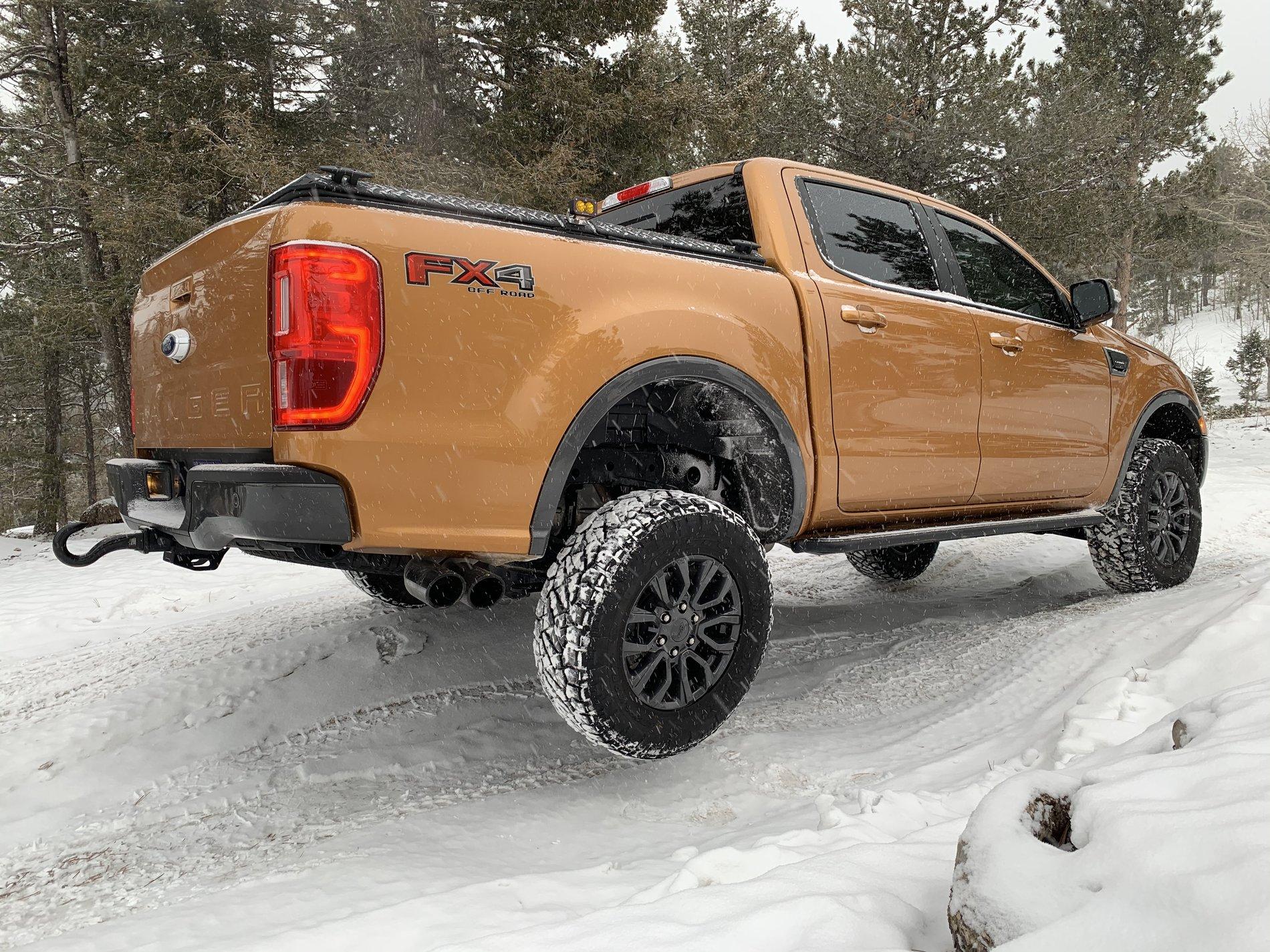

    Here are a few shots of the articulation from that video to better understand the terrain. The rear would benefit from a leaf pack to help it twist imo.

  2. Noseoil

    Noseoil Well-Known Member

    First Name:
    Tim
    Vehicle(s):
    2019 Ranger / 2013 Honda Civic / Red Rocket mini bike (zoom!)
    Joined:
    Aug 26, 2019
    Location:
    RATON NM
    Posts:
    83
    Likes Received:
    172
    Occupation:
    Retired
    Garage Profiles:
    1
    Looks like a good setup for on & off road driving.

    Andy likes this.
  3. Lunchbox88

    Lunchbox88 Well-Known Member

    First Name:
    Logan
    Vehicle(s):
    2019 Ranger SuperCrew FX4
    Joined:
    Jun 21, 2019
    Location:
    Missouri, USA
    Posts:
    280
    Likes Received:
    182
    Looks great! Let us know how it rides.

    Andy likes this.
  4. HoosierT

    HoosierT Well-Known Member

    First Name:
    Tyler
    Vehicle(s):
    ‘19 Ranger Lariat FX4, '17 Explorer Sport
    Joined:
    Feb 1, 2019
    Location:
    Fishers, IN
    Posts:
    591
    Likes Received:
    666
  5. doug910

    doug910 Well-Known Member

    First Name:
    Doug
    Vehicle(s):
    '19 Ranger, '86 FC RX-7
    Joined:
    Apr 8, 2019
    Location:
    Detroit, MI
    Posts:
    283
    Likes Received:
    307
    Occupation:
    Automotive Engineer
    Can't wait for them to come out with a beefier rear leaf pack upgrade to go along with their fancy coils and dampers...

  6. OP
    OP
    Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464
    Me too! The rear leaf is my most disliked part of this trucks suspension. I spotted them testing a leaf pack for this truck a month ago so it should be out soon I hope.

  7. AzScorpion

    AzScorpion Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2019 Ford Ranger SuperCrew Lariat 4x4
    Joined:
    Jul 25, 2019
    Location:
    Arizona
    Posts:
    1,512
    Likes Received:
    3,044
    #7 Dec 13, 2019
    Last edited: Dec 15, 2019
    That looks really good and looking forward to your off road review of them. Man it's really hard not to spend money after looking at some of these set ups! :curse:

    BDoc and Sunpilot like this.
  8. Sunpilot

    Sunpilot Well-Known Member

    Vehicle(s):
    2019 Ranger
    Joined:
    Sep 22, 2019
    Location:
    Mesa, Az
    Posts:
    116
    Likes Received:
    128
    Garage Profiles:
    1
    I'm waiting for my Icon rear reservoir shocks to get here. I have my front done. So far I like it. I have Icons on my 4Runner for three years now and do a lot of overlanding and they are great off road.

    AzScorpion and Andy like this.
  9. OP
    OP
    Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464
    Updated first post with video.

  10. doug910

    doug910 Well-Known Member

    First Name:
    Doug
    Vehicle(s):
    '19 Ranger, '86 FC RX-7
    Joined:
    Apr 8, 2019
    Location:
    Detroit, MI
    Posts:
    283
    Likes Received:
    307
    Occupation:
    Automotive Engineer
    Awesome vid, thanks for posting!

    What's the final ride height increase that you went with? The rear is also just begging with more flex with an upgrade leaf pack too haha

  11. Jason@Stage3

    Diamond Sponsor


    First Name:
    Jason
    Vehicle(s):
    2011 F150 5.0L
    Joined:
    Jun 24, 2019
    Location:
    Phoenix, AZ
    Posts:
    116
    Likes Received:
    154
    Occupation:
    Web Team Overlord
    Awesome setup.

    We'll hopefully be doing something similar next Ranger.

    Andy likes this.
  12. OP
    OP
    Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464

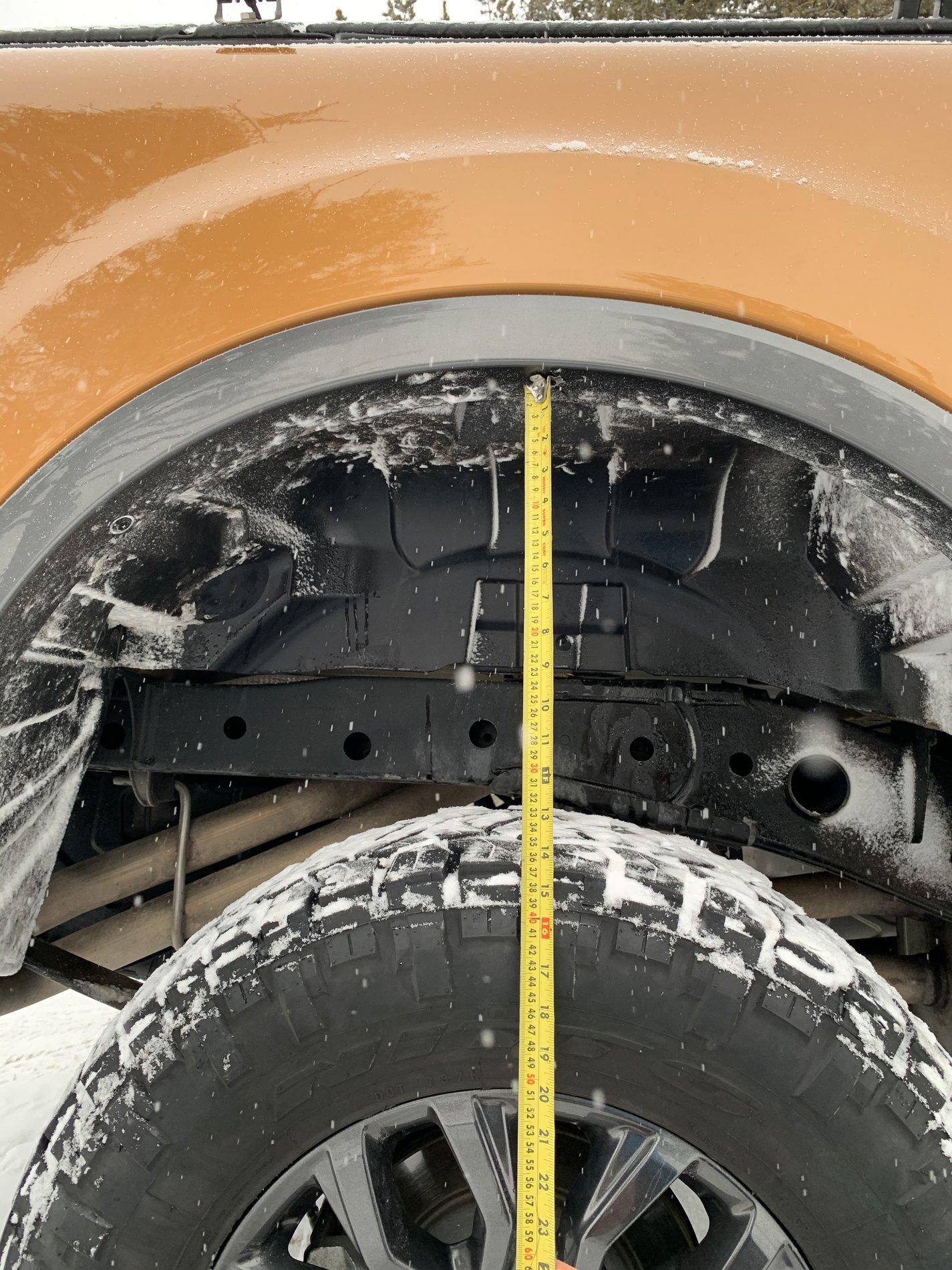

    I went with 3” of lift on the front and 1” in the rear with shackles. I added two pics showing the flex from the video. Definitely picking up a set of leafs from icon when they drop in the spring.

  13. OP
    OP
    Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464
    1 week update... really impressed with the ride quality and handling. I drive a lot of curvy roads to work and it really brought the fun out of the truck. Used to just lumber around corners but now it digs in and just pulls though. So fun to push the truck around now. My ideal fast paced street setting for the dampers is 6.

  14. Dmax

    Dmax Well-Known Member

    Vehicle(s):
    2019 Ford Ranger Lariat 4x4
    Joined:
    Dec 26, 2019
    Location:
    Denver, CO
    Posts:
    270
    Likes Received:
    249
    Garage Profiles:
    1
    How was the install? Simple?

  15. OP
    OP
    Andy

    Andy Well-Known Member

    First Name:
    Andy
    Vehicle(s):
    2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
    Joined:
    Oct 24, 2018
    Location:
    Colorado
    Posts:
    510
    Likes Received:
    464
    Install was pretty easy. Only issues I had was with getting the old struts out because they had a 2.5” level on them. Other than that it was easy!

    One thing I would recommend is to adjust your ride height after installing the coilovers. Otherwise if they are any longer it will be really hard to install.

    Sunpilot and Dmax like this.
