First, a caveat---This is how I do it....I've been doing it this way for 7-8 years with very good results. And the best part is I use rattle-cans that anyone can buy. I've had people comment that it looks just as good as the factory paint, even my uncle, and he's a real stickler for detail and will tell you the way it is, aka--no sugar coating. I've done the fender vents, the grill, and now the Tremor fender flares on my Ranger as well as other parts for other trucks I've owned. I will update this with some pics of the Tremor flares after I get them installed.

Here we go...
1--The item must be a paintable material. If it has factory paint, even better as they have already done the major part of the prep work and all you'll have to do is prep it for primer and paint. For prepping the surface, I've used the maroon 3M scuff pads before, but wet-sanding with 400 will work just as good, and it requires less elbow grease to do so. You'll want the ENTIRE surface to be painted to have NO shiny areas....it should be a fairly consistent dull/sanded look. Touch up any shiny areas so they are dull. The dull/sanded surface will allow the primer coat to stick (see pic below). On the Tremor fenders, I spent about 5-6 hrs just prepping. It's the foundation of any paint job and is well worth taking the time and doing it right. Paint and clearing, without including the flash times (allows the paint to dry just a little....it allows the solvents to "flash" off), took maybe 30 minutes.

2--Degreasing (prepping for primer). I just tried a new de-greaser this time, and it's basically water and soap. Wet/soak a paper towel, rub the part down good, and dry with a dry paper towel. Any fingerprints or sweat drips WILL ruin a paint job, so take the time to wipe it down/scrub it good without touching it with bare skin. I wear rubber or nitrile gloves when I do this. Last step before priming--wipe down lightly with a tack clothe to get any tiny bits of lint/dust, etc (available at any store that sells paint). Now, you are ready to prime.

3--Priming a piece gives the paint something to stick to. For all the already painted parts, I use a primer-sealer, which seals the paint under the new paint you're putting on. If you don't use a sealer, the paint underneath may "bleed" through into your new paint....it probably won't, but I prefer to avoid the issue by simply sealing it. If it's a new, raw, unpainted part, you'll need a primer with an adhesion promoter in it. If it is a part that flex/bend, using a primer that has a flex additive will help avoid cracking. The primer I used on the fender flares has sealer, adhesion and flex agent all added in. Metal parts that are raw will need to be prepped and use a self-etching primer, which literally etches the metal to get better adhesion. Once you have the parts primed, allow them to dry for a day or 2 so all the solvents are evaporated. If the surface is rough, you can sand it with 400, but be careful no to perforate the primer coat....if you do, just touch it up with a little of the primer you used.

4--Painting. Make sure the paint you use is compatible with the primer and paint it in the same position that it will be on the truck....if it's a hood scoop, paint it laying flat on a table, fender flares need to be "hung" vertically--this is so the metallic particles (if your paint has it) can settle correctly.....yes, it will look bad if you don't do this. It's hard to describe how to paint, so just search YouTube. The basics are still the same, except, you can't adjust the fan pattern or the air or paint flow with a rattle-can. It really is "ya just have to try it to do it"... Follow the directions on the can....hold 6-8 inches from the surface and move in a sweeping motion with about 50% overlap, blah blah.....

First, lightly wipe the part down with a tack clothe. The first coat, all I do is try to cover the primer by 50-75%. Let it flash for 15-20 min, add another coat that will fully cover the primer. At this point, I take my LED flashlight (on the 1000 lumen setting), and shine it on the paint and see if I can see the primer through the paint, and if I can, add another coat all over it. Let it flash again, and then re-check it with the flashlight. I do this until I can't see ANY primer, and then add a final wet coat...a little heavier/thicker coat....be careful, because this is where you can easily get runs in the paint. I let the last color coat flash/dry for about an hour before I clear coat it.

5--Clear-coating. I heard on one of the TV car shows, that clear coat is just paint, without the color. It does, of course, have UV inhibitors and hardeners in it. I try to get 3 good coats of clear on everything I paint, just incase I need to polish out any imperfections. The Tremor flares are drying as I type this, but I won't get them mounted for another couple weeks due to a trip to Louisiana this Friday.

As far as the paint and clear I use, I get mine from R&E Paint Supply online. The color matched spray cans are easy to use and the paint match has been perfect, as far as I can tell. Their customer service is great and they can answer just about any question you have about their products. They also sell a 2K clear coat that has a hardener in the can that you activate when your ready to clear coat. CAUTION !!!!--You MUST wear a good respirator and have good ventilation when painting/clearing !!!! Spend $30-$40 and INVEST in a good respirator....I use one made by 3M and can get the replacement filters where they sell the respirators. If I can smell ANY chemical scent, I change the main filters.....I change the little pre-filters after I paint and after I clear. I also use a "disposable" painter coverall when painting and clearing keeps your clothes clean and any lint from getting in the paint or clear.

Before and after prepping the factory paint--
scuffed vs unscuffed.png


I'll try to answer any questions any of you have, but it really boils down to just trying it and learning from your mistakes.....I've made plenty over the years.

Again, this is how I do it and it works for me. Your results may vary.
Advertisement


Last edited:

NurseNeil

Well-Known Member
First Name
Neil
Joined
Dec 25, 2020
Messages
277
Reaction score
446
Location
Winston-Salem,NC
Vehicle(s)
2020 Ranger XLT, SPORT
Occupation
Nurse
First, a caveat---This is how I do it....I've been doing it this way for 7-8 years with very good results. And the best part is I use rattle-cans that anyone can buy. I've had people comment that it looks just as good as the factory paint, even my uncle, and he's a real stickler for detail and will tell you the way it is, aka--no sugar coating. I've done the fender vents, the grill, and now the Tremor fender flares on my Ranger as well as other parts for other trucks I've owned. I will update this with some pics of the Tremor flares after I get them installed.

Here we go...
1--The item must be a paintable material. If it has factory paint, even better as they have already done the major part of the prep work and all you'll have to do is prep it for primer and paint. For prepping the surface, I've used the maroon 3M scuff pads before, but wet-sanding with 400 will work just as good, and it requires less elbow grease to do so. You'll want the ENTIRE surface to be painted to have NO shiny areas....it should be a fairly consistent dull/sanded look. Touch up any shiny areas so they are dull. The dull/sanded surface will allow the primer coat to stick (see pic below). On the Tremor fenders, I spent about 5-6 hrs just prepping. It's the foundation of any paint job and is well worth taking the time and doing it right. Paint and clearing, without including the flash times (allows the paint to dry just a little....it allows the solvents to "flash" off), took maybe 30 minutes.

2--Degreasing (prepping for primer). I just tried a new de-greaser this time, and it's basically water and soap. Wet/soak a paper towel, rub the part down good, and dry with a dry paper towel. Any fingerprints or sweat drips WILL ruin a paint job, so take the time to wipe it down/scrub it good without touching it with bare skin. I wear rubber or nitrile gloves when I do this. Last step before priming--wipe down lightly with a tack clothe to get any tiny bits of lint/dust, etc (available at any store that sells paint). Now, you are ready to prime.

3--Priming a piece gives the paint something to stick to. For all the already painted parts, I use a primer-sealer, which seals the paint under the new paint you're putting on. If you don't use a sealer, the paint underneath may "bleed" through into your new paint....it probably won't, but I prefer to avoid the issue by simply sealing it. If it's a new, raw, unpainted part, you'll need a primer with an adhesion promoter in it. If it is a part that flex/bend, using a primer that has a flex additive will help avoid cracking. The primer I used on the fender flares has sealer, adhesion and flex agent all added in. Metal parts that are raw will need to be prepped and use a self-etching primer, which literally etches the metal to get better adhesion. Once you have the parts primed, allow them to dry for a day or 2 so all the solvents are evaporated. If the surface is rough, you can sand it with 400, but be careful no to perforate the primer coat....if you do, just touch it up with a little of the primer you used.

4--Painting. Make sure the paint you use is compatible with the primer and paint it in the same position that it will be on the truck....if it's a hood scoop, paint it laying flat on a table, fender flares need to be "hung" vertically--this is so the metallic particles (if your paint has it) can settle correctly.....yes, it will look bad if you don't do this. It's hard to describe how to paint, so just search YouTube. The basics are still the same, except, you can't adjust the fan pattern or the air or paint flow with a rattle-can. It really is "ya just have to try it to do it"... Follow the directions on the can....hold 6-8 inches from the surface and move in a sweeping motion with about 50% overlap, blah blah.....

First, lightly wipe the part down with a tack clothe. The first coat, all I do is try to cover the primer by 50-75%. Let it flash for 15-20 min, add another coat that will fully cover the primer. At this point, I take my LED flashlight (on the 1000 lumen setting), and shine it on the paint and see if I can see the primer through the paint, and if I can, add another coat all over it. Let it flash again, and then re-check it with the flashlight. I do this until I can't see ANY primer, and then add a final wet coat...a little heavier/thicker coat....be careful, because this is where you can easily get runs in the paint. I let the last color coat flash/dry for about an hour before I clear coat it.

5--Clear-coating. I heard on one of the TV car shows, that clear coat is just paint, without the color. It does, of course, have UV inhibitors and hardeners in it. I try to get 3 good coats of clear on everything I paint, just incase I need to polish out any imperfections. The Tremor flares are drying as I type this, but I won't get them mounted for another couple weeks due to a trip to Louisiana this Friday.

As far as the paint and clear I use, I get mine from R&E Paint Supply online. The color matched spray cans are easy to use and the paint match has been perfect, as far as I can tell. Their customer service is great and they can answer just about any question you have about their products. They also sell a 2K clear coat that has a hardener in the can that you activate when your ready to clear coat. CAUTION !!!!--You MUST wear a good respirator and have good ventilation when painting/clearing !!!! Spend $30-$40 and INVEST in a good respirator....I use one made by 3M and can get the replacement filters where they sell the respirators. If I can smell ANY chemical scent, I change the main filters.....I change the little pre-filters after I paint and after I clear. I also use a "disposable" painter coverall when painting and clearing keeps your clothes clean and any lint from getting in the paint or clear.

Before and after prepping the factory paint--
scuffed vs unscuffed.png


I'll try to answer any questions any of you have, but it really boils down to just trying it and learning from your mistakes.....I've made plenty over the years.

Again, this is how I do it and it works for me. Your results may vary.
Been having this question for a long time not paint related, what's the difference between tremor flares and regular flares? I reccomend super wrap for paint, it's a vinyl version of plasti dip, but can only be bought online.

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
Been having this question for a long time not paint related, what's the difference between tremor flares and regular flares? I reccomend super wrap for paint, it's a vinyl version of plasti dip, but can only be bought online.
The Tremor flares stick out about 3/4" to 1" and no modifications needed to mount them, since they're a factory part.


NurseNeil

Well-Known Member
First Name
Neil
Joined
Dec 25, 2020
Messages
277
Reaction score
446
Location
Winston-Salem,NC
Vehicle(s)
2020 Ranger XLT, SPORT
Occupation
Nurse
The Tremor flares stick out about 3/4" to 1" and no modifications needed to mount them, since they're a factory part.
I believe most of our trucks have fender flares that came with them?

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
If you mess up the clear coat, like I did, there is an "easy" fix. The clear came out with way too much orange peel for my liking and it wouldn't have looked good/factory. I wet sanded all the flares with 800 grit wet/dry sandpaper. The 800 grit allows a good grip for the clear and more importantly, it is smooth enough so the sanding "scratches" won't show. You want the same dull look like the pic I posted above. It took me about an hour to sand each flare down, being careful not to go through the existing clear coat. Take your time if you need to do this and it will look amazing when your done. I kinda cheated a little and built some wooden stands for each flare to sit on while I cleared it. I held each one so I could manipulate it to get to the surface I was clearing, then held them "flat" when I sprayed the face, which allowed me to put on a good, wet coat without having to worry about runs. They turned out GREAT !!! And no orange peel !! And now, some pics to appease the masses....

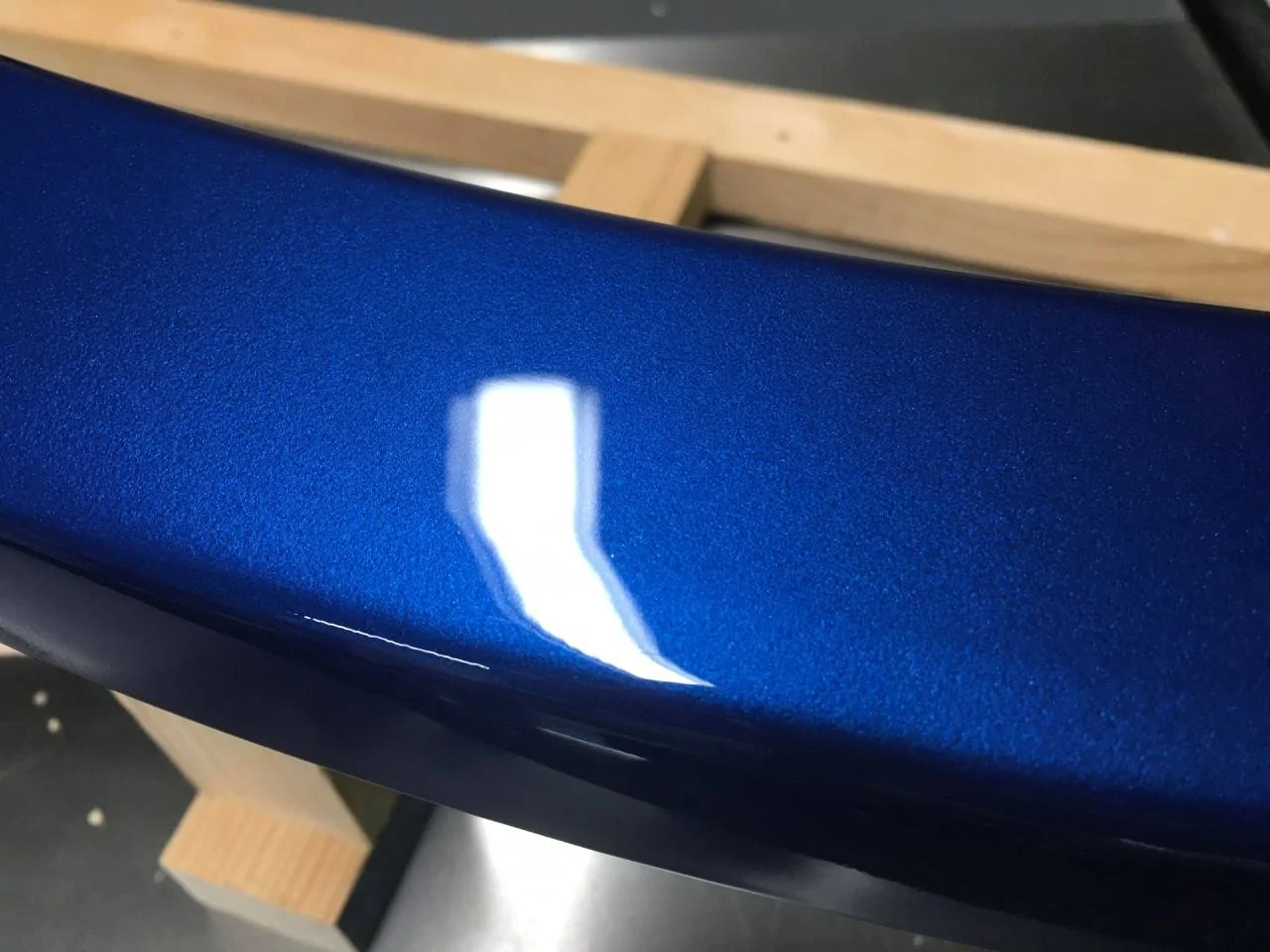

flare close up 1.jpg

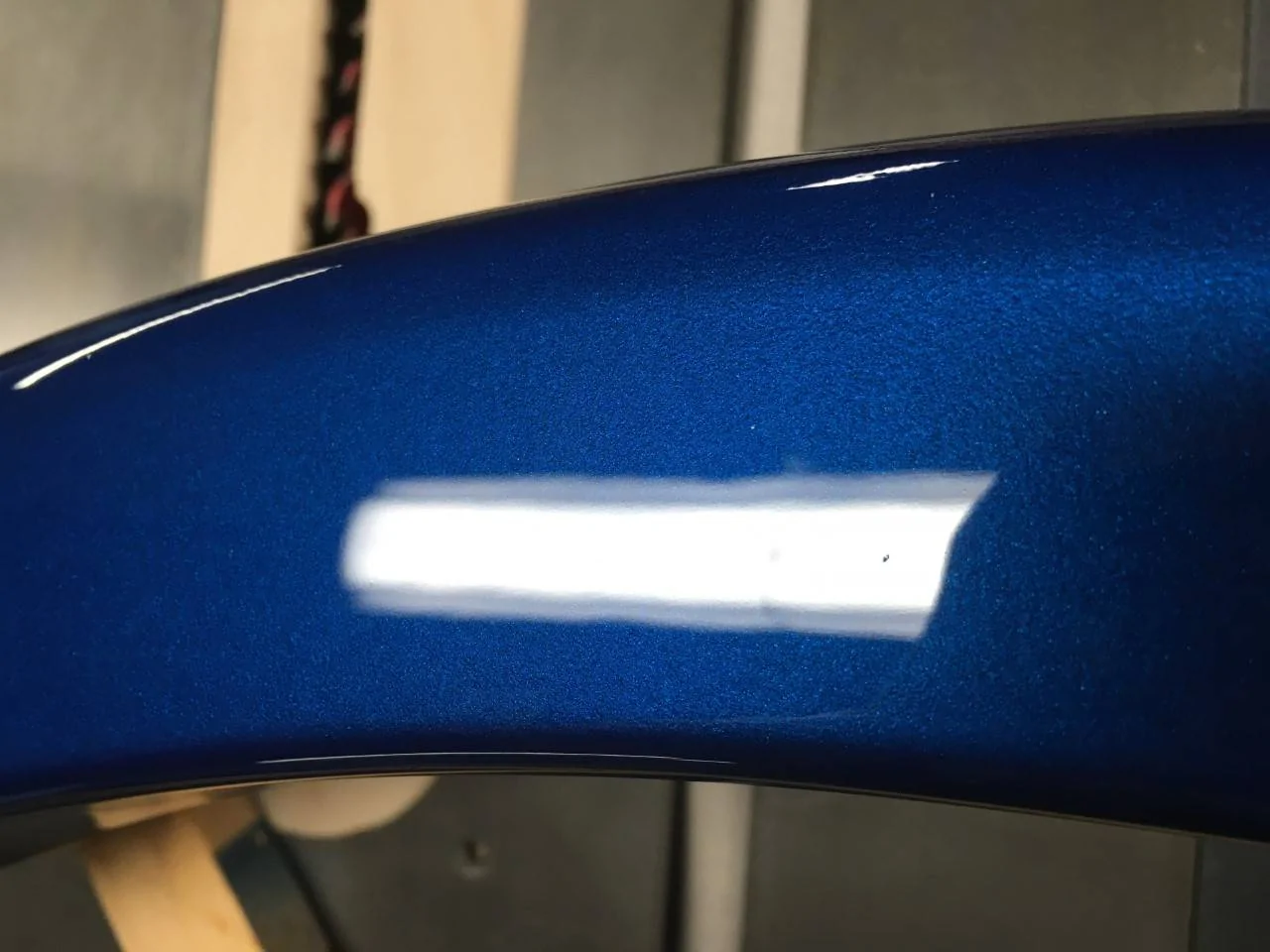

flare close up 2.jpg

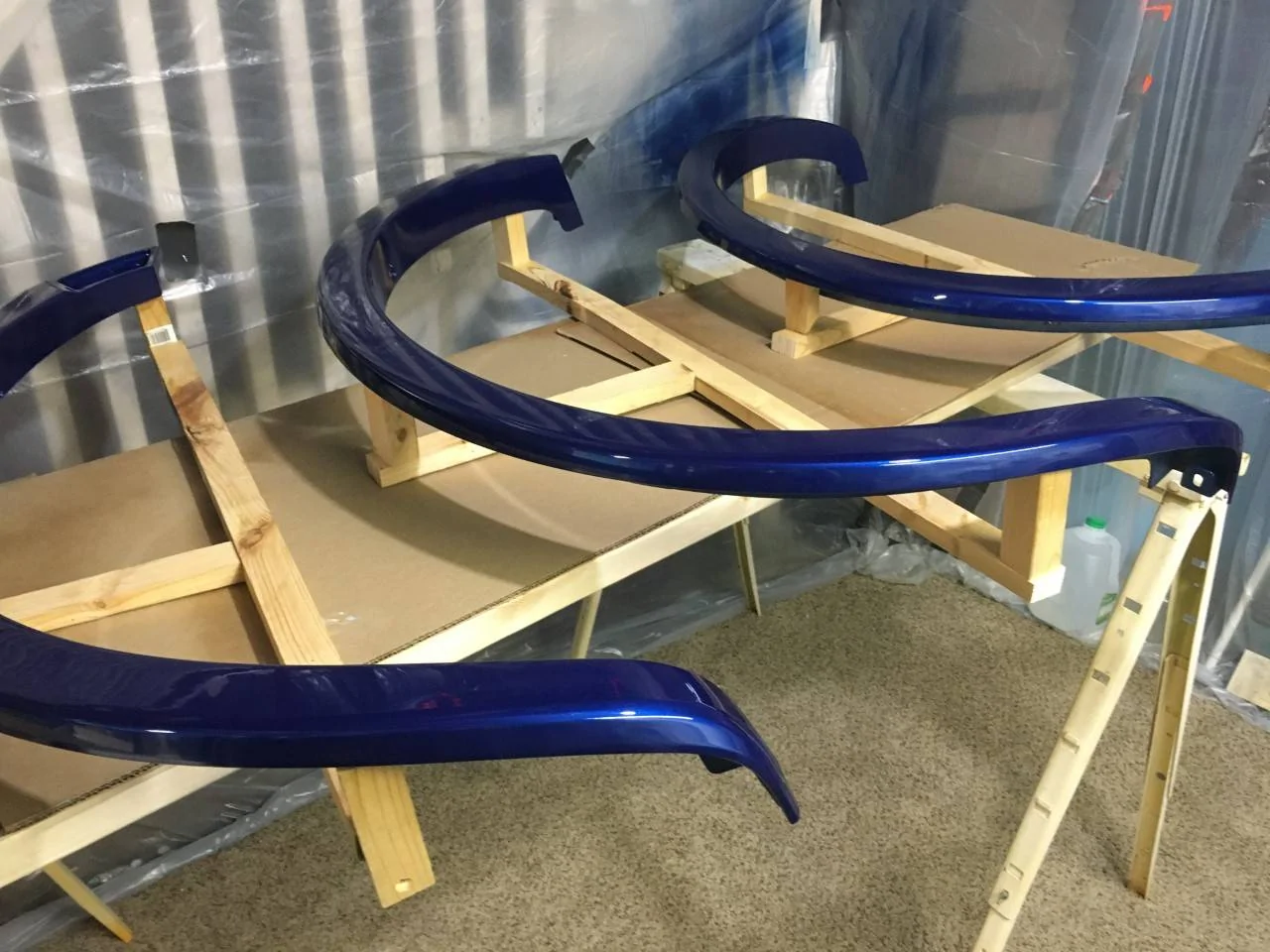

Flare mounted on flat stand.jpg

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
I believe most of our trucks have fender flares that came with them?
I'd call them fender "trim". They are flush with the fender, whereas the Tremor flares stick out. Just look at a pic of a Tremor and you'll see a big difference :like:


NurseNeil

Well-Known Member
First Name
Neil
Joined
Dec 25, 2020
Messages
277
Reaction score
446
Location
Winston-Salem,NC
Vehicle(s)
2020 Ranger XLT, SPORT
Occupation
Nurse
If you mess up the clear coat, like I did, there is an "easy" fix. The clear came out with way too much orange peel for my liking and it wouldn't have looked good/factory. I wet sanded all the flares with 800 grit wet/dry sandpaper. The 800 grit allows a good grip for the clear and more importantly, it is smooth enough so the sanding "scratches" won't show. You want the same dull look like the pic I posted above. It took me about an hour to sand each flare down, being careful not to go through the existing clear coat. Take your time if you need to do this and it will look amazing when your done. I kinda cheated a little and built some wooden stands for each flare to sit on while I cleared it. I held each one so I could manipulate it to get to the surface I was clearing, then held them "flat" when I sprayed the face, which allowed me to put on a good, wet coat without having to worry about runs. They turned out GREAT !!! And no orange peel !! And now, some pics to appease the masses....

flare close up 1.jpg


flare close up 2.jpg


Flare mounted on flat stand.jpg
Those look awesome

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1

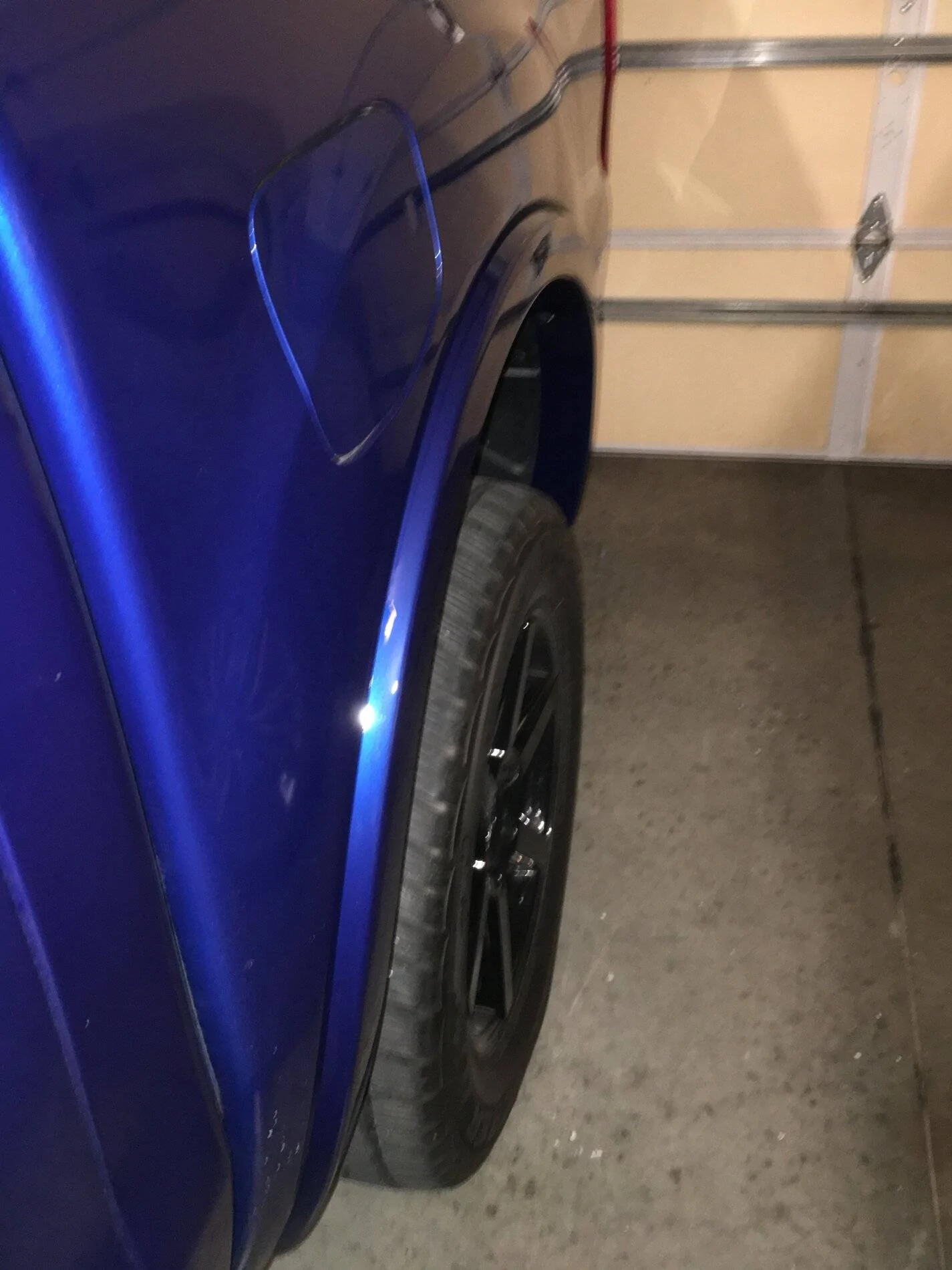

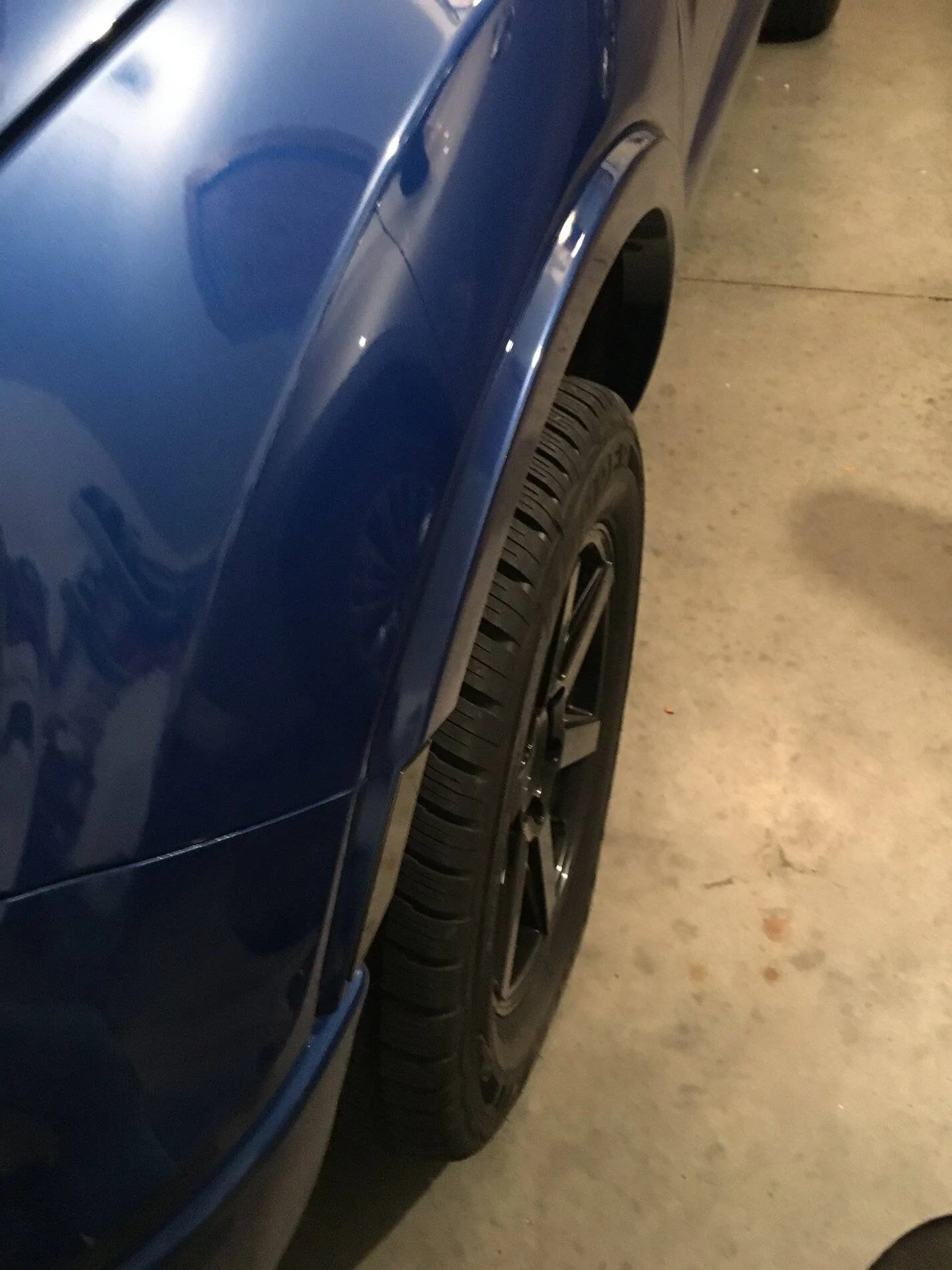

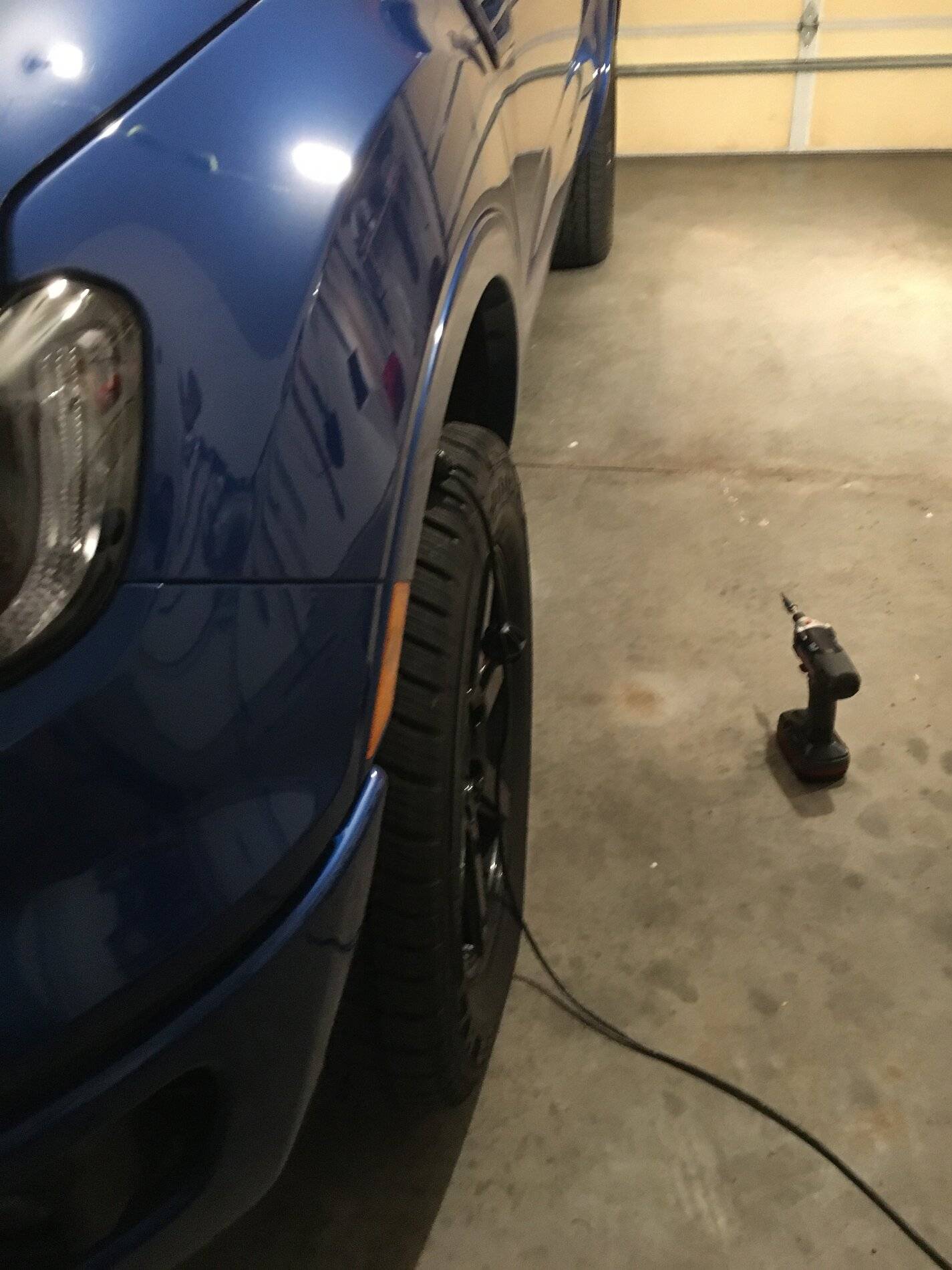

I FINALLY got these Tremor flares and LED tinted side marker lights installed today. Took about 2 hrs and didn’t have to remove the front wheels like the instructions showed. I’ll post more/better pics in a day or 2.





Front—

Rear—


Jrel209

Well-Known Member
Joined
Sep 30, 2020
Messages
352
Reaction score
523
Location
Wa
Vehicle(s)
2020 Ranger XLT crew cab
I FINALLY got these Tremor flares and LED tinted side marker lights installed today. Took about 2 hrs and didn’t have to remove the front wheels like the instructions showed. I’ll post more/better pics in a day or 2.





Front—

Rear—
Looks amazing. Did u move the felt in the wheel wells like the instructions state, or did you u just remove them easily by the clips and snapping it out?

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
Looks amazing. Did u move the felt in the wheel wells like the instructions state, or did you u just remove them easily by the clips and snapping it out?
I just pushed it in and down enough to get to the light plug. I did remove 2 of the front inner fender well "screws" to get a little extra play in it. The first side was a little trying, but the 2nd one only took 10-15 minutes.

I did the rears first, removed the 2 "bolts" at the front and back, then gently and carefully ripped them off....broke all the little white clips. The new flares come with all the clips, so no biggie. I also used a set of diagonal cutters to clip off the white clips and the retention parts just fell into the void behind the inner fender well....most fell out, but some didn't, but will eventually.


GitRDone

Well-Known Member
First Name
Andrew
Joined
Nov 25, 2020
Messages
160
Reaction score
355
Location
Orlando Fl
Vehicle(s)
2020 XLT
Occupation
Real estate management
Excellent summary of rattle can spray work, you are spot on about the prep work requiring the most focus. One of the oft-repeated rookie moves begins with "don't worry the paint will cover it". (Wrong, grasshopper - it only highlight your boo boo). I have also used the R & E paint and 2x catalyzed clear, good stuff.

Question on #2: I typically wipe down with prepsol or denatured alcohol, how is soap/ water better and are you leaving soap film behind?

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
Excellent summary of rattle can spray work, you are spot on about the prep work requiring the most focus. One of the oft-repeated rookie moves begins with "don't worry the paint will cover it". (Wrong, grasshopper - it only highlight your boo boo). I have also used the R & E paint and 2x catalyzed clear, good stuff.

Question on #2: I typically wipe down with prepsol or denatured alcohol, how is soap/ water better and are you leaving soap film behind?
Thank You !!

The degreaser is made by Duplicolor and I was also concerned about it leaving a film/residue, but it worked like it said it would. I made sure to wipe it off and not to let it dry, which I think, would leave a film behind.

OP
OP
Rinn69

Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Messages
1,010
Reaction score
1,711
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1

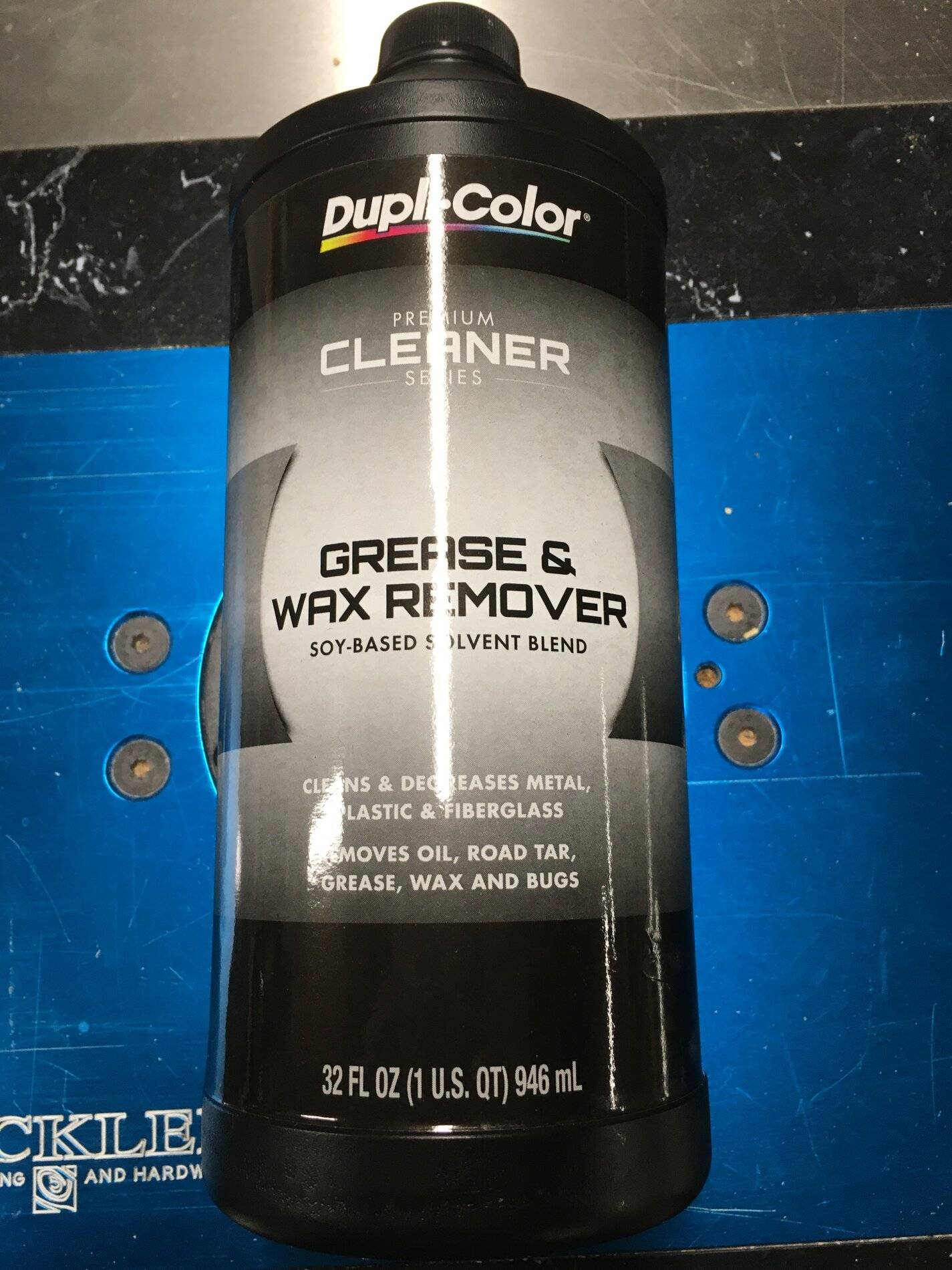

Here is the wax and grease remover I used…it’s soy based and it doesn't smell like a solvent...not sure if it has VOC's or not, but it didn't smell like it.
