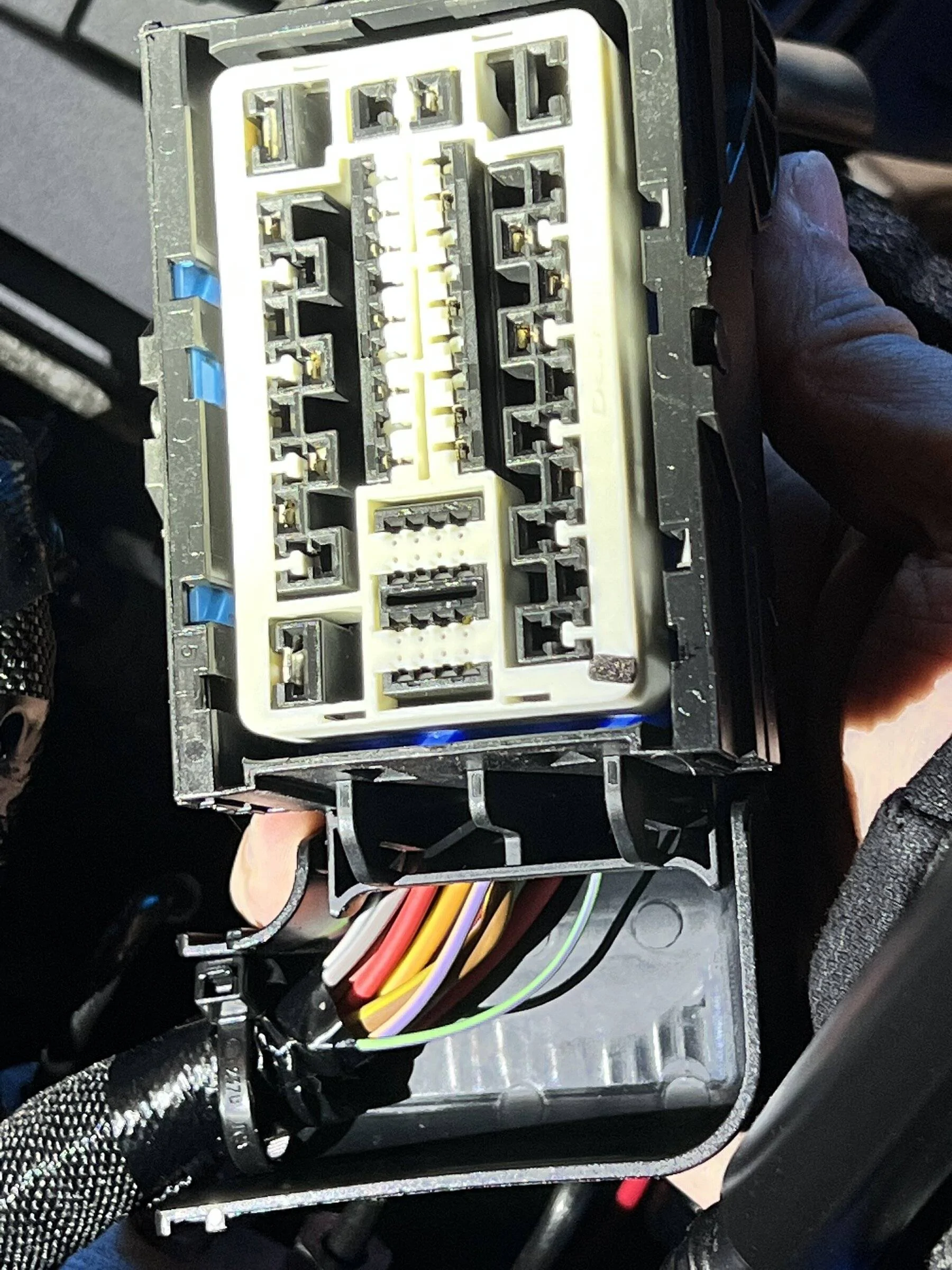

I'm trying to find out the pinout and matching wire color map for the connectors to the fuse box in the engine bay. Pics of the connectors are attached.

I'd like to ultimately find a map of the fuses to wires coming out of the harness. If anyone has this available, or knows where it can be found - please let me know!

Ultimate goal is to tap a wire for 12v accessory switch detection (down from the harness a bit.)


Sponsored


OP
OP
ebob9

ebob9

Active Member
First Name
A
Joined
Feb 5, 2022
Threads
17
Messages
40
Reaction score
30
Location
Fremont, CA
Vehicle(s)
2021 Ranger Lariat Supercab
Occupation
Professional Lurker
Well, after searching I found the answer! Figured I'd come answer my own question for anyone else who is looking for the same.

The Connectors are C1035A and C1035B - connected to the Battery Junction Box (BJB).

In other posts, I've found the following pinouts of the connectors - attached.

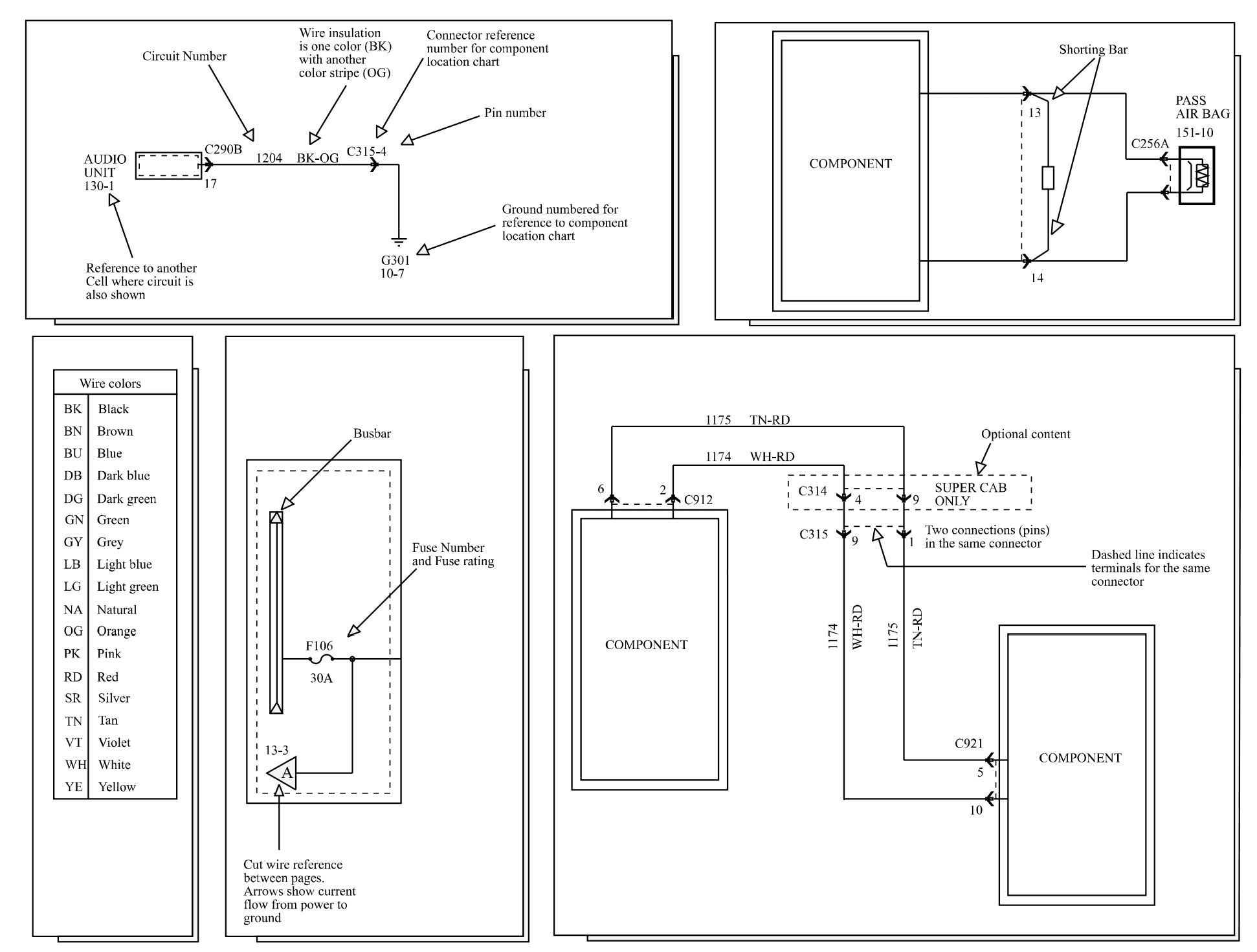

In the detail of the pins in the PDF, there is a color code. Attaching an image on how to read the color codes and what they mean as well:
read wire colors.png
