Help! Why did this pull out?

jubalr

Member
First Name
Jubal
Joined
Jun 7, 2020
Threads
3
Messages
15
Reaction score
19
Location
Winchester, TN
Vehicle(s)
2019 XLT Sport
Occupation
Retired

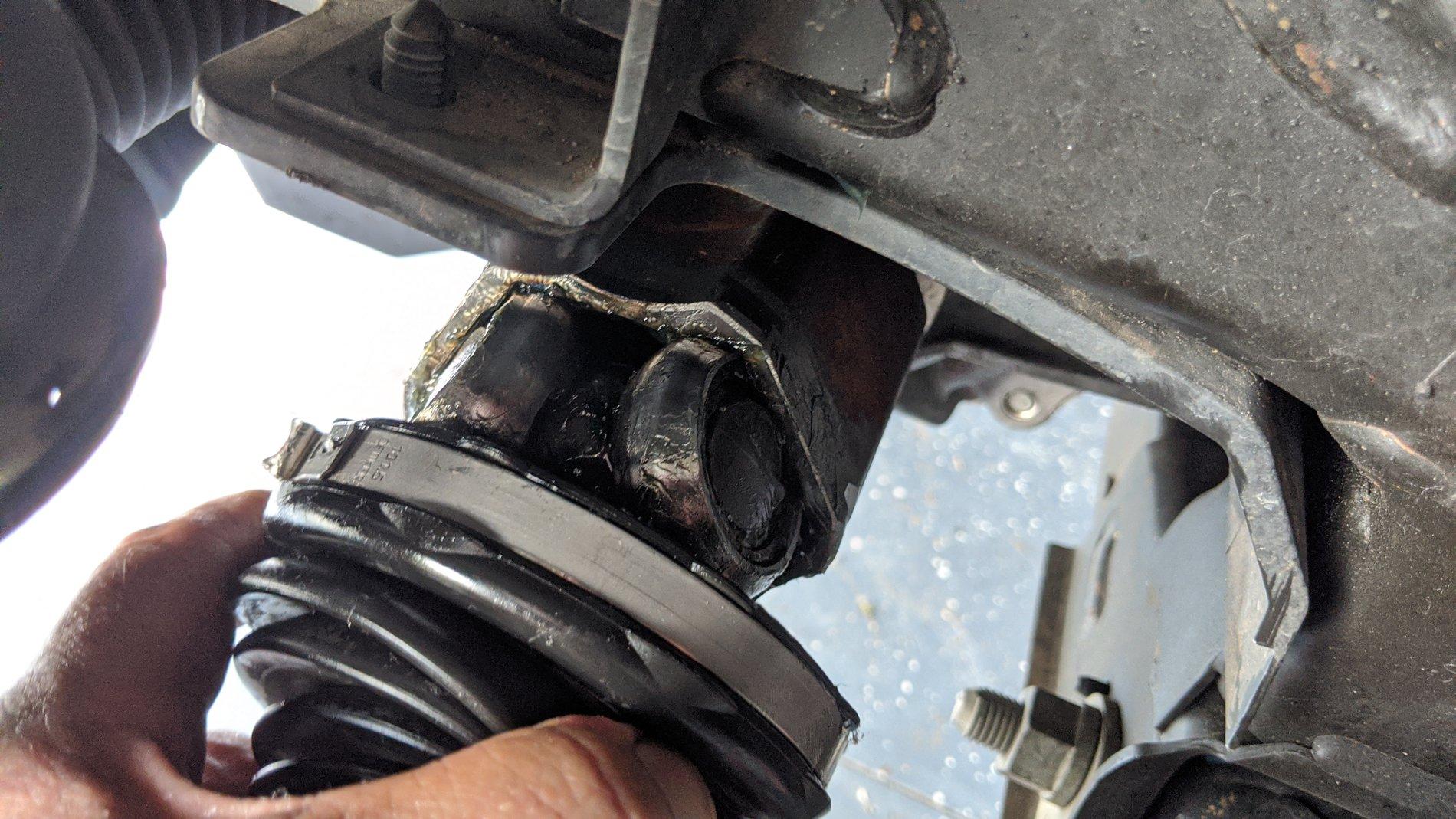

So I was installing a 2.5" leveling kit over the front struts, but apparently with the slack on the drive shaft the bearings came out of this housing. I know they are supposed to slide back and forth in there, but what's the best way to get them back in? Any help appreciated!
Sponsored



Lowdawg

Member
Joined
Dec 28, 2019
Threads
1
Messages
8
Reaction score
22
Location
North Carolina
Vehicle(s)
2019 Ranger STX 4Ă—4
I wish I was there in person to see exactly what you're dealing with...have you tried just pushing it back in so that it feels secure and doest turn freely? Could be that you just need to clean off some of that grease so when you clamp the boot back on it stays on better. Local part store should have what you need to clamp it back on. Worst cast scenario you need to buy a new boot or shaft


PeterPotatoes

Member
First Name
Peter
Joined
May 21, 2020
Threads
1
Messages
11
Reaction score
35
Location
Colorado
Vehicle(s)
2019 Ranger Lariat
Occupation
Mechanic
The bearings should slide back in when pushed inward and into the cup.

You need to flatten/open up that fold on the clamp to get the boot back on and then squeeze it back to get it to stick, there's a special tool to tighten them.

Or just carefully cut off that band (don't cut the boot) and get a worm gear clap at auto zone that is the same diameter.


P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
141
Messages
7,012
Reaction score
36,169
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
So I was installing a 2.5" leveling kit over the front struts, but apparently with the slack on the drive shaft the bearings came out of this housing. I know they are supposed to slide back and forth in there, but what's the best way to get them back in? Any help appreciated!
Hi Jubal,

You seem to have not loosened the spindle nut and so you are fighting your suspension droop. Loosen the spindle nut and gently tap it free from the steering knuckle. Hopefully it will go together. Many folks on these forums have similar difficulties and most got things back together, so you should also.

Good Luck...

Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired


Mokume

Well-Known Member
First Name
Jeff
Joined
Aug 18, 2019
Threads
40
Messages
1,718
Reaction score
2,625
Location
Honolulu, Hawaii
Vehicle(s)
2000 Ranger Supercab (sold 12/19) , 2002 Honda CR-V
Occupation
Retired Firefighter III, Honolulu Fire Department
Hi Jubal,

You seem to have not loosened the spindle nut and so you are fighting your suspension droop. Loosen the spindle nut and gently tap it free from the steering knuckle. Hopefully it will go together. Many folks on these forums have similar difficulties and most got things back together, so you should also.

Good Luck...

Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired
The exact same thing happened to me almost 40 years ago in my early years as a mechanic, I was scared out of my wits, but the shop foreman came to my rescue.
Ever since I ALWAYS remove the axle retaining nut to avoid this.

Phil, do you remember the early Escort/Lynx transaxles in which if you did not insert a dummy CV joint shaft in either end of the differential side gear then removed the other shaft that the side gears would dislodge, this snafu required transaxle disassembly. Not fun, not fun at all....



OP
OP

jubalr

Member
First Name
Jubal
Joined
Jun 7, 2020
Threads
3
Messages
15
Reaction score
19
Location
Winchester, TN
Vehicle(s)
2019 XLT Sport
Occupation
Retired
Thanks everyone for your tips and help! I'm going to see if I can get it all back together this morning. Starting with loosening the spindle nut. The video I watched for the kit never mentioned it.


rooster

Well-Known Member
Joined
Oct 8, 2018
Threads
9
Messages
239
Reaction score
532
Location
BOS
Vehicle(s)
STX FX4 SuperCrew
Occupation
engineering systems admin
Vehicle Showcase
1
here is some helpful documentation ... try not to pull the the end that is still in the axle, there is a seal you don't want to disturb ... try and get it back together in place.


Attachments

P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
141
Messages
7,012
Reaction score
36,169
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
The exact same thing happened to me almost 40 years ago in my early years as a mechanic, I was scared out of my wits, but the shop foreman came to my rescue.
Ever since I ALWAYS remove the axle retaining nut to avoid this.

Phil, do you remember the early Escort/Lynx transaxles in which if you did not insert a dummy CV joint shaft in either end of the differential side gear then removed the other shaft that the side gears would dislodge, this snafu required transaxle disassembly. Not fun, not fun at all....
Hi Jeff,

I do remember..The mechanics in the Experimental Garage on the car side were not at all happy with this transaxle. I personally never got involved but was aware of this design flaw!


JAKE2.3

Well-Known Member
First Name
Jake
Joined
Apr 30, 2020
Threads
5
Messages
388
Reaction score
1,004
Location
Pennsylvania
Vehicle(s)
2019 Ranger STX, 2018 Mustang Ecoboost
Occupation
Appraiser
I did the same thing. Don't panic. You probably won't get it to slide back together. You can try, but you'll have to take it out and put it back together. You can do it in the truck, but it's much easier this way. After everything else is off / out of the way, use a pry bar and gently snap the inside shaft of the case. Put it a bench vise vertically. Start the shaft back in the cup, align all the balls in the cage (8 of them, I think). There's also a snap ring probably inside your boot. Put the back in after the cage. Go to napa or whatever and get 2 new straps. Put them on. Put the shaft back in make sure it snaps / clicks in to the transfer case. Reassemble everything else. Holler if you need more detail.

Wait a minute, scratch that for a second. I went back and looked at the picture. Is it just three bearings? What gives. What year is your truck? Mine had 8 balls and a cage in it. You should be able to just snap yours back in.

OP
OP

jubalr

Member
First Name
Jubal
Joined
Jun 7, 2020
Threads
3
Messages
15
Reaction score
19
Location
Winchester, TN
Vehicle(s)
2019 XLT Sport
Occupation
Retired
I was able to get it back in. With both sides of the sway bar down I was able to lift it enough to slide it back in. I then used a zip tie to hold it up until I got everything else on. It was just a matter of getting it aligned just right so it would slide in. Thanks Again Everyone! Great place to get help here.

OP
OP

jubalr

Member
First Name
Jubal
Joined
Jun 7, 2020
Threads
3
Messages
15
Reaction score
19
Location
Winchester, TN
Vehicle(s)
2019 XLT Sport
Occupation
Retired
I did the same thing. Don't panic. You probably won't get it to slide back together. You can try, but you'll have to take it out and put it back together. You can do it in the truck, but it's much easier this way. After everything else is off / out of the way, use a pry bar and gently snap the inside shaft of the case. Put it a bench vise vertically. Start the shaft back in the cup, align all the balls in the cage (8 of them, I think). There's also a snap ring probably inside your boot. Put the back in after the cage. Go to napa or whatever and get 2 new straps. Put them on. Put the shaft back in make sure it snaps / clicks in to the transfer case. Reassemble everything else. Holler if you need more detail.

Wait a minute, scratch that for a second. I went back and looked at the picture. Is it just three bearings? What gives. What year is your truck? Mine had 8 balls and a cage in it. You should be able to just snap yours back in.
Thanks Jake. My Ranger is a 2019 Sport 4x4 crew. There was just 3 bearings per side.


JAKE2.3

Well-Known Member
First Name
Jake
Joined
Apr 30, 2020
Threads
5
Messages
388
Reaction score
1,004
Location
Pennsylvania
Vehicle(s)
2019 Ranger STX, 2018 Mustang Ecoboost
Occupation
Appraiser
Thanks Jake. My Ranger is a 2019 Sport 4x4 crew. There was just 3 bearings per side.
Hmm super weird. 2019 xl 4x4 crew and I had the ball bearings. Maybe somebody else here knows more? Either way, glad you were able to figure it out.


Mokume

Well-Known Member
First Name
Jeff
Joined
Aug 18, 2019
Threads
40
Messages
1,718
Reaction score
2,625
Location
Honolulu, Hawaii
Vehicle(s)
2000 Ranger Supercab (sold 12/19) , 2002 Honda CR-V
Occupation
Retired Firefighter III, Honolulu Fire Department
I was able to get it back in. With both sides of the sway bar down I was able to lift it enough to slide it back in. I then used a zip tie to hold it up until I got everything else on. It was just a matter of getting it aligned just right so it would slide in. Thanks Again Everyone! Great place to get help here.
Good job! :thumbsup::thumbsup::thumbsup:

OP
OP

jubalr

Member
First Name
Jubal
Joined
Jun 7, 2020
Threads
3
Messages
15
Reaction score
19
Location
Winchester, TN
Vehicle(s)
2019 XLT Sport
Occupation
Retired
Hmm super weird. 2019 xl 4x4 crew and I had the ball bearings. Maybe somebody else here knows more? Either way, glad you were able to figure it out.
That's interesting Jake. Not sure why there would be a difference. I looked up the replacement front shafts online and they appear to be the same as I have; 3 bearings going into the cup.
