heavy duty tonneau covers?

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Threads
18
Messages
484
Reaction score
755
Location
Lakewood, CO
Website
www.TJAoutfitters.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
video/film, small business owner
I see lots of posts about tonneau/rack combos, but does anyone have a heavy duty tonneau that doubles as a rack? something you can set things on a strap stuff to?

I've been looking at diamondback covers and they seem great, but that's the only thing I can find like that.

anyone know of any other options?
Sponsored



halligan1201

Well-Known Member
First Name
John
Joined
Jan 23, 2021
Threads
37
Messages
1,567
Reaction score
3,557
Location
Byron, IL
Vehicle(s)
2020 Ranger
Occupation
Emergency Management
Vehicle Showcase
1
Retrax makes the One and Pro XR series. They are retractable locking covers. The One is what I have; it's a composite and will hold 250lbs directly strapped to it. The Pro is aluminum and will hold 500lbs. Both have a rail system that will allow Thule, Yakima, Rhino, Billie Bar, and Elevate racks to be attached. Additionally you can add cleats for straps.


D Fresh

Banned
Banned
First Name
Doug
Joined
Dec 10, 2020
Threads
20
Messages
6,282
Reaction score
13,543
Location
Colorado
Vehicle(s)
'20 Lariat FX4, '17 FiST, '16 CX-5, '95 YJ
Occupation
Milkman
I looked at trying to pair a retrax with a softopper or Bestop. I had deemed it would be possible with drilling through the rails before I found my Fastop.


johnboy13

Member
First Name
John
Joined
Oct 29, 2021
Threads
3
Messages
24
Reaction score
28
Location
64056
Vehicle(s)
2021 Ford Ranger
Occupation
Ford Assembly Plant
I see lots of posts about tonneau/rack combos, but does anyone have a heavy duty tonneau that doubles as a rack? something you can set things on a strap stuff to?

I've been looking at diamondback covers and they seem great, but that's the only thing I can find like that.

anyone know of any other options?
I bought the retractable aluminum Retrax Pro and I love it, easy to install and lifetime warranty!!



FunInTheSun

Well-Known Member
First Name
Dave
Joined
Jun 6, 2021
Threads
2
Messages
543
Reaction score
1,596
Location
South Florida
Vehicle(s)
2021 Ranger XL 4x4, STX, in Velocity Blue
Occupation
Engineer (Semi-Retired)
Vehicle Showcase
1
I see lots of posts about tonneau/rack combos, but does anyone have a heavy duty tonneau that doubles as a rack? something you can set things on a strap stuff to?

I've been looking at diamondback covers and they seem great, but that's the only thing I can find like that.

anyone know of any other options?
Truxedo Sentry CT (aluminum slat type roll-up) is rated for 400 lb, but it doesn't have tie-down cleats. It isn't really intended for that job. It has a fabric surface, so it could end up looking beat-up if you put hard, dirty objects on it regularly, unless you put a blanket under the load or something similar to protect the surface from abrasion. I wouldn't really recommend it for regular use, but it would probably survive carrying light stuff. I have stepped on it once, and it complained a bit, but it didn't collapse. I wouldn't put anything close to 400 lb on it, because that's a static load rating, and just hitting a decent bump could cause a collapse. You could put a dry bag or an inflatable raft on there, but you'd have to improvise a tie-down.

OP
OP
RoadBoss

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Threads
18
Messages
484
Reaction score
755
Location
Lakewood, CO
Website
www.TJAoutfitters.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
video/film, small business owner

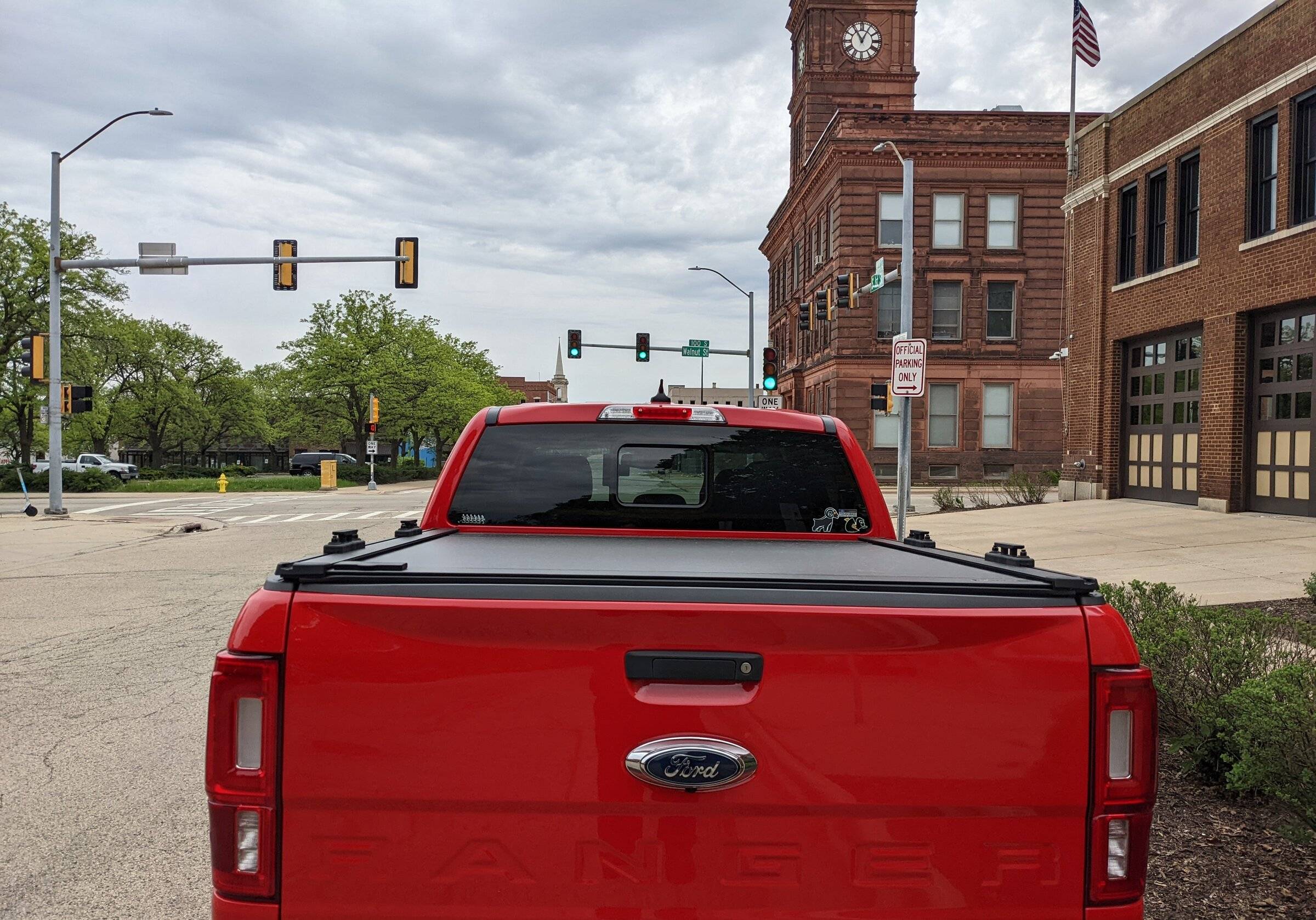

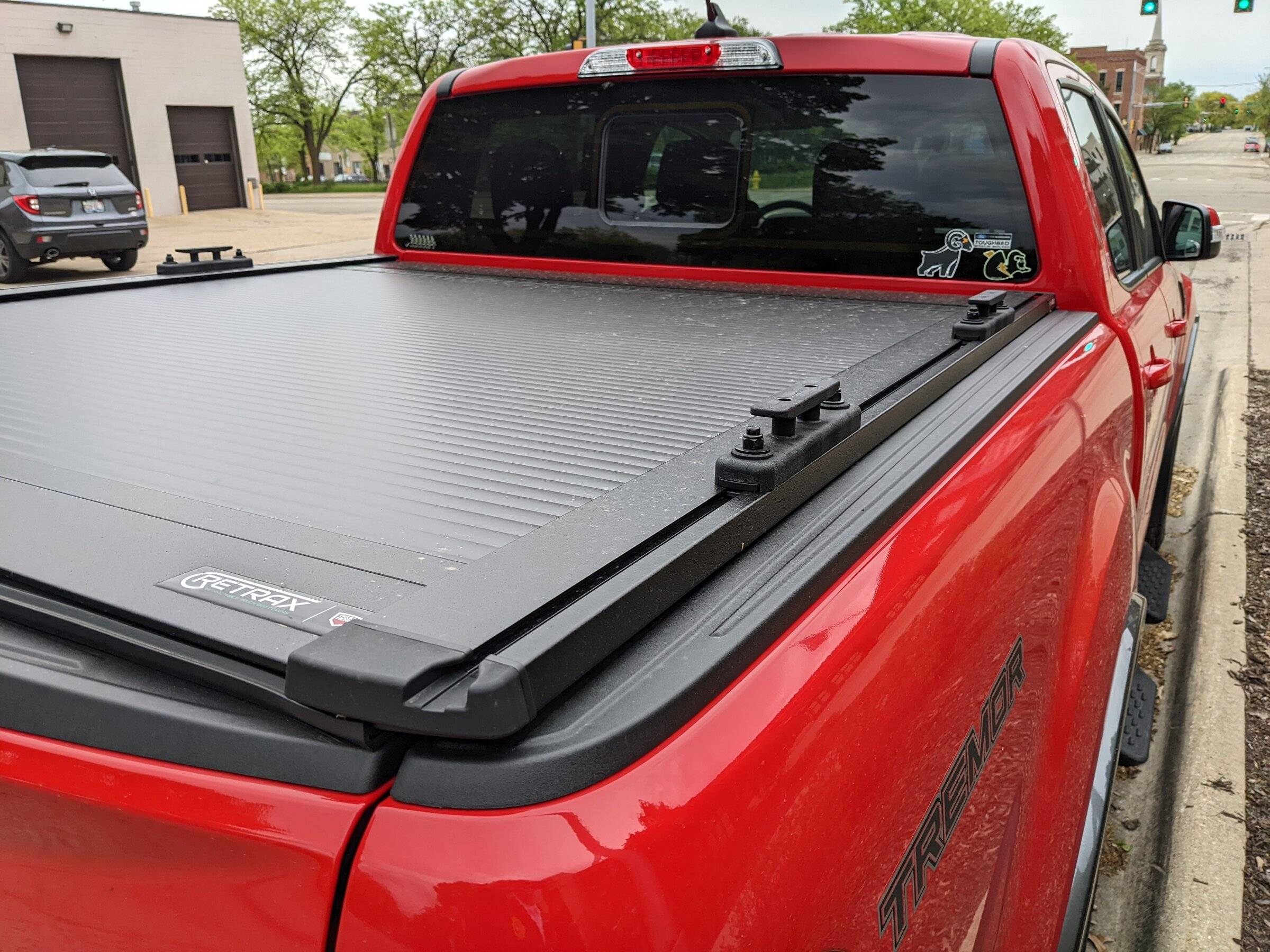

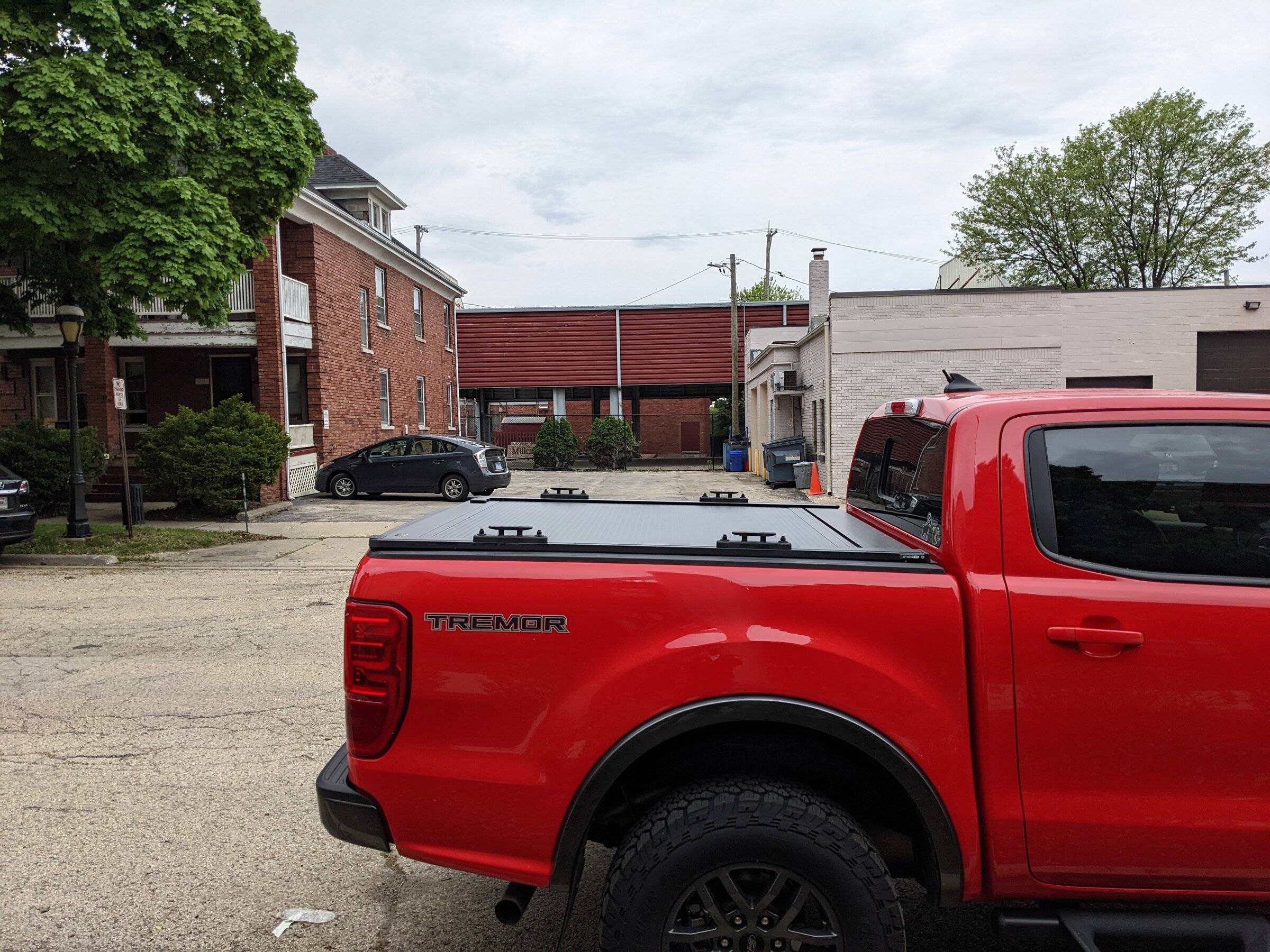

@RoadBoss this is what the RetraxOne XR with the rail and cleats looks like. @Stevedbvik1 has the Elevate rack on his truck and I'll be adding it to mine in addition to the cleats.





That looks really nice, thanks. I was kinda picturing mounting things to it, which wouldn't work with a retractable, but I'm not sure if I'd want to drill into a new expensive cover anyway, so that might actually work.


halligan1201

Well-Known Member
First Name
John
Joined
Jan 23, 2021
Threads
37
Messages
1,567
Reaction score
3,557
Location
Byron, IL
Vehicle(s)
2020 Ranger
Occupation
Emergency Management
Vehicle Showcase
1
That looks really nice, thanks. I was kinda picturing mounting things to it, which wouldn't work with a retractable, but I'm not sure if I'd want to drill into a new expensive cover anyway, so that might actually work.
I'm not sure what you're wanting to mount but the rails would make it possible to build a frame above the cover; I'm going to use slotted angle pieces to build a rack that I can attach my bike mounts to. Should cost $20 from the hardware store to buy the slotted angle and t-slot bolts. The rails were the big attraction to this cover for me because I can fasten all sorts of contraptions without having to drill. I'm going to use extruded aluminum to make a basket mount for a spare tire and gas as well.


TheDo114

Well-Known Member
Joined
Aug 2, 2020
Threads
3
Messages
271
Reaction score
692
Location
Canada
Vehicle(s)
2021 Ranger Tremor XLT
OP
OP
RoadBoss

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Threads
18
Messages
484
Reaction score
755
Location
Lakewood, CO
Website
www.TJAoutfitters.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
video/film, small business owner
I'm not sure what you're wanting to mount but the rails would make it possible to build a frame above the cover; I'm going to use slotted angle pieces to build a rack that I can attach my bike mounts to. Should cost $20 from the hardware store to buy the slotted angle and t-slot bolts. The rails were the big attraction to this cover for me because I can fasten all sorts of contraptions without having to drill. I'm going to use extruded aluminum to make a basket mount for a spare tire and gas as well.
I've got all sorts of weird ideas going on in my head that would be too hard to explain, but I definitely agree with you about having the rails on the side. I'm even thinking now about doing a short rack over just part of the bed, and leaving the rear open... I dunno. Too many ideas

OP
OP
RoadBoss

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Threads
18
Messages
484
Reaction score
755
Location
Lakewood, CO
Website
www.TJAoutfitters.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
video/film, small business owner

OffroadAlliance

Diamond Sponsor
Joined
May 19, 2019
Threads
51
Messages
243
Reaction score
275
Location
Brockton, MA & Houston, TX
Website
www.offroadalliance.com
Vehicle(s)
2019 Ranger, 2021 Raptor, 2022 F250, 2023 Bronco
If you do decide to go with a Retrax cover, don't hesitate to reach out. We usually get good prices for forum members and love helping out! The RetraxPro is amazing if you end up going with a cover that you don't need to be stationary like the diamondback.
