Finally got the radio installed. Running the wires was a major pain. Ended up running them down the left side towards the back of the truck. It seems no matter what route it tried I kept running into some sort of barrier. Once the wires came down by the gas pedal, I zip tied them all over to the grommet where the hood release latch passes through the fire wall. Getting the wires through that grommet was difficult as well. Glad I decided to not remote mount the body of the radio.

If anyone knows of an earlier way to route wires through the dash maybe the next person can benefit.



Sponsored



Rinn69

Well-Known Member
First Name
Mike
Joined
Nov 25, 2018
Threads
53
Messages
1,286
Reaction score
2,956
Location
N. Central Iowa
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4 Lightning Blue
Occupation
Retired USAF MSgt
Vehicle Showcase
1
How bad did you cringe while drilling a hole in the hood ? :crying:


samsd

Well-Known Member
First Name
Dan
Joined
May 2, 2019
Threads
0
Messages
312
Reaction score
1,213
Location
62401
Vehicle(s)
2019 Ranger Lariat 4x4 HPR, 2016 Town and Country, 2004 Road King Custom
Occupation
Retired
Same thing Steven, want to know how long you stood there with the drill before you did the deed.:frown:



samsd

Well-Known Member
First Name
Dan
Joined
May 2, 2019
Threads
0
Messages
312
Reaction score
1,213
Location
62401
Vehicle(s)
2019 Ranger Lariat 4x4 HPR, 2016 Town and Country, 2004 Road King Custom
Occupation
Retired
My dad was a ham back in the 70's, everything was Morse code. Anybody he made contact with they traded postcards with their call sign. I think CQ was a universal call sign for anybody that wanted to make a contact? I thought about getting into it now that I am retired. But cool install and glad you did not wound the hood.


me01

Well-Known Member
Joined
May 13, 2019
Threads
2
Messages
50
Reaction score
49
Location
AU
Vehicle(s)
RANGER 2019 AU
Now you can chat on our SW, sold and bought by our gov to the chinese. :-(

Cool mod mate.


t4thfavor

Well-Known Member
First Name
Chance
Joined
Feb 5, 2019
Threads
32
Messages
2,593
Reaction score
2,330
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4 Fox 2.0, 2011 Ford Edge Sport
Got mine installed finally. Antenna wire comes in through the weird vent behind the rear seat, fished wires up to the dash tray for the faceplate.

The power is currently cigarette lighter(ew), but will be running power from the fuse panel as soon as I can figure out where the positive lug is, and how to access it.

EDIT: As soon as I wrote the cigarette lighter thing, I felt bad and ran the power through the hood release grommet.




Last edited:

tivct

Well-Known Member
Joined
Mar 20, 2019
Threads
6
Messages
194
Reaction score
355
Location
Dearborn, MI
Vehicle(s)
Tremor, Focus RS
W
Got mine installed finally. Antenna wire comes in through the weird vent behind the rear seat, fished wires up to the dash tray for the faceplate.

The power is currently cigarette lighter(ew), but will be running power from the fuse panel as soon as I can figure out where the positive lug is, and how to access it.

EDIT: As soon as I wrote the cigarette lighter thing, I felt bad and ran the power through the hood release grommet.



What dash bracket/mount is that?


t4thfavor

Well-Known Member
First Name
Chance
Joined
Feb 5, 2019
Threads
32
Messages
2,593
Reaction score
2,330
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4 Fox 2.0, 2011 Ford Edge Sport
W

What dash bracket/mount is that?
It's the "factory" pedestal that comes with the D710GA. I do have a LIDO seat bolt mount, but ford hid all of the seat bolts, so I didn't even bother trying it.


JonB

Well-Known Member
Joined
Nov 29, 2019
Threads
17
Messages
174
Reaction score
210
Location
Elmhurst, IL USA
Vehicle(s)
2019 Ford Ranger XLT

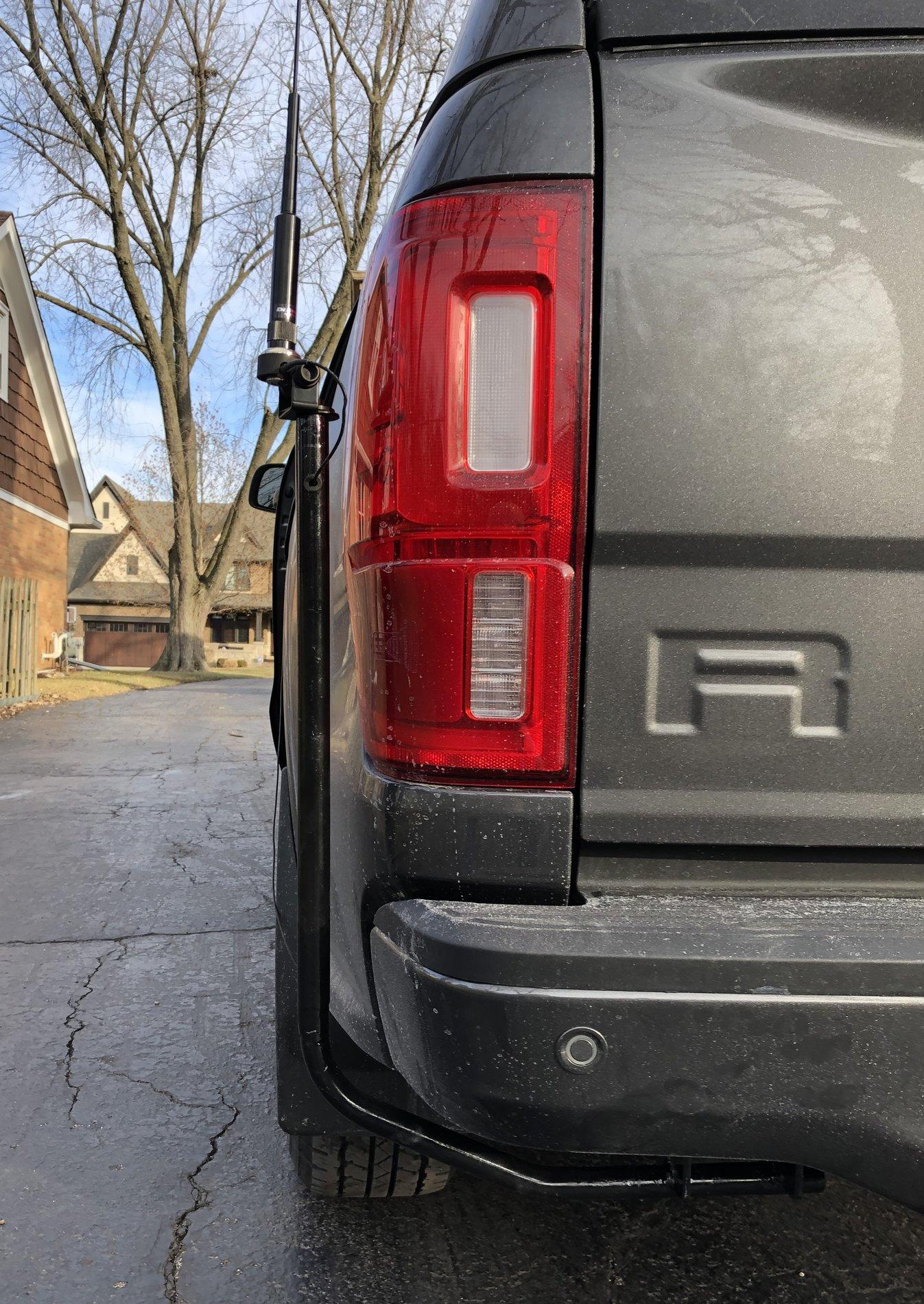

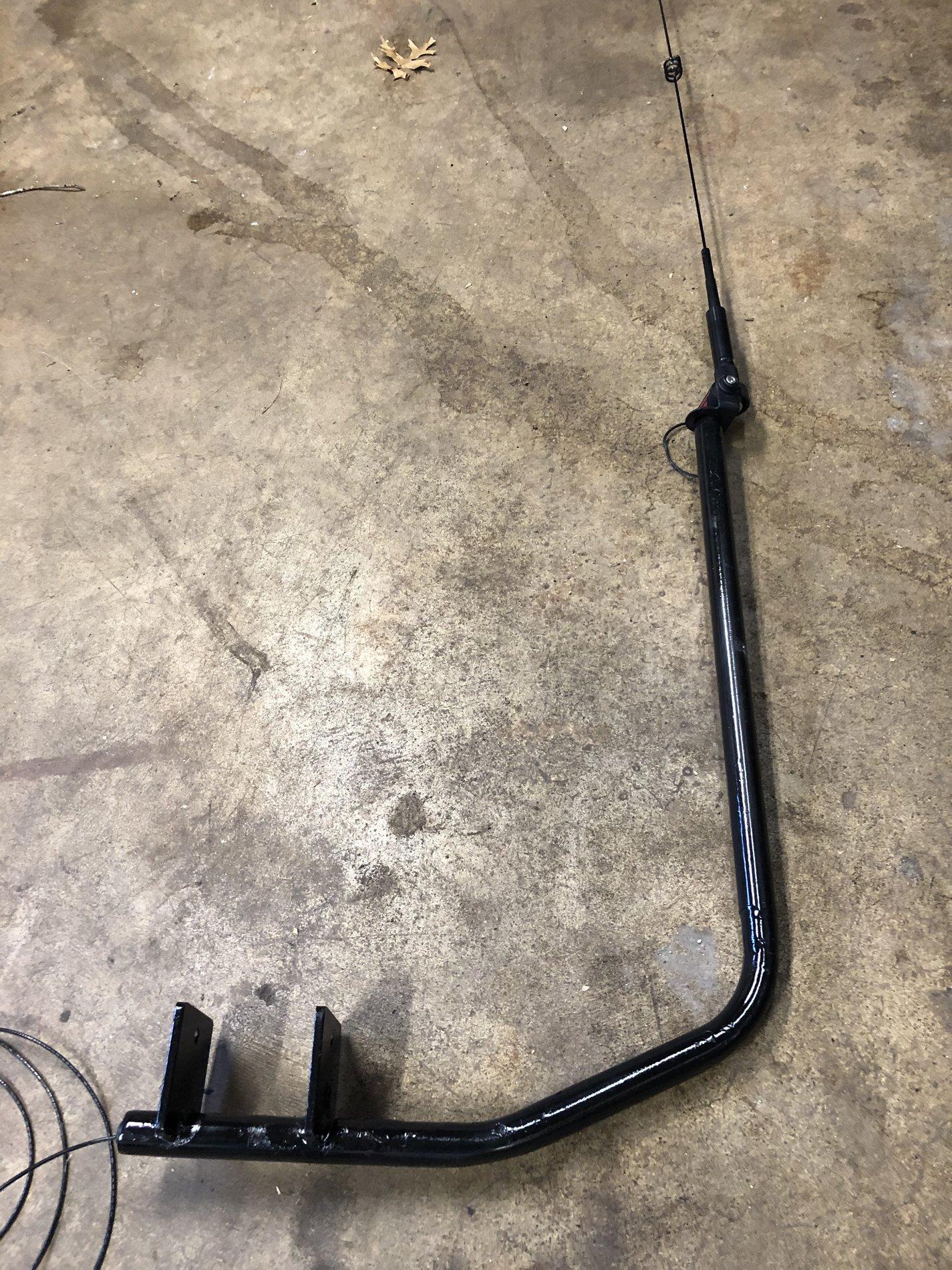

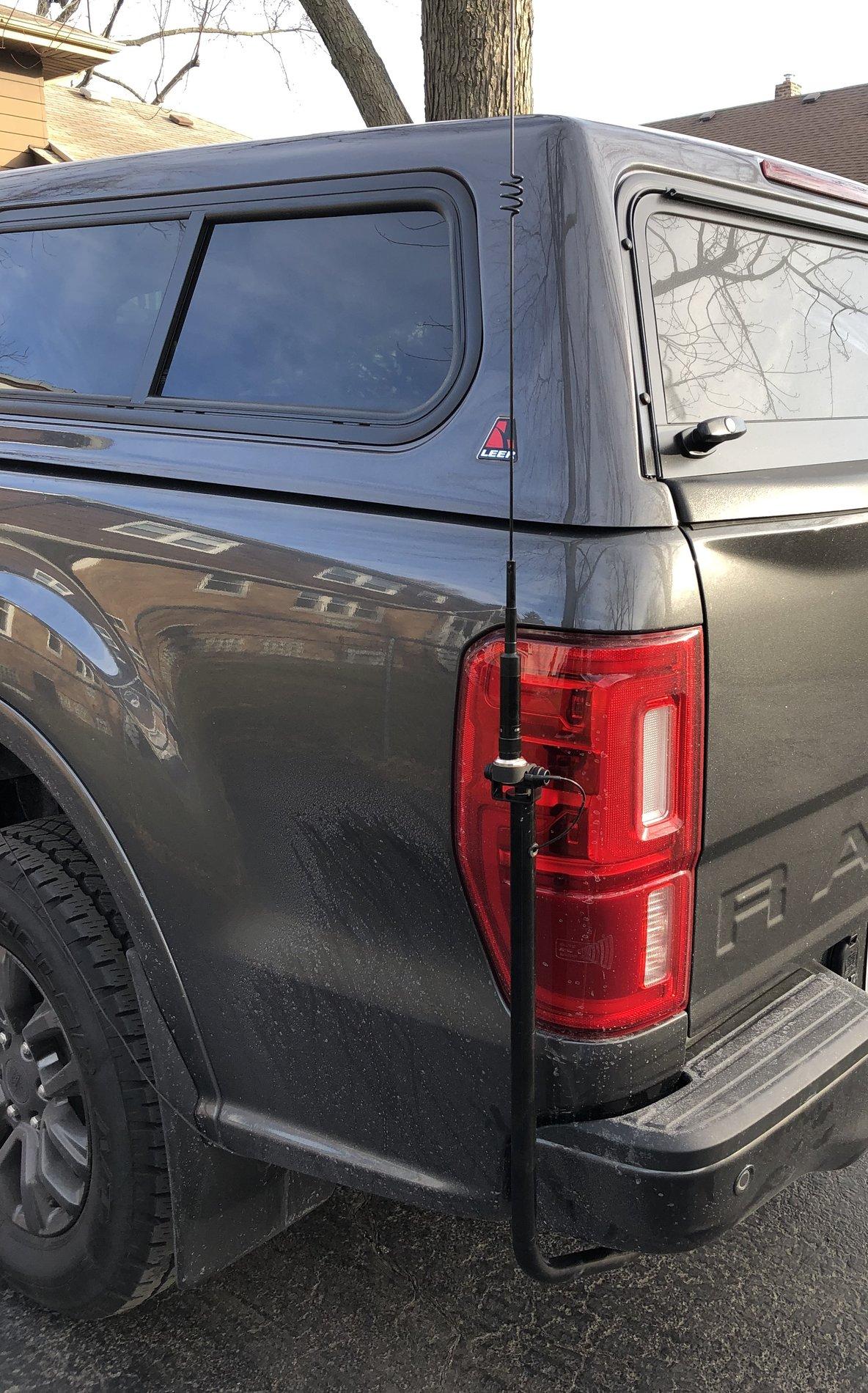

Finished building a custom mount for my VHF/UHF antenna. I didn't want to touch the body so I fabricated this mount to attach to the frame at the rear of the truck. Ran the coax under the bed and through a body grommet at the right rear of the cab. Had to pull back some of the felt to get to it. Got a 1.2 - 1 SWR.







deeve

Well-Known Member
Joined
Nov 18, 2019
Threads
16
Messages
198
Reaction score
72
Location
USA
Vehicle(s)
Ford Ranger
Looks good and solid! Any problems with the BSM at all?


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
62
Messages
7,830
Reaction score
22,840
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1
Finally got the radio installed. Running the wires was a major pain. Ended up running them down the left side towards the back of the truck. It seems no matter what route it tried I kept running into some sort of barrier. Once the wires came down by the gas pedal, I zip tied them all over to the grommet where the hood release latch passes through the fire wall. Getting the wires through that grommet was difficult as well. Glad I decided to not remote mount the body of the radio.

If anyone knows of an earlier way to route wires through the dash maybe the next person can benefit.

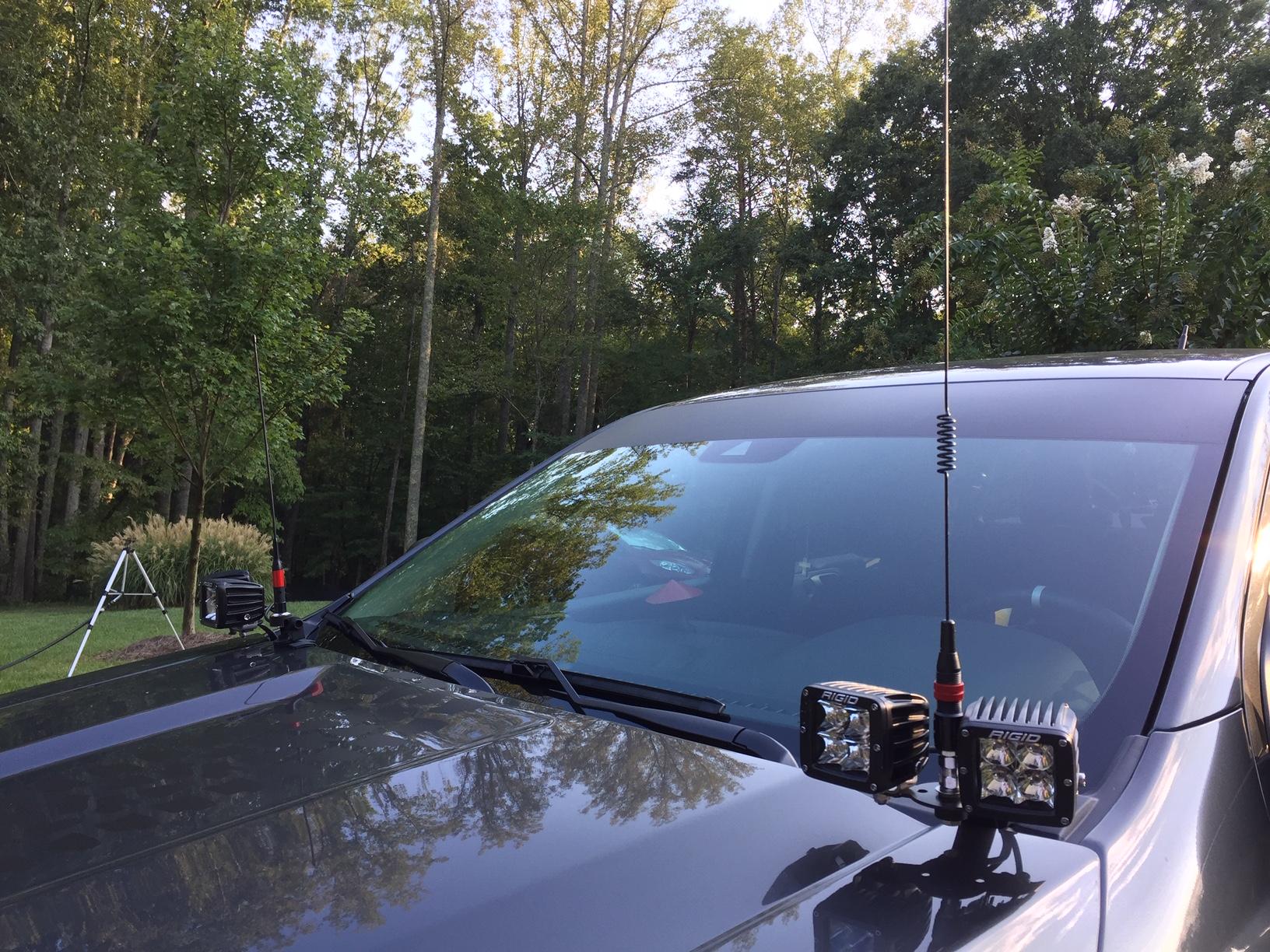

I did a similar setup but ran my cables around to passenger side then under the top of the fender...then finally into the cabin going under the door seal. Don't have a pic but will later...short wave on pass side, CB on right...
