Ham Radio Install

KA5CVH

Active Member
First Name
Mike
Joined
Dec 15, 2021
Threads
2
Messages
33
Reaction score
58
Location
LaPorte TX
Website
www.ka5cvh.com
Vehicle(s)
2021 Ranger
Occupation
Inspector

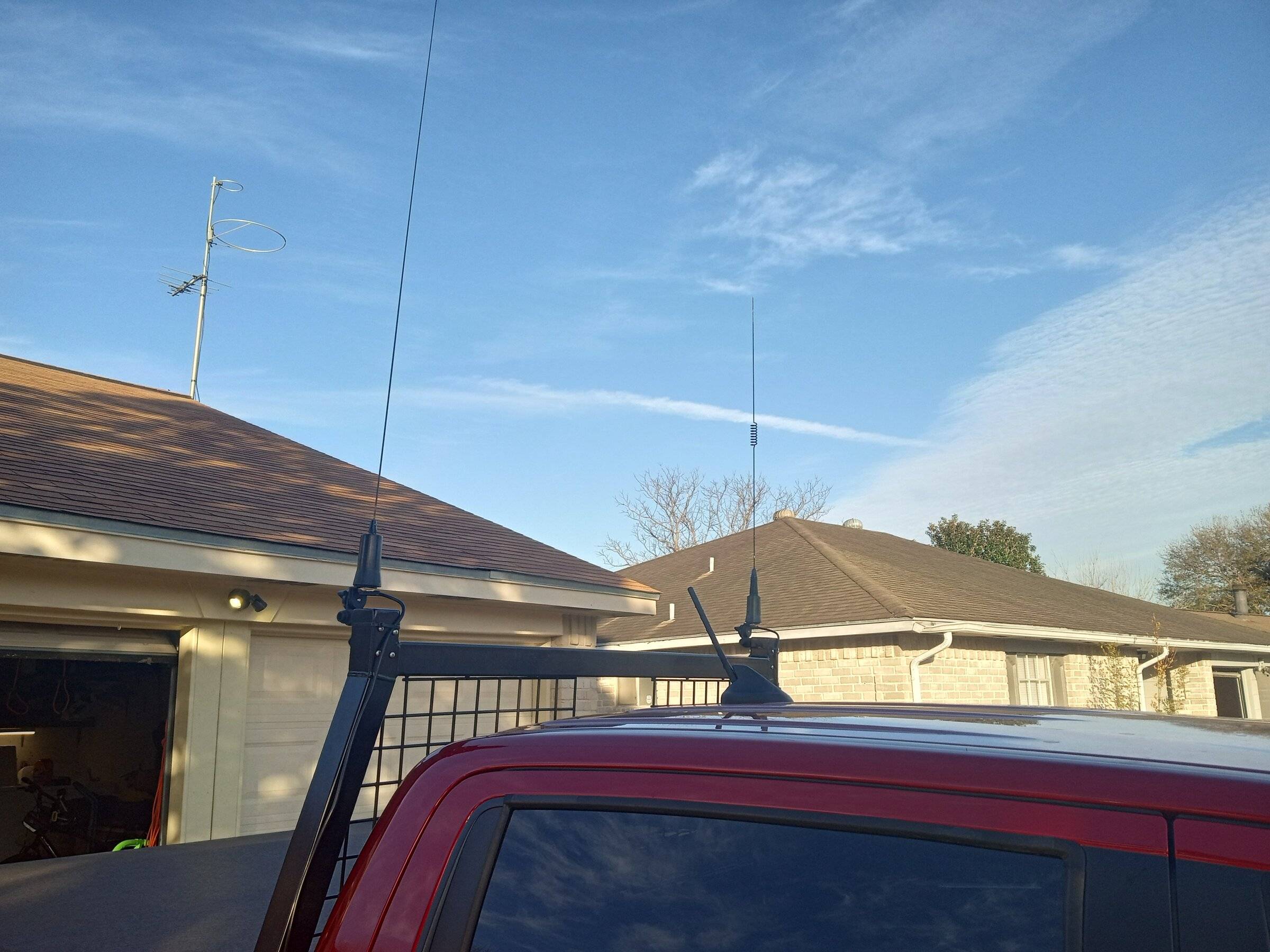

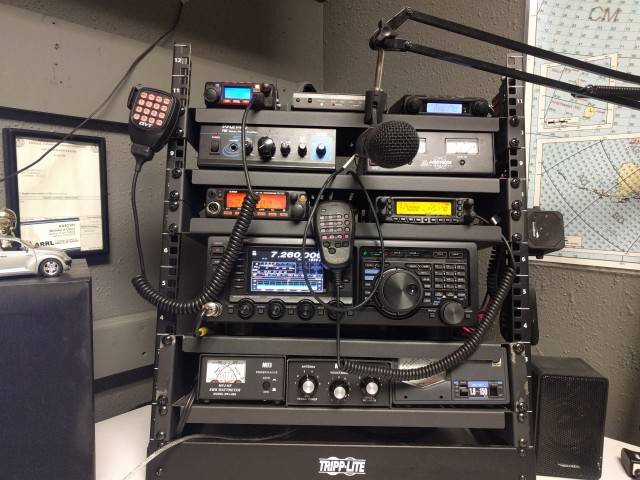

I just bought a new Ranger and am installing my radio and sorta taking my time. I had a F150 and ran my power from the battery under the truck and then up through the Cabin Air Exhaust Vent, rear of cab drivers side. The ranger has the same vent so I brought the power in that way. I've got the Lido under seat bolt mount for the control head but am not happy with the positioning just yet, still working on that. As soon as my headache rack gets here I'll put the antennas on it and bring the coax into the cab the same way. You can look at the pictures here of my F150 and see how I had the radio mounted behind the seat. I'm going to have to cut that piece of aluminum down a bit but there are two nice brackets just below the vent that I'm going to mount it too. https://ka5cvh.com/p/?radio_mobile_2018_F150

View attachment 116941
Sponsored



Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
81
Messages
4,428
Reaction score
17,457
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
I just bought a new Ranger and am installing my radio and sorta taking my time. I had a F150 and ran my power from the battery under the truck and then up through the Cabin Air Exhaust Vent, rear of cab drivers side. The ranger has the same vent so I brought the power in that way. I've got the Lido under seat bolt mount for the control head but am not happy with the positioning just yet, still working on that. As soon as my headache rack gets here I'll put the antennas on it and bring the coax into the cab the same way. You can look at the pictures here of my F150 and see how I had the radio mounted behind the seat. I'm going to have to cut that piece of aluminum down a bit but there are two nice brackets just below the vent that I'm going to mount it too. https://ka5cvh.com/p/?radio_mobile_2018_F150

View attachment 116941
Good Luck !
Doc N4BX

OP
OP
KA5CVH

KA5CVH

Active Member
First Name
Mike
Joined
Dec 15, 2021
Threads
2
Messages
33
Reaction score
58
Location
LaPorte TX
Website
www.ka5cvh.com
Vehicle(s)
2021 Ranger
Occupation
Inspector

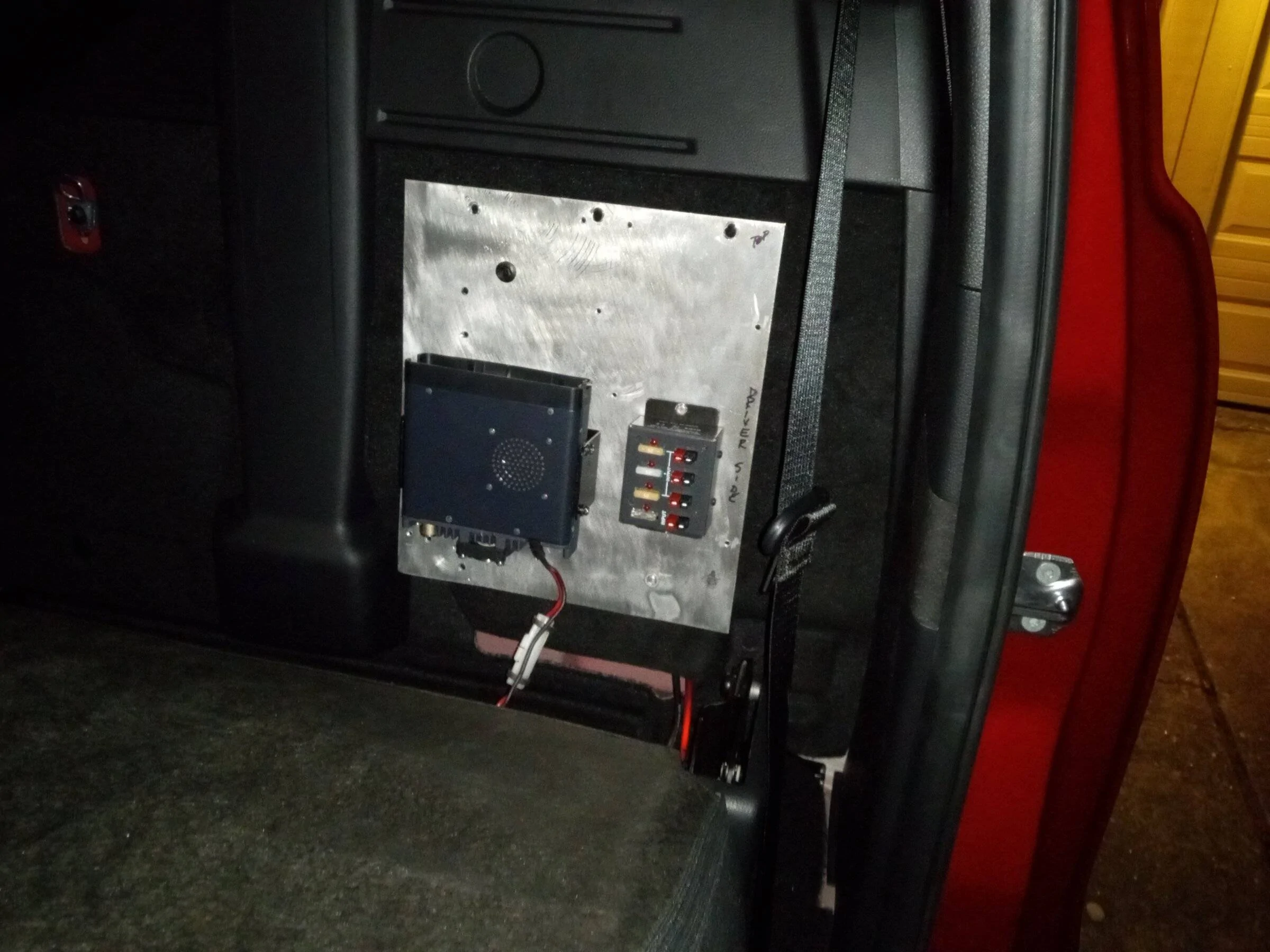

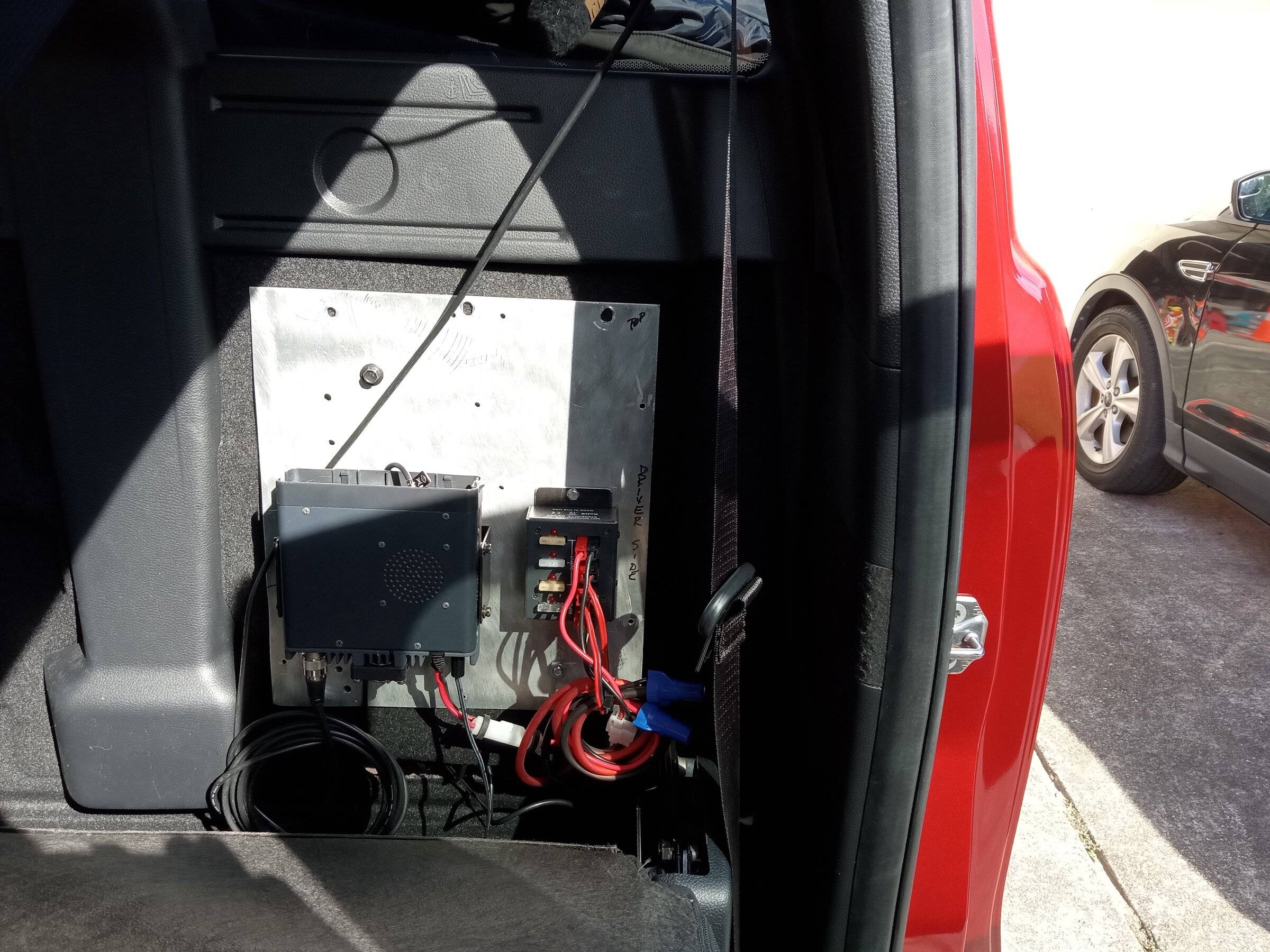

Been a little busy. Finally got the radio mounted last night. I have a piece of aluminum I've used in three vehicles now for mounting the radios on. You can see all the holes from previous vehicles and radios. There are two factory "brackets" just below the vent. I suppose they are for the upgraded stereo system amplifies. I bolted onto them, removed the child car seat bracket above the vent and used that spot & bolt for securing the top. Hopefully tonight I'll get the control head cable ran and get it powered up.


OP
OP
KA5CVH

KA5CVH

Active Member
First Name
Mike
Joined
Dec 15, 2021
Threads
2
Messages
33
Reaction score
58
Location
LaPorte TX
Website
www.ka5cvh.com
Vehicle(s)
2021 Ranger
Occupation
Inspector

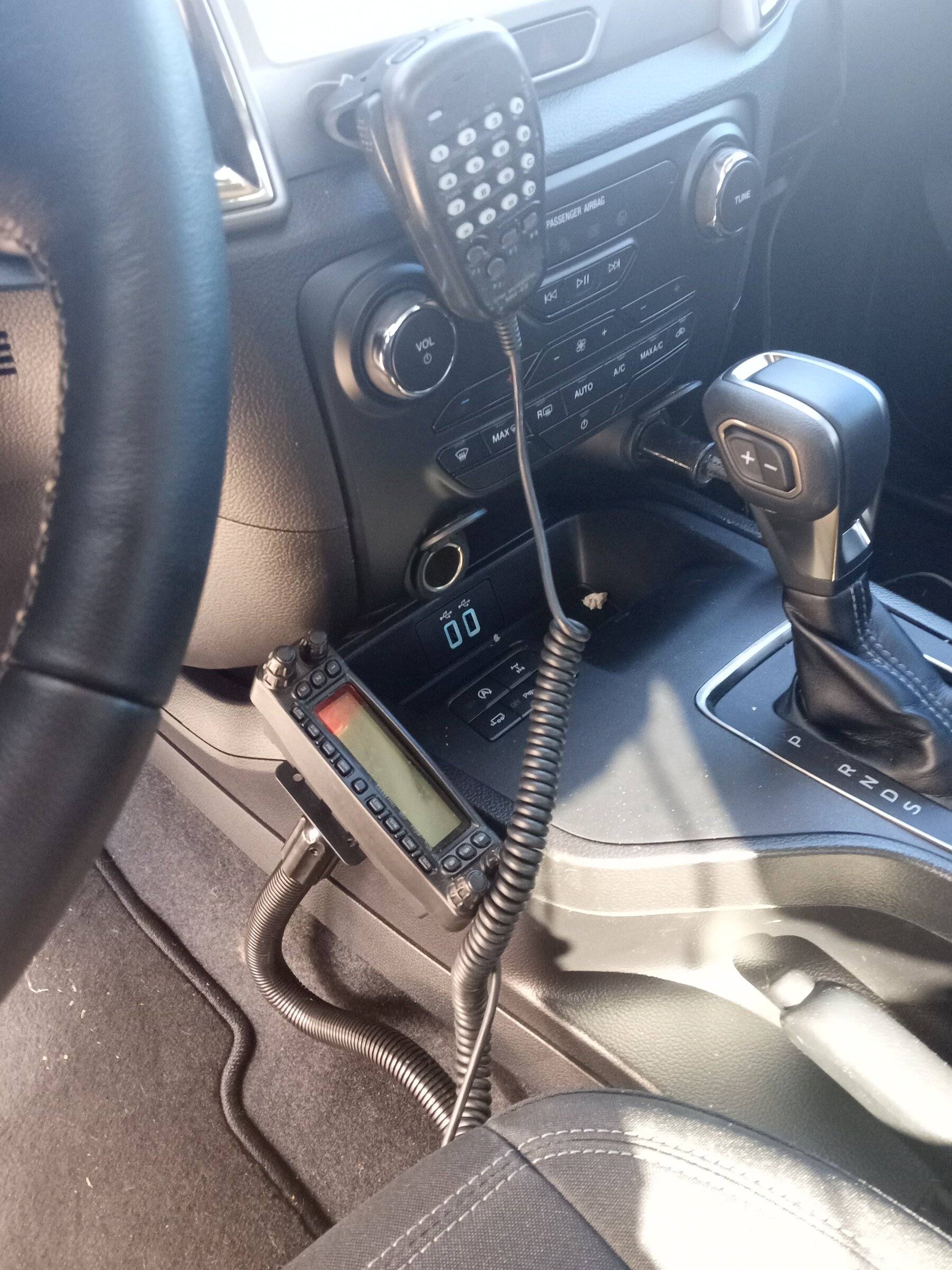

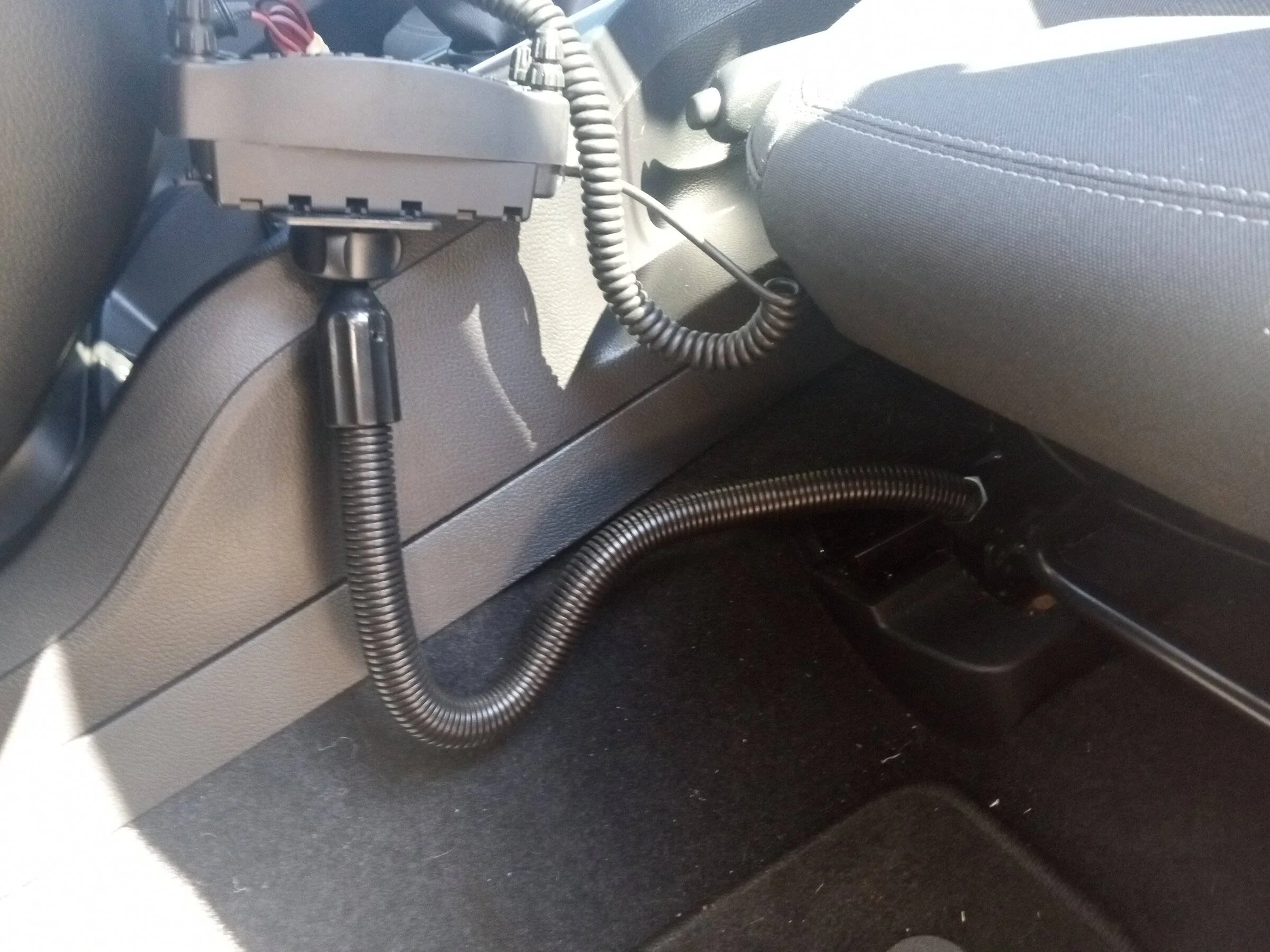

I used a Lido seat bolt mount for the control head. Like the F150 it was a piece of cake to install. I thought I had ordered the 22" but got the 28". I may get the 22" and swap them out.





VegasRanger

Well-Known Member
First Name
Steve
Joined
Jun 1, 2021
Threads
39
Messages
884
Reaction score
1,883
Location
Las Vegas
Vehicle(s)
2021 STX Crew Cab 4x4
Occupation
Damper Salesman

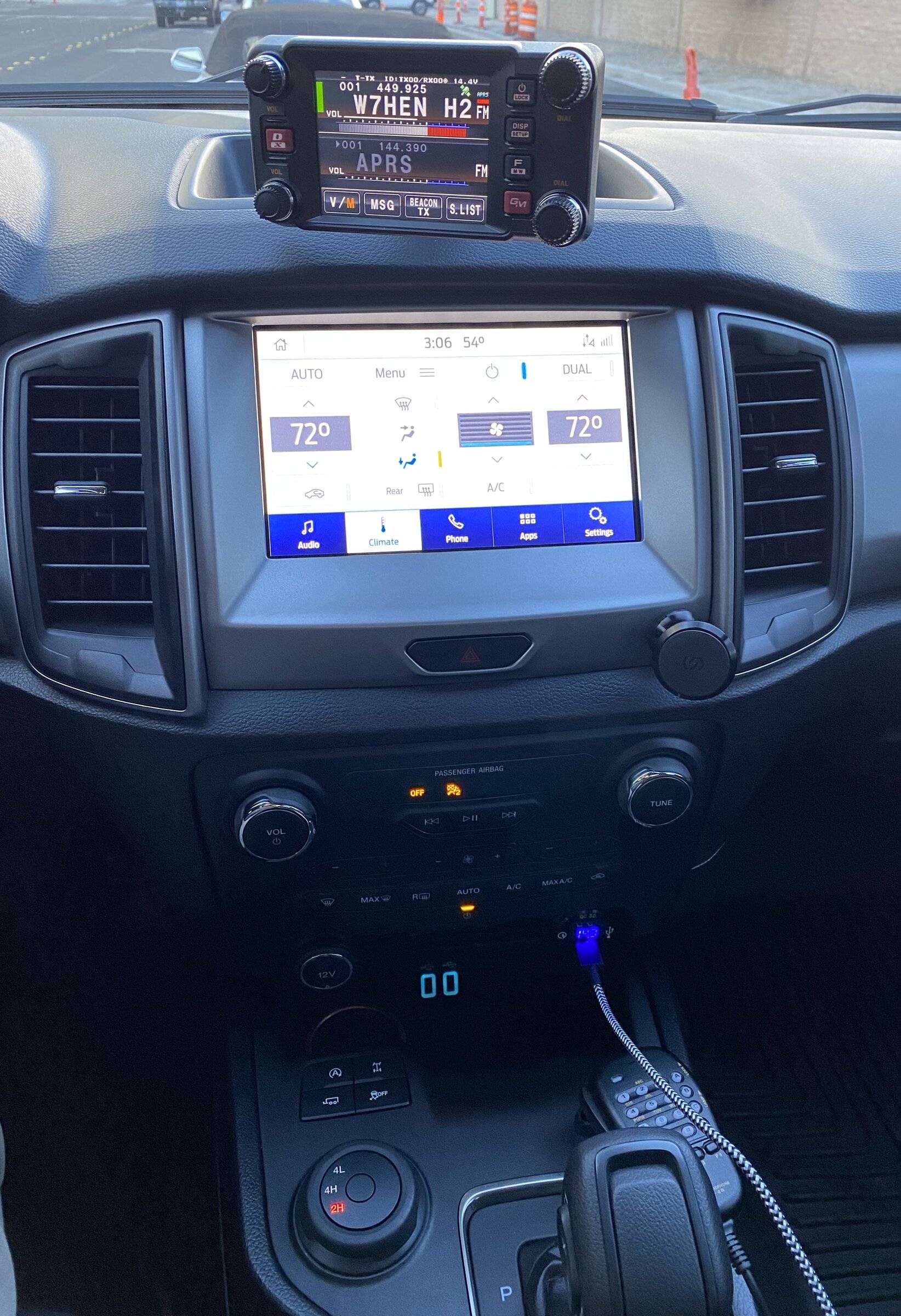

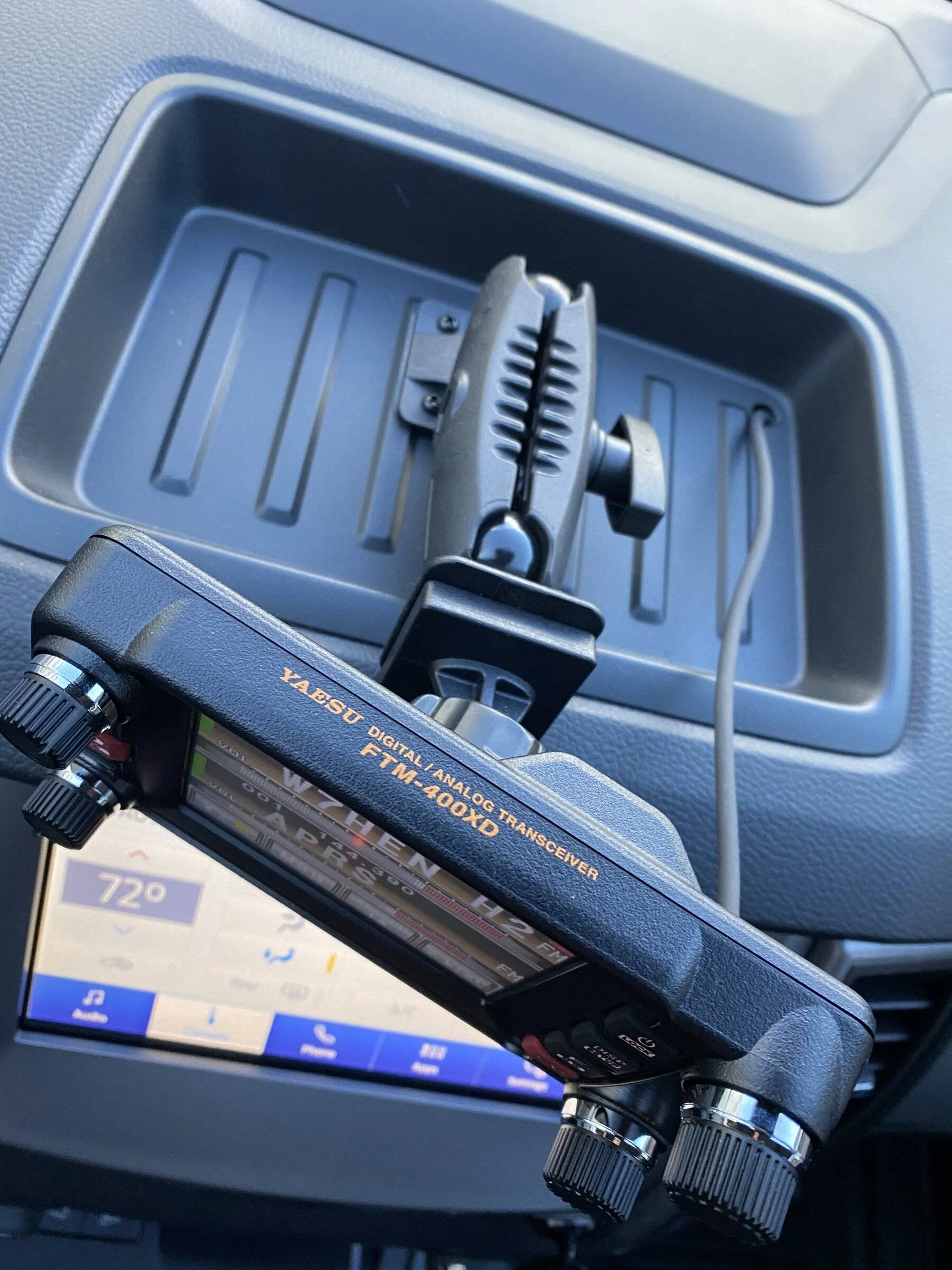

Here's my radio. I ran the power cable directly from the battery then through the firewall on the passenger side, and mounted the main radio under the passenger seat so I can hear the speaker loud enough. Using Lido mount as well for the face and the mic. - 73






OP
OP
KA5CVH

KA5CVH

Active Member
First Name
Mike
Joined
Dec 15, 2021
Threads
2
Messages
33
Reaction score
58
Location
LaPorte TX
Website
www.ka5cvh.com
Vehicle(s)
2021 Ranger
Occupation
Inspector
I considered that mount for the head and put it there and I also considered buying that dash mount from BuiltRight Industries and put the head back on the FT8900 and mount the entire radio up on top of the dash.


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
62
Messages
7,830
Reaction score
22,840
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1

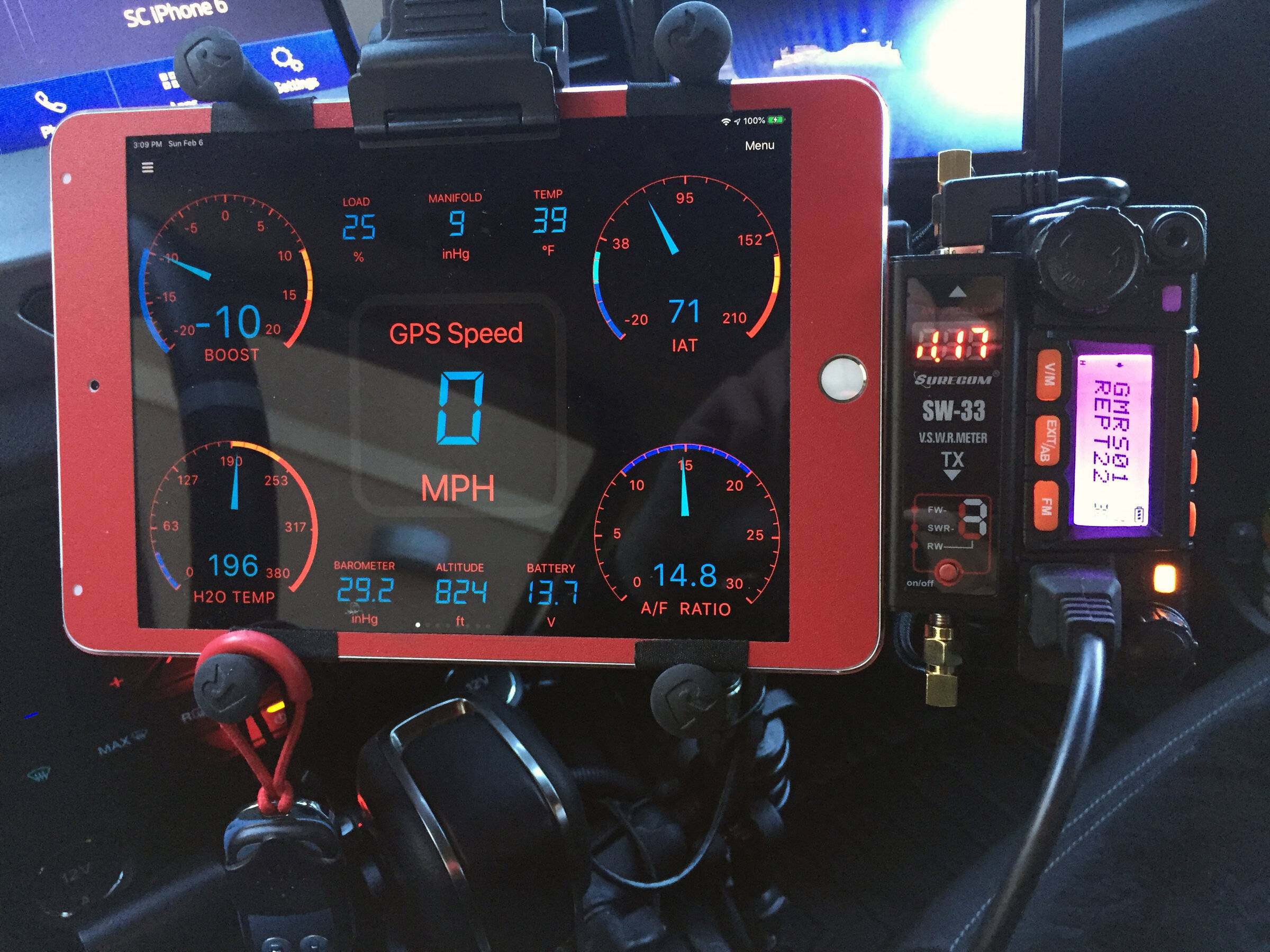

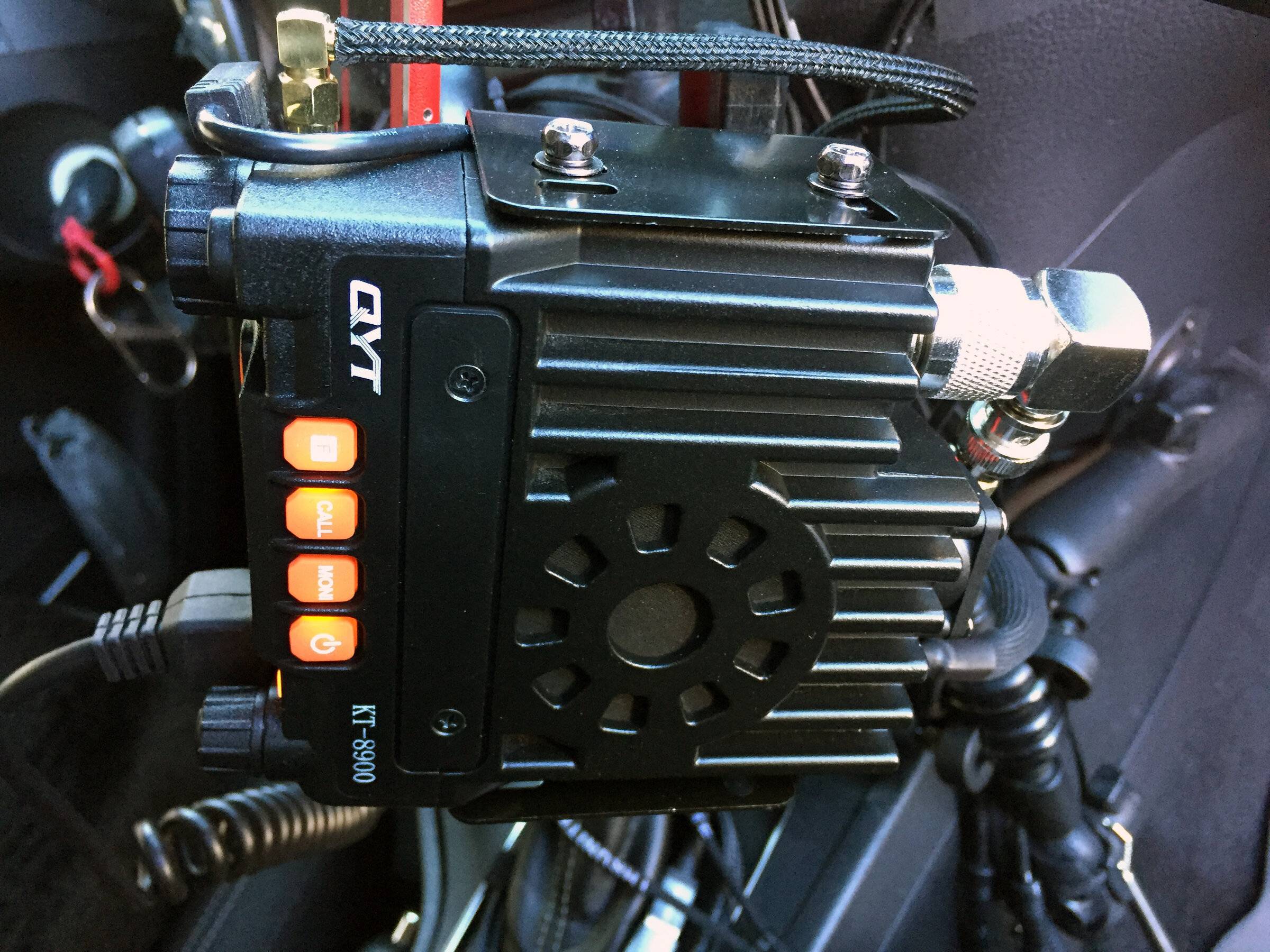

I recently installed a basic light duty 25 watt dual band programmed for GMRS...no Ham license yet...


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
62
Messages
7,830
Reaction score
22,840
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1
Looks like a QYT!
You must know it well lol...I know my wife is rolling her eyes every time she rides with me... ?


Last edited:

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
62
Messages
7,830
Reaction score
22,840
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1

ppfd

Well-Known Member
First Name
Tony
Joined
Mar 1, 2021
Threads
31
Messages
502
Reaction score
997
Location
WV
Vehicle(s)
2021 Tremor
Occupation
RN/Paramedic
Studying for my Ham tech and general. Going to try and earn both.
Trying to decide on a radio and how to mount it.
I am no electrician ?


Pirate

Well-Known Member
First Name
John
Joined
Jan 12, 2021
Threads
6
Messages
70
Reaction score
98
Location
AK
Vehicle(s)
2019 Ranger Lariat
Occupation
Bush Pilot
Studying for my Ham tech and general. Going to try and earn both.
Trying to decide on a radio and how to mount it.
I am no electrician ?
Grab a D710G before they're gone!
Sponsored


  • Like
Reactions: Doc




Top
