Fox 2.0 rear shocks installed today

Onlyone

Well-Known Member
Joined
Dec 1, 2019
Messages
131
Reaction score
297
Location
Eagle, Colorado
Vehicle(s)
2019 Ranger XLT FX4, 2019 Jeep Rubicon on 37's
Decided to give these a try. Truck rides pretty good but a bit too much movement on the highway with the FX4. Quick install, about 10 minutes.

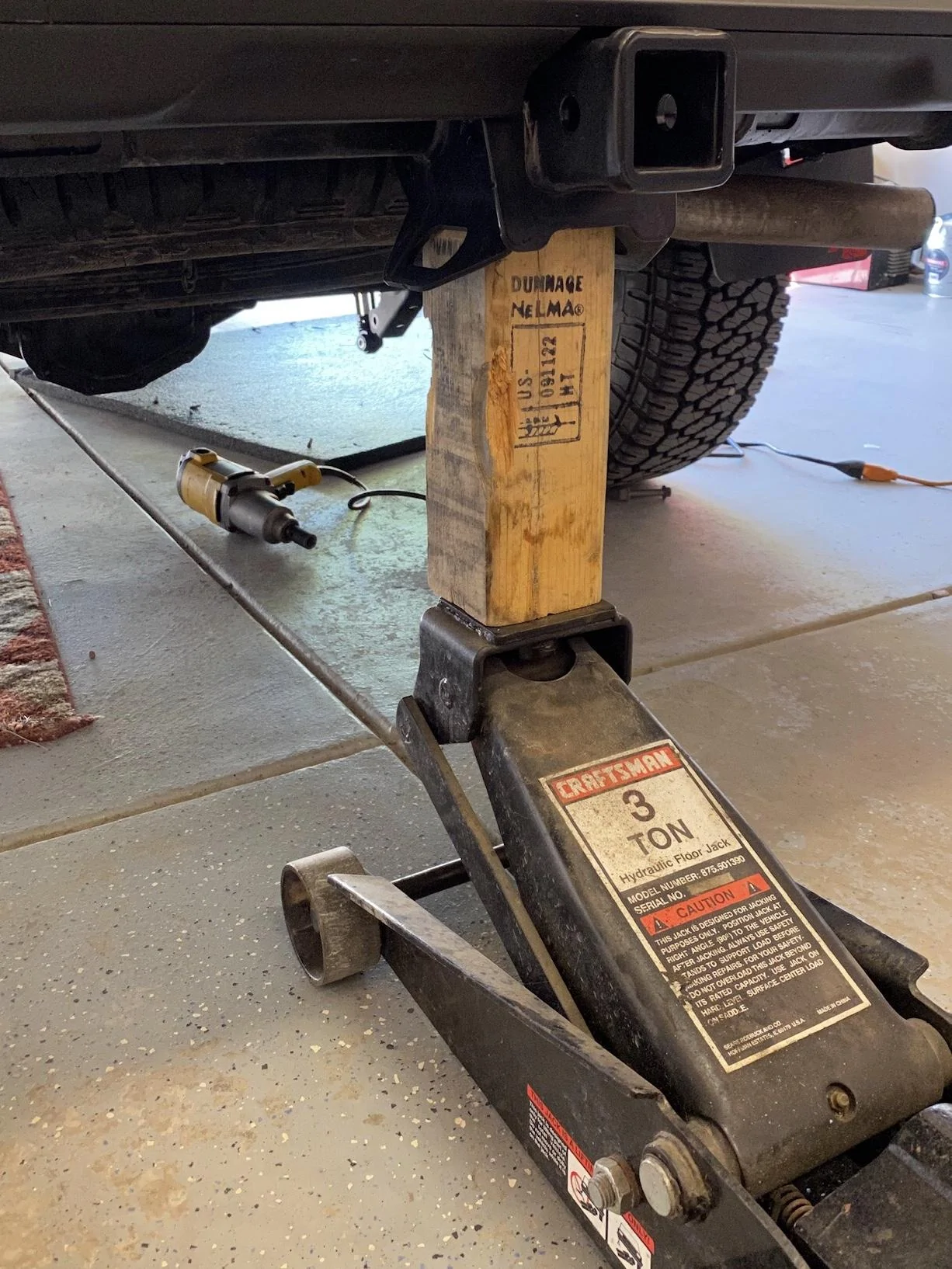

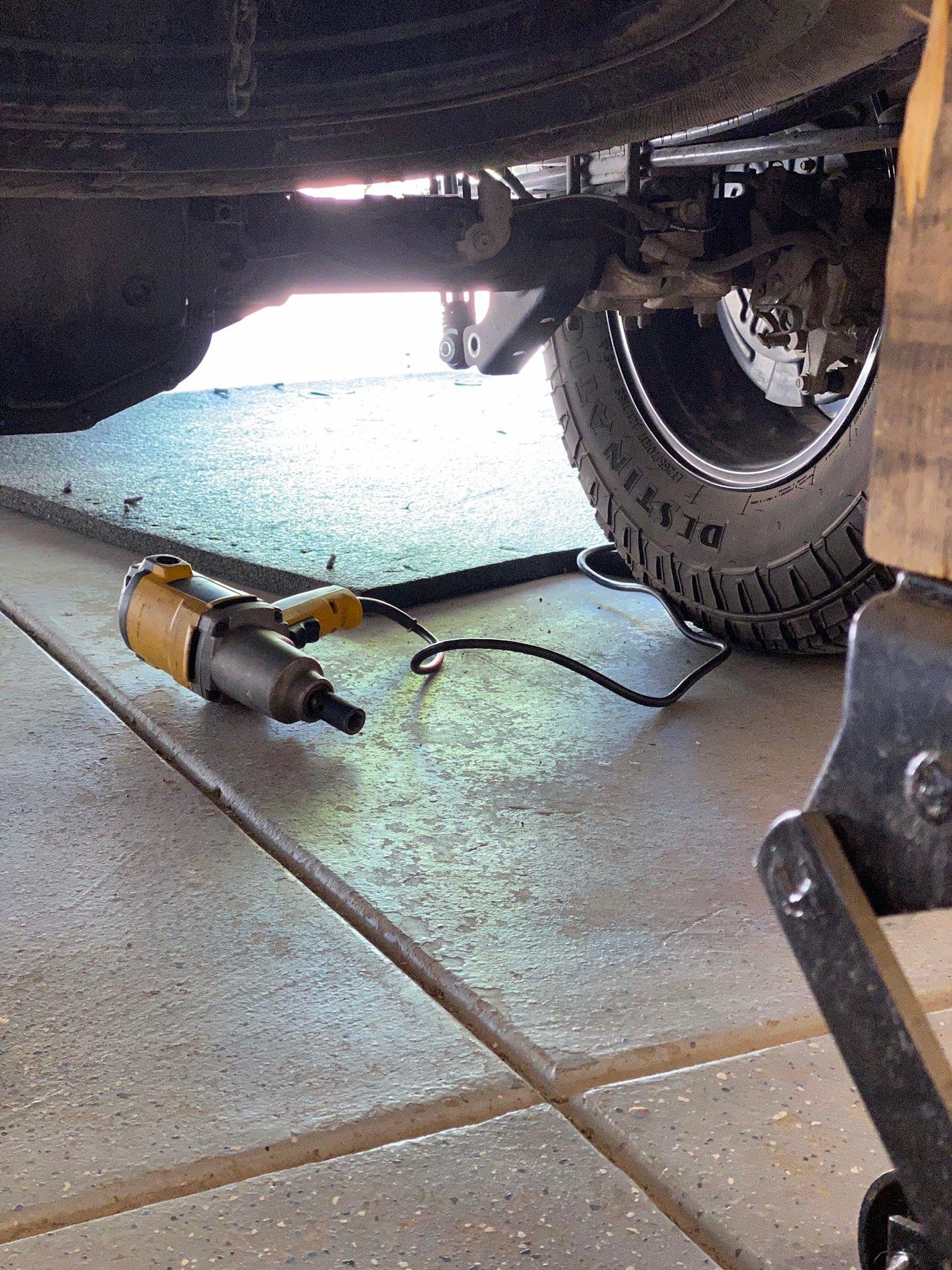

A little hint, leave the plastic straps on the shocks, install the upper bolt and raise the body until you can get the bottom bolts in. Then cut the strap and torque them down. done, no forcing the shocks up while trying to slam the bolt in. Easy peasy

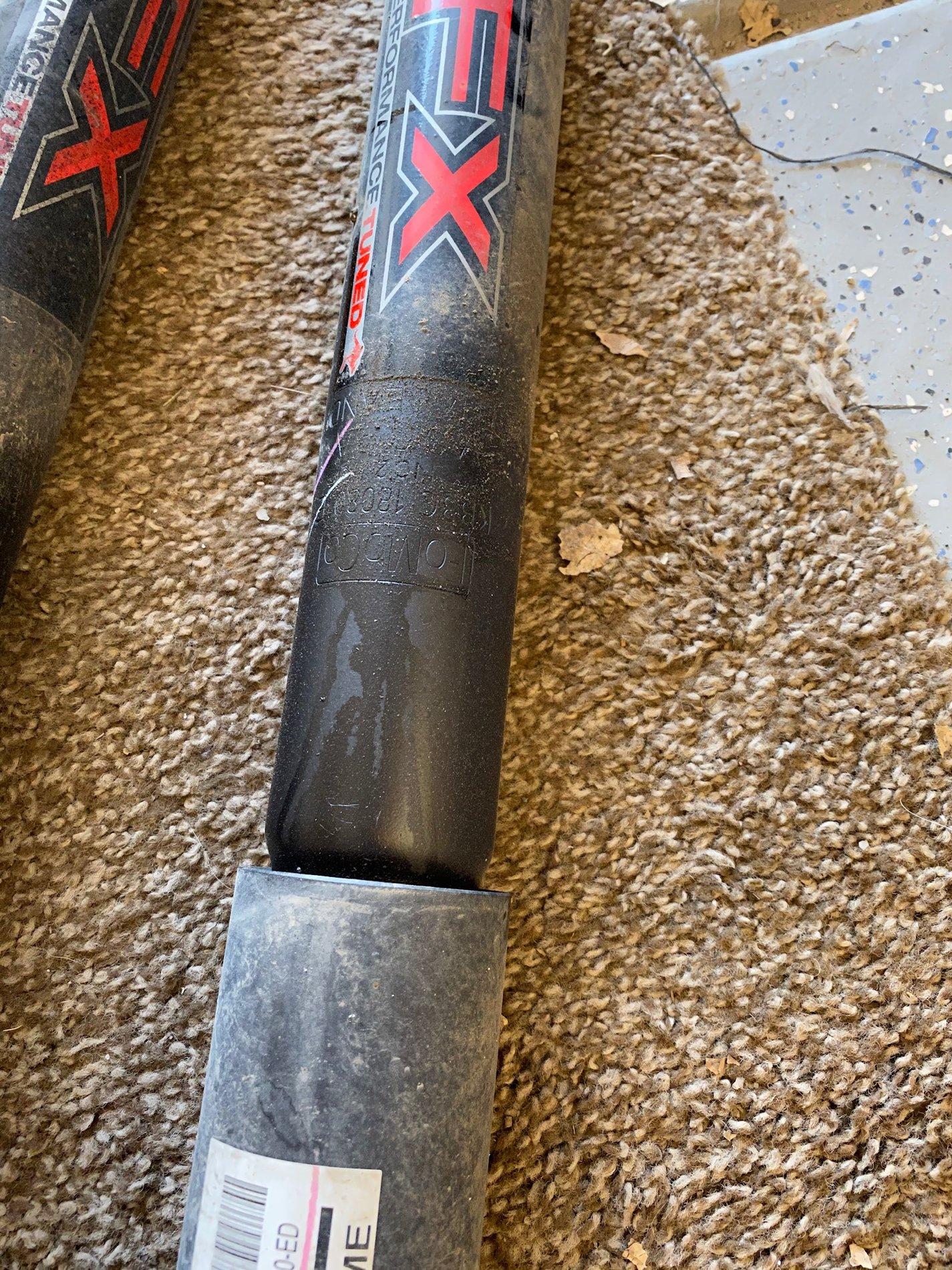

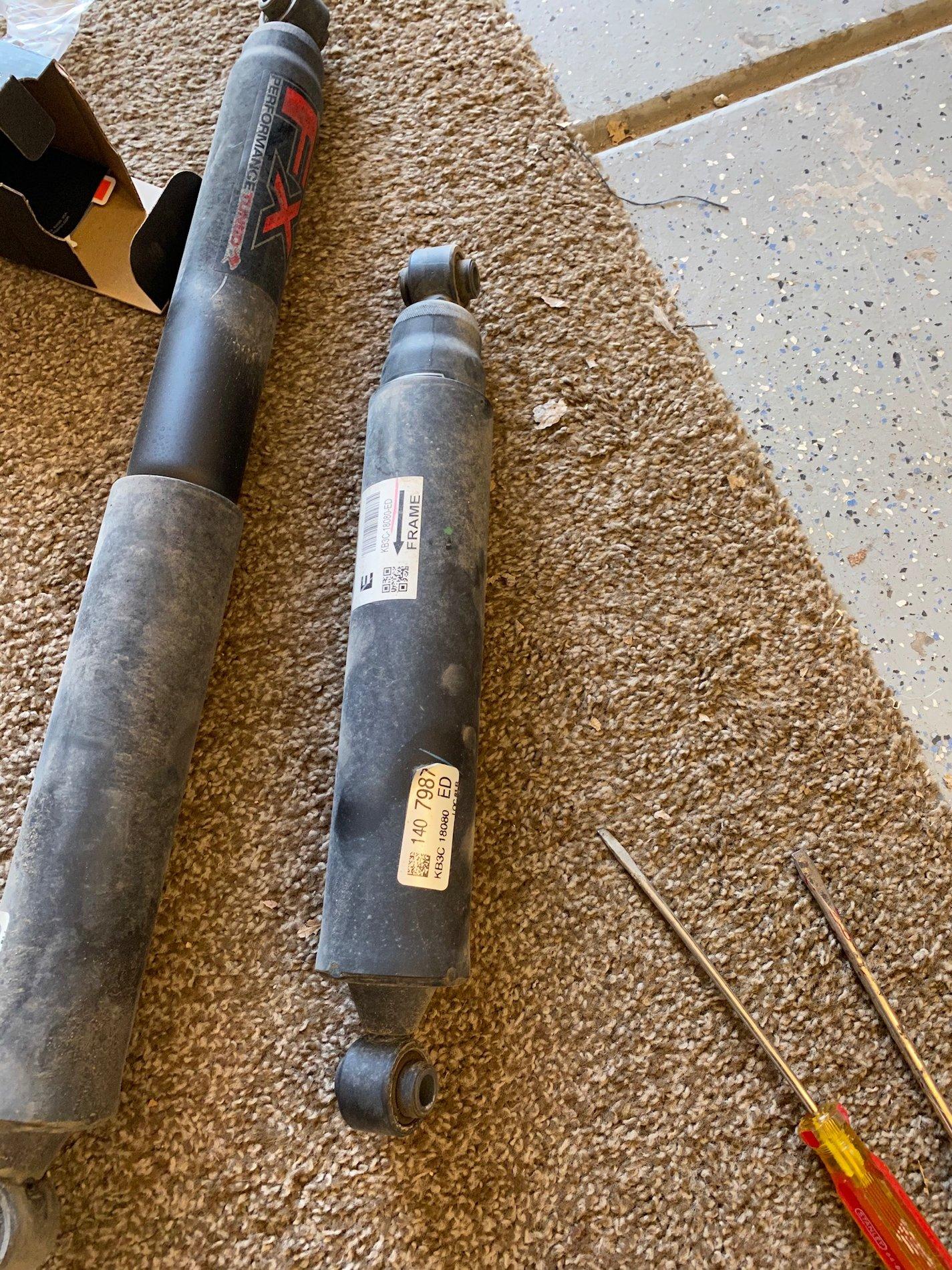

One of my shocks was already gone after 4500 miles. Sad. Here are some pics. Pretty large improvement other than wanting to do the fronts now. Lol

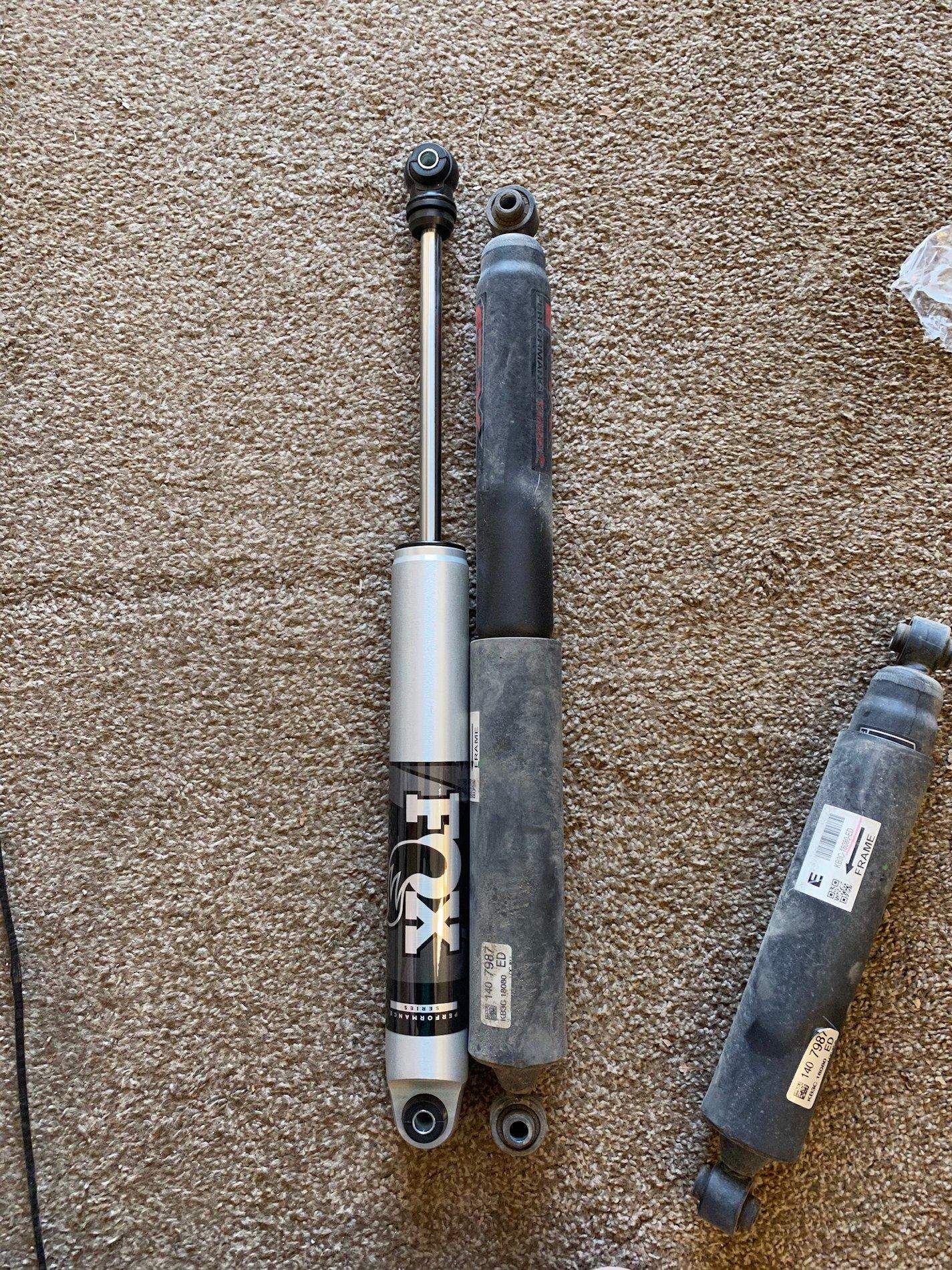

I took the strap off to show the difference in length. I reinstalled it to install in truck.












Advertisement



Last edited:

gcan

Member
Joined
Mar 28, 2020
Messages
11
Reaction score
8
Location
Alabama
Vehicle(s)
2019 Ranger
please update after you try them for a while.....I'm looking for something to firm up the ride on my FX4 to eliminate the bouncy / swimmy feel

OP
Onlyone

Onlyone

Well-Known Member
Joined
Dec 1, 2019
Messages
131
Reaction score
297
Location
Eagle, Colorado
Vehicle(s)
2019 Ranger XLT FX4, 2019 Jeep Rubicon on 37's
  • Thread starter
  • Thread Starter
  • #3
please update after you try them for a while.....I'm looking for something to firm up the ride on my FX4 to eliminate the bouncy / swimmy feel
Oh it definitely stops the bouncy feel in the rear. Much better, I think mine was worse because one of my shocks was already bad.


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Messages
216
Reaction score
176
Location
Leadville, CO
Vehicle(s)
2019 Ford Ranger, 1983 Datsun 280ZX 2+2 Turbo
Occupation
Ford Dealership Mechanic
I am surprised the rear shocks are bad already. About how many miles are on the truck?

OP
Onlyone

Onlyone

Well-Known Member
Joined
Dec 1, 2019
Messages
131
Reaction score
297
Location
Eagle, Colorado
Vehicle(s)
2019 Ranger XLT FX4, 2019 Jeep Rubicon on 37's
  • Thread starter
  • Thread Starter
  • #5
OP
Onlyone

Onlyone

Well-Known Member
Joined
Dec 1, 2019
Messages
131
Reaction score
297
Location
Eagle, Colorado
Vehicle(s)
2019 Ranger XLT FX4, 2019 Jeep Rubicon on 37's
  • Thread starter
  • Thread Starter
  • #7
Damn, that sucks. So with you putting the fox rear shocks on are you considering the fronts as well?

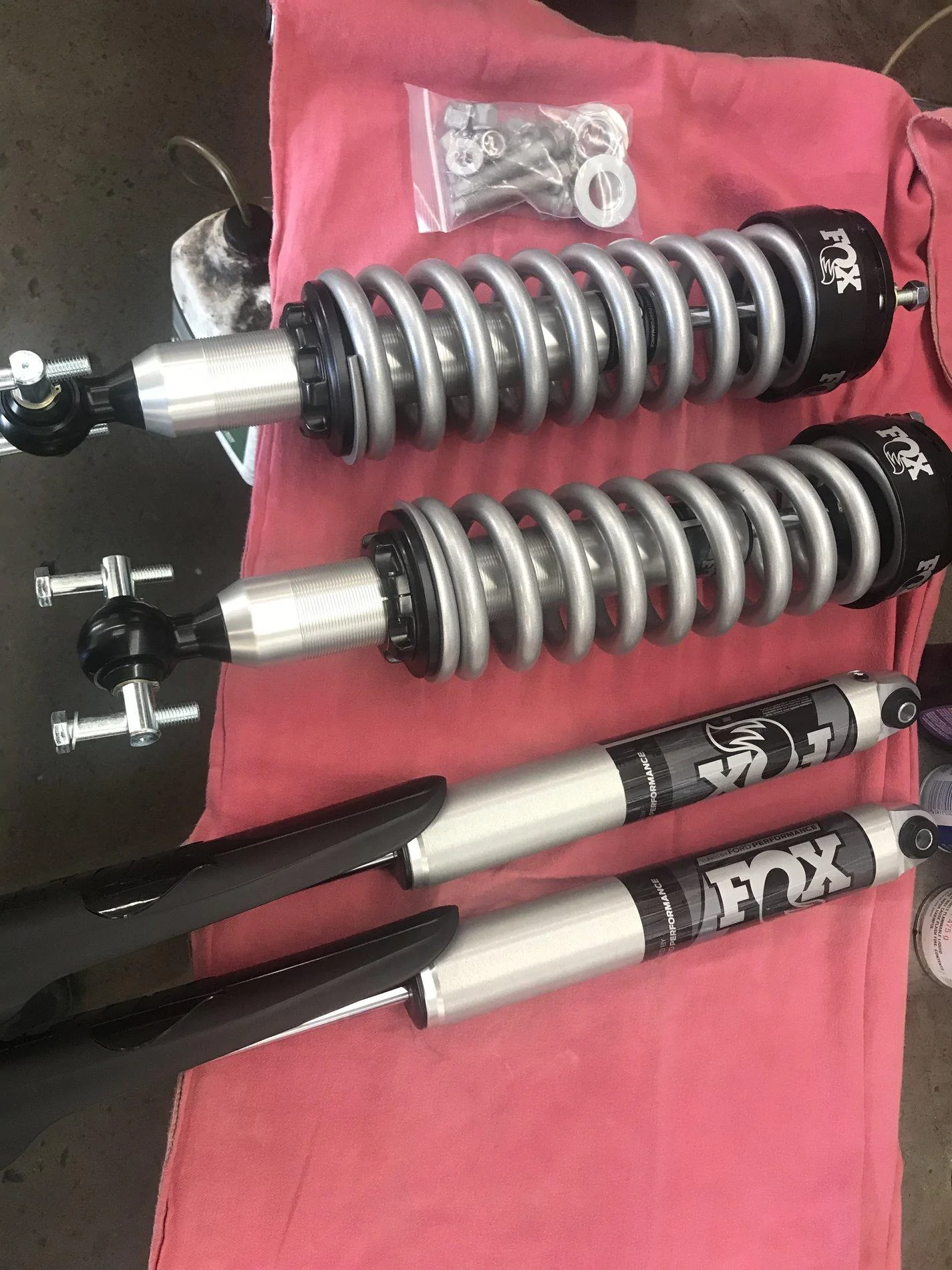

I ordered Icon upper control arms and the front Fox’s. I’ll install them maybe next weekend or the following. I figured I might as well just complete the upgrade.


FL.ranger

Well-Known Member
Joined
Feb 29, 2020
Messages
65
Reaction score
79
Location
South Florida
Vehicle(s)
2019 Ford Ranger Lariat
I ordered Icon upper control arms and the front Fox’s. I’ll install them maybe next weekend or the following. I figured I might as well just complete the upgrade.
Will those UCA work with stock rims? I’m going to get the BDS ones but want to make sure they fit the stock rims with 285/70/17s

OP
Onlyone

Onlyone

Well-Known Member
Joined
Dec 1, 2019
Messages
131
Reaction score
297
Location
Eagle, Colorado
Vehicle(s)
2019 Ranger XLT FX4, 2019 Jeep Rubicon on 37's
  • Thread starter
  • Thread Starter
  • #9
Will those UCA work with stock rims? I’m going to get the BDS ones but want to make sure they fit the stock rims with 285/70/17s
I sure hope so. Lol


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Messages
216
Reaction score
176
Location
Leadville, CO
Vehicle(s)
2019 Ford Ranger, 1983 Datsun 280ZX 2+2 Turbo
Occupation
Ford Dealership Mechanic
Will those UCA work with stock rims? I’m going to get the BDS ones but want to make sure they fit the stock rims with 285/70/17s
If I'm not mistaken they do. Usually they are used for helping the alignment go back into specs whith the leveling kits. The lift kit I have from Old Man EMU worked so well it was unnecessary.


gcan

Member
Joined
Mar 28, 2020
Messages
11
Reaction score
8
Location
Alabama
Vehicle(s)
2019 Ranger
do the Fox 2.0 shocks install rod up shock body down or vice versa? in the picture it looks like it's rod down but on line it shows rod up and shock body down?

or does it matter?


TORQUERULES

Member
First Name
Matt
Joined
May 4, 2020
Messages
10
Reaction score
11
Location
Kenova, WV
Vehicle(s)
2019 Ford Ranger XLT FX4 Hot Pepper Red with Black Package
Occupation
Public School Administrator
What is the price on those?


Sashimi_Moto

Well-Known Member
Joined
Jan 3, 2020
Messages
156
Reaction score
177
Location
WA
Vehicle(s)
2012 E450 C-Class, 2019 Ranger Lariat 501A FX4
I am surprised the rear shocks are bad already. About how many miles are on the truck?
I think they are bad from the factory. My FX shocks had 13k on them and I could compress/extend them pretty easily with just my arms and I'm not a gym rat. I considered selling the FX shocks but I felt that would be morally repugnant as it would probably endanger the buyer so I tossed them in the garbage can.


krisrayner

Active Member
First Name
Kris
Joined
Feb 27, 2020
Messages
30
Reaction score
46
Location
California
Vehicle(s)
‘20 Ranger FX2
do the Fox 2.0 shocks install rod up shock body down or vice versa? in the picture it looks like it's rod down but on line it shows rod up and shock body down?

or does it matter?
Since they have a piston separating the oil from the nitrogen, orientation doesn’t matter. The instructions show it mounting with the shaft side down. I did as well for a couple reasons. I figure the hardened steel shaft is less prone to damage then the aluminum body. Plus if the body is damaged, it can affect the shocks operation unlike older style twin tube shocks that have to be mounted body side down and have 2 separated chambers.

Fox does have “roost guards” available to protect the shaft as well.
