forscan newbie: wont save changes. wont read DTC codes. why?

charwest

Well-Known Member
First Name
char & tony
Joined
Apr 26, 2020
Threads
42
Messages
335
Reaction score
727
Location
On the road
Vehicle(s)
2019 Ranger XL FX4 Supercab
Occupation
Healthcare
i thought i was doing it right. apparently not. maybe someone who knows what they are doing could read this and tell me where i got off course.

i have forscan, the recommended OBD-EX dongle, and a windows laptop. first time i logged in everything looked good. got a rundown of the modules with no errors and no error codes. i saved copies of all stock as-built modules.

then i went into the 'easy' (non hex) modules for BdyCM and enabled dark mode and bambi mode. i dont think i pressed the 'write' button because i didnt know i had to. i also tried to disable seatbelt alarms. disconnected and called it a day.

as luck would have it, we were due for an oil change and my wife takes it to the dealer at this point while im at work. they say looks good for its 'first checkup'. no mention of weirdness per wife.

then this evening i go in to see if bambi mode works in the dark. nope. so i load up forscan to check out the modules and see whether those changes were still enabled.

1) this time after connecting i get many errors, and two error codes. two odd sounding lighting errors (maybe someone knows what they mean?). and most of the modules get an error saying 'cant read DTC codes' for those modules. didnt do that last time. any idea what this means?

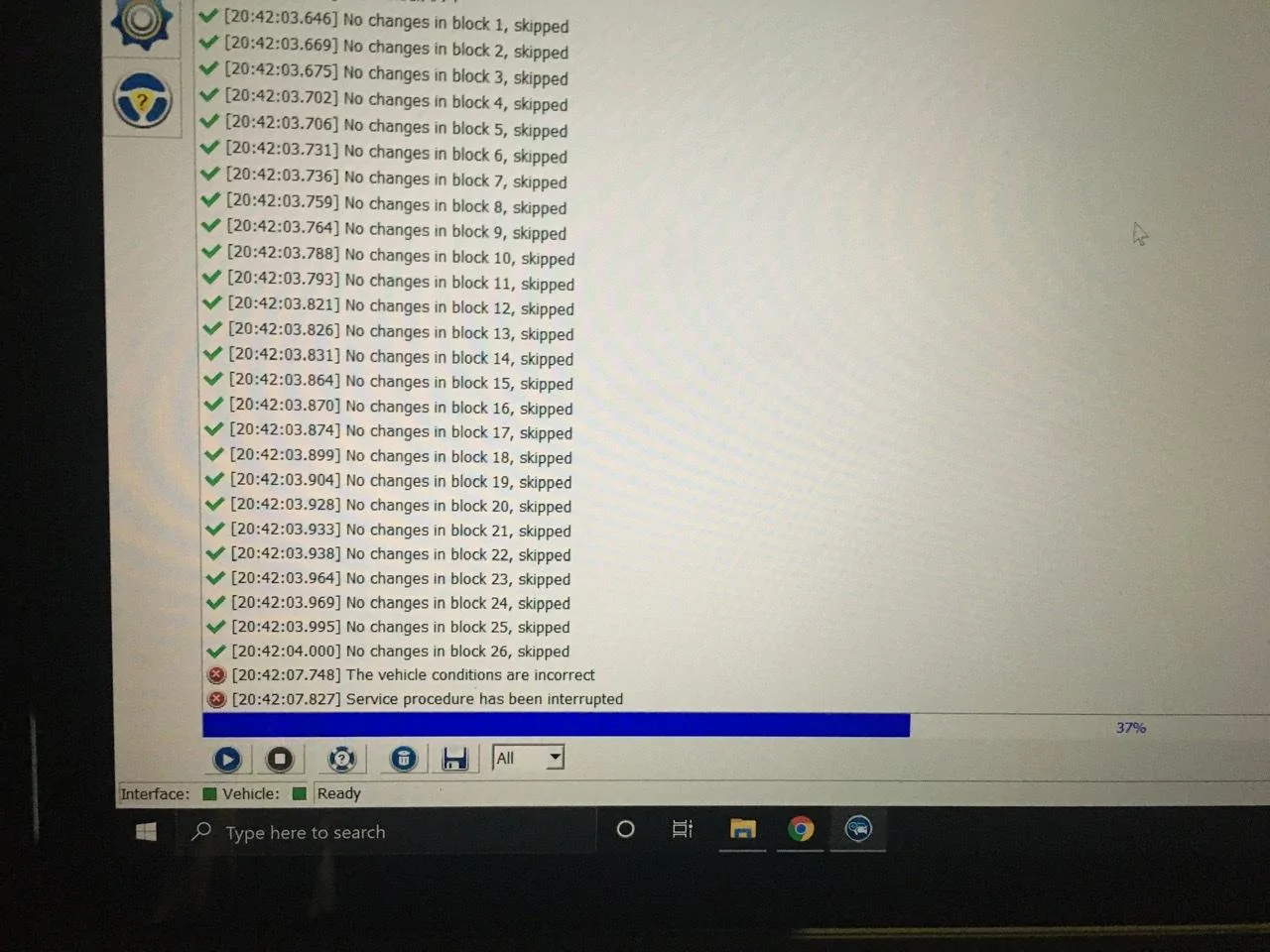

2) i load up the BdyCM modules (non hex version again) and dark car and bambi arent enabled. this time i enable them, and definitely press the 'write' button. i dont think i did this last time. then after pressing 'write' it runs for a few seconds and throws an error and stops. any idea what im doing wrong here?



wish there was better documentation for this thing. i had really hoped it was going to be easier than this.

thanks~
tony

Sponsored


Last edited:

Bproctor

Well-Known Member
First Name
Bruce
Joined
Mar 8, 2020
Threads
24
Messages
213
Reaction score
262
Location
Hickory, NC
Vehicle(s)
2019 Ford Ranger Lariat 2WD
Occupation
NC National Guard
Does your odb reader have a switch on it? I have started with the switch in the wrong position and encountered issues like the picture you posted. When that happens I would flip the switch and start over, no more issues. If it doesn't have a switch then I suspect your reader may have issues. Just guessing.

OP
OP
charwest

charwest

Well-Known Member
First Name
char & tony
Joined
Apr 26, 2020
Threads
42
Messages
335
Reaction score
727
Location
On the road
Vehicle(s)
2019 Ranger XL FX4 Supercab
Occupation
Healthcare
Does your odb reader have a switch on it? I have started with the switch in the wrong position and encountered issues like the picture you posted. When that happens I would flip the switch and start over, no more issues. If it doesn't have a switch then I suspect your reader may have issues. Just guessing.
no switch. it is the “recommended” reader by the forscan site and one of the touted benefits was no need for switching


jss81258

Well-Known Member
First Name
James
Joined
Jul 5, 2020
Threads
1
Messages
169
Reaction score
253
Location
Texas
Vehicle(s)
2020 Ford Ranger Lariat 4x4, 2004 Chevrolet Corvette Z06
Occupation
Fixed equipment inspector
You could have a poor connection when you plug your adapter in. It should be a little difficult to remove. I usually reach behind the port with my fingers, have the heel of my hand against the adapter, then squeeze.

OP
OP
charwest

charwest

Well-Known Member
First Name
char & tony
Joined
Apr 26, 2020
Threads
42
Messages
335
Reaction score
727
Location
On the road
Vehicle(s)
2019 Ranger XL FX4 Supercab
Occupation
Healthcare
You could have a poor connection when you plug your adapter in. It should be a little difficult to remove. I usually reach behind the port with my fingers, have the heel of my hand against the adapter, then squeeze.
alright! optimistic that it might be something simple i tried wiggling and shoving. no change. but then i realized hunting for basic fixes that i needed to advance the key one more click. now that the key is in the correct position it reads all the modules and allows me to write changes. thank you for your advice.

the two codes remain that i dont understand.

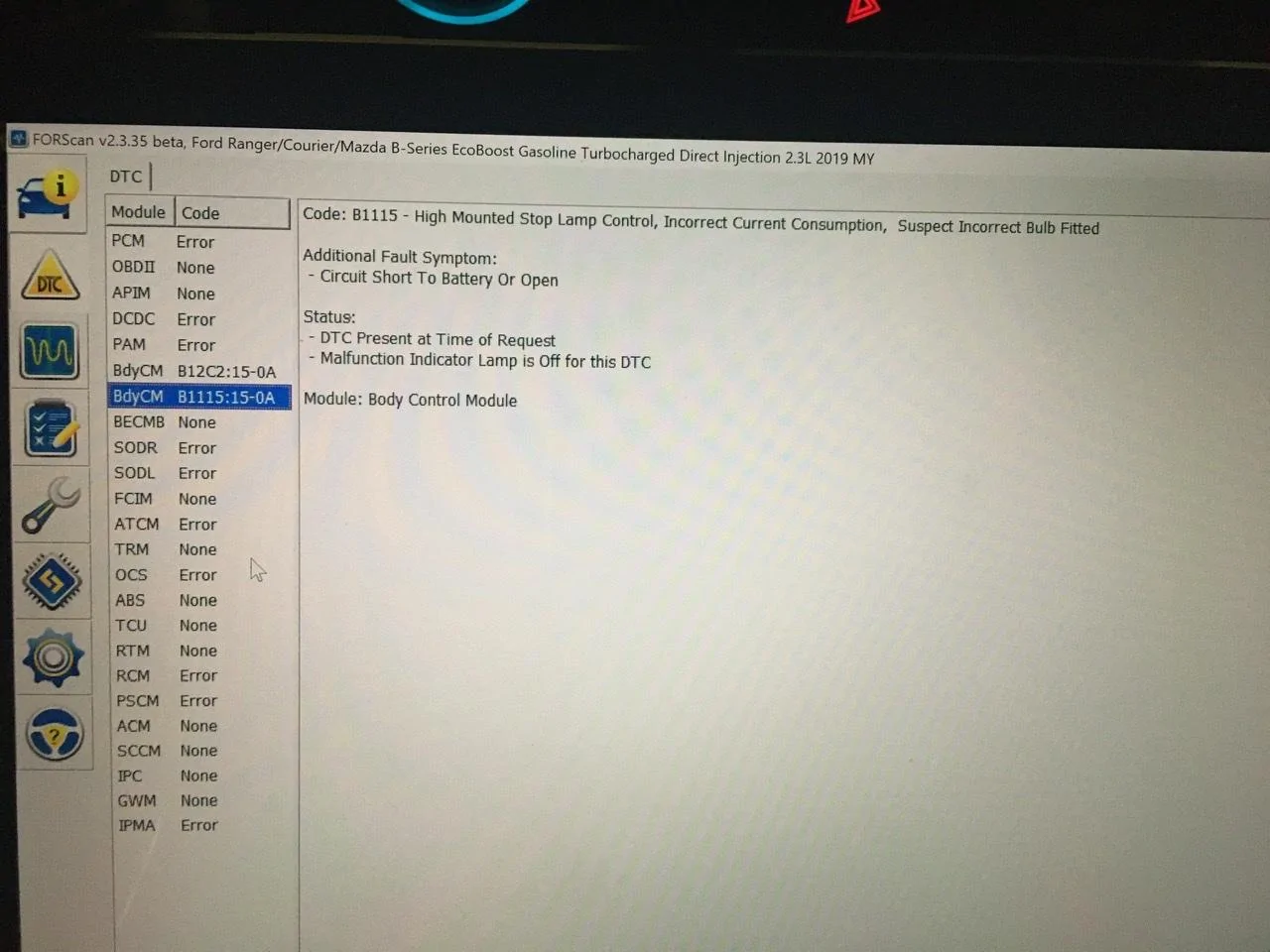

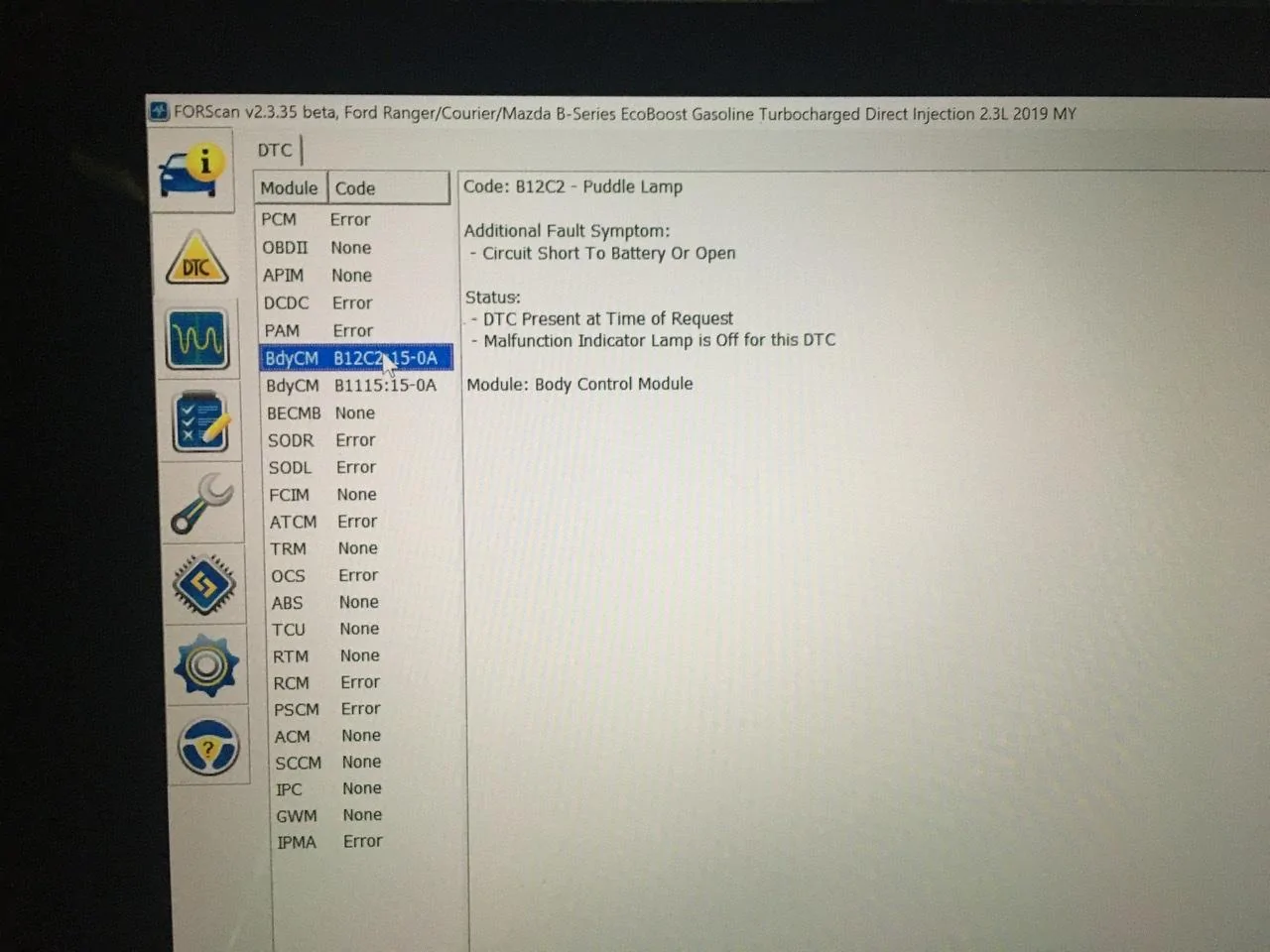

DTC code one regards puddle lights. i dont have puddle lights. or at least i dont think so- arent these a upgraded trim option? we have the XL.
