FORD RANGER HEADLIGHT MOTOR CONTROL

[MartyL16]

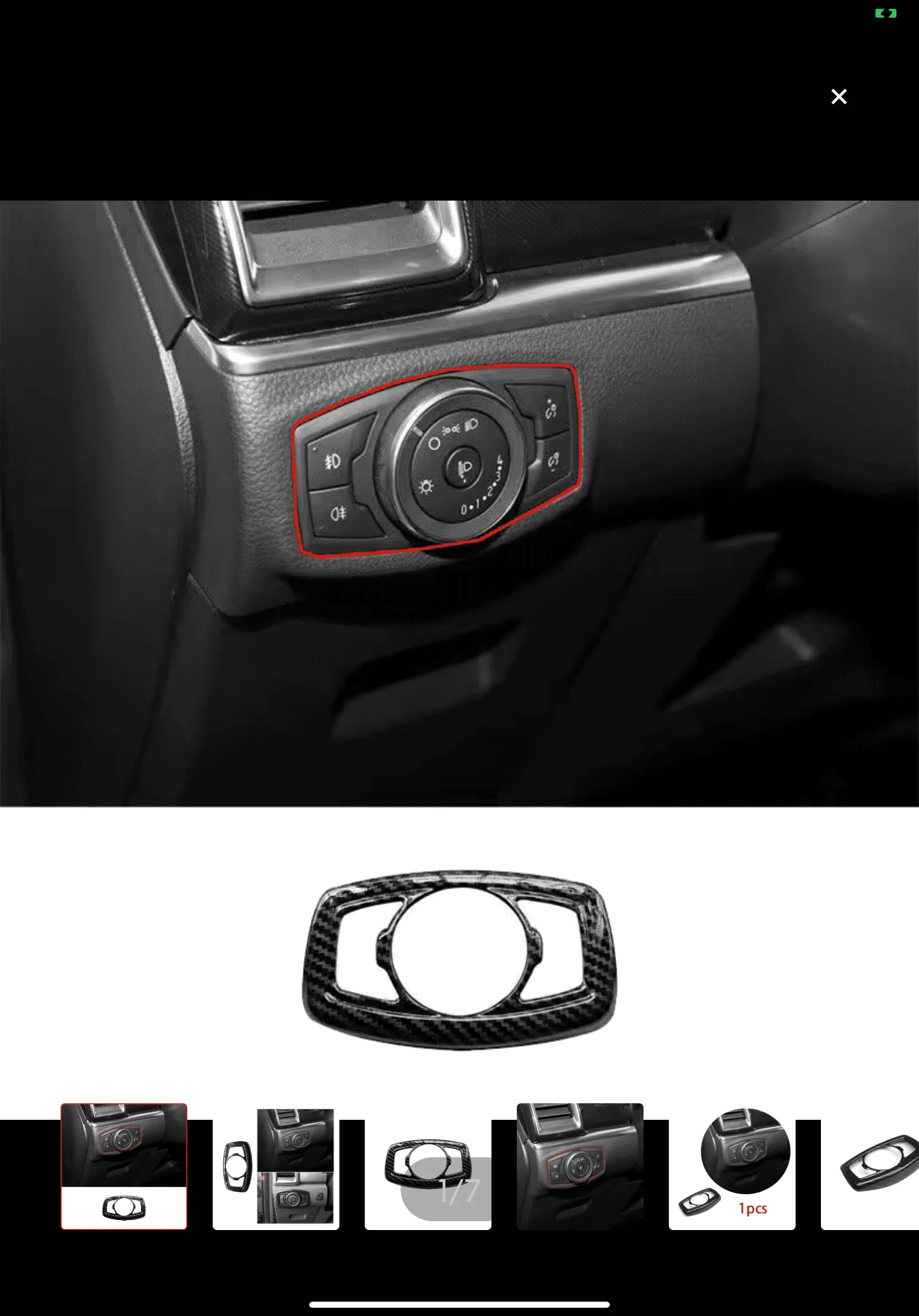

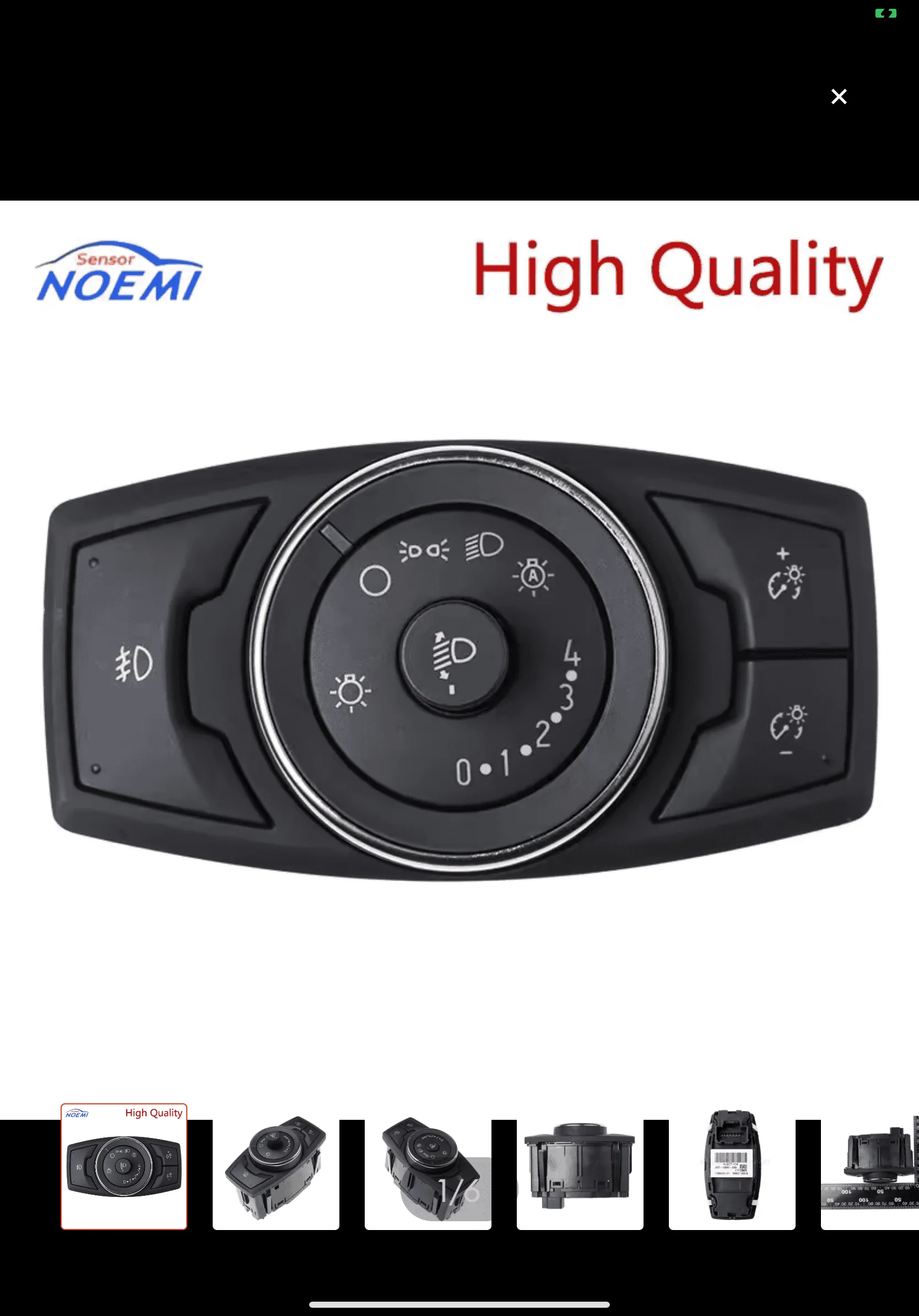

I need a wiring diagram for this dash control to the headlight motors. I have included 2 FULL IMAGES of both available switches. I would prefer the wiring diagram for the unit with the RED LINE around it. I hope someone can provide it or tell me where I can find it. Thank you

Sponsored



[DukeCanBuildit]

Headlight motors? Man, you RoW owners get all the cool stuff!



[Dereku]

Pretty sure that stuff is banned here lol. Like laser headlights.



[Trigganometry]

Headlight motors? ? Ahhh I get it!



[Msfitoy]

Headlight motors? Man, you RoW owners get all the cool stuff!

Looks like some sort of manual headlamp aiming...



[CATX]

looks like it’s to adjust for loads.



[Msfitoy]

looks like it’s to adjust for loads.

I'm surprised it's not an option for our trucks...my 03 MINI had self leveling HID lamps to compensate for cargo or terrain...
