Hi. I'm Phil Howell, live in Eagle Mountain, Utah, and have completed many project vehicles over the years as Editor-in-Chief of 4Wheel Drive & Sport Utility Magazine and Off-Road Magazine. As I enter my sunset years, backcountry exploring is more inviting than rock crawling so I'm building my 2020 Ranger FX4 SuperCrew to that end. It will be appearing in Four Wheeler Magazine as a mild build feature.

I've already installed a Stubby Jr. antenna from CravenSpeed, put black Ranger lettering on the tailgate, and installed the must-have (lol) DeeZee tailgate damper. Planned upgrades are Fabtech Intrusion Beams, wheels and tires, suspension, Rocky Road Outfitters Supersliders rocker guards, Warn winch, Baja Designs lights, camping equipment, etc.

Here's what it looks like now in stock trim . . .

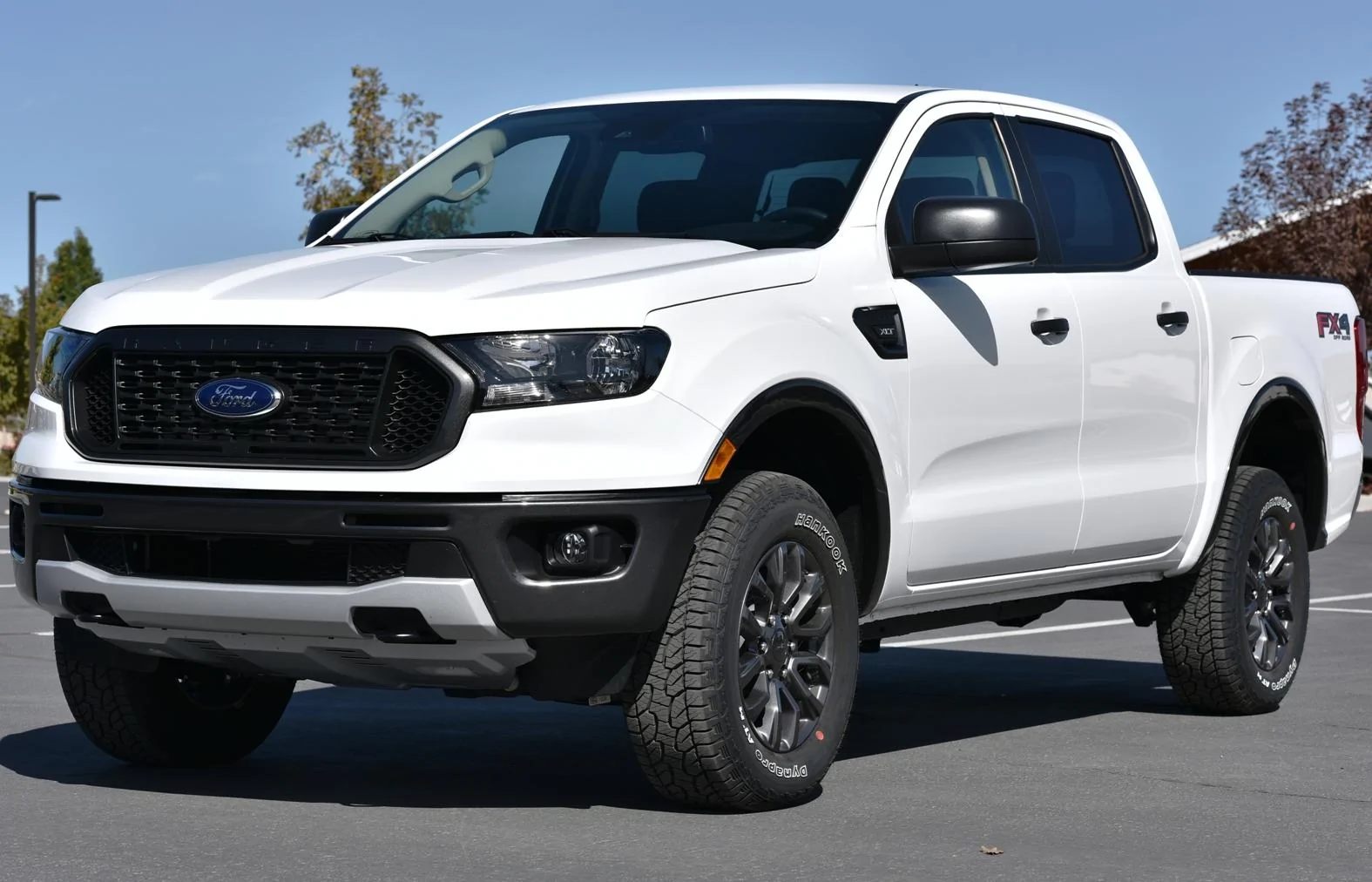

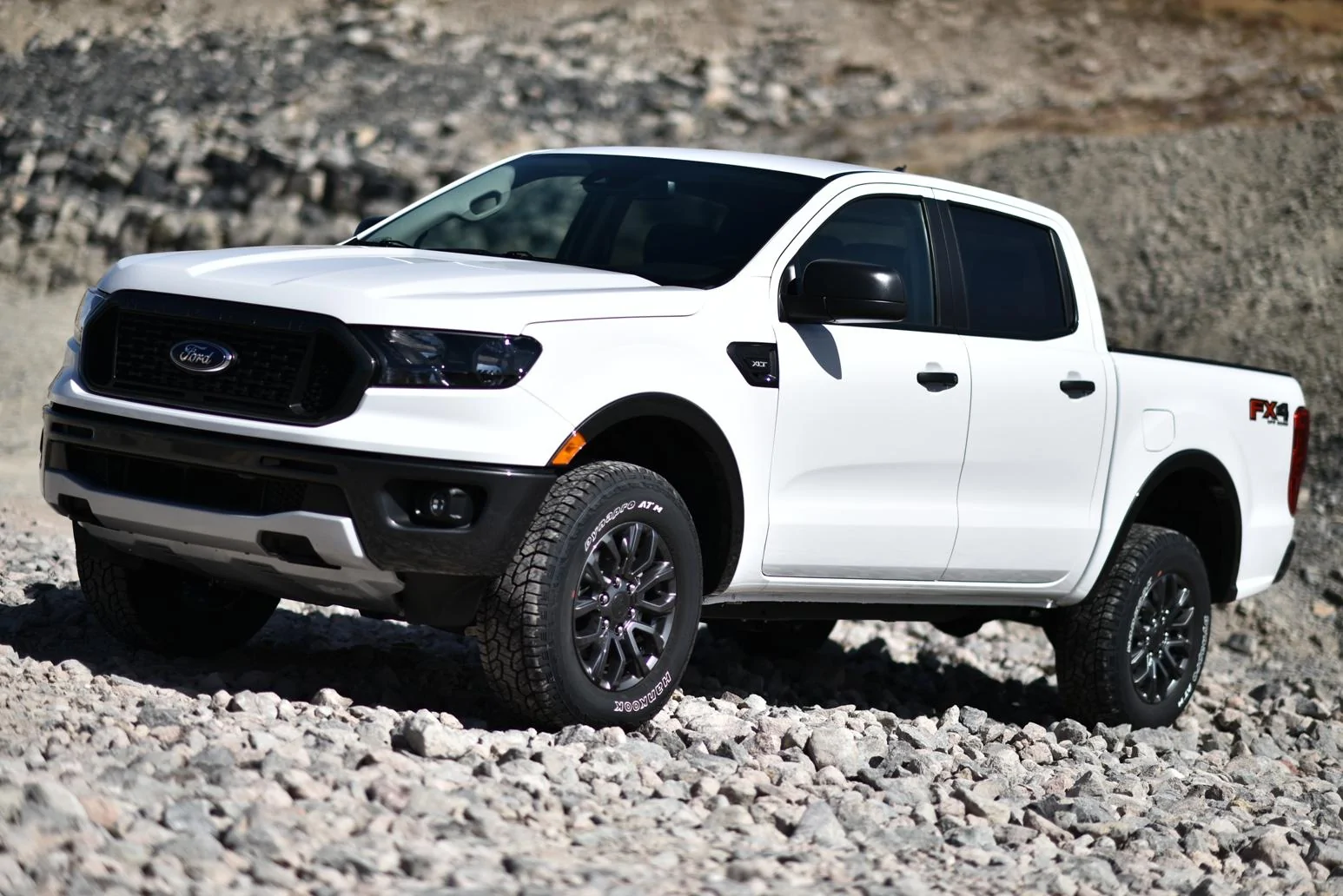

2020 Ford Ranger FX4 041 web.jpg

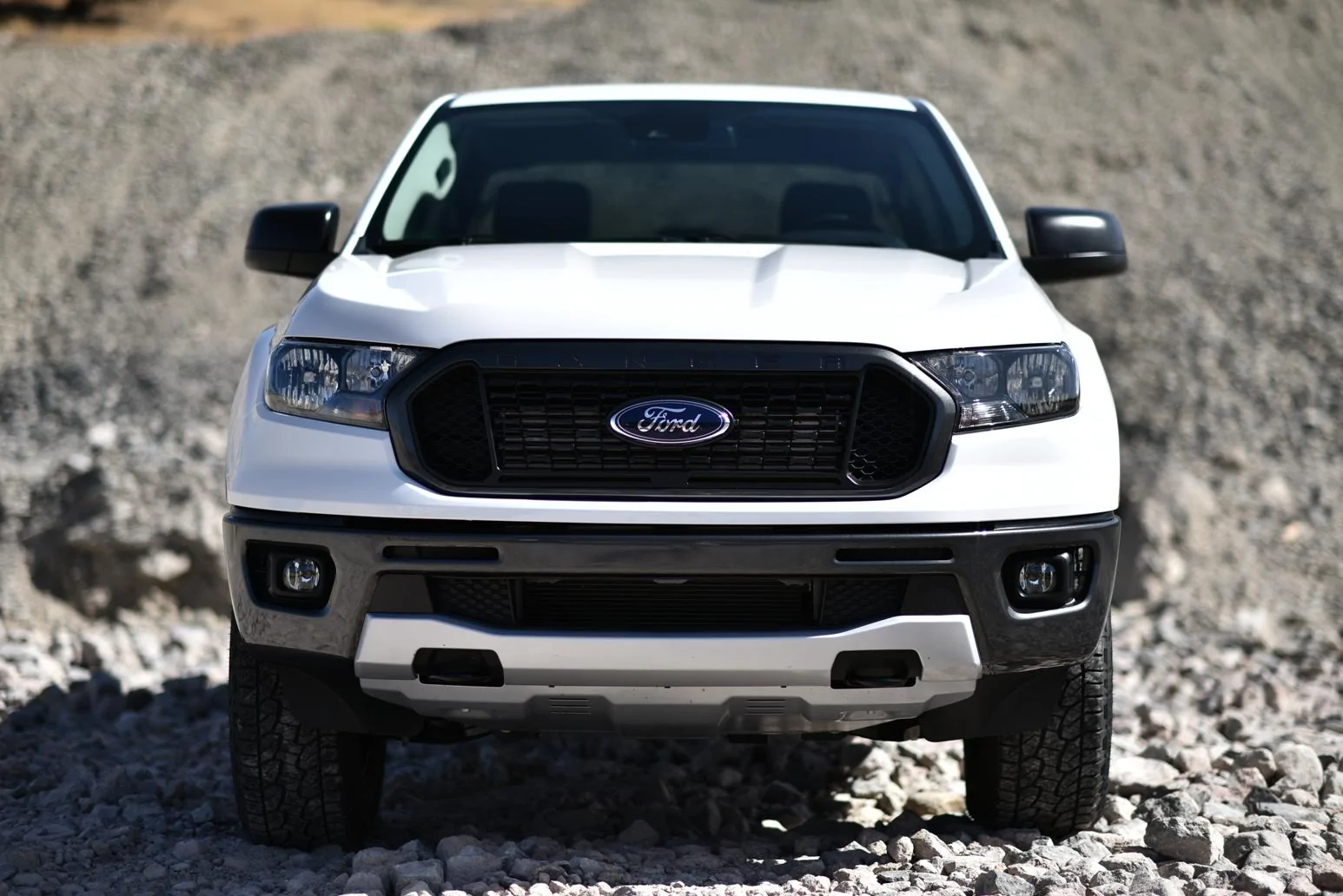

2020 Ford Ranger FX4 031 web.jpg

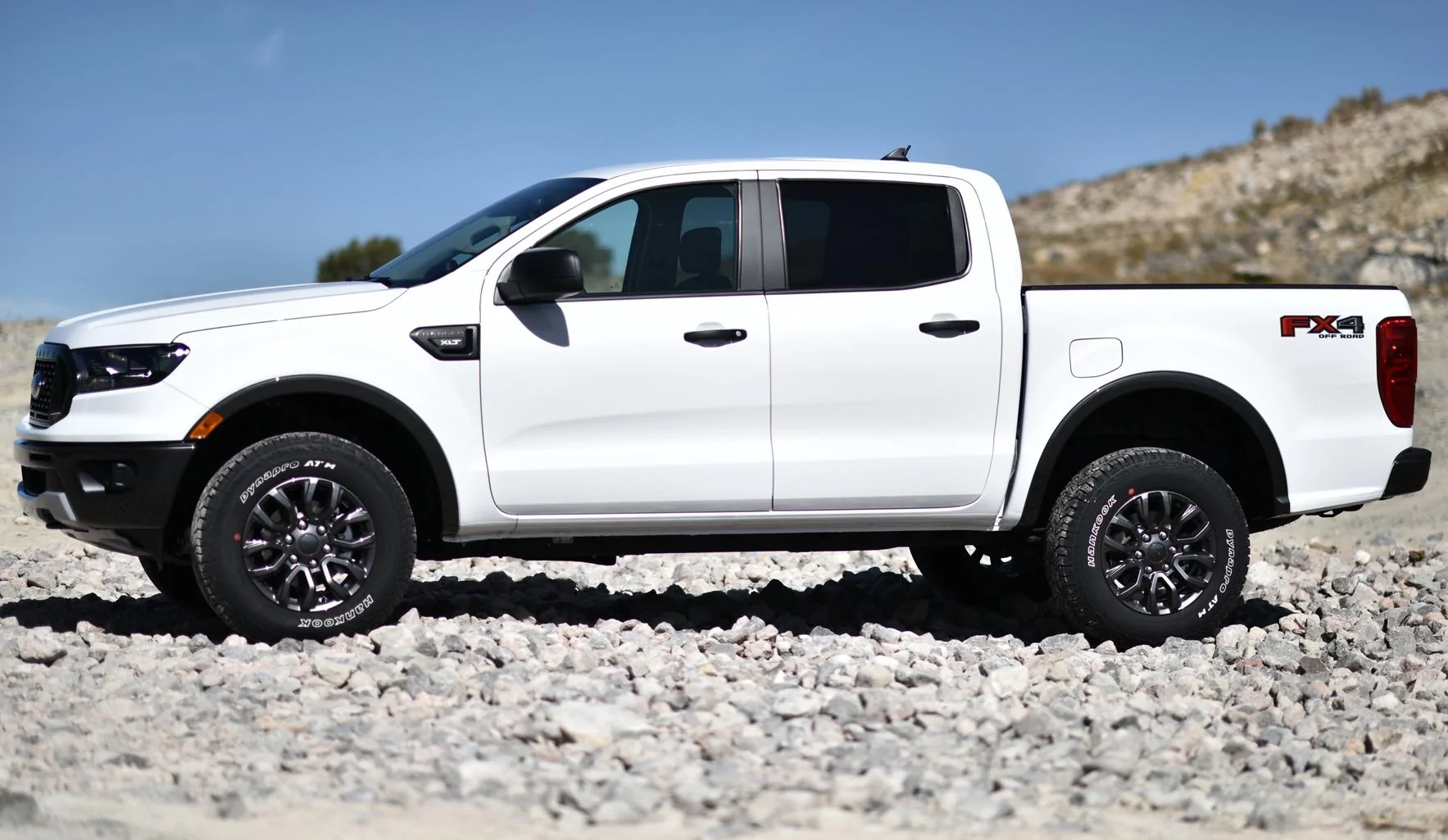

2020 Ford Ranger FX4 042 web.jpg



Advertisement




Last edited:

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,561
Reaction score
4,427
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
Hi Phil...great looking Ranger! BTW, if you want to stop now, quit the forum before you get the bug and end up like me... 🤪 😅

OP
Phil Howell

Phil Howell

Active Member
First Name
Phil
Joined
Jul 29, 2020
Messages
28
Reaction score
83
Location
Eagle Mountain, Utah
Vehicle(s)
Oxford White 2020 Ranger XLT SuperCrew FX4
Occupation
4x4 Journalist
  • Thread starter
  • Thread Starter
  • #3
Aftermarket wheels and larger BFGoodrich All-Terrain T/A KO2 tires are planned, so something had to be done about the intrusion beams. The Ranger T6 doesn't have intrusion beams, nor does the F150 Raptor, so I considered just removing them. I didn't want to compromise the crashworthiness of my US-spec Ranger, though, so installed Fabtech's Ranger Intrusion Beam Offset Kit that allows larger tires and wheels with less offset/backspacing to be used. These intrusion beams (crash bars) are BEEFY. I chose to cut off the OEM intrusion beams but regretted this decision after doing the job. I went through eight reciprocating saw blades and a grinding wheel. I also trimmed off a corner of the plastic blocks in the rear of each fender well so the outer intrusion beam bolts could be removed. If I had to do it again, I'd probably loosen my front bumper and rear fender trim to remove the OEM bars and delete those plastic blocks altogether. The Fabtech bars installed easily. If you choose to use the Fabtech intrusion beams on your Ranger, don't forget to keep the pieces of OEM intrusion beams that fit inside the frame -- you'll reuse those when installing the Fabtech kit. I now have room to run LT285/70R17 tires, which I might in the future (have LT265/70R17s to install right now), and the Ranger's front tires will stay outside the cab if the truck's ever in a crash.

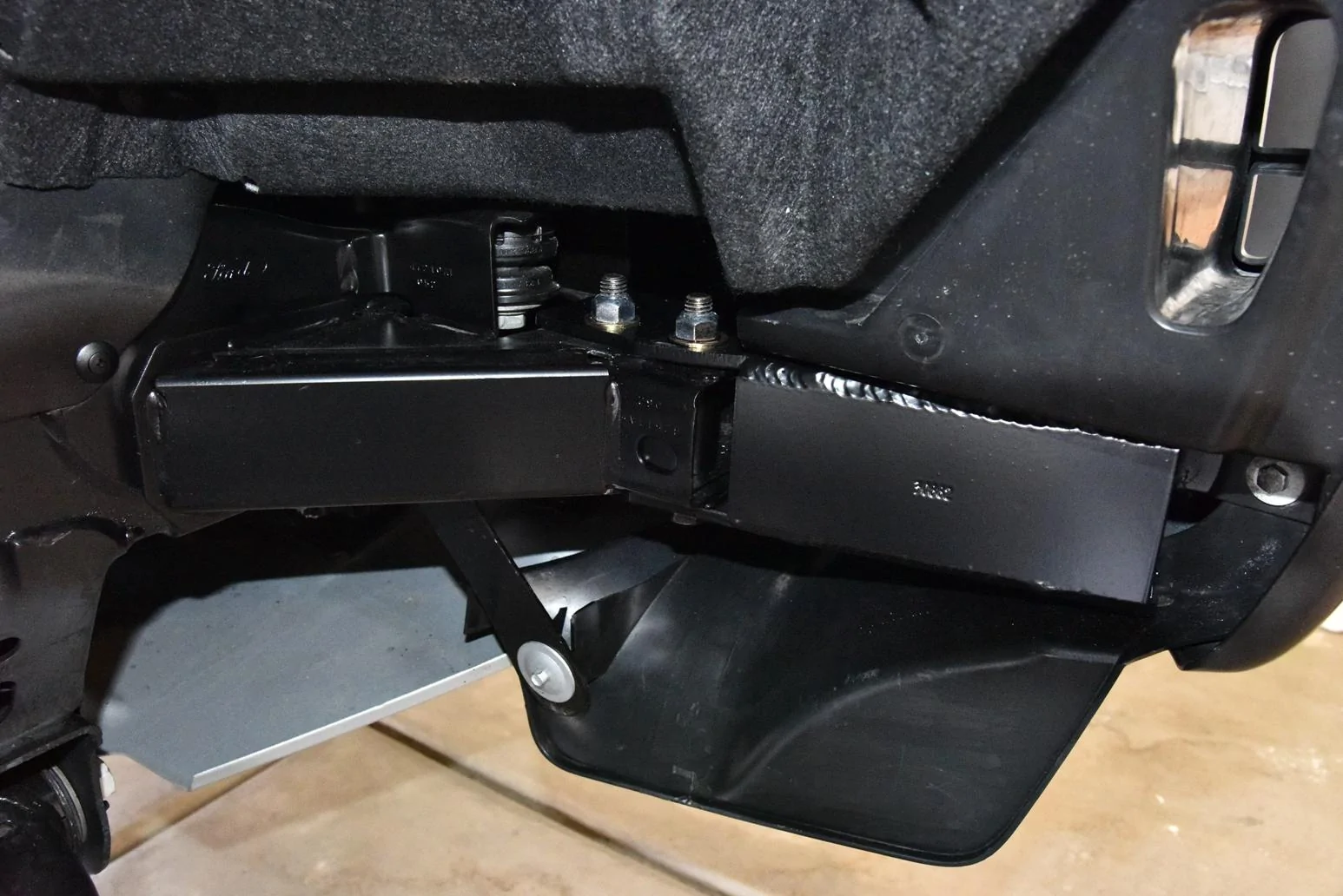

2020 Ford Ranger FX4 002 web.jpg

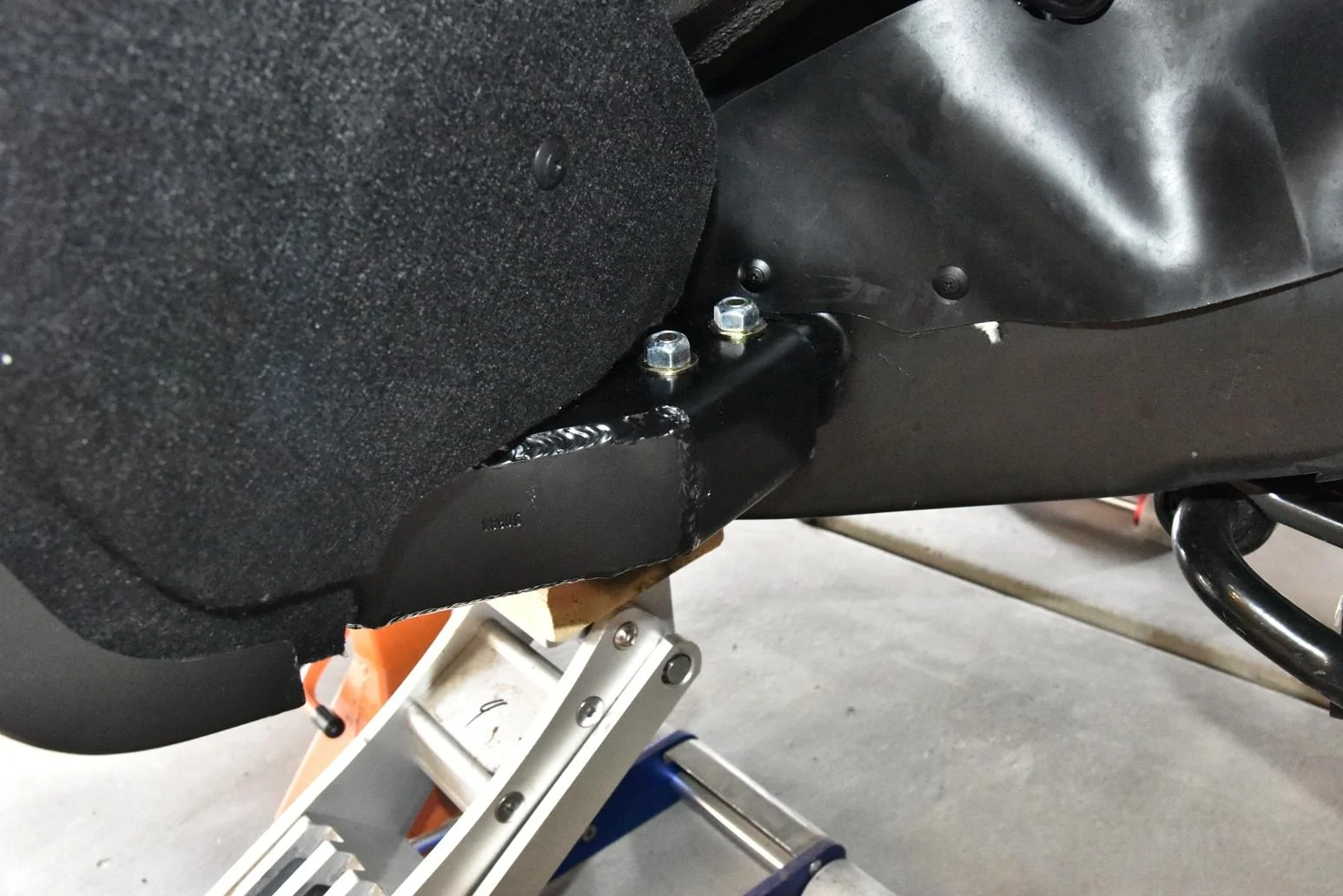

2020 Ford Ranger FX4 003 web.jpg

Last edited:
OP
Phil Howell

Phil Howell

Active Member
First Name
Phil
Joined
Jul 29, 2020
Messages
28
Reaction score
83
Location
Eagle Mountain, Utah
Vehicle(s)
Oxford White 2020 Ranger XLT SuperCrew FX4
Occupation
4x4 Journalist
  • Thread starter
  • Thread Starter
  • #4
Hi Phil...great looking Ranger! BTW, if you want to stop now, quit the forum before you get the bug and end up like me... 🤪 😅

Ha. It's too late. I've been upgrading (?) vehicles for many years and there's no way I've found to stop. When I bought the Ranger, I told my wife that I'd leave it alone. She rolled her eyes and said, "Yeah, sure." Unfortunately, she was correct, as always.

Last edited:

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,561
Reaction score
4,427
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
Ha. It's too late. I've been upgrading (?) vehicles for fifty years and there's no way I've found to stop. When I bought the Ranger, I told my wife that I'd leave it alone. She rolled her eyes and said, "Yeah, sure." Unfortunately, she was correct, as always.
I told my wife wheels and tires only... 🤪

OP
Phil Howell

Phil Howell

Active Member
First Name
Phil
Joined
Jul 29, 2020
Messages
28
Reaction score
83
Location
Eagle Mountain, Utah
Vehicle(s)
Oxford White 2020 Ranger XLT SuperCrew FX4
Occupation
4x4 Journalist
  • Thread starter
  • Thread Starter
  • #6
LT265/70R17/C BFGoodrich All-Terrain T/A KO2 tires were mounted on 17x8.5" Icon Alloys Compression Titanium wheels. I've used KO2s in the past and have been impressed with their on- and off-road traction, durability, and quietness on the highway. The mountain snowflake symbol means great snow performance, too. I chose to run this size as it's the largest Ford will warranty with the performance flash, which I may or may not get. This size fits with no lift, which is important as the suspension upgrades I plan won't be available until December. The Icon wheels have a +25 offset and are Ranger hub-centric with a 93.1mm center bore. I have a fifth tire and wheel as a spare that fits in the OE spare position. While the 265/70R17 tire will work with the OEM steel spare wheel, if I run any larger tire in the future, the steel OE wheel has too much backspacing, hence the fifth Icon wheel. The Icon's +25mm offset equates to 5.7" vs the 6.6" OEM backspacing. Less than an inch of backspace change means very little increase in scrub radius and the tires barely protrude past the fenders. The Icon Compression wheels look great IMO, are strong, and the BFG KO2/Icon combo balanced perfectly without taking much weight.
2020 Ford Ranger FX4 051web.jpg
2020 Ford Ranger FX4 053 web.jpg
2020 Ford Ranger FX4 064 web.jpg
2020 Ford Ranger FX4 078 web.jpg
2020 Ford Ranger FX4 079 web.jpg

Last edited:
OP
Phil Howell

Phil Howell

Active Member
First Name
Phil
Joined
Jul 29, 2020
Messages
28
Reaction score
83
Location
Eagle Mountain, Utah
Vehicle(s)
Oxford White 2020 Ranger XLT SuperCrew FX4
Occupation
4x4 Journalist
  • Thread starter
  • Thread Starter
  • #7

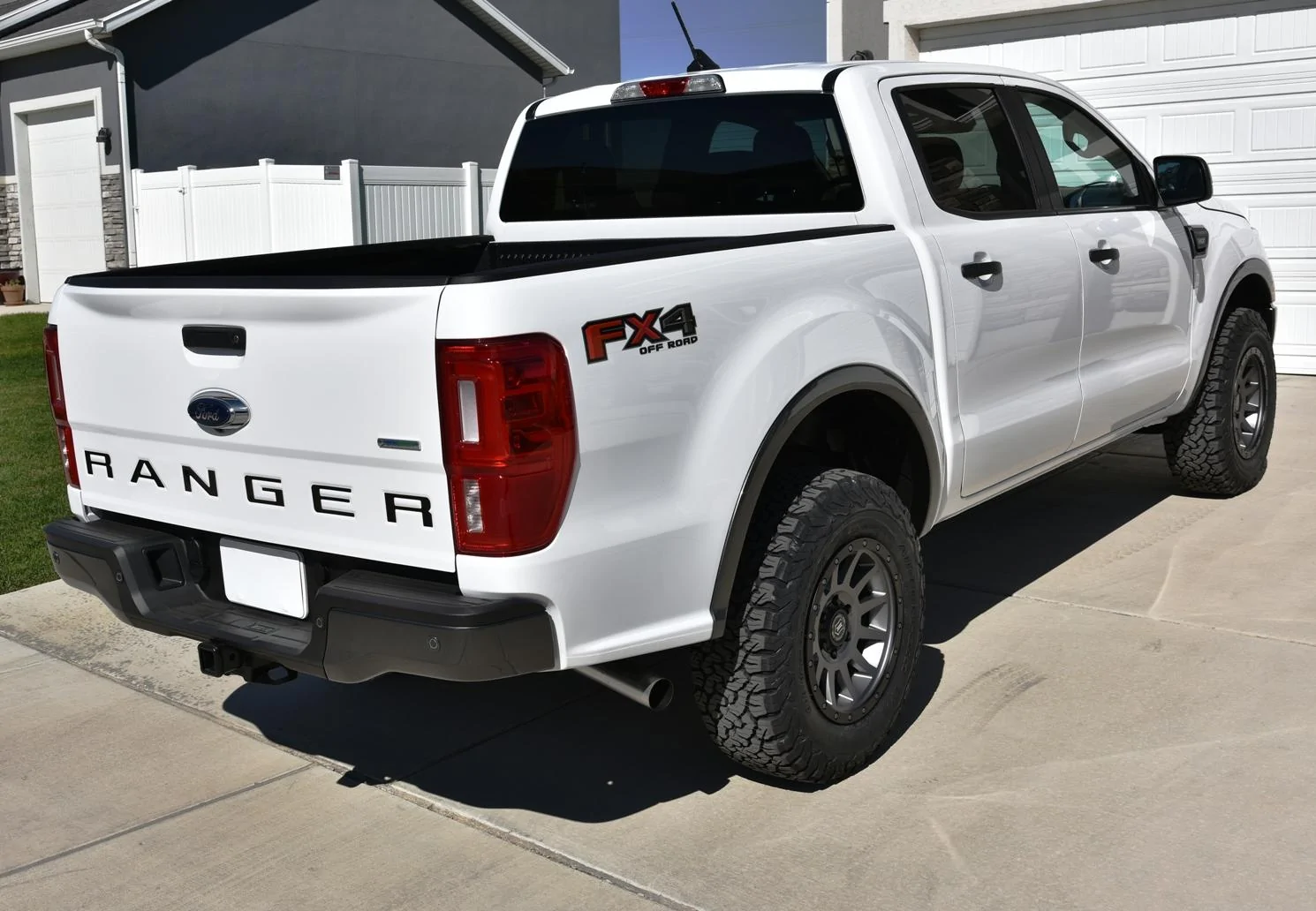

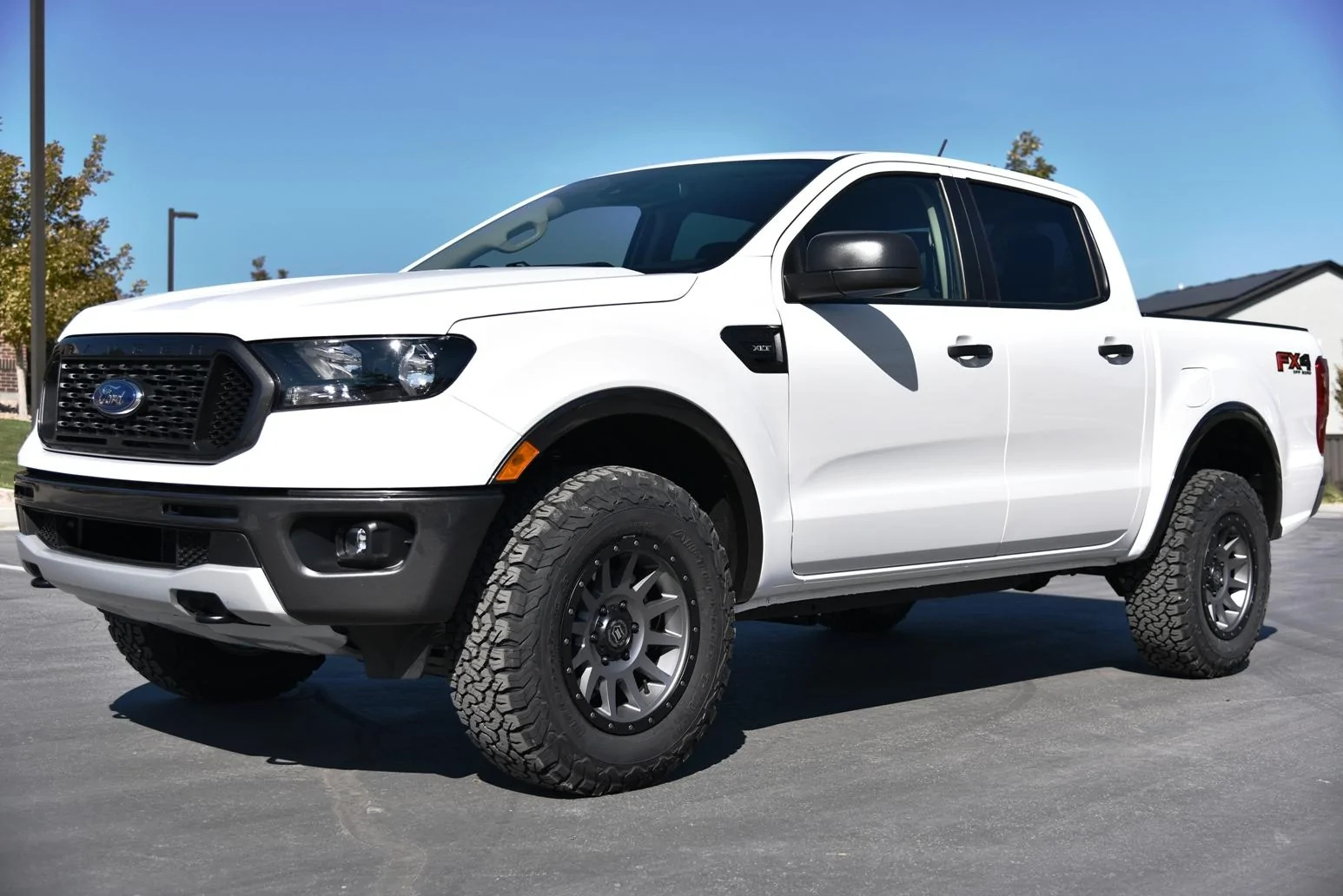

Here's before and after shots, as well as a look at the back. The truck has no lift and is OE except for the Fabtech Intrusion Beam Kit. Those were probably not needed with the 265/70R17 tires, but they will be if I jump to 285/70R17s in the future.
