Hi All

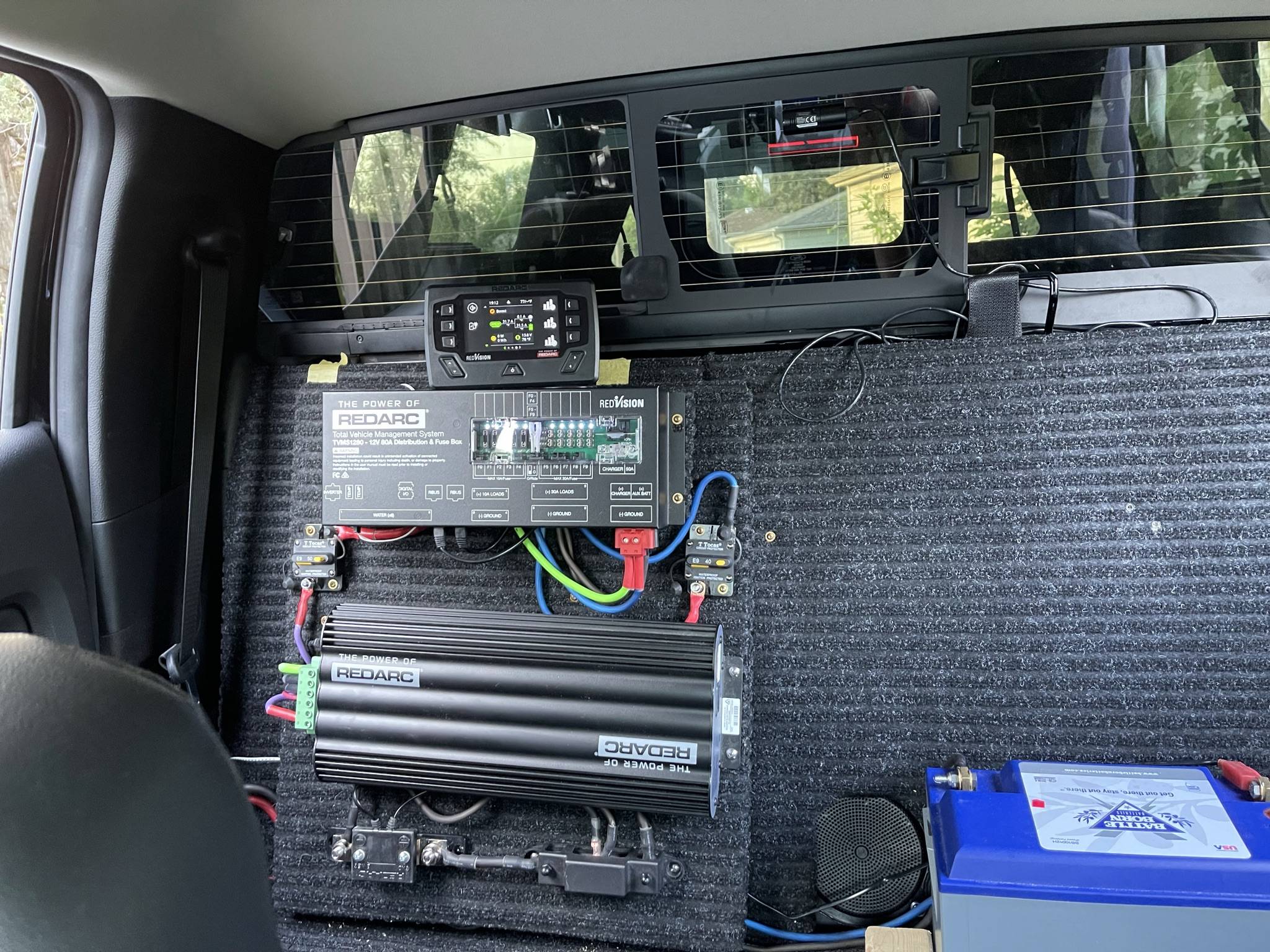

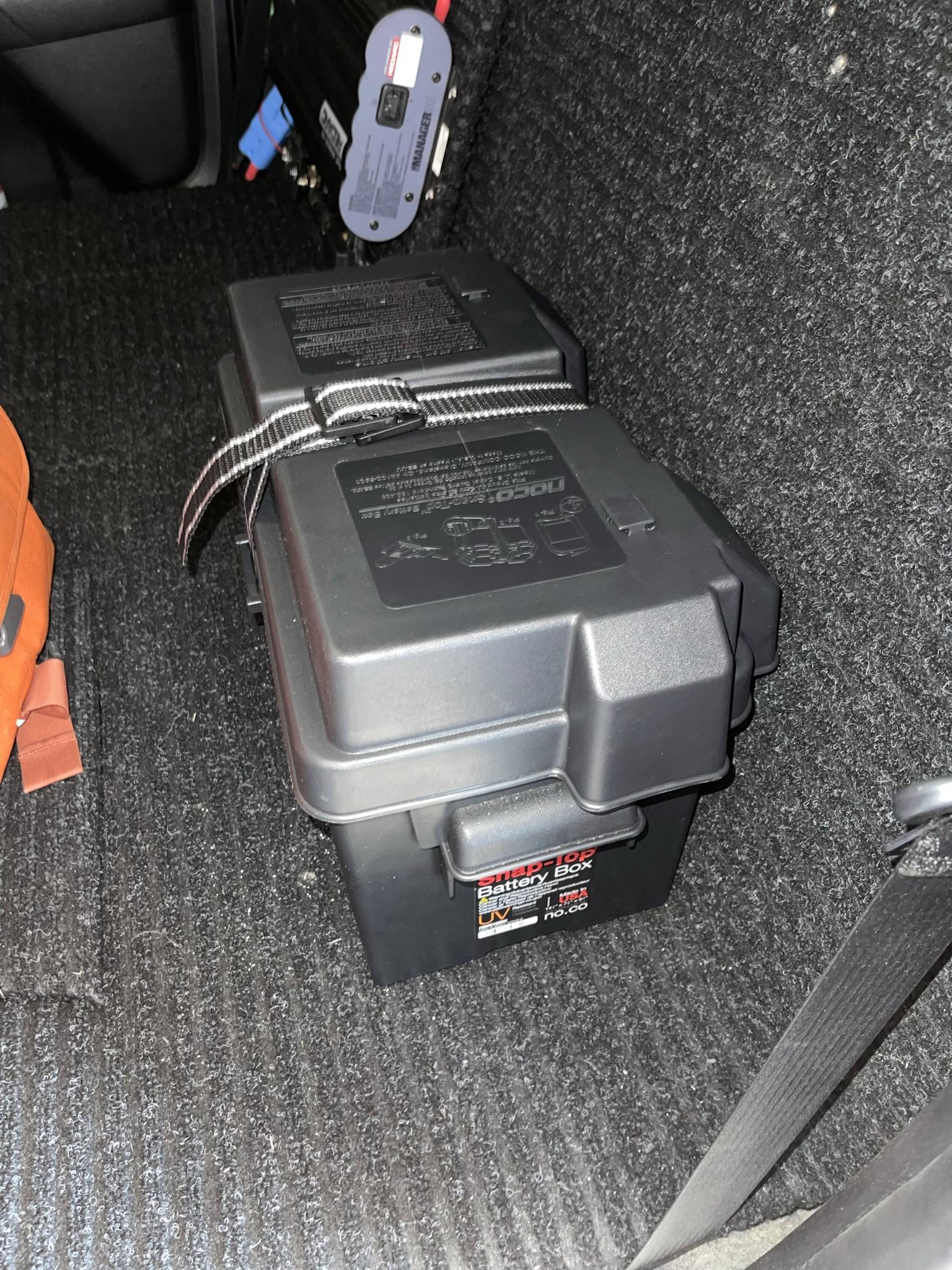

Just about to install a dual battery system, with shore power and solar hookups. using a Battle Born Heated LiFePo4 battery and redarc redvision manager 30 system (will replace my trogger4plus amongst other things).

Rarely have anyone in the back, and always annoyed about the terrible design of folder down seats compared to the Taco. Don't Ford realize that the Taco is the Ranger's biggest competitor (besides all their own products: Bronco and now Maverick)

Removing seats was easy: lift up seat, under seatbelt clips (T50) and unplug wires. Then 2 x 13mm bolts at each side.

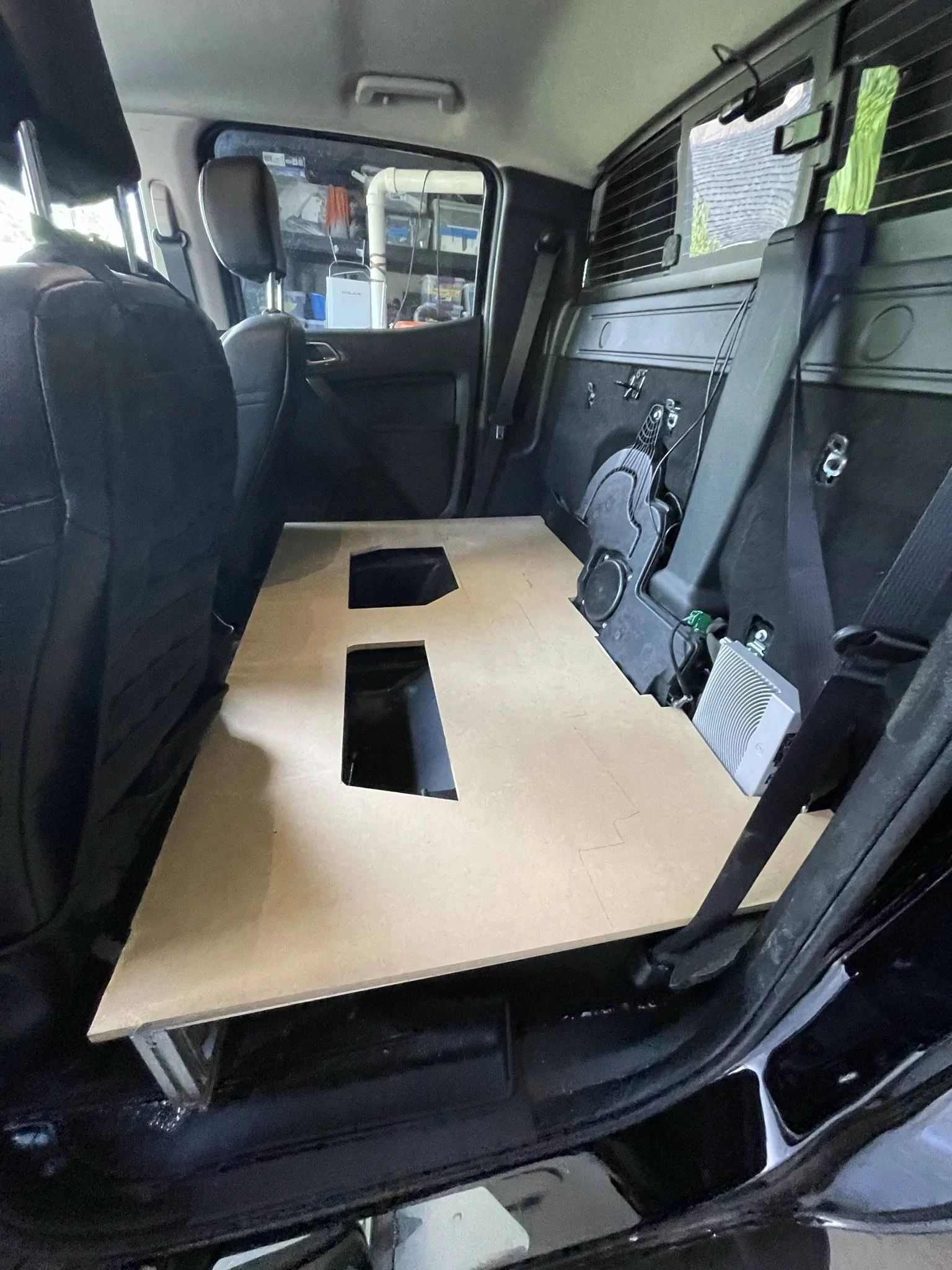

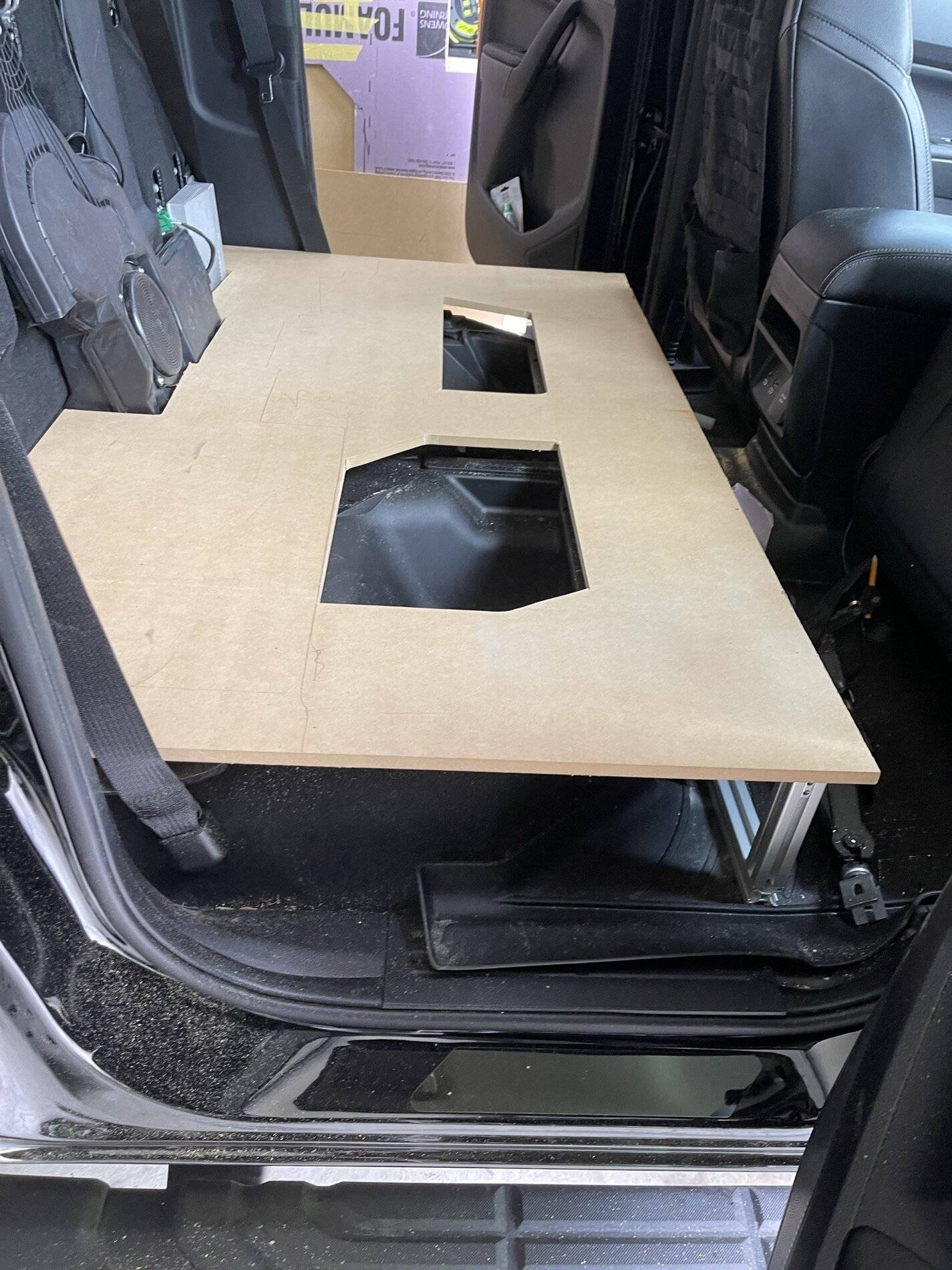

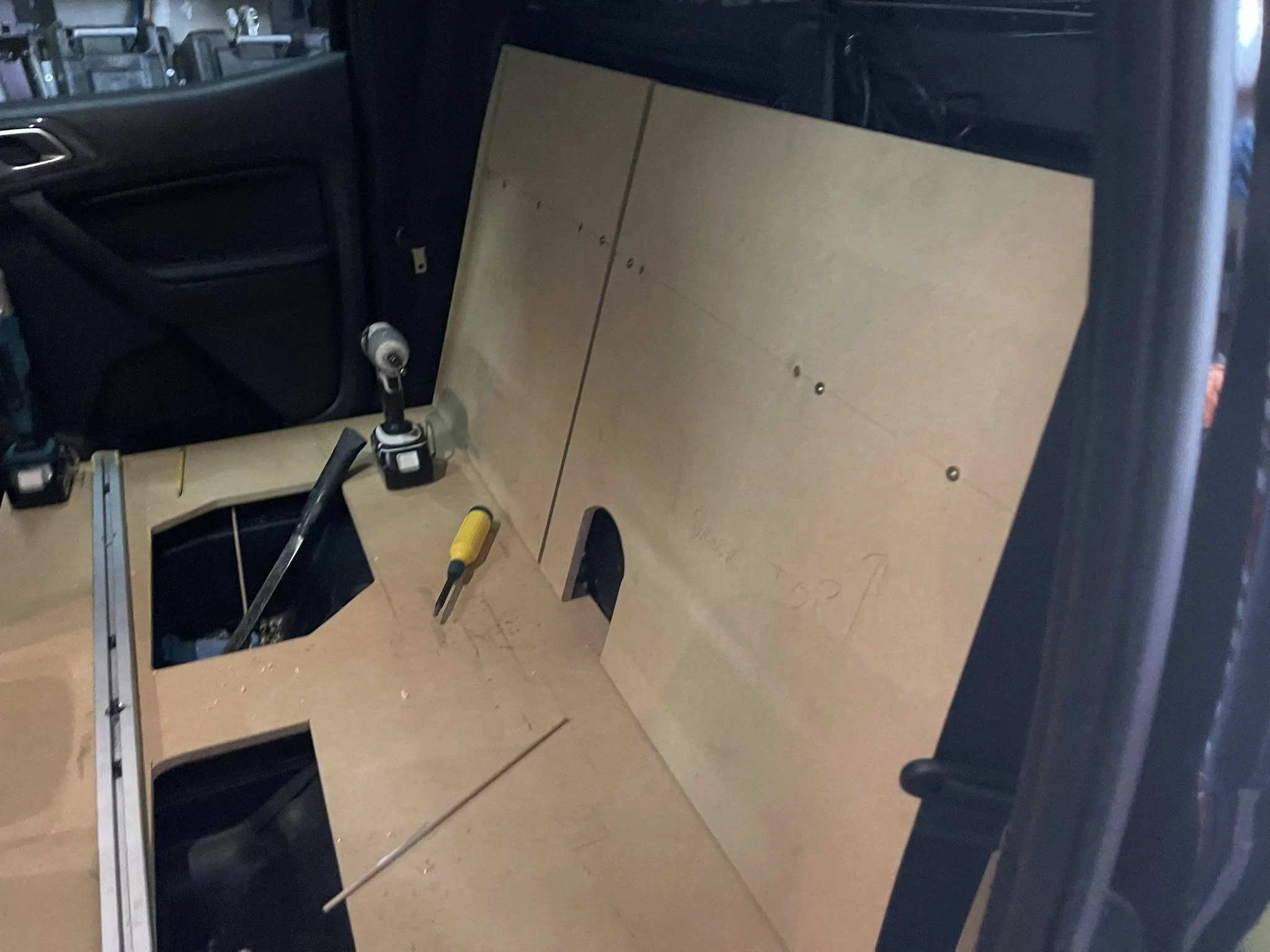

Made an extruded aluminum frame for front and using 1/2 MDF for platform.

The dual battery stuff arrives this week, so can't really do much else until I see where I'm going to locate everything

Sponsored



Superbuggy

Well-Known Member
First Name
Max
Joined
Feb 10, 2022
Threads
3
Messages
58
Reaction score
406
Location
OH
Vehicle(s)
2022 Ford Ranger XL STX 4X4
Hi Mark, I realize that I'm commenting on an ancient thread, but I just saw this lol. Did you ever finish this project, and if so so you have more pics to share? I'm wanting to do this and what you have so far looks great!


Superbuggy

Well-Known Member
First Name
Max
Joined
Feb 10, 2022
Threads
3
Messages
58
Reaction score
406
Location
OH
Vehicle(s)
2022 Ford Ranger XL STX 4X4
Thanks Mark!



alan0614

Well-Known Member
First Name
Alan
Joined
May 30, 2020
Threads
14
Messages
235
Reaction score
798
Location
Granite Falls
Vehicle(s)
2019 Magnetic Lariat, 2017 GT350, 2016 Subaru Legacy
Occupation
Product and Training Manager
@mark_anderson_us what is the back attached to? And do you have the dimensions of each section that you would share?

OP
OP

mark_anderson_us

Well-Known Member
First Name
Mark
Joined
Oct 23, 2020
Threads
30
Messages
265
Reaction score
204
Location
Chicago
Vehicle(s)
Ford Ranger Lariat FX4 2020
Occupation
Software Developer
@mark_anderson_us what is the back attached to? And do you have the dimensions of each section that you would share?

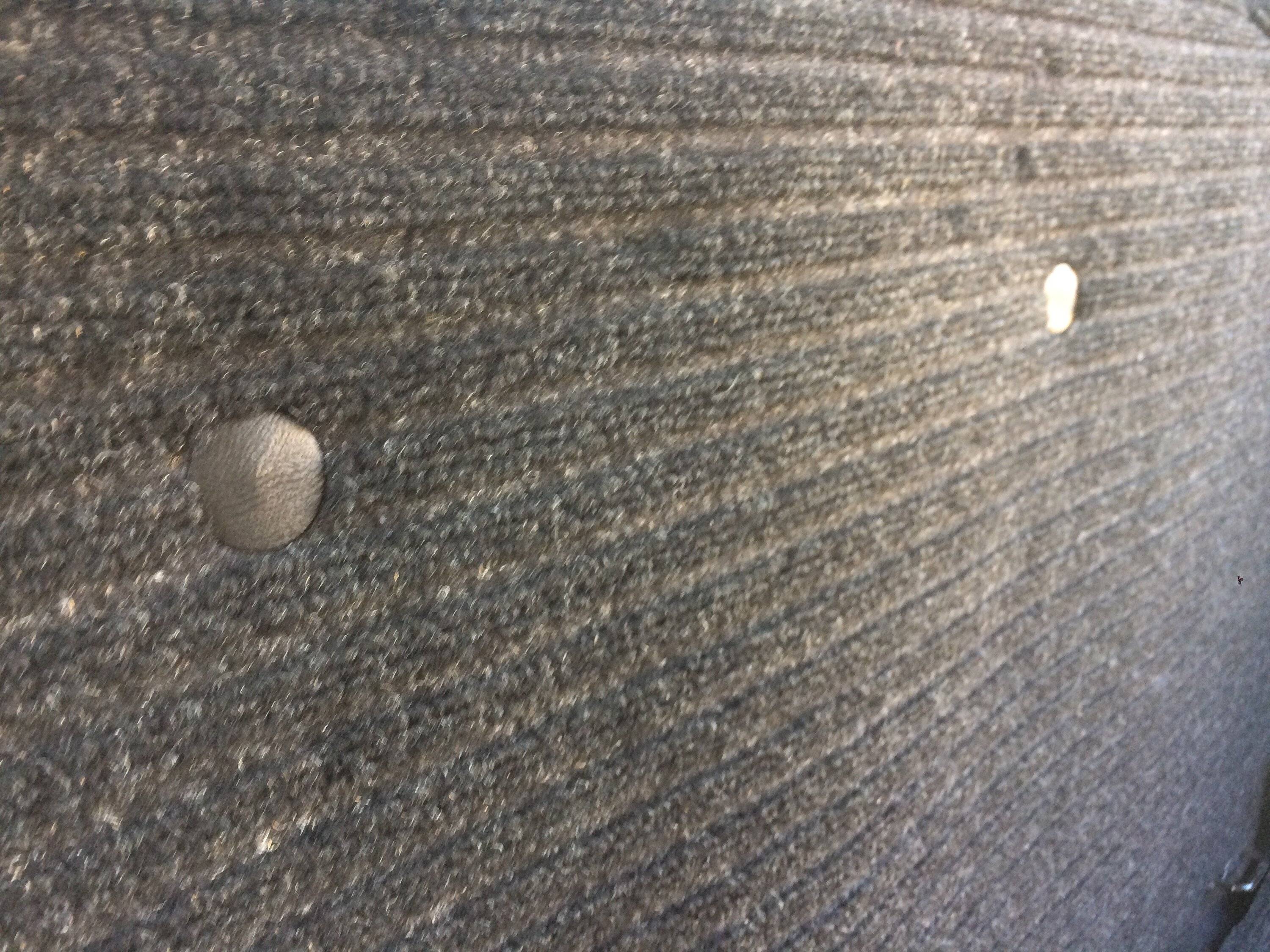

attached to paces where rear seatbelt and bracket for the seat were attached

Sorry no dimensions, pointless anyway as it's not a regular shape


alan0614

Well-Known Member
First Name
Alan
Joined
May 30, 2020
Threads
14
Messages
235
Reaction score
798
Location
Granite Falls
Vehicle(s)
2019 Magnetic Lariat, 2017 GT350, 2016 Subaru Legacy
Occupation
Product and Training Manager
Thank you


DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,309
Reaction score
29,653
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1

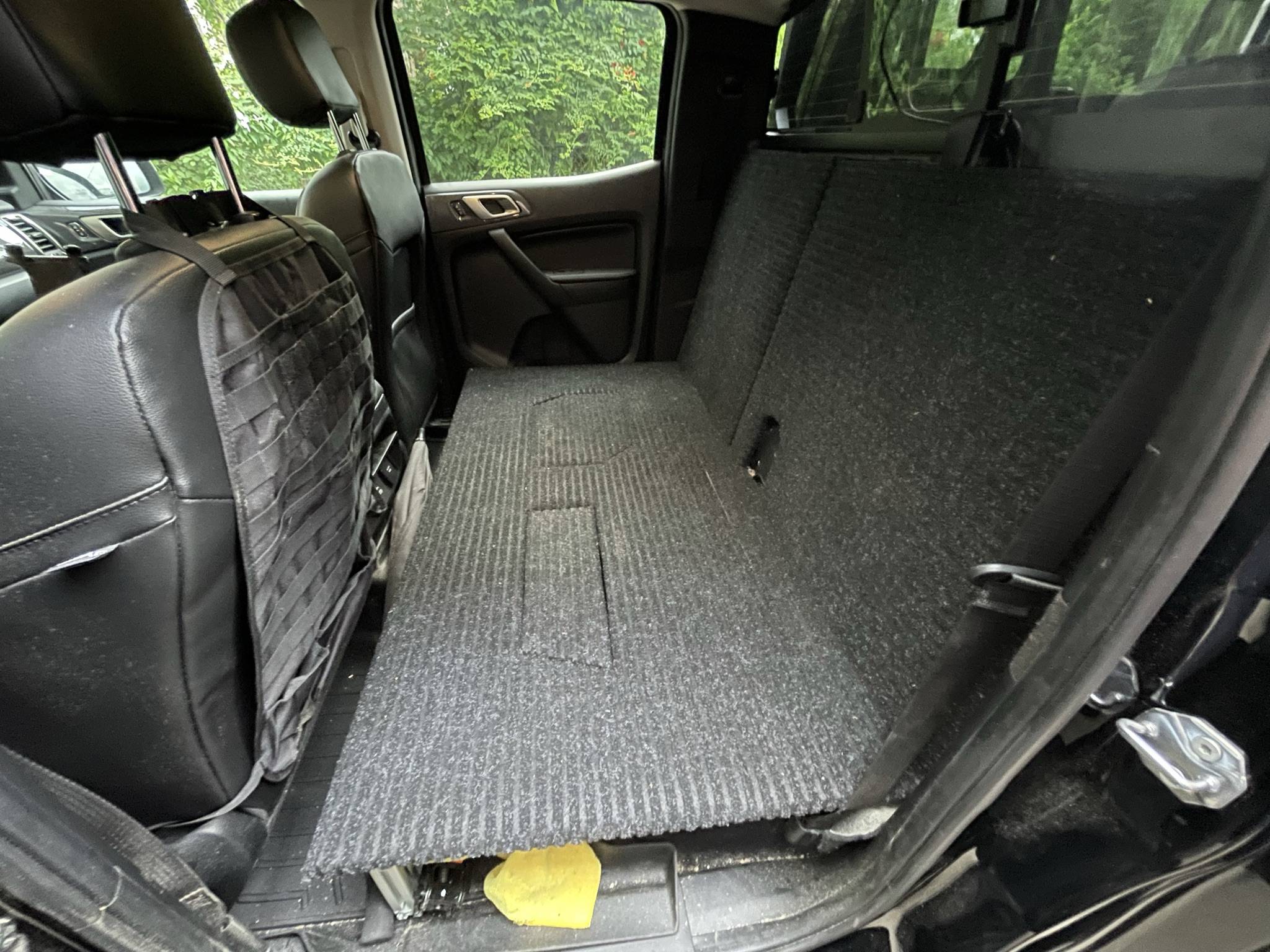

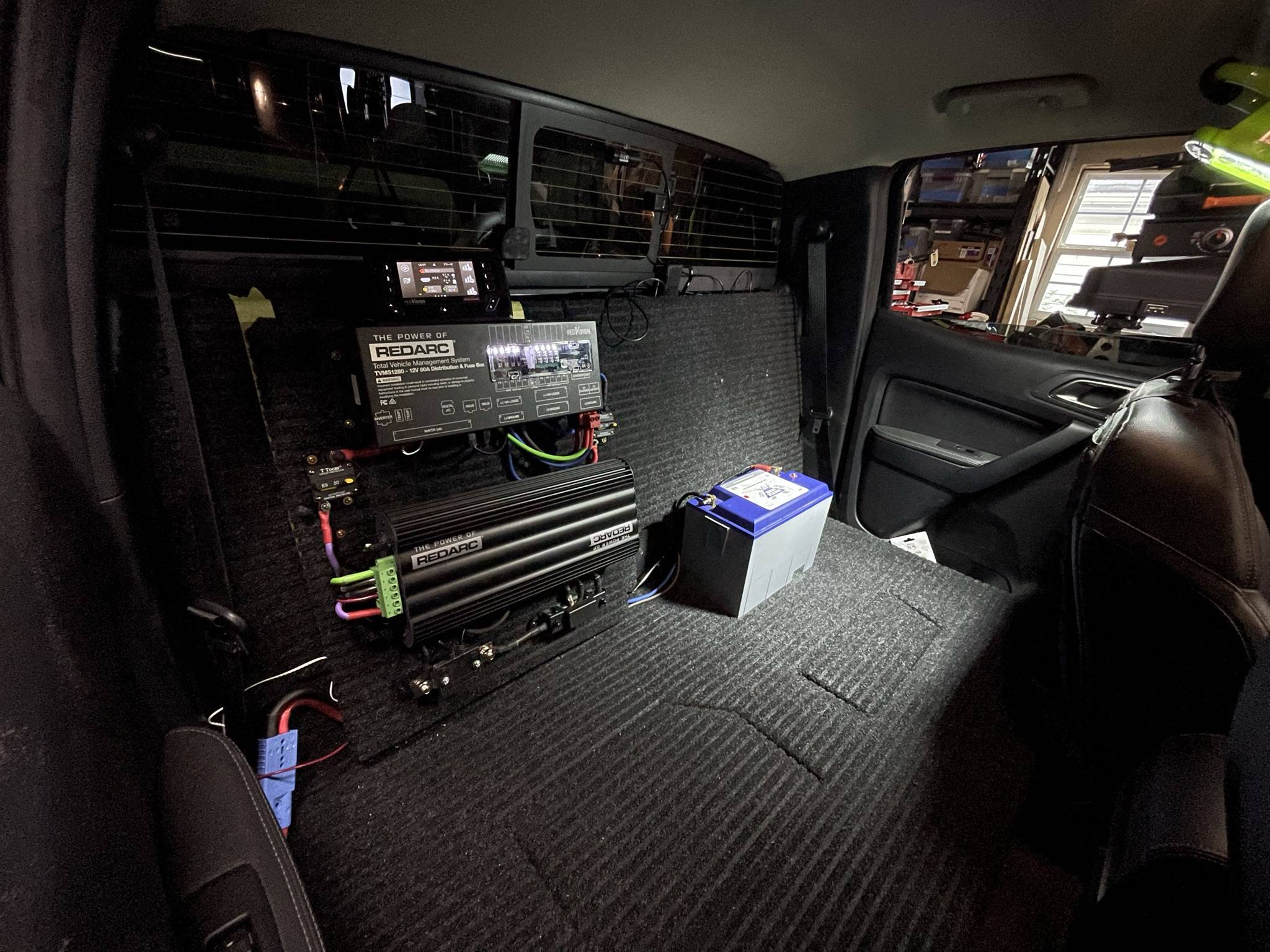

Here's some more pix:

Very nicely finished Mark. I may have used the same material you did on my Scab’s rear seat delete. Rubber-backed utility floor mats?



I’m totally inspired to make a bottom platform now!

OP
OP

mark_anderson_us

Well-Known Member
First Name
Mark
Joined
Oct 23, 2020
Threads
30
Messages
265
Reaction score
204
Location
Chicago
Vehicle(s)
Ford Ranger Lariat FX4 2020
Occupation
Software Developer
Very nicely finished Mark. I may have used the same material you did on my Scab’s rear seat delete. Rubber-backed utility floor mats?



I’m totally inspired to make a bottom platform now!
It's a lot of templating, especially with the sub, but totally worth it


OFC Ranger

Well-Known Member
First Name
Jack
Joined
Aug 3, 2020
Threads
290
Messages
4,795
Reaction score
13,244
Location
Georgia
Vehicle(s)
ZR2
Vehicle Showcase
1
Oh man how did I miss this thread. Awesome stuff. I love seeing other people do custom fab mods.

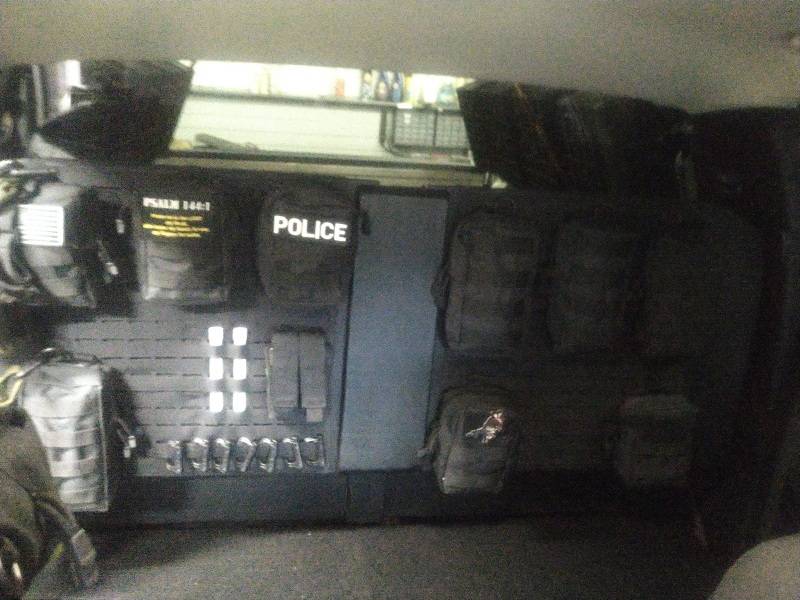

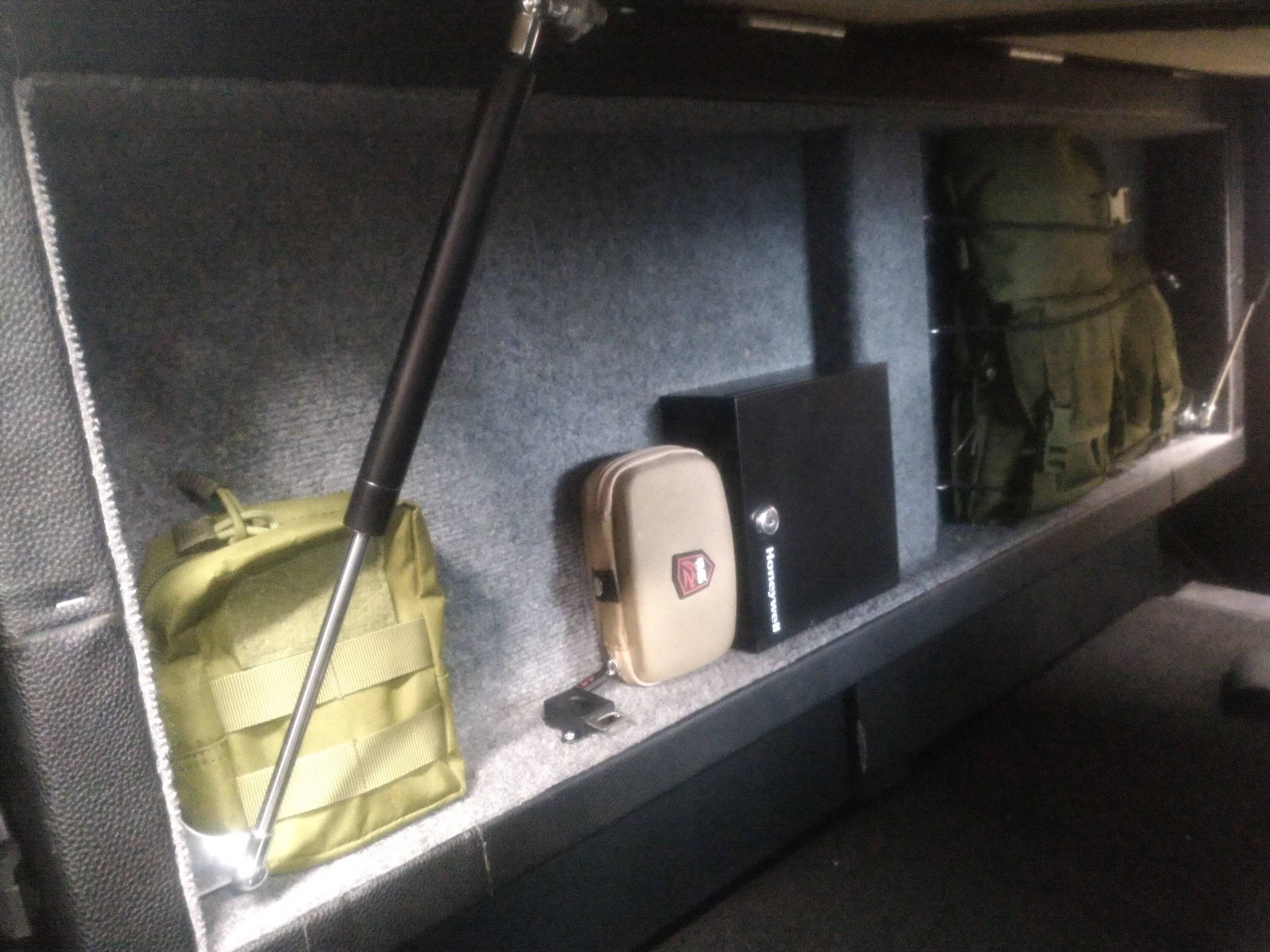

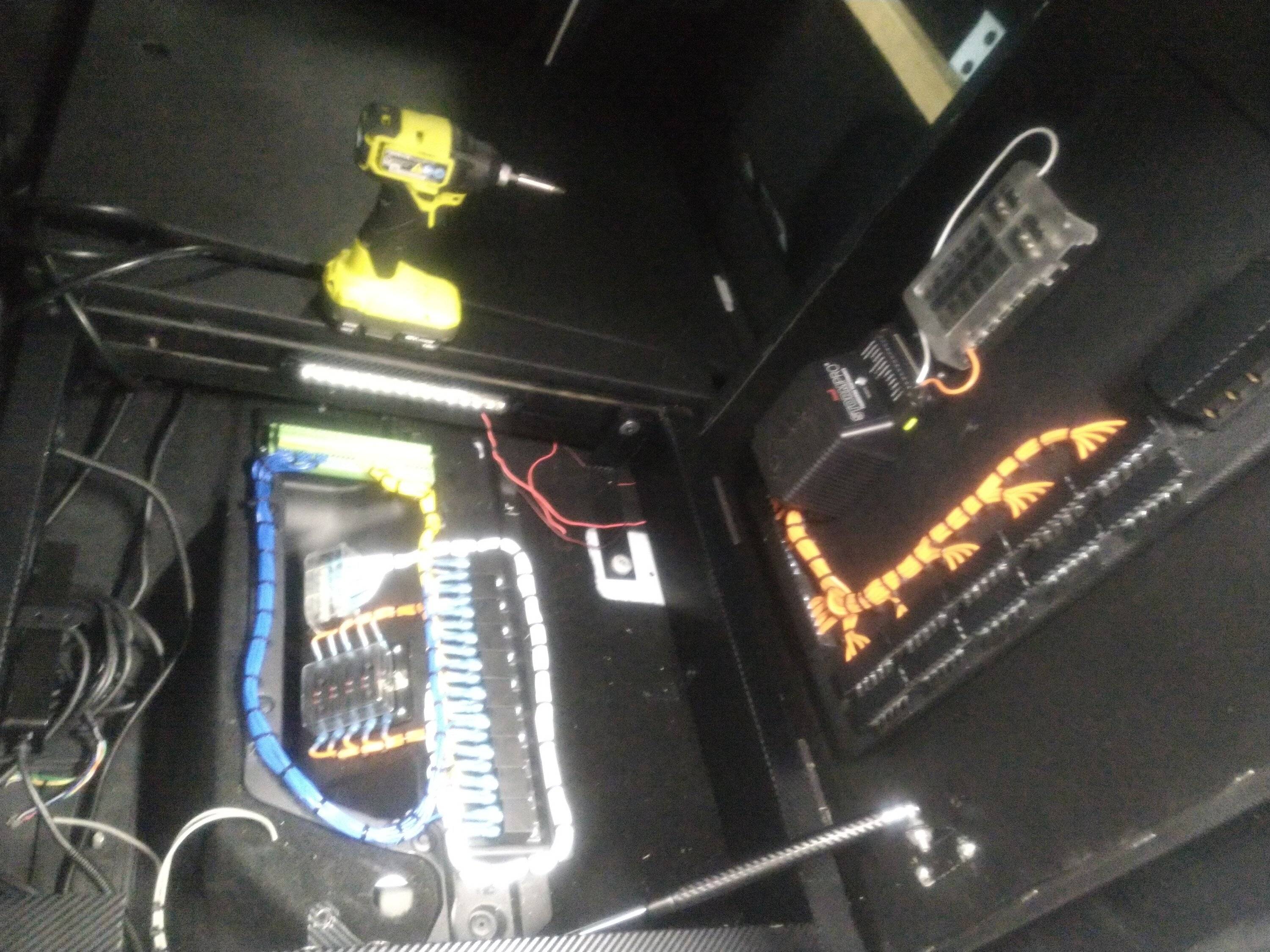

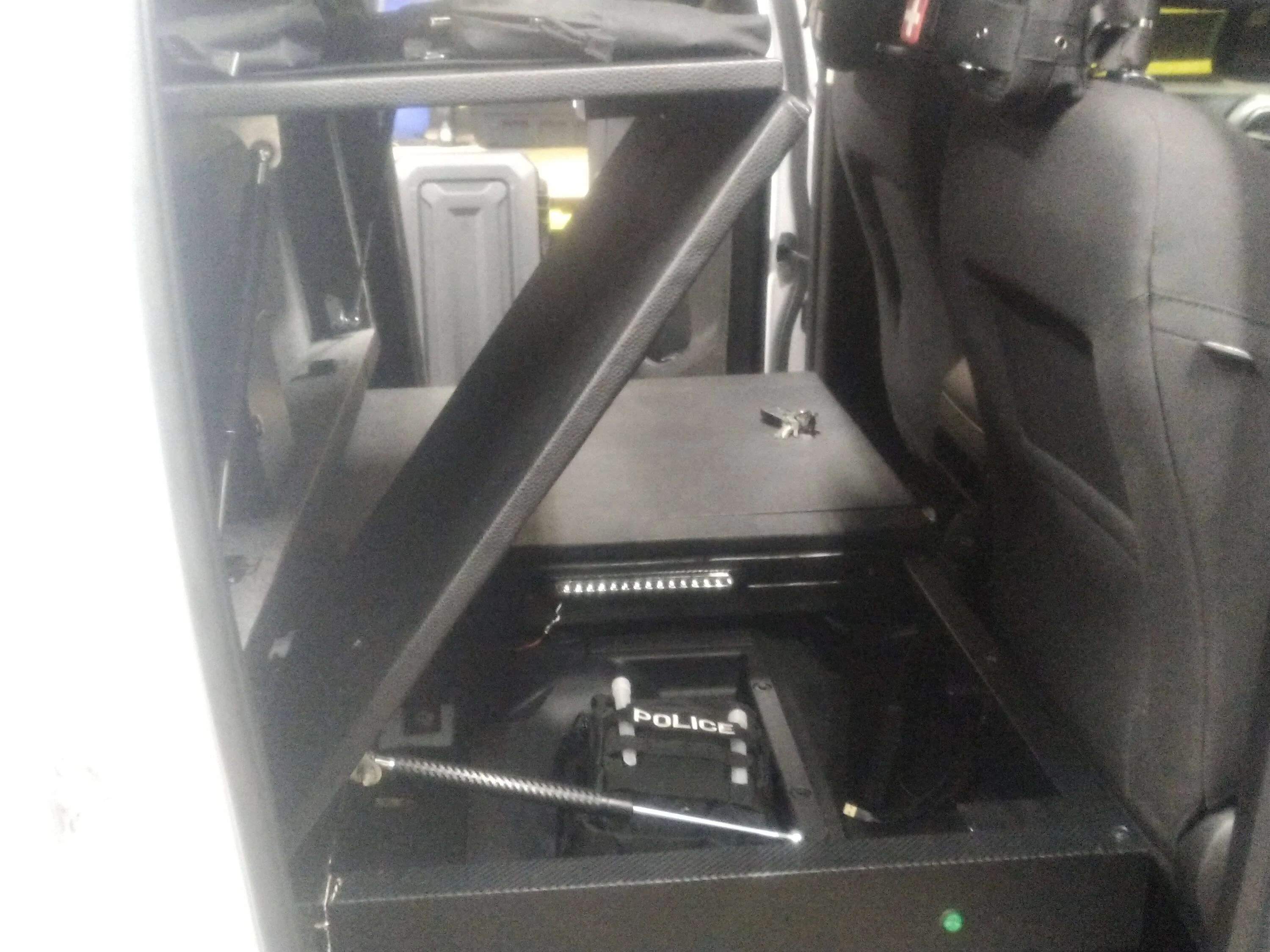

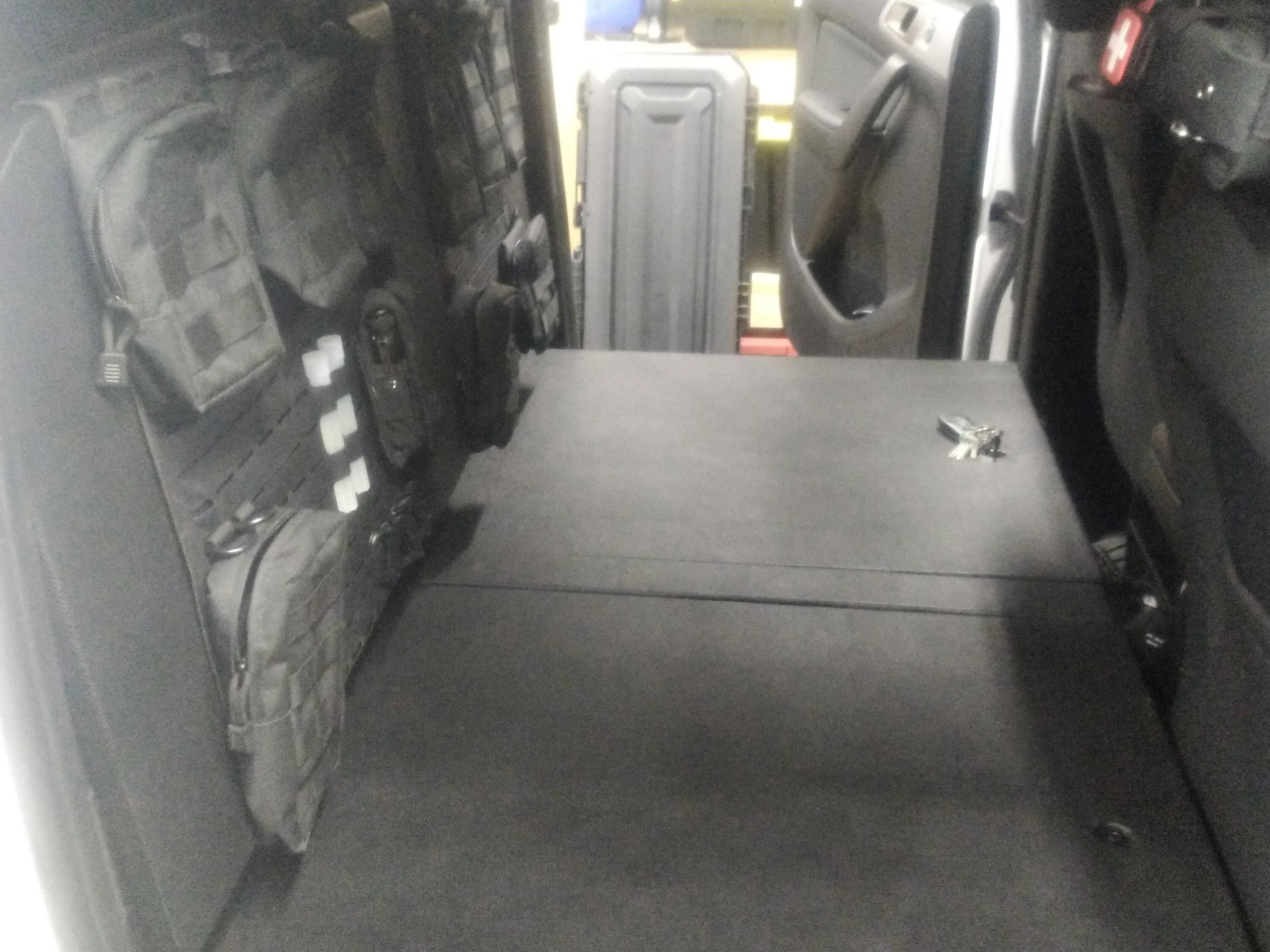

I've done a rear seat delete, but went a different route. Thankfully I did not need to do a lot of template work since I was not building around specific shapes.











Terra Rover

Member
Joined
Dec 31, 2022
Threads
1
Messages
17
Reaction score
77
Location
Oklahoma
Vehicle(s)
2022 Ford Ranger Tremor
Hey Mark, sorry to resurrect this thread, but I’m about to do a dual battery/RedArc Manager30 setup also. However, mine will be in the bed since I’m actually using my rear seat. My question for you is, where did you wire in your ignition trigger for the Manager30?
