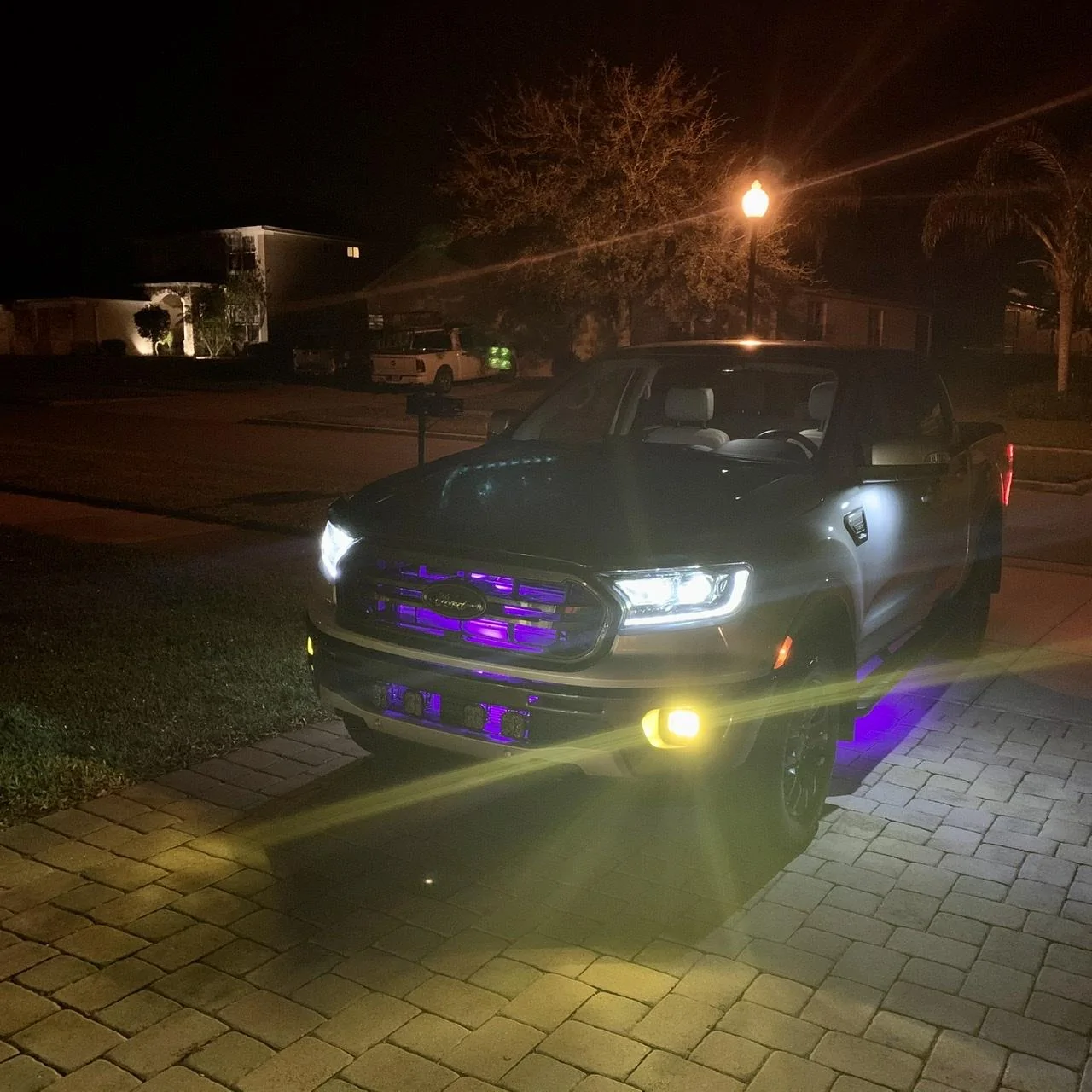

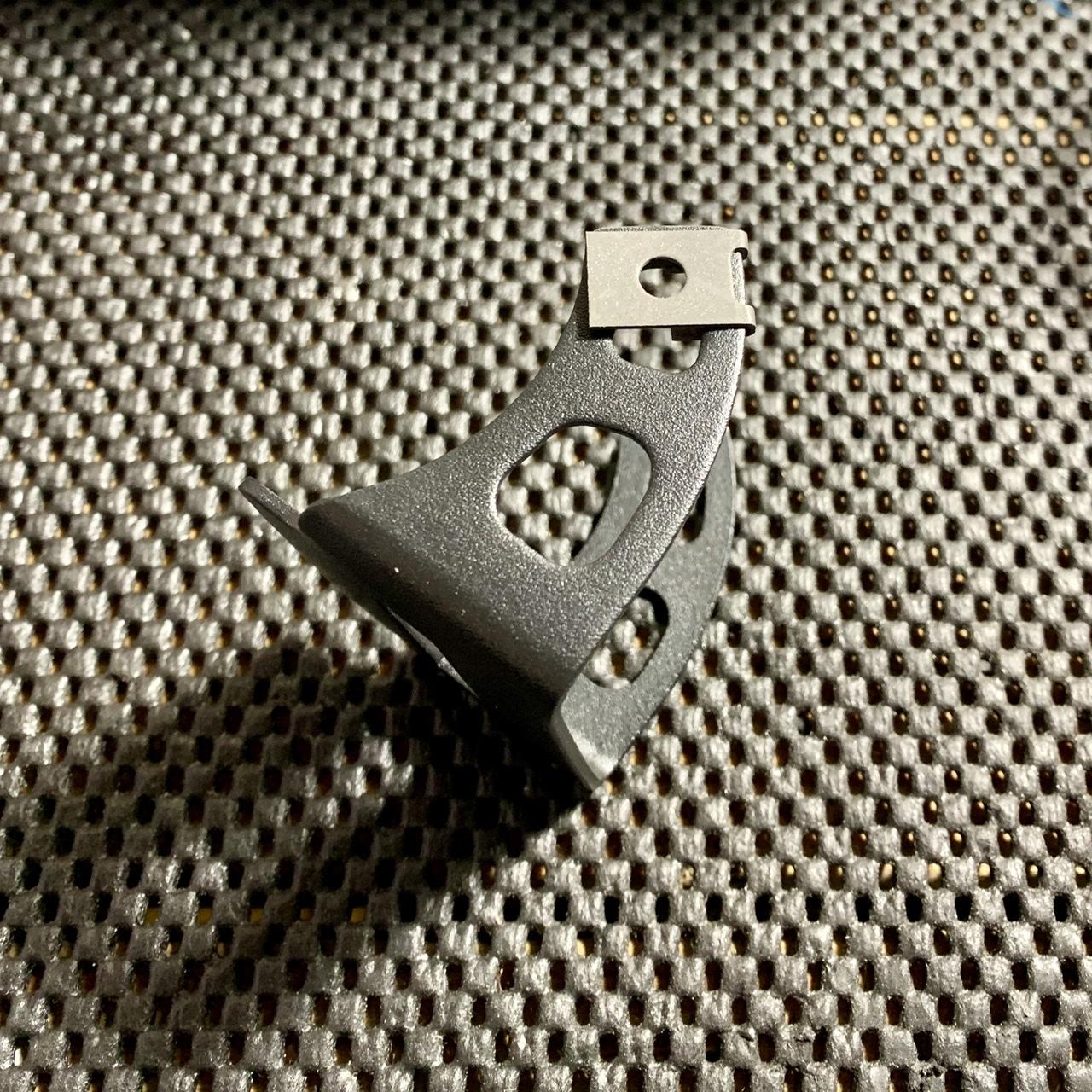

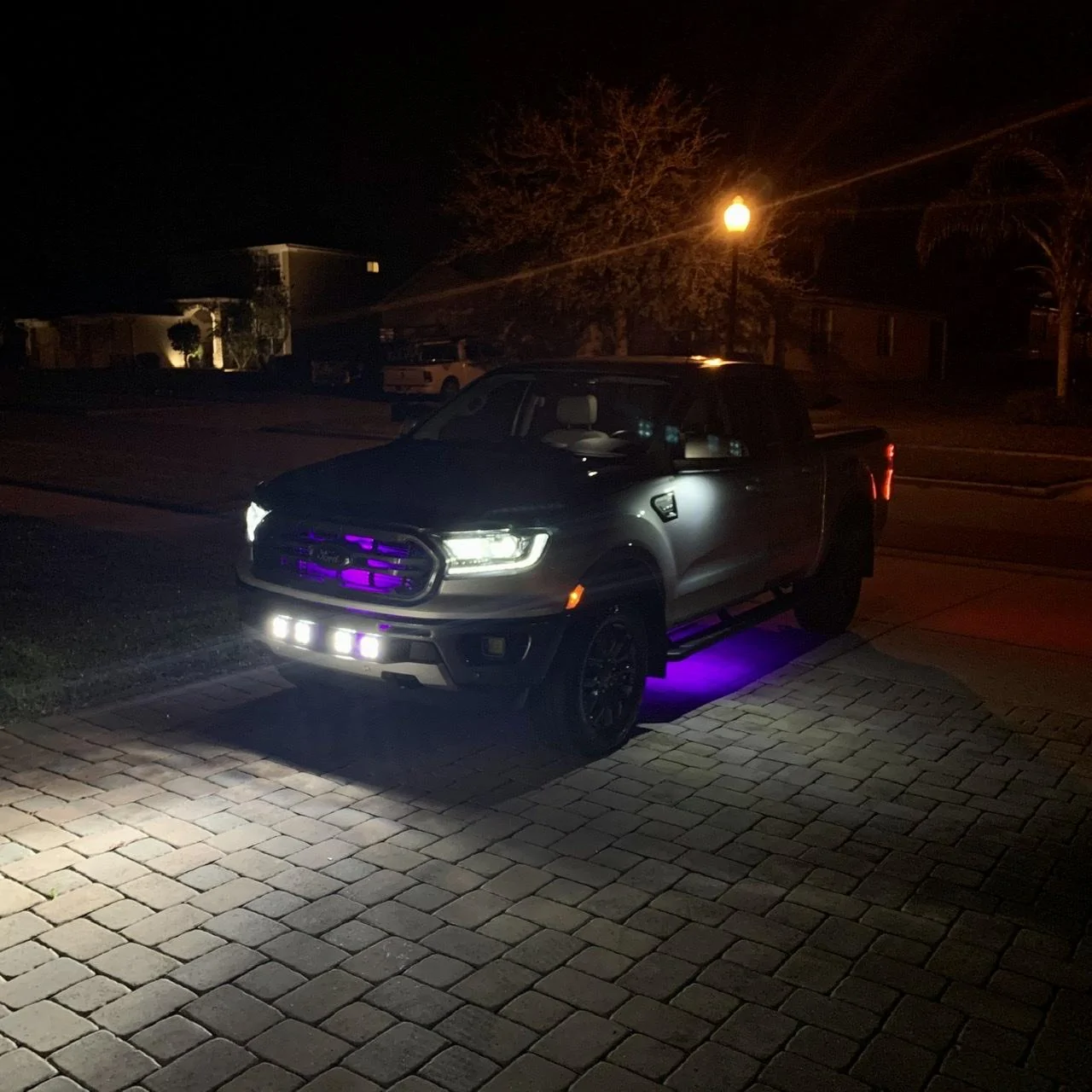

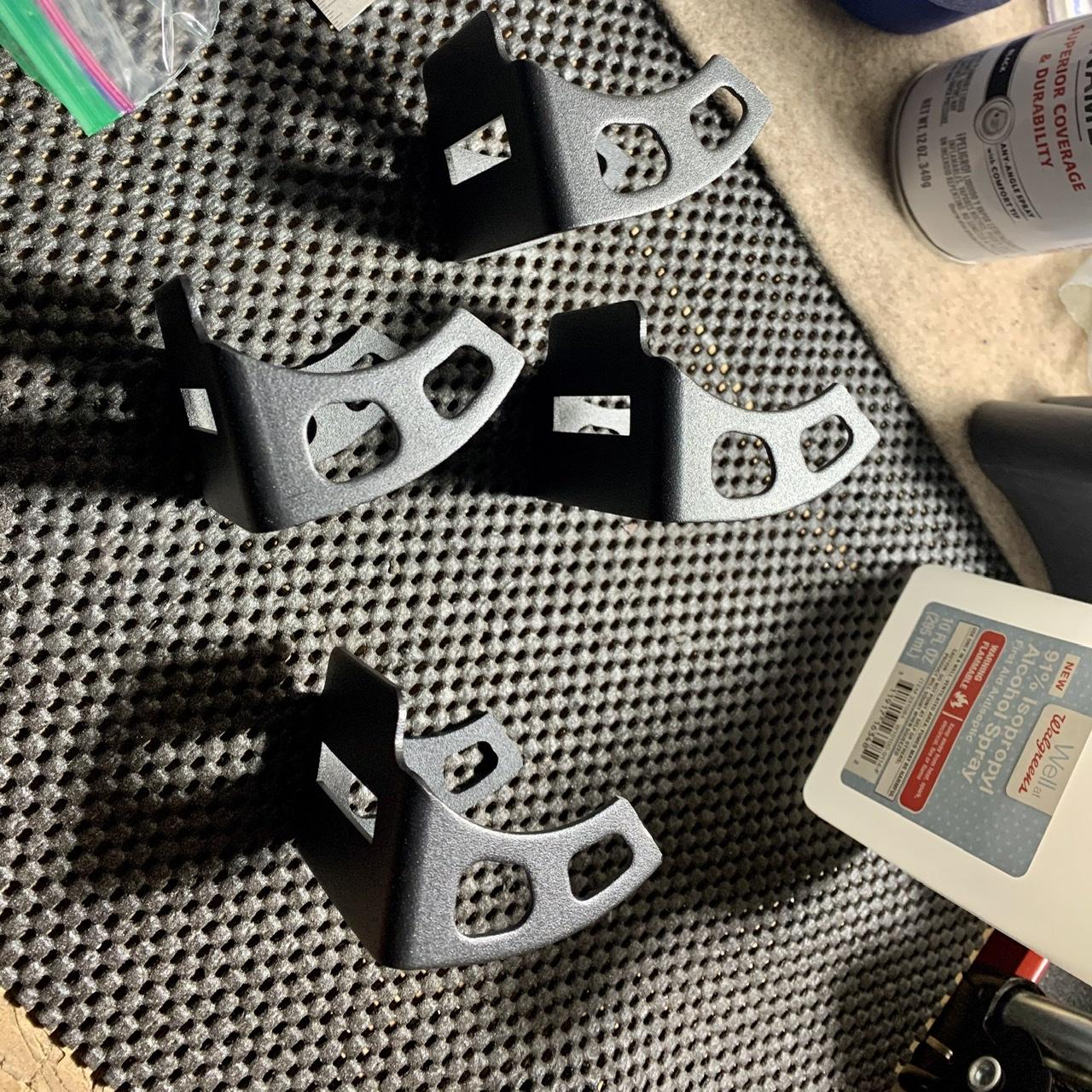

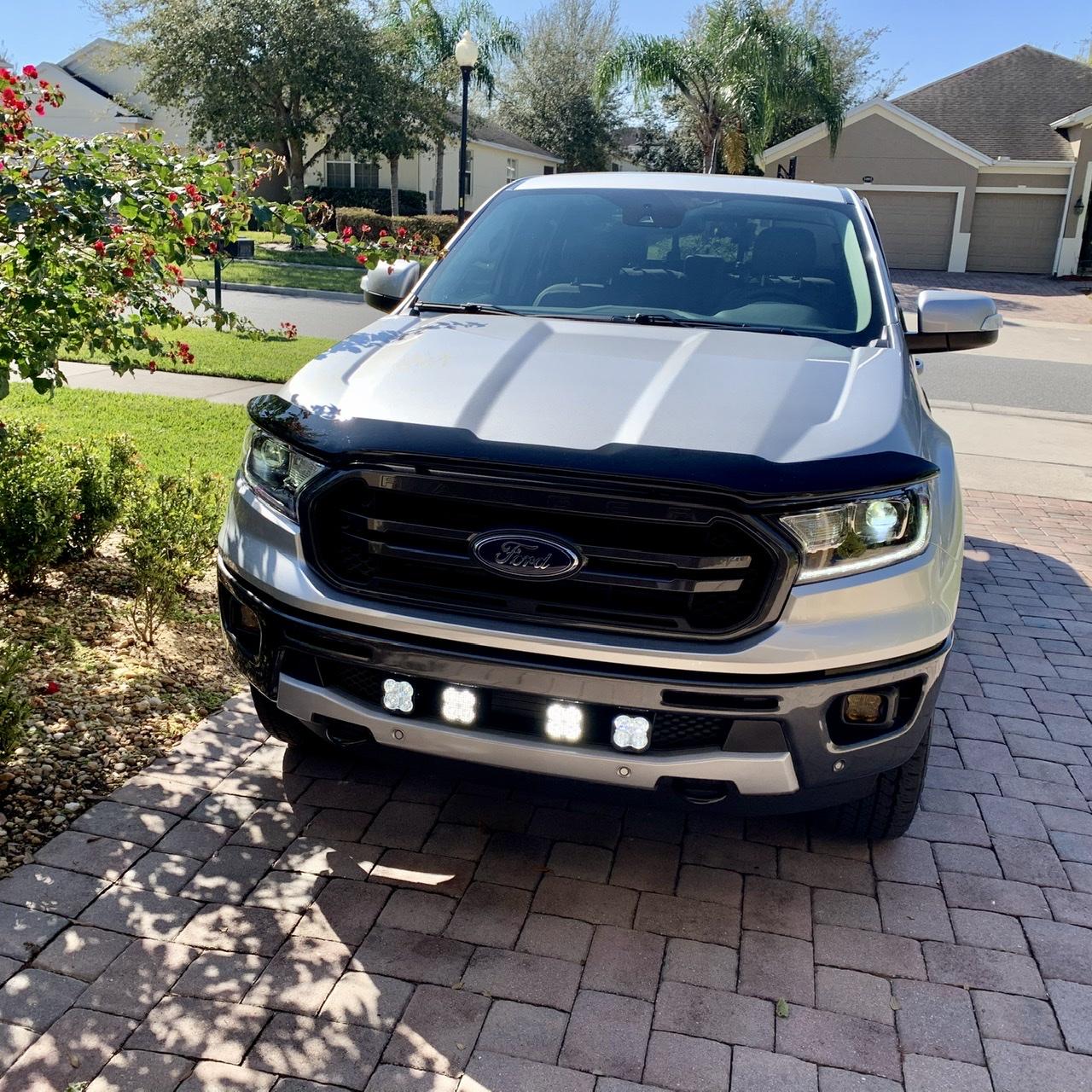

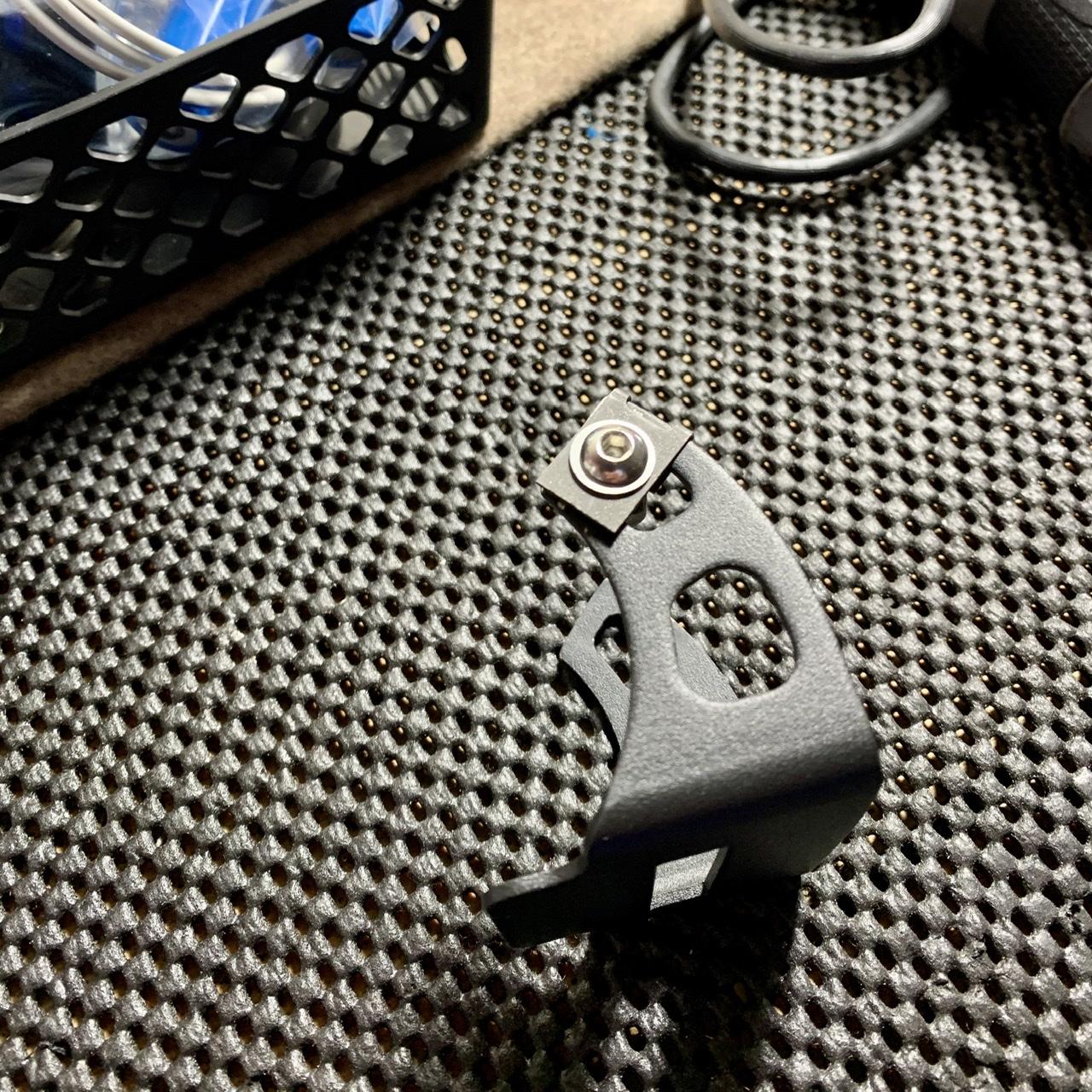

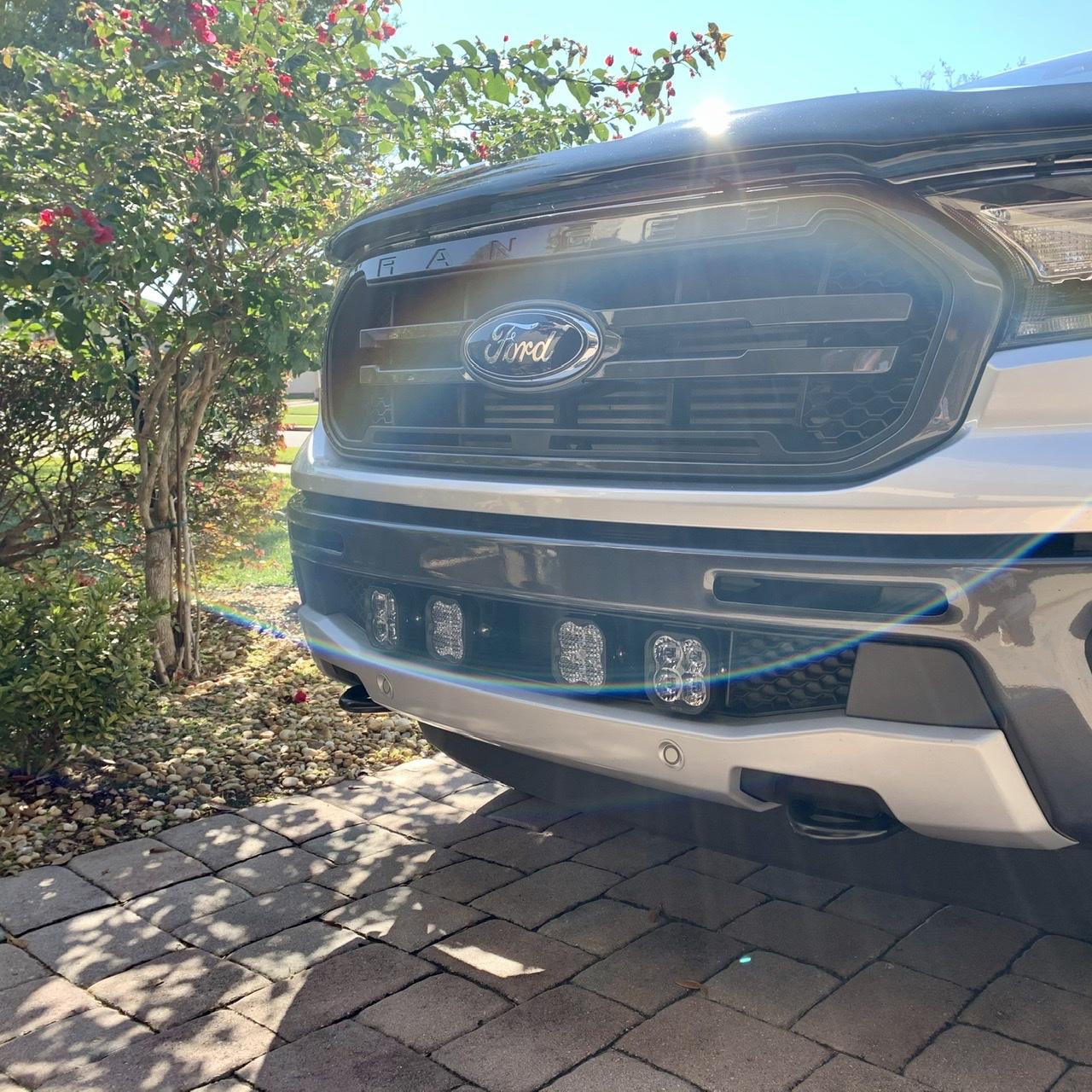

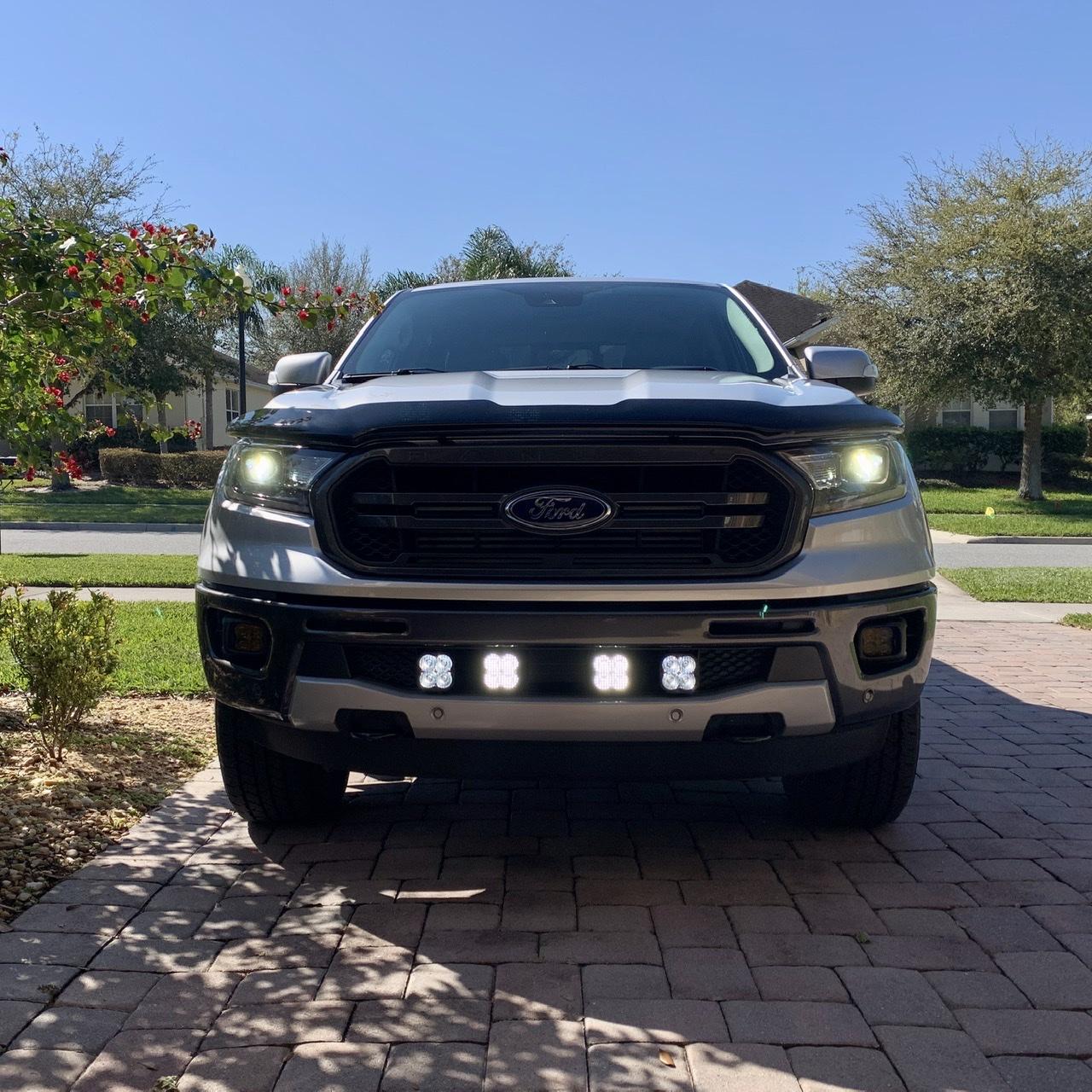

Mounted up 4x Diode Dynamics SS3’s last night in the lower grille area with some minor bracket modification (2x SAE Driving and 2x Flood Sports). Wired them to trigger when the high beams are engaged.

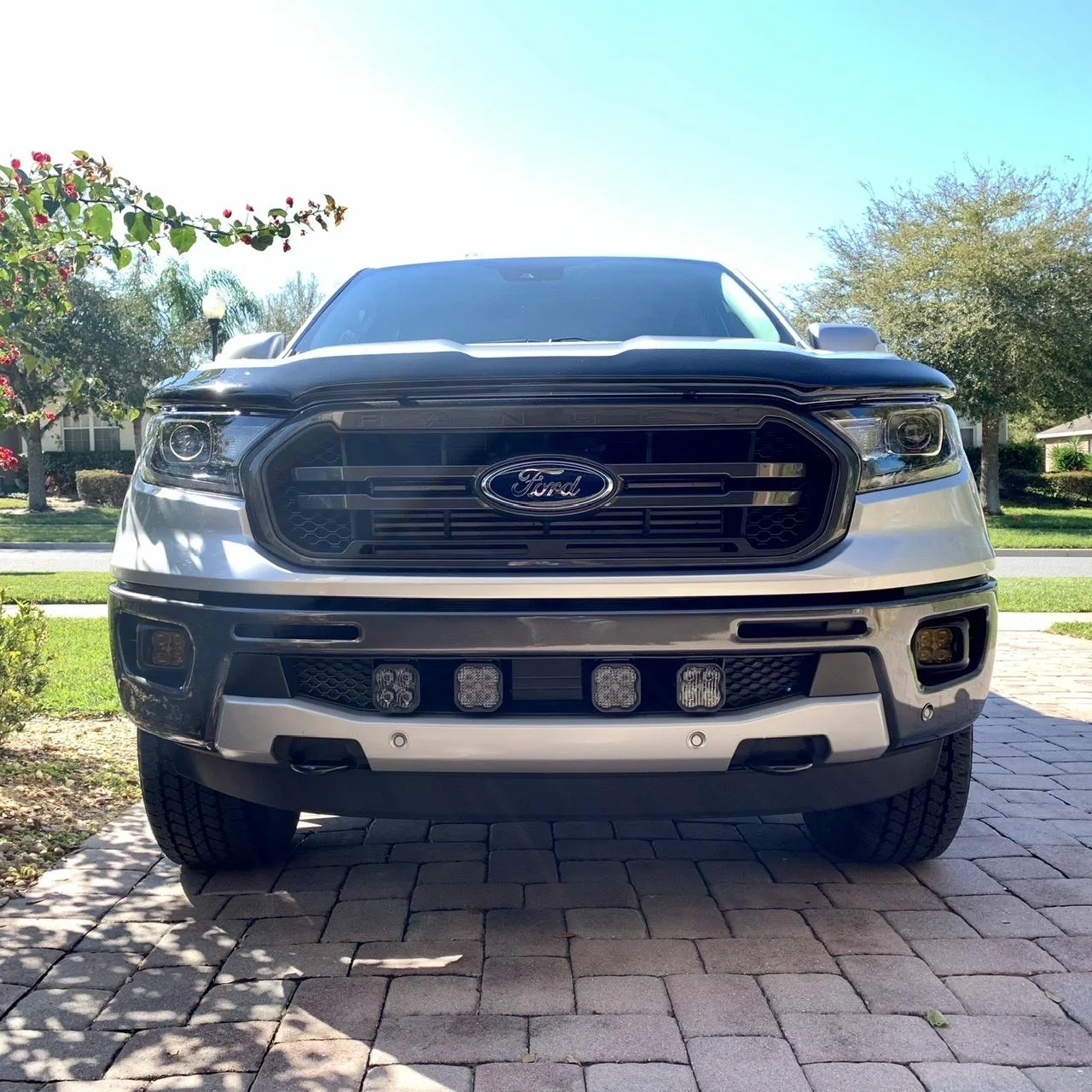

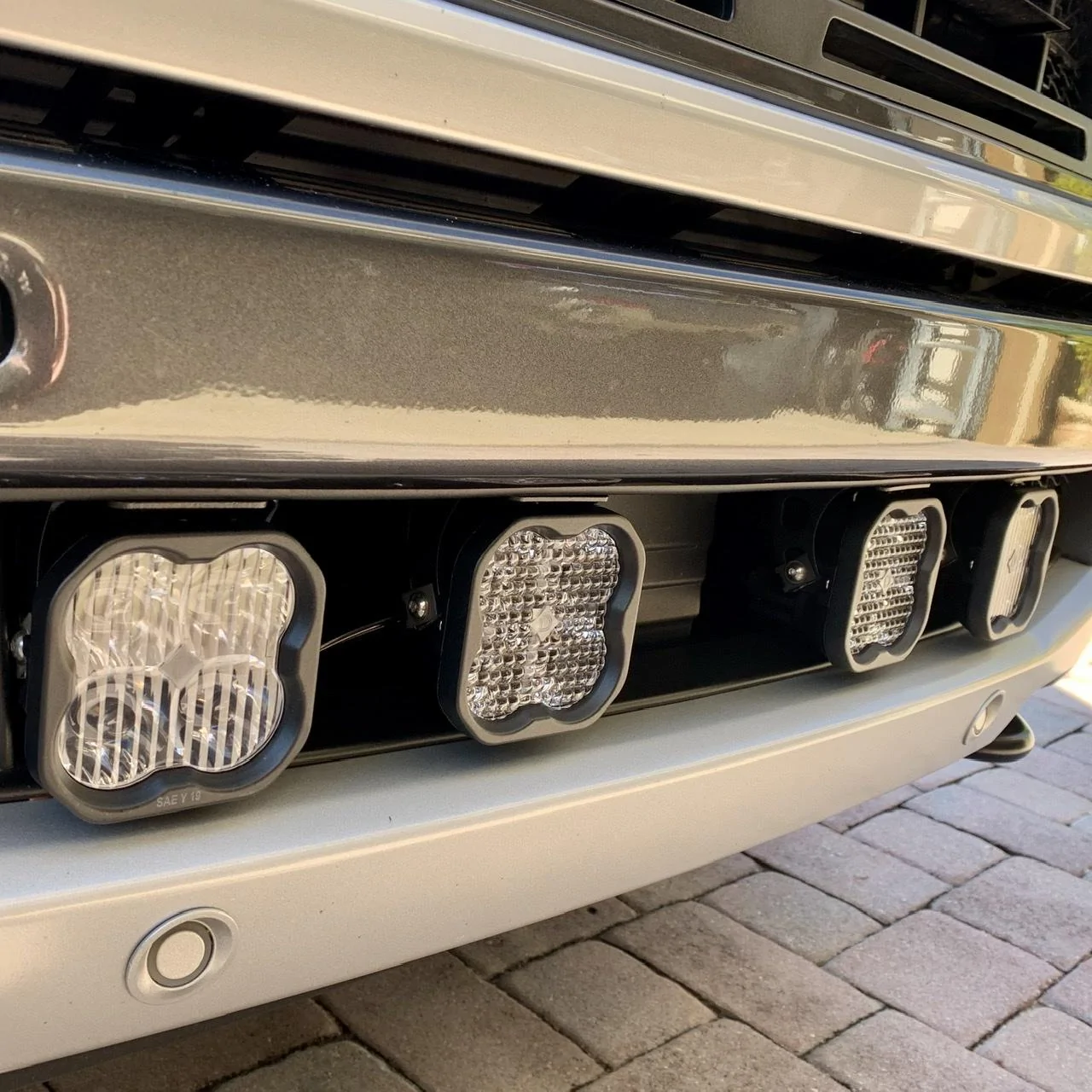

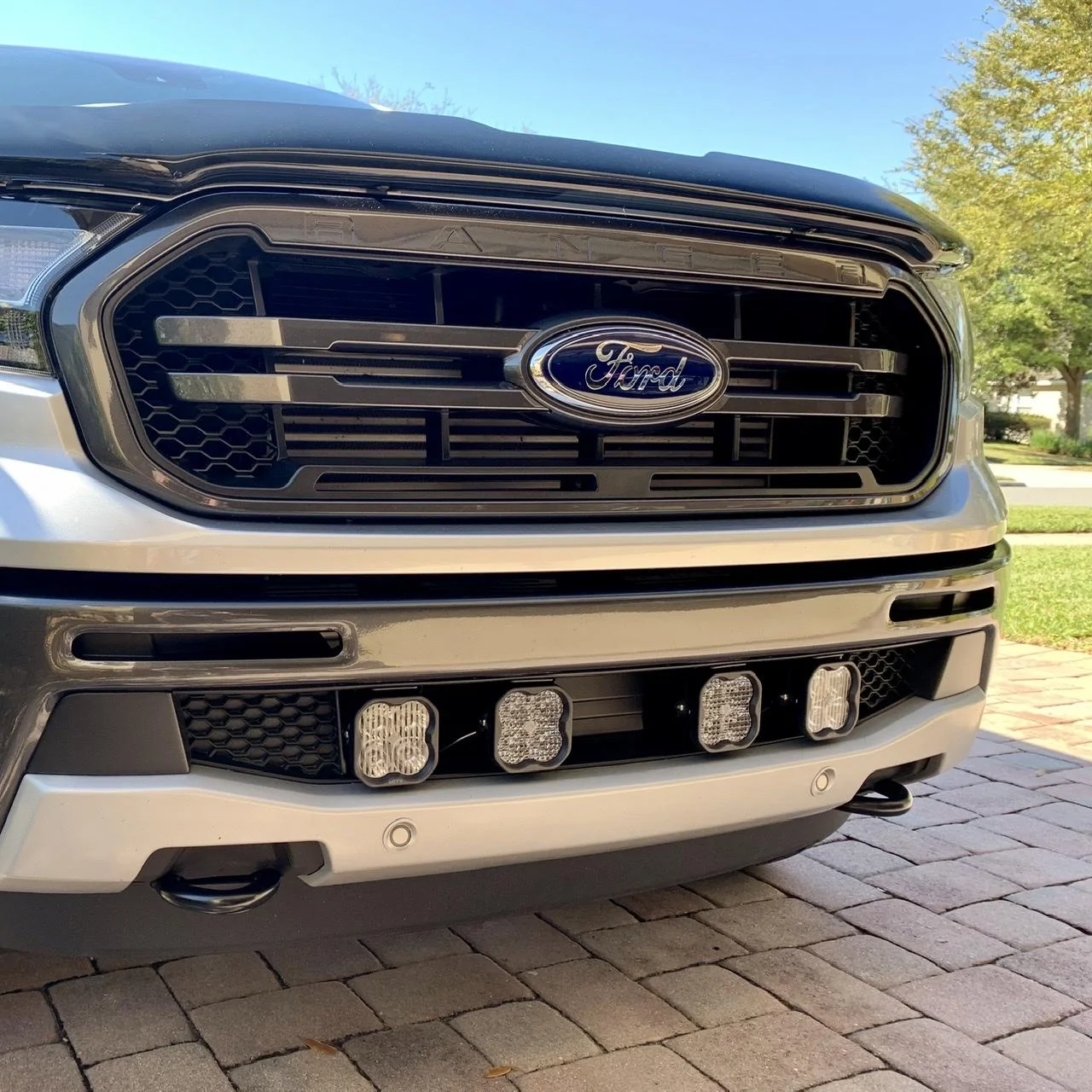

They are centered vertically and have plenty of room for adjustment.























Sponsored



HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
Blocking airflow.... will that be a issue for the radiator / intercooler long term?


bdunk

Member
First Name
Brett
Joined
Nov 23, 2019
Threads
2
Messages
15
Reaction score
7
Location
Fort Lauderdale
Vehicle(s)
2019 Ranger XLT FX4
Occupation
Firefighter Paramedic
This is what I’d like to do. What modifications did you have to do to the bracket? How sturdy are they using those existing mounting holes?


McDeuce

Well-Known Member
First Name
Paul
Joined
May 16, 2021
Threads
2
Messages
172
Reaction score
301
Location
Wisconsin
Vehicle(s)
2021 Ranger Lariat Tremor
Looks great! Could you share the installation process/efforts? Bolt in? or drilling/cutting/fabricating?


McDeuce

Well-Known Member
First Name
Paul
Joined
May 16, 2021
Threads
2
Messages
172
Reaction score
301
Location
Wisconsin
Vehicle(s)
2021 Ranger Lariat Tremor
Blocking airflow.... will that be a issue for the radiator / intercooler long term?
Baja Design has a very similar kit they offer for the Ranger with 4 lights.



HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
Baja Design has a very similar kit they offer for the Ranger with 4 lights.
Same question to them.. Blocking airflow.... will that be a issue for the radiator / intercooler long term?

Lot's of folks selling stuff.. Don't confuse that with meaning it won't create an issue.


awd.nv

Well-Known Member
First Name
Anthony
Joined
Apr 26, 2021
Threads
16
Messages
688
Reaction score
1,082
Location
Las Vegas, NV
Vehicle(s)
'21 Ranger XLT Tremor
Occupation
Computers
I was wondering if the box in that area of the grill is the adaptive cruise control sensor? Did the lights affect any of the trucks features?

I am tempted to run two lights down in the grill and two normal ditch lights but was not sure if that would cause issues.


dondonbabyraptor

Well-Known Member
First Name
Brandon
Joined
Jan 27, 2021
Threads
41
Messages
2,168
Reaction score
6,124
Location
San Diego
Vehicle(s)
2020 Ford Ranger Lariat
Occupation
I/O Psych MSc student

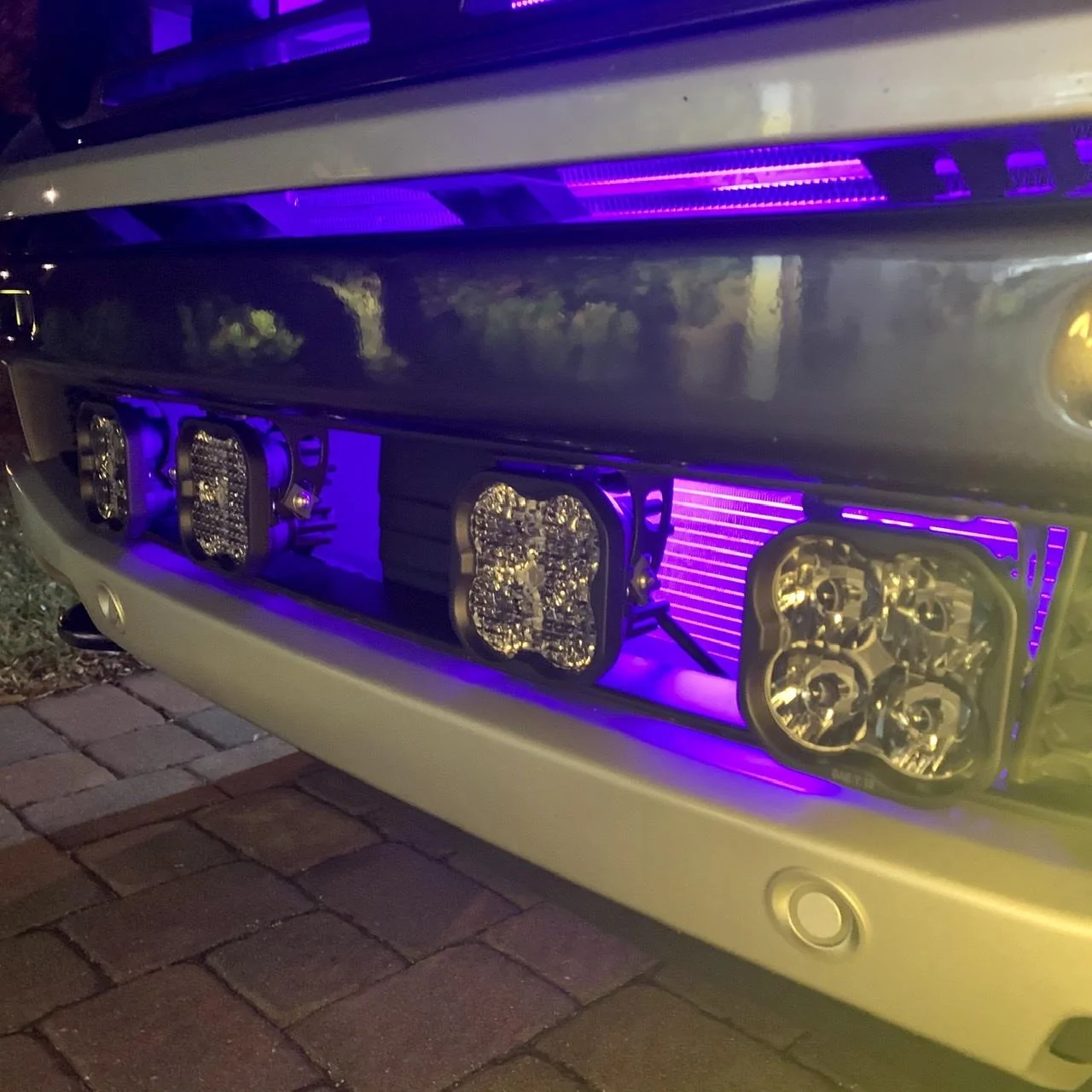

Looks good, I like that purple light inside the grill, what is that? Easy to install?
