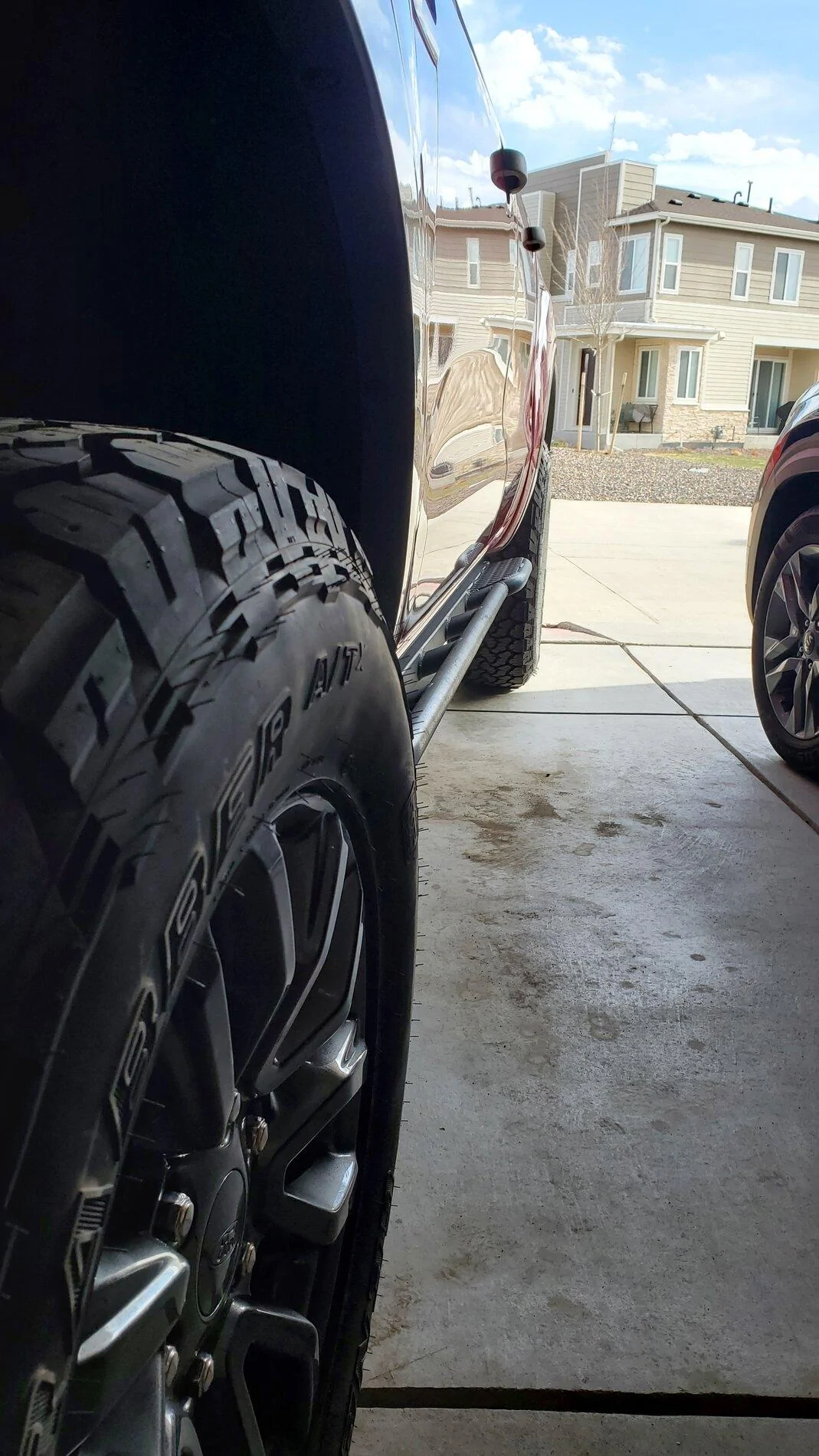

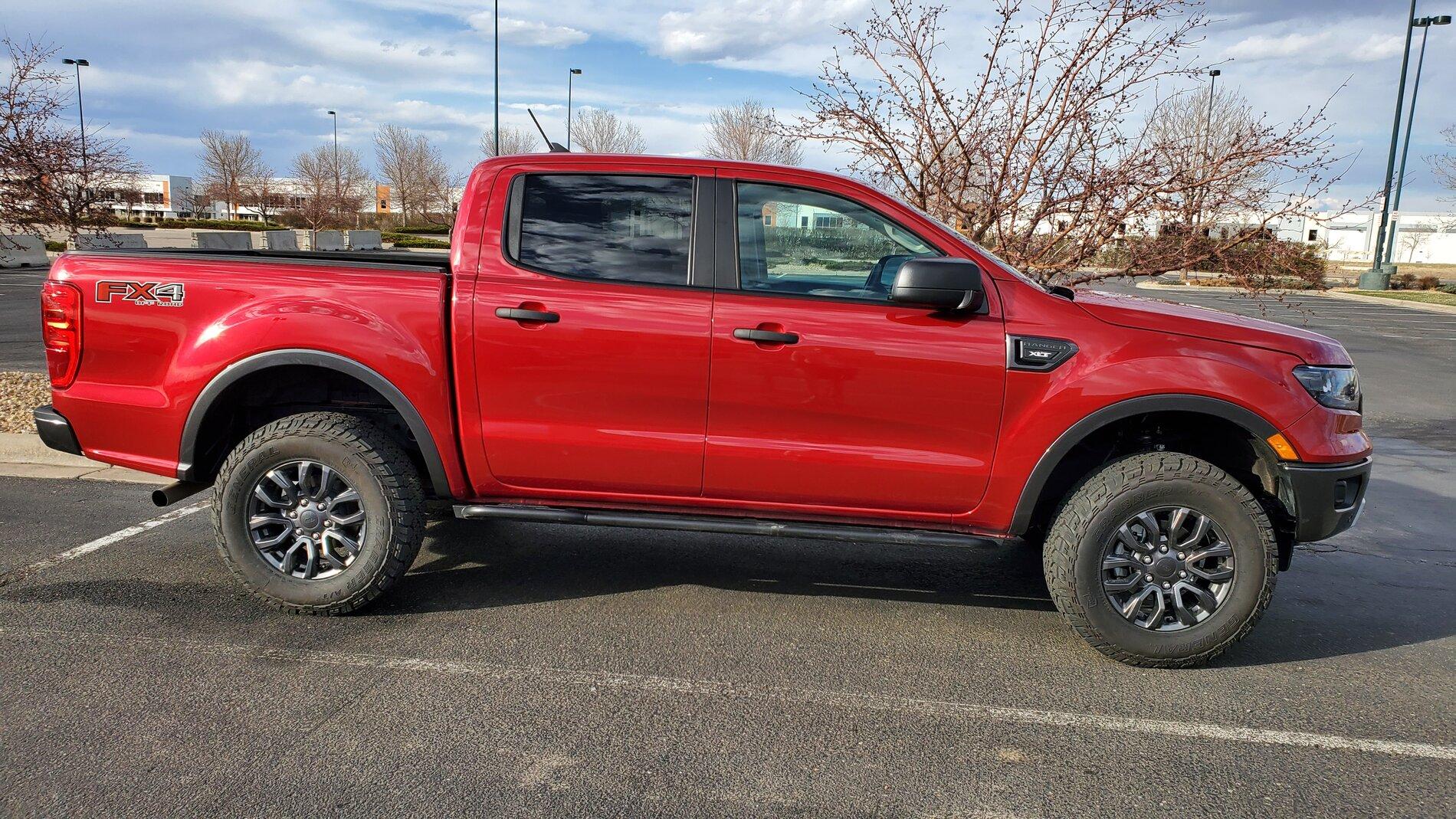

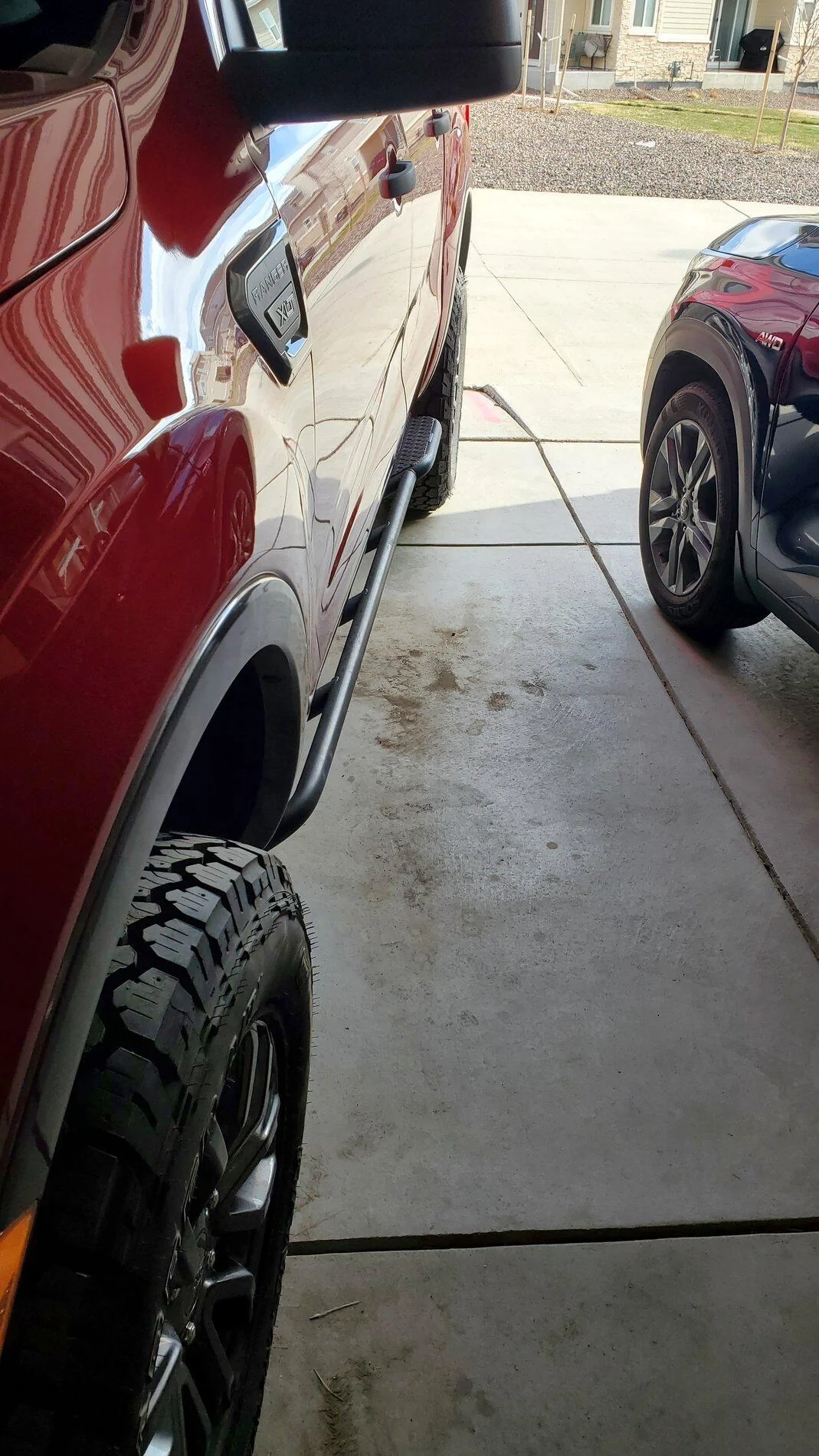

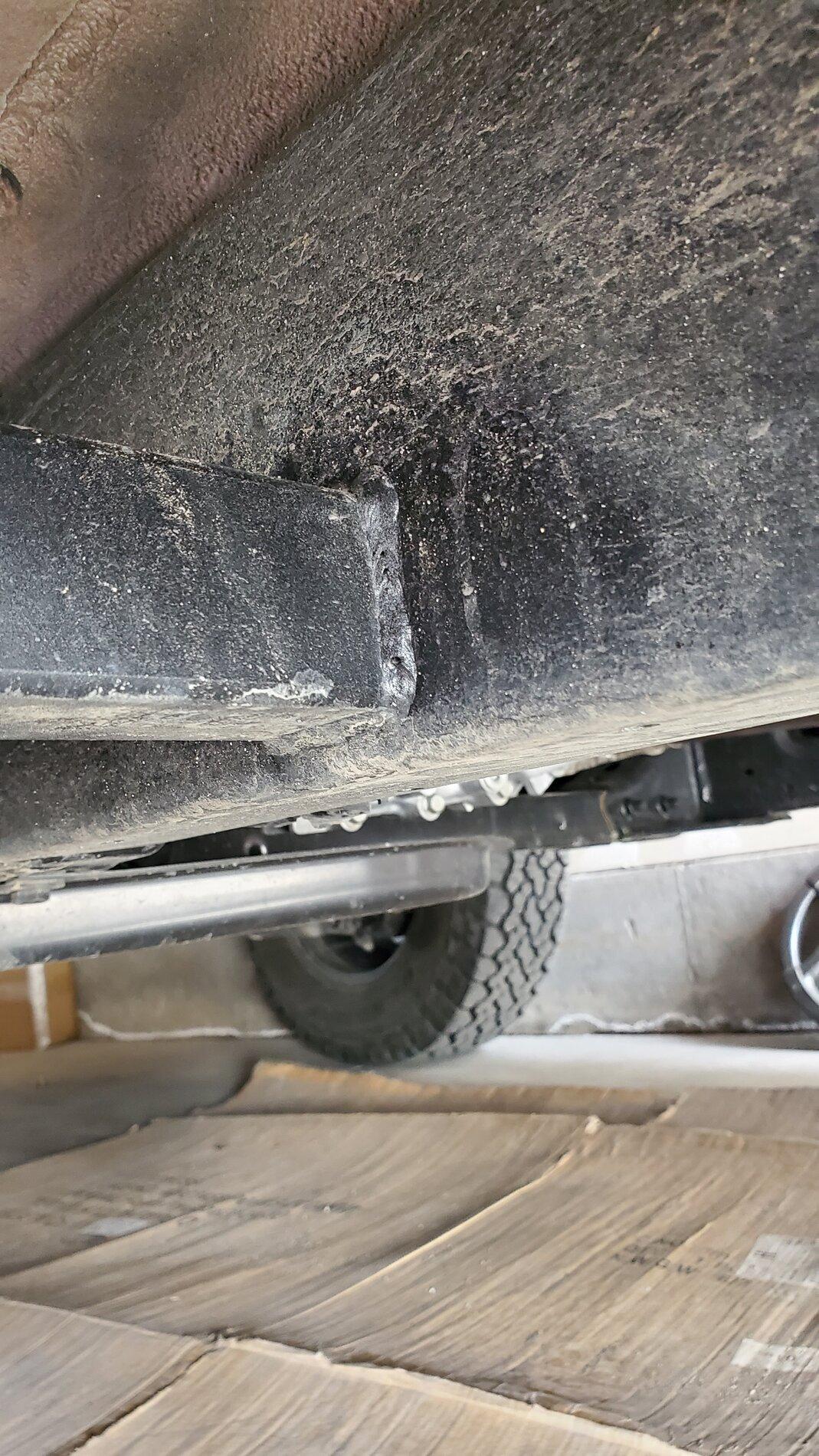

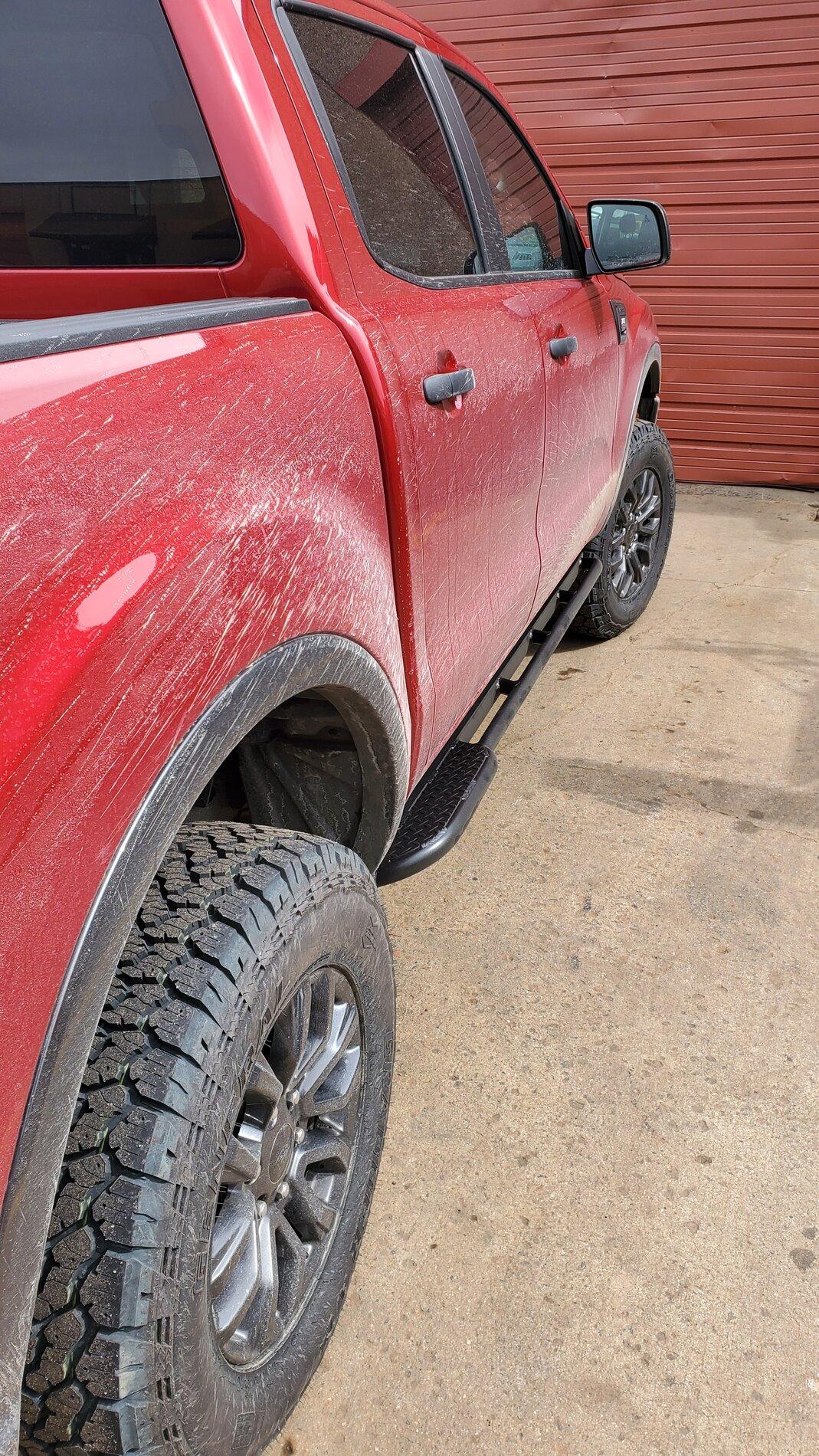

Hey everybody, got my sliders from first choice welded on last week. Saw someone on an overlanding Facebook group post about him so I figured I'd give him a shot. Haven't had a chance to test their durability yet, hopefully I will this summer once the snow melts..

Paid $650 for them. He also offers normal ones without kickout for 525 or with kickout but no diamond plate for 575. Diamond plate doesn't really serve a purpose since they're angled up 15 degrees but I like how it looks. Also inquired about getting some dimples the whole length but he said he takes them to a different guy who charges $10 each dimple and I figured that would be too much since I like the looks of smaller dimples more









Sponsored



HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
Hey everybody, got my sliders from first choice welded on last week. Saw someone on an overlanding Facebook group post about him so I figured I'd give him a shot. Haven't had a chance to test their durability yet, hopefully I will this summer once the snow melts..

Paid $650 for them. He also offers normal ones without kickout for 525 or with kickout but no diamond plate for 575. Diamond plate doesn't really serve a purpose since they're angled up 15 degrees but I like how it looks. Also inquired about getting some dimples the whole length but he said he takes them to a different guy who charges $10 each dimple and I figured that would be too much since I like the looks of smaller dimples more









Those do look great.

I don't want to rain on your parade but the frames on our trucks are thin... like crazy thin.

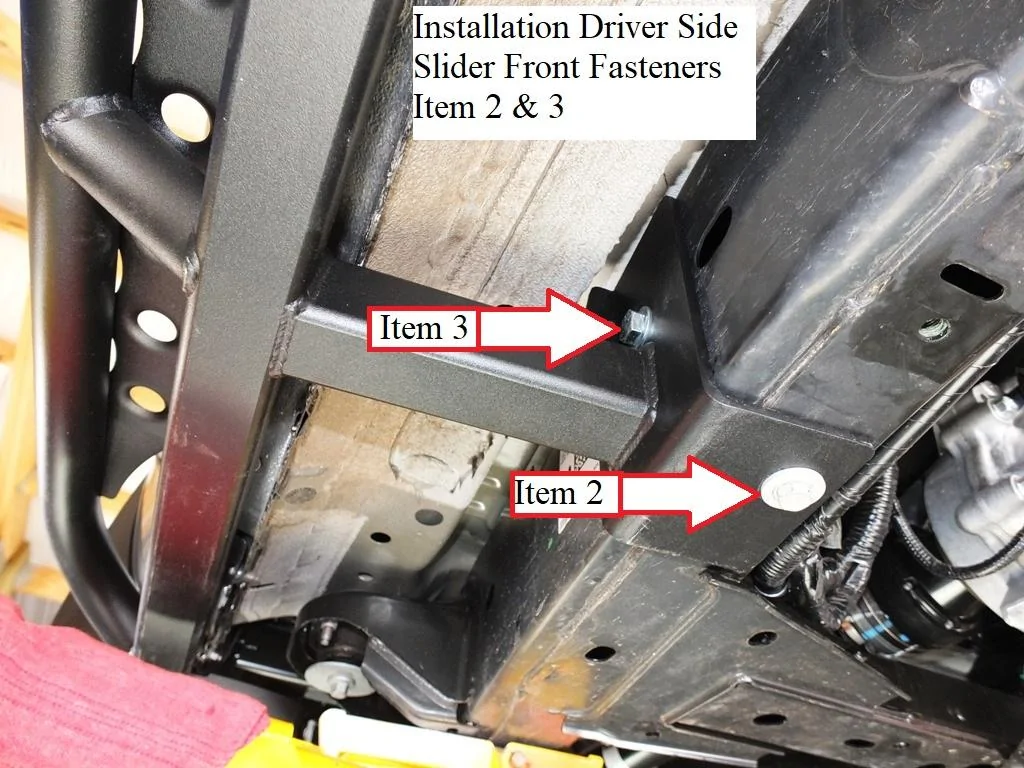

One advantage of the bolted on sliders is the brackets that attach them to the frame are heavy gauge steel and therefore distributes the load across the entire height of the frame, as well as capture the bottom of the frame, see photo below.

Welding the tubing to the center side of the frame puts all the stress into the weakest part of the frame.

Proceed with caution.


OP
OP

BigOlBish

Well-Known Member
Joined
Jan 1, 2021
Threads
5
Messages
77
Reaction score
83
Location
Colorado
Vehicle(s)
2020 Ranger XLT FX4 Rapid Red
Those do look great.

I don't want to rain on your parade but the frames on our trucks are thin... like crazy thin.

One advantage of the bolted on sliders is the brackets that attach them to the frame are heavy gauge steel and therefore distributes the load across the entire height of the frame, as well as capture the bottom of the frame, see photo below.

Welding the tubing to the center side of the frame puts all the stress into the weakest part of the frame.

Proceed with caution.

I'll keep it in mind. Not planning on doing anything super crazy, just wanted the peace of mind that I won't dent my door and/or rocker panel


HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
I'll keep it in mind. Not planning on doing anything super crazy, just wanted the peace of mind that I won't dent my door and/or rocker panel
Sure.. makes sense. Just don't try to jack the truck up by the sliders..... that might not end well.

They'll for sure be much better than factory oem running boards bolted to the sheet metal body.:like:

OP
OP

BigOlBish

Well-Known Member
Joined
Jan 1, 2021
Threads
5
Messages
77
Reaction score
83
Location
Colorado
Vehicle(s)
2020 Ranger XLT FX4 Rapid Red
Sure.. makes sense. Just don't try to jack the truck up by the sliders..... that might not end well.

They'll for sure be much better than factory oem running boards bolted to the sheet metal body.:like:
Did some more research. I'll probably look into getting some additional gussets added on. Probably should've searched more beforehand so I could've asked for a 3"x3" or 4"x4" frame plate to be welded on for each mounting point as well. Appreciate the advice.



Jms81661

Well-Known Member
First Name
James
Joined
Jan 22, 2021
Threads
69
Messages
505
Reaction score
503
Location
Las Vegas, NV
Vehicle(s)
2020 XLT Ranger Sport
Occupation
Truck Driver
Those do look great.

I don't want to rain on your parade but the frames on our trucks are thin... like crazy thin.

One advantage of the bolted on sliders is the brackets that attach them to the frame are heavy gauge steel and therefore distributes the load across the entire height of the frame, as well as capture the bottom of the frame, see photo below.

Welding the tubing to the center side of the frame puts all the stress into the weakest part of the frame.

Proceed with caution.

What sliders are those?
