Dash tray part number???

TheLoneRider

Well-Known Member
First Name
Wayne
Joined
Sep 16, 2019
Threads
5
Messages
45
Reaction score
106
Location
WA
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4, 2018 Escape Titanium, 2017 Mustang GT Convertible
Looking to get a dash tray to modify for a Ham radio install.

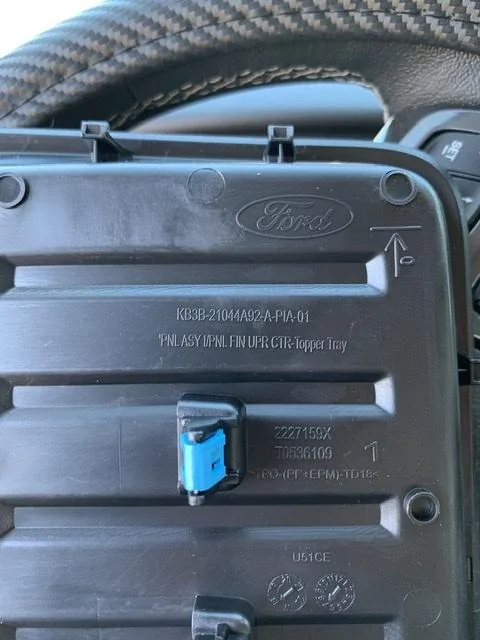

took mine out, but the part number doesn’t seem to work on the Ford parts site.

I found it in the dash section, but it isn’t referenced in the diagram.

Anyone have any idea on the part number or what one would cost?

Sponsored



GrumpyRanger

Well-Known Member
Joined
Sep 27, 2019
Threads
12
Messages
75
Reaction score
65
Location
georgia
Vehicle(s)
2019 Ford Ranger XLT FX4
Hit up your local Ford parts dept. I'm about to take this pic to my local Ford for the same thing now that you took the thing off before me


PNW_Ranger87

Well-Known Member
First Name
Erik
Joined
Oct 10, 2019
Threads
3
Messages
552
Reaction score
672
Location
Renton, WA
Vehicle(s)
2019 Ranger XLT 4X4
Occupation
Parts Specialist
Ford part numbers are weird. That number is actually a Ford engineering part number which is basically a manufacturing number. Ford Dealers parts departments have access to a catalog that cross-references that number to the actual Ford boxed part number.

OP
OP

TheLoneRider

Well-Known Member
First Name
Wayne
Joined
Sep 16, 2019
Threads
5
Messages
45
Reaction score
106
Location
WA
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4, 2018 Escape Titanium, 2017 Mustang GT Convertible
Ford part numbers are weird. That number is actually a Ford engineering part number which is basically a manufacturing number. Ford Dealers parts departments have access to a catalog that cross-references that number to the actual Ford boxed part number.

Yup! Exactly what the parts guy told me.

$23 or so from the dealership and $17-$18 from an online parts place

If anyone is interested it is:
Panel - Instrument - Ford (KB3Z-2104338-AA)



WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Threads
7
Messages
175
Reaction score
393
Location
Central Ohio
Website
whor.us
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Occupation
Systems engineer by day, maker and multimedia guru by night.
Vehicle Showcase
1
Awesome! I've been wondering. I want to modify it with a wireless QI charger....



WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Threads
7
Messages
175
Reaction score
393
Location
Central Ohio
Website
whor.us
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Occupation
Systems engineer by day, maker and multimedia guru by night.
Vehicle Showcase
1
Work up the front/sides (it clips under the edge of the dash), then pull straight up. You’ll think it’s going to break. If you can work in a trim removal tool or long screwdriver under it, that can help hold the piece that the tray clips into down. Someone might have a picture of the hole when it’s removed that will help explain....

OP
OP

TheLoneRider

Well-Known Member
First Name
Wayne
Joined
Sep 16, 2019
Threads
5
Messages
45
Reaction score
106
Location
WA
Vehicle(s)
2019 Ranger Lariat SuperCrew 4x4, 2018 Escape Titanium, 2017 Mustang GT Convertible
Small tabs around the edges, then two clips on the bottom. I just pried the edges and worked it out.

Holding off on full blown Ham install (for now) may be getting a new DMR radio. So I mounted a RAM ball to the tray and am currently using it for a phone holder. I also have a RAM mount that will hold one of my HT’s



MattInFla

Member
First Name
Matt
Joined
Oct 15, 2019
Threads
1
Messages
24
Reaction score
49
Location
Casselberry, FL
Vehicle(s)
2019 Ranger XLT 4x4
Vehicle Showcase
1
Small tabs around the edges, then two clips on the bottom. I just pried the edges and worked it out.

Holding off on full blown Ham install (for now) may be getting a new DMR radio. So I mounted a RAM ball to the tray and am currently using it for a phone holder. I also have a RAM mount that will hold one of my HT’s

Nice!


MattInFla

Member
First Name
Matt
Joined
Oct 15, 2019
Threads
1
Messages
24
Reaction score
49
Location
Casselberry, FL
Vehicle(s)
2019 Ranger XLT 4x4
Vehicle Showcase
1
Hmmm. Might be time to pull mine, or order one and get some dimensions. And then do some 3d modeling. I am pretty sure my 3d printer can handle the outside dimensions of the tray......

Edit: Just ordered one. Time to do some prototyping when it gets in. Could be some potential here.....

Last edited:

Hbombed

Member
First Name
Heather
Joined
Oct 12, 2019
Threads
2
Messages
16
Reaction score
47
Location
Peabody ma
Vehicle(s)
2019 ford ranger xl supercrew
Small tabs around the edges, then two clips on the bottom. I just pried the edges and worked it out.

Holding off on full blown Ham install (for now) may be getting a new DMR radio. So I mounted a RAM ball to the tray and am currently using it for a phone holder. I also have a RAM mount that will hold one of my HT’s

This is awesome!!


Fjoyner

Well-Known Member
First Name
Forrest
Joined
Feb 11, 2020
Threads
4
Messages
93
Reaction score
46
Location
Missouri
Vehicle(s)
2019 Lariat 4X4, FX4, Black package
Occupation
Retired Optometrist
Yup! Exactly what the parts guy told me.

$23 or so from the dealership and $17-$18 from an online parts place

If anyone is interested it is:
Panel - Instrument - Ford (KB3Z-2104338-AA)
$18.xx online dealers want around $20 more for S&H. Does the dealer hit you with S&H, too?


Mokume

Well-Known Member
First Name
Jeff
Joined
Aug 18, 2019
Threads
40
Messages
1,718
Reaction score
2,625
Location
Honolulu, Hawaii
Vehicle(s)
2000 Ranger Supercab (sold 12/19) , 2002 Honda CR-V
Occupation
Retired Firefighter III, Honolulu Fire Department
Awesome! I've been wondering. I want to modify it with a wireless QI charger....
Looking to do the same with my 2020 S/Cab, any update on your project?


WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Threads
7
Messages
175
Reaction score
393
Location
Central Ohio
Website
whor.us
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Occupation
Systems engineer by day, maker and multimedia guru by night.
Vehicle Showcase
1
Looking to do the same with my 2020 S/Cab, any update on your project?
I ended up putting a RAM mount t-slot in the tray and some accessories. Doing the wireless charging UNDER the tray isn't going to work (space/coil size/etc). But putting one on top may work, but I've decided to go another route.


Mokume

Well-Known Member
First Name
Jeff
Joined
Aug 18, 2019
Threads
40
Messages
1,718
Reaction score
2,625
Location
Honolulu, Hawaii
Vehicle(s)
2000 Ranger Supercab (sold 12/19) , 2002 Honda CR-V
Occupation
Retired Firefighter III, Honolulu Fire Department
Oh well, guess I gotta live without a Qi charger somewhere in plain view. I could mount it in the bin below the center armrest, but I know for a fact that I'll forget the phone in there..."out of sight, out of mind"
Thanks anyway bud. :like:
