Let’s use this thread to list all the available lift and level kits for the 2019+ Ranger.

Sponsored



[Rockweiler]

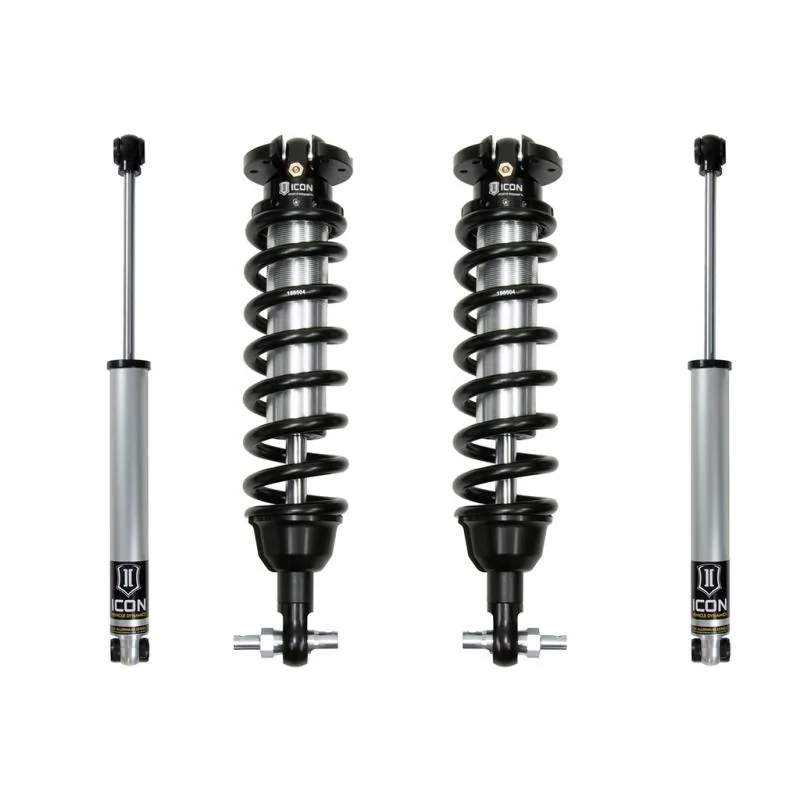

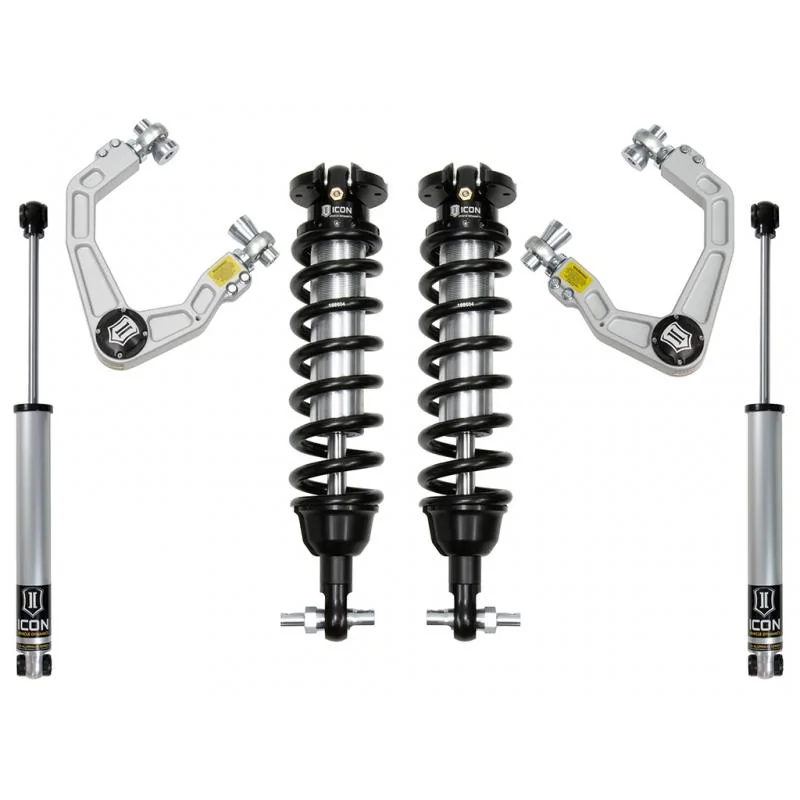

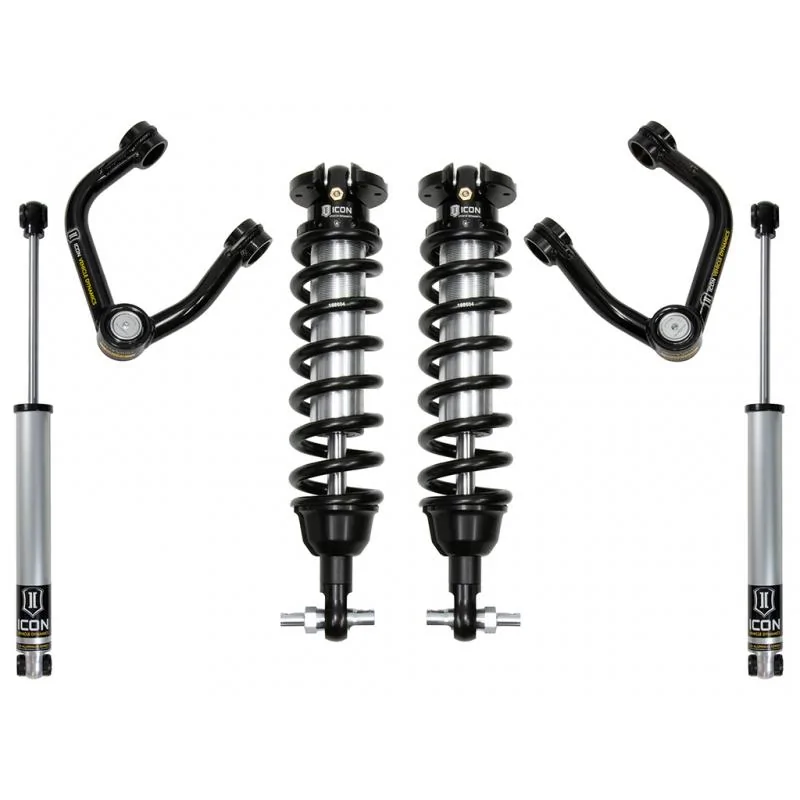

Icon is out with 2 full suspension lifts.

Level 1: 3” max with coilovers/shocks only

And level 2: 3.5” max including Upper Control Arms (UCA) in either steel or billet aluminum.



[Randy2400h]

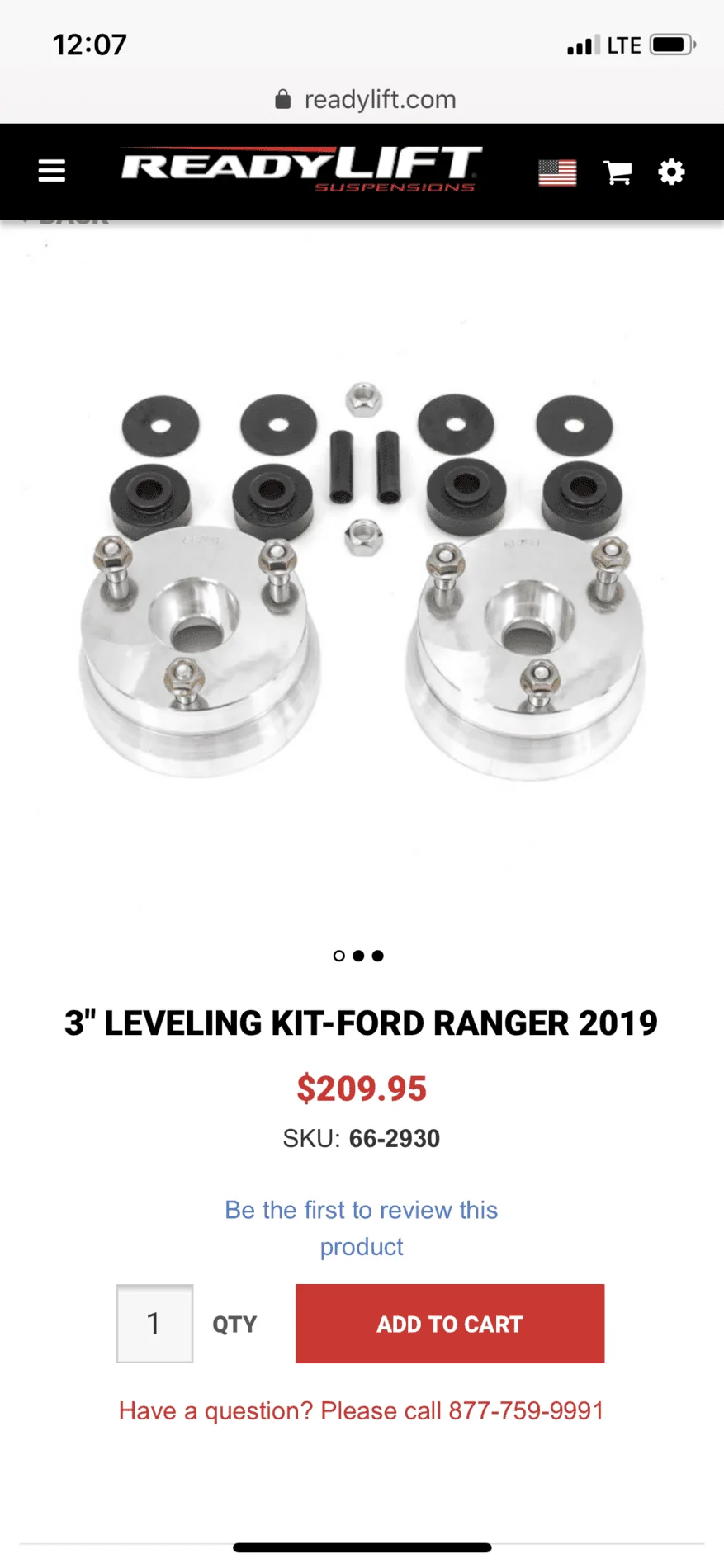

ReadyLift offers 3 different kits.

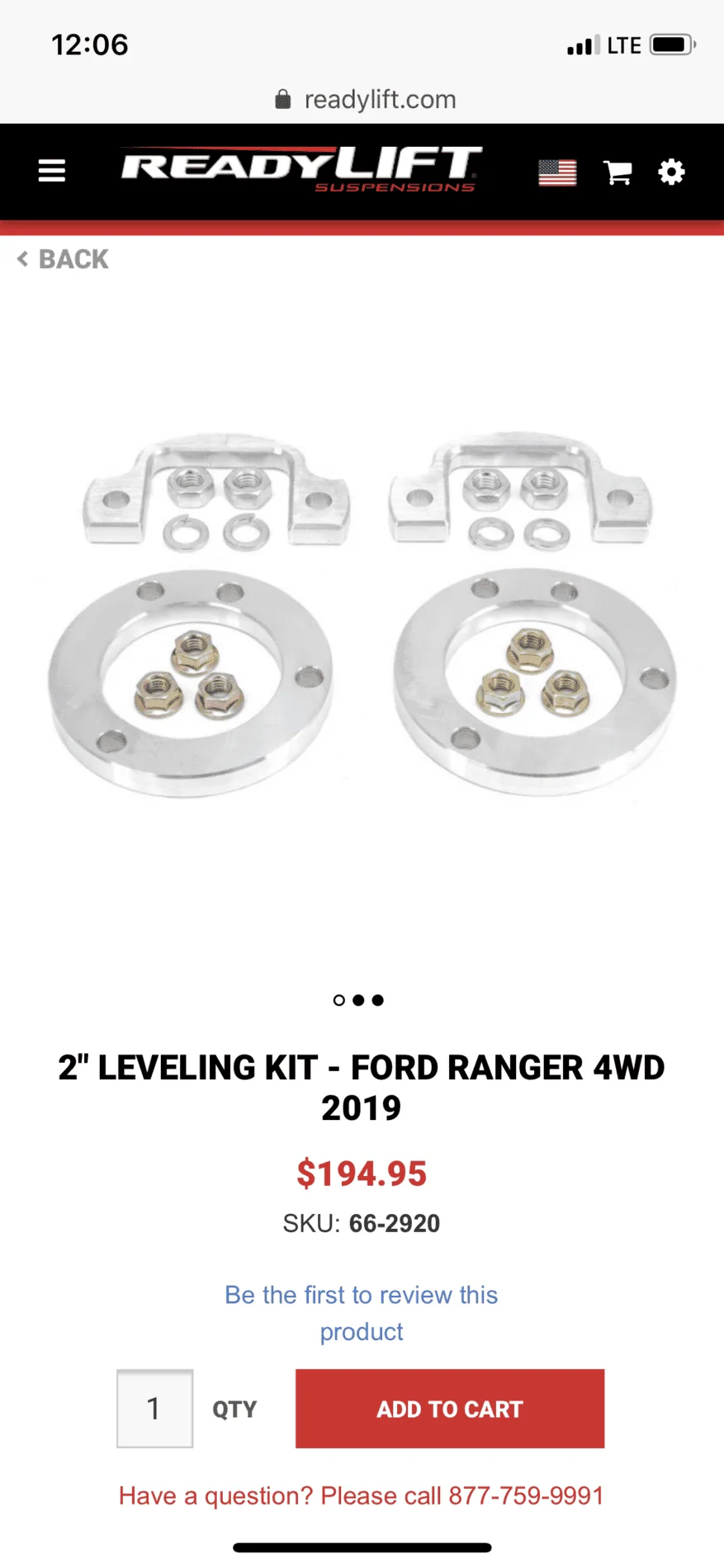

1) 2-inch leveling kit that leaves a slight (1inch front-end-low) rake.

2) 3-inch leveling kit (true level, no take).

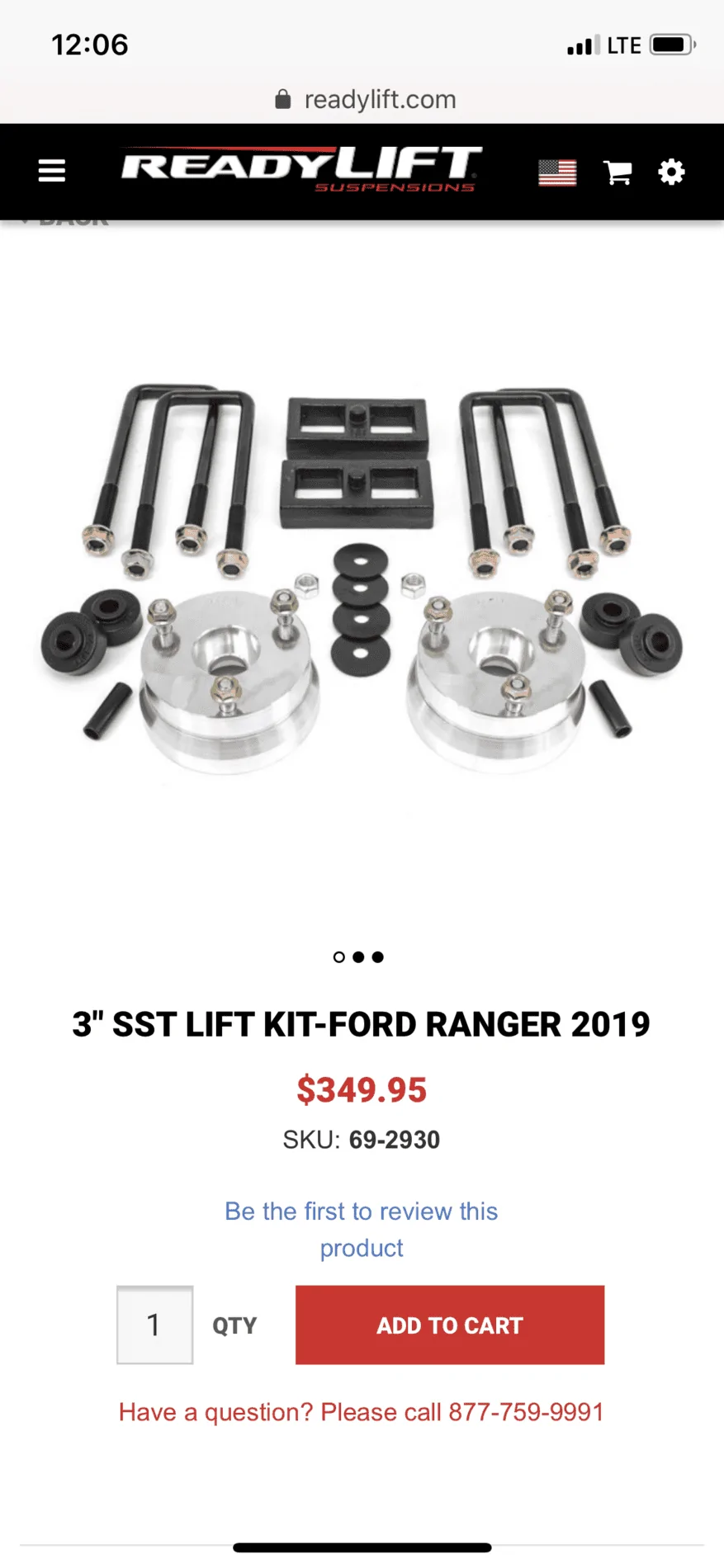

3) 3-inch SST kit. Which is the 3” leveling kit for the front-end plus a 1” lift in the rear. (Leaves some rake, the front-end is one is lower).



[Randy2400h]

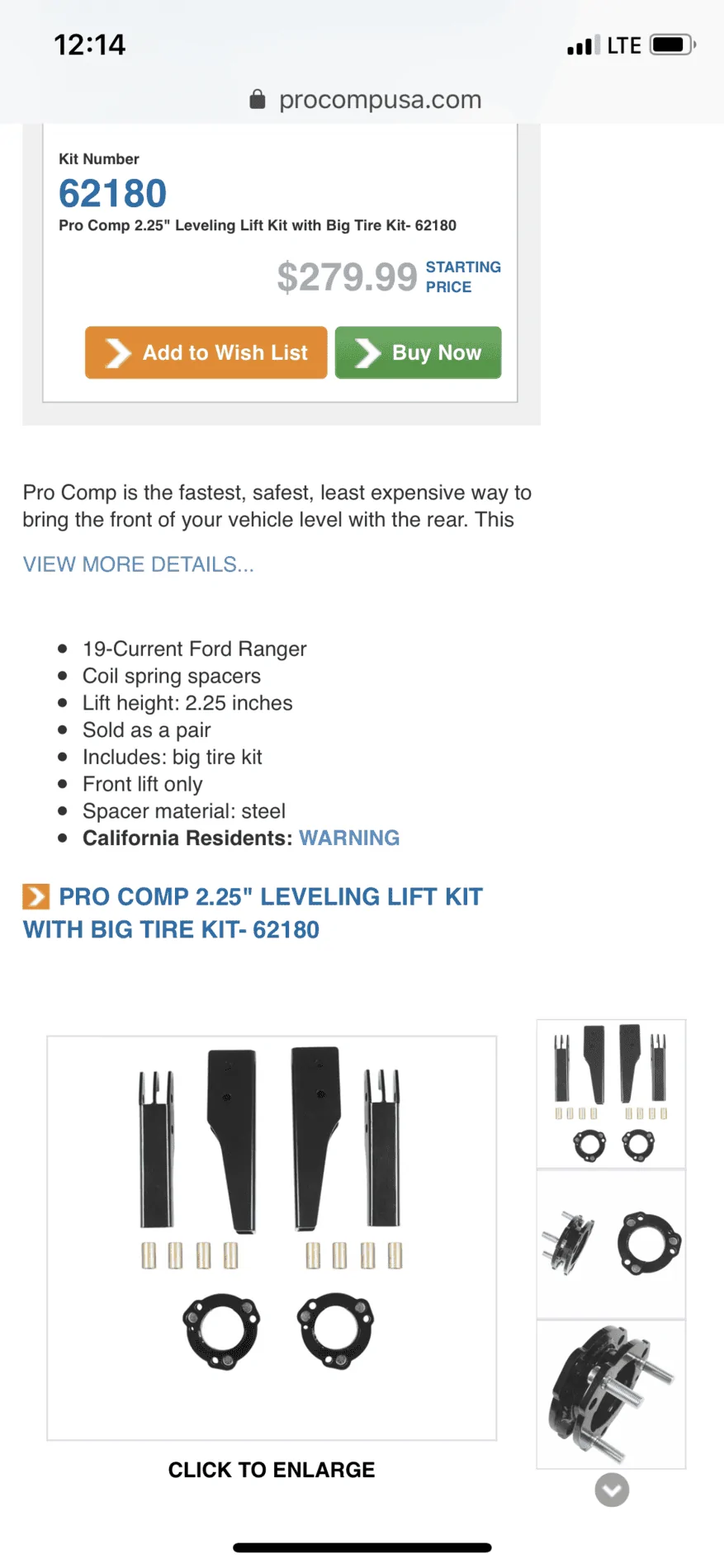

ProComp offers a 2.25” front-end leveling kit that also provides modified crashbars for additional tire clearance (crashbar replacement appears to be labor intensive).



[Randy2400h]

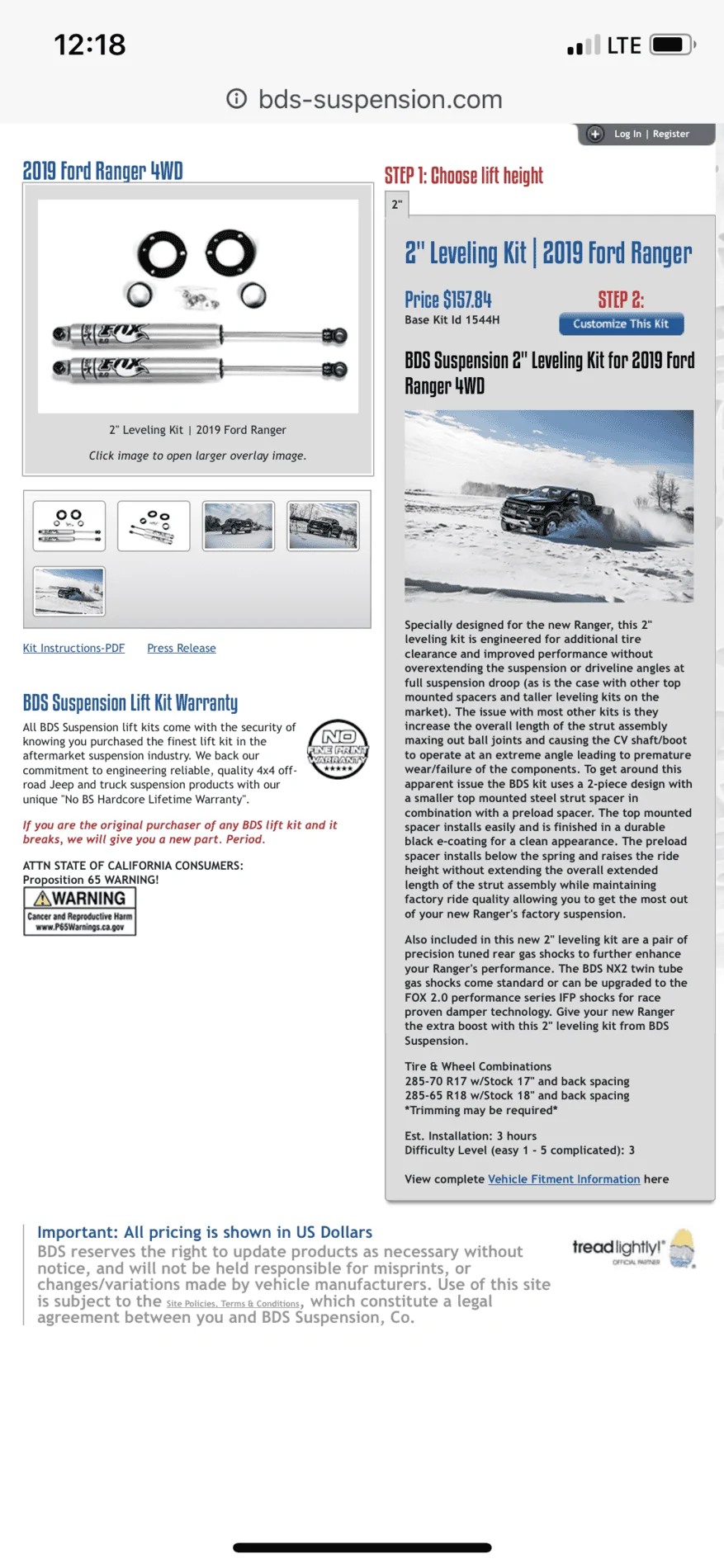

BDS offers a 2” leveling kit that combines a narrow top spacer and preload spacer on each front strut tower. The basic package includes two BDS gas struts for the rear that promises to improve the handling of the rear suspension with an option to upgrade to Fox 2.0 struts (in place of the BDS struts).



[@Robby887]

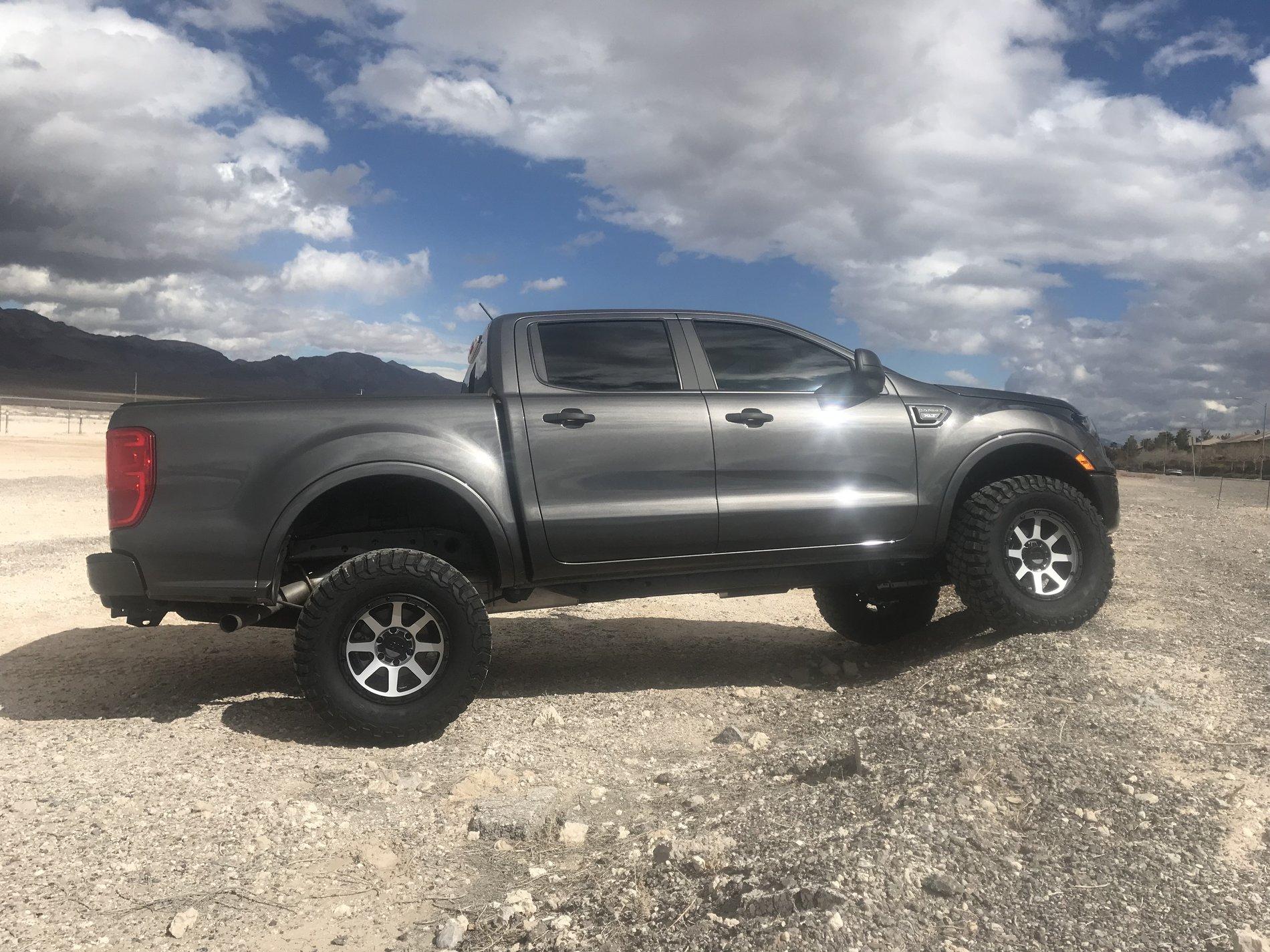

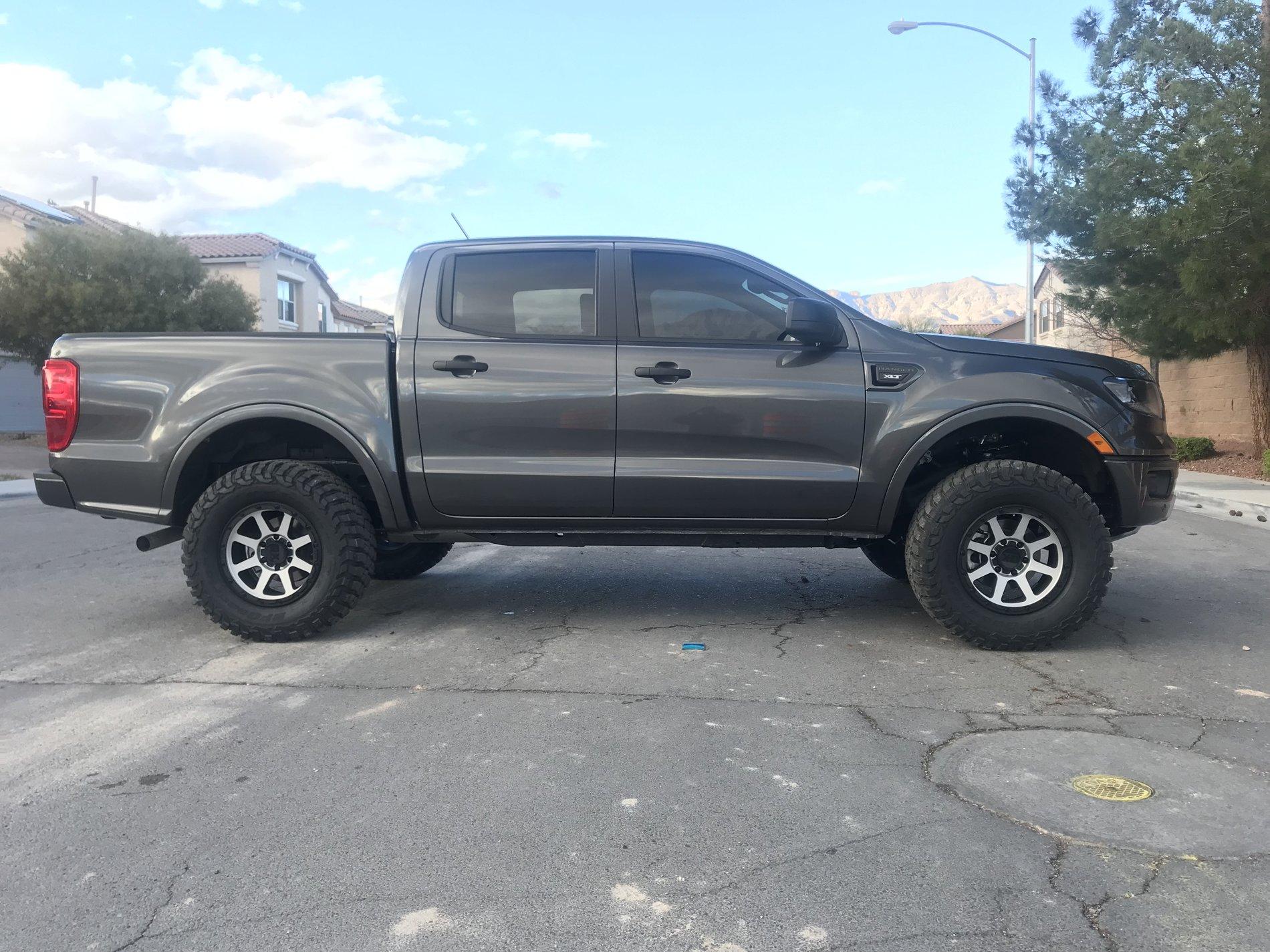

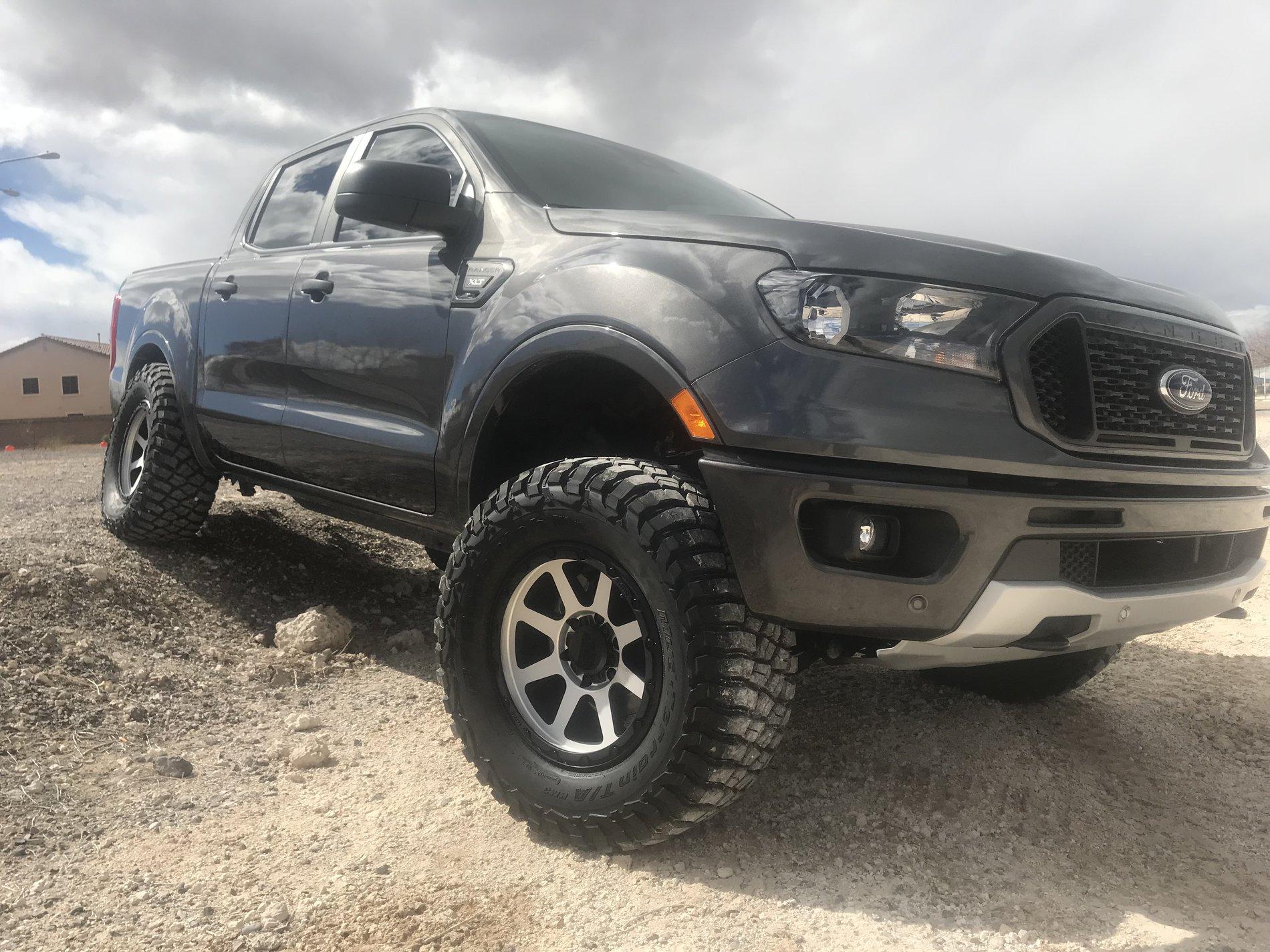

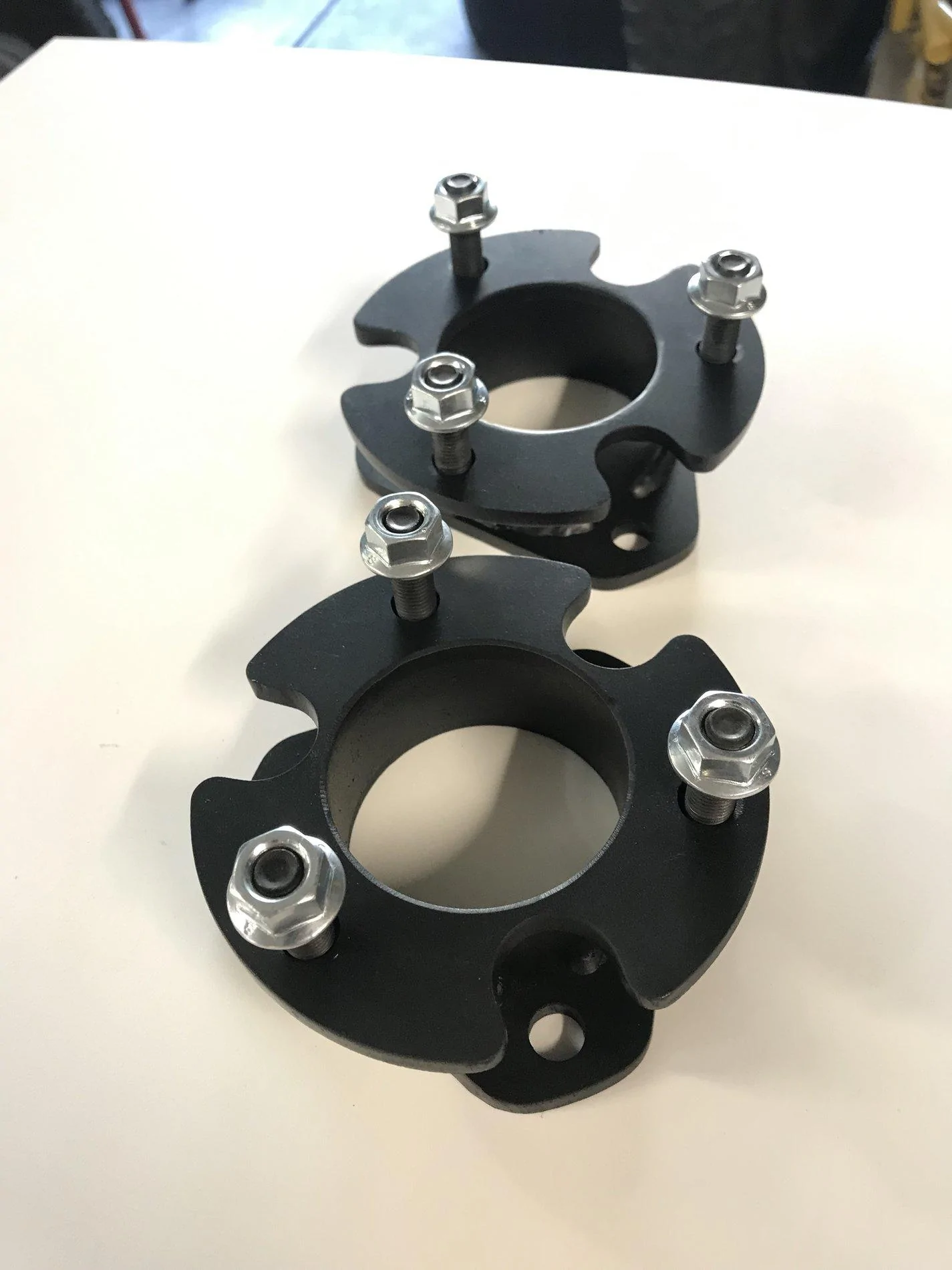

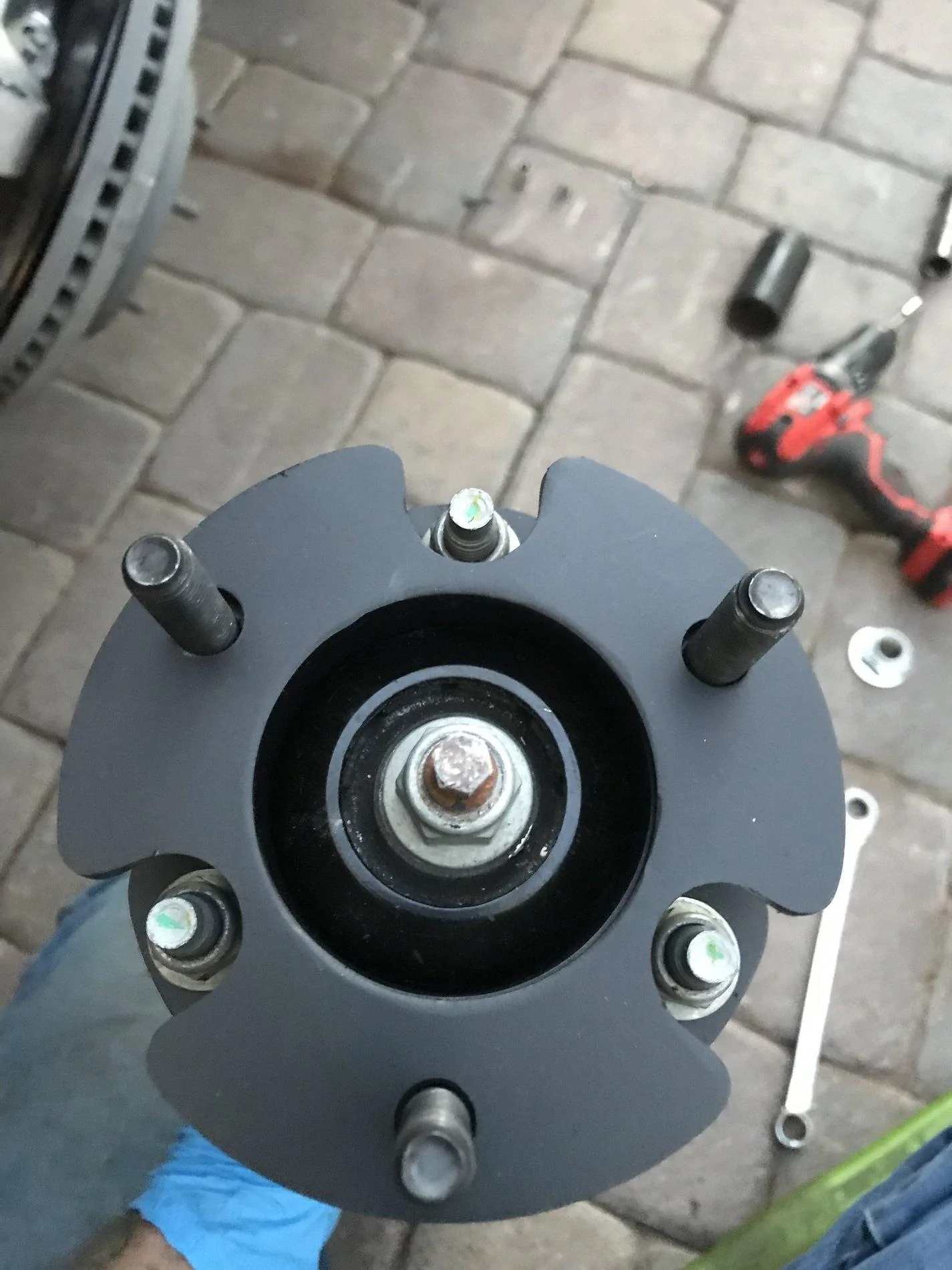

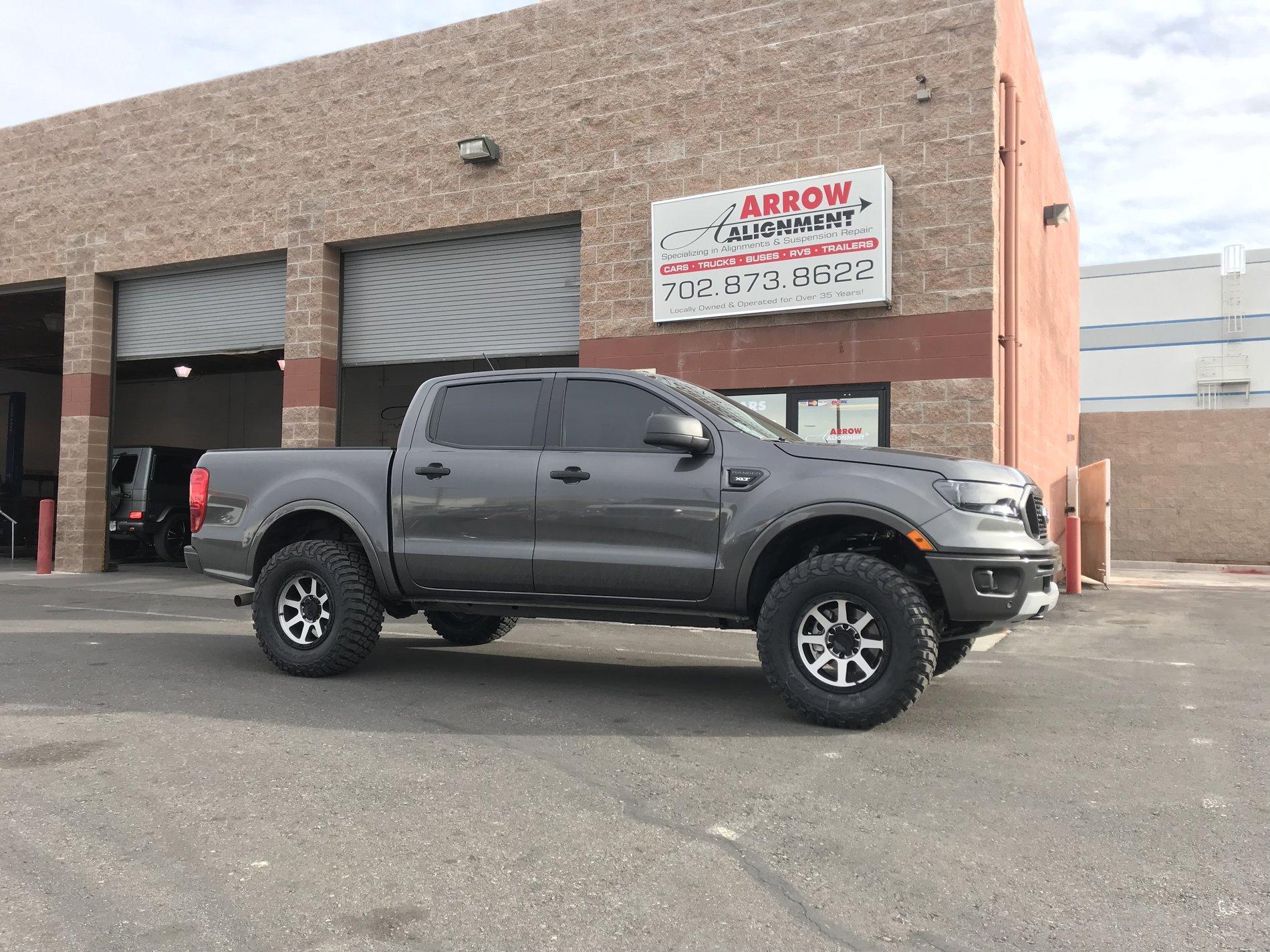

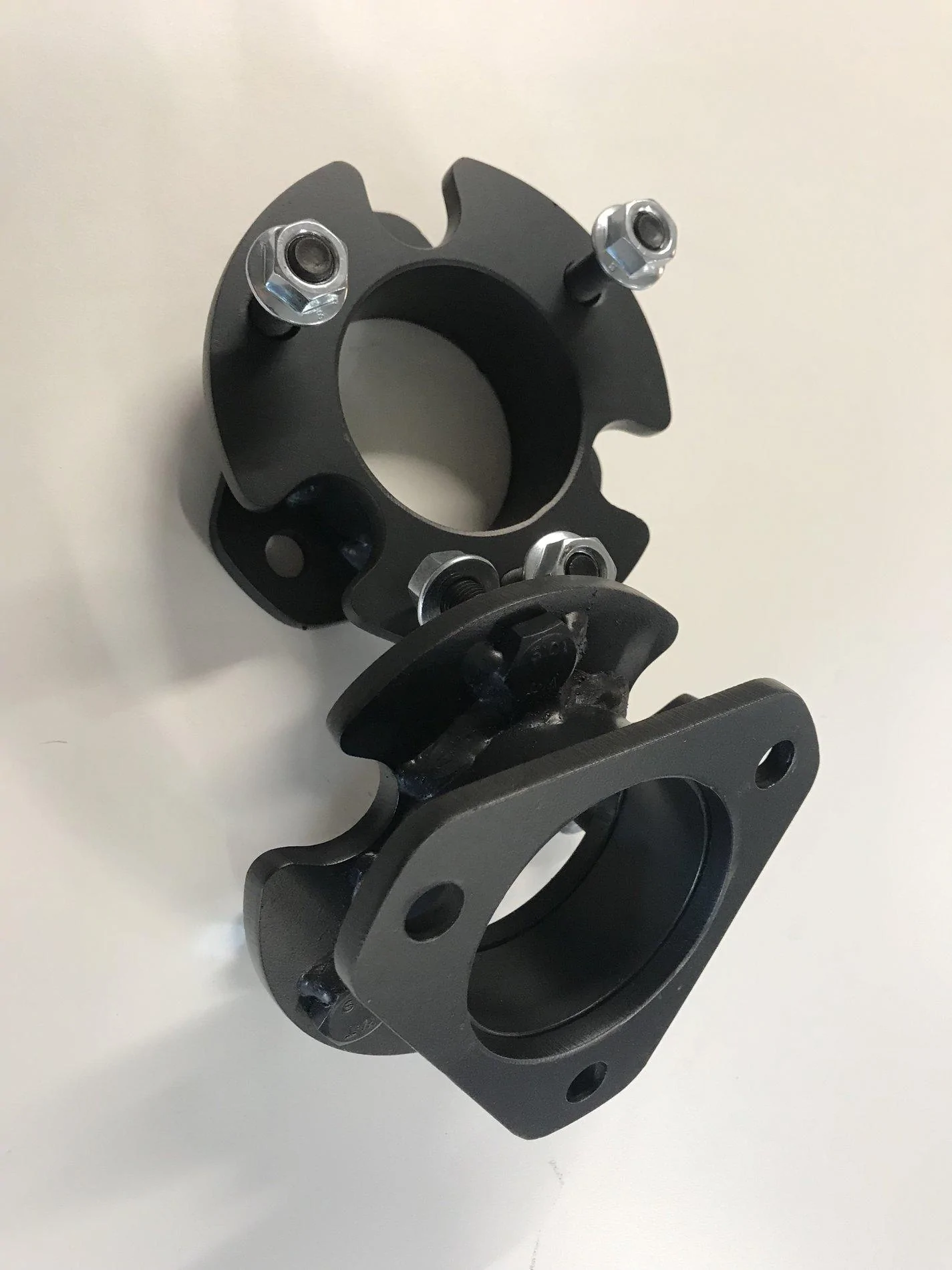

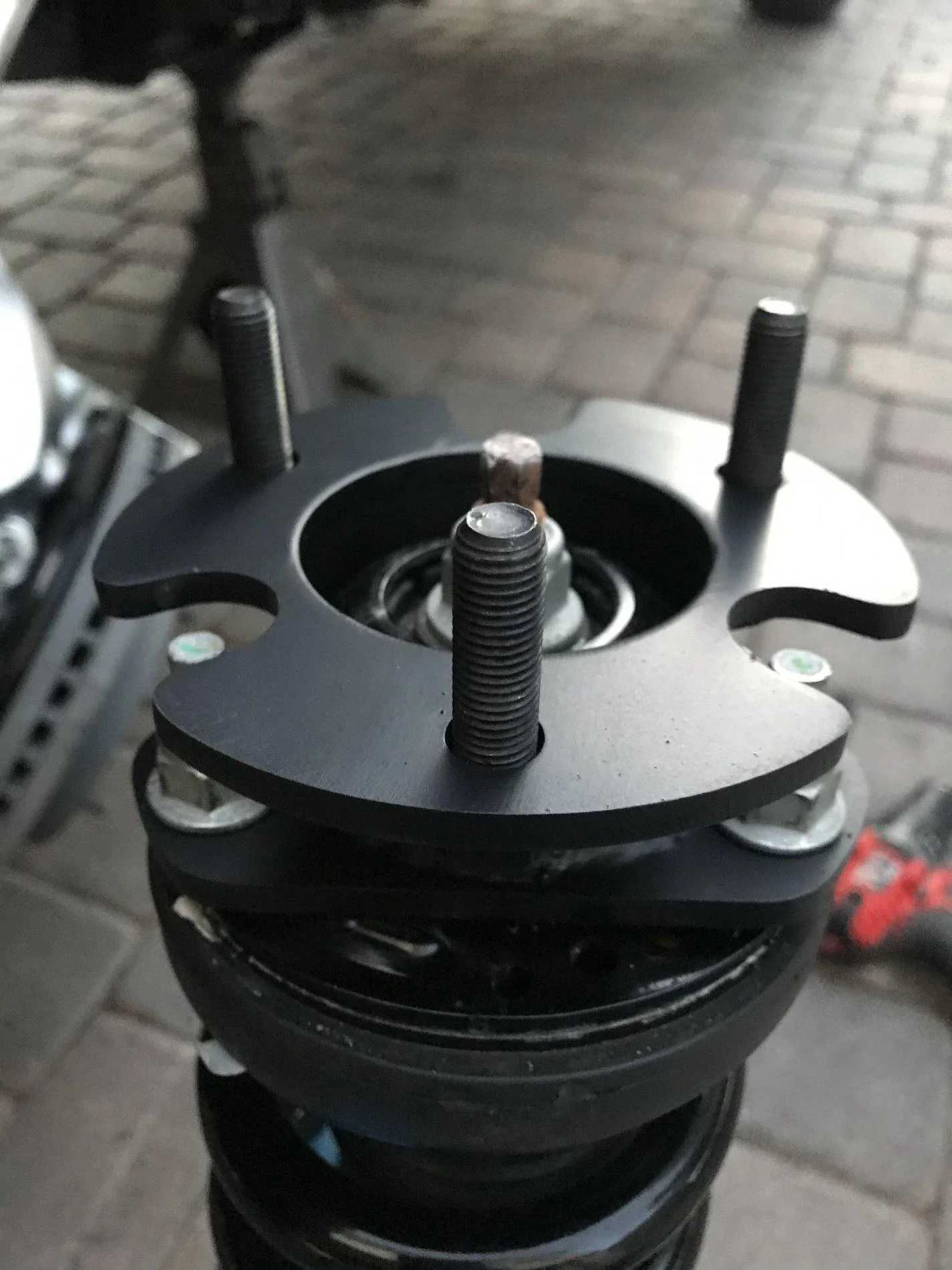

Woolworth Motorsports true 3” level lift. Made in the USA. Perfect wheel gap front and rear. Made with 1/4” laser cut steel plate and tubing. Corrosion resistant studs and hardware. Lifetime warranty on manufactured parts. www.fordrangerlifts.com Retails for $199 with free shipping. Located in Las Vegas. 702-501-3139



[WhatExit?]

It would be helpful if posts with suspension lift info includes tire size

Thanks!



[@Robby887]

It would be helpful if posts with suspension lift info includes tire size

Thanks!

Most posts have the recommended tire size.



[@Robby887]

It would be helpful if posts with suspension lift info includes tire size

Thanks!

Recommended tire size is 285/70/17. Can fit up to a 33x12.50x17 with minor modifications. Modifications are crash bar delete.



[ToothRanger]

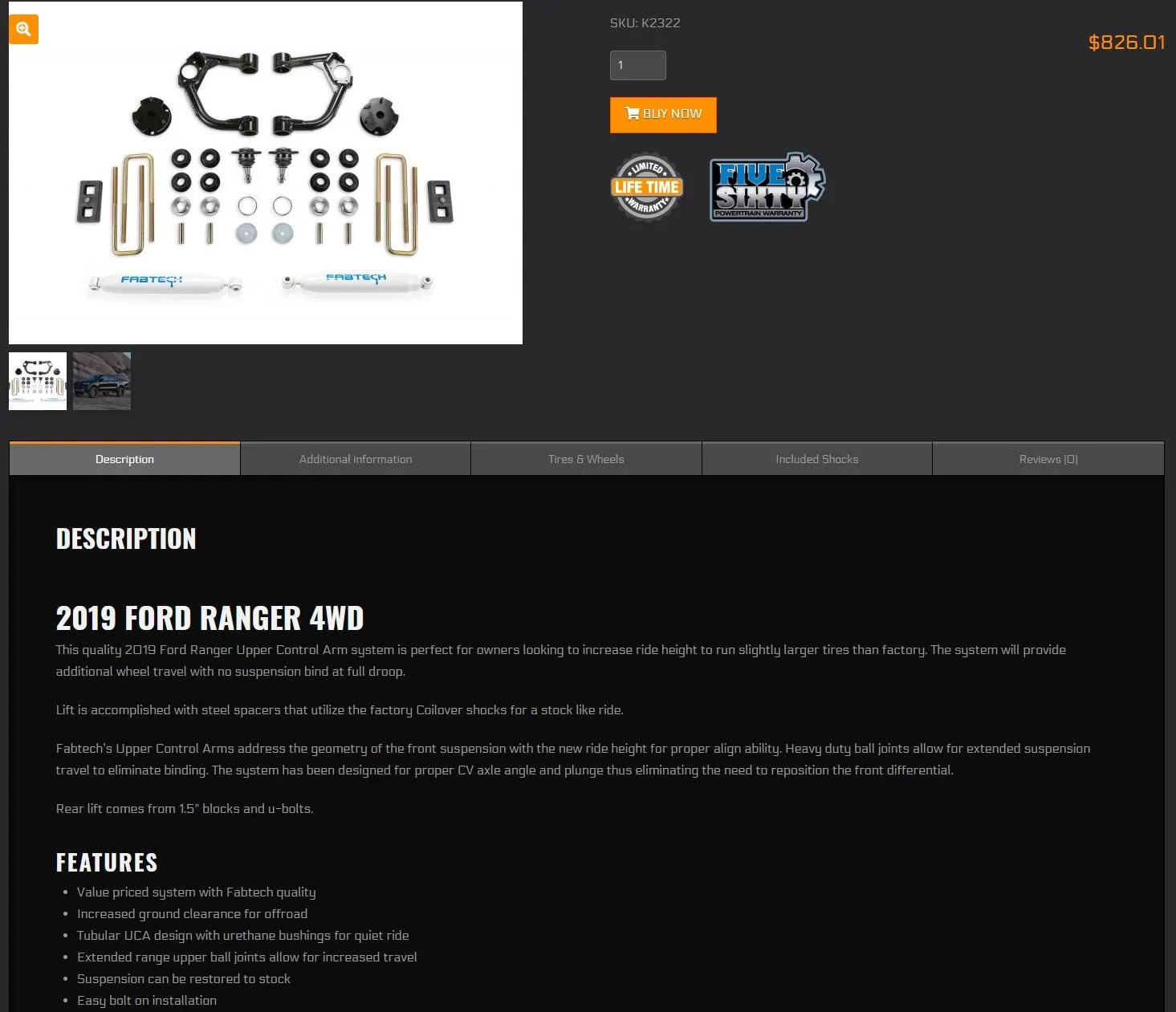

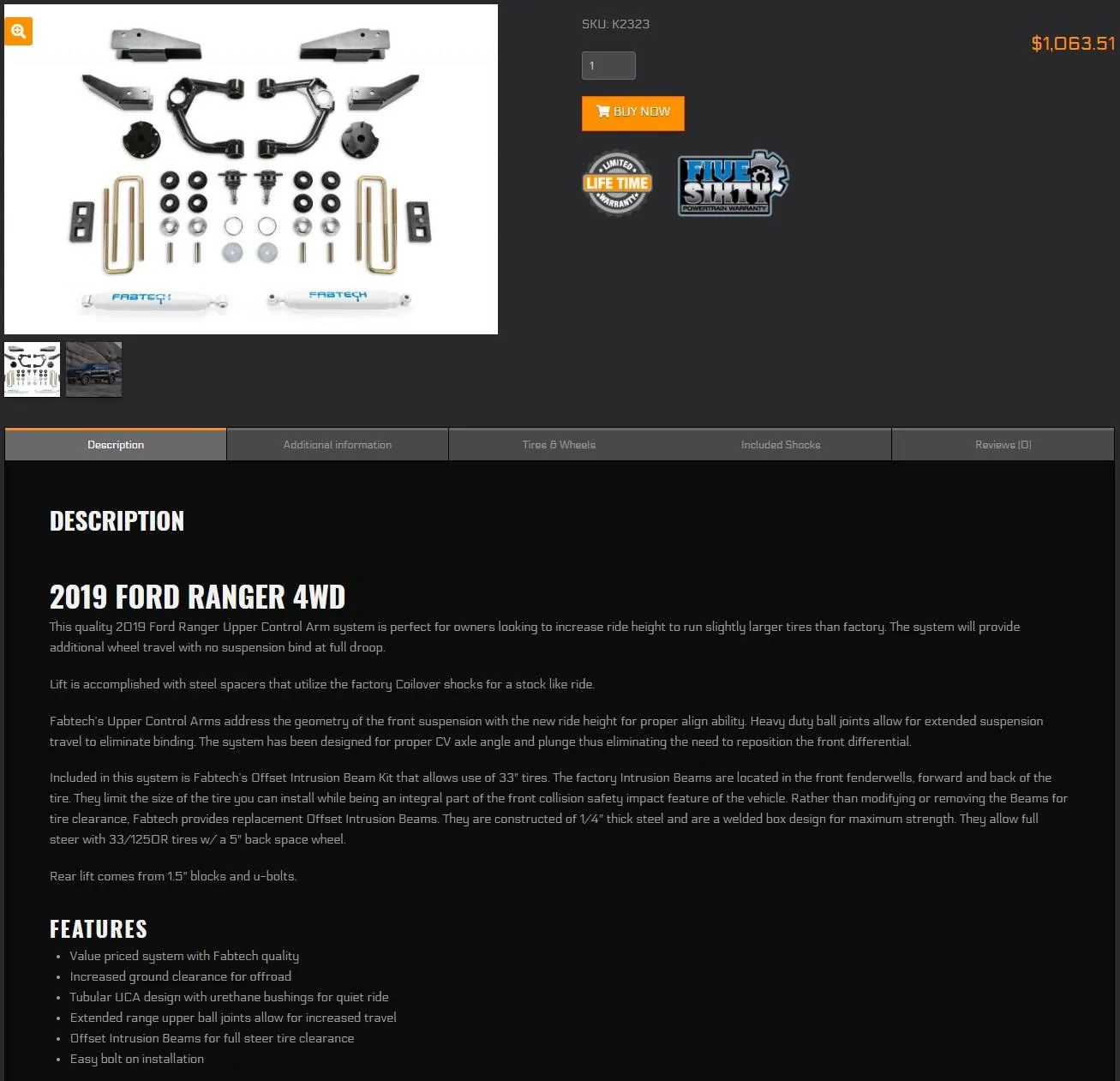

Fabtech is offering each with your choice of house branded shocks or Dirtlogic shocks

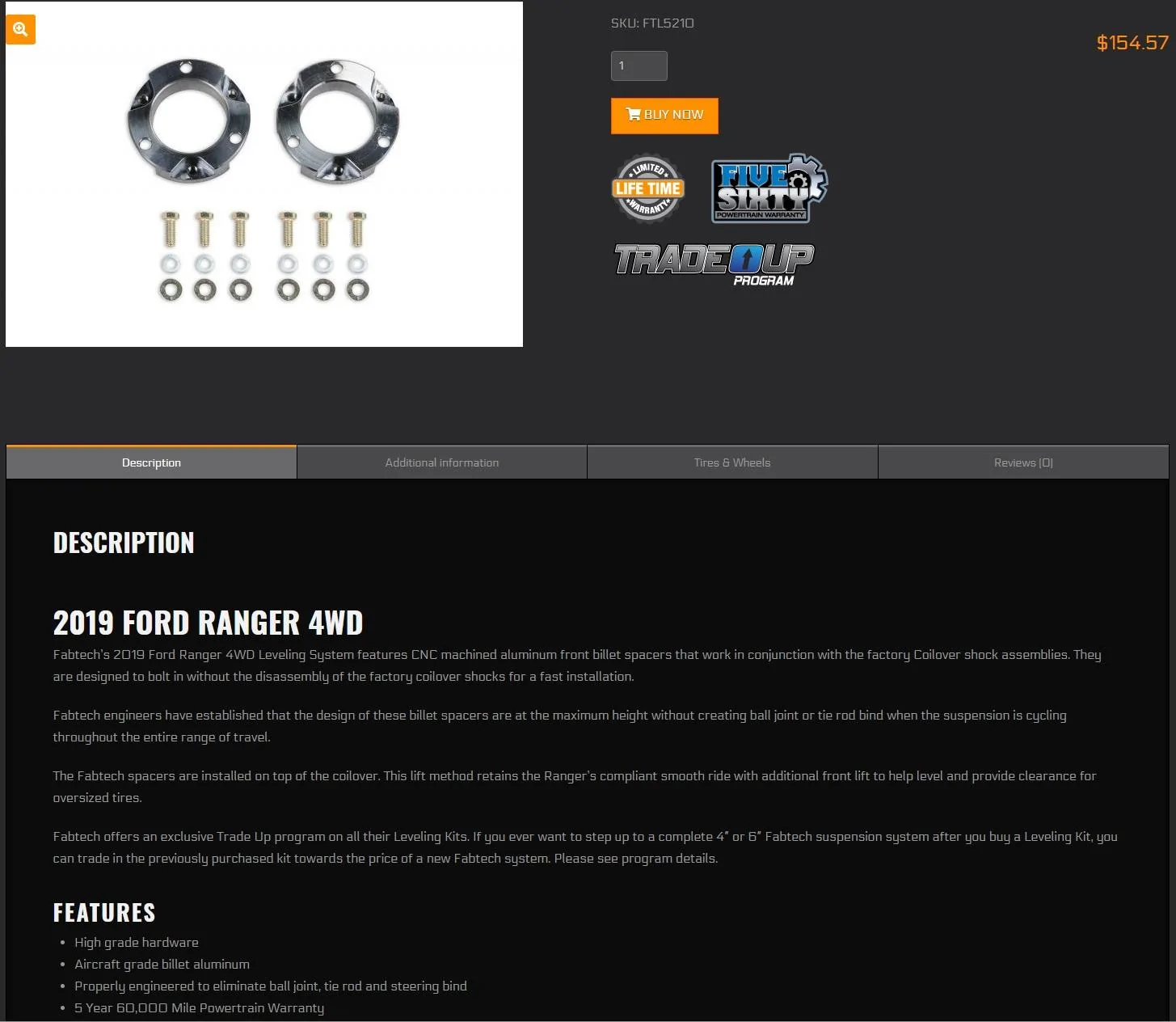

1) Leveling Kit (31" tires)

2) 3.5" Lift Kit (31" tires)

3) 3.5" Lift Kit (33" tires)

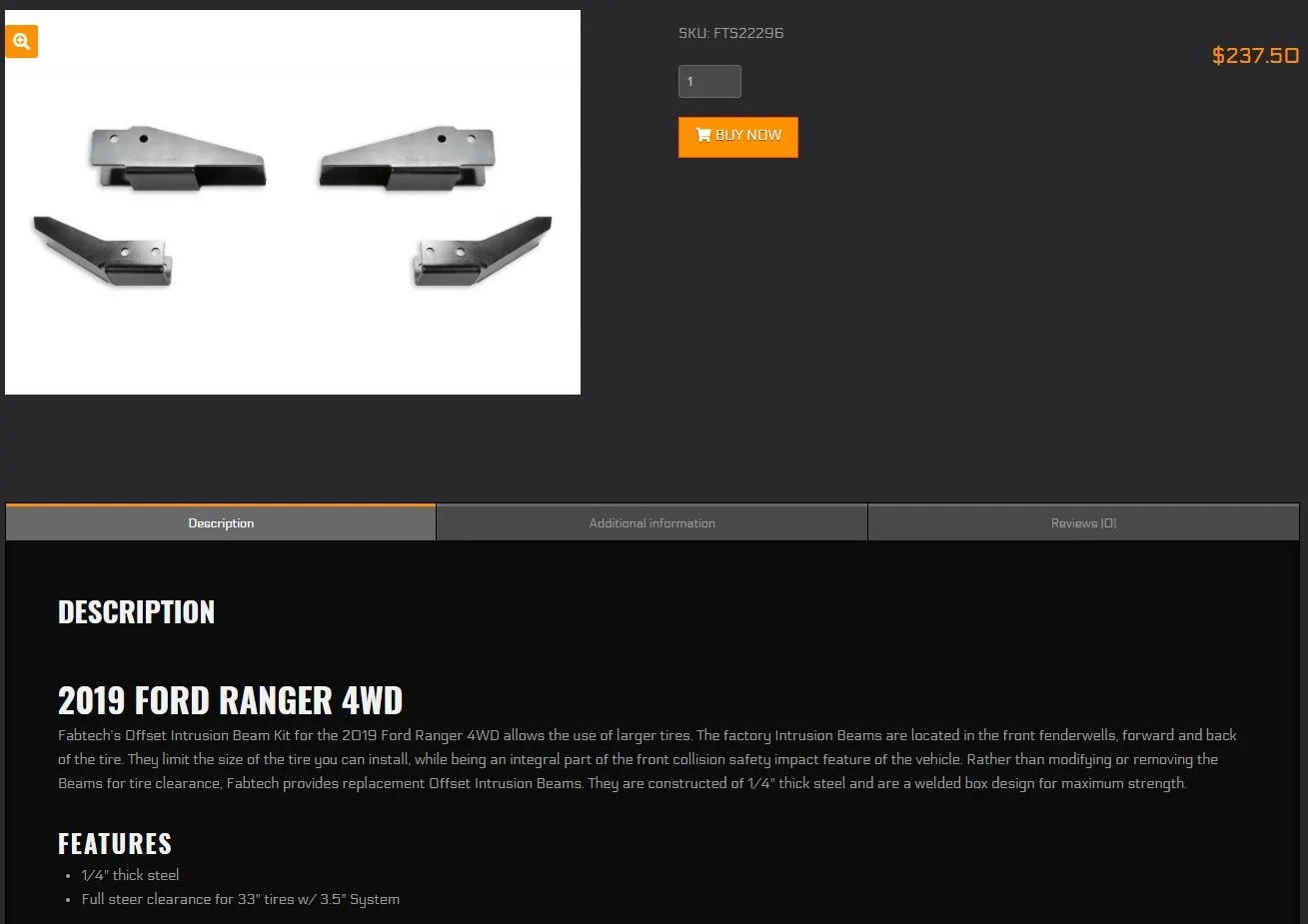

They also offer offset intrusion beams to replace factory crash bars as a separate accessory.

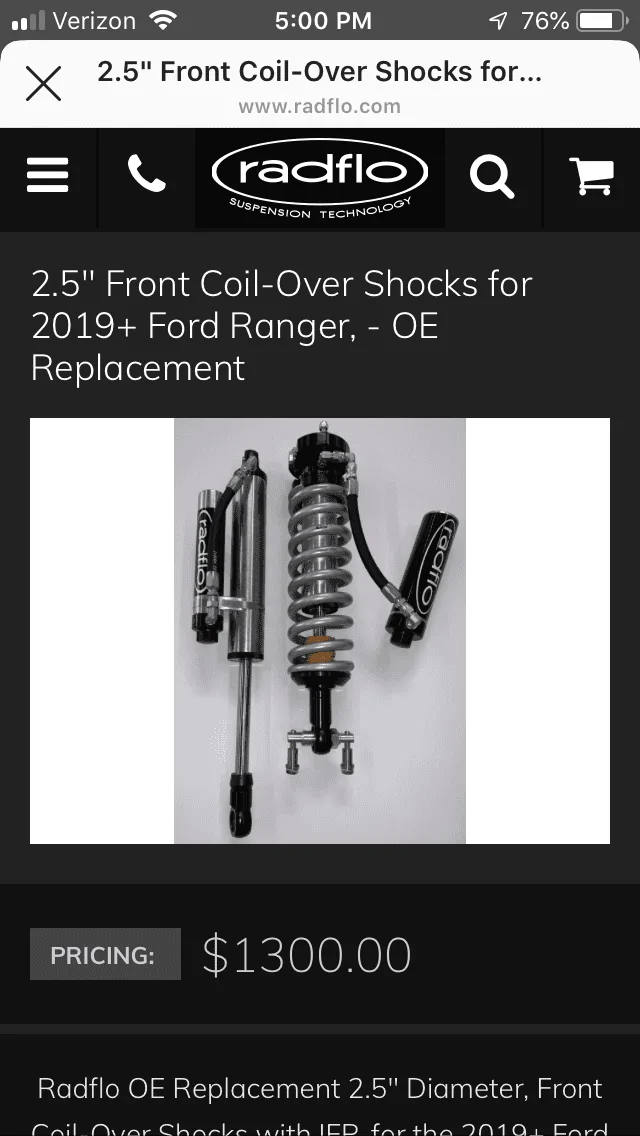

[Rousseb]

https://www.radflo.com/



[FlRanger]

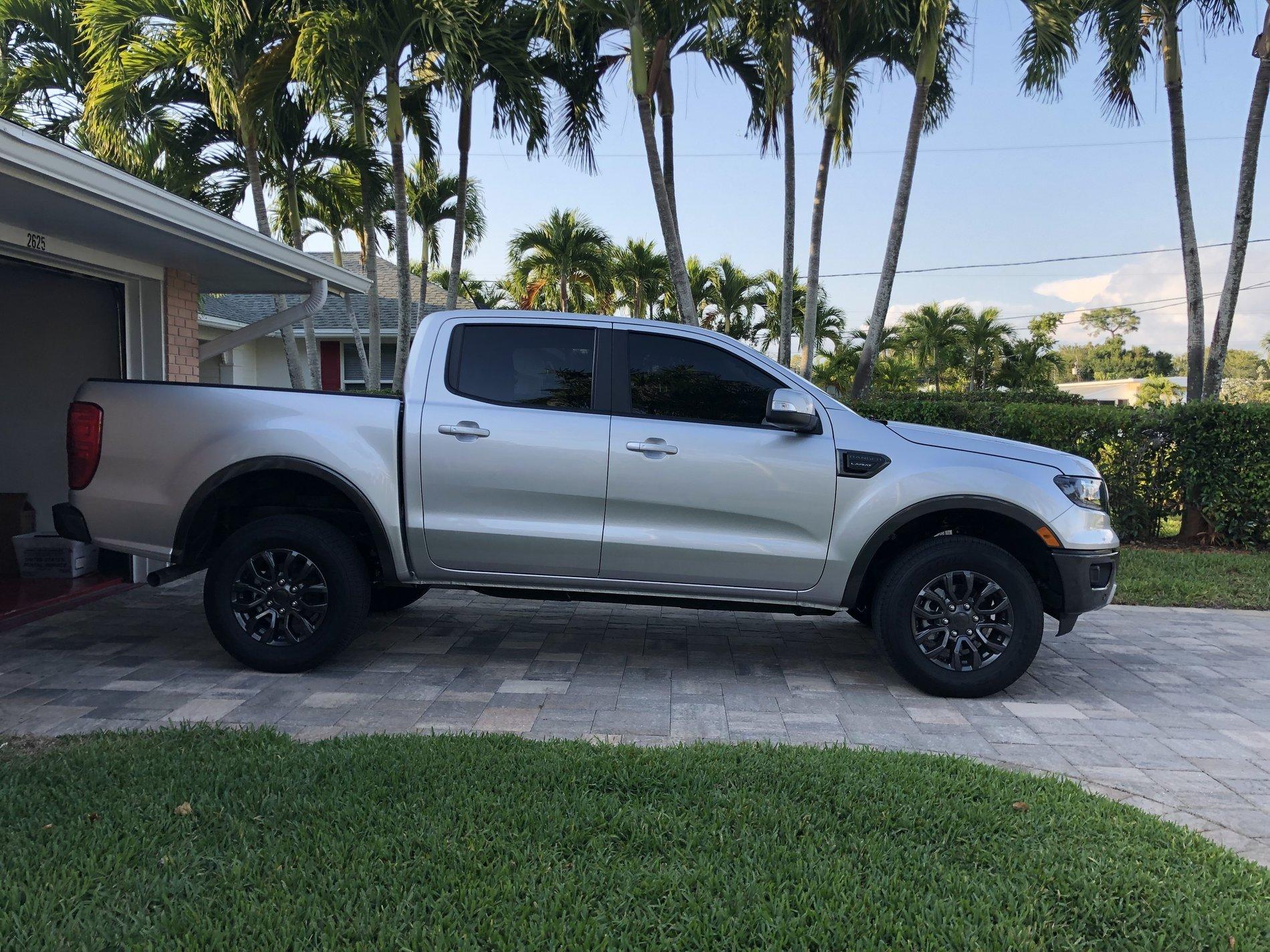

What about leveling kits for 2wd? What are the options and how do you feel about leveling a 2wd Ranger? Thought it would be nice to put some more aggressive tires on the stock wheels and fill up the wheel well. Thoughts, pros and cons?

Was thinking about the Nitto Ridge Grapplers



[@Robby887]

What about leveling kits for 2wd? What are the option and how do you feel about leveling a 2wd Ranger? Thought it would be nice to but some more aggressive tires on the stock wheels and fill up the wheel well. Thoughts, pros and cons?

Was thinking about the Nitto Ridge Grapplers

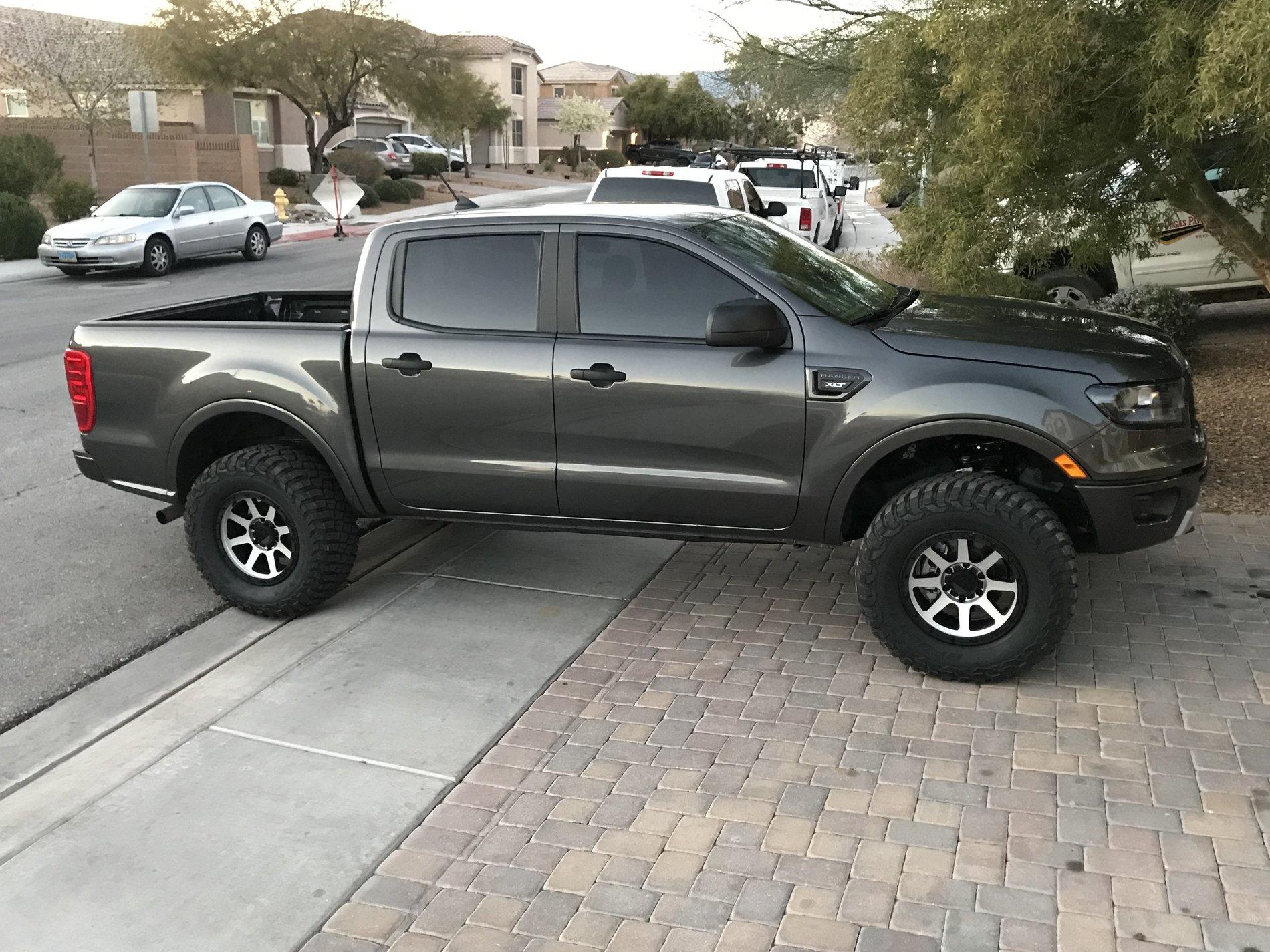

My kit fits 2wd and 4wd. Provides 3” of front lift for the exact wheel gap front and rear.



[FlRanger]

My kit fits 2wd and 4wd. Provides 3” of front lift for the exact wheel gap front and rear.

Where can I get this? Went to a shop today that quoted me $1580 (pre tax) for the Nittos and leveling kit installed. I thought that was on the high side.



[Desert_5G]

Where can I get this? Went to a shop today that quoted me $1580 (pre tax) for the Nittos and leveling kit installed. I thought that was on the high side.

that sounds about right. 1100 for tires mounted and balance. 400 labor and alignment for the leveling kit. plus tax.
