Crowd-sourced Trailer Brake Controller's List for 2019 Ford Ranger

Discussion in 'Towing' started by rangerdanger, May 13, 2019.

?

What Brand of Confirmed Working Trailer Brake Controller Do You Have Installed?

  1. REDARC

    62.5%
  2. Tekonsha

    12.5%
  3. Reese

    0 vote(s)
    0.0%
  4. Curt

    12.5%
  5. Hayes

    0 vote(s)
    0.0%
  6. Tuson

    0 vote(s)
    0.0%
  7. Draw-Tite

    0 vote(s)
    0.0%
  8. Hopkins

    12.5%
  1. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    2,839
    Likes Received:
    1,588
    Garage Profiles:
    1
    Have you installed a trailer brake controller in your 2019 Ford Ranger?

    If you did and you can confirm it works, can you please answer the poll about which brand of trailer brake controller you installed?

    Please list the model # in the comments and link any relevant install threads you may have created.

    Do not respond to the poll if you have not installed a trailer brake controller and confirmed it works!

  2. oggvorbis

    oggvorbis Well-Known Member

    First Name:
    Pablo
    Vehicle(s):
    2019 Ford Ranger Lariat FX4
    Joined:
    Feb 3, 2019
    Location:
    Rancho Cucamonga, CA
    Posts:
    64
    Likes Received:
    65
    Garage Profiles:
    1
  3. MT19RANGER

    MT19RANGER Well-Known Member

    First Name:
    JERRY
    Vehicle(s):
    2019 Ranger Lariat
    Joined:
    Nov 10, 2018
    Location:
    SIDNEY, MT
    Posts:
    468
    Likes Received:
    202
    Occupation:
    Oilfield Service Company Area Supervisor
    Garage Profiles:
    1
  4. Alby

    Alby Member

    Vehicle(s):
    2019 Ranger Lariat, 1932 Ford High Boy, 1927 Ford Model T.
    Joined:
    Mar 13, 2019
    Location:
    North Carolina
    Posts:
    17
    Likes Received:
    1
    I don't want to hijack this very important thread. But I would also like to ask those who have installed and tested an aftermarket controllers to include a wiring diagram of how they did it

  5. oggvorbis

    oggvorbis Well-Known Member

    First Name:
    Pablo
    Vehicle(s):
    2019 Ford Ranger Lariat FX4
    Joined:
    Feb 3, 2019
    Location:
    Rancho Cucamonga, CA
    Posts:
    64
    Likes Received:
    65
    Garage Profiles:
    1

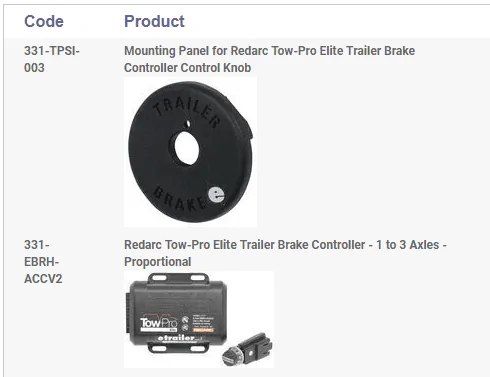

    https://www.ranger5g.com/forum/threads/redarc-tow-pro-elite-install.1924/

    I updated my first post a few days ago to include all the trailer wiring diagrams direct from Ford's Tech Service website.

    MT19RANGER likes this.
  6. Claudess

    Claudess Active Member

    First Name:
    Claude
    Vehicle(s):
    Ford
    Joined:
    Mar 6, 2019
    Location:
    The Plains, VA
    Posts:
    44
    Likes Received:
    44
    Took my 10-ton utlity trailer for a short test spin with the Ranger using the Redarc. Everything worked well. The trailer battery was charging with the 12v (the 12v only is on when the engine is running, not with the key at accessory). The brakes worked well. I had the blue trailer brake wire on my Ranger.



    Alby and MT19RANGER like this.
  7. Srgraham1

    Srgraham1 Member

    First Name:
    Steve
    Vehicle(s):
    2019 Ford Ranger XL STX
    Joined:
    May 15, 2019
    Location:
    Livonia MI
    Posts:
    8
    Likes Received:
    11
    Garage Profiles:
    1

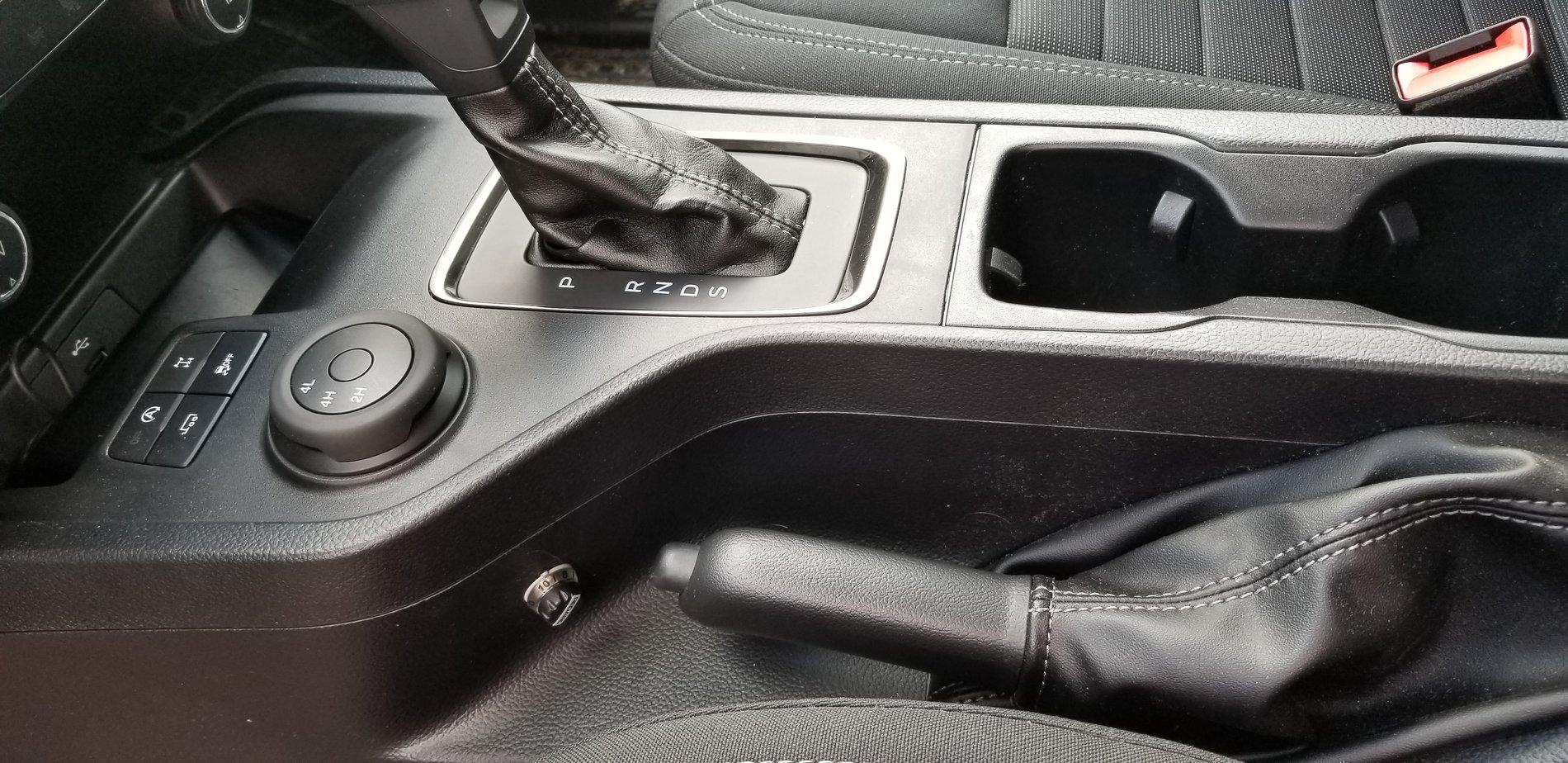

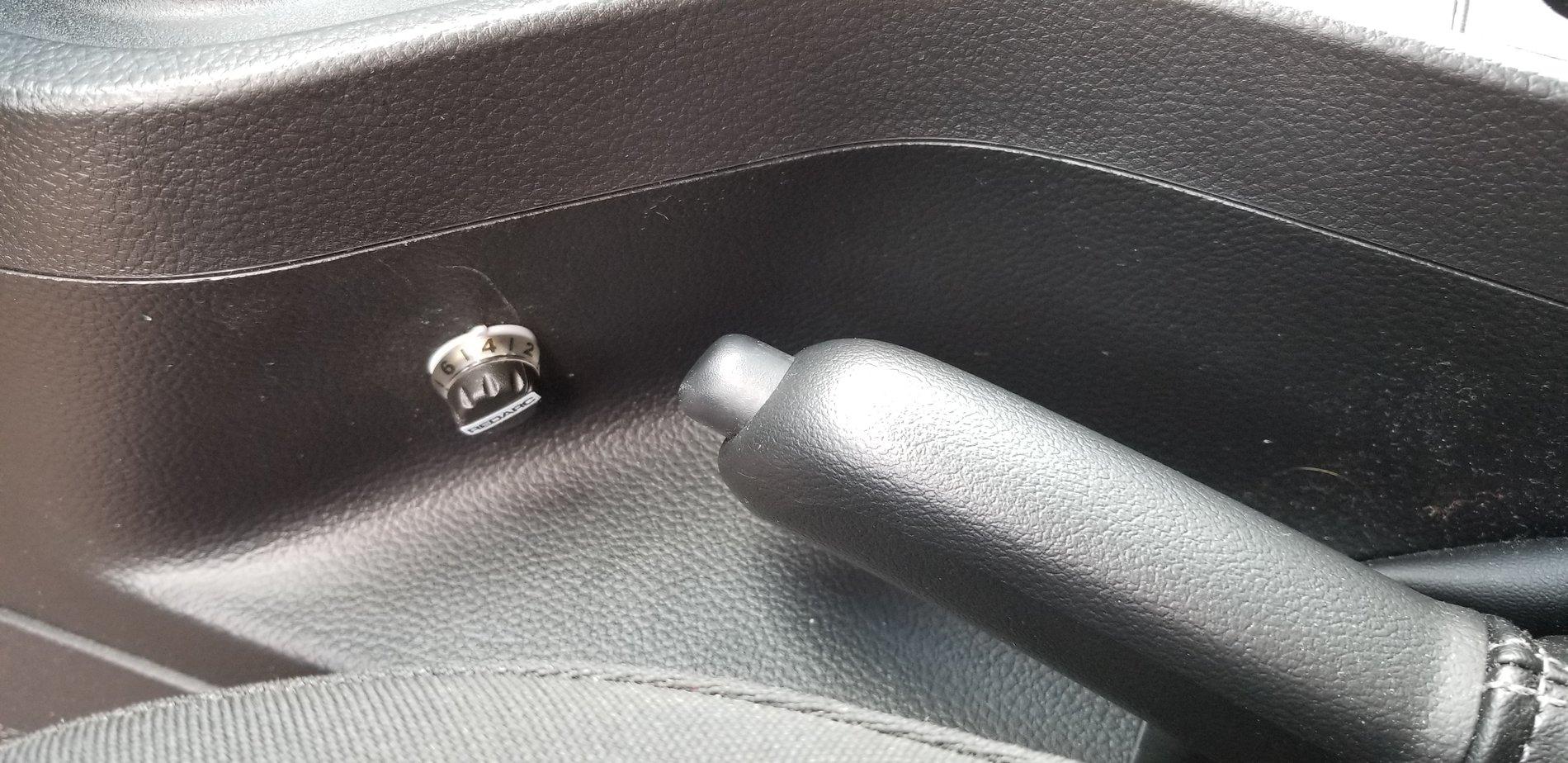

    I spent about 3 hours on install of redarc tow pro elite but that could have been 1.5, if at the time I would have looked for a light blue wire rather than a black green wire. Dealership did not have an install available and even emailed Ford but was told no available parts.

    Wanted to mount below the 4x4 selector but the back of the pannel was all reinforced with plastic ribbing and too thick. Finding this location was the second most time consuming part of install. It is convenient enough for trailering and controller works great. Recommend having the trailer available for testing that install was successful though as control knob only lights up blue for a second if you press the override without trailer connected.

    Did 100 miles with 4500 lbs camper and no issues so far.




  8. Claudess

    Claudess Active Member

    First Name:
    Claude
    Vehicle(s):
    Ford
    Joined:
    Mar 6, 2019
    Location:
    The Plains, VA
    Posts:
    44
    Likes Received:
    44
    That's a nice spot for the switch. I have not permanently mounted my switch yet. I just have the cable coming up with the switch attached. Was waiting to see where Ford put it.

    Srgraham1 likes this.
  9. Srgraham1

    Srgraham1 Member

    First Name:
    Steve
    Vehicle(s):
    2019 Ford Ranger XL STX
    Joined:
    May 15, 2019
    Location:
    Livonia MI
    Posts:
    8
    Likes Received:
    11
    Garage Profiles:
    1
    Thought I saw some of the early demo videos with it mounted below the 4x4 selector which is why I wanted to put it there, but they may have also had the trim ring and just drilled out all the reinforced ribbing. I didn't want the extra trim piece though and I never went back to see if those demo models were just 4x2s with the controller knob installed in the 4x4 selector blank.

  10. DrRoger

    DrRoger Well-Known Member

    First Name:
    Roger
    Vehicle(s):
    2011 Taurus, 2019 Ranger XL (May 20)
    Joined:
    Mar 16, 2019
    Location:
    Dallas, TX
    Posts:
    161
    Likes Received:
    80
    Occupation:
    Retired
    Wired the controller today. VERY easy thanks to the great pictures posted by forum members.
    Confirmed that when the manual braking lever is moved to full brake, I get the full voltage at the brake pin on the 7-pin connector.

    MT19RANGER likes this.
  11. DrRoger

    DrRoger Well-Known Member

    First Name:
    Roger
    Vehicle(s):
    2011 Taurus, 2019 Ranger XL (May 20)
    Joined:
    Mar 16, 2019
    Location:
    Dallas, TX
    Posts:
    161
    Likes Received:
    80
    Occupation:
    Retired

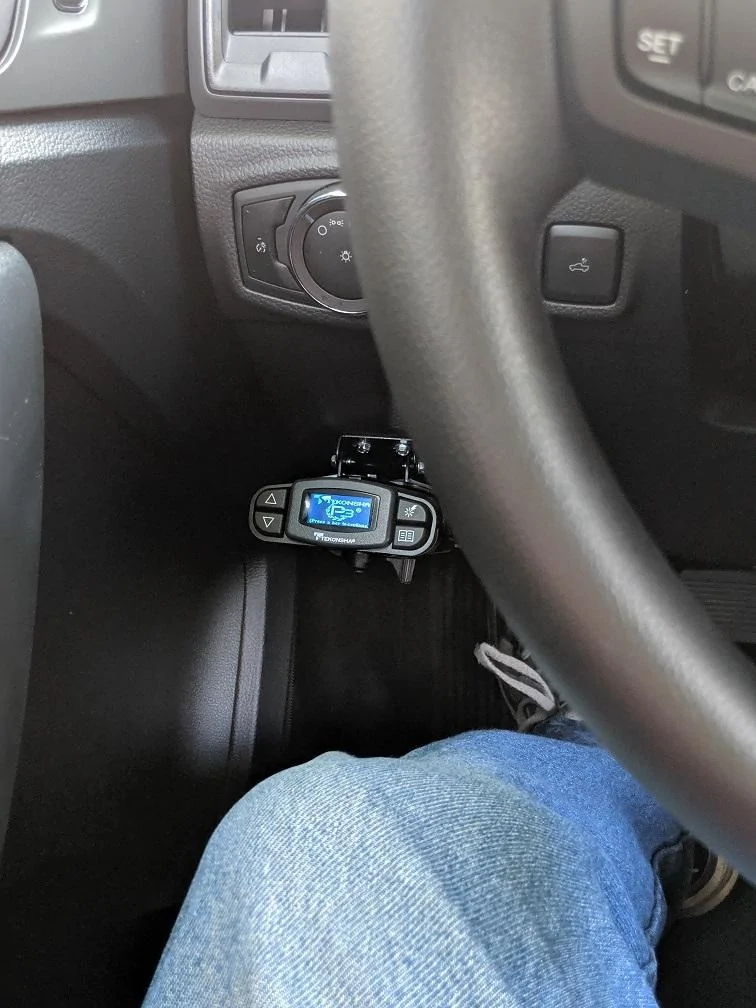

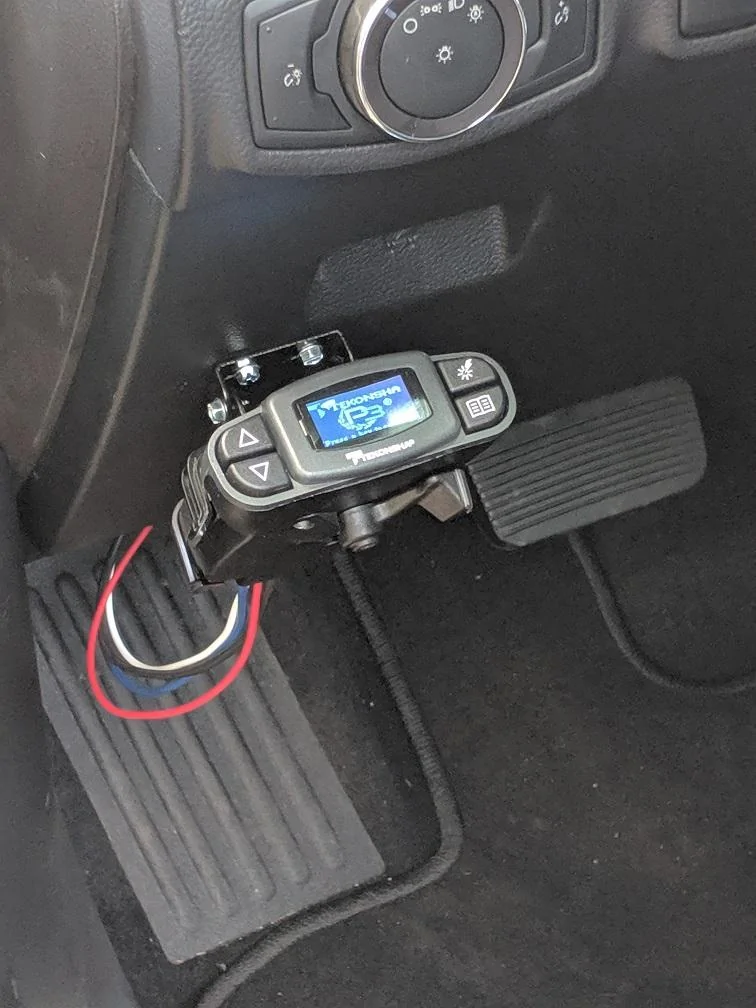

    Finished up the install of my P3
    It does NOT get in my way entering or exiting. (short legs??)



    MT19RANGER and Alby like this.
