Check Engine Light - 5600 miles - Code: P02EE

Dan Root

New Member
First Name
Dan
Joined
Jan 20, 2020
Messages
1
Reaction score
0
Location
Indianapolis, IN
Vehicle(s)
2019 Ford Ranger

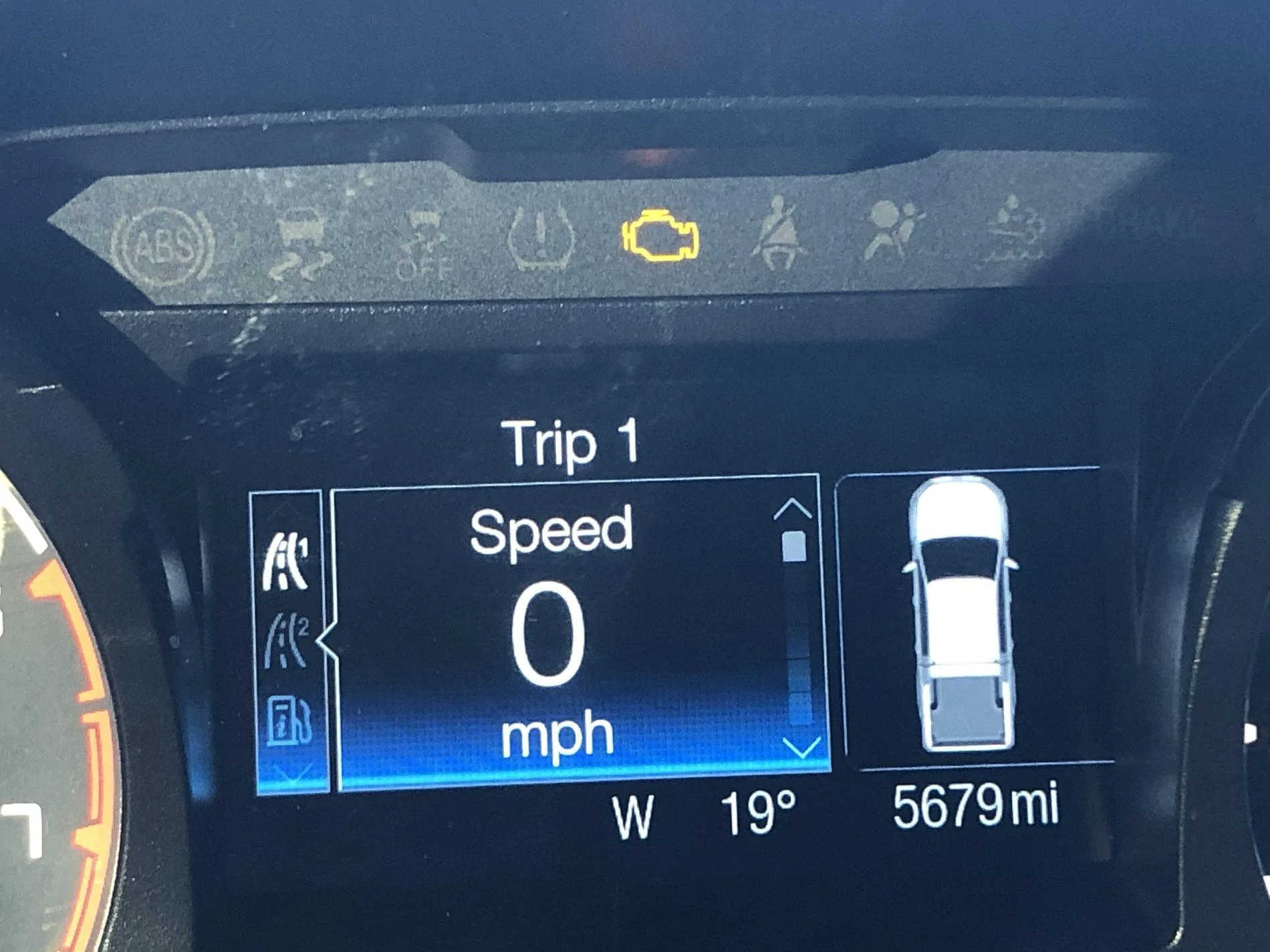

Turned the truck off overnight for about 20 minutes after a long drive - had a service light visible upon start. Truck running somewhat tougher than usual. Ford Dealer ran code, came up as P02EE.

“Cylinder 1 Injector Circuit”

I guess I’ll keep you all posted. Saw the TSB regarding this code and others and hoping that’s all it is. She barely saw any snow and almost no dirt yet!! :(






Cape Cruiser

Well-Known Member
First Name
Bret
Joined
Mar 18, 2019
Messages
487
Reaction score
583
Location
Southern Delaware
Vehicle(s)
1931 Ford - 2017 Tacoma-19 Ranger 4x2 lariat
Occupation
retired mechanic
Turned the truck off overnight for about 20 minutes after a long drive - had a service light visible upon start. Truck running somewhat tougher than usual. Ford Dealer ran code, came up as P02EE.

“Cylinder 1 Injector Circuit”

I guess I’ll keep you all posted. Saw the TSB regarding this code and others and hoping that’s all it is. She barely saw any snow and almost no dirt yet!! :(

My dealer told me last week that Ford is working on a permanent fix for the injector code. Probably replace injectors. Bret

  • Like
Reactions: Doc

Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Messages
1,036
Reaction score
1,204
Location
Live oak fla
Vehicle(s)
2019 Ranger, 2020 HPP Mustang, 2006 GMC Sierra, 2015 Suzuki King Quad, 2006 883/ 1200 Sportster conversion
Occupation
Retired
My dealer told me last week that Ford is working on a permanent fix for the injector code. Probably replace injectors. Bret
Yes that has been a problem on the mustangs also.
Regards


Cape Cruiser

Well-Known Member
First Name
Bret
Joined
Mar 18, 2019
Messages
487
Reaction score
583
Location
Southern Delaware
Vehicle(s)
1931 Ford - 2017 Tacoma-19 Ranger 4x2 lariat
Occupation
retired mechanic
Yes that has been a problem on the mustangs also.
Regards
I think the dealers are learning these new vehicles as they go,and Ford determines what dealers can and cant do as far as diagnosing and replacing parts.Techs must be frustrated with training and support. Much different now than when I worked in Lincoln /Mercury dealer in late 70's. Bret


2.7EcoBoost

Well-Known Member
Joined
Feb 11, 2019
Messages
142
Reaction score
73
Location
NY
Vehicle(s)
2019 Ranger FX4 Screw
I have developed a surge/miss at low speed low rpm. It's usually just one or two "misses", but 3 times now it surged until it up shifted or I had to let off the gas to make a turn, like 10 seconds worth. I hope my light comes on because my dealer will do nothing without a light other than say It's normal.


Motorpsychology

Well-Known Member
First Name
Chris
Joined
Nov 13, 2019
Messages
61
Reaction score
50
Location
Prescott, WI
Vehicle(s)
2018 Ford Escape SEL 1.5L 4wd; 2009 Mercury Mariner Base 3.0 V6 awd: 2017 Suzuki V-Strom 650 1980 Kawasaki: KZ 750E
I have developed a surge/miss at low speed low rpm. It's usually just one or two "misses", but 3 times now it surged until it up shifted or I had to let off the gas to make a turn, like 10 seconds worth. I hope my light comes on because my dealer will do nothing without a light other than say It's normal.
Water in fuel? Throttle position sensor? I'd start cheap and work up: try a bottle of HEET. If it turns out to be water in the fuel, Heet should clear it up. a TPS or MAP fault might have stored a code that wouldn't necessarily show up on your display or trip the CEL. My company Kenworth/Cummins INX13 will do that- no lights or msg, but when the shop guys routinely put the scanner on, it's, "look at all this s˙ˆ†!"


Motorpsychology

Well-Known Member
First Name
Chris
Joined
Nov 13, 2019
Messages
61
Reaction score
50
Location
Prescott, WI
Vehicle(s)
2018 Ford Escape SEL 1.5L 4wd; 2009 Mercury Mariner Base 3.0 V6 awd: 2017 Suzuki V-Strom 650 1980 Kawasaki: KZ 750E
I think the dealers are learning these new vehicles as they go,and Ford determines what dealers can and cant do as far as diagnosing and replacing parts.Techs must be frustrated with training and support. Much different now than when I worked in Lincoln /Mercury dealer in late 70's. Bret
Ahhh... variable venturi carbs, vacuum actuators, Lincoln Versailles...


Jwarner

Member
First Name
James
Joined
Jan 24, 2020
Messages
11
Reaction score
40
Location
Nashville T.N.
Vehicle(s)
2019 Ranger CC/STX. 1998 Mustang cobra
I have developed a surge/miss at low speed low rpm. It's usually just one or two "misses", but 3 times now it surged until it up shifted or I had to let off the gas to make a turn, like 10 seconds worth. I hope my light comes on because my dealer will do nothing without a light other than say It's normal.

Mine is doing the same thing only worse. Do not switch to 93 octane as this issue only gets worse and still doesn’t give engine light.
Mine is going in this weekend with the blessing of Ford corporate to do diagnostics beyond the “ their is no code”.
Call ‭(800) 392-3673‬ (be patient, they are nice but deal with a lot of jerks. Don’t be one) and get a ticket started. The more they hear about this the sooner it gets taken care of.
Mine will be in for a few days but I’ll post the findings. Good or bad.


newmantjn

Active Member
First Name
Todd
Joined
Jun 27, 2019
Messages
44
Reaction score
20
Location
Ann Arbor, MI
Vehicle(s)
2020 Explorer
I guess I’ll keep you all posted. Saw the TSB regarding this code and others and hoping that’s all it is. She barely saw any snow and almost no dirt yet!! :(
TSB 19-2320 is the most recent for this code. October 2019


Racket

Active Member
First Name
John
Joined
Jan 21, 2020
Messages
29
Reaction score
12
Location
West Palm Beach, FL
Vehicle(s)
2019 Ranger Lariat SuperCrew, Magnetic. UPR oil catch can, Magnaflow exhaust, GFB DV
I had a different experience with changing octane - perhaps because I am in Florida and we don't switch to winter formulas. 87 octane gave me some hesitation at very low/takeoff speeds, and while 93/94 was smooth, I couldn't justify the cost. I suspect there is some 'learning' involved, but I perceive 89 octane is best all around. I did spring for a tank of ethanol free 87 (cost as much as 94) and the truck ran well (I may have imagined lss power ;-) ) and since then have switched back and forth between 87/89 with the truck behaving pretty much the same. Highway gas mileage was nearly 2 MPG better with the higher octane, but the nearly thirty cent difference per gallon is hard to justify. I haven't tested highway mileage with the 90+ octane gas, but it's such a jump in cost I can't rationalize it.

  • Like
Reactions: Doc

Tyler Knutson

Active Member
First Name
Tyler
Joined
Feb 23, 2020
Messages
26
Reaction score
22
Location
Minneapolis
Vehicle(s)
2019 Ford Ranger XLT
I had a different experience with changing octane - perhaps because I am in Florida and we don't switch to winter formulas. 87 octane gave me some hesitation at very low/takeoff speeds, and while 93/94 was smooth, I couldn't justify the cost. I suspect there is some 'learning' involved, but I perceive 89 octane is best all around. I did spring for a tank of ethanol free 87 (cost as much as 94) and the truck ran well (I may have imagined lss power ;-) ) and since then have switched back and forth between 87/89 with the truck behaving pretty much the same. Highway gas mileage was nearly 2 MPG better with the higher octane, but the nearly thirty cent difference per gallon is hard to justify. I haven't tested highway mileage with the 90+ octane gas, but it's such a jump in cost I can't rationalize it.
I have been running 89 as well. I'm having a hard time finding forums on what fuel most people are using. Do you plan on sticking with 89? Could this potentially harm the engine since it is tuned to 87? If anyone knows the answers please feel free to let me know. I keep going back and forth about whether I should use 87 or 89.


kieefer

Well-Known Member
First Name
kieefer
Joined
Dec 26, 2017
Messages
379
Reaction score
310
Location
Tennessee
Vehicle(s)
2019 Ranger Lariat SuperCab
I have an intermitting stumble/roughness at 1500 that I think possibly is a fuel injector, if one can be intermitting? No CEL, ever. 12k miles.
Runs worse on 87, best with 90. Sometimes it appears damp weather makes it worse.
Tried a tune from SCT Bulldog but no different, just went back to the factory stock tune and it’s running great. Go figure.


2.7EcoBoost

Well-Known Member
Joined
Feb 11, 2019
Messages
142
Reaction score
73
Location
NY
Vehicle(s)
2019 Ranger FX4 Screw
Dealer told me that they drove my truck and verified it, but considered it a normal charachteristic of the 10 speed, saying that it gets kind of "confused" on whether to shift or not. They didn't even hook up the diagnostic to check for codes or monitor anything. The good news is I'll save the money on the Ford protect plan I was going to purchase since I can't get anything that requires a little bit of effort fixed. No sense in paying for a warranty when everything is "normal". This is the 3rd dealer I have tried. In fairness the 2nd dealer never returned my call after being on hold for 10 minutes and leaving a "detailed message for one of their service professionals to call me back as soon as possible".


kieefer

Well-Known Member
First Name
kieefer
Joined
Dec 26, 2017
Messages
379
Reaction score
310
Location
Tennessee
Vehicle(s)
2019 Ranger Lariat SuperCab
Complain to customer service.


Fordman

New Member
First Name
Mark
Joined
Mar 20, 2020
Messages
3
Reaction score
0
Location
Richmond, VA
Vehicle(s)
2019 Ranger 4x4 CC
Occupation
Instrument Tech
I have an intermitting stumble/roughness at 1500 that I think possibly is a fuel injector, if one can be intermitting? No CEL, ever. 12k miles.
Runs worse on 87, best with 90. Sometimes it appears damp weather makes it worse.
Tried a tune from SCT Bulldog but no different, just went back to the factory stock tune and it’s running great. Go figure.
How is yours now is the issue still gone?
I have the same exact issue. No CEL rough around 1500rpm ususally in a gentle cruise like through town. 4 days at dealer and they did nothing except tried to blame it on Tranny and updated tranny profile. Has nothing to do with Tranny since I can lock it in 7th or 8th gear and it will still do it. Rarely I can even feel it at idle on cold start. I am very hesitant to waste my time at dealer again.
