Central locking wiring

[CornwallCoasty]

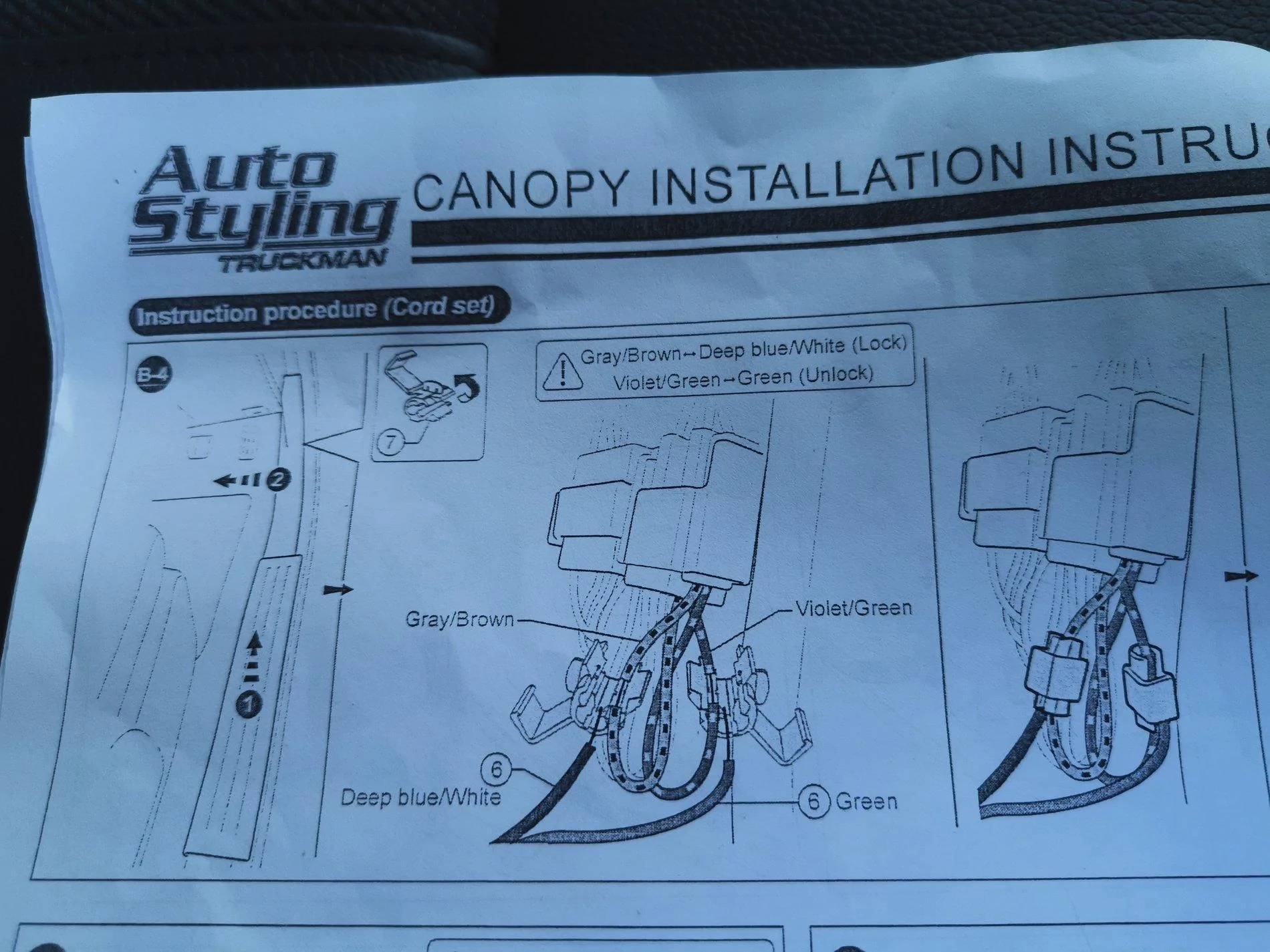

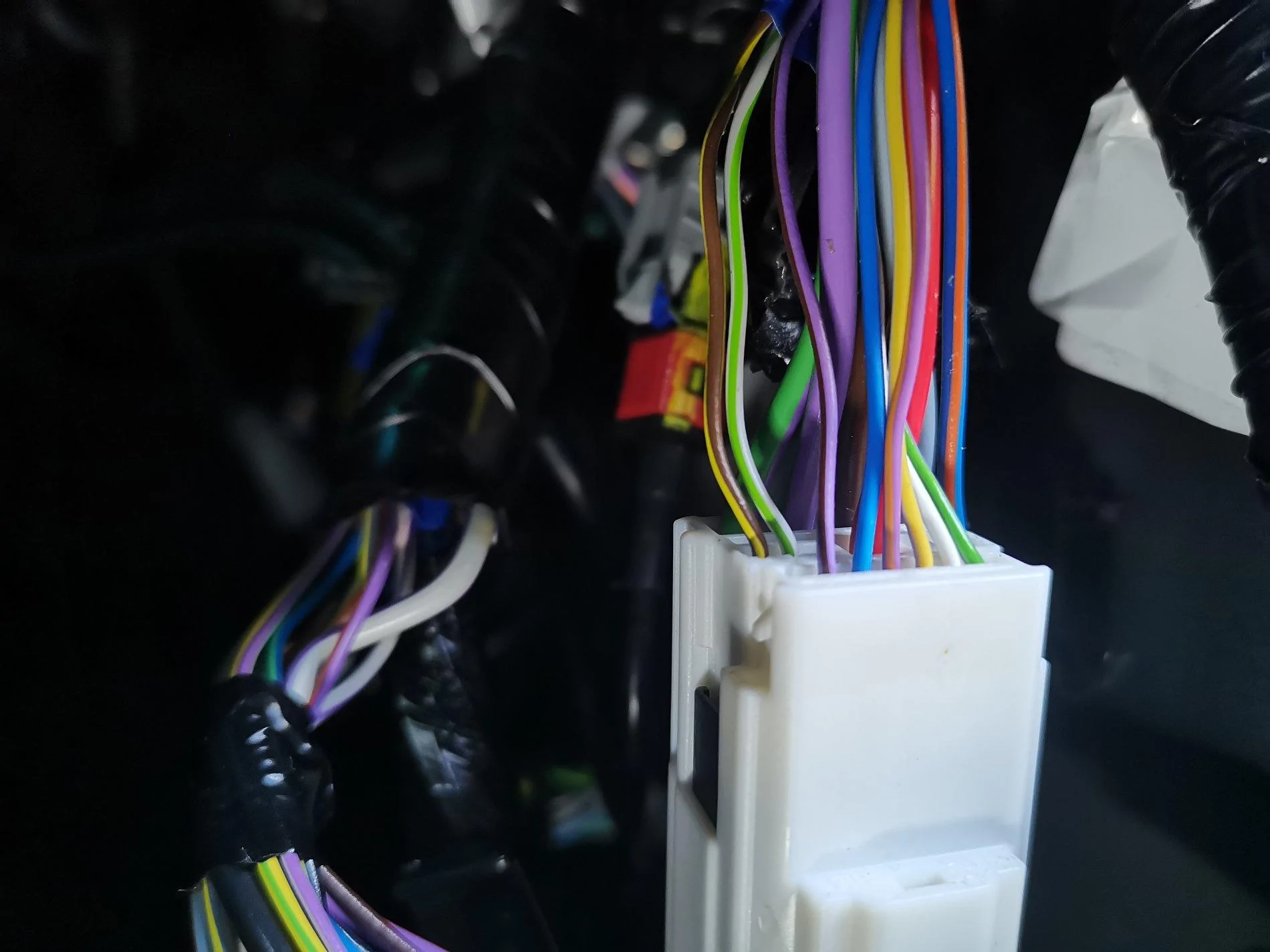

Hi All, i have a new ranger wildtrak. Just been fitting the new truckman top, but have hit a stumbling block. The instructions say one colour of wire but the vehicle does have that colour. So has anyone got a wiring diagram for the lock and unlock wires in the driver's footwell.

Sponsored



[WhiteLightning19]

Maybe this thread will help? I know I tapped into the thick gray with brown stripe wire for lock signal for my powerfold module.

https://www.ranger5g.com/forum/thre...mod-install-instructions-pictures-video.2360/



[CornwallCoasty]

Thanks, will take a look,



[BigD3an]

Thanks, will take a look,

Hi did I have come across the same issue on 69 wild track. Did you find the correct wires? It is driving me mad.
Thanks in advance
