Boomba Racing Ford Ranger Throttle Body Spacer!

Status
Not open for further replies.

Boomba Racing

Well-Known Member
First Name
Boomba Racing
Joined
Nov 17, 2019
Threads
53
Messages
139
Reaction score
100
Location
Wood Dale, IL
Vehicle(s)
2019 Ranger Lariat as well as many other vehicles.
Occupation
Making Car Parts!
Made from premium billet aluminum, Boomba Racing is excited to announce our Throttle Body Spacers for 2019+ Ford Ranger!


This spacer adds volume to your intake plenum. This has been shown to aide in cylinder filling at lower RPM, smooth out throttle response, build boost sooner, and lengthen the effective wave pulse of the intake charge.

Click here to see the product!



The spacer also includes a 1/8" NPT port that can be used for a variety of purposes. It ships with a plug in the port for those not wanting to use it.


-All hardware is included (corrosion resistant)


-Smooths air entering the throttle


-Does not require a re-tune


-Greatly increases throttle response


-Improves MPG


-Build boost earlier


-Available in blue, red, black, and natural finish
Sponsored



Vitis805

Well-Known Member
Joined
Mar 11, 2020
Threads
2
Messages
222
Reaction score
469
Location
Santa Barbara County, CA
Vehicle(s)
2019 Ranger XL
Occupation
Wine Nerd
I was waiting for this, but y'all put a $20 premium on the Ranger version. Guess I'll pass or wait for a decent sale code ?‍♂


Dereku

Well-Known Member
First Name
Derek
Joined
May 18, 2022
Threads
18
Messages
1,411
Reaction score
3,478
Location
Chicagoland Area
Vehicle(s)
2021 Ford Ranger
Occupation
Project Manager
I would like to see a dyno chart, and maybe some real world mpg reviews. Just think ford would do this if it added so much. But I like being proven wrong and will hand over money to take a gamble.

OP
OP
Boomba Racing

Boomba Racing

Well-Known Member
First Name
Boomba Racing
Joined
Nov 17, 2019
Threads
53
Messages
139
Reaction score
100
Location
Wood Dale, IL
Vehicle(s)
2019 Ranger Lariat as well as many other vehicles.
Occupation
Making Car Parts!
I was waiting for this, but y'all put a $20 premium on the Ranger version. Guess I'll pass or wait for a decent sale code ?‍♂
The Ranger Throttle Body Spacer is not the same as the other ones we offer and requires significantly more time being machined. If you look at the ford 2.0/2.3 TB spacer next to the Ranger one there are significant differences between the two.



Racket

Well-Known Member
First Name
John
Joined
Jan 21, 2020
Threads
21
Messages
1,730
Reaction score
2,353
Location
Here and There
Vehicle(s)
2019 Lariat Supercrew 2WD
Occupation
Transient
This is the opportunity to justify this and the manifold spacer. No holds barred, make a case for specific performance gains and/or gas mileage improvements.

With or without a tune, intercooler pipes upgrades, intake boxes, maybe even exhaust?

I know it's a big ask but those are the types of owners that are going to eyeball these mods.

Especially if you send it to a tuning specialist as an independent reviewer. The goal would be to determine what outcomes to expect in real life and how these dovetail into other mods.

OP
OP
Boomba Racing

Boomba Racing

Well-Known Member
First Name
Boomba Racing
Joined
Nov 17, 2019
Threads
53
Messages
139
Reaction score
100
Location
Wood Dale, IL
Vehicle(s)
2019 Ranger Lariat as well as many other vehicles.
Occupation
Making Car Parts!
We have plenty of these in stock available and ready to ship. The TB spacer is generally going to give a crisper throttle response. Most of the Hp/TQ gains are from the combination of the IM spacer installed along with it.


Racket

Well-Known Member
First Name
John
Joined
Jan 21, 2020
Threads
21
Messages
1,730
Reaction score
2,353
Location
Here and There
Vehicle(s)
2019 Lariat Supercrew 2WD
Occupation
Transient
It sounds like changing the overall runner legth/volume - which some of us have done with other mods like the IC tubes - may ultimately 'need' a specific cam, injectors, turbo/wastegate change and tuning to really help make an enormous difference. Then downpipe/exhaust with the accompanying hatred from our neighbors and other drivers for the noise.


Blmpkn

Well-Known Member
Joined
Jan 4, 2021
Threads
30
Messages
1,220
Reaction score
3,221
Location
Maine
Vehicle(s)
2010 ranger
We have plenty of these in stock available and ready to ship. The TB spacer is generally going to give a crisper throttle response. Most of the Hp/TQ gains are from the combination of the IM spacer installed along with it.


What Hp/Tq gains?


You havnt shown us any.

OP
OP
Boomba Racing

Boomba Racing

Well-Known Member
First Name
Boomba Racing
Joined
Nov 17, 2019
Threads
53
Messages
139
Reaction score
100
Location
Wood Dale, IL
Vehicle(s)
2019 Ranger Lariat as well as many other vehicles.
Occupation
Making Car Parts!
We have dyno charts showing the gains of installing the spacers on Ecoboost Ford engines, we also have dyno charts showing other vehicles with very similar spacers and very similar results as well.


OFC Ranger

Well-Known Member
First Name
Jack
Joined
Aug 3, 2020
Threads
290
Messages
4,795
Reaction score
13,244
Location
Georgia
Vehicle(s)
ZR2
Vehicle Showcase
1
We have dyno charts showing the gains of installing the spacers on Ecoboost Ford engines, we also have dyno charts showing other vehicles with very similar spacers and very similar results as well.
I don't see pictures uploaded in your post perhaps you forgot to attach them.

OP
OP
Boomba Racing

Boomba Racing

Well-Known Member
First Name
Boomba Racing
Joined
Nov 17, 2019
Threads
53
Messages
139
Reaction score
100
Location
Wood Dale, IL
Vehicle(s)
2019 Ranger Lariat as well as many other vehicles.
Occupation
Making Car Parts!

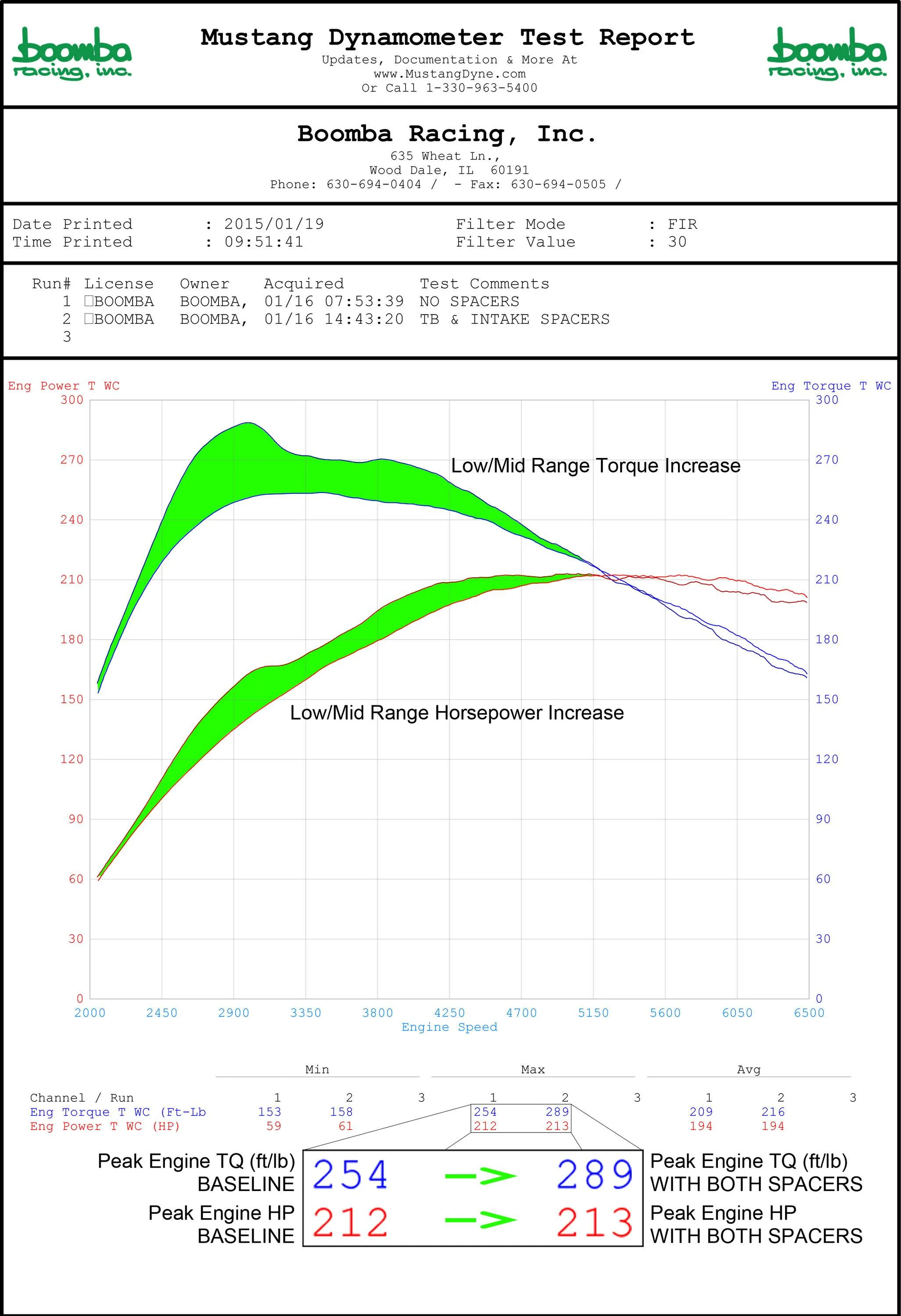

No problem, attached are dyno charts below.

NO SPACER VS SPACER copy.JPG


that408guy

Well-Known Member
First Name
Eric
Joined
Jan 26, 2021
Threads
12
Messages
255
Reaction score
728
Location
San Jose
Vehicle(s)
2020 Ford Ranger Lariat
Looks like they are still "too busy" to test their product on the Ford Ranger. Cant imagine it would take more than 2 hours at most.
