I know some of you have been asking, the Belltech lowering kits and components have been added to our website.

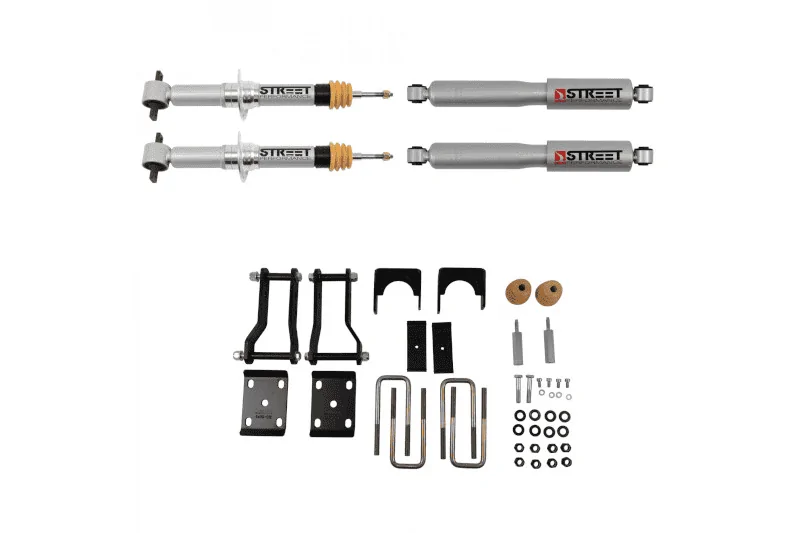

2019-2021 Ford Ranger Belltech Street Performance Lowering Kit - Front and Rear 1045SP



Belltech Complete Lowering Kit Features:
  • Lowers front ride height by 2"
  • Lowers rear ride height by 4"
  • Flips rear axle above leaf springs
  • Grade 8 installation hardware
  • Adjustable ride height in 0.5" increments
  • Sport performance and ride quality
  • Reduced body roll, dive under braking, and squat under acceleration
  • Kit includes Street Performance Struts, Street Performance Shock Absorbers, and a Rear Axle Flip Kit
Street Performance Struts For Your Ranger
Belltech includes their Street Performance Struts to lower the front of your 2019-2021 Ford Ranger. Besides offering improved street performance and unparalleled safety, these struts offer you plenty of customization. Utilizing their patented ring and perch system, Belltech has given you the ability to adjust the ride height in the front anywhere from 0" to 2" of drop. Adjustable in increments of 0.5", one can never underestimate the ability to return their Ranger to stock ride height without having to spend an entire day replacing the front struts. Low speed compression and rebound characteristics were the main focus of Belltech in the development of these struts. By focusing on these, typically neglected in truck, attributes Belltech inevitably created struts that are well balanced between everyday drives and spirited excursions. Total Control In Unmatched Shocks
Belltech's Street Performance Shocks will be responsible for lowering the rear of your Ranger. Similar to the struts that'll sit in the front, these shocks have been developed with street performance in mind. Pitching, rolling, diving under intense braking, and squatting under powerful acceleration will be mitigated due to "progressive" rebound tuning. This tuning will accommodate large aftermarket wheels just fine, keeping the ride smooth and firm. A 51mm wide body increases the total oil volume for improved cooling and fade-resistance while OEM quality rubber bushings increase the life span. Metal dust boots, hardened chrome 15mm piston rods, and 35mm pistons with low friction Teflon seals also help increase the durability of these shocks. Dramatic Drop Via Flip Kit
Belltech's Rear Axle Flip Kit essentially "flips" the rear axle of your Ranger from beneath the leaf spring to above. The flipping of your rear axle alone is enough to garnish dramatic drop in your rear ride height. Manufactured from high quality steel and finished in a durable powder coat, you can rest assured knowing that your flip kit won't fail you anytime soon. With grade 8 hardware included, there should be no worries about the overall build quality of this kit. Belltech frame rail C-Notches are included as well.

Kit Specs:
  • Front Ride Height: -2.0"
  • Rear Ride Height: -4.0"

Fitment:
  • 2019-2021 Ford Ranger 4WD All Cabs
