Auto Folding Mirror Mod Install Instructions - Pictures/Video

Discussion in 'Exterior Mods' started by RCMUSTANG, Mar 22, 2019.

  1. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    Original Thread Here: Auto Folding Mirrors

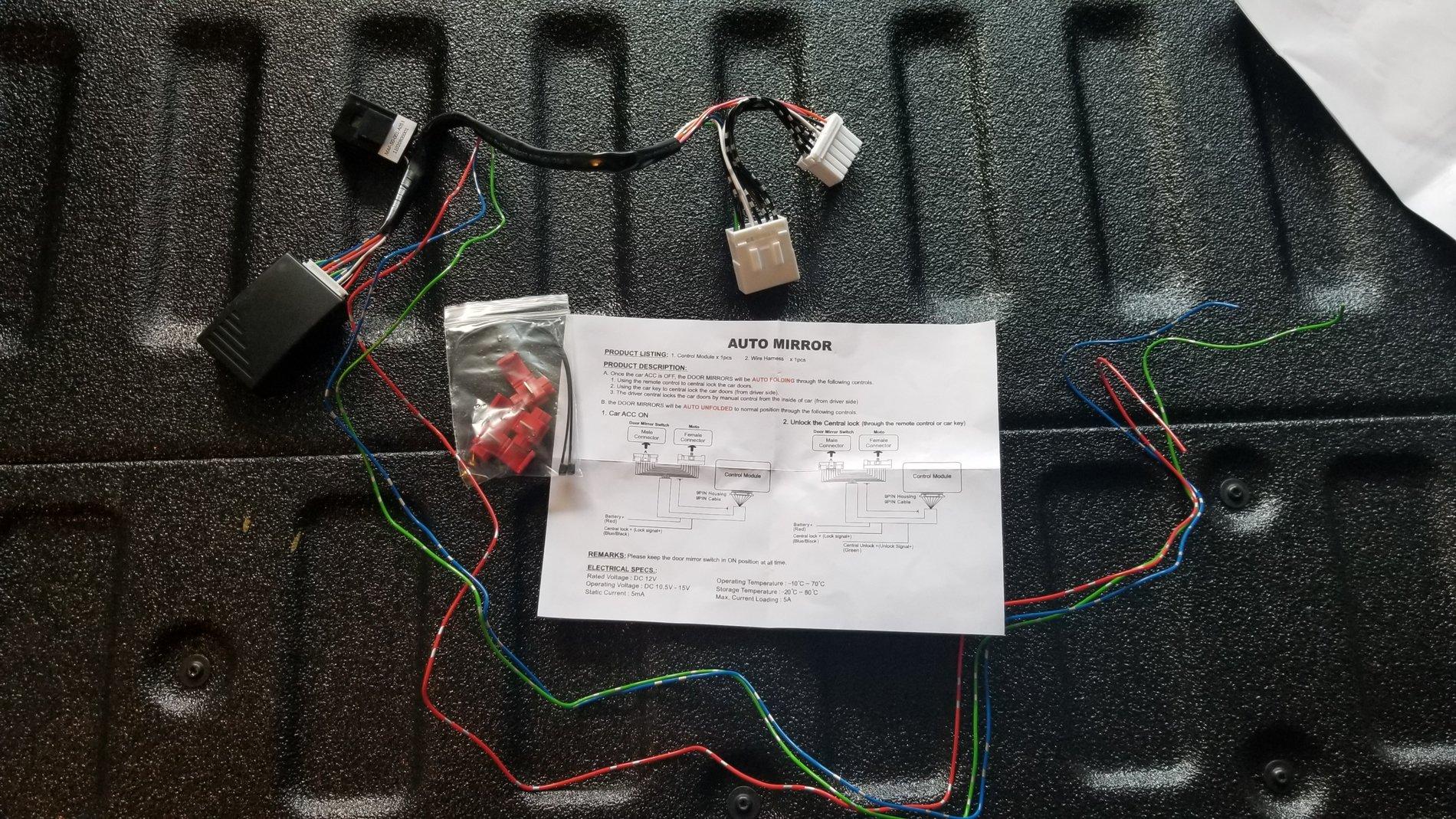

    Auto folding mirrors. Folds closed when you lock the truck. Unfolds when you power up the truck. Regular operation with stock switch. 20 minute install.

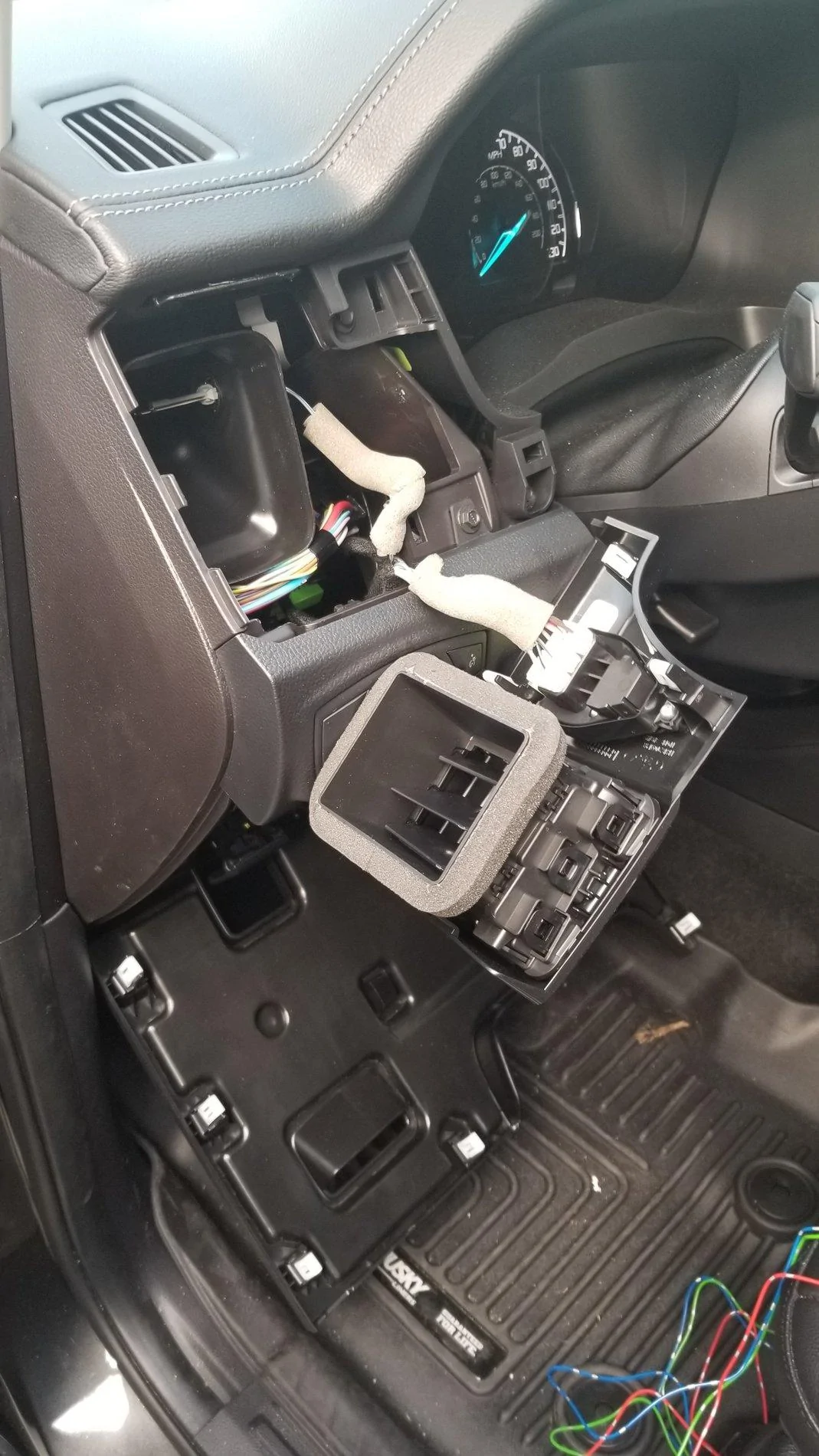

    The switch bezel pops right off.
    Unplug the connector.

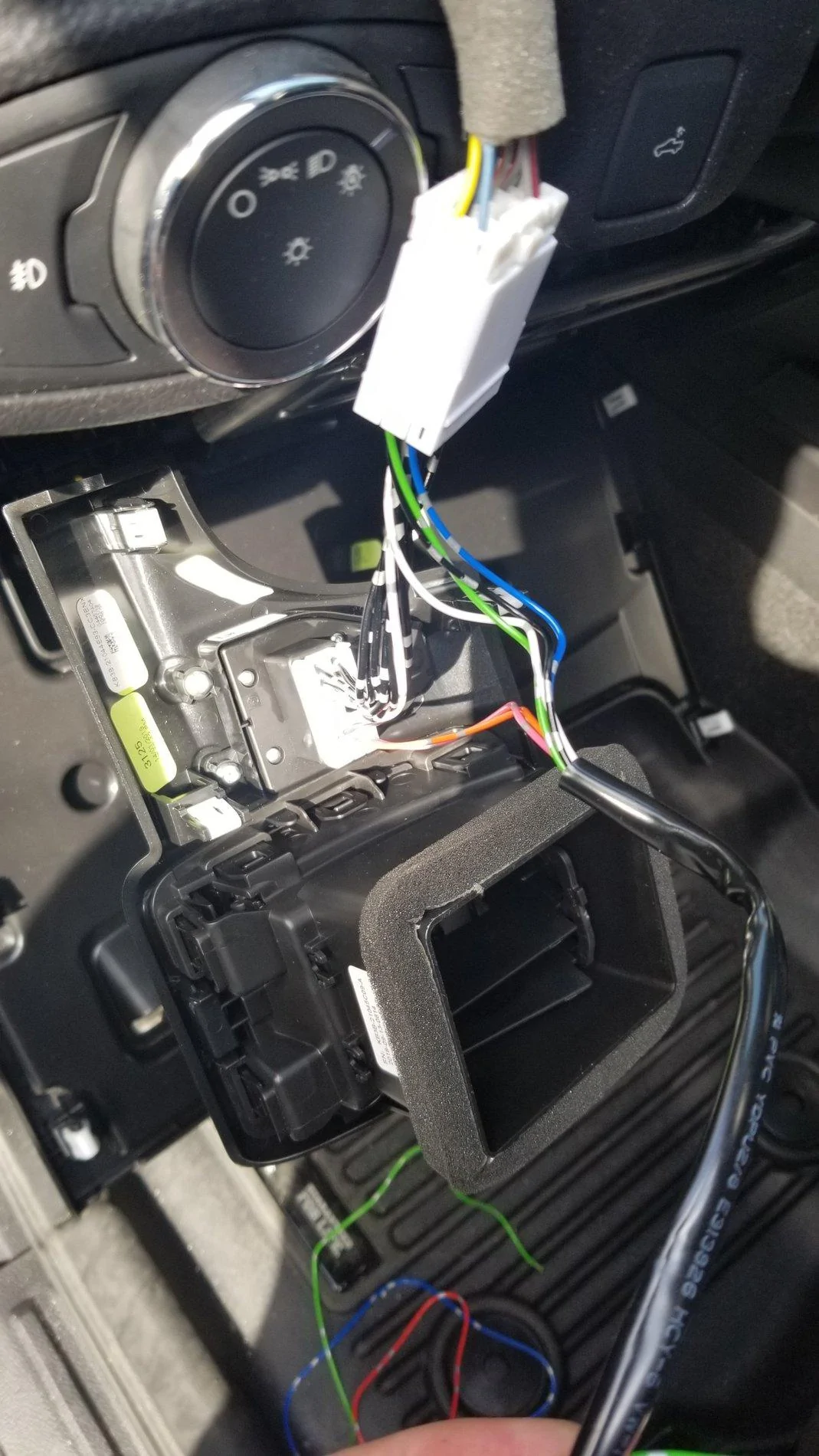

    Plug the module in between the switch and connector.
    Tuck everything inside.

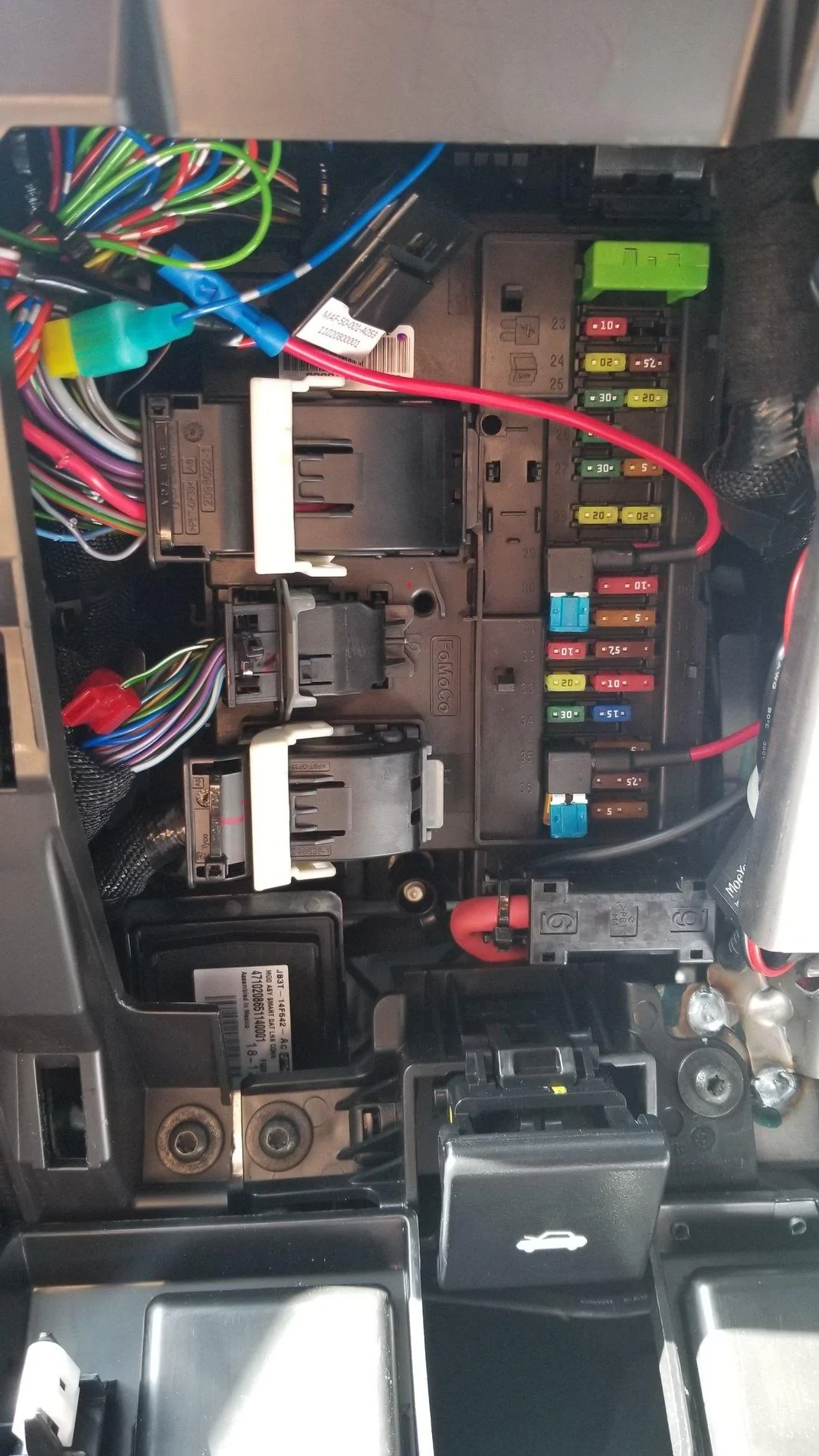

    I used an add a tap to #30 for the constant for the red wire.

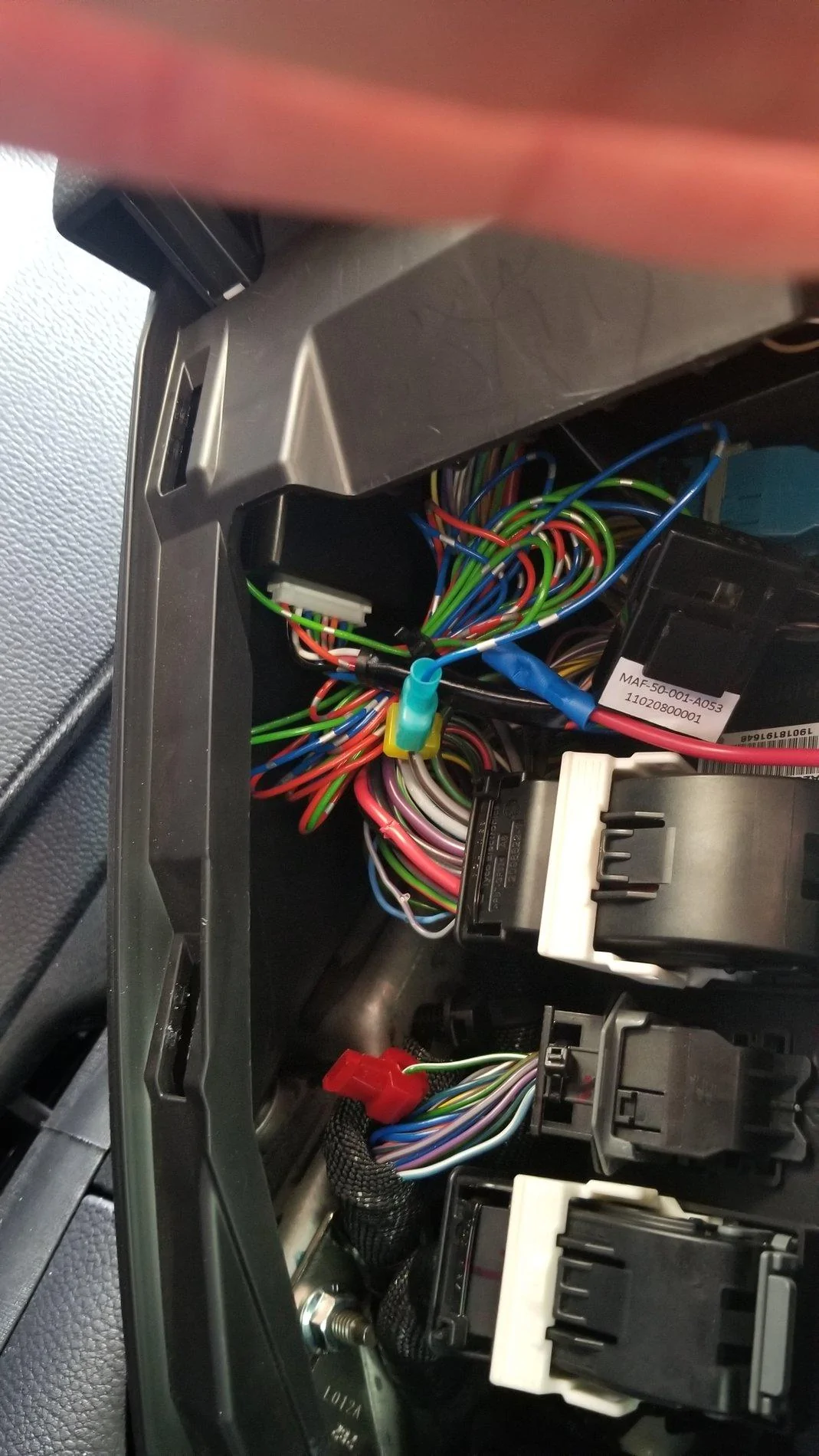

    Connect the blue wire to the thick gray with brown stripe (lock).
    Stick the module on the inside of the left side of the dash and tied up all the wiring. Close up fuse panel and you're done.
    20190322_153420.jpg 20190322_153547.jpg 20190322_153727.jpg 20190322_155523.jpg 20190322_155515.jpg

    LightningBlue and Roofhopper like this.
  2. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    Here's the operation.

  3. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    3,028
    Likes Received:
    1,778
    Garage Profiles:
    1
  4. LightningBlue

    LightningBlue Well-Known Member

    First Name:
    Ryan
    Vehicle(s):
    2019 Lightning Blue XLT FX4/ 2015 Ford Edge Sport AWD/ 2012 VW Jetta/ 2010 VW GTI/ 1998 Jeep Cherokee XJ
    Joined:
    Feb 13, 2019
    Location:
    Rancho Cucamonga, Ca
    Posts:
    203
    Likes Received:
    164
    Garage Profiles:
    1
    Did your kit come with the fuse pigtail?

  5. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    3,028
    Likes Received:
    1,778
    Garage Profiles:
    1
    I didn’t order a kit please ask @RCMUSTANG

  6. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    The red wire with the fuse goes to a constant hot. They're are several unused ones

  7. ulev1st

    ulev1st Well-Known Member

    First Name:
    Don
    Vehicle(s):
    2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
    Joined:
    Feb 15, 2019
    Location:
    West Tn
    Posts:
    93
    Likes Received:
    96
    Occupation:
    Retire Marine and Refinery Operator
    Garage Profiles:
    1
    I am assuming the green wire from the kit hooks to where you have the other tap shown? It is also green/ white. Is that correct?

  8. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    No, that is if you want it to unfold everytime you unlock the doors. The way I have it is fold when you lock and unfold when you turn on the accessory/ignition.

  9. ulev1st

    ulev1st Well-Known Member

    First Name:
    Don
    Vehicle(s):
    2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
    Joined:
    Feb 15, 2019
    Location:
    West Tn
    Posts:
    93
    Likes Received:
    96
    Occupation:
    Retire Marine and Refinery Operator
    Garage Profiles:
    1
    So you leave the green wire alone and just loop it up out of the way?

  10. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    Unless you want it to unfold everytime you unlock.

  11. Jrye22

    Jrye22 Well-Known Member

    First Name:
    Jon
    Vehicle(s):
    2019 ranger lariat
    Joined:
    Feb 20, 2019
    Location:
    New Jersey
    Posts:
    154
    Likes Received:
    128
    Garage Profiles:
    1
    What amp fuse are you useing all the add a fuses I can find are max 10 amps and the fuse that was in your number 30 what amp was that?

  12. j0shm1lls

    j0shm1lls Well-Known Member

    First Name:
    Josh
    Vehicle(s):
    2016 Focus RS, 2019 Ranger SCrew Lariat FX4 Sport
    Joined:
    Oct 30, 2018
    Location:
    SoCal, USA
    Posts:
    726
    Likes Received:
    641
    Garage Profiles:
    1
    29 and 30 are both 30a fuses, just throw a 10a in the add-a-fuse and you should be good.

    Jrye22 likes this.
  13. j0shm1lls

    j0shm1lls Well-Known Member

    First Name:
    Josh
    Vehicle(s):
    2016 Focus RS, 2019 Ranger SCrew Lariat FX4 Sport
    Joined:
    Oct 30, 2018
    Location:
    SoCal, USA
    Posts:
    726
    Likes Received:
    641
    Garage Profiles:
    1
    if you plan on leaving the inline fuse intact, then no you don't need a fuse in the add-a-fuse. There are a few other options such as a 'fuse tap' like this

  14. RCMUSTANG

    RCMUSTANG Well-Known Member

    First Name:
    Ray
    Vehicle(s):
    2017 Fusion 1995 Ranger
    Joined:
    Jan 23, 2019
    Location:
    Los Angeles
    Posts:
    712
    Likes Received:
    462
    Actually, it's too tight for those. Believe me, I tried one before I paid for another set of add a taps.

  15. ulev1st

    ulev1st Well-Known Member

    First Name:
    Don
    Vehicle(s):
    2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
    Joined:
    Feb 15, 2019
    Location:
    West Tn
    Posts:
    93
    Likes Received:
    96
    Occupation:
    Retire Marine and Refinery Operator
    Garage Profiles:
    1

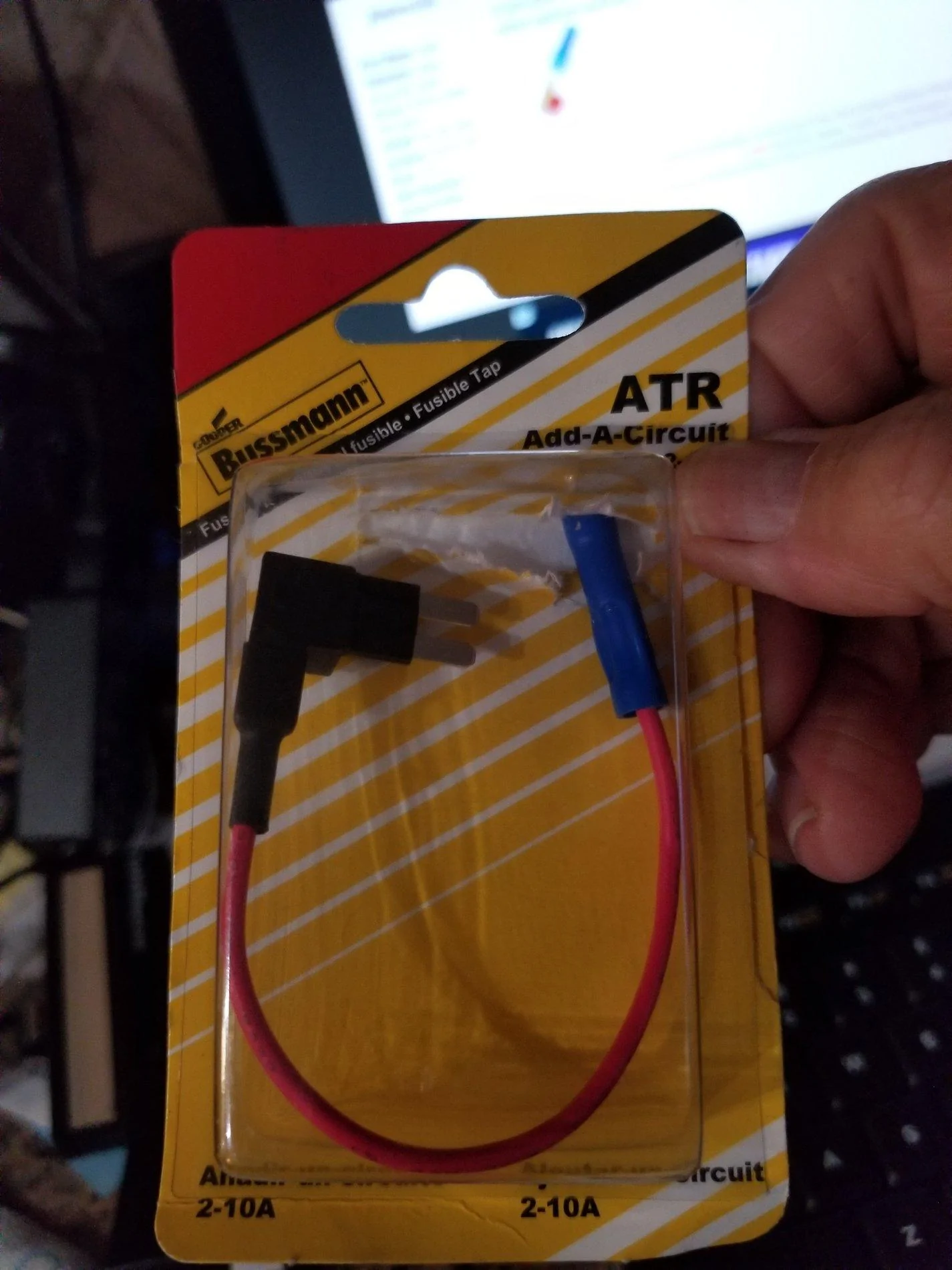

    Autozone $4.99


    ebFX4 and ToothRanger like this.
