Expedition One is excited to be apart of the Ranger5G community and with that some new products we are proud to unveil!

Based in northern Utah, Expedition One has been around for over 16 years fabricating bumpers, rocker guards, racks and off-road accessories.

We look forward to engaging with all of you!

Feel free to email us at [email protected] or by phone at 877.366.3099 Mon-Fri from 9am - 5pm

All Expedition One products are currently 15% off during our Holiday Sale Promotion as well as a $100 Shipping credit with promo code: HOLIDAY19 on orders over $499

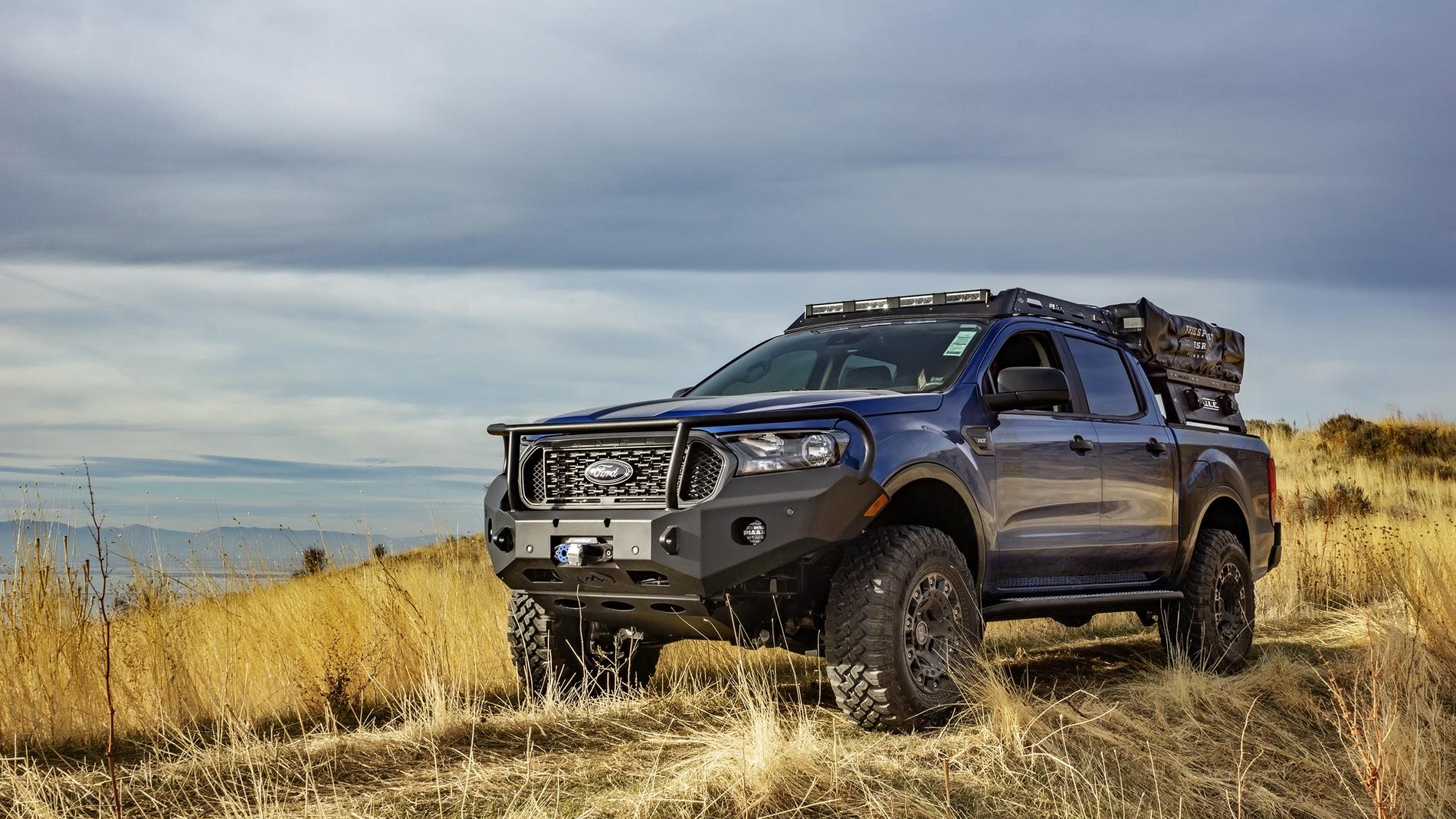

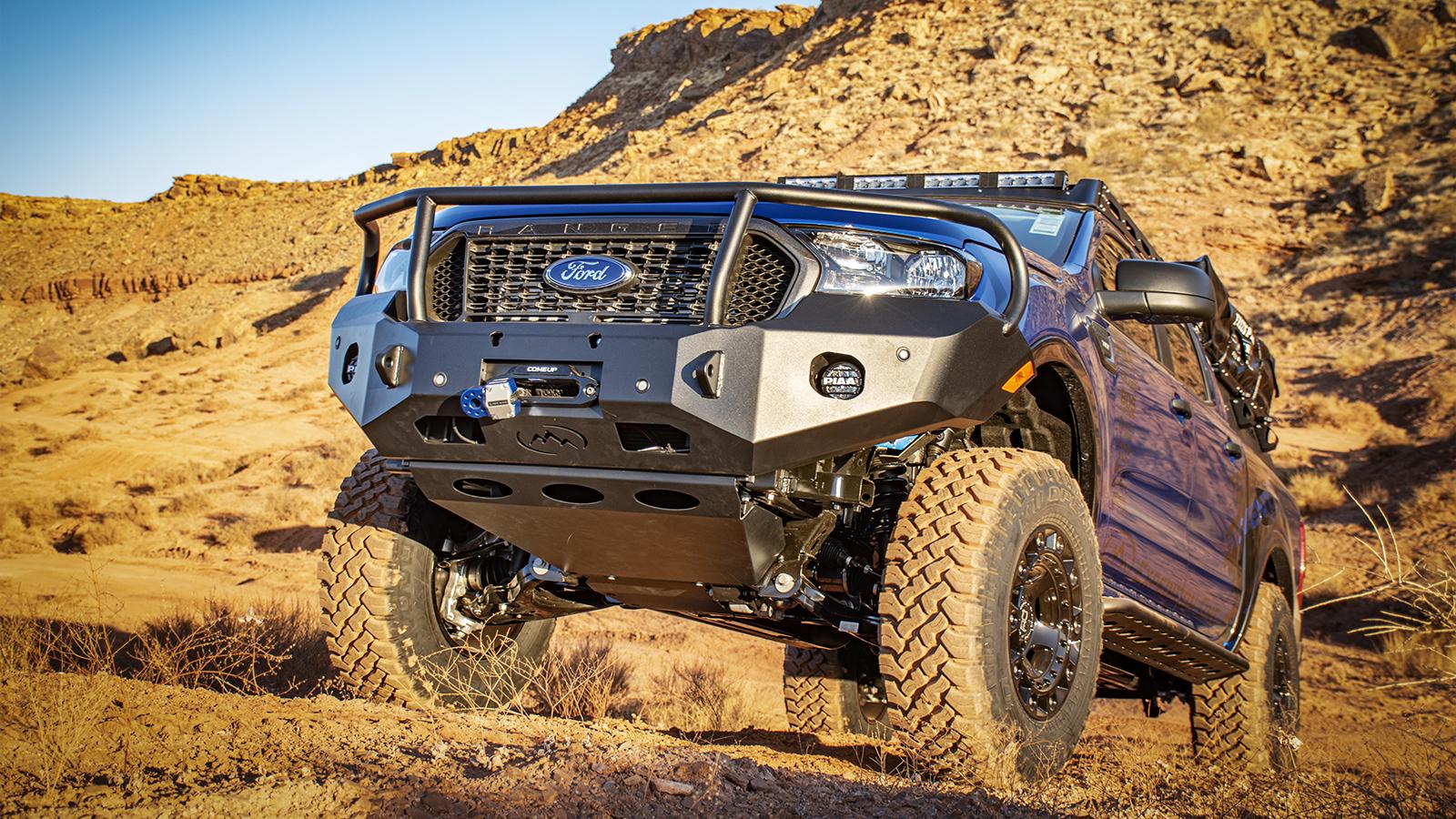

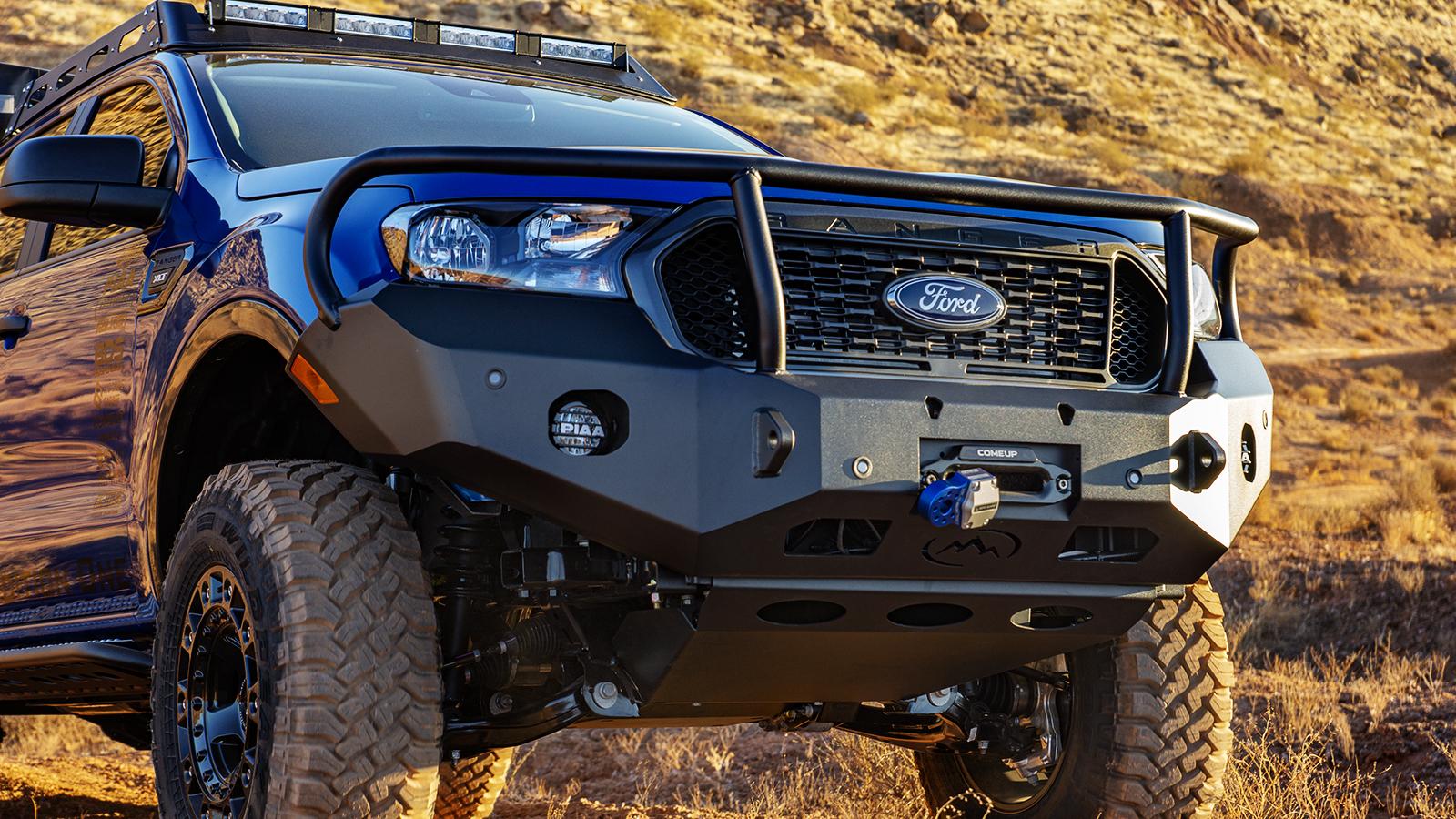

2019+ Ford Ranger RangeMax Front Bumper - Store Link





Features
  • Available with no hoop, single hoop or bull-bar wrap-around design (shown in photos)
  • Approx weight: 120lbs
  • Optional Filler & Front Skid Plate
  • Optional Textured Black Powder Coating
  • Fits most winches with non-integrated solenoid up to 10k
  • Comprised of sturdy 3/16" steel inner structure & 1/8" thick outer skin
  • Integrated winch mount
  • Integrated 4.75" light ports
  • Designed and made in the U.S.A

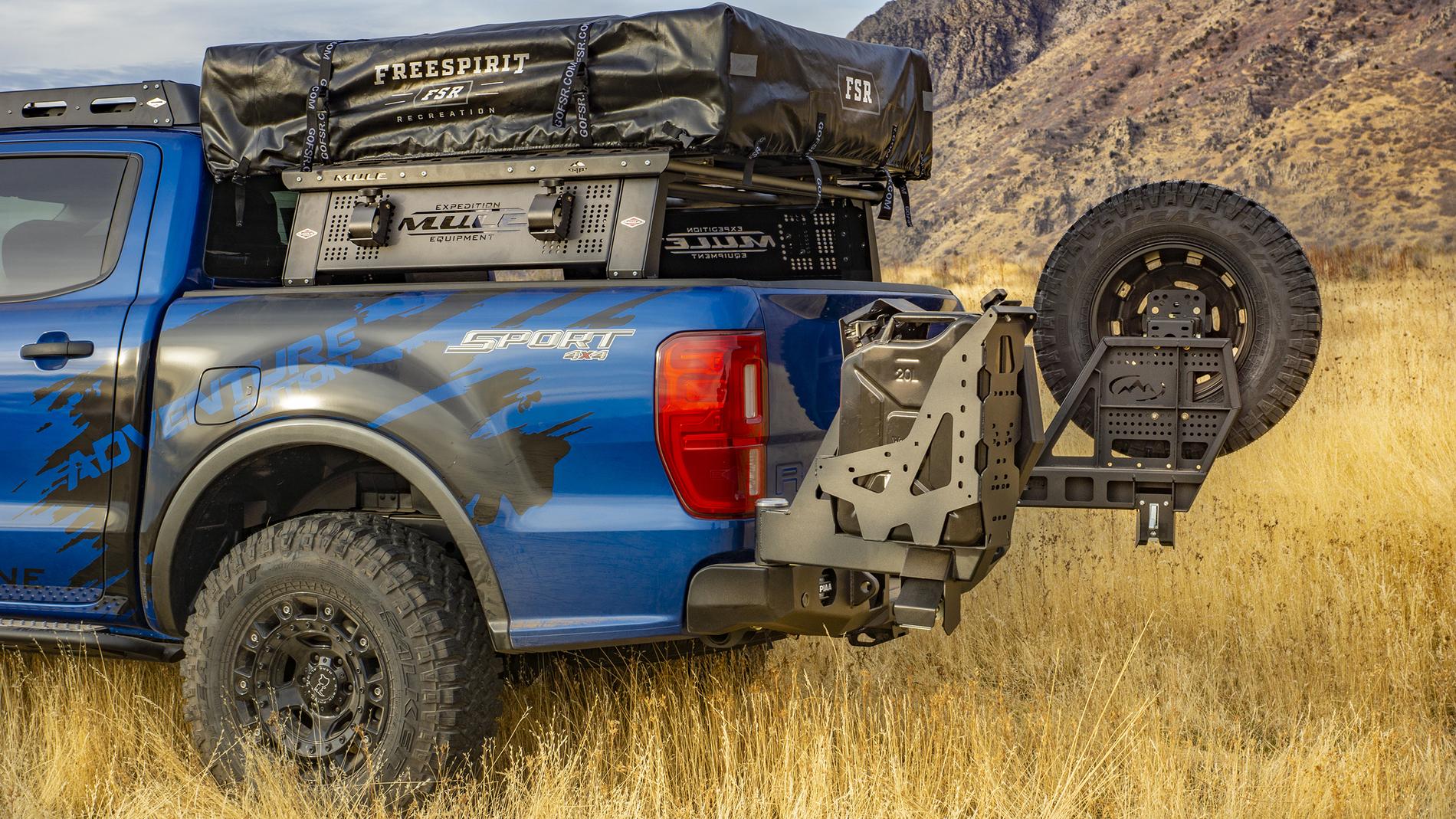

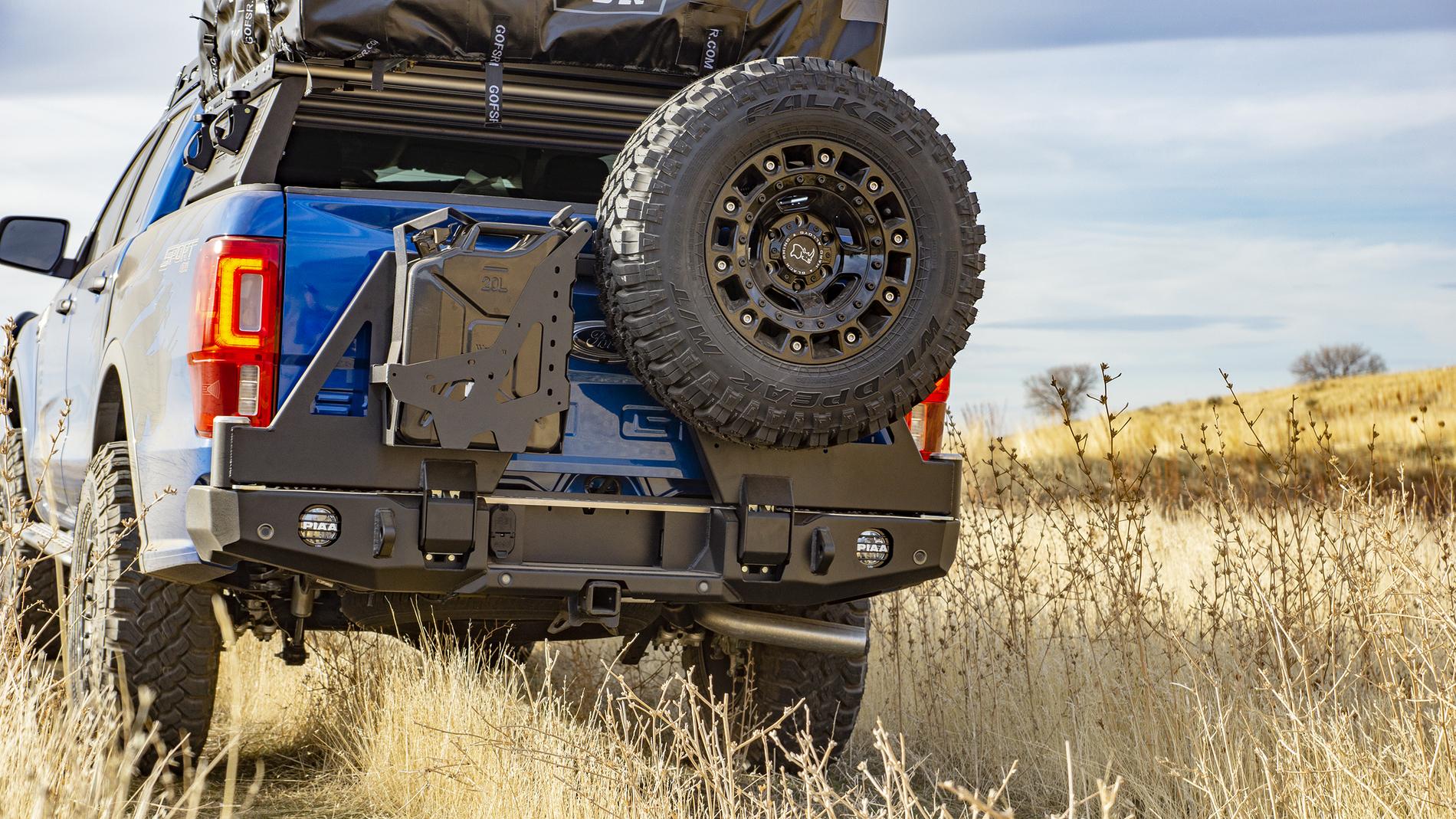

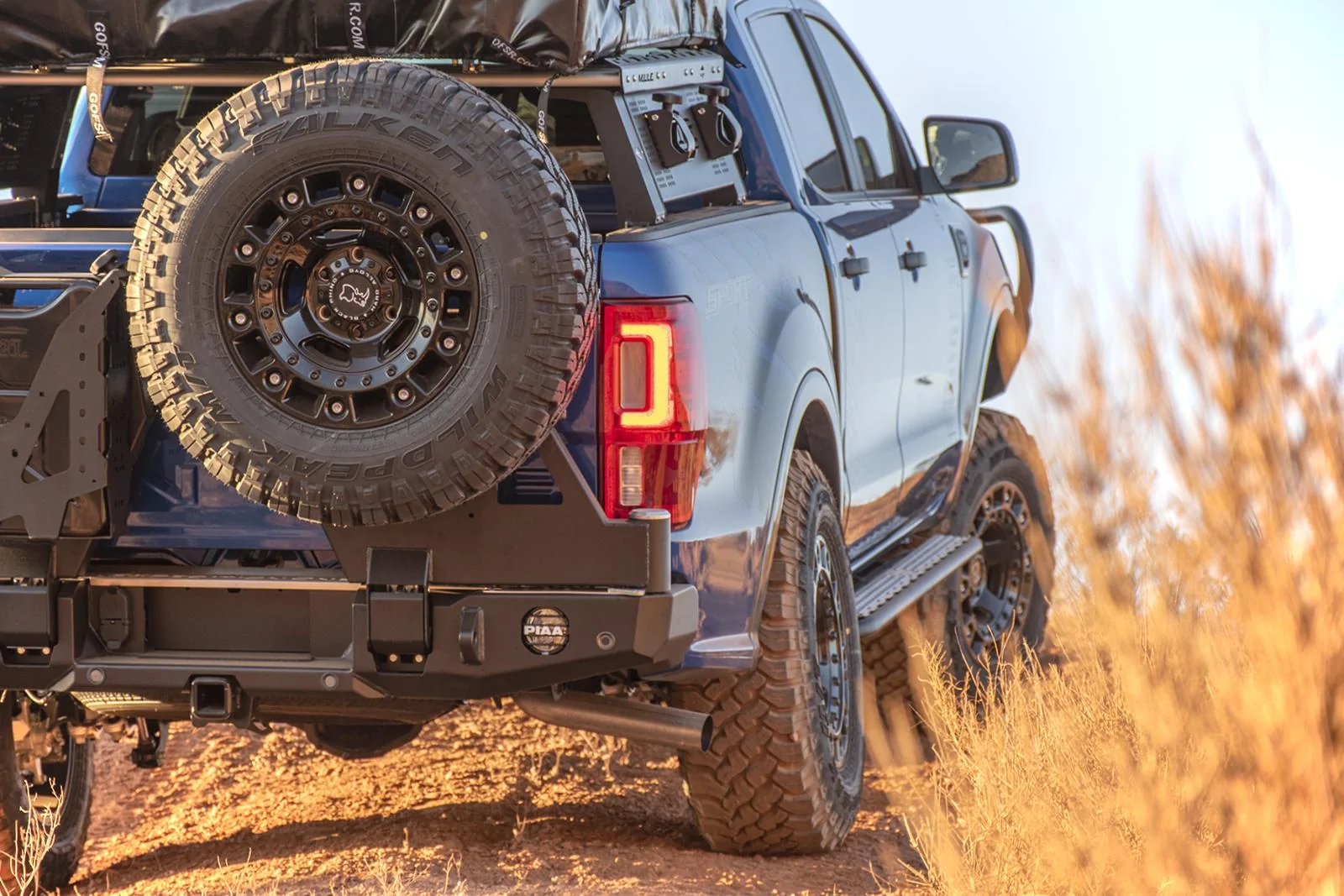

2019+ Ford Ranger Rear Bumper - Store Link





Features:
  • Features our innovative latch system for easy, intuitive function of the swing arms
  • Universally slotted tire arms for endless customization of accessories and gear
  • Approx bumper weight: 175lbs
  • Recommended max tire size: 33" to clear tail light visibility
  • Integrated 1" thick 3/4 recovery shackle mounts
  • Optional mount accessories: Hi-Lift mount, Nato-style can mount, Geri flat pack mount, and more
  • Quick access to swing arm spindle/bearings for easy maintenance
  • Comprised of 3/16" and 1/4" inner structure
  • Optional Textured Black Powder Coating
  • 100% Designed & Made in the U.S.A

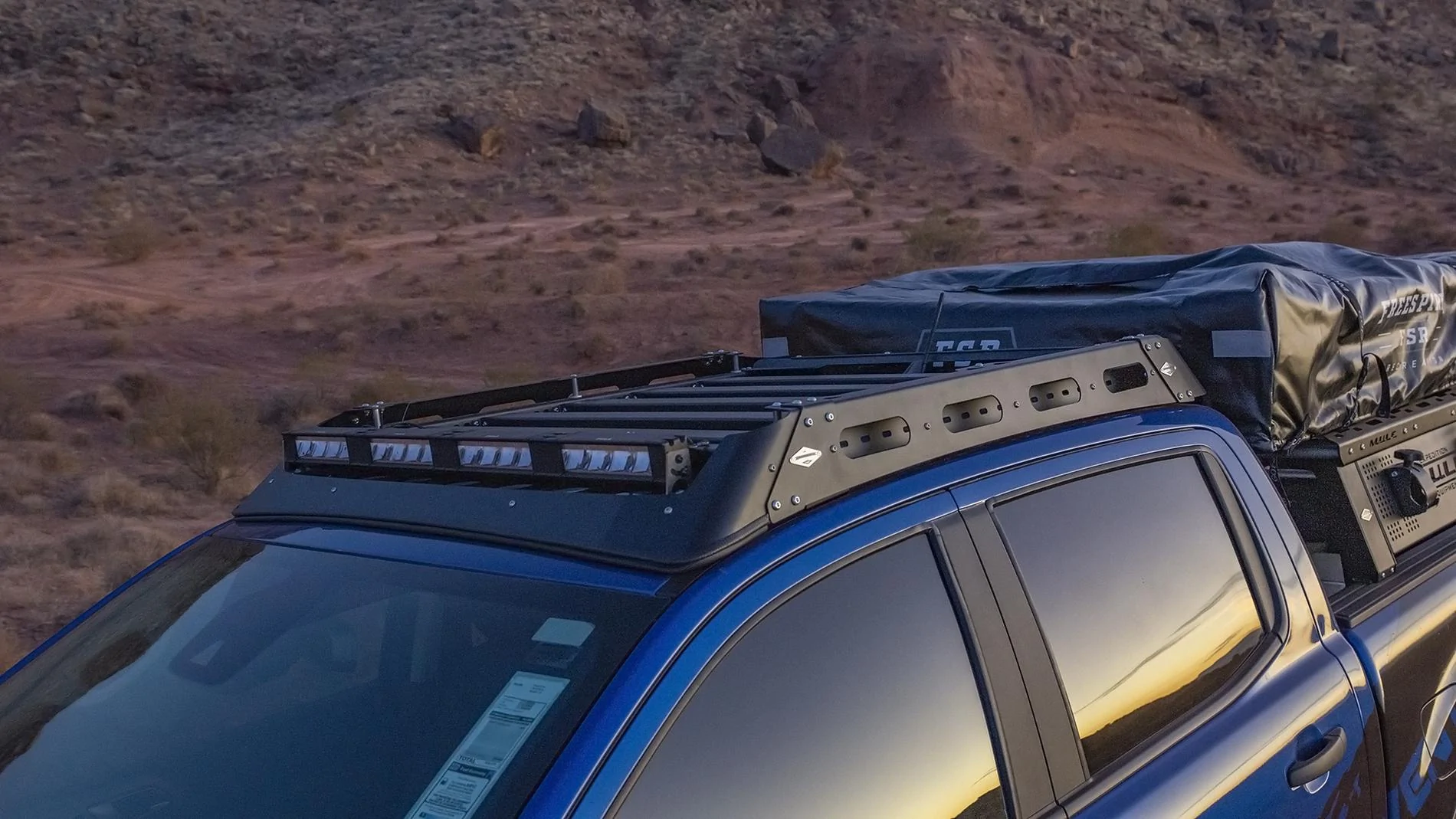

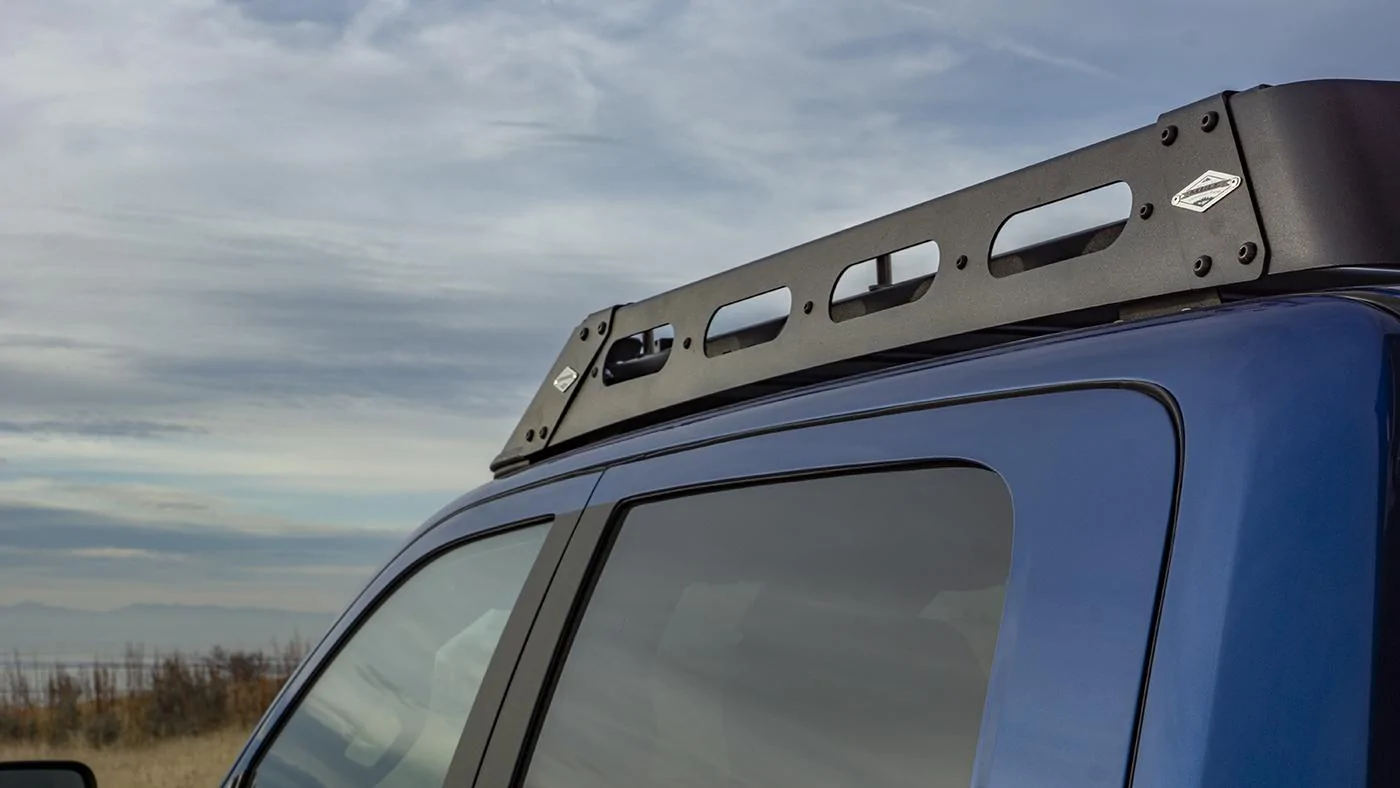

2019+ Ford Ranger Mule Ultra Rack - Store Link




Features:
  • Lightweight, aluminum construction
  • Dynamic load capacity: 250lbs | Static load capacity: 500lbs
  • Modular design
  • Adjustable flooring design
  • Fits up to a 40" led light bar
  • Flexible tie-down points
  • Some drilling required
  • Form fitting around each vehicle application

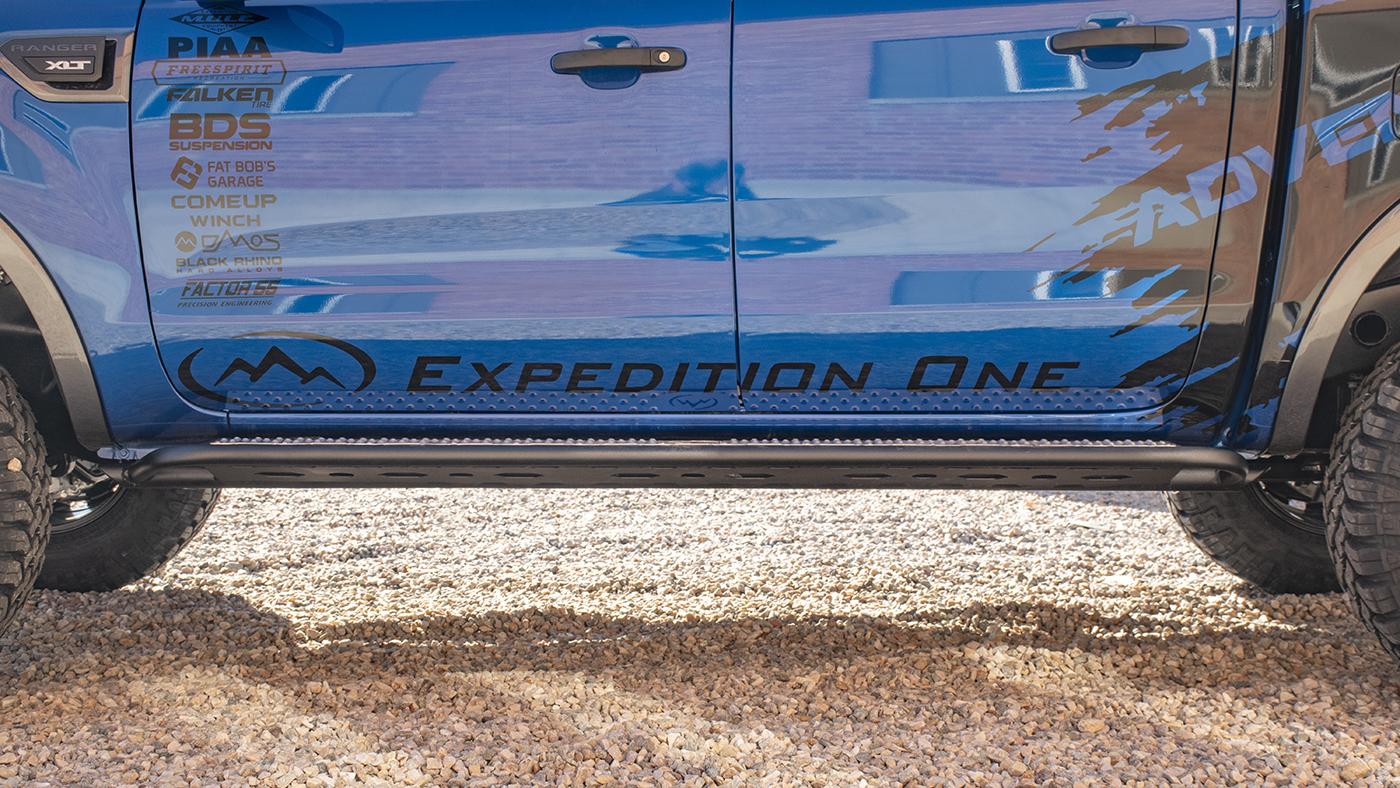

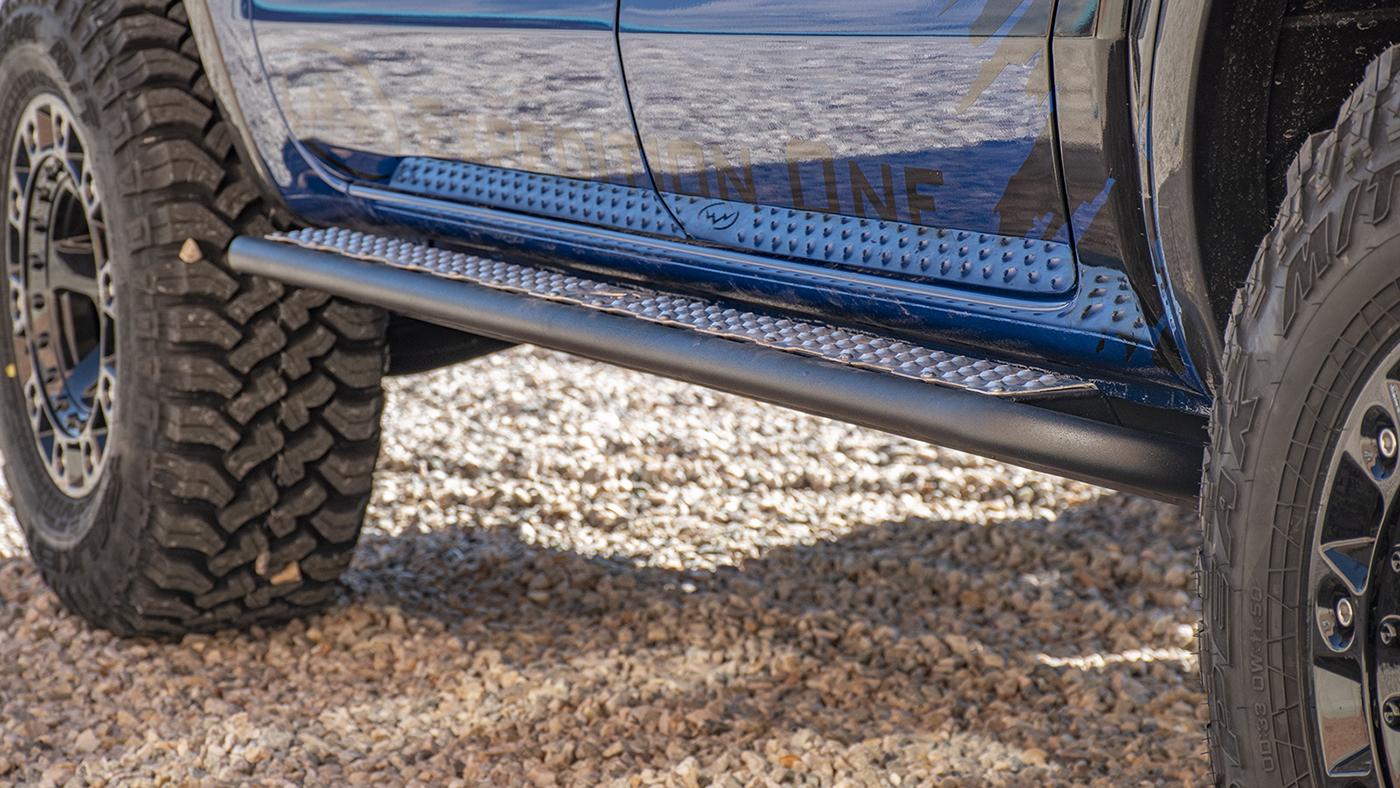

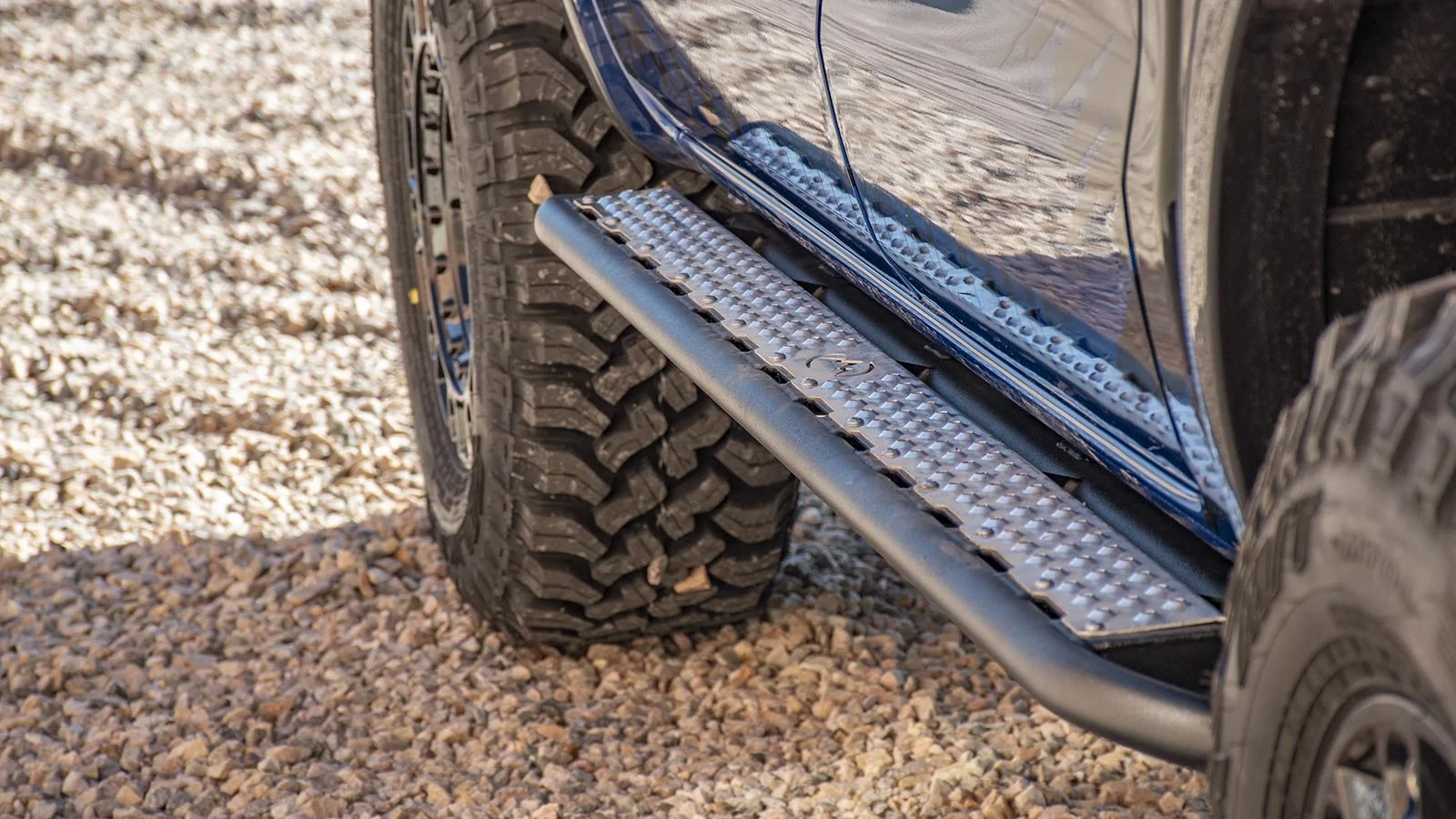

2019+ Ford Ranger Rock Guards - Store Link





Features:
  • Comprised of 3/16" and 1/8" sheet steel and 0.120" wall high strength tubing
  • triangular boxed structure for maximum strength and efficiency
  • Tubing is comprised of 2" x 0.120" wall for the inner and 1.5" x 0.120" outer wall tubing
  • Steps with aluminum tread plates assist in entering and exiting the vehicle.
  • Placed to maximize ground clearance
  • Optional textured black powder coat



Advertisement



Last edited:

coblueberryranger

Well-Known Member
First Name
Jesse
Joined
Mar 19, 2019
Messages
247
Reaction score
189
Location
Westminster, Colorado
Vehicle(s)
2019 Ford Ranger XLT
Occupation
IT Consultant
Vehicle Showcase
1
It's something we aren't ready to showcase in this thread just yet but we hope to have our new bed rack system available in the coming weeks :thumbsup:
Nice! It looks pretty awesome. Those bed rack supports on your website will fit the ranger? just not your panel yet?

OP
Expedition One

Expedition One

Gold Sponsor
Joined
Nov 14, 2019
Messages
12
Reaction score
14
Location
Ogden, Utah
Vehicle(s)
2019 Ford Ranger
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #5
Nice! It looks pretty awesome. Those bed rack supports on your website will fit the ranger? just not your panel yet?
That is correct! Our Bed Rack tower system is technically available and compatible with the Ranger.

We need to finalize a few things with the panel mount system before its ready for prime time but should be available as an add-on in a few weeks time. :beer:


MTB-BRUH

Well-Known Member
First Name
Tyler
Joined
May 16, 2019
Messages
387
Reaction score
548
Location
Redding CA
Vehicle(s)
2019 Ranger Base
Occupation
Powersports Mechanic
Diggin that front bumper! I was looking at the Warn, do you have pics without the hoops?

OP
Expedition One

Expedition One

Gold Sponsor
Joined
Nov 14, 2019
Messages
12
Reaction score
14
Location
Ogden, Utah
Vehicle(s)
2019 Ford Ranger
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #7
Diggin that front bumper! I was looking at the Warn, do you have pics without the hoops?
We will certainly try!

We had to finish the bumper you see in the photos for the SEMA Show in Vegas a few weeks ago with the bull bar design so these are currently the only photos we have.

If you can visualize, it would simply be the bumper itself with no hoop design and the single hoop would be a short center hoop that goes about half way up the grille.

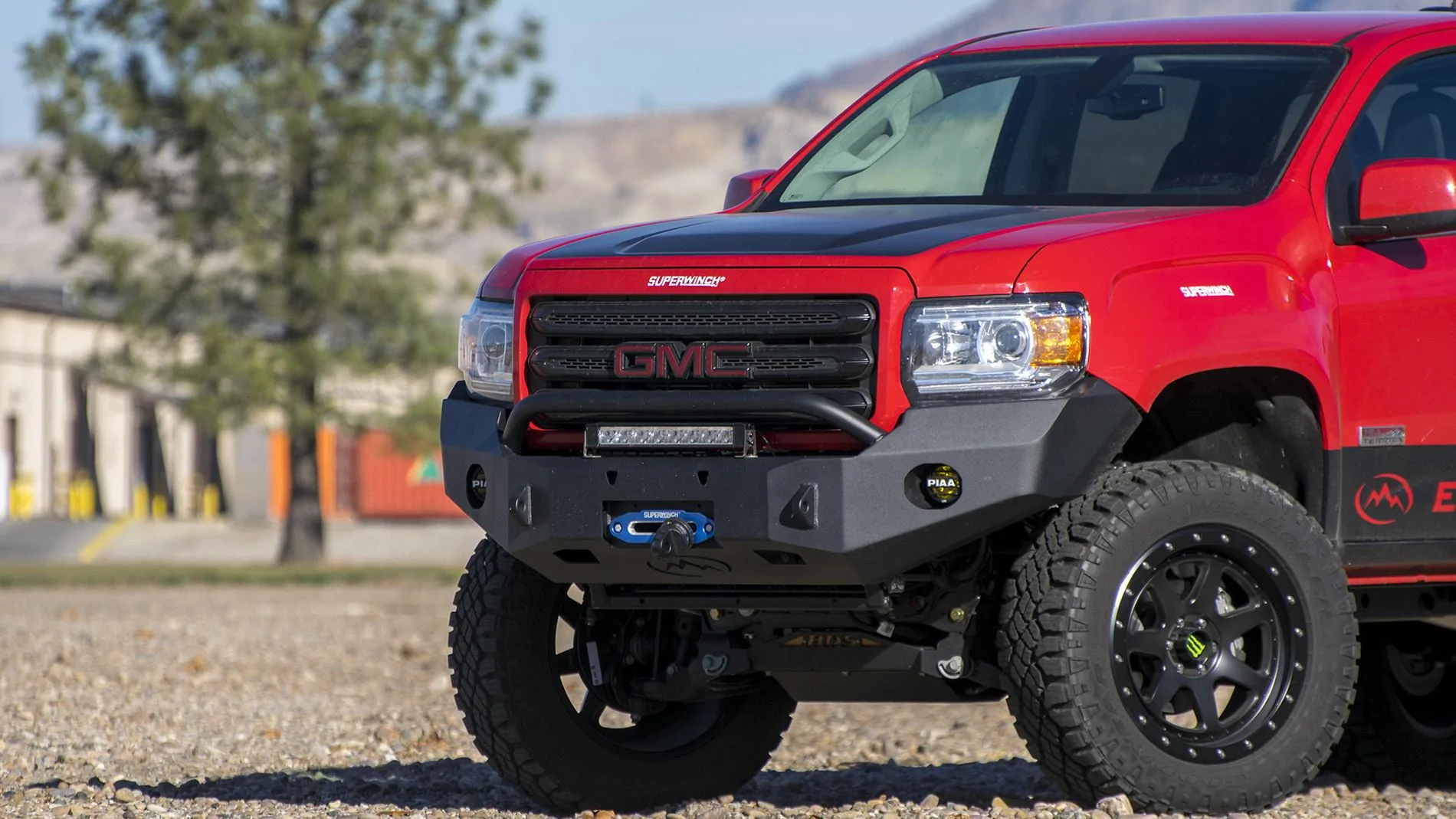

Example of center hoop from our GMC Canyon Bumper


MTB-BRUH

Well-Known Member
First Name
Tyler
Joined
May 16, 2019
Messages
387
Reaction score
548
Location
Redding CA
Vehicle(s)
2019 Ranger Base
Occupation
Powersports Mechanic
We will certainly try!

We had to finish the bumper you see in the photos for the SEMA Show in Vegas a few weeks ago with the bull bar design so these are currently the only photos we have.

If you can visualize, it would simply be the bumper itself with no hoop design and the single hoop would be a short center hoop that goes about half way up the grille.

Example of center hoop from our GMC Canyon Bumper
Cool appreciate the quick reply.. got some thinking to do


Andrew

Well-Known Member
First Name
Andrew
Joined
Dec 15, 2019
Messages
249
Reaction score
303
Location
Albuquerque
Vehicle(s)
2019 Ranger Sport
Love that rack! As for the sliders do those metal foot holdings also painted black? Looks a little cheesy with the different colors.

OP
Expedition One

Expedition One

Gold Sponsor
Joined
Nov 14, 2019
Messages
12
Reaction score
14
Location
Ogden, Utah
Vehicle(s)
2019 Ford Ranger
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #12
@Expedition One do you have any pics of your Ranger rear bumper but without the dual swing outs? Or is that not an option?
Hey there,

That is an option to get the bumper without the swing outs, but the only pictures we currently have is that one sorry. The only ones we have test-fit and produced have the swing-outs, and haven't received pictures back from customers with the base bumper (no swing outs).

We are running a promotion on our store right now! So if you want to get that bumper and then send us pictures that would be great.

email us at [email protected] if you have anymore questions

OP
Expedition One

Expedition One

Gold Sponsor
Joined
Nov 14, 2019
Messages
12
Reaction score
14
Location
Ogden, Utah
Vehicle(s)
2019 Ford Ranger
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #13
Love that rack! As for the sliders do those metal foot holdings also painted black? Looks a little cheesy with the different colors.
The treadplate is aluminum and comes that way, but it is possible to have it powdercoated.


treimche

Well-Known Member
First Name
Troy
Joined
Apr 8, 2019
Messages
518
Reaction score
545
Location
Fargo, ND
Website
www.facebook.com
Vehicle(s)
2019 Ranger. 2005 S2000. 2009 R1
Occupation
Small Business Owner
Hey there,

That is an option to get the bumper without the swing outs, but the only pictures we currently have is that one sorry. The only ones we have test-fit and produced have the swing-outs, and haven't received pictures back from customers with the base bumper (no swing outs).

We are running a promotion on our store right now! So if you want to get that bumper and then send us pictures that would be great.

email us at [email protected] if you have anymore questions
No offense meant here, but there's no way I'd spend that kind of money on a bumper if I couldn't even see a picture of it on a vehicle before ordering. It shouldn't be up to customers to spend $1000 for a bumper and send you pics of it to put on your website. If you want to send me a bumper I'll gladly send you all the pics of it you can handle.
