Air Dam Delete? Mod your old air dam to fill the gap

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1

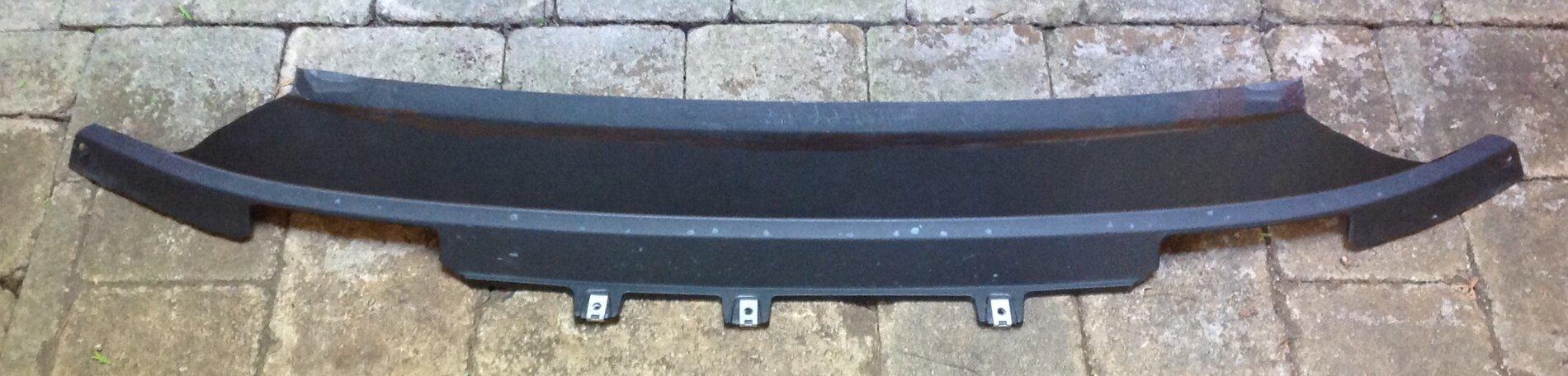

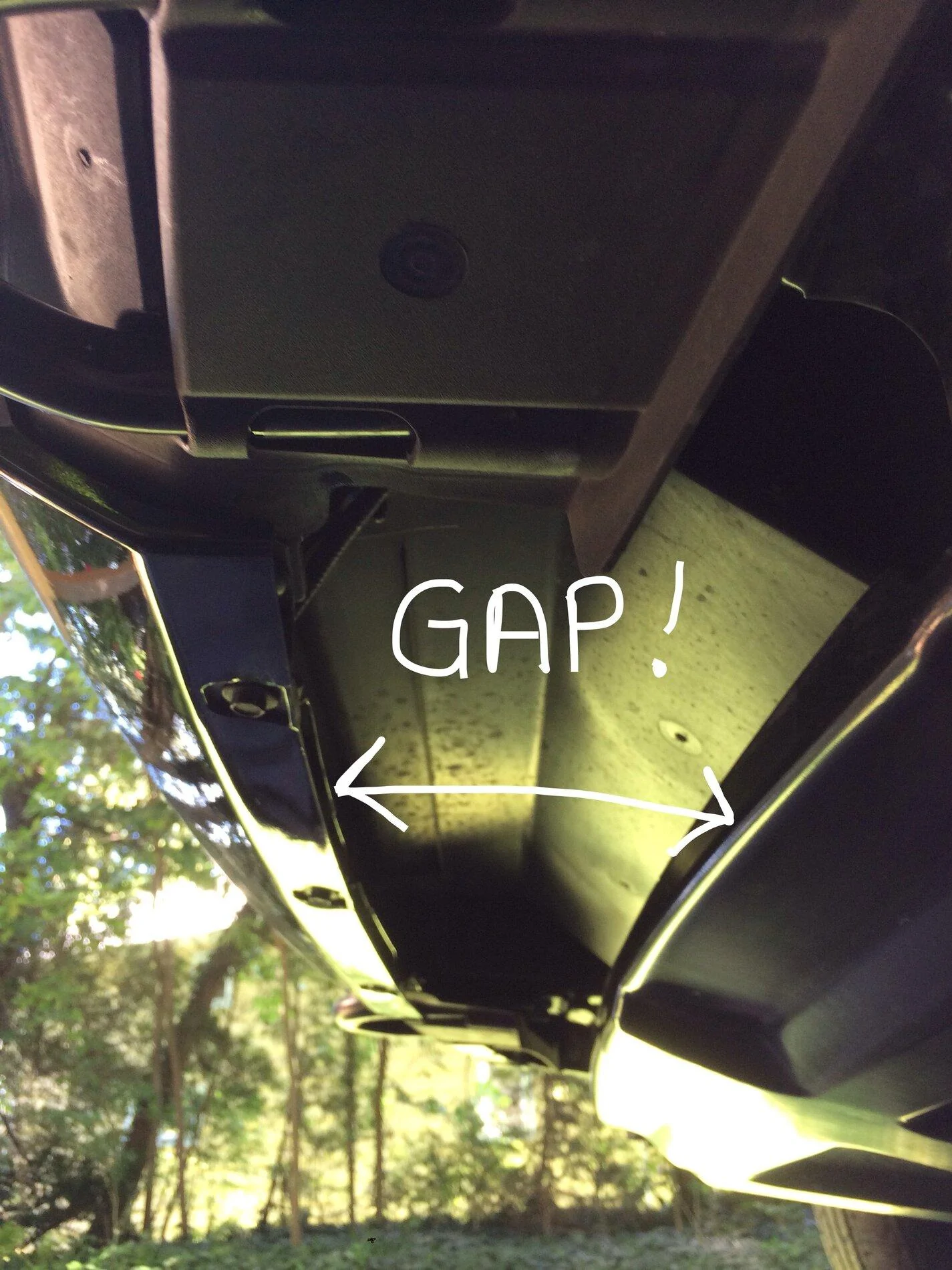

I removed the air dam on my XLT and, like many others who have done the same, I didn't like the gap between the bumper and the existing skid plate. It just looked odd and I could see it scooping up mud, snow, etc.. Solution: buy a factory skid plate or modify your old air dam to fill the gap.

You'll need a drill or 1/4" impact driver (contractor kind, not mechanic kind), 1/4" hex to 3/8" drive adapter), 10mm socket (long), 15mm socket (long), razor knife, tire crayon, 3/16" drill bit. (Don't freak out - you're not drilling into your Ranger).

If your air dam is off, you'll need to partially mount it to make the mod. Using the 10mm socket, mount the middle (short one) of the three outer mounting tabs in its original mounting spot, while leaving the other two long tabs on the outside of the bumper ( will be easily understood when you're doing it. Repeat for other side. This makes it way easier to re-install the middle tabs and to mark up your air dam for cutting.

Remove the three bumper skin bolt from the bottom of the bumper, push the bumper skin away and install the three middle air dam bolts in their original mounting position using the 10mm socket. Do not re-attach the bumper skin at this point.

Remove the two forward skid plate bolts using the 15mm socket. The skid plate should sag - if not, loosen the next set of bolts toward the rear of the skid plate but do not remove them. Tuck the air dam above the skid plate and secure one side with a 15mm bolt to hold in place. Wrestle the dam in place and secure the other side. You don't need to fully tighten the bolts but they need to be snug enough to hold things in place while you figure out where you need to cut. Ignore how poorly the dam fits at the outer tab - we'll be fixing that by cutting off the tab and drilling a new mounting slot in the air dam.

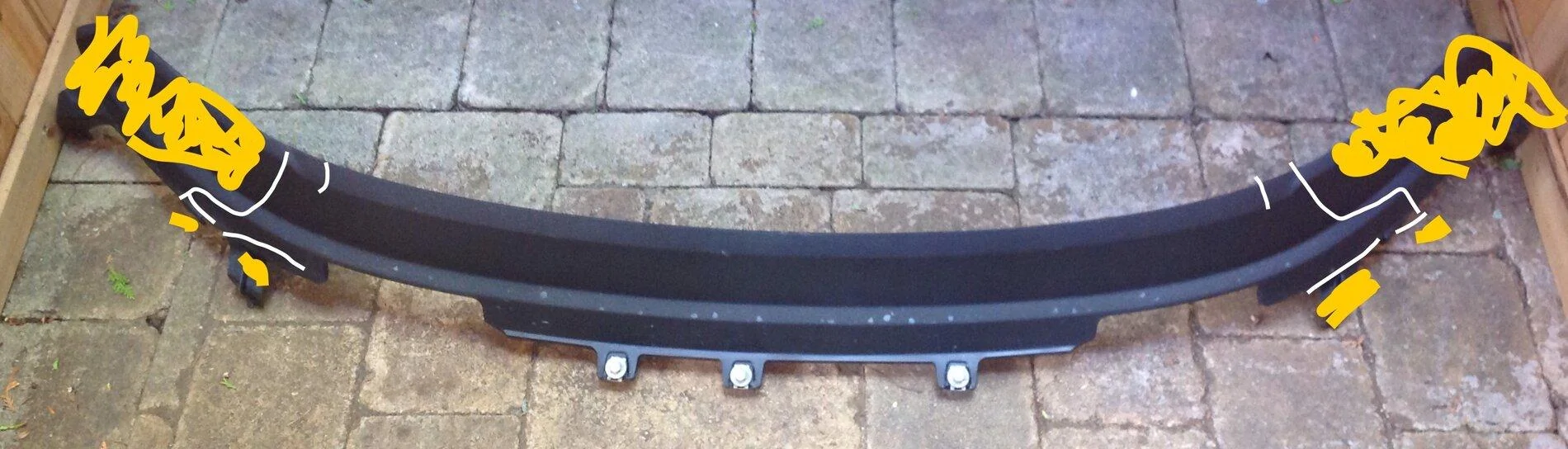

Use the tire crayon to mark where you need to cut - the outside edge of the skid plate should be your guide.

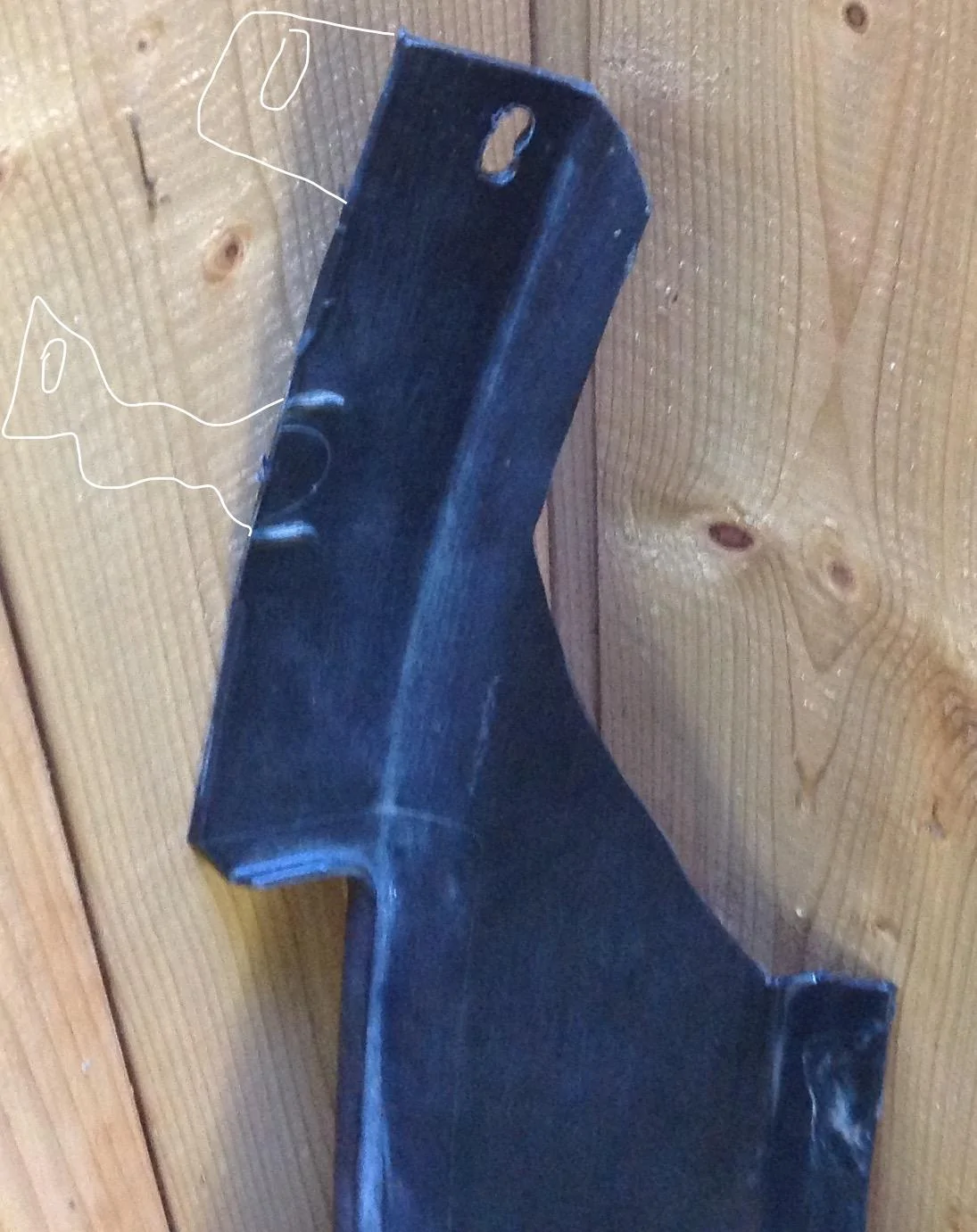

Remove the air dam to make the final markups and cut the air dam. Starting from the outside edge of the middle tab, draw a line straight down to the bend, follow along the bend for a few inches, then arch toward the line you traced along the outer edge of the skid plate. Mark a 1" line about 1-1/2" to the inside of where the skid plate will end - this will be a relief cut to allow the air dam to suck up against the skid plate mounting point See photo. Repeat for the other side.

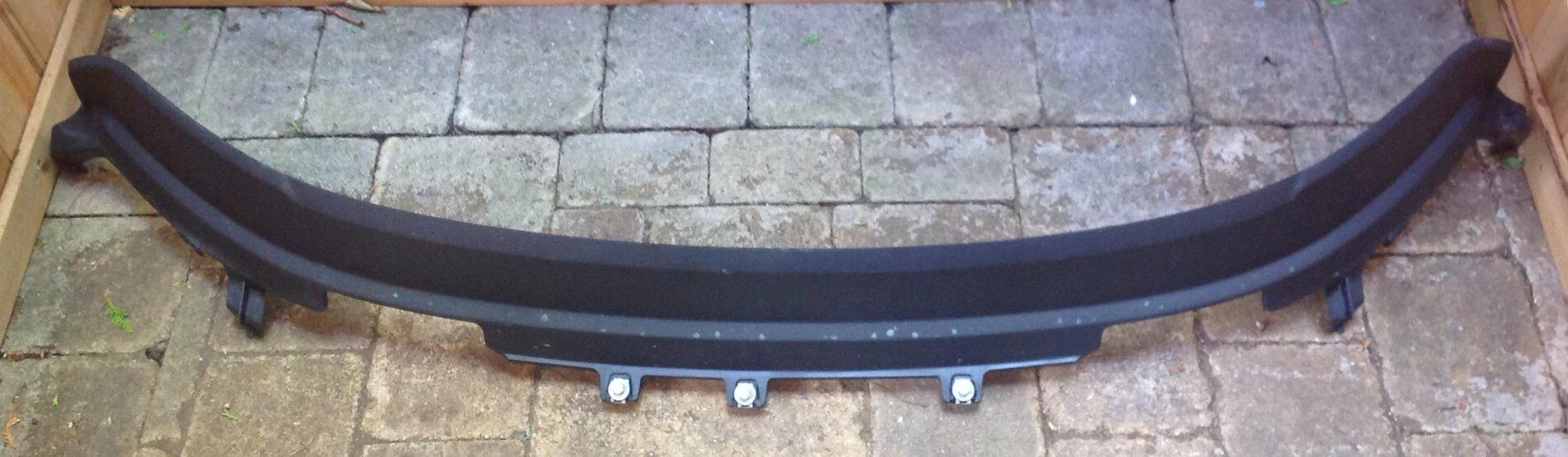

Make sure your razor knife has a new blade. Carefully score where you need to make your cuts. Score again. Score again until you cut through - slow and steady wins the race here! The large outer piece should be completely cut away at this point. Cut off the two outer tabs, flush to the air dam. Make your relief cut. Repeat for the other side.

Using the 3/16" drill bit, make a slot on the outer end of the air dam by drilling two holes very close together and about 3/16" from the end of the air dam. Use the drill to "router" the slot - it doesn't have to be perfect, only functional. Repeat for the other side.

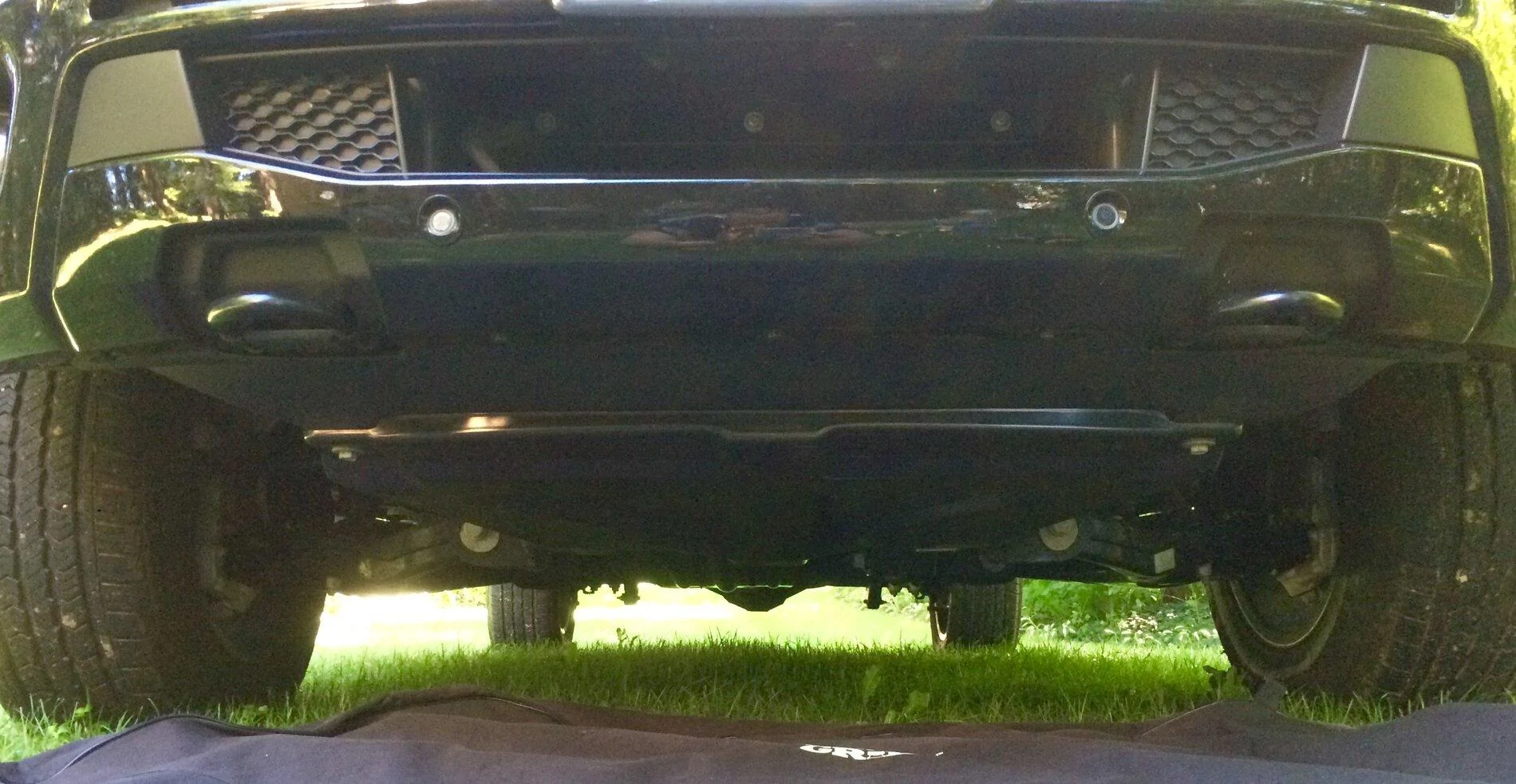

Now, re-install the dam, starting at the outside, now the other side, finishing with the three bolts under the bumper skin. The fit at the outside edges should be much better. Do not fasten bumper skin yet.

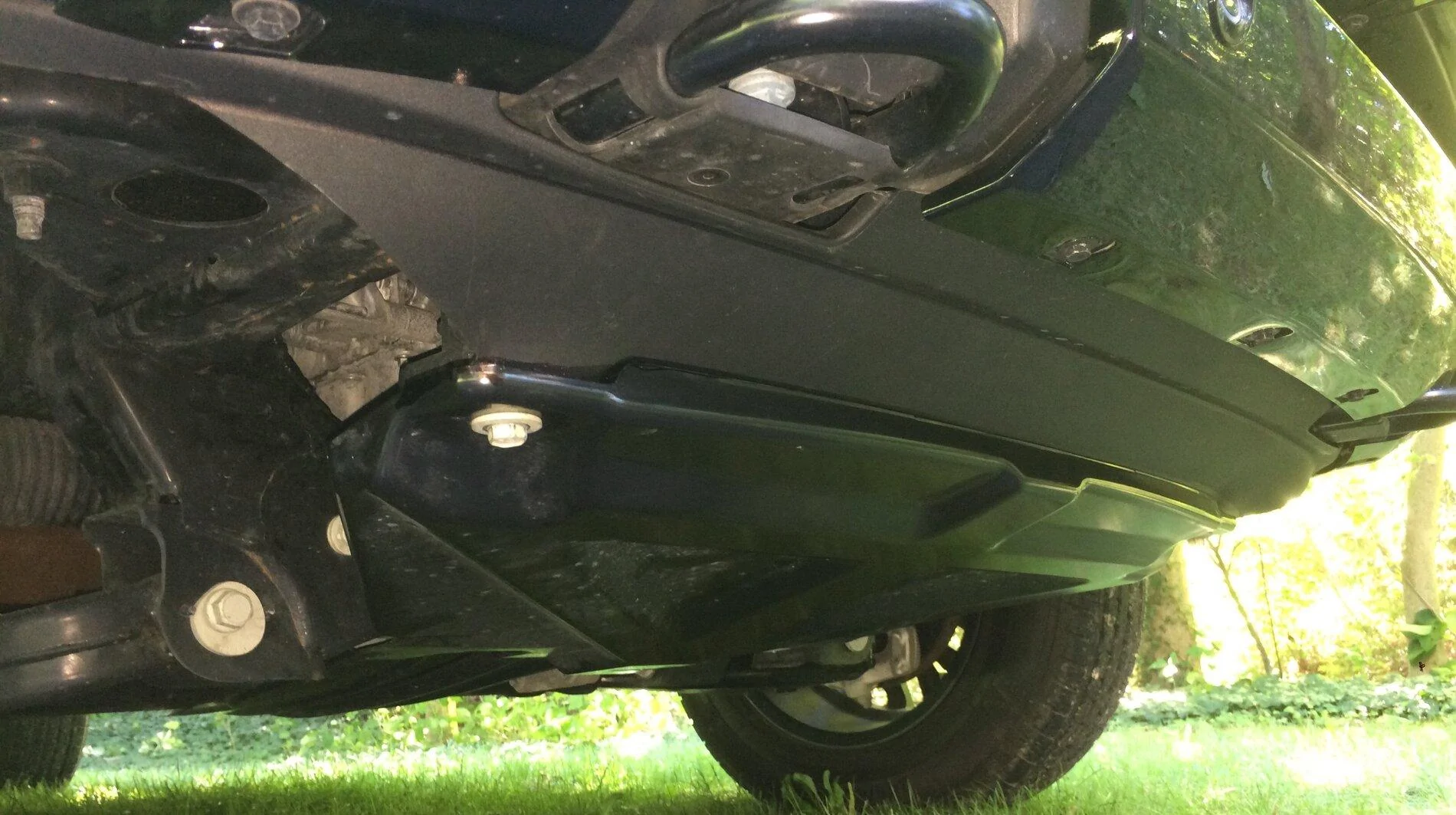

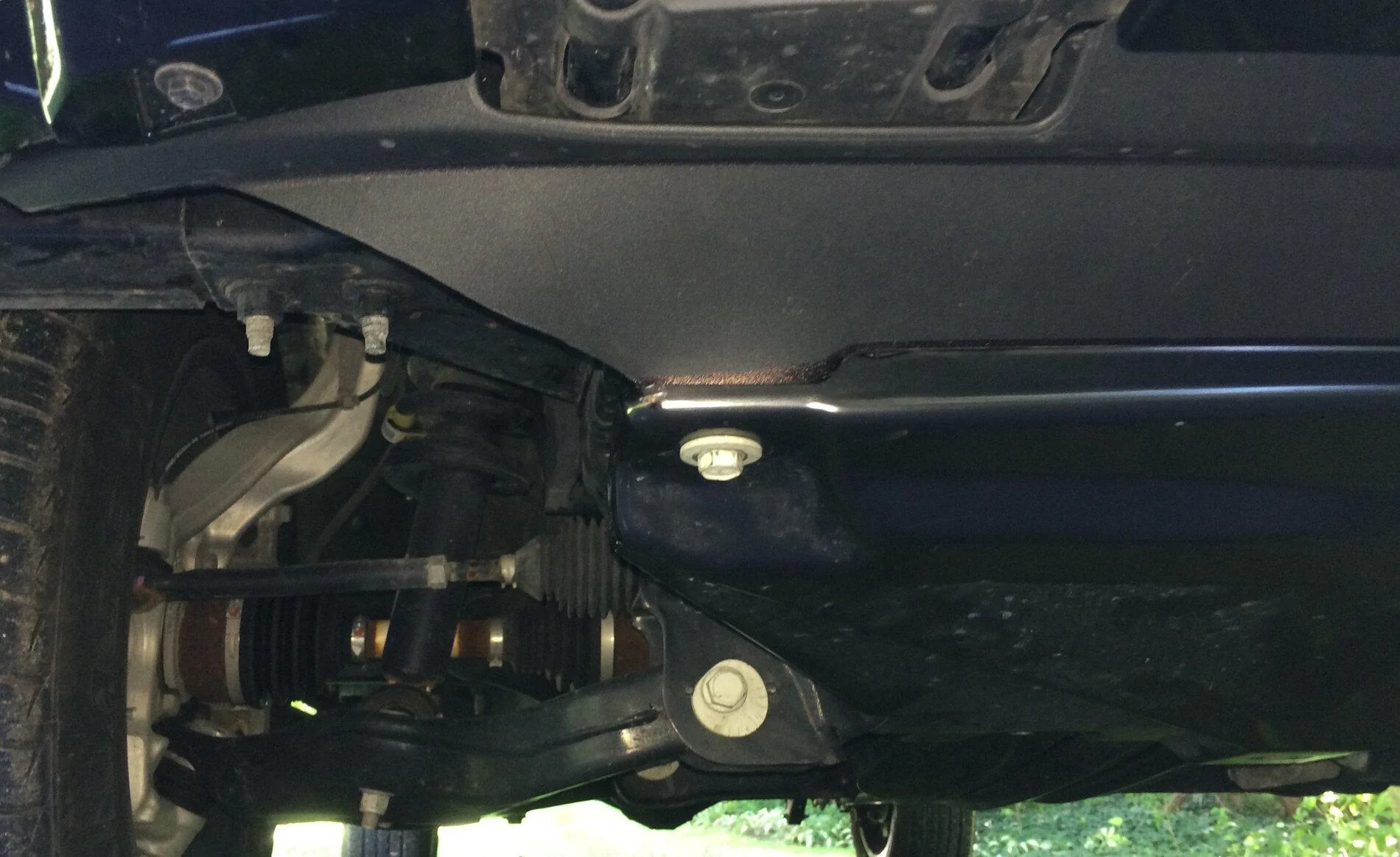

Snug the air dam under the skid plate and loosely fasten one side of the skid plate, then the other. Now tighten both skid plate bolts - you should be able see how the relief cuts were helpful. Tighten the rear bolts if you loosened them.

If everything looks good, install the three bumper skin bolts using the 10mm socket.




















Advertisement


Last edited:

Dhass68

Well-Known Member
First Name
Dan
Joined
Apr 26, 2020
Messages
147
Reaction score
270
Location
Kelowna B.C.
Vehicle(s)
2020 Ranger XLT
Occupation
Brake and Suspension mechanic
wow, nice job, that looks great

OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #3
wow, nice job, that looks great
Thanks very much - it wasn't a bad way to spend part of my Sunday morning in quarrantine - finished just in time for a beer!


Whiskeybilt

Well-Known Member
First Name
Jamison
Joined
May 27, 2020
Messages
320
Reaction score
408
Location
Virgin islands
Vehicle(s)
2019 ranger
Occupation
chef
That's awesome. Tuesday I think I'm pulling my bars out. Think I might give this a shot too.

Thank you!

OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #5
That's awesome. Tuesday I think I'm pulling my bars out. Think I might give this a shot too.

Thank you!
Thanks Whiskeybilt - might as well do it while you're down there - good luck!


RANGER_MARC

Well-Known Member
First Name
MARC
Joined
Apr 29, 2019
Messages
986
Reaction score
1,728
Location
Delaware USA
Vehicle(s)
FORD RANGER LARIAT 2019
Occupation
TEACHER
Vehicle Showcase
1
Nice job! Hard to test, but this would probably improve MPG as well as the other advantages that you mention....

OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #7
Nice job! Hard to test, but this would probably improve MPG as well as the other advantages that you mention....
Thanks Marc!

I like how so many of us, me included, think about gas mileage when our trucks are levelled, have larger, beefier A/T tires, nerf bars, and in my case, fender flares as well as a canopy. I'd likely get better mpg if I left my truck stock and drove down the highway with a 4x8 sheet of plywood mounted to the grill. 😀


armoredpig

Well-Known Member
First Name
Joseph
Joined
Mar 7, 2020
Messages
291
Reaction score
733
Location
VA
Vehicle(s)
2019 Ford Ranger STX
Occupation
Nurse
Definitely going to do this when I get the chance


Anthony

Moderator
First Name
Anthony
Joined
Feb 6, 2019
Messages
683
Reaction score
1,113
Location
Connecticut
Vehicle(s)
2019 Ford Ranger XLT FX4 SCrew
Occupation
COO
Vehicle Showcase
1
That really looks good! Great job on that!


Pinepig

Well-Known Member
First Name
Charlie
Joined
Jun 17, 2020
Messages
151
Reaction score
429
Location
Sacramento
Vehicle(s)
Supermoto and ADVpig
Occupation
lol
I agree with everybody else, that looks proper. Nice work.

OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #11
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #12
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #13

Langwilliams

Well-Known Member
First Name
Langley
Joined
Dec 31, 2019
Messages
704
Reaction score
951
Location
Lorain, Ohio
Vehicle(s)
2019 Ford Ranger XLT, 2014 Harley Street Glide
Occupation
Mail Carrier
great work Duke...this just made my list of "to do" while I'm off next week. Mods are great but free mods are the best!

OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Messages
927
Reaction score
3,031
Location
Toronto, Ontario, Canada
Vehicle(s)
2019 Ranger XLT - Super Cab - Shadow Black, 2014 VW Passat - Black
Occupation
Corporate Communications Consultant & Renovation Contractor
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #15
great work Duke...this just made my list of "to do" while I'm off next week. Mods are great but free mods are the best!
Thanks Langley - you're absolutely right - free mods ARE the best.
