5 Star's Ranger Update

Discussion in '5 Star Tuning' started by 5startuning, Jan 13, 2020 at 9:11 AM.

  1. 5startuning

    Diamond Sponsor


    First Name:
    Aaron
    Vehicle(s):
    2019 Ranger
    Joined:
    Sep 15, 2019
    Location:
    Florence, SC
    Posts:
    24
    Likes Received:
    31
    Occupation:
    Custom Tuner
    Hey Guys and Gals,

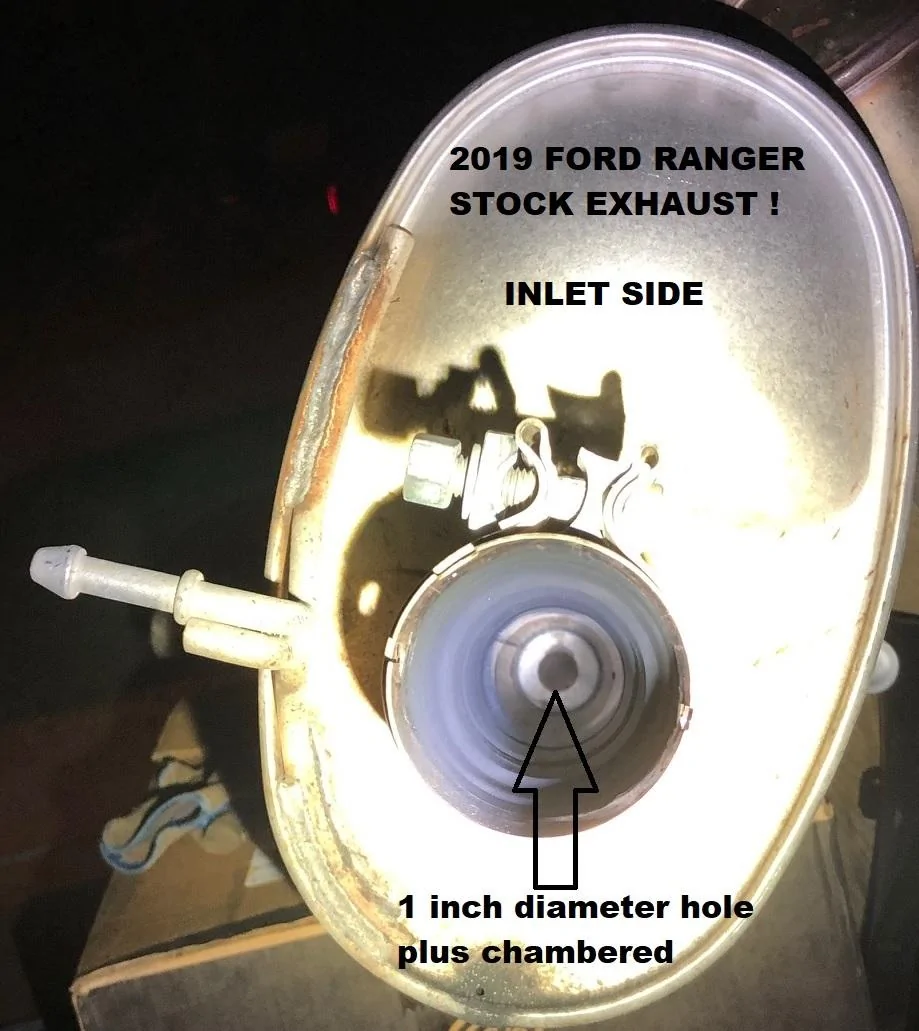

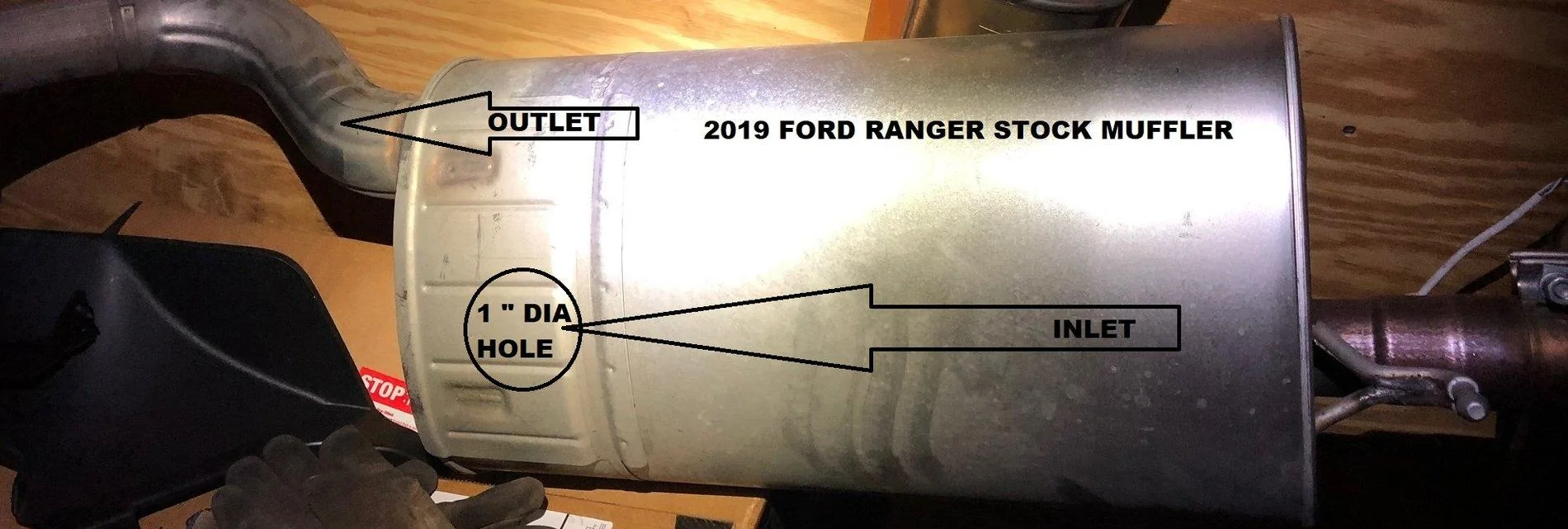

    We have an update on some of the work being done to our 2019 Ranger. Big Turbo, hi flow catted down pipe and catback exhaust are being installed. In case you have never seen the stock exhaust on your ranger, check out some of these images. There is a 1" diameter hole on the inlet side...talk about restrictive. The text below is from our facebook post.

    Hope you are all doing well! We will share dyno gains and videos when we have them.

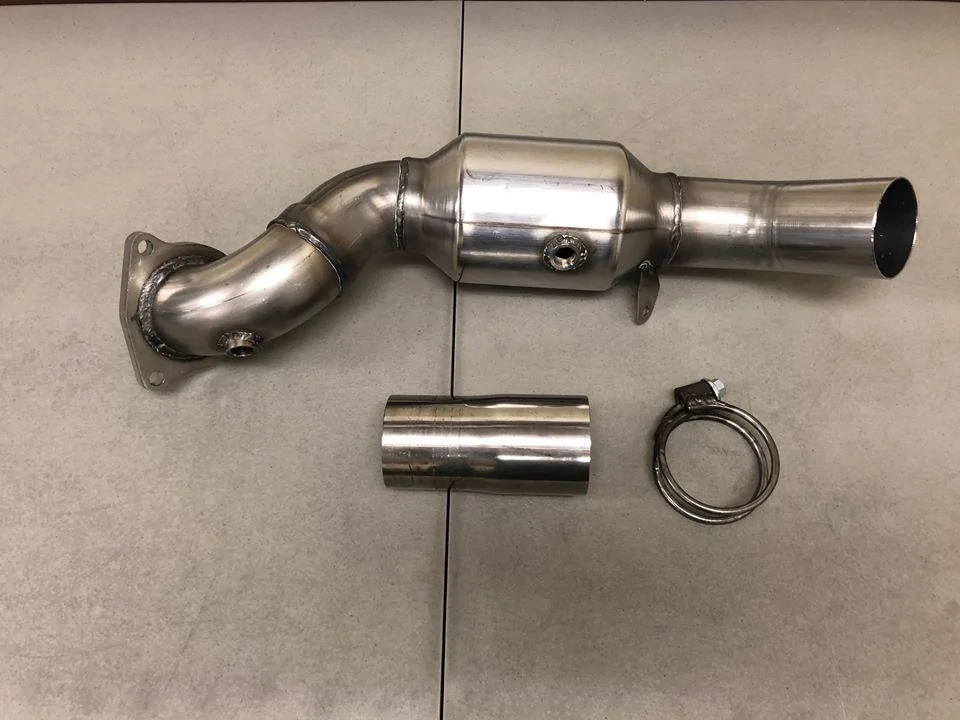

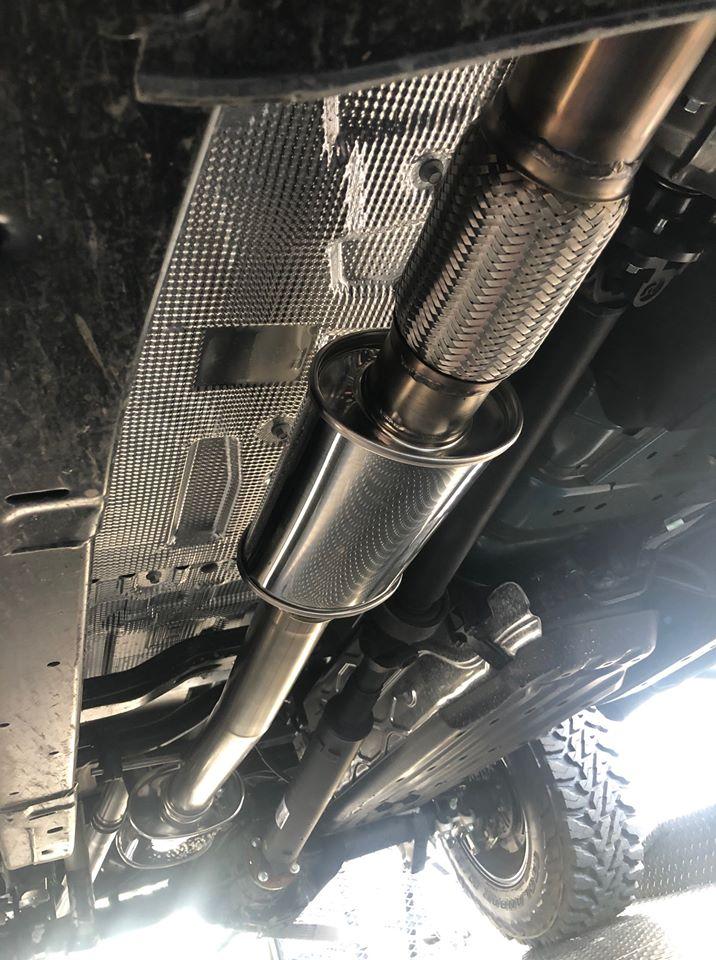

    "2019 Ford Ranger next up on the dyno! Stage 3 CRP Turbo, SPD complete Stainless exhaust system, dp with hi flow cat and cat back If you ever wonder if your 2019 Ranger needs a catback exhaust system?? . Check out the stock muffler it has a 1 inch diameter hole restricting air flow. WOW! You dont have to worry about that air restriction with the SPD products ! The Quality is exceptional and the sound is the quiet ! We will have some videos soon!"

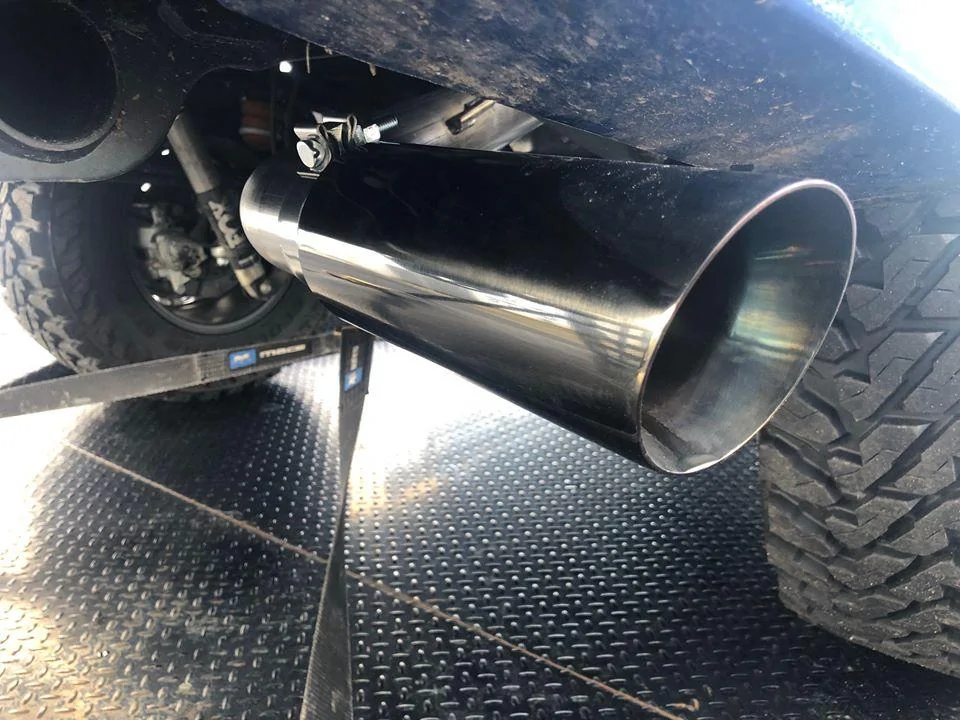

    muffler tip.jpg





    2019 ranger exhaust 2.jpg

    2019 ranger exhaust.jpg

    Doc, treimche, _Ian_ and 1 other person like this.
  2. Lunchbox88

    Lunchbox88 Well-Known Member

    First Name:
    Logan
    Vehicle(s):
    2019 Ranger SuperCrew FX4
    Joined:
    Jun 21, 2019
    Location:
    Missouri, USA
    Posts:
    271
    Likes Received:
    172
    Looks like a lot of potential there, definitely interested in seeing how it performs!
    Question, is the CRP turbo made from a stock Ranger turbo or are they using a different Ford turbo as a base?

  3. OP
    OP
    5startuning

    Diamond Sponsor


    First Name:
    Aaron
    Vehicle(s):
    2019 Ranger
    Joined:
    Sep 15, 2019
    Location:
    Florence, SC
    Posts:
    24
    Likes Received:
    31
    Occupation:
    Custom Tuner

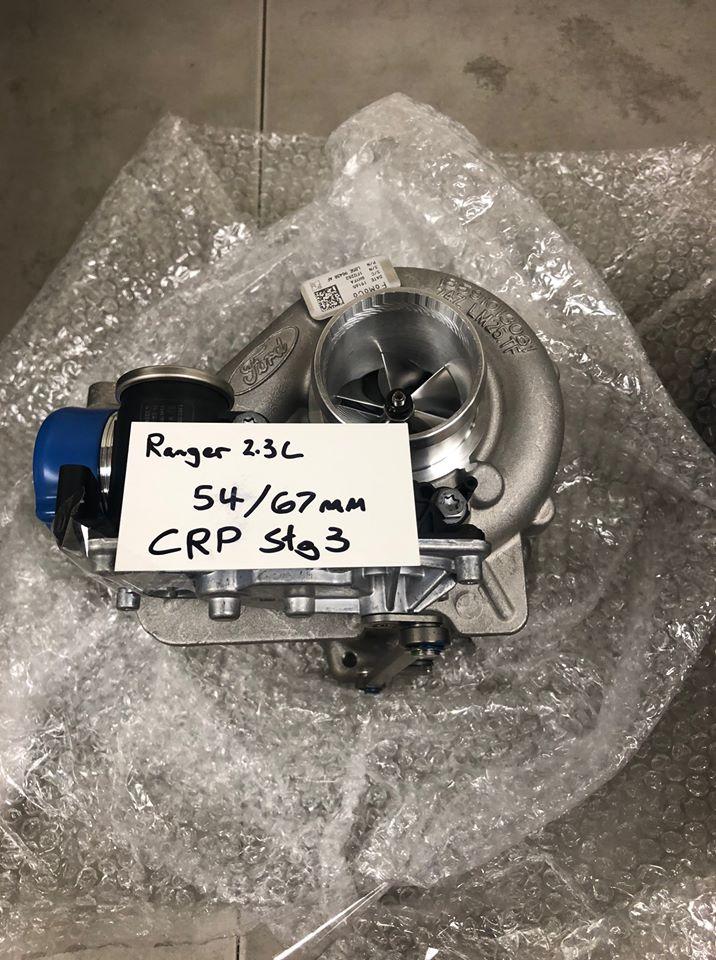

    The Ranger 2.3L Stage 3 54mm / 67mm turbo is a stock rebuild. Here is some of what the guys over at CR performance discussed.

    "The turbine is a good size at 51mm / 45mm and should support a good cold side upgrade.
    Stock is a 46mm / 59mm Compressor side
    Trim which effects surge margin is surprisingly poor stock, this 2.3L must always run high RPM under loads and or keep the throttle plate open and cuts fuel when you lift?


    I am looking at doing a 54mm / 67mm First as a "Stage 3" I will need to increase the exducer to keep surge margin at bay.
    This looks to have the best marketability and street use.

    I will also order a 57mm / 71mm As a "Stage 4" as spool times will suffer slightly but this would be nearing the largest the turbine will support before it lags to much with my standard rules. The housing looks to have room for this.
    This looks to be the big HP number option."

    That was some of the direct conversation we had with them during the development of the turbo upgrade. We shipped our stock turbo to them and the upgraded version is what was sent back and installed on ours. We will have numbers and a video before too long.

    Doc and Marshal. like this.
  4. FULLSCALE

    FULLSCALE Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2019 Ford Ranger Lariat FX4 Supercrew, 2011 Mazda 3 Sport GT-E, 1968 Ford Mustang
    Joined:
    Jan 7, 2019
    Location:
    Ontario, Canada
    Posts:
    1,620
    Likes Received:
    1,140
    Have you ever compared a stock truck to one with just the SPD exhaust on the dyno?

  5. treimche

    treimche Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2019 Ranger. 2005 S2000. 2009 R1
    Joined:
    Apr 8, 2019
    Location:
    Fargo, ND
    Posts:
    335
    Likes Received:
    302
    Occupation:
    Small Business Owner
    So what you're saying is the stock muffler needs to go!

    5startuning and Doc like this.
  6. OP
    OP
    5startuning

    Diamond Sponsor


    First Name:
    Aaron
    Vehicle(s):
    2019 Ranger
    Joined:
    Sep 15, 2019
    Location:
    Florence, SC
    Posts:
    24
    Likes Received:
    31
    Occupation:
    Custom Tuner
    good question, unfortunately we did not grab a dyno chart other than a bone stock run a while back. But no we did not compare just the stock exhaust/stock truck numbers to spd exhaust and stock tune numbers.

    FULLSCALE likes this.
  7. deeve

    deeve Well-Known Member

    First Name:
    Dave
    Vehicle(s):
    2019 Ford Ranger XLT
    Joined:
    Nov 18, 2019
    Location:
    Hillsboro, OR
    Posts:
    56
    Likes Received:
    12
    Jeez, what is the point of the 1" hole in the exhaust? Noise control or ??

    5startuning likes this.
  8. Sandman Ranger

    Sandman Ranger Well-Known Member

    First Name:
    Pete
    Vehicle(s):
    2019 Ford Ranger XLT Crew Cab 4x4 Saber
    Joined:
    Jun 16, 2019
    Location:
    Tennessee
    Posts:
    387
    Likes Received:
    407
    Occupation:
    Senior Process Engineer
    Cut the muffler open! Let’s see inside.

  9. Jonnmaggie

    Jonnmaggie Member

    First Name:
    Jon
    Vehicle(s):
    2019 Ranger XLT all magnetic
    Joined:
    Dec 12, 2019
    Location:
    kansas
    Posts:
    9
    Likes Received:
    1
    Have you guys measured the differences in back pressure on the turbo? Only reason I'm curious is because certain 2.3l ecoboosts have seen back pressure issues causing pre-ignition, causing a head gasket to blow. I'm wondering total what amount of power you can get out of the stock turbo.
