4th Brake Light/Turn signals/Backup/Running wiring

Neil S

Well-Known Member
First Name
Neil
Joined
Mar 28, 2019
Threads
9
Messages
54
Reaction score
83
Location
TN
Vehicle(s)
2019 Ranger Lariat FX
Vehicle Showcase
1
I have a Putco tailgate light strip to go under the tailgate and above the bumper. One would think that it would be simple just to plug in to the 4 pin flat trailer connector but, no. With the BLIS system, it sets off all sorts of warnings from trailer connected/disconnected, side warning disabled, RH/LH turn signal errors. We have even run a separate 12v power to the light as noted by the TSR’s.

Their pat response is to tap in before the BLIS module but it’s not very apparent where that is on the harness. Any ideas and thoughts greatly appreciated.
Sponsored



Floyd

Well-Known Member
Joined
Jan 6, 2019
Threads
38
Messages
2,064
Reaction score
3,113
Location
illinois
Vehicle(s)
'19 Ranger SCab,'16 Connect,'95 MustangGT,'50 Ford
I have a Putco tailgate light strip to go under the tailgate and above the bumper. One would think that it would be simple just to plug in to the 4 pin flat trailer connector but, no. With the BLIS system, it sets off all sorts of warnings from trailer connected/disconnected, side warning disabled, RH/LH turn signal errors. We have even run a separate 12v power to the light as noted by the TSR’s.

Their pat response is to tap in before the BLIS module but it’s not very apparent where that is on the harness. Any ideas and thoughts greatly appreciated.
One unfortunate option to keep in mind is to return the device and spend the money on something else just as cool.

OP
OP
Neil S

Neil S

Well-Known Member
First Name
Neil
Joined
Mar 28, 2019
Threads
9
Messages
54
Reaction score
83
Location
TN
Vehicle(s)
2019 Ranger Lariat FX
Vehicle Showcase
1
One unfortunate option to keep in mind is to return the device and spend the money on something else just as cool.
Installer talked with Recon today and they think an in-line module will be necessary to adapt this type of lighting addition to the towing/BLIS/lighting systems on our Ranger.


Stevie Gee

Well-Known Member
First Name
Steve
Joined
Nov 5, 2018
Threads
5
Messages
387
Reaction score
1,100
Location
Rancho Santa Margarita (Orange County),CA
Vehicle(s)
2019 Ranger Lariat SuperCrew FX4
Occupation
Retired Fed - H.U.D. (Housing and Urban Development)
Vehicle Showcase
1
I have a Putco tailgate light strip to go under the tailgate and above the bumper. One would think that it would be simple just to plug in to the 4 pin flat trailer connector but, no. With the BLIS system, it sets off all sorts of warnings from trailer connected/disconnected, side warning disabled, RH/LH turn signal errors. We have even run a separate 12v power to the light as noted by the TSR’s.

Their pat response is to tap in before the BLIS module but it’s not very apparent where that is on the harness. Any ideas and thoughts greatly appreciated.
That bites...I had that on my list to get.

OP
OP
Neil S

Neil S

Well-Known Member
First Name
Neil
Joined
Mar 28, 2019
Threads
9
Messages
54
Reaction score
83
Location
TN
Vehicle(s)
2019 Ranger Lariat FX
Vehicle Showcase
1

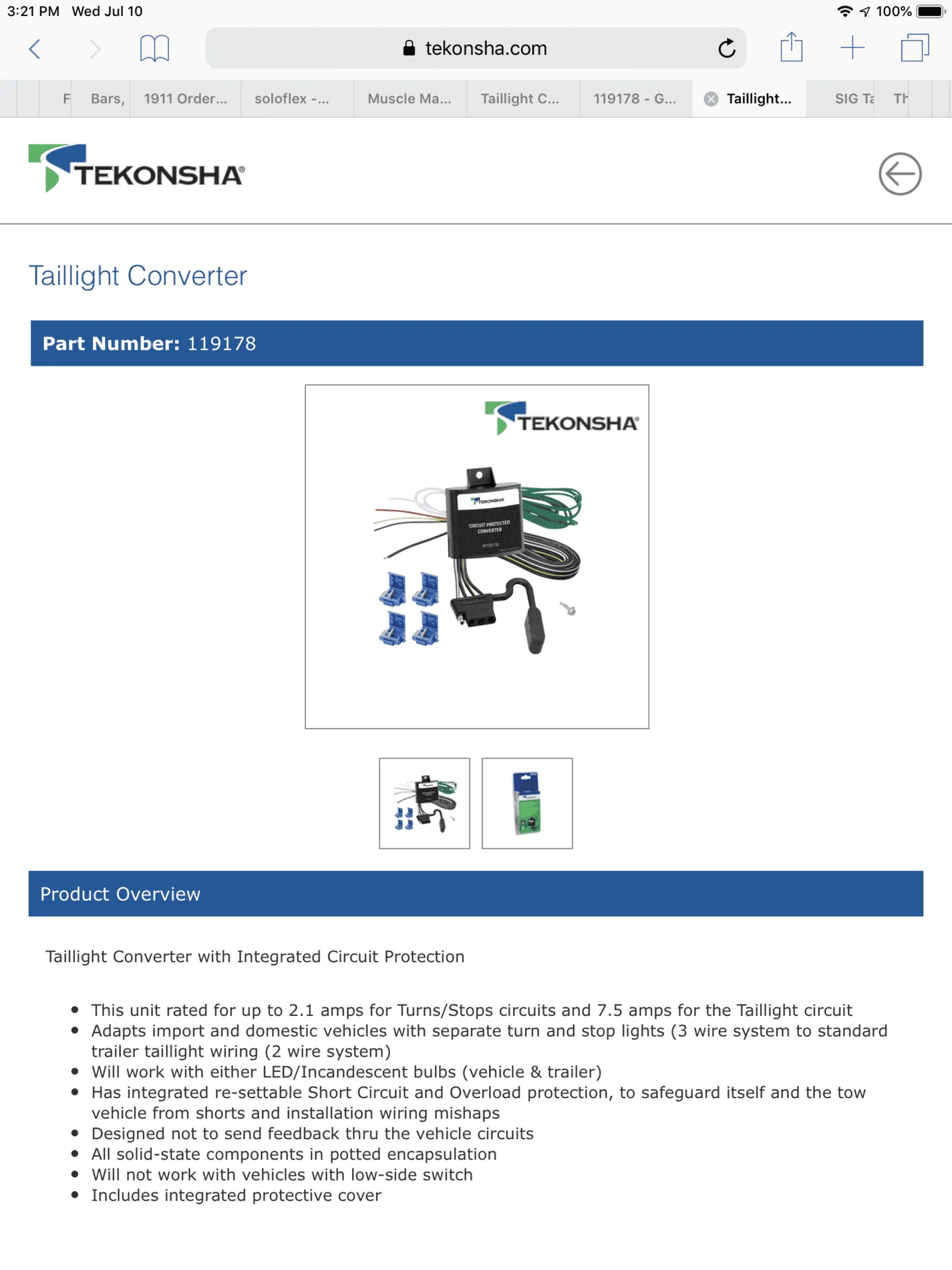

I’ve been trying to get a PUTCO LED tailgate light working on my Lariat since a March. I’ve talked to PUTCO engineering many times and their pat answer was: “We are working on it.” No timing available. After 3+ months my local installer decided to use his experience to find a solution. David (DZ Customs) looked around and found this isolation module from Tekonsha model 119178.

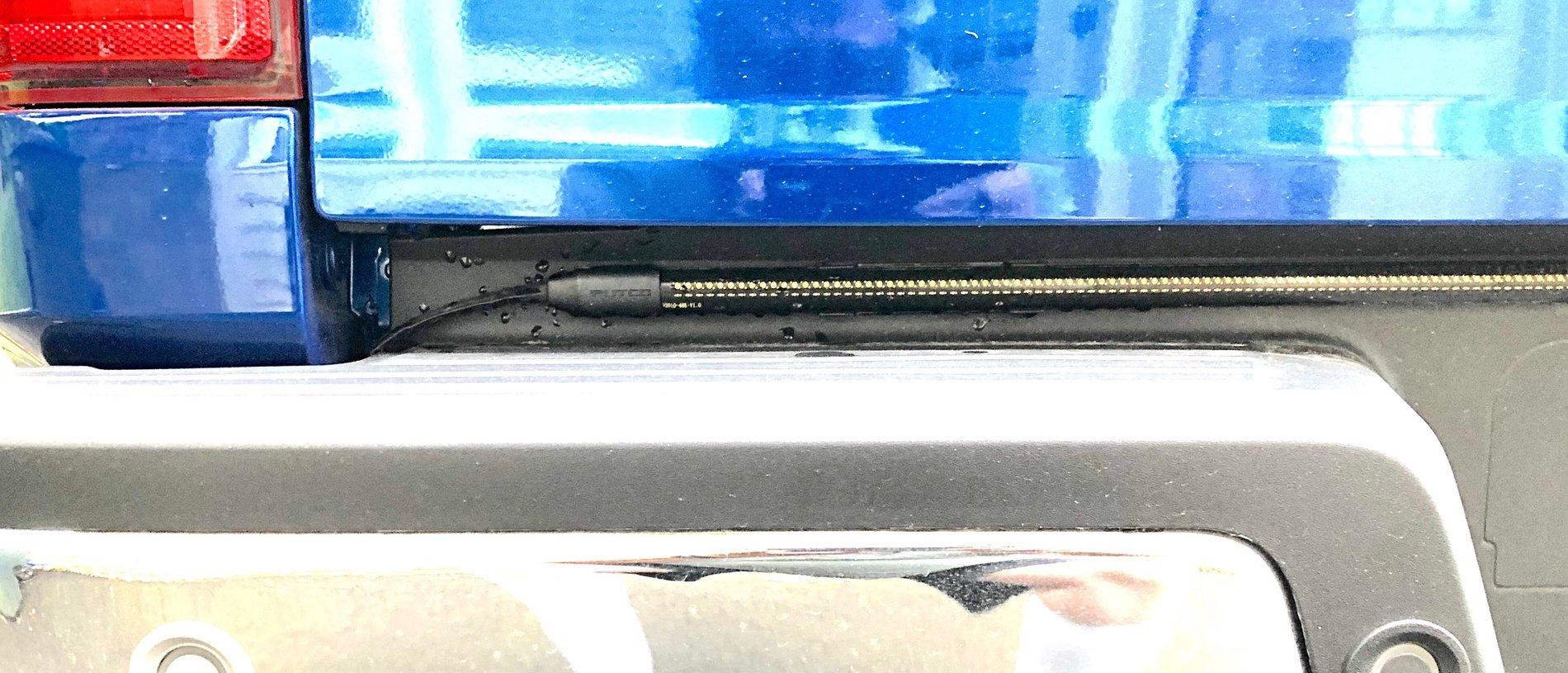

Well, everything works great with the isolation module. PUTCO makes a nice LED tailgate light bar but, in my opinion, they need to improve the time it takes to support new models.


This will probably be the same issue for any other brand of tailgate lighting that you try and wire into the 7/4 pin harness due to the BLIS and the side traffic collision avoidance system, unless they have updated their interface module for the Ranger. The main difference with the Ranger versus the F-150 is the Ranger has a separate turn signal light.


https://www.tekonsha.com/mobile/pro.../!FQHI|fPlggV5dvshDkncqbQ9RUm7K5fBe0B98sm!m4=






JDubz

New Member
First Name
Jason
Joined
Apr 22, 2020
Threads
0
Messages
2
Reaction score
0
Location
Pennsylvania
Vehicle(s)
2002 Ford escape
Occupation
Design engineer
I’ve been trying to get a PUTCO LED tailgate light working on my Lariat since a March. I’ve talked to PUTCO engineering many times and their pat answer was: “We are working on it.” No timing available. After 3+ months my local installer decided to use his experience to find a solution. David (DZ Customs) looked around and found this isolation module from Tekonsha model 119178.


Well, everything works great with the isolation module. PUTCO makes a nice LED tailgate light bar but, in my opinion, they need to improve the time it takes to support new models.


This will probably be the same issue for any other brand of tailgate lighting that you try and wire into the 7/4 pin harness due to the BLIS and the side traffic collision avoidance system, unless they have updated their interface module for the Ranger. The main difference with the Ranger versus the F-150 is the Ranger has a separate turn signal light.


https://www.tekonsha.com/mobile/products/electrical-wiring/taillight-converters/taillight-converter/!FQHI|fPlggV5dvshDkncqbQ9RUm7K5fBe0B98sm!m4=



Neil,
Was your parking assist deactivated after installing the LED bar? And if so, does the module allow it to function properly?

If I'm understanding the schematic, the module gets spliced in parallel with the stock 4-flat connector, correct?

Thanks in advance,
Jason

OP
OP
Neil S

Neil S

Well-Known Member
First Name
Neil
Joined
Mar 28, 2019
Threads
9
Messages
54
Reaction score
83
Location
TN
Vehicle(s)
2019 Ranger Lariat FX
Vehicle Showcase
1
Neil,
Was your parking assist deactivated after installing the LED bar? And if so, does the module allow it to function properly?

If I'm understanding the schematic, the module gets spliced in parallel with the stock 4-flat connector, correct?

Thanks in advance,
Jason
with the Tekonsha module, all systems systems function correctly! I had my custom shop install the module and LED tailgate LED bar.


JDubz

New Member
First Name
Jason
Joined
Apr 22, 2020
Threads
0
Messages
2
Reaction score
0
Location
Pennsylvania
Vehicle(s)
2002 Ford escape
Occupation
Design engineer
with the Tekonsha module, all systems systems function correctly! I had my custom shop install the module and LED tailgate LED bar.
Any chance you can send a Pic of how your shop spliced into the stock harness? The module has 5 wires and the flat harness only has 4.


Deleted member 5428

Anything new on this, I just received my Putco blade light bar.....

OP
OP
Neil S

Neil S

Well-Known Member
First Name
Neil
Joined
Mar 28, 2019
Threads
9
Messages
54
Reaction score
83
Location
TN
Vehicle(s)
2019 Ranger Lariat FX
Vehicle Showcase
1
Any chance you can send a Pic of how your shop spliced into the stock harness? The module has 5 wires and the flat harness only has 4.
No pictures of how the module was spliced in. I do think the box requires a 12v hot wire but I’m just guessing. The other 4 wires could come off the wires from the 4 pin flat plug.


PMartinez3rd

Member
First Name
Pablo
Joined
Aug 22, 2020
Threads
1
Messages
9
Reaction score
32
Location
Orange County
Vehicle(s)
2020 Ranger
Occupation
Warehouse Assoc.

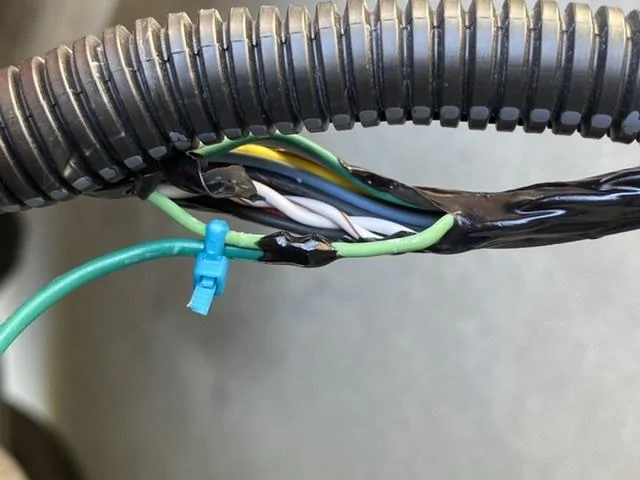

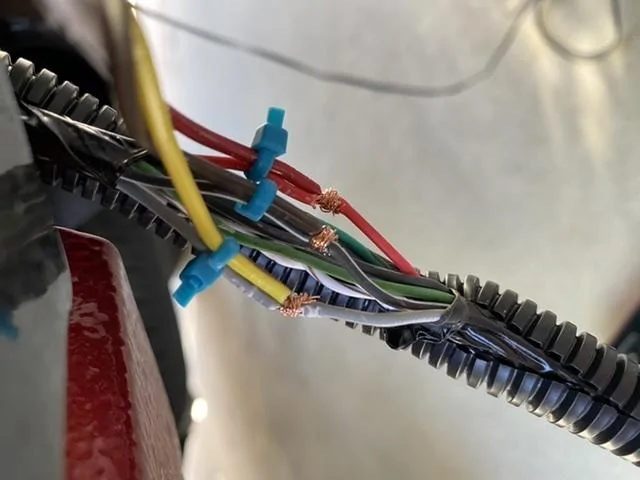

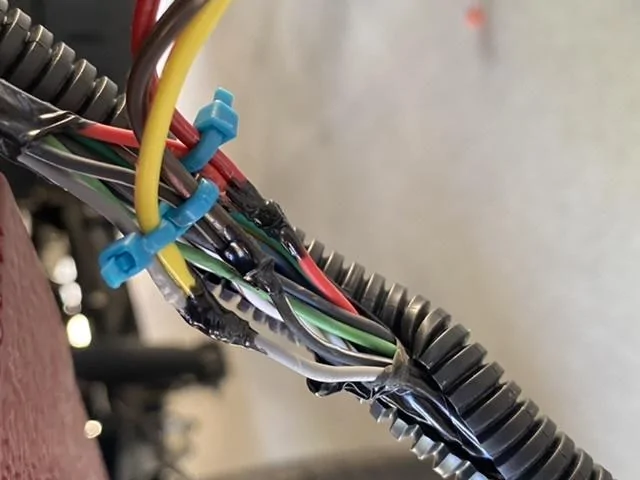

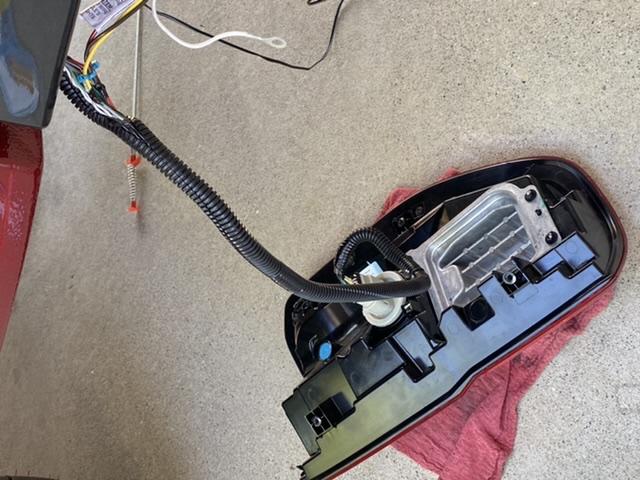

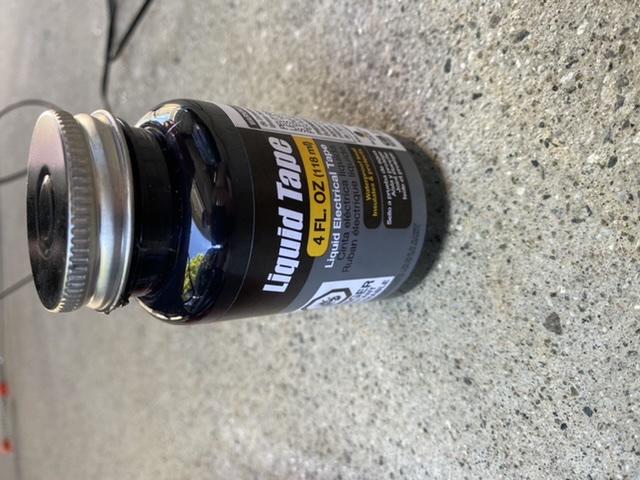

Ok, so seems everything in this post was pretty much useless. So after I got the wiring harness in the previous messages, I attempted every possible way to use the 4-pin trailer connector. Due to the Ford systems, there is no way that I found to use this and not set off all the alerts on the dashboard. So with that being said, I used the wiring harness and tapped directly into the trucks wiring. The brake light, I tapped into the left tail light. I took some pictures of how I did it and what I used.











PMartinez3rd

Member
First Name
Pablo
Joined
Aug 22, 2020
Threads
1
Messages
9
Reaction score
32
Location
Orange County
Vehicle(s)
2020 Ranger
Occupation
Warehouse Assoc.

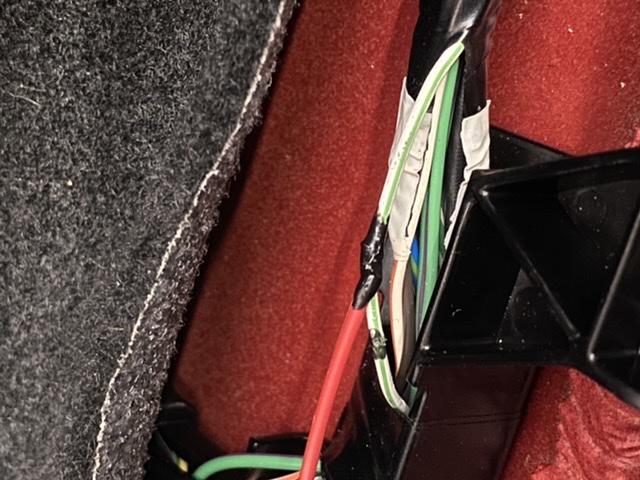

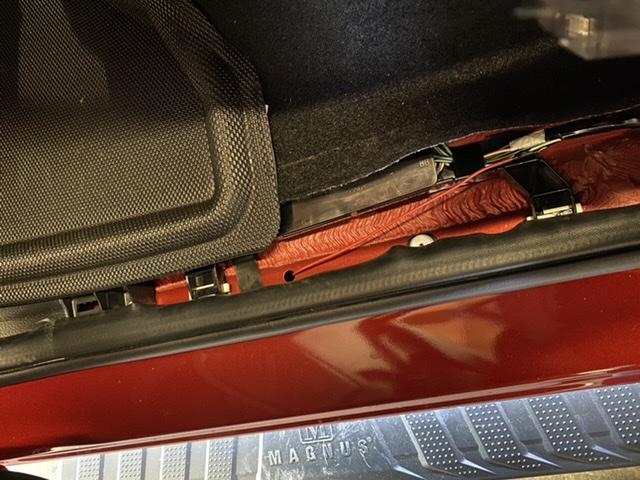

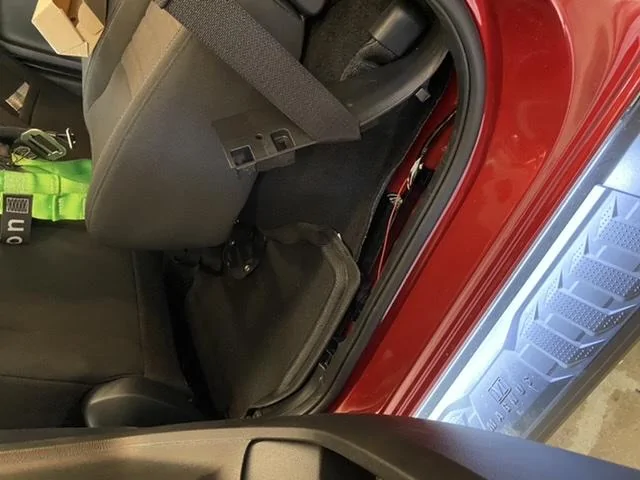

For the running board lights, I decided to tap into the cargo light on the 3rd brake light. Here is how I did that one.











P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
141
Messages
7,012
Reaction score
36,169
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
For the running board lights, I decided to tap into the cargo light on the 3rd brake light. Here is how I did that one.





HI Pablo,

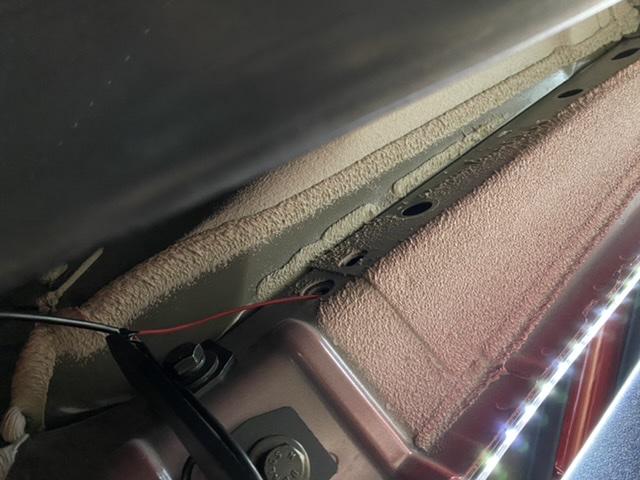

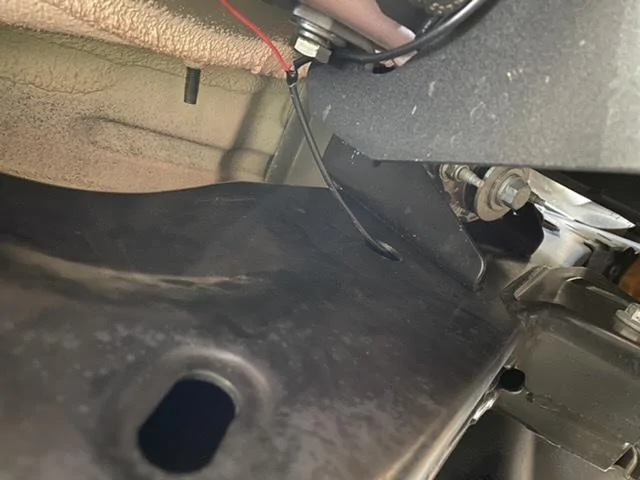

These last two pictures show guaranteed wire shorting due to abrasion...You need to protect the red wire or the black wire when running through metal like you show... You have a headache in the making. Use a bit of hard plastic wire wrap convoluted abrasion tubing. You can also use rubber vacuum tubing segments secured in place with adhesive. Also, split wire grommets will work...just do not have a sheathed wire rubbing on metal.

Good luck!

Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired


WhiteRaptor

New Member
First Name
David
Joined
Dec 5, 2021
Threads
0
Messages
3
Reaction score
0
Location
Illinois
Vehicle(s)
2020 Ford Ranger Super Crew
Occupation
Construction
Ok, so seems everything in this post was pretty much useless. So after I got the wiring harness in the previous messages, I attempted every possible way to use the 4-pin trailer connector. Due to the Ford systems, there is no way that I found to use this and not set off all the alerts on the dashboard. So with that being said, I used the wiring harness and tapped directly into the trucks wiring. The brake light, I tapped into the left tail light. I took some pictures of how I did it and what I used.









Can I ask where you hooked your putco red 12v wire to?


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
60
Messages
7,702
Reaction score
22,453
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1
I have a Putco tailgate light strip to go under the tailgate and above the bumper. One would think that it would be simple just to plug in to the 4 pin flat trailer connector but, no. With the BLIS system, it sets off all sorts of warnings from trailer connected/disconnected, side warning disabled, RH/LH turn signal errors. We have even run a separate 12v power to the light as noted by the TSR’s.

Their pat response is to tap in before the BLIS module but it’s not very apparent where that is on the harness. Any ideas and thoughts greatly appreciated.
I had a similar problem with an LED kit for my motocycle hitch carrier...it is suppose to plug into the trailer harness but causes the same error issues due LED's low draw...an incandecense version would not cause this issue...your only option is to hard wire it to the tail lamp harnesses...I did this with my "chase light"...

BTW, what the heck does the line below in BLUE above your sig say? Is it me or can anyone else read that line?
