4 pin connector identification

[ItsBert]

Hi guys.

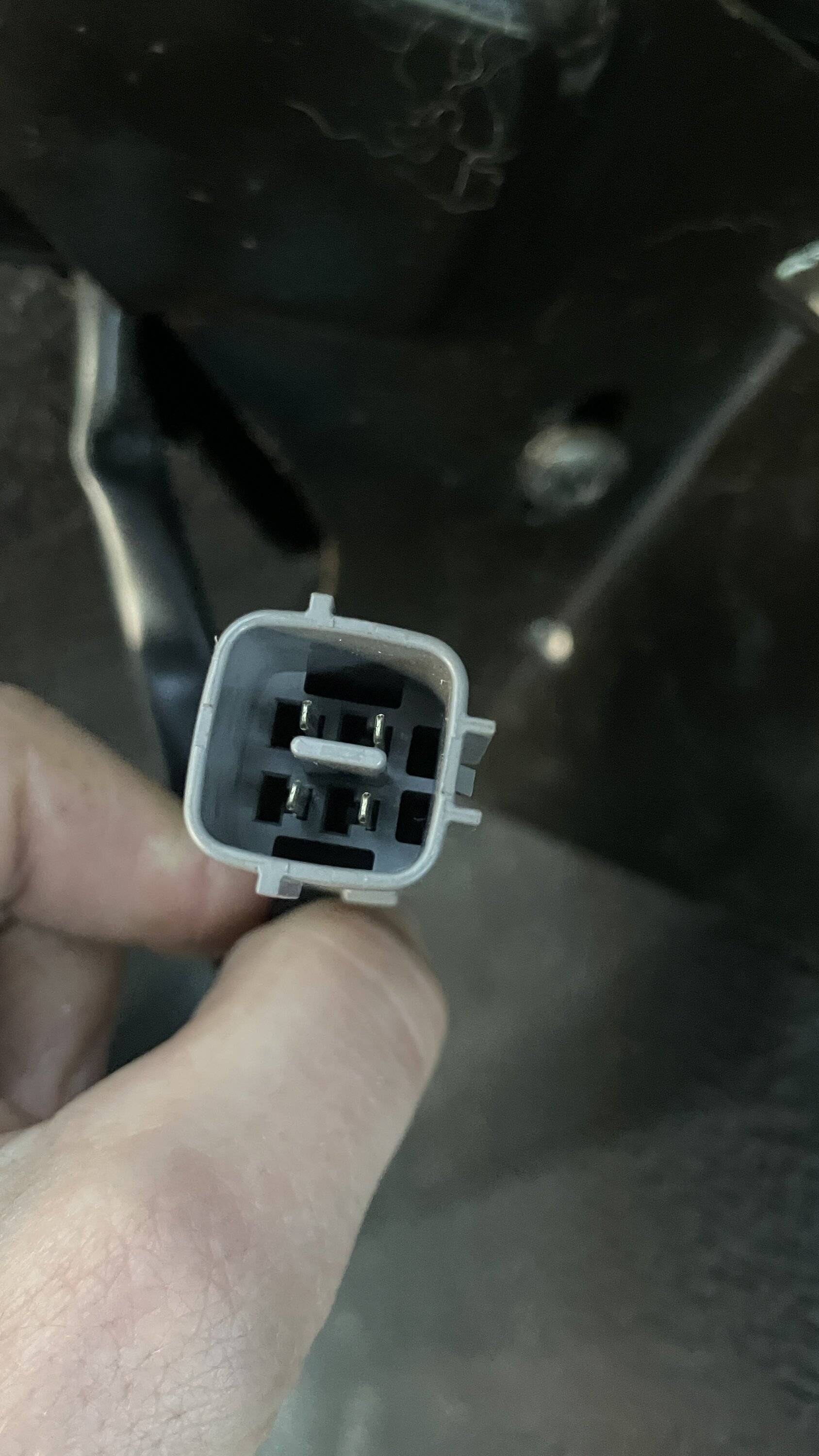

Does anyone know the brand of this connector? Or the part number for the socket and pins?
It is located at the front of the bed near the cab and is for brake lights and cargo lights when the sports bar is fitted to the UK rangers. (May be the same for the US trucks but I’m not sure.)

Just hoping someone recognises it and can identify it for me please? (No markings on it at all.- I will remove the pins tomorrow and see if I can find out what they are)

Sponsored



[P. A. Schilke]

Hi Brett,

I think your wiring is much different that here in North America. Hopefully some other ROW Ranger owner knows. I might suggest you call up one of the sports bar manufacturer and inquire if they know the specifics of this connector.

Best,
Phil



[ItsBert]

Hi Brett,

I think your wiring is much different that here in North America. Hopefully some other ROW Ranger owner knows. I might suggest you call up one of the sports bar manufacturer and inquire if they know the specifics of this connector.

Best,
Phil

Cheers Phil,

I was hoping that wasn’t the case. The sports bar I believe is made by ford so I think I’ll give their parts dept a call.



[P. A. Schilke]

Cheers Phil,

I was hoping that wasn’t the case. The sports bar I believe is made by ford so I think I’ll give their parts dept a call.

Hi Brett,

I would be quite surprised if Ford made the Sports Bar. Is it an OEM optional item? In other words, is it installed at the factory or just badged by Ford?

For example, Ford aftermarket parts sells a Ford Bed Extender, but it is really made by AMP but Ford slaps a blue oval on it instead of AMP logo...

Best,
Phil



[airline tech]

More info on location needed and are you positive that feeds the High Mount Stop Lamp / Cargo Lights. It appears to be located just foward of Left Rear Wheel Well by the Pic



[ItsBert]

Hi Brett,

I would be quite surprised if Ford made the Sports Bar. Is it an OEM optional item? In other words, is it installed at the factory or just badged by Ford?

For example, Ford aftermarket parts sells a Ford Bed Extender, but it is really made by AMP but Ford slaps a blue oval on it instead of AMP logo...

Best,
Phil

I believe it is as far as I can tell. It's standard on all UK wildtrak models but I went with the hard topper instead so the bar was removed. I'm only after the connector to tap into the cargo lights feed (which is in this connector) and do things the "right" way.

More info on location needed and are you positive that feeds the High Mount Stop Lamp / Cargo Lights. It appears to be located just foward of Left Rear Wheel Well by the Pic

Yep that's where the connector is.



[Jason B]

It would make adding a TBC a whole lot easier if that connector is for CHMSL, and we had it here in the US.
