3rd Brake light wire location in BCM under dash?

Tom_C

Well-Known Member
First Name
Tom
Joined
Apr 17, 2021
Threads
24
Messages
1,577
Reaction score
3,189
Location
Virginia, USA
Vehicle(s)
2020 Ranger Lariat SuperCab FX4
Occupation
System Admin

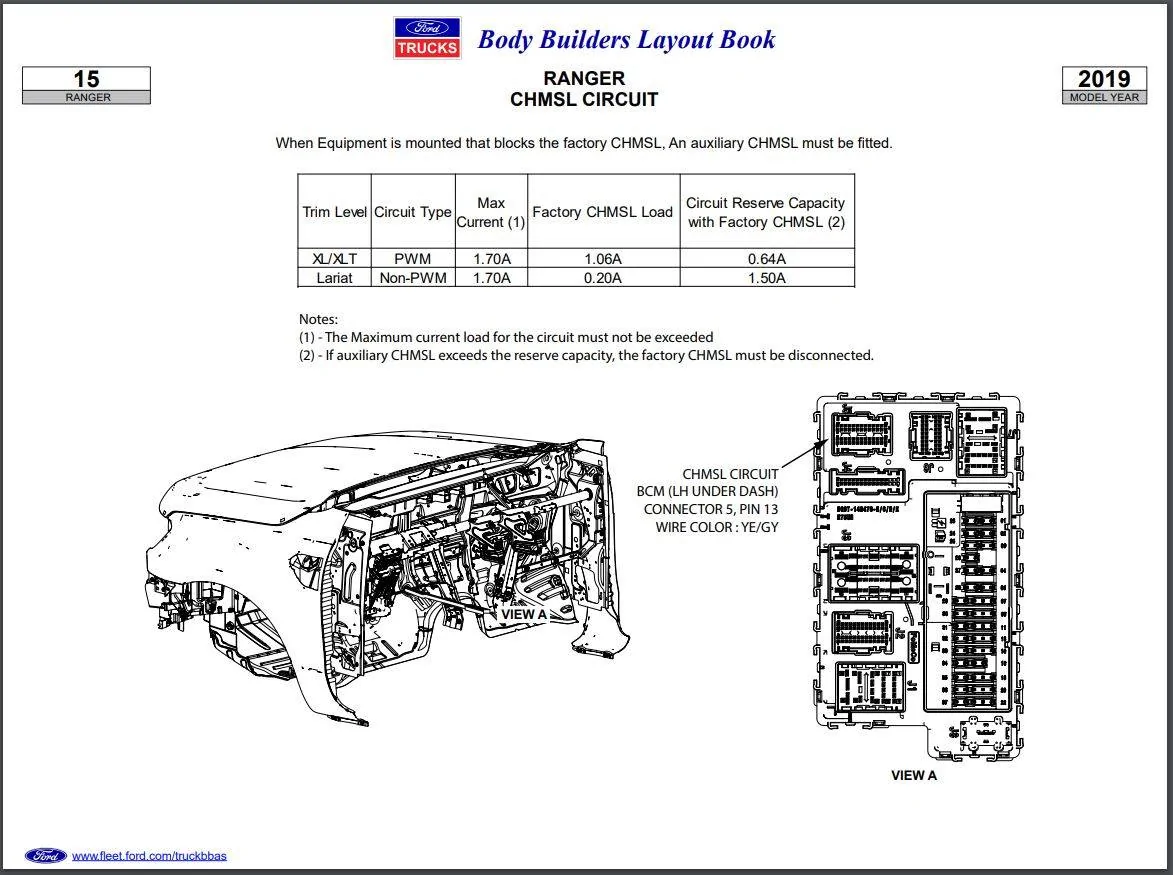

Mic19 provided me the attached diagram. I want to add a strobe module to the third brake light. Does anyone know where I can find the YE-GY wire (which I assume is Yellow-Gray)? I'd like to put the module under the dash instead of chopping up the wiring at the brake light (LED).

I have a 2020 Lariat with LED if that matters.
Sponsored



Attachments

OP
OP
Tom_C

Tom_C

Well-Known Member
First Name
Tom
Joined
Apr 17, 2021
Threads
24
Messages
1,577
Reaction score
3,189
Location
Virginia, USA
Vehicle(s)
2020 Ranger Lariat SuperCab FX4
Occupation
System Admin
OP
OP
Tom_C

Tom_C

Well-Known Member
First Name
Tom
Joined
Apr 17, 2021
Threads
24
Messages
1,577
Reaction score
3,189
Location
Virginia, USA
Vehicle(s)
2020 Ranger Lariat SuperCab FX4
Occupation
System Admin

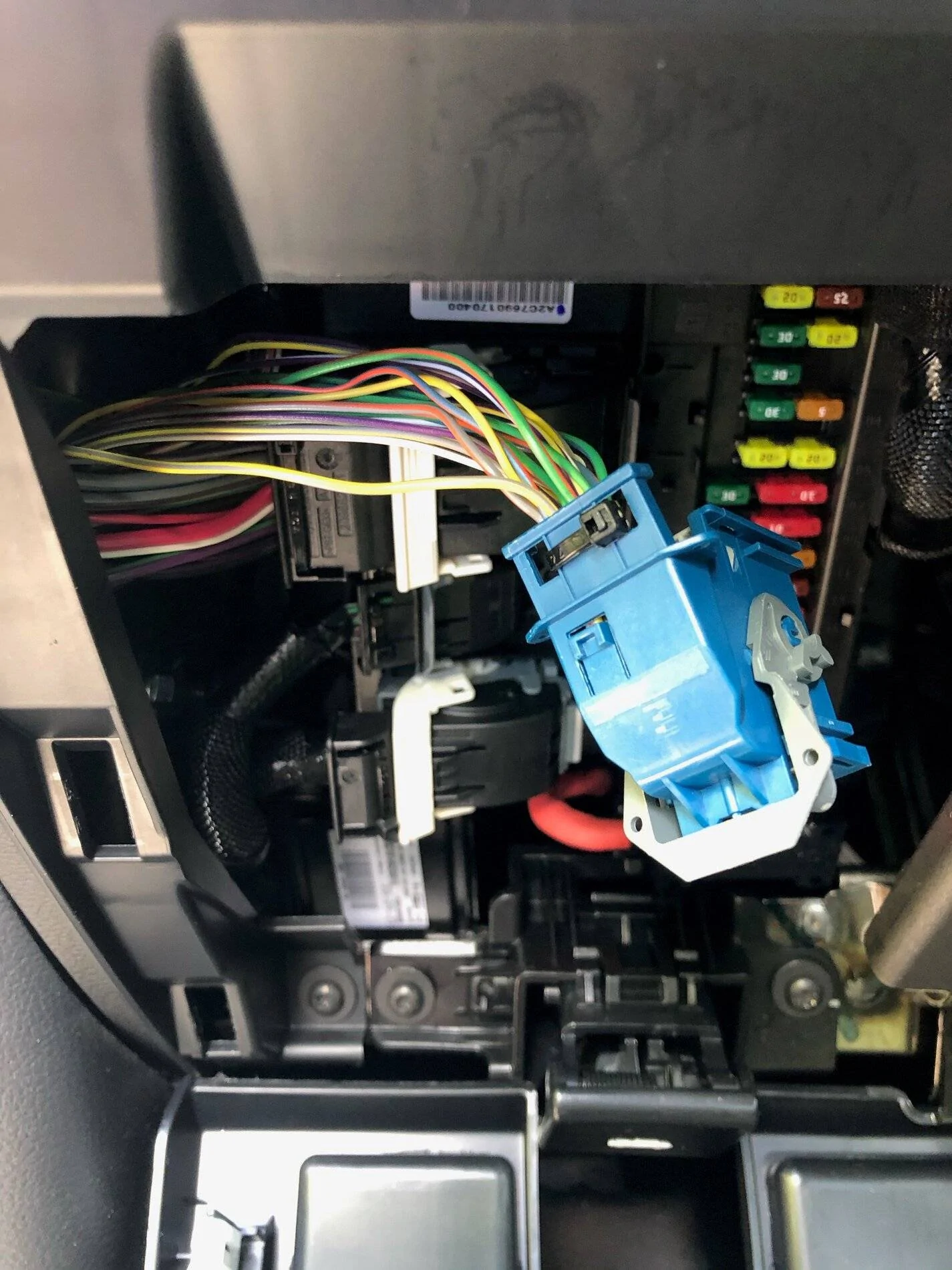

Top left connector, see view A picture above.

Yellow Gray wire (hard to see in photo). Much smaller gauge than I expected.


OP
OP
Tom_C

Tom_C

Well-Known Member
First Name
Tom
Joined
Apr 17, 2021
Threads
24
Messages
1,577
Reaction score
3,189
Location
Virginia, USA
Vehicle(s)
2020 Ranger Lariat SuperCab FX4
Occupation
System Admin
Look at that black connector to the left of the blue one in the picture. There is a little catch clip on the body of the connector, and you'll see that the lever it caught and held in place by that clip. You can see the clip on the blue connector.

Push down on that clip until it releases the lever, and then the lever can be folded back to release the connector.
