2019-2022 Ford Ranger 4X4 Old Man Emu 2" Complete Suspension Kit for Standard Load OMERNGR19SLMK

Stage3Motorsports

Diamond Sponsor
First Name
Joel
Joined
Jun 19, 2019
Threads
300
Messages
892
Reaction score
1,361
Location
Phoenix Arizona
Vehicle(s)
2019 Ford Ranger 4x4 XLT CrewCab
Occupation
Sales Specialist
Have enough parts in stock to ship 1 kit immediately and, just waiting on struts to ship more usually in stock or fairly quick lead times. If interested be sure to shoot me a PM


2019-2022 Ford Ranger 4X4 Old Man Emu 2" Complete Suspension Kit for Standard Load OMERNGR19SLMK


Highlights:
  • Can handle up to 2.36" front lift & 1.57" of rear suspension
  • Meant for stock, light, medium loads
  • Provides additional ground clearance
  • Increased ride height & ride quality
  • Improved comfort & handling
  • Includes installation instructions & hardware
Complete Suspension Upgrade with Improved Performance
While taking your midsize stock 2019-2022 Ford Ranger is certainly possible on some off-road trails, it should be a priority to get some suspension upgrades. Increased height ensures that your truck has more ground clearance, better damping performance, more control, and the ability for bigger off-road wheels and tires. However, it takes many components to ensure that you get a total package. Instead of picking and choosing leveling parts yourself and wondering if they are compatible with one another, it is helpful to pick a kit that provides everything for you. Crawling trails with your 2019-2022 Ford Ranger has never been easier and more convenient with ARB's Old Man Emu (OME) 2.5" Complete Suspension Kit. The complete lift kit includes complete front and rear upgrades of your truck's shocks and struts. A rear add a leaf is also provided for more off-road readiness and hardware is included to complete the kit. This kit is optimal for Rangers that carry a stock to medium load. Leaf spring bushes are a handy accessory for greasable shackles. Besides the shackles, a greasable pin makes servicing requirements easier. U-bolts for the leaf springs top off the additional hardware needed. Impressive Front Suspension
In the front of the Ranger, you'll find two Nitrocharger sport struts, coil springs and a front trim packer to handle the first half of the vehicle's suspension. The front struts were designed to instantly adapt to any terrain to increase control and comfort in any situation dramatically. Compared to stock, the struts perform better with road texture, and even with larger potholes and road features. The open length of the struts is 20.28" while the closed length rests at 13.9". Because of factory geometry, 2.36" of lift is maintained with an adequate level of droop because of the Old Man Emu's springs. The 2.2 lb, 0.69" diameter coil features an impressive spring rate of 60t lbf/in. The 14.76" free height springs are made out of X5K Steel to withstand whatever obstacles the underside of your Ranger may encounter. For bumpers without a winch, then the included 0.2" trim packer will allow for this kit to be precisely what you need. Ride height can be fine tuned to reach your target lift. Best Configuration of Rear Suspension
Rear lift upgrades include two Nitrocharger sport shock absorbers, leaf springs, and suspension hardware. These Nitrocharger shocks were crafted to function great no matter if you're carrying a load or not. Through lots of testing, the best shock configuration was achieved for a comfortable, controlled ride with the Nitrocharger shock. The open length of the shock is 24.6" while the closed length rests at 15.16". The Old Man Emu medium load leaf spring pack replaces the global Ranger leaf springs, which although the former works with this application, the Old Man Emu takes performance to the next level. Two leaf springs provide desired lift and ride qualities that you need for a smooth ride. The springs measure 1.77" of stack height and 1.97" of eye diameter in the front and 1.29" in the rear. The primary free camber measures 9.49". The leaf springs also feature 150 lbf/515 in and 26.2 N/3.56" of spring rate. To top off the Old Man Emu rear lift kit, you will also receive all required hardware for fitment. High-Quality Build & Impressive Warranty
The OME 2" Complete Suspension Kit is designed to withstand the rigors of off-road adventures and the harshest elements. Constructed from durable materials, that have been thoroughly tested for strength and longevity, the kit is the perfect upgrade for on- or off-road applications. OME includes all necessary installation hardware and offers an outstanding 3-Year/37,000 Mile Limited Warranty to help protect your investment.

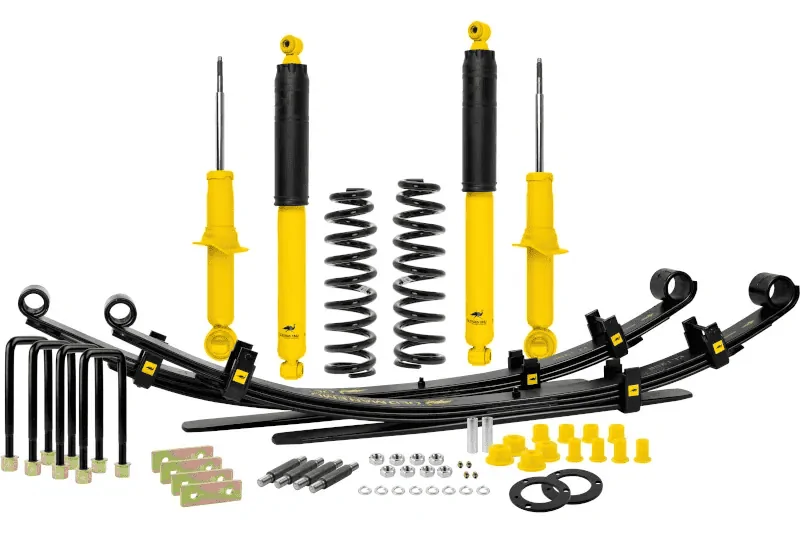

Included in Kit:
  • (2) Front Coil Springs
  • (2) Rear Leaf Springs
  • (2) Leaf Springs
  • (2) Nitrocharger Sport Struts
  • (2) Nitrocharger Sport Shocks
  • Required hardware

Fitment: 2019-2022 Ford Ranger 4X4

Winch Compatibility: This kit is designed for a bumper that is not fitted with a winch. If your bumper has a winch, then you might be interested in this kit instead.
Sponsored



afewgoodfingers

Active Member
Joined
May 23, 2020
Threads
7
Messages
31
Reaction score
27
Location
Texas
Vehicle(s)
2019 Ranger
Thanks for sharing! Does OME make a stock height or something smaller than this rear lift option for the leaf springs?

OP
OP
Stage3Motorsports

Stage3Motorsports

Diamond Sponsor
First Name
Joel
Joined
Jun 19, 2019
Threads
300
Messages
892
Reaction score
1,361
Location
Phoenix Arizona
Vehicle(s)
2019 Ford Ranger 4x4 XLT CrewCab
Occupation
Sales Specialist
Thanks for sharing! Does OME make a stock height or something smaller than this rear lift option for the leaf springs?
They do not, the icon rear leafs would be my suggestion for that, they would be an additional .375" at the lowest configuration.

OP
OP
Stage3Motorsports

Stage3Motorsports

Diamond Sponsor
First Name
Joel
Joined
Jun 19, 2019
Threads
300
Messages
892
Reaction score
1,361
Location
Phoenix Arizona
Vehicle(s)
2019 Ford Ranger 4x4 XLT CrewCab
Occupation
Sales Specialist
what's up with the stock situation? Everything I'm seeing shows out of stock
Just sent you a pm, inventory is hard to track on those kits because they are composed of 7 different part#s.
